상품 상세보기 : 리니어클램프(공압타입)

HOME > 직동기기 > 직동주변기기 > 리니어클램프 > 리니어클램프(공압타입) > UBPS 리니어클램퍼·즈이

리니어클램프(공압타입)

UBPS 리니어클램퍼·즈이

나베야바이테크(주) ( NABEYA BI-TECH )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


87건 중 1~87건 표시

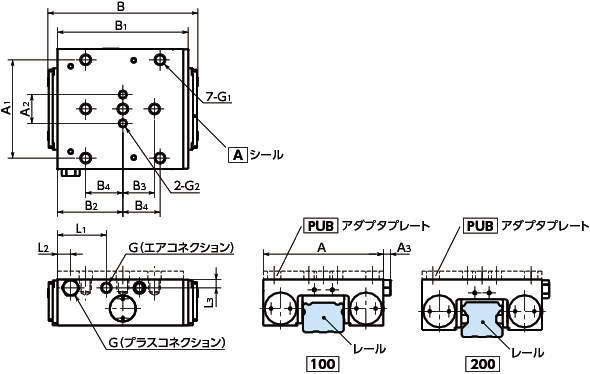

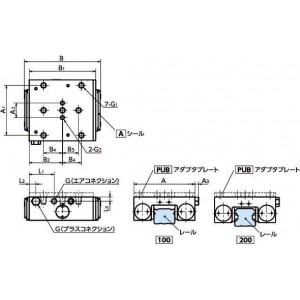

형식	지지력 (N) 표준/플러스콘넥션	형상	A	A1	A2	A3
형식	지지력 (N) 표준/플러스콘넥션	형상	A	A1	A2	A3
UBPS-2503-AS1	1500/2200	200	70	57	20	5
UBPS-2505-AS1	1500/2650	200	70	57	20	5
UBPS-3001-AS1	1750/2250	200	90	72	22	5
UBPS-3002-AS1	1750/2650	200	90	72	22	5
UBPS-3004-AS1	1850/2650	100	90	72	22	5
UBPS-3005-AS1	2500/3300	200	90	72	22	5
UBPS-3010-AS1	1850/2650	100	90	72	22	5
UBPS-3501-AS1	2500/3300	200	100	82	24	6
UBPS-3502-AS1	2500/3000	200	100	82	24	6
UBPS-3503-AS1	2800/3400	200	100	82	24	6
UBPS-3504-AS1	2500/3300	100	100	82	24	6
UBPS-3505-AS1	2800/3800	200	100	82	24	6
UBPS-3510-AS1	2500/3300	100	100	82	24	6
UBPS-4501-AS1	2800/3800	200	120	100	26	6
UBPS-4502-AS1	3100/3800	200	120	100	26	6
UBPS-4503-AS1L	5200/7600	200	120	100	26	6
UBPS-4505-AS1L	5200/7600	200	120	100	26	6
UBPS-4510-AS1	3100/3800	200	120	100	26	6
UBPS-5501-AS1L	7700/9200	200	140	116	-	6
UBPS-5502-AS1L	5200/7600	200	140	116	-	6
UBPS-5503-AS1L	7700/9200	200	140	116	-	6
UBPS-5505-AS1L	7700/9200	200	140	116	-	6
UBPS-6501-AS1L	7700/9200	200	170	142	-	6
UBPS-6503-AS1L	7700/9200	200	170	142	-	6
UBPS-6505-AS1L	7700/9200	200	170	142	-	6
UBPS-2505-BS1	1850/2650	200	70	57	20	5
UBPS-2510-BS1	1850/2650	200	70	57	20	5
UBPS-3002-BS1	1750/2250	200	90	72	22	5
UBPS-3004-BS1	2150/2650	100	90	72	22	5
UBPS-3010-BS1	2500/3300	200	90	72	22	5
UBPS-3501-BS1	2500/3300	100	100	-	24	6
UBPS-3502-BS1	2600/3400	200	100	82	24	6
UBPS-3504-BS1	2500/3300	100	100	82	24	6
UBPS-3505-BS1	2800/3800	200	100	82	24	6
UBPS-3510-BS1	2800/3800	200	100	82	24	6
UBPS-4501-BS1	2800/3800	100	120	-	26	6
UBPS-4502-BS1L	5200/7600	200	120	100	26	6
UBPS-4504-BS1	2800/3800	100	120	100	26	6
UBPS-4505-BS1L	5200/7600	200	120	100	26	6
UBPS-4510-BS1L	5200/7600	200	120	100	26	6
UBPS-5501-BS1L	5200/7600	100	140	-	-	6
UBPS-5504-BS1L	5200/7200	100	140	116	-	6
UBPS-5505-BS1L	7700/9200	200	140	116	-	6
UBPS-5510-BS1L	5200/7600	200	140	116	-	6
UBPS-6501-BS1L	7700/9200	100	170	142	-	6
UBPS-6504-BS1L	7700/9200	100	170	142	-	6
UBPS-6505-BS1L	7700/9200	200	170	142	-	6
UBPS-6510-BS1L	7700/9200	200	170	142	-	6
UBPS-3001-CS1	1750/2250	100	90	72	22	5
UBPS-3002-CS1	1750/2650	100	90	72	22	5
UBPS-3004-CS1	1850/2650	200	90	72	22	5
UBPS-3501-CS1	2500/3300	200	100	82	24	6
UBPS-3504-CS1	2500/3300	100	100	82	24	6
UBPS-4501-CS1	2800/3800	200	120	100	26	6
UBPS-4504-CS1	2800/3800	100	120	100	26	6
UBPS-5501-CS1L	7700/9200	200	140	116	-	6
UBPS-6501-CS1L	7700/9200	200	170	142	-	6
UBPS-3010-DS1	2150/2650	100	90	72	22	5
UBPS-3502-DS1	2500/-	200	100	82	24	6
UBPS-3510-DS1	2500/3300	100	100	82	24	6
UBPS-4502-DS1L	5200/-	200	120	100	26	6
UBPS-4510-DS1	3100/-	200	120	100	26	6
UBPS-5502-DS1L	7700/-	200	140	116	-	6
UBPS-6502-DS1L	7700/-	200	170	142	-	6
UBPS-2501-ES1	1500/2200	200	70	57	20	5
UBPS-3001-ES1	2500/3300	200	90	72	22	5
UBPS-3012-ES1	1750/2650	200	90	72	22	5
UBPS-3501-ES1	2800/3800	200	100	82	24	6
UBPS-3512-ES1	2500/3300	200	100	82	24	6
UBPS-4501-ES1L	5200/7600	200	120	100	26	6
UBPS-4512-ES1	3100/3800	200	120	100	26	6
UBPS-5501-ES1L	7700/9200	200	140	116	-	6
UBPS-6501-ES1L	7700/9200	200	170	142	-	6
UBPS-2504-FS1	1500/2200	200	70	57	20	5
UBPS-2512-FS1	1500/2200	200	70	57	20	5
UBPS-3004-FS1	2500/3300	200	90	72	22	5
UBPS-3012-FS1	2500/3300	200	90	72	22	5
UBPS-3504-FS1	2800/3800	200	100	82	24	6
UBPS-3512-FS1	2800/3800	200	100	82	24	6
UBPS-4504-FS1L	5200/7600	200	120	100	26	6
UBPS-4512-FS1L	5200/7600	200	120	100	26	6
UBPS-5504-FS1L	7700/9200	200	140	116	-	6
UBPS-5512-FS1L	7700/9200	200	140	116	-	6
UBPS-6504-FS1L	7700/9200	200	170	142	-	6
UBPS-6512-FS1L	7700/9200	200	170	142	-	6
UBPS-3501-IS1	2500/3300	100	100	-	24	6
UBPS-6501-IS1L	7700/9200	100	170	142	-	6

형식	B	B1	B2	B3	B4
형식	B	B1	B2	B3	B4
UBPS-2503-AS1	max.136	99	49.5	20	22.5
UBPS-2505-AS1	max.136	99	49.5	20	22.5
UBPS-3001-AS1	max.138	109	54.5	22	26
UBPS-3002-AS1	max.138	109	54.5	22	26
UBPS-3004-AS1	max.138	109	54.5	22	26
UBPS-3005-AS1	max.138	109	54.5	22	26
UBPS-3010-AS1	max.138	109	54.5	22	26
UBPS-3501-AS1	max.136	109	54.5	26	31
UBPS-3502-AS1	max.136	109	54.5	26	31
UBPS-3503-AS1	max.136	109	54.5	26	31
UBPS-3504-AS1	max.136	109	54.5	26	31
UBPS-3505-AS1	max.136	109	54.5	26	31
UBPS-3510-AS1	max.136	109	54.5	26	31
UBPS-4501-AS1	max.130	109	54.5	30	40
UBPS-4502-AS1	max.133	109	54.5	30	40
UBPS-4503-AS1L	max.228	197	98.5	30	40
UBPS-4505-AS1L	max.228	197	98.5	30	40
UBPS-4510-AS1	max.133	109	54.5	30	40
UBPS-5501-AS1L	max.226	197	98.5	35	47.5
UBPS-5502-AS1L	max.218	197	98.5	35	47.5
UBPS-5503-AS1L	max.226	197	98.5	35	47.5
UBPS-5505-AS1L	max.226	197	98.5	35	47.5
UBPS-6501-AS1L	max.233	197	98.5	41	55
UBPS-6503-AS1L	max.233	197	98.5	41	55
UBPS-6505-AS1L	max.233	197	98.5	41	55
UBPS-2505-BS1	max.123	99	49.5	20	22.5
UBPS-2510-BS1	max.115	99	49.5	20	22.5
UBPS-3002-BS1	max.138	109	54.5	22	26
UBPS-3004-BS1	max.134	109	54.5	22	26
UBPS-3010-BS1	max.138	109	54.5	22	26
UBPS-3501-BS1	max.136	109	54.5	31	-
UBPS-3502-BS1	max.136	109	54.5	26	31
UBPS-3504-BS1	max.136	109	54.5	26	31
UBPS-3505-BS1	max.136	109	54.5	26	31
UBPS-3510-BS1	max.136	109	54.5	26	31
UBPS-4501-BS1	max.128	109	54.5	40	40
UBPS-4502-BS1L	max.228	197	98.5	30	40
UBPS-4504-BS1	max.130	109	54.5	30	40
UBPS-4505-BS1L	max.228	197	98.5	30	40
UBPS-4510-BS1L	max.228	197	98.5	30	40
UBPS-5501-BS1L	max.218	197	98.5	47.5	47.5
UBPS-5504-BS1L	max.221	197	98.5	35	47.5
UBPS-5505-BS1L	max.226	197	98.5	35	47.5
UBPS-5510-BS1L	max.221	197	98.5	35	47.5
UBPS-6501-BS1L	max.215	197	98.5	41	55
UBPS-6504-BS1L	max.233	197	98.5	41	55
UBPS-6505-BS1L	max.233	197	98.5	41	55
UBPS-6510-BS1L	max.233	197	98.5	41	55
UBPS-3001-CS1	max.138	109	54.5	22	26
UBPS-3002-CS1	max.138	109	54.5	22	26
UBPS-3004-CS1	max.134	109	54.5	22	26
UBPS-3501-CS1	max.136	109	54.5	26	31
UBPS-3504-CS1	max.134	109	54.5	26	31
UBPS-4501-CS1	max.133	109	54.5	30	40
UBPS-4504-CS1	max.133	109	54.5	30	40
UBPS-5501-CS1L	max.221	197	98.5	35	47.5
UBPS-6501-CS1L	max.233	197	98.5	41	55
UBPS-3010-DS1	max.138	109	54.5	22	26
UBPS-3502-DS1	max.129	109	54.5	22	31
UBPS-3510-DS1	max.136	109	54.5	26	31
UBPS-4502-DS1L	max.221	197	98.5	30	40
UBPS-4510-DS1	max.130	109	54.5	30	40
UBPS-5502-DS1L	max.223	197	98.5	35	47.5
UBPS-6502-DS1L	max.226	197	98.5	41	55
UBPS-2501-ES1	max.136	99	49.5	22	22.5
UBPS-3001-ES1	max.138	109	54.5	22	26
UBPS-3012-ES1	max.138	109	54.5	26	26
UBPS-3501-ES1	max.136	109	54.5	26	31
UBPS-3512-ES1	max.136	109	54.5	30	31
UBPS-4501-ES1L	max.228	197	98.5	30	40
UBPS-4512-ES1	max.133	109	54.5	35	40
UBPS-5501-ES1L	max.226	197	98.5	41	47.5
UBPS-6501-ES1L	max.233	197	98.5	20	55
UBPS-2504-FS1	max.136	99	49.5	20	22.5
UBPS-2512-FS1	max.136	99	49.5	22	22.5
UBPS-3004-FS1	max.138	109	54.5	22	26
UBPS-3012-FS1	max.138	109	54.5	26	26
UBPS-3504-FS1	max.136	109	54.5	26	31
UBPS-3512-FS1	max.136	109	54.5	-	31
UBPS-4504-FS1L	max.228	197	98.5	30	40
UBPS-4512-FS1L	max.228	197	98.5	30	40
UBPS-5504-FS1L	max.221	197	98.5	35	47.5
UBPS-5512-FS1L	max.226	197	98.5	35	47.5
UBPS-6504-FS1L	max.233	197	98.5	41	55
UBPS-6512-FS1L	max.233	197	98.5	41	55
UBPS-3501-IS1	max.136	109	54.5	31	-
UBPS-6501-IS1L	max.215	197	98.5	41	55

형식	G	G1/깊이	G2/깊이	L1	L2	L3
형식	G	G1/깊이	G2/깊이	L1	L2	L3
UBPS-2503-AS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-2505-AS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-3001-AS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3002-AS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3004-AS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3005-AS1	M5	M10/8	M8/8	40.8	11	6.5
UBPS-3010-AS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3501-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3502-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3503-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3504-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3505-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3510-AS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-4501-AS1	G1/8	M12/12	M10/12	45	28	8
UBPS-4502-AS1	G1/8	M12/12	M10/12	45	28	8
UBPS-4503-AS1L	G1/8	M12/12	-	167	32	8
UBPS-4505-AS1L	G1/8	M12/12	-	167	32	8
UBPS-4510-AS1	G1/8	M12/12	M10/12	45	28	8
UBPS-5501-AS1L	G1/8	M14/14	-	165	32	13
UBPS-5502-AS1L	G1/8	M14/14	-	165	32	13
UBPS-5503-AS1L	G1/8	M14/14	-	165	32	13
UBPS-5505-AS1L	G1/8	M14/14	-	165	32	13
UBPS-6501-AS1L	G1/8	M16/20	-	170	27	20
UBPS-6503-AS1L	G1/8	M16/20	-	170	27	20
UBPS-6505-AS1L	G1/8	M16/20	-	170	27	20
UBPS-2505-BS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-2510-BS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-3002-BS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3004-BS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3010-BS1	M5	M10/8	M8/8	40.8	11	6.5
UBPS-3501-BS1	G1/8	M10/10	M8/10	40.8	11	7
UBPS-3502-BS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3504-BS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3505-BS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3510-BS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-4501-BS1	G1/8	M12/12	M10/12	67.2	25	7
UBPS-4502-BS1L	G1/8	M12/12	-	167	32	8
UBPS-4504-BS1	G1/8	M12/12	M10/12	45	28	8
UBPS-4505-BS1L	G1/8	M12/12	-	167	32	8
UBPS-4510-BS1L	G1/8	M12/12	-	167	32	8
UBPS-5501-BS1L	G1/8	M14/12	-	167	32	12
UBPS-5504-BS1L	G1/8	M14/14	-	165	32	13
UBPS-5505-BS1L	G1/8	M14/14	-	165	32	13
UBPS-5510-BS1L	G1/8	M14/14	-	165	32	13
UBPS-6501-BS1L	G1/8	M14/14	-	170	27	11
UBPS-6504-BS1L	G1/8	M16/20	-	170	27	20
UBPS-6505-BS1L	G1/8	M16/20	-	170	27	20
UBPS-6510-BS1L	G1/8	M16/20	-	170	27	20
UBPS-3001-CS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3002-CS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3004-CS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3501-CS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3504-CS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-4501-CS1	G1/8	M12/12	M10/12	45	28	8
UBPS-4504-CS1	G1/8	M12/12	M10/12	45	28	8
UBPS-5501-CS1L	G1/8	M14/14	-	165	32	13
UBPS-6501-CS1L	G1/8	M16/20	-	170	27	20
UBPS-3010-DS1	M5	M10/8	M8/8	40.8	11	7
UBPS-3502-DS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3510-DS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-4502-DS1L	G1/8	M12/12	-	167	32	8
UBPS-4510-DS1	G1/8	M12/12	M10/12	45	28	8
UBPS-5502-DS1L	G1/8	M14/14	-	165	32	13
UBPS-6502-DS1L	G1/8	M16/20	-	170	27	20
UBPS-2501-ES1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-3001-ES1	M5	M10/8	M8/8	40.8	11	6.5
UBPS-3012-ES1	M5	M10/8	M8/8	40.8	11	7
UBPS-3501-ES1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3512-ES1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-4501-ES1L	G1/8	M12/12	-	167	32	8
UBPS-4512-ES1	G1/8	M12/12	M10/12	45	28	8
UBPS-5501-ES1L	G1/8	M14/14	-	165	32	13
UBPS-6501-ES1L	G1/8	M16/20	-	170	27	20
UBPS-2504-FS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-2512-FS1	M5	M8/7	M6/7	34.3	11	6.5
UBPS-3004-FS1	M5	M10/8	M8/8	40.8	11	6.5
UBPS-3012-FS1	M5	M10/8	M8/8	40.8	11	6.5
UBPS-3504-FS1	G1/8	M10/10	M8/10	40.8	11	8
UBPS-3512-FS1	G1/8	M10/10	M8/10	167	11	8
UBPS-4504-FS1L	G1/8	M12/12	-	167	32	8
UBPS-4512-FS1L	G1/8	M12/12	-	165	32	8
UBPS-5504-FS1L	G1/8	M14/14	-	165	32	13
UBPS-5512-FS1L	G1/8	M14/14	-	165	32	13
UBPS-6504-FS1L	G1/8	M16/20	-	170	27	20
UBPS-6512-FS1L	G1/8	M16/20	-	170	27	20
UBPS-3501-IS1	G1/8	M10/10	M8/10	40.8	11	7
UBPS-6501-IS1L	G1/8	M16/14	-	170	27	11

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (kg)	견적의뢰 및 주문
UBPS-2503-AS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-2505-AS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-3001-AS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3002-AS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3004-AS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3005-AS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3010-AS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3501-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3502-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3503-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3504-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3505-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3510-AS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4501-AS1	P	6,116,000	-	-	-	4	견적의뢰 / 주문
UBPS-4502-AS1	P	6,116,000	-	-	-	4	견적의뢰 / 주문
UBPS-4503-AS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-4505-AS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-4510-AS1	P	6,116,000	-	-	-	4	견적의뢰 / 주문
UBPS-5501-AS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5502-AS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5503-AS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5505-AS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6501-AS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6503-AS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6505-AS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-2505-BS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-2510-BS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-3002-BS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3004-BS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3010-BS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3501-BS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3502-BS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3504-BS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3505-BS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3510-BS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4501-BS1	P	6,116,000	-	-	-	6	견적의뢰 / 주문
UBPS-4502-BS1L	P	7,348,000	-	-	-	7	견적의뢰 / 주문
UBPS-4504-BS1	P	6,116,000	-	-	-	6	견적의뢰 / 주문
UBPS-4505-BS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-4510-BS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-5501-BS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5504-BS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5505-BS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5510-BS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6501-BS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6504-BS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6505-BS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6510-BS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-3001-CS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3002-CS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3004-CS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3501-CS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3504-CS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4501-CS1	P	6,116,000	-	-	-	6	견적의뢰 / 주문
UBPS-4504-CS1	P	6,116,000	-	-	-	6	견적의뢰 / 주문
UBPS-5501-CS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6501-CS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-3010-DS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3502-DS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3510-DS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4502-DS1L	P	7,348,000	-	-	-	7	견적의뢰 / 주문
UBPS-4510-DS1	P	6,116,000	-	-	-	4	견적의뢰 / 주문
UBPS-5502-DS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6502-DS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-2501-ES1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-3001-ES1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3012-ES1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3501-ES1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3512-ES1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4501-ES1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-4512-ES1	P	6,116,000	-	-	-	4	견적의뢰 / 주문
UBPS-5501-ES1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6501-ES1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-2504-FS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-2512-FS1	P	4,290,000	-	-	-	1	견적의뢰 / 주문
UBPS-3004-FS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3012-FS1	P	4,730,000	-	-	-	2	견적의뢰 / 주문
UBPS-3504-FS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-3512-FS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-4504-FS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-4512-FS1L	P	7,348,000	-	-	-	6	견적의뢰 / 주문
UBPS-5504-FS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-5512-FS1L	P	7,766,000	-	-	-	9	견적의뢰 / 주문
UBPS-6504-FS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-6512-FS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문
UBPS-3501-IS1	P	5,280,000	-	-	-	2	견적의뢰 / 주문
UBPS-6501-IS1L	P	9,438,000	-	-	-	15	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
