상품 상세보기 : 대형콘베어체인용스프라켓 - RF콘베어체인용스프라켓(S롤러)BW·BW1형

HOME > 체인전도 > 스프라켓 > 대형콘베어체인용스프라켓 > RF콘베어체인용스프라켓(S롤러)BW·BW1형

대형콘베어체인용스프라켓

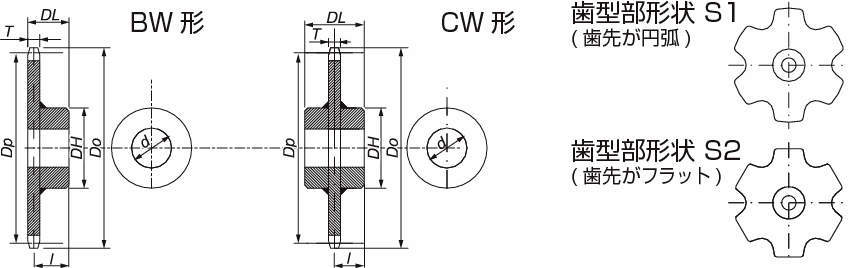

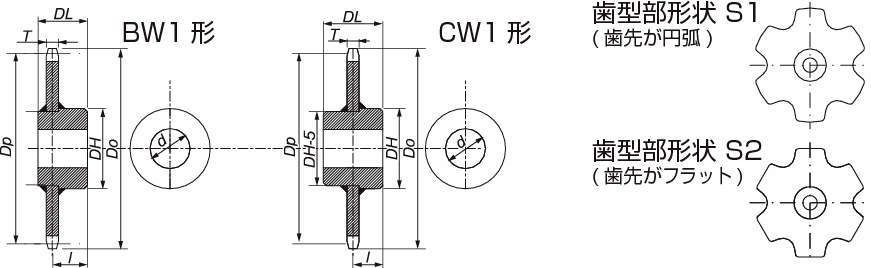

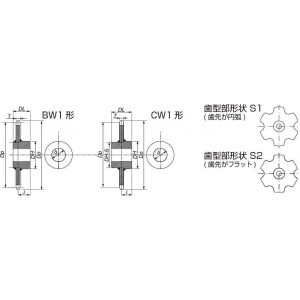

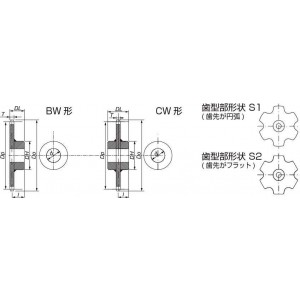

RF콘베어체인용스프라켓(S롤러)BW·BW1형

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


186건 중 1~186건 표시

형식	치수계	롤러형상	체인번호	허브타입	체인 피치 (mm)	피치원직경 DP (mm)
형식	치수계	롤러형상	체인번호	허브타입	체인 피치 (mm)	피치원직경 DP (mm)
RF03075S6T-BWN	미터계피치	S롤러	RF03075S	BW	75	150
RF03075S8T-BWN	미터계피치	S롤러	RF03075S	BW	75	196
RF03075S10T-BWN	미터계피치	S롤러	RF03075S	BW	75	242.7
RF03075S12T-BWN	미터계피치	S롤러	RF03075S	BW	75	289.8
RF03075S6T-BWQ	미터계피치	S롤러	RF03075S	BW	75	150
RF03075S8T-BWQ	미터계피치	S롤러	RF03075S	BW	75	196
RF03075S10T-BWQ	미터계피치	S롤러	RF03075S	BW	75	242.7
RF03075S12T-BWQ	미터계피치	S롤러	RF03075S	BW	75	289.8
RF03100S6T-BWN	미터계피치	S롤러	RF03100S	BW	100	200
RF03100S8T-BWN	미터계피치	S롤러	RF03100S	BW	100	261.3
RF03100S10T-BWN	미터계피치	S롤러	RF03100S	BW	100	323.6
RF03100S12T-BWN	미터계피치	S롤러	RF03100S	BW	100	386.4
RF03100S6T-BWQ	미터계피치	S롤러	RF03100S	BW	100	200
RF03100S8T-BWQ	미터계피치	S롤러	RF03100S	BW	100	261.3
RF03100S10T-BWQ	미터계피치	S롤러	RF03100S	BW	100	323.6
RF03100S12T-BWQ	미터계피치	S롤러	RF03100S	BW	100	386.4
RF05075S8T-BWN	미터계피치	S롤러	RF05075S	BW	75	196
RF05075S10T-BWN	미터계피치	S롤러	RF05075S	BW	75	242.7
RF05075S12T-BWN	미터계피치	S롤러	RF05075S	BW	75	289.8
RF05075S8T-BWQ	미터계피치	S롤러	RF05075S	BW	75	196
RF05075S10T-BWQ	미터계피치	S롤러	RF05075S	BW	75	242.7
RF05075S12T-BWQ	미터계피치	S롤러	RF05075S	BW	75	289.8
RF05100S6T-BWN	미터계피치	S롤러	RF05100S	BW	100	200
RF05100S8T-BWN	미터계피치	S롤러	RF05100S	BW	100	261.3
RF05100S10T-BWN	미터계피치	S롤러	RF05100S	BW	100	323.6
RF05100S12T-BWN	미터계피치	S롤러	RF05100S	BW	100	386.4
RF05100S6T-BWQ	미터계피치	S롤러	RF05100S	BW	100	200
RF05100S8T-BWQ	미터계피치	S롤러	RF05100S	BW	100	261.3
RF05100S10T-BWQ	미터계피치	S롤러	RF05100S	BW	100	323.6
RF05100S12T-BWQ	미터계피치	S롤러	RF05100S	BW	100	386.4
RF05125S6T-BWN	미터계피치	S롤러	RF05125S	BW	125	250
RF05125S8T-BWN	미터계피치	S롤러	RF05125S	BW	125	326.6
RF05125S10T-BWN	미터계피치	S롤러	RF05125S	BW	125	404.5
RF05125S12T-BWN	미터계피치	S롤러	RF05125S	BW	125	483
RF05125S6T-BWQ	미터계피치	S롤러	RF05125S	BW	125	250
RF05125S8T-BWQ	미터계피치	S롤러	RF05125S	BW	125	326.6
RF05125S10T-BWQ	미터계피치	S롤러	RF05125S	BW	125	404.5
RF05125S12T-BWQ	미터계피치	S롤러	RF05125S	BW	125	483
RF05150S6T-BWN	미터계피치	S롤러	RF05150S	BW	150	300
RF05150S8T-BWN	미터계피치	S롤러	RF05150S	BW	150	392
RF05150S10T-BWN	미터계피치	S롤러	RF05150S	BW	150	485.4
RF05150S12T-BWN	미터계피치	S롤러	RF05150S	BW	150	579.6
RF05150S6T-BWQ	미터계피치	S롤러	RF05150S	BW	150	300
RF05150S8T-BWQ	미터계피치	S롤러	RF05150S	BW	150	392
RF05150S10T-BWQ	미터계피치	S롤러	RF05150S	BW	150	485.4
RF05150S12T-BWQ	미터계피치	S롤러	RF05150S	BW	150	579.6
RF08125S6T-BWN	미터계피치	S롤러	RF08125S	BW	125	250
RF08125S8T-BWN	미터계피치	S롤러	RF08125S	BW	125	326.6
RF08125S10T-BWN	미터계피치	S롤러	RF08125S	BW	125	404.5
RF08125S12T-BWN	미터계피치	S롤러	RF08125S	BW	125	483
RF08125S6T-BWQ	미터계피치	S롤러	RF08125S	BW	125	250
RF08125S8T-BWQ	미터계피치	S롤러	RF08125S	BW	125	326.6
RF08125S10T-BWQ	미터계피치	S롤러	RF08125S	BW	125	404.5
RF08125S12T-BWQ	미터계피치	S롤러	RF08125S	BW	125	483
RF08150S6T-BWN	미터계피치	S롤러	RF08150S	BW	150	300
RF08150S8T-BWN	미터계피치	S롤러	RF08150S	BW	150	392
RF08150S10T-BWN	미터계피치	S롤러	RF08150S	BW	150	485.4
RF08150S12T-BWN	미터계피치	S롤러	RF08150S	BW	150	579.6
RF08150S6T-BWQ	미터계피치	S롤러	RF08150S	BW	150	300
RF08150S8T-BWQ	미터계피치	S롤러	RF08150S	BW	150	392
RF08150S10T-BWQ	미터계피치	S롤러	RF08150S	BW	150	485.4
RF08150S12T-BWQ	미터계피치	S롤러	RF08150S	BW	150	579.6
RF10100S6T-BWN	미터계피치	S롤러	RF10100S	BW	100	200
RF10100S8T-BWN	미터계피치	S롤러	RF10100S	BW	100	261.3
RF10100S10T-BWN	미터계피치	S롤러	RF10100S	BW	100	323.6
RF10100S12T-BWN	미터계피치	S롤러	RF10100S	BW	100	386.4
RF10100S6T-BWQ	미터계피치	S롤러	RF10100S	BW	100	200
RF10100S8T-BWQ	미터계피치	S롤러	RF10100S	BW	100	261.3
RF10100S10T-BWQ	미터계피치	S롤러	RF10100S	BW	100	323.6
RF10100S12T-BWQ	미터계피치	S롤러	RF10100S	BW	100	386.4
RF10125S6T-BWN	미터계피치	S롤러	RF10125S	BW	125	250
RF10125S8T-BWN	미터계피치	S롤러	RF10125S	BW	125	326.6
RF10125S10T-BWN	미터계피치	S롤러	RF10125S	BW	125	404.5
RF10125S12T-BWN	미터계피치	S롤러	RF10125S	BW	125	483
RF10125S6T-BWQ	미터계피치	S롤러	RF10125S	BW	125	250
RF10125S8T-BWQ	미터계피치	S롤러	RF10125S	BW	125	326.6
RF10125S10T-BWQ	미터계피치	S롤러	RF10125S	BW	125	404.5
RF10125S12T-BWQ	미터계피치	S롤러	RF10125S	BW	125	483
RF10150S6T-BWN	미터계피치	S롤러	RF10150S	BW	150	300
RF10150S8T-BWN	미터계피치	S롤러	RF10150S	BW	150	392
RF10150S10T-BWN	미터계피치	S롤러	RF10150S	BW	150	485.4
RF10150S12T-BWN	미터계피치	S롤러	RF10150S	BW	150	579.6
RF10150S6T-BWQ	미터계피치	S롤러	RF10150S	BW	150	300
RF10150S8T-BWQ	미터계피치	S롤러	RF10150S	BW	150	392
RF10150S10T-BWQ	미터계피치	S롤러	RF10150S	BW	150	485.4
RF10150S12T-BWQ	미터계피치	S롤러	RF10150S	BW	150	579.6
RF12200S6T-BW1N	미터계피치	S롤러	RF12200S	BW1	200	400
RF12200S8T-BW1N	미터계피치	S롤러	RF12200S	BW1	200	522.6
RF12200S10T-BW1N	미터계피치	S롤러	RF12200S	BW1	200	647.2
RF12200S12T-BW1N	미터계피치	S롤러	RF12200S	BW1	200	772.7
RF12200S6T-BW1Q	미터계피치	S롤러	RF12200S	BW1	200	400
RF12200S8T-BW1Q	미터계피치	S롤러	RF12200S	BW1	200	522.6
RF12200S10T-BW1Q	미터계피치	S롤러	RF12200S	BW1	200	647.2
RF12200S12T-BW1Q	미터계피치	S롤러	RF12200S	BW1	200	772.7
RF12250S6T-BW1N	미터계피치	S롤러	RF12250S	BW1	250	500
RF12250S8T-BW1N	미터계피치	S롤러	RF12250S	BW1	250	653.3
RF12250S10T-BW1N	미터계피치	S롤러	RF12250S	BW1	250	809
RF12250S12T-BW1N	미터계피치	S롤러	RF12250S	BW1	250	965.9
RF12250S6T-BW1Q	미터계피치	S롤러	RF12250S	BW1	250	500
RF12250S8T-BW1Q	미터계피치	S롤러	RF12250S	BW1	250	653.3
RF12250S10T-BW1Q	미터계피치	S롤러	RF12250S	BW1	250	809
RF12250S12T-BW1Q	미터계피치	S롤러	RF12250S	BW1	250	965.9
RF17200S6T-BW1N	미터계피치	S롤러	RF17200S	BW1	200	400
RF17200S8T-BW1N	미터계피치	S롤러	RF17200S	BW1	200	522.6
RF17200S10T-BW1N	미터계피치	S롤러	RF17200S	BW1	200	647.2
RF17200S12T-BW1N	미터계피치	S롤러	RF17200S	BW1	200	772.7
RF17200S6T-BW1Q	미터계피치	S롤러	RF17200S	BW1	200	400
RF17200S8T-BW1Q	미터계피치	S롤러	RF17200S	BW1	200	522.6
RF17200S10T-BW1Q	미터계피치	S롤러	RF17200S	BW1	200	647.2
RF17200S12T-BW1Q	미터계피치	S롤러	RF17200S	BW1	200	772.7
RF17250S6T-BW1N	미터계피치	S롤러	RF17250S	BW1	250	500
RF17250S8T-BW1N	미터계피치	S롤러	RF17250S	BW1	250	653.3
RF17250S10T-BW1N	미터계피치	S롤러	RF17250S	BW1	250	809
RF17250S12T-BW1N	미터계피치	S롤러	RF17250S	BW1	250	965.9
RF17250S6T-BW1Q	미터계피치	S롤러	RF17250S	BW1	250	500
RF17250S8T-BW1Q	미터계피치	S롤러	RF17250S	BW1	250	653.3
RF17250S10T-BW1Q	미터계피치	S롤러	RF17250S	BW1	250	809
RF17250S12T-BW1Q	미터계피치	S롤러	RF17250S	BW1	250	965.9
RF17300S6T-BW1N	미터계피치	S롤러	RF17300S	BW1	300	600
RF17300S8T-BW1N	미터계피치	S롤러	RF17300S	BW1	300	783.9
RF17300S10T-BW1N	미터계피치	S롤러	RF17300S	BW1	300	970.8
RF17300S12T-BW1N	미터계피치	S롤러	RF17300S	BW1	300	1159.1
RF17300S6T-BW1Q	미터계피치	S롤러	RF17300S	BW1	300	600
RF17300S8T-BW1Q	미터계피치	S롤러	RF17300S	BW1	300	783.9
RF17300S10T-BW1Q	미터계피치	S롤러	RF17300S	BW1	300	970.8
RF17300S12T-BW1Q	미터계피치	S롤러	RF17300S	BW1	300	1159.1
RF430S6T-BWN	인치계피치	S롤러	RF430S	BW	101.6	203.2
RF430S8T-BWN	인치계피치	S롤러	RF430S	BW	101.6	265.5
RF430S10T-BWN	인치계피치	S롤러	RF430S	BW	101.6	328.8
RF430S12T-BWN	인치계피치	S롤러	RF430S	BW	101.6	392.6
RF430S6T-BWQ	인치계피치	S롤러	RF430S	BW	101.6	203.2
RF430S8T-BWQ	인치계피치	S롤러	RF430S	BW	101.6	265.5
RF430S10T-BWQ	인치계피치	S롤러	RF430S	BW	101.6	328.8
RF430S12T-BWQ	인치계피치	S롤러	RF430S	BW	101.6	392.6
RF204S8T-BWN	인치계피치	S롤러	RF204S	BW	66.27	173.2
RF204S10T-BWN	인치계피치	S롤러	RF204S	BW	66.27	214.5
RF204S12T-BWN	인치계피치	S롤러	RF204S	BW	66.27	256
RF204S8T-BWQ	인치계피치	S롤러	RF204S	BW	66.27	173.2
RF204S10T-BWQ	인치계피치	S롤러	RF204S	BW	66.27	214.5
RF204S12T-BWQ	인치계피치	S롤러	RF204S	BW	66.27	256
RF450S6T-BWN	인치계피치	S롤러	RF450S	BW	101.6	203.2
RF450S8T-BWN	인치계피치	S롤러	RF450S	BW	101.6	265.5
RF450S10T-BWN	인치계피치	S롤러	RF450S	BW	101.6	328.8
RF450S12T-BWN	인치계피치	S롤러	RF450S	BW	101.6	392.6
RF450S6T-BWQ	인치계피치	S롤러	RF450S	BW	101.6	203.2
RF450S8T-BWQ	인치계피치	S롤러	RF450S	BW	101.6	265.5
RF450S10T-BWQ	인치계피치	S롤러	RF450S	BW	101.6	328.8
RF450S12T-BWQ	인치계피치	S롤러	RF450S	BW	101.6	392.6
RF650S6T-BWN	인치계피치	S롤러	RF650S	BW	152.4	304.8
RF650S8T-BWN	인치계피치	S롤러	RF650S	BW	152.4	398.2
RF650S10T-BWN	인치계피치	S롤러	RF650S	BW	152.4	493.2
RF650S12T-BWN	인치계피치	S롤러	RF650S	BW	152.4	588.8
RF650S6T-BWQ	인치계피치	S롤러	RF650S	BW	152.4	304.8
RF650S8T-BWQ	인치계피치	S롤러	RF650S	BW	152.4	398.2
RF650S12T-BWQ	인치계피치	S롤러	RF650S	BW	152.4	588.8
RF650S10T-BWQ	인치계피치	S롤러	RF650S	BW	152.4	493.2
RF214S6T-BWN	인치계피치	S롤러	RF214S	BW	101.6	203.2
RF214S8T-BWN	인치계피치	S롤러	RF214S	BW	101.6	265.5
RF214S10T-BWN	인치계피치	S롤러	RF214S	BW	101.6	328.8
RF214S12T-BWN	인치계피치	S롤러	RF214S	BW	101.6	392.6
RF214S6T-BWQ	인치계피치	S롤러	RF214S	BW	101.6	203.2
RF214S8T-BWQ	인치계피치	S롤러	RF214S	BW	101.6	265.5
RF214S10T-BWQ	인치계피치	S롤러	RF214S	BW	101.6	328.8
RF214S12T-BWQ	인치계피치	S롤러	RF214S	BW	101.6	392.6
RF205S8T-BWN	인치계피치	S롤러	RF205S	BW	78.11	204.1
RF205S10T-BWN	인치계피치	S롤러	RF205S	BW	78.11	252.8
RF205S12T-BWN	인치계피치	S롤러	RF205S	BW	78.11	301.8
RF205S8T-BWQ	인치계피치	S롤러	RF205S	BW	78.11	204.1
RF205S10T-BWQ	인치계피치	S롤러	RF205S	BW	78.11	252.8
RF205S12T-BWQ	인치계피치	S롤러	RF205S	BW	78.11	301.8
RF6205S6T-BW1N	인치계피치	S롤러	RF6205S	BW1	152.4	304.8
RF6205S8T-BW1N	인치계피치	S롤러	RF6205S	BW1	152.4	398.2
RF6205S10T-BW1N	인치계피치	S롤러	RF6205S	BW1	152.4	493.2
RF6205S12T-BW1N	인치계피치	S롤러	RF6205S	BW1	152.4	588.8
RF6205S6T-BW1Q	인치계피치	S롤러	RF6205S	BW1	152.4	304.8
RF6205S8T-BW1Q	인치계피치	S롤러	RF6205S	BW1	152.4	398.2
RF6205S10T-BW1Q	인치계피치	S롤러	RF6205S	BW1	152.4	493.2
RF6205S12T-BW1Q	인치계피치	S롤러	RF6205S	BW1	152.4	588.8
RF212S6T-BW1N	인치계피치	S롤러	RF212S	BW1	152.4	304.8
RF212S8T-BW1N	인치계피치	S롤러	RF212S	BW1	152.4	398.2
RF212S10T-BW1N	인치계피치	S롤러	RF212S	BW1	152.4	493.2
RF212S12T-BW1N	인치계피치	S롤러	RF212S	BW1	152.4	588.8
RF212S6T-BW1Q	인치계피치	S롤러	RF212S	BW1	152.4	304.8
RF212S8T-BW1Q	인치계피치	S롤러	RF212S	BW1	152.4	398.2
RF212S10T-BW1Q	인치계피치	S롤러	RF212S	BW1	152.4	493.2
RF212S12T-BW1Q	인치계피치	S롤러	RF212S	BW1	152.4	588.8

형식	외경 Do (mm)	잇수 N	잇폭T	잇폭T	치형부 형상	축구멍직경d(mm)	축구멍직경d(mm)
형식	외경 Do (mm)	잇수 N	(mm)	공차	치형부 형상	아래구멍	최대
RF03075S6T-BWN	158	6	11.9	0/-0.8	S1	18	50
RF03075S8T-BWN	206	8	11.9	0/-0.8	S1	18	55
RF03075S10T-BWN	252	10	11.9	0/-0.8	S1	18	60
RF03075S12T-BWN	299	12	11.9	0/-0.8	S1	18	60
RF03075S6T-BWQ	158	6	11.9	0/-0.8	S1	18	50
RF03075S8T-BWQ	206	8	11.9	0/-0.8	S1	18	55
RF03075S10T-BWQ	252	10	11.9	0/-0.8	S1	18	60
RF03075S12T-BWQ	299	12	11.9	0/-0.8	S1	18	60
RF03100S6T-BWN	210	6	11.9	0/-0.8	S2	18	55
RF03100S8T-BWN	269	8	11.9	0/-0.8	S1	18	60
RF03100S10T-BWN	333	10	11.9	0/-0.8	S1	18	65
RF03100S12T-BWN	396	12	11.9	0/-0.8	S1	18	65
RF03100S6T-BWQ	210	6	11.9	0/-0.8	S2	18	55
RF03100S8T-BWQ	269	8	11.9	0/-0.8	S1	18	60
RF03100S10T-BWQ	333	10	11.9	0/-0.8	S1	18	65
RF03100S12T-BWQ	396	12	11.9	0/-0.8	S1	18	65
RF05075S8T-BWN	209	8	28	18	0/-0.8	28	75
RF05075S10T-BWN	256	10	28	18	0/-0.8	28	75
RF05075S12T-BWN	303	12	33	18	0/-0.8	33	80
RF05075S8T-BWQ	209	8	28	18	0/-0.8	28	75
RF05075S10T-BWQ	256	10	28	18	0/-0.8	28	75
RF05075S12T-BWQ	303	12	33	18	0/-0.8	33	80
RF05100S6T-BWN	212	6	18	0/-0.8	S2	28	75
RF05100S8T-BWN	273	8	18	0/-0.8	S1	28	75
RF05100S10T-BWN	337	10	18	0/-0.8	S1	33	80
RF05100S12T-BWN	400	12	18	0/-0.8	S1	33	85
RF05100S6T-BWQ	212	6	18	0/-0.8	S2	28	75
RF05100S8T-BWQ	273	8	18	0/-0.8	S1	28	75
RF05100S10T-BWQ	337	10	18	0/-0.8	S1	33	80
RF05100S12T-BWQ	400	12	18	0/-0.8	S1	33	85
RF05125S6T-BWN	262	6	18	0/-0.8	S2	28	75
RF05125S8T-BWN	340	8	18	0/-0.8	S2	33	80
RF05125S10T-BWN	417	10	18	0/-0.8	S1	33	85
RF05125S12T-BWN	496	12	18	0/-0.8	S1	33	95
RF05125S6T-BWQ	262	6	18	0/-0.8	S2	28	75
RF05125S8T-BWQ	340	8	18	0/-0.8	S2	33	80
RF05125S10T-BWQ	417	10	18	0/-0.8	S1	33	85
RF05125S12T-BWQ	496	12	18	0/-0.8	S1	33	95
RF05150S6T-BWN	310	6	18	0/-0.8	S2	33	80
RF05150S8T-BWN	405	8	18	0/-0.8	S2	33	85
RF05150S10T-BWN	499	10	18	0/-0.8	S2	33	95
RF05150S12T-BWN	592	12	18	0/-0.8	S1	33	95
RF05150S6T-BWQ	310	6	18	0/-0.8	S2	33	80
RF05150S8T-BWQ	405	8	18	0/-0.8	S2	33	85
RF05150S10T-BWQ	499	10	18	0/-0.8	S2	33	95
RF05150S12T-BWQ	592	12	18	0/-0.8	S1	33	95
RF08125S6T-BWN	263	6	22	0/-1.0	S2	28	75
RF08125S8T-BWN	340	8	22	0/-1.0	S1	33	80
RF08125S10T-BWN	418	10	22	0/-1.0	S1	33	85
RF08125S12T-BWN	496	12	22	0/-1.0	S1	33	95
RF08125S6T-BWQ	263	6	22	0/-1.0	S2	28	75
RF08125S8T-BWQ	340	8	22	0/-1.0	S1	33	80
RF08125S10T-BWQ	418	10	22	0/-1.0	S1	33	85
RF08125S12T-BWQ	496	12	22	0/-1.0	S1	33	95
RF08150S6T-BWN	313	6	22	0/-1.0	S2	33	80
RF08150S8T-BWN	403	8	22	0/-1.0	S1	33	85
RF08150S10T-BWN	499	10	22	0/-1.0	S1	33	95
RF08150S12T-BWN	593	12	22	0/-1.0	S1	33	95
RF08150S6T-BWQ	313	6	22	0/-1.0	S2	33	80
RF08150S8T-BWQ	403	8	22	0/-1.0	S1	33	85
RF08150S10T-BWQ	499	10	22	0/-1.0	S1	33	95
RF08150S12T-BWQ	593	12	22	0/-1.0	S1	33	95
RF10100S6T-BWN	217	6	22	0/-1.0	S2	28	75
RF10100S8T-BWN	279	8	22	0/-1.0	S1	33	85
RF10100S10T-BWN	341	10	22	0/-1.0	S1	33	95
RF10100S12T-BWN	404	12	22	0/-1.0	S1	38	100
RF10100S6T-BWQ	217	6	22	0/-1.0	S2	28	75
RF10100S8T-BWQ	279	8	22	0/-1.0	S1	33	85
RF10100S10T-BWQ	341	10	22	0/-1.0	S1	33	95
RF10100S12T-BWQ	404	12	22	0/-1.0	S1	38	100
RF10125S6T-BWN	267	6	22	0/-1.0	S2	33	85
RF10125S8T-BWN	343	8	22	0/-1.0	S1	33	95
RF10125S10T-BWN	422	10	22	0/-1.0	S1	38	100
RF10125S12T-BWN	500	12	22	0/-1.0	S1	38	110
RF10125S6T-BWQ	267	6	22	0/-1.0	S2	33	85
RF10125S8T-BWQ	343	8	22	0/-1.0	S1	33	95
RF10125S10T-BWQ	422	10	22	0/-1.0	S1	38	100
RF10125S12T-BWQ	500	12	22	0/-1.0	S1	38	110
RF10150S6T-BWN	316	6	22	0/-1.0	S2	33	95
RF10150S8T-BWN	409	8	22	0/-1.0	S2	38	100
RF10150S10T-BWN	503	10	22	0/-1.0	S1	38	110
RF10150S12T-BWN	597	12	22	0/-1.0	S1	38	115
RF10150S6T-BWQ	316	6	22	0/-1.0	S2	33	95
RF10150S8T-BWQ	409	8	22	0/-1.0	S2	38	100
RF10150S10T-BWQ	503	10	22	0/-1.0	S1	38	110
RF10150S12T-BWQ	597	12	22	0/-1.0	S1	38	115
RF12200S6T-BW1N	421	6	28	0/-1.0	S2	55	110
RF12200S8T-BW1N	544	8	28	0/-1.0	S1	60	120
RF12200S10T-BW1N	668	10	28	0/-1.0	S1	65	130
RF12200S12T-BW1N	794	12	28	0/-1.0	S1	75	145
RF12200S6T-BW1Q	421	6	28	0/-1.0	S2	55	110
RF12200S8T-BW1Q	544	8	28	0/-1.0	S1	60	120
RF12200S10T-BW1Q	668	10	28	0/-1.0	S1	65	130
RF12200S12T-BW1Q	794	12	28	0/-1.0	S1	75	145
RF12250S6T-BW1N	521	6	28	0/-1.0	S2	60	120
RF12250S8T-BW1N	674	8	28	0/-1.0	S2	65	130
RF12250S10T-BW1N	830	10	28	0/-1.0	S1	75	145
RF12250S12T-BW1N	987	12	28	0/-1.0	S1	80	160
RF12250S6T-BW1Q	521	6	28	0/-1.0	S2	60	120
RF12250S8T-BW1Q	674	8	28	0/-1.0	S2	65	130
RF12250S10T-BW1Q	830	10	28	0/-1.0	S1	75	145
RF12250S12T-BW1Q	987	12	28	0/-1.0	S1	80	160
RF17200S6T-BW1N	424	6	40	0/-1.2	S2	60	120
RF17200S8T-BW1N	547	8	40	0/-1.2	S1	75	145
RF17200S10T-BW1N	671	10	40	0/-1.2	S1	75	145
RF17200S12T-BW1N	797	12	40	0/-1.2	S1	80	160
RF17200S6T-BW1Q	424	6	40	0/-1.2	S2	60	120
RF17200S8T-BW1Q	547	8	40	0/-1.2	S1	75	145
RF17200S10T-BW1Q	671	10	40	0/-1.2	S1	75	145
RF17200S12T-BW1Q	797	12	40	0/-1.2	S1	80	160
RF17250S6T-BW1N	524	6	40	0/-1.2	S2	65	130
RF17250S8T-BW1N	677	8	40	0/-1.2	S1	75	145
RF17250S10T-BW1N	833	10	40	0/-1.2	S1	80	160
RF17250S12T-BW1N	990	12	40	0/-1.2	S1	80	160
RF17250S6T-BW1Q	524	6	40	0/-1.2	S2	65	130
RF17250S8T-BW1Q	677	8	40	0/-1.2	S1	75	145
RF17250S10T-BW1Q	833	10	40	0/-1.2	S1	80	160
RF17250S12T-BW1Q	990	12	40	0/-1.2	S1	80	160
RF17300S6T-BW1N	624	6	40	0/-1.2	S2	75	145
RF17300S8T-BW1N	808	8	40	0/-1.2	S2	80	160
RF17300S10T-BW1N	995	10	40	0/-1.2	S1	80	160
RF17300S12T-BW1N	1183	12	40	0/-1.2	S1	85	175
RF17300S6T-BW1Q	624	6	40	0/-1.2	S2	75	145
RF17300S8T-BW1Q	808	8	40	0/-1.2	S2	80	160
RF17300S10T-BW1Q	995	10	40	0/-1.2	S1	80	160
RF17300S12T-BW1Q	1183	12	40	0/-1.2	S1	85	175
RF430S6T-BWN	215	6	18	0/-0.8	S1	18	60
RF430S8T-BWN	277	8	18	0/-0.8	S1	18	65
RF430S10T-BWN	341	10	18	0/-0.8	S1	28	75
RF430S12T-BWN	405	12	18	0/-0.8	S1	28	75
RF430S6T-BWQ	215	6	18	0/-0.8	S1	18	60
RF430S8T-BWQ	277	8	18	0/-0.8	S1	18	65
RF430S10T-BWQ	341	10	18	0/-0.8	S1	28	75
RF430S12T-BWQ	405	12	18	0/-0.8	S1	28	75
RF204S8T-BWN	187	8	22	0/-1.0	S1	18	65
RF204S10T-BWN	228	10	22	0/-1.0	S1	28	75
RF204S12T-BWN	269	12	22	0/-1.0	S1	28	75
RF204S8T-BWQ	187	8	22	0/-1.0	S1	18	65
RF204S10T-BWQ	228	10	22	0/-1.0	S1	28	75
RF204S12T-BWQ	269	12	22	0/-1.0	S1	28	75
RF450S6T-BWN	217	6	22	0/-1.0	S1	28	75
RF450S8T-BWN	279	8	22	0/-1.0	S1	28	75
RF450S10T-BWN	342	10	22	0/-1.0	S1	33	80
RF450S12T-BWN	406	12	22	0/-1.0	S1	33	85
RF450S6T-BWQ	217	6	22	0/-1.0	S1	28	75
RF450S8T-BWQ	279	8	22	0/-1.0	S1	28	75
RF450S10T-BWQ	342	10	22	0/-1.0	S1	33	80
RF450S12T-BWQ	406	12	22	0/-1.0	S1	33	85
RF650S6T-BWN	320	6	22	0/-1.0	S1	33	80
RF650S8T-BWN	414	8	22	0/-1.0	S1	33	85
RF650S10T-BWN	509	10	22	0/-1.0	S1	33	95
RF650S12T-BWN	604	12	22	0/-1.0	S1	33	95
RF650S6T-BWQ	320	6	22	0/-1.0	S1	33	80
RF650S8T-BWQ	414	8	22	0/-1.0	S1	33	85
RF650S12T-BWQ	604	12	22	0/-1.0	S1	33	95
RF650S10T-BWQ	509	10	22	0/-1.0	S1	33	95
RF214S6T-BWN	222	6	24	0/-1.0	S1	28	75
RF214S8T-BWN	285	8	24	0/-1.0	S1	33	95
RF214S10T-BWN	348	10	24	0/-1.0	S1	33	95
RF214S12T-BWN	412	12	24	0/-1.0	S1	38	100
RF214S6T-BWQ	222	6	24	0/-1.0	S1	28	75
RF214S8T-BWQ	285	8	24	0/-1.0	S1	33	95
RF214S10T-BWQ	348	10	24	0/-1.0	S1	33	95
RF214S12T-BWQ	412	12	24	0/-1.0	S1	38	100
RF205S8T-BWN	223	8	28	0/-1.0	S1	33	80
RF205S10T-BWN	272	10	28	0/-1.0	S1	33	85
RF205S12T-BWN	321	12	28	0/-1.0	S1	33	95
RF205S8T-BWQ	223	8	28	0/-1.0	S1	33	80
RF205S10T-BWQ	272	10	28	0/-1.0	S1	33	85
RF205S12T-BWQ	321	12	28	0/-1.0	S1	33	95
RF6205S6T-BW1N	330	6	28	0/-1.0	S2	50	100
RF6205S8T-BW1N	432	8	28	0/-1.0	S1	55	110
RF6205S10T-BW1N	528	10	28	0/-1.0	S1	60	120
RF6205S12T-BW1N	623	12	28	0/-1.0	S1	60	120
RF6205S6T-BW1Q	330	6	28	0/-1.0	S2	50	100
RF6205S8T-BW1Q	432	8	28	0/-1.0	S1	55	110
RF6205S10T-BW1Q	528	10	28	0/-1.0	S1	60	120
RF6205S12T-BW1Q	623	12	28	0/-1.0	S1	60	120
RF212S6T-BW1N	339	6	28	0/-1.0	S1	55	110
RF212S8T-BW1N	440	8	28	0/-1.0	S1	60	120
RF212S10T-BW1N	535	10	28	0/-1.0	S1	65	130
RF212S12T-BW1N	631	12	28	0/-1.0	S1	75	145
RF212S6T-BW1Q	339	6	28	0/-1.0	S1	55	110
RF212S8T-BW1Q	440	8	28	0/-1.0	S1	60	120
RF212S10T-BW1Q	535	10	28	0/-1.0	S1	65	130
RF212S12T-BW1Q	631	12	28	0/-1.0	S1	75	145

형식	허브직경 DH (mm)	전장 DL (mm)	중심거리 l (mm)	허브No.	이끝사양
형식	허브직경 DH (mm)	전장 DL (mm)	중심거리 l (mm)	허브No.	이끝사양
RF03075S6T-BWN	73	57	51	SB1	생사양
RF03075S8T-BWN	83	62	56	SB2	생사양
RF03075S10T-BWN	93	67	61	SB3	생사양
RF03075S12T-BWN	93	67	61	SB3	생사양
RF03075S6T-BWQ	73	57	51	SB1	이끝경화
RF03075S8T-BWQ	83	62	56	SB2	이끝경화
RF03075S10T-BWQ	93	67	61	SB3	이끝경화
RF03075S12T-BWQ	93	67	61	SB3	이끝경화
RF03100S6T-BWN	83	62	56	SB2	생사양
RF03100S8T-BWN	93	67	61	SB3	생사양
RF03100S10T-BWN	98	72	66.6	SB4	생사양
RF03100S12T-BWN	98	72	66.6	SB4	생사양
RF03100S6T-BWQ	83	62	56	SB2	이끝경화
RF03100S8T-BWQ	93	67	61	SB3	이끝경화
RF03100S10T-BWQ	98	72	66.6	SB4	이끝경화
RF03100S12T-BWQ	98	72	66.6	SB4	이끝경화
RF05075S8T-BWN	107	86	77	SB5	생사양
RF05075S10T-BWN	107	86	77	SB5	생사양
RF05075S12T-BWN	117	94	85	SB6	생사양
RF05075S8T-BWQ	107	86	77	SB5	이끝경화
RF05075S10T-BWQ	107	86	77	SB5	이끝경화
RF05075S12T-BWQ	117	94	85	SB6	이끝경화
RF05100S6T-BWN	107	86	77	SB5	생사양
RF05100S8T-BWN	107	86	77	SB5	생사양
RF05100S10T-BWN	117	94	85	SB6	생사양
RF05100S12T-BWN	127	104	95	SB7	생사양
RF05100S6T-BWQ	107	86	77	SB5	이끝경화
RF05100S8T-BWQ	107	86	77	SB5	이끝경화
RF05100S10T-BWQ	117	94	85	SB6	이끝경화
RF05100S12T-BWQ	127	104	95	SB7	이끝경화
RF05125S6T-BWN	107	86	77	SB5	생사양
RF05125S8T-BWN	117	94	85	SB6	생사양
RF05125S10T-BWN	127	104	95	SB7	생사양
RF05125S12T-BWN	137	116	107	SB8	생사양
RF05125S6T-BWQ	107	86	77	SB5	이끝경화
RF05125S8T-BWQ	117	94	85	SB6	이끝경화
RF05125S10T-BWQ	127	104	95	SB7	이끝경화
RF05125S12T-BWQ	137	116	107	SB8	이끝경화
RF05150S6T-BWN	117	94	85	SB6	생사양
RF05150S8T-BWN	127	104	95	SB7	생사양
RF05150S10T-BWN	137	116	107	SB8	생사양
RF05150S12T-BWN	137	116	107	SB8	생사양
RF05150S6T-BWQ	117	94	85	SB6	이끝경화
RF05150S8T-BWQ	127	104	95	SB7	이끝경화
RF05150S10T-BWQ	137	116	107	SB8	이끝경화
RF05150S12T-BWQ	137	116	107	SB8	이끝경화
RF08125S6T-BWN	107	90	79	SB5	생사양
RF08125S8T-BWN	117	98	87	SB6	생사양
RF08125S10T-BWN	127	108	97	SB7	생사양
RF08125S12T-BWN	137	120	109	SB8	생사양
RF08125S6T-BWQ	107	90	79	SB5	이끝경화
RF08125S8T-BWQ	117	98	87	SB6	이끝경화
RF08125S10T-BWQ	127	108	97	SB7	이끝경화
RF08125S12T-BWQ	137	120	109	SB8	이끝경화
RF08150S6T-BWN	117	98	87	SB6	생사양
RF08150S8T-BWN	127	108	97	SB7	생사양
RF08150S10T-BWN	137	120	109	SB8	생사양
RF08150S12T-BWN	137	120	109	SB8	생사양
RF08150S6T-BWQ	117	98	87	SB6	이끝경화
RF08150S8T-BWQ	127	108	97	SB7	이끝경화
RF08150S10T-BWQ	137	120	109	SB8	이끝경화
RF08150S12T-BWQ	137	120	109	SB8	이끝경화
RF10100S6T-BWN	107	90	79	SB5	생사양
RF10100S8T-BWN	127	108	97	SB7	생사양
RF10100S10T-BWN	137	120	109	SB8	생사양
RF10100S12T-BWN	147	123	112	SB9	생사양
RF10100S6T-BWQ	107	90	79	SB5	이끝경화
RF10100S8T-BWQ	127	108	97	SB7	이끝경화
RF10100S10T-BWQ	137	120	109	SB8	이끝경화
RF10100S12T-BWQ	147	123	112	SB9	이끝경화
RF10125S6T-BWN	127	108	97	SB7	생사양
RF10125S8T-BWN	137	120	109	SB8	생사양
RF10125S10T-BWN	147	123	112	SB9	생사양
RF10125S12T-BWN	157	133	122	SB10	생사양
RF10125S6T-BWQ	127	108	97	SB7	이끝경화
RF10125S8T-BWQ	137	120	109	SB8	이끝경화
RF10125S10T-BWQ	147	123	112	SB9	이끝경화
RF10125S12T-BWQ	157	133	122	SB10	이끝경화
RF10150S6T-BWN	137	120	109	SB8	생사양
RF10150S8T-BWN	147	123	112	SB9	생사양
RF10150S10T-BWN	157	133	122	SB10	생사양
RF10150S12T-BWN	167	144	133	SB11	생사양
RF10150S6T-BWQ	137	120	109	SB8	이끝경화
RF10150S8T-BWQ	147	123	112	SB9	이끝경화
RF10150S10T-BWQ	157	133	122	SB10	이끝경화
RF10150S12T-BWQ	167	144	133	SB11	이끝경화
RF12200S6T-BW1N	157	135	110	TB2	생사양
RF12200S8T-BW1N	177	150	125	TB3	생사양
RF12200S10T-BW1N	187	160	135	TB4	생사양
RF12200S12T-BW1N	207	180	155	TB5	생사양
RF12200S6T-BW1Q	157	135	110	TB2	이끝경화
RF12200S8T-BW1Q	177	150	125	TB3	이끝경화
RF12200S10T-BW1Q	187	160	135	TB4	이끝경화
RF12200S12T-BW1Q	207	180	155	TB5	이끝경화
RF12250S6T-BW1N	177	150	125	TB3	생사양
RF12250S8T-BW1N	187	160	135	TB4	생사양
RF12250S10T-BW1N	207	180	155	TB5	생사양
RF12250S12T-BW1N	227	200	175	TB6	생사양
RF12250S6T-BW1Q	177	150	125	TB3	이끝경화
RF12250S8T-BW1Q	187	160	135	TB4	이끝경화
RF12250S10T-BW1Q	207	180	155	TB5	이끝경화
RF12250S12T-BW1Q	227	200	175	TB6	이끝경화
RF17200S6T-BW1N	177	150	118	TB3	생사양
RF17200S8T-BW1N	207	180	148	TB5	생사양
RF17200S10T-BW1N	207	180	148	TB5	생사양
RF17200S12T-BW1N	227	200	168	TB6	생사양
RF17200S6T-BW1Q	177	150	118	TB3	이끝경화
RF17200S8T-BW1Q	207	180	148	TB5	이끝경화
RF17200S10T-BW1Q	207	180	148	TB5	이끝경화
RF17200S12T-BW1Q	227	200	168	TB6	이끝경화
RF17250S6T-BW1N	187	160	128	TB4	생사양
RF17250S8T-BW1N	207	180	148	TB5	생사양
RF17250S10T-BW1N	227	200	168	TB6	생사양
RF17250S12T-BW1N	227	220	188	TB7	생사양
RF17250S6T-BW1Q	187	160	128	TB4	이끝경화
RF17250S8T-BW1Q	207	180	148	TB5	이끝경화
RF17250S10T-BW1Q	227	200	168	TB6	이끝경화
RF17250S12T-BW1Q	227	220	188	TB7	이끝경화
RF17300S6T-BW1N	207	180	148	TB5	생사양
RF17300S8T-BW1N	227	200	168	TB6	생사양
RF17300S10T-BW1N	227	220	188	TB7	생사양
RF17300S12T-BW1N	247	240	208	TB9	생사양
RF17300S6T-BW1Q	207	180	148	TB5	이끝경화
RF17300S8T-BW1Q	227	200	168	TB6	이끝경화
RF17300S10T-BW1Q	227	220	188	TB7	이끝경화
RF17300S12T-BW1Q	247	240	208	TB9	이끝경화
RF430S6T-BWN	93	73	64	SB3	생사양
RF430S8T-BWN	98	78	69	SB4	생사양
RF430S10T-BWN	107	86	77	SB5	생사양
RF430S12T-BWN	107	86	77	SB5	생사양
RF430S6T-BWQ	93	73	64	SB3	이끝경화
RF430S8T-BWQ	98	78	69	SB4	이끝경화
RF430S10T-BWQ	107	86	77	SB5	이끝경화
RF430S12T-BWQ	107	86	77	SB5	이끝경화
RF204S8T-BWN	98	82	71	SB4	생사양
RF204S10T-BWN	107	90	79	SB5	생사양
RF204S12T-BWN	107	90	79	SB5	생사양
RF204S8T-BWQ	98	82	71	SB4	이끝경화
RF204S10T-BWQ	107	90	79	SB5	이끝경화
RF204S12T-BWQ	107	90	79	SB5	이끝경화
RF450S6T-BWN	107	90	79	SB5	생사양
RF450S8T-BWN	107	90	79	SB5	생사양
RF450S10T-BWN	117	98	87	SB6	생사양
RF450S12T-BWN	127	108	97	SB7	생사양
RF450S6T-BWQ	107	90	79	SB5	이끝경화
RF450S8T-BWQ	107	90	79	SB5	이끝경화
RF450S10T-BWQ	117	98	87	SB6	이끝경화
RF450S12T-BWQ	127	108	97	SB7	이끝경화
RF650S6T-BWN	117	98	87	SB6	생사양
RF650S8T-BWN	127	108	97	SB7	생사양
RF650S10T-BWN	137	120	109	SB8	생사양
RF650S12T-BWN	137	120	109	SB8	생사양
RF650S6T-BWQ	117	98	87	SB6	이끝경화
RF650S8T-BWQ	127	108	97	SB7	이끝경화
RF650S12T-BWQ	137	120	109	SB8	이끝경화
RF650S10T-BWQ	137	120	109	SB8	이끝경화
RF214S6T-BWN	107	92	80	SB5	생사양
RF214S8T-BWN	137	122	110	SB8	생사양
RF214S10T-BWN	137	122	110	SB8	생사양
RF214S12T-BWN	147	125	113	SB9	생사양
RF214S6T-BWQ	107	92	80	SB5	이끝경화
RF214S8T-BWQ	137	122	110	SB8	이끝경화
RF214S10T-BWQ	137	122	110	SB8	이끝경화
RF214S12T-BWQ	147	125	113	SB9	이끝경화
RF205S8T-BWN	117	104	90	SB6	생사양
RF205S10T-BWN	127	114	100	SB7	생사양
RF205S12T-BWN	137	126	112	SB8	생사양
RF205S8T-BWQ	117	104	90	SB6	이끝경화
RF205S10T-BWQ	127	114	100	SB7	이끝경화
RF205S12T-BWQ	137	126	112	SB8	이끝경화
RF6205S6T-BW1N	147	125	100	TB1	생사양
RF6205S8T-BW1N	157	135	110	TB2	생사양
RF6205S10T-BW1N	177	150	125	TB3	생사양
RF6205S12T-BW1N	177	150	125	TB3	생사양
RF6205S6T-BW1Q	147	125	100	TB1	이끝경화
RF6205S8T-BW1Q	157	135	110	TB2	이끝경화
RF6205S10T-BW1Q	177	150	125	TB3	이끝경화
RF6205S12T-BW1Q	177	150	125	TB3	이끝경화
RF212S6T-BW1N	157	135	110	TB2	생사양
RF212S8T-BW1N	177	150	125	TB3	생사양
RF212S10T-BW1N	187	160	135	TB4	생사양
RF212S12T-BW1N	207	180	155	TB5	생사양
RF212S6T-BW1Q	157	135	110	TB2	이끝경화
RF212S8T-BW1Q	177	150	125	TB3	이끝경화
RF212S10T-BW1Q	187	160	135	TB4	이끝경화
RF212S12T-BW1Q	207	180	155	TB5	이끝경화

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	개략질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	개략질량 (kg)	견적의뢰 및 주문
RF03075S6T-BWN	P	138,600	-	-	-	3	견적의뢰 / 주문
RF03075S8T-BWN	P	195,800	-	-	-	5	견적의뢰 / 주문
RF03075S10T-BWN	P	242,000	-	-	-	7	견적의뢰 / 주문
RF03075S12T-BWN	P	319,000	-	-	-	9	견적의뢰 / 주문
RF03075S6T-BWQ	P	171,600	-	-	-	3	견적의뢰 / 주문
RF03075S8T-BWQ	P	233,200	-	-	-	5	견적의뢰 / 주문
RF03075S10T-BWQ	P	299,200	-	-	-	7	견적의뢰 / 주문
RF03075S12T-BWQ	P	382,800	-	-	-	9	견적의뢰 / 주문
RF03100S6T-BWN	P	200,200	-	-	-	5	견적의뢰 / 주문
RF03100S8T-BWN	P	253,000	-	-	-	8	견적의뢰 / 주문
RF03100S10T-BWN	P	319,000	-	-	-	11	견적의뢰 / 주문
RF03100S12T-BWN	P	369,600	-	-	-	14	견적의뢰 / 주문
RF03100S6T-BWQ	P	248,600	-	-	-	5	견적의뢰 / 주문
RF03100S8T-BWQ	P	321,200	-	-	-	8	견적의뢰 / 주문
RF03100S10T-BWQ	P	382,800	-	-	-	11	견적의뢰 / 주문
RF03100S12T-BWQ	P	448,800	-	-	-	14	견적의뢰 / 주문
RF05075S8T-BWN	P	222,200	-	-	-	9	견적의뢰 / 주문
RF05075S10T-BWN	P	380,600	-	-	-	11	견적의뢰 / 주문
RF05075S12T-BWN	P	391,600	-	-	-	15	견적의뢰 / 주문
RF05075S8T-BWQ	P	332,200	-	-	-	9	견적의뢰 / 주문
RF05075S10T-BWQ	P	457,600	-	-	-	11	견적의뢰 / 주문
RF05075S12T-BWQ	P	468,600	-	-	-	15	견적의뢰 / 주문
RF05100S6T-BWN	P	237,600	-	-	-	9	견적의뢰 / 주문
RF05100S8T-BWN	P	303,600	-	-	-	12	견적의뢰 / 주문
RF05100S10T-BWN	P	354,200	-	-	-	17	견적의뢰 / 주문
RF05100S12T-BWN	P	457,600	-	-	-	24	견적의뢰 / 주문
RF05100S6T-BWQ	P	316,800	-	-	-	9	견적의뢰 / 주문
RF05100S8T-BWQ	P	420,200	-	-	-	12	견적의뢰 / 주문
RF05100S10T-BWQ	P	503,800	-	-	-	17	견적의뢰 / 주문
RF05100S12T-BWQ	P	550,000	-	-	-	24	견적의뢰 / 주문
RF05125S6T-BWN	P	338,800	-	-	-	11	견적의뢰 / 주문
RF05125S8T-BWN	P	433,400	-	-	-	18	견적의뢰 / 주문
RF05125S10T-BWN	P	660,000	-	-	-	26	견적의뢰 / 주문
RF05125S12T-BWN	P	761,200	-	-	-	36	견적의뢰 / 주문
RF05125S6T-BWQ	P	407,000	-	-	-	11	견적의뢰 / 주문
RF05125S8T-BWQ	P	519,200	-	-	-	18	견적의뢰 / 주문
RF05125S10T-BWQ	P	789,800	-	-	-	26	견적의뢰 / 주문
RF05125S12T-BWQ	P	913,000	-	-	-	36	견적의뢰 / 주문
RF05150S6T-BWN	P	369,600	-	-	-	16	견적의뢰 / 주문
RF05150S8T-BWN	P	437,800	-	-	-	25	견적의뢰 / 주문
RF05150S10T-BWN	P	651,200	-	-	-	37	견적의뢰 / 주문
RF05150S12T-BWN	P	776,600	-	-	-	48	견적의뢰 / 주문
RF05150S6T-BWQ	P	444,400	-	-	-	16	견적의뢰 / 주문
RF05150S8T-BWQ	P	585,200	-	-	-	25	견적의뢰 / 주문
RF05150S10T-BWQ	P	805,200	-	-	-	37	견적의뢰 / 주문
RF05150S12T-BWQ	P	935,000	-	-	-	48	견적의뢰 / 주문
RF08125S6T-BWN	P	453,200	-	-	-	13	견적의뢰 / 주문
RF08125S8T-BWN	P	514,800	-	-	-	20	견적의뢰 / 주문
RF08125S10T-BWN	P	772,200	-	-	-	30	견적의뢰 / 주문
RF08125S12T-BWN	P	937,200	-	-	-	42	견적의뢰 / 주문
RF08125S6T-BWQ	P	543,400	-	-	-	13	견적의뢰 / 주문
RF08125S8T-BWQ	P	572,000	-	-	-	20	견적의뢰 / 주문
RF08125S10T-BWQ	P	926,200	-	-	-	30	견적의뢰 / 주문
RF08125S12T-BWQ	P	1,122,000	-	-	-	42	견적의뢰 / 주문
RF08150S6T-BWN	P	488,400	-	-	-	18	견적의뢰 / 주문
RF08150S8T-BWN	P	514,800	-	-	-	29	견적의뢰 / 주문
RF08150S10T-BWN	P	789,800	-	-	-	43	견적의뢰 / 주문
RF08150S12T-BWN	P	937,200	-	-	-	56	견적의뢰 / 주문
RF08150S6T-BWQ	P	587,400	-	-	-	18	견적의뢰 / 주문
RF08150S8T-BWQ	P	649,000	-	-	-	29	견적의뢰 / 주문
RF08150S10T-BWQ	P	948,200	-	-	-	43	견적의뢰 / 주문
RF08150S12T-BWQ	P	1,122,000	-	-	-	56	견적의뢰 / 주문
RF10100S6T-BWN	P	380,600	-	-	-	10	견적의뢰 / 주문
RF10100S8T-BWN	P	422,400	-	-	-	17	견적의뢰 / 주문
RF10100S10T-BWN	P	622,600	-	-	-	25	견적의뢰 / 주문
RF10100S12T-BWN	P	664,400	-	-	-	33	견적의뢰 / 주문
RF10100S6T-BWQ	P	457,600	-	-	-	10	견적의뢰 / 주문
RF10100S8T-BWQ	P	512,600	-	-	-	17	견적의뢰 / 주문
RF10100S10T-BWQ	P	726,000	-	-	-	25	견적의뢰 / 주문
RF10100S12T-BWQ	P	796,400	-	-	-	33	견적의뢰 / 주문
RF10125S6T-BWN	P	514,800	-	-	-	16	견적의뢰 / 주문
RF10125S8T-BWN	P	618,200	-	-	-	25	견적의뢰 / 주문
RF10125S10T-BWN	P	864,600	-	-	-	35	견적의뢰 / 주문
RF10125S12T-BWN	P	1,040,600	-	-	-	47	견적의뢰 / 주문
RF10125S6T-BWQ	P	618,200	-	-	-	16	견적의뢰 / 주문
RF10125S8T-BWQ	P	741,400	-	-	-	25	견적의뢰 / 주문
RF10125S10T-BWQ	P	1,038,400	-	-	-	35	견적의뢰 / 주문
RF10125S12T-BWQ	P	1,243,000	-	-	-	47	견적의뢰 / 주문
RF10150S6T-BWN	P	530,200	-	-	-	23	견적의뢰 / 주문
RF10150S8T-BWN	P	594,000	-	-	-	33	견적의뢰 / 주문
RF10150S10T-BWN	P	880,000	-	-	-	48	견적의뢰 / 주문
RF10150S12T-BWN	P	1,058,200	-	-	-	65	견적의뢰 / 주문
RF10150S6T-BWQ	P	635,800	-	-	-	23	견적의뢰 / 주문
RF10150S8T-BWQ	P	770,000	-	-	-	33	견적의뢰 / 주문
RF10150S10T-BWQ	P	1,058,200	-	-	-	48	견적의뢰 / 주문
RF10150S12T-BWQ	P	1,265,000	-	-	-	65	견적의뢰 / 주문
RF12200S6T-BW1N	P	926,200	-	-	-	41	견적의뢰 / 주문
RF12200S8T-BW1N	P	1,342,000	-	-	-	67	견적의뢰 / 주문
RF12200S10T-BW1N	P	2,035,000	-	-	-	97	견적의뢰 / 주문
RF12200S12T-BW1N	P	2,420,000	-	-	-	137	견적의뢰 / 주문
RF12200S6T-BW1Q	P	1,029,600	-	-	-	41	견적의뢰 / 주문
RF12200S8T-BW1Q	P	1,463,000	-	-	-	67	견적의뢰 / 주문
RF12200S10T-BW1Q	P	2,189,000	-	-	-	97	견적의뢰 / 주문
RF12200S12T-BW1Q	P	2,618,000	-	-	-	137	견적의뢰 / 주문
RF12250S6T-BW1N	P	1,265,000	-	-	-	63	견적의뢰 / 주문
RF12250S8T-BW1N	P	1,903,000	-	-	-	98	견적의뢰 / 주문
RF12250S10T-BW1N	P	2,827,000	-	-	-	147	견적의뢰 / 주문
RF12250S12T-BW1N	P	3,344,000	-	-	-	208	견적의뢰 / 주문
RF12250S6T-BW1Q	P	1,364,000	-	-	-	63	견적의뢰 / 주문
RF12250S8T-BW1Q	P	2,035,000	-	-	-	98	견적의뢰 / 주문
RF12250S10T-BW1Q	P	2,992,000	-	-	-	147	견적의뢰 / 주문
RF12250S12T-BW1Q	P	3,564,000	-	-	-	208	견적의뢰 / 주문
RF17200S6T-BW1N	P	1,419,000	-	-	-	57	견적의뢰 / 주문
RF17200S8T-BW1N	P	2,013,000	-	-	-	98	견적의뢰 / 주문
RF17200S10T-BW1N	P	2,860,000	-	-	-	134	견적의뢰 / 주문
RF17200S12T-BW1N	P	3,377,000	-	-	-	190	견적의뢰 / 주문
RF17200S6T-BW1Q	P	1,540,000	-	-	-	57	견적의뢰 / 주문
RF17200S8T-BW1Q	P	2,189,000	-	-	-	98	견적의뢰 / 주문
RF17200S10T-BW1Q	P	3,080,000	-	-	-	134	견적의뢰 / 주문
RF17200S12T-BW1Q	P	3,630,000	-	-	-	190	견적의뢰 / 주문
RF17250S6T-BW1N	P	1,903,000	-	-	-	83	견적의뢰 / 주문
RF17250S8T-BW1N	P	2,827,000	-	-	-	136	견적의뢰 / 주문
RF17250S10T-BW1N	P	3,861,000	-	-	-	204	견적의뢰 / 주문
RF17250S12T-BW1N	P	4,587,000	-	-	-	279	견적의뢰 / 주문
RF17250S6T-BW1Q	P	2,035,000	-	-	-	83	견적의뢰 / 주문
RF17250S8T-BW1Q	P	2,992,000	-	-	-	136	견적의뢰 / 주문
RF17250S10T-BW1Q	P	4,070,000	-	-	-	204	견적의뢰 / 주문
RF17250S12T-BW1Q	P	4,818,000	-	-	-	279	견적의뢰 / 주문
RF17300S6T-BW1N	P	2,519,000	-	-	-	120	견적의뢰 / 주문
RF17300S8T-BW1N	P	3,707,000	-	-	-	194	견적의뢰 / 주문
RF17300S10T-BW1N	P	4,994,000	-	-	-	281	견적의뢰 / 주문
RF17300S12T-BW1N	P	6,127,000	-	-	-	396	견적의뢰 / 주문
RF17300S6T-BW1Q	P	2,662,000	-	-	-	120	견적의뢰 / 주문
RF17300S8T-BW1Q	P	3,872,000	-	-	-	194	견적의뢰 / 주문
RF17300S10T-BW1Q	P	5,170,000	-	-	-	281	견적의뢰 / 주문
RF17300S12T-BW1Q	P	6,402,000	-	-	-	396	견적의뢰 / 주문
RF430S6T-BWN	P	231,000	-	-	-	7	견적의뢰 / 주문
RF430S8T-BWN	P	283,800	-	-	-	11	견적의뢰 / 주문
RF430S10T-BWN	P	411,400	-	-	-	16	견적의뢰 / 주문
RF430S12T-BWN	P	464,200	-	-	-	22	견적의뢰 / 주문
RF430S6T-BWQ	P	308,000	-	-	-	7	견적의뢰 / 주문
RF430S8T-BWQ	P	411,400	-	-	-	11	견적의뢰 / 주문
RF430S10T-BWQ	P	488,400	-	-	-	16	견적의뢰 / 주문
RF430S12T-BWQ	P	565,400	-	-	-	22	견적의뢰 / 주문
RF204S8T-BWN	P	283,800	-	-	-	8	견적의뢰 / 주문
RF204S10T-BWN	P	387,200	-	-	-	11	견적의뢰 / 주문
RF204S12T-BWN	P	387,200	-	-	-	13	견적의뢰 / 주문
RF204S8T-BWQ	P	334,400	-	-	-	8	견적의뢰 / 주문
RF204S10T-BWQ	P	464,200	-	-	-	11	견적의뢰 / 주문
RF204S12T-BWQ	P	464,200	-	-	-	13	견적의뢰 / 주문
RF450S6T-BWN	P	308,000	-	-	-	10	견적의뢰 / 주문
RF450S8T-BWN	P	334,400	-	-	-	14	견적의뢰 / 주문
RF450S10T-BWN	P	411,400	-	-	-	20	견적의뢰 / 주문
RF450S12T-BWN	P	541,200	-	-	-	29	견적의뢰 / 주문
RF450S6T-BWQ	P	360,800	-	-	-	10	견적의뢰 / 주문
RF450S8T-BWQ	P	464,200	-	-	-	14	견적의뢰 / 주문
RF450S10T-BWQ	P	565,400	-	-	-	20	견적의뢰 / 주문
RF450S12T-BWQ	P	644,600	-	-	-	29	견적의뢰 / 주문
RF650S6T-BWN	P	514,800	-	-	-	18	견적의뢰 / 주문
RF650S8T-BWN	P	565,400	-	-	-	29	견적의뢰 / 주문
RF650S10T-BWN	P	875,600	-	-	-	44	견적의뢰 / 주문
RF650S12T-BWN	P	1,056,000	-	-	-	58	견적의뢰 / 주문
RF650S6T-BWQ	P	618,200	-	-	-	18	견적의뢰 / 주문
RF650S8T-BWQ	P	745,800	-	-	-	29	견적의뢰 / 주문
RF650S12T-BWQ	P	1,265,000	-	-	-	58	견적의뢰 / 주문
RF650S10T-BWQ	P	1,056,000	-	-	-	44	견적의뢰 / 주문
RF214S6T-BWN	P	411,400	-	-	-	11	견적의뢰 / 주문
RF214S8T-BWN	P	541,200	-	-	-	21	견적의뢰 / 주문
RF214S10T-BWN	P	644,600	-	-	-	27	견적의뢰 / 주문
RF214S12T-BWN	P	798,600	-	-	-	35	견적의뢰 / 주문
RF214S6T-BWQ	P	514,800	-	-	-	11	견적의뢰 / 주문
RF214S8T-BWQ	P	644,600	-	-	-	21	견적의뢰 / 주문
RF214S10T-BWQ	P	772,200	-	-	-	27	견적의뢰 / 주문
RF214S12T-BWQ	P	979,000	-	-	-	35	견적의뢰 / 주문
RF205S8T-BWN	P	387,200	-	-	-	13	견적의뢰 / 주문
RF205S10T-BWN	P	591,800	-	-	-	19	견적의뢰 / 주문
RF205S12T-BWN	P	618,200	-	-	-	26	견적의뢰 / 주문
RF205S8T-BWQ	P	488,400	-	-	-	13	견적의뢰 / 주문
RF205S10T-BWQ	P	695,200	-	-	-	19	견적의뢰 / 주문
RF205S12T-BWQ	P	721,600	-	-	-	26	견적의뢰 / 주문
RF6205S6T-BW1N	P	745,800	-	-	-	27	견적의뢰 / 주문
RF6205S8T-BW1N	P	926,200	-	-	-	41	견적의뢰 / 주문
RF6205S10T-BW1N	P	1,265,000	-	-	-	62	견적의뢰 / 주문
RF6205S12T-BW1N	P	1,650,000	-	-	-	80	견적의뢰 / 주문
RF6205S6T-BW1Q	P	822,800	-	-	-	27	견적의뢰 / 주문
RF6205S8T-BW1Q	P	1,029,600	-	-	-	41	견적의뢰 / 주문
RF6205S10T-BW1Q	P	1,419,000	-	-	-	62	견적의뢰 / 주문
RF6205S12T-BW1Q	P	1,804,000	-	-	-	80	견적의뢰 / 주문
RF212S6T-BW1N	P	902,000	-	-	-	30	견적의뢰 / 주문
RF212S8T-BW1N	P	1,056,000	-	-	-	48	견적의뢰 / 주문
RF212S10T-BW1N	P	1,518,000	-	-	-	66	견적의뢰 / 주문
RF212S12T-BW1N	P	1,804,000	-	-	-	94	견적의뢰 / 주문
RF212S6T-BW1Q	P	1,003,200	-	-	-	30	견적의뢰 / 주문
RF212S8T-BW1Q	P	1,188,000	-	-	-	48	견적의뢰 / 주문
RF212S10T-BW1Q	P	1,694,000	-	-	-	66	견적의뢰 / 주문
RF212S12T-BW1Q	P	2,013,000	-	-	-	94	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
