스프라켓(축구멍사상)
RS100 피트보어스프라켓 1B타입
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
|
|
| 89건 중 1~89건 표시 | |

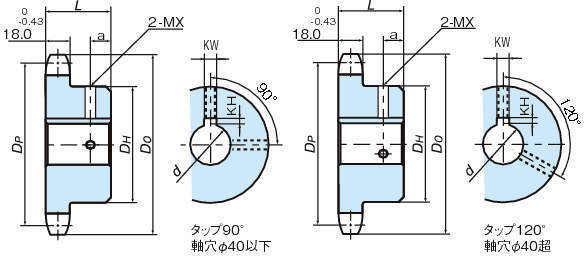

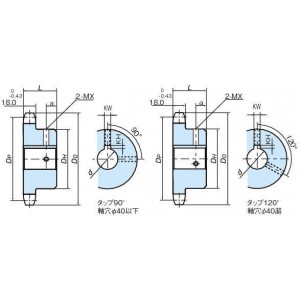

| 형식 | 잇수 | 피치원직경 DP (mm) | 외경 Do (mm) | 허브직경 DH (mm) | 허브길이 L (mm) | 마감축구멍직경 d (mm) |
| 형식 | 잇수 | 피치원직경 DP (mm) | 외경 Do (mm) | 허브직경 DH (mm) | 허브길이 L (mm) | 마감축구멍직경 d (mm) |
| RS100-1B10T-H25J | 10 | 102.75 | 117 | 65 | 50 | 25 |
| RS100-1B10T-H28J | 10 | 102.75 | 117 | 65 | 50 | 28 |
| RS100-1B10T-H30J | 10 | 102.75 | 117 | 65 | 50 | 30 |
| RS100-1B10T-H32J | 10 | 102.75 | 117 | 65 | 50 | 32 |
| RS100-1B10T-H35J | 10 | 102.75 | 117 | 65 | 50 | 35 |
| RS100-1B10T-H38J | 10 | 102.75 | 117 | 65 | 50 | 38 |
| RS100-1B10T-H40J | 10 | 102.75 | 117 | 65 | 50 | 40 |
| RS100-1B10T-H42J | 10 | 102.75 | 117 | 65 | 50 | 42 |
| RS100-1B11T-H25J | 11 | 112.7 | 127 | 75 | 50 | 25 |
| RS100-1B11T-H28J | 11 | 112.7 | 127 | 75 | 50 | 28 |
| RS100-1B11T-H30J | 11 | 112.7 | 127 | 75 | 50 | 30 |
| RS100-1B11T-H32J | 11 | 112.7 | 127 | 75 | 50 | 32 |
| RS100-1B11T-H35J | 11 | 112.7 | 127 | 75 | 50 | 35 |
| RS100-1B11T-H38J | 11 | 112.7 | 127 | 75 | 50 | 38 |
| RS100-1B11T-H40J | 11 | 112.7 | 127 | 75 | 50 | 40 |
| RS100-1B11T-H42J | 11 | 112.7 | 127 | 75 | 50 | 42 |
| RS100-1B11T-H45J | 11 | 112.7 | 127 | 75 | 50 | 45 |
| RS100-1B11T-H48J | 11 | 112.7 | 127 | 75 | 50 | 48 |
| RS100-1B11T-H50J | 11 | 112.7 | 127 | 75 | 50 | 50 |
| RS100-1B12T-H25J | 12 | 122.67 | 138 | 86 | 50 | 25 |
| RS100-1B12T-H28J | 12 | 122.67 | 138 | 86 | 50 | 28 |
| RS100-1B12T-H30J | 12 | 122.67 | 138 | 86 | 50 | 30 |
| RS100-1B12T-H32J | 12 | 122.67 | 138 | 86 | 50 | 32 |
| RS100-1B12T-H35J | 12 | 122.67 | 138 | 86 | 50 | 35 |
| RS100-1B12T-H38J | 12 | 122.67 | 138 | 86 | 50 | 38 |
| RS100-1B12T-H40J | 12 | 122.67 | 138 | 86 | 50 | 40 |
| RS100-1B12T-H42J | 12 | 122.67 | 138 | 86 | 50 | 42 |
| RS100-1B12T-H45J | 12 | 122.67 | 138 | 86 | 50 | 45 |
| RS100-1B12T-H48J | 12 | 122.67 | 138 | 86 | 50 | 48 |
| RS100-1B12T-H50J | 12 | 122.67 | 138 | 86 | 50 | 50 |
| RS100-1B12T-H55J | 12 | 122.67 | 138 | 86 | 50 | 55 |
| RS100-1B13T-H25J | 13 | 132.67 | 148 | 88 | 50 | 25 |
| RS100-1B13T-H28J | 13 | 132.67 | 148 | 88 | 50 | 28 |
| RS100-1B13T-H30J | 13 | 132.67 | 148 | 88 | 50 | 30 |
| RS100-1B13T-H32J | 13 | 132.67 | 148 | 88 | 50 | 32 |
| RS100-1B13T-H35J | 13 | 132.67 | 148 | 88 | 50 | 35 |
| RS100-1B13T-H38J | 13 | 132.67 | 148 | 88 | 50 | 38 |
| RS100-1B13T-H40J | 13 | 132.67 | 148 | 88 | 50 | 40 |
| RS100-1B13T-H42J | 13 | 132.67 | 148 | 88 | 50 | 42 |
| RS100-1B13T-H45J | 13 | 132.67 | 148 | 88 | 50 | 45 |
| RS100-1B13T-H48J | 13 | 132.67 | 148 | 88 | 50 | 48 |
| RS100-1B13T-H50J | 13 | 132.67 | 148 | 88 | 50 | 50 |
| RS100-1B13T-H55J | 13 | 132.67 | 148 | 88 | 50 | 55 |
| RS100-1B14T-H25J | 14 | 142.68 | 158 | 88 | 50 | 25 |
| RS100-1B14T-H28J | 14 | 142.68 | 158 | 88 | 50 | 28 |
| RS100-1B14T-H30J | 14 | 142.68 | 158 | 88 | 50 | 30 |
| RS100-1B14T-H32J | 14 | 142.68 | 158 | 88 | 50 | 32 |
| RS100-1B14T-H35J | 14 | 142.68 | 158 | 88 | 50 | 35 |
| RS100-1B14T-H38J | 14 | 142.68 | 158 | 88 | 50 | 38 |
| RS100-1B14T-H40J | 14 | 142.68 | 158 | 88 | 50 | 40 |
| RS100-1B14T-H42J | 14 | 142.68 | 158 | 88 | 50 | 42 |
| RS100-1B14T-H45J | 14 | 142.68 | 158 | 88 | 50 | 45 |
| RS100-1B14T-H48J | 14 | 142.68 | 158 | 88 | 50 | 48 |
| RS100-1B14T-H50J | 14 | 142.68 | 158 | 88 | 50 | 50 |
| RS100-1B14T-H55J | 14 | 142.68 | 158 | 88 | 50 | 55 |
| RS100-1B15T-H32J | 15 | 152.71 | 168 | 98 | 50 | 32 |
| RS100-1B15T-H35J | 15 | 152.71 | 168 | 98 | 50 | 35 |
| RS100-1B15T-H38J | 15 | 152.71 | 168 | 98 | 50 | 38 |
| RS100-1B15T-H40J | 15 | 152.71 | 168 | 98 | 50 | 40 |
| RS100-1B15T-H42J | 15 | 152.71 | 168 | 98 | 50 | 42 |
| RS100-1B15T-H45J | 15 | 152.71 | 168 | 98 | 50 | 45 |
| RS100-1B15T-H48J | 15 | 152.71 | 168 | 98 | 50 | 48 |
| RS100-1B15T-H50J | 15 | 152.71 | 168 | 98 | 50 | 50 |
| RS100-1B15T-H55J | 15 | 152.71 | 168 | 98 | 50 | 55 |
| RS100-1B15T-H60J | 15 | 152.71 | 168 | 98 | 50 | 60 |
| RS100-1B16T-H38J | 16 | 162.75 | 179 | 98 | 50 | 38 |
| RS100-1B16T-H45J | 16 | 162.75 | 179 | 98 | 50 | 45 |
| RS100-1B16T-H50J | 16 | 162.75 | 179 | 98 | 50 | 50 |
| RS100-1B16T-H55J | 16 | 162.75 | 179 | 98 | 50 | 55 |
| RS100-1B16T-H60J | 16 | 162.75 | 179 | 98 | 50 | 60 |
| RS100-1B17T-H38J | 17 | 172.79 | 189 | 107 | 50 | 38 |
| RS100-1B17T-H45J | 17 | 172.79 | 189 | 107 | 50 | 45 |
| RS100-1B17T-H50J | 17 | 172.79 | 189 | 107 | 50 | 50 |
| RS100-1B17T-H60J | 17 | 172.79 | 189 | 107 | 50 | 60 |
| RS100-1B18T-H38J | 18 | 182.84 | 199 | 107 | 50 | 38 |
| RS100-1B18T-H45J | 18 | 182.84 | 199 | 107 | 50 | 45 |
| RS100-1B18T-H50J | 18 | 182.84 | 199 | 107 | 50 | 50 |
| RS100-1B18T-H60J | 18 | 182.84 | 199 | 107 | 50 | 60 |
| RS100-1B19T-H38J | 19 | 192.9 | 209 | 107 | 50 | 38 |
| RS100-1B19T-H45J | 19 | 192.9 | 209 | 107 | 50 | 45 |
| RS100-1B19T-H50J | 19 | 192.9 | 209 | 107 | 50 | 50 |
| RS100-1B19T-H60J | 19 | 192.9 | 209 | 107 | 50 | 60 |
| RS100-1B20T-H38J | 20 | 202.96 | 220 | 107 | 50 | 38 |
| RS100-1B20T-H45J | 20 | 202.96 | 220 | 107 | 50 | 45 |
| RS100-1B20T-H50J | 20 | 202.96 | 220 | 107 | 50 | 50 |
| RS100-1B20T-H60J | 20 | 202.96 | 220 | 107 | 50 | 60 |
| RS100-1B21T-H45J | 21 | 213.03 | 230 | 107 | 50 | 45 |
| RS100-1B21T-H50J | 21 | 213.03 | 230 | 107 | 50 | 50 |
| RS100-1B21T-H60J | 21 | 213.03 | 230 | 107 | 50 | 60 |
| 형식 | 탭위치 a (mm) | 키홈폭 KW | 키홈폭 KW | 키홈깊이 KH | 키홈깊이 KH | 고정나사 사이즈 |
| 형식 | 탭위치 a (mm) | (mm) | 공차 | (mm) | 공차 | 고정나사 사이즈 |
| RS100-1B10T-H25J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B10T-H28J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B10T-H30J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B10T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B10T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B10T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B10T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B10T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H25J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B11T-H28J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B11T-H30J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B11T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B11T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B11T-H48J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B11T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B12T-H25J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B12T-H28J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B12T-H30J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B12T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B12T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B12T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B12T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B12T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B12T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B12T-H48J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B12T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B12T-H55J | 15 | 16 | ±0.0215 | 4.3 | 0.2/0 | M10 |
| RS100-1B13T-H25J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B13T-H28J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B13T-H30J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B13T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B13T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B13T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B13T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B13T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B13T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B13T-H48J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B13T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B13T-H55J | 15 | 16 | ±0.0215 | 4.3 | 0.2/0 | M10 |
| RS100-1B14T-H25J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B14T-H28J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B14T-H30J | 15 | 8 | ±0.0180 | 3.3 | 0.2/0 | M6 |
| RS100-1B14T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B14T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B14T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B14T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B14T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B14T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B14T-H48J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B14T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B14T-H55J | 15 | 16 | ±0.0215 | 4.3 | 0.2/0 | M10 |
| RS100-1B15T-H32J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B15T-H35J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B15T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B15T-H40J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B15T-H42J | 15 | 12 | ±0.0215 | 3.3 | 0.2/0 | M8 |
| RS100-1B15T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B15T-H48J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B15T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B15T-H55J | 15 | 16 | ±0.0215 | 4.3 | 0.2/0 | M10 |
| RS100-1B15T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B16T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B16T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B16T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B16T-H55J | 15 | 16 | ±0.0215 | 4.3 | 0.2/0 | M10 |
| RS100-1B16T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B17T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B17T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B17T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B17T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B18T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B18T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B18T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B18T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B19T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B19T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B19T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B19T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B20T-H38J | 15 | 10 | ±0.0180 | 3.3 | 0.2/0 | M8 |
| RS100-1B20T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B20T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B20T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| RS100-1B21T-H45J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B21T-H50J | 15 | 14 | ±0.0215 | 3.8 | 0.2/0 | M8 |
| RS100-1B21T-H60J | 15 | 18 | ±0.0215 | 4.4 | 0.2/0 | M10 |
| 형식 | 단위 | 판매정가 (원) | 기준납기 | 기준납기 | 기준납기 | 질량 | 견적의뢰 및 주문 |
| 형식 | 단위 | 판매정가 (원) | 유통재고 | 메이커재고 | 아린재고 | 질량 | 견적의뢰 및 주문 |
| RS100-1B10T-H25J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H28J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H30J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H32J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H35J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H38J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H40J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B10T-H42J | P | 81,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H25J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H28J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H30J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H32J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H35J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H38J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H40J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H42J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H45J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H48J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B11T-H50J | P | 83,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H25J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H28J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H30J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H32J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H35J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H38J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H40J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H42J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H45J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H48J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H50J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B12T-H55J | P | 88,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H25J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H28J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H30J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H32J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H35J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H38J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H40J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H42J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H45J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H48J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H50J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B13T-H55J | P | 96,800 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H25J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H28J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H30J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H32J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H35J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H38J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H40J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H42J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H45J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H48J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H50J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B14T-H55J | P | 105,600 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H32J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H35J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H38J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H40J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H42J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H45J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H48J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H50J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H55J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B15T-H60J | P | 121,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B16T-H38J | P | 132,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B16T-H45J | P | 132,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B16T-H50J | P | 132,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B16T-H55J | P | 132,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B16T-H60J | P | 132,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B17T-H38J | P | 145,200 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B17T-H45J | P | 145,200 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B17T-H50J | P | 145,200 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B17T-H60J | P | 145,200 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B18T-H38J | P | 154,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B18T-H45J | P | 154,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B18T-H50J | P | 154,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B18T-H60J | P | 154,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B19T-H38J | P | 158,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B19T-H45J | P | 158,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B19T-H50J | P | 158,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B19T-H60J | P | 158,400 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B20T-H38J | P | 165,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B20T-H45J | P | 165,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B20T-H50J | P | 165,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B20T-H60J | P | 165,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B21T-H45J | P | 176,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B21T-H50J | P | 176,000 | - | - | - | - | 견적의뢰 / 주문 |
| RS100-1B21T-H60J | P | 176,000 | - | - | - | - | 견적의뢰 / 주문 |
 |
- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다. - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오. - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다. - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.
|
 |
- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다. - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다. |
