스프라켓(축구멍사상)

RS80 피트보어스프라켓 1B타입

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


137건 중 1~137건 표시

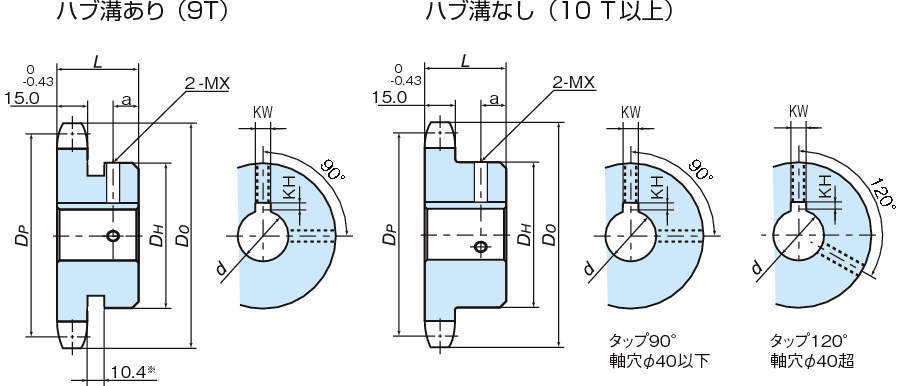

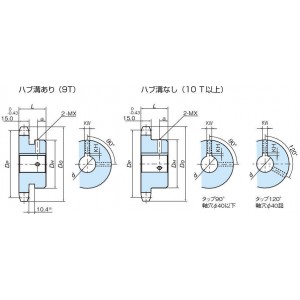

형식	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	홈직경 (mm)	마감축구멍직경 d (mm)
형식	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	홈직경 (mm)	마감축구멍직경 d (mm)
RS80-1B9T-H25J	9	74.26	85	58	40	44	25
RS80-1B9T-H28J	9	74.26	85	58	40	44	28
RS80-1B9T-H30J	9	74.26	85	58	40	44	30
RS80-1B9T-H32J	9	74.26	85	58	40	44	32
RS80-1B9T-H35J	9	74.26	85	58	40	44	35
RS80-1B10T-H25J	10	82.2	93	52	40	-	25
RS80-1B10T-H28J	10	82.2	93	52	40	-	28
RS80-1B10T-H30J	10	82.2	93	52	40	-	30
RS80-1B10T-H32J	10	82.2	93	52	40	-	32
RS80-1B11T-H25J	11	90.16	102	60	40	-	25
RS80-1B11T-H28J	11	90.16	102	60	40	-	28
RS80-1B11T-H30J	11	90.16	102	60	40	-	30
RS80-1B11T-H32J	11	90.16	102	60	40	-	32
RS80-1B11T-H35J	11	90.16	102	60	40	-	35
RS80-1B11T-H38J	11	90.16	102	60	40	-	38
RS80-1B12T-H25J	12	98.14	110	67	40	-	25
RS80-1B12T-H28J	12	98.14	110	67	40	-	28
RS80-1B12T-H30J	12	98.14	110	67	40	-	30
RS80-1B12T-H32J	12	98.14	110	67	40	-	32
RS80-1B12T-H35J	12	98.14	110	67	40	-	35
RS80-1B12T-H38J	12	98.14	110	67	40	-	38
RS80-1B12T-H40J	12	98.14	110	67	40	-	40
RS80-1B12T-H42J	12	98.14	110	67	40	-	42
RS80-1B12T-H45J	12	98.14	110	67	40	-	45
RS80-1B13T-H25J	13	106.14	118	77	40	-	25
RS80-1B13T-H28J	13	106.14	118	77	40	-	28
RS80-1B13T-H30J	13	106.14	118	77	40	-	30
RS80-1B13T-H32J	13	106.14	118	77	40	-	32
RS80-1B13T-H35J	13	106.14	118	77	40	-	35
RS80-1B13T-H38J	13	106.14	118	77	40	-	38
RS80-1B13T-H40J	13	106.14	118	77	40	-	40
RS80-1B13T-H42J	13	106.14	118	77	40	-	42
RS80-1B13T-H45J	13	106.14	118	77	40	-	45
RS80-1B13T-H48J	13	106.14	118	77	40	-	48
RS80-1B13T-H50J	13	106.14	118	77	40	-	50
RS80-1B14T-H25J	14	114.15	127	77	40	-	25
RS80-1B14T-H28J	14	114.15	127	77	40	-	28
RS80-1B14T-H30J	14	114.15	127	77	40	-	30
RS80-1B14T-H32J	14	114.15	127	77	40	-	32
RS80-1B14T-H35J	14	114.15	127	77	40	-	35
RS80-1B14T-H38J	14	114.15	127	77	40	-	38
RS80-1B14T-H40J	14	114.15	127	77	40	-	40
RS80-1B14T-H42J	14	114.15	127	77	40	-	42
RS80-1B14T-H45J	14	114.15	127	77	40	-	45
RS80-1B14T-H48J	14	114.15	127	77	40	-	48
RS80-1B14T-H50J	14	114.15	127	77	40	-	50
RS80-1B15T-H25J	15	122.17	135	93	40	-	25
RS80-1B15T-H28J	15	122.17	135	93	40	-	28
RS80-1B15T-H30J	15	122.17	135	93	40	-	30
RS80-1B15T-H32J	15	122.17	135	93	40	-	32
RS80-1B15T-H35J	15	122.17	135	93	40	-	35
RS80-1B15T-H38J	15	122.17	135	93	40	-	38
RS80-1B15T-H40J	15	122.17	135	93	40	-	40
RS80-1B15T-H42J	15	122.17	135	93	40	-	42
RS80-1B15T-H45J	15	122.17	135	93	40	-	45
RS80-1B15T-H48J	15	122.17	135	93	40	-	48
RS80-1B15T-H50J	15	122.17	135	93	40	-	50
RS80-1B15T-H55J	15	122.17	135	93	40	-	55
RS80-1B15T-H60J	15	122.17	135	93	40	-	60
RS80-1B16T-H25J	16	130.2	143	93	40	-	25
RS80-1B16T-H28J	16	130.2	143	93	40	-	28
RS80-1B16T-H30J	16	130.2	143	93	40	-	30
RS80-1B16T-H32J	16	130.2	143	93	40	-	32
RS80-1B16T-H35J	16	130.2	143	93	40	-	35
RS80-1B16T-H38J	16	130.2	143	93	40	-	38
RS80-1B16T-H40J	16	130.2	143	93	40	-	40
RS80-1B16T-H42J	16	130.2	143	93	40	-	42
RS80-1B16T-H45J	16	130.2	143	93	40	-	45
RS80-1B16T-H48J	16	130.2	143	93	40	-	48
RS80-1B16T-H50J	16	130.2	143	93	40	-	50
RS80-1B16T-H55J	16	130.2	143	93	40	-	55
RS80-1B16T-H60J	16	130.2	143	93	40	-	60
RS80-1B17T-H25J	17	138.23	151	93	40	-	25
RS80-1B17T-H28J	17	138.23	151	93	40	-	28
RS80-1B17T-H30J	17	138.23	151	93	40	-	30
RS80-1B17T-H32J	17	138.23	151	93	40	-	32
RS80-1B17T-H35J	17	138.23	151	93	40	-	35
RS80-1B17T-H38J	17	138.23	151	93	40	-	38
RS80-1B17T-H40J	17	138.23	151	93	40	-	40
RS80-1B17T-H42J	17	138.23	151	93	40	-	42
RS80-1B17T-H45J	17	138.23	151	93	40	-	45
RS80-1B17T-H48J	17	138.23	151	93	40	-	48
RS80-1B17T-H50J	17	138.23	151	93	40	-	50
RS80-1B17T-H55J	17	138.23	151	93	40	-	55
RS80-1B17T-H60J	17	138.23	151	93	40	-	60
RS80-1B18T-H25J	18	146.27	159	93	40	-	25
RS80-1B18T-H28J	18	146.27	159	93	40	-	28
RS80-1B18T-H30J	18	146.27	159	93	40	-	30
RS80-1B18T-H32J	18	146.27	159	93	40	-	32
RS80-1B18T-H35J	18	146.27	159	93	40	-	35
RS80-1B18T-H38J	18	146.27	159	93	40	-	38
RS80-1B18T-H40J	18	146.27	159	93	40	-	40
RS80-1B18T-H42J	18	146.27	159	93	40	-	42
RS80-1B18T-H45J	18	146.27	159	93	40	-	45
RS80-1B18T-H48J	18	146.27	159	93	40	-	48
RS80-1B18T-H50J	18	146.27	159	93	40	-	50
RS80-1B18T-H55J	18	146.27	159	93	40	-	55
RS80-1B18T-H60J	18	146.27	159	93	40	-	60
RS80-1B19T-H25J	19	154.32	167	93	40	-	25
RS80-1B19T-H28J	19	154.32	167	93	40	-	28
RS80-1B19T-H30J	19	154.32	167	93	40	-	30
RS80-1B19T-H32J	19	154.32	167	93	40	-	32
RS80-1B19T-H35J	19	154.32	167	93	40	-	35
RS80-1B19T-H38J	19	154.32	167	93	40	-	38
RS80-1B19T-H40J	19	154.32	167	93	40	-	40
RS80-1B19T-H42J	19	154.32	167	93	40	-	42
RS80-1B19T-H45J	19	154.32	167	93	40	-	45
RS80-1B19T-H48J	19	154.32	167	93	40	-	48
RS80-1B19T-H50J	19	154.32	167	93	40	-	50
RS80-1B19T-H55J	19	154.32	167	93	40	-	55
RS80-1B19T-H60J	19	154.32	167	93	40	-	60
RS80-1B20T-H25J	20	162.37	176	93	40	-	25
RS80-1B20T-H28J	20	162.37	176	93	40	-	28
RS80-1B20T-H30J	20	162.37	176	93	40	-	30
RS80-1B20T-H32J	20	162.37	176	93	40	-	32
RS80-1B20T-H35J	20	162.37	176	93	40	-	35
RS80-1B20T-H38J	20	162.37	176	93	40	-	38
RS80-1B20T-H40J	20	162.37	176	93	40	-	40
RS80-1B20T-H42J	20	162.37	176	93	40	-	42
RS80-1B20T-H45J	20	162.37	176	93	40	-	45
RS80-1B20T-H48J	20	162.37	176	93	40	-	48
RS80-1B20T-H50J	20	162.37	176	93	40	-	50
RS80-1B20T-H55J	20	162.37	176	93	40	-	55
RS80-1B20T-H60J	20	162.37	176	93	40	-	60
RS80-1B21T-H25J	21	170.42	184	93	40	-	25
RS80-1B21T-H28J	21	170.42	184	93	40	-	28
RS80-1B21T-H30J	21	170.42	184	93	40	-	30
RS80-1B21T-H32J	21	170.42	184	93	40	-	32
RS80-1B21T-H35J	21	170.42	184	93	40	-	35
RS80-1B21T-H38J	21	170.42	184	93	40	-	38
RS80-1B21T-H40J	21	170.42	184	93	40	-	40
RS80-1B21T-H42J	21	170.42	184	93	40	-	42
RS80-1B21T-H45J	21	170.42	184	93	40	-	45
RS80-1B21T-H48J	21	170.42	184	93	40	-	48
RS80-1B21T-H50J	21	170.42	184	93	40	-	50
RS80-1B21T-H55J	21	170.42	184	93	40	-	55
RS80-1B21T-H60J	21	170.42	184	93	40	-	60

형식	탭위치 a (mm)	키홈폭 KW	키홈폭 KW	키홈깊이 KH	키홈깊이 KH	고정나사 사이즈
형식	탭위치 a (mm)	(mm)	공차	(mm)	공차	고정나사 사이즈
RS80-1B9T-H25J	8	8	±0.0180	3.3	0.2/0	M6
RS80-1B9T-H28J	8	8	±0.0180	3.3	0.2/0	M6
RS80-1B9T-H30J	8	8	±0.0180	3.3	0.2/0	M6
RS80-1B9T-H32J	8	10	±0.0180	3.3	0.2/0	M8
RS80-1B9T-H35J	8	10	±0.0180	3.3	0.2/0	M8
RS80-1B10T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B10T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B10T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B10T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B11T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B11T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B11T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B11T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B11T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B11T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B12T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B12T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B12T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B12T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B12T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B12T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B12T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B12T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B12T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B13T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B13T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B13T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B13T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B13T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B13T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B13T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B13T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B13T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B13T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B13T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B14T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B14T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B14T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B14T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B14T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B14T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B14T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B14T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B14T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B14T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B14T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B15T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B15T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B15T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B15T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B15T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B15T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B15T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B15T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B15T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B15T-H48J	-	14	±0.0215	3.8	0.2/0	M8
RS80-1B15T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B15T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B15T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B16T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B16T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B16T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B16T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B16T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B16T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B16T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B16T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B16T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B16T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B16T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B16T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B16T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B17T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B17T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B17T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B17T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B17T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B17T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B17T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B17T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B17T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B17T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B17T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B17T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B17T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B18T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B18T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B18T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B18T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B18T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B18T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B18T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B18T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B18T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B18T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B18T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B18T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B18T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B19T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B19T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B19T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B19T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B19T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B19T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B19T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B19T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B19T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B19T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B19T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B19T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B19T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B20T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B20T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B20T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B20T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B20T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B20T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B20T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B20T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B20T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B20T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B20T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B20T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B20T-H60J	12	18	±0.0215	4.4	0.2/0	M10
RS80-1B21T-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B21T-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B21T-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS80-1B21T-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B21T-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B21T-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS80-1B21T-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B21T-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS80-1B21T-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B21T-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B21T-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS80-1B21T-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS80-1B21T-H60J	12	18	±0.0215	4.4	0.2/0	M10

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RS80-1B9T-H25J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B9T-H28J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B9T-H30J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B9T-H32J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B9T-H35J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B10T-H25J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B10T-H28J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B10T-H30J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B10T-H32J	P	44,000	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H25J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H28J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H30J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H32J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H35J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B11T-H38J	P	46,200	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H25J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H28J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H30J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H32J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H35J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H38J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H40J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H42J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B12T-H45J	P	48,400	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H25J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H28J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H30J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H32J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H35J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H38J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H40J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H42J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H45J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H48J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B13T-H50J	P	52,800	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H25J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H28J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H30J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H32J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H35J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H38J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H40J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H42J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H45J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H48J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B14T-H50J	P	55,880	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H25J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H28J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H30J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H32J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H35J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H38J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H40J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H42J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H45J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H48J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H50J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H55J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B15T-H60J	P	61,600	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H25J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H28J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H30J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H32J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H35J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H38J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H40J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H42J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H45J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H48J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H50J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H55J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B16T-H60J	P	63,800	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H25J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H28J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H30J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H32J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H35J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H38J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H40J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H42J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H45J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H48J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H50J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H55J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B17T-H60J	P	68,200	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H25J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H28J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H30J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H32J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H35J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H38J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H40J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H42J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H45J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H48J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H50J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H55J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B18T-H60J	P	73,920	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H25J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H28J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H30J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H32J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H35J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H38J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H40J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H42J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H45J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H48J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H50J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H55J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B19T-H60J	P	77,000	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H25J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H28J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H30J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H32J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H35J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H38J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H40J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H42J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H45J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H48J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H50J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H55J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B20T-H60J	P	83,600	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H25J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H28J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H30J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H32J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H35J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H38J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H40J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H42J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H45J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H48J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H50J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H55J	P	92,400	-	-	-	-	견적의뢰 / 주문
RS80-1B21T-H60J	P	92,400	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
