상품 상세보기 : 프리플로어체인용스프라켓 - 배속체인용록스프라켓S타입

HOME > 체인전도 > 스프라켓 > 프리플로어체인용스프라켓 > 배속체인용록스프라켓S타입

프리플로어체인용스프라켓

배속체인용록스프라켓S타입

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


142건 중 1~142건 표시

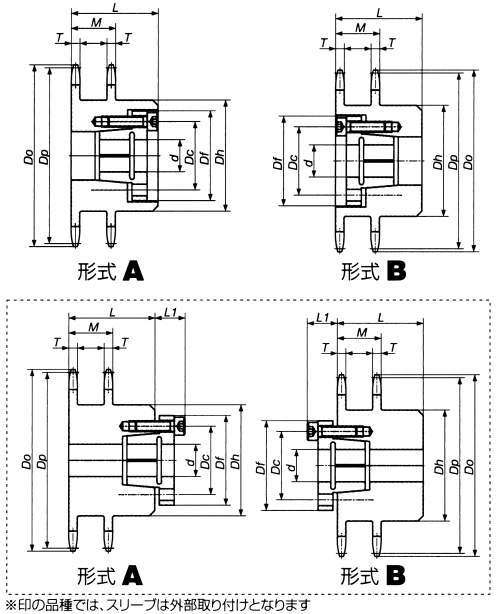

형식	마감축구멍직경 d (mm)	잇수	피치원직경 DP (mm)	외경 Do (mm)	잇폭 T (mm)	전체잇폭 M (mm)	허브직경 DH (mm)
형식	마감축구멍직경 d (mm)	잇수	피치원직경 DP (mm)	외경 Do (mm)	잇폭 T (mm)	전체잇폭 M (mm)	허브직경 DH (mm)
RF2030VRP10T-S10A	10	10	61.65	63	3	15.3	37
RF2030VRP10T-S10B	10	10	61.65	63	3	15.3	37
RF2030VRP10T-S11A	11	10	61.65	63	3	15.3	37
RF2030VRP10T-S11B	11	10	61.65	63	3	15.3	37
RF2030VRP10T-S12A	12	10	61.65	63	3	15.3	37
RF2030VRP10T-S12B	12	10	61.65	63	3	15.3	37
RF2030VRP10T-S14A	14	10	61.65	63	3	15.3	37
RF2030VRP10T-S14B	14	10	61.65	63	3	15.3	37
RF2030VRP10T-S15A	15	10	61.65	63	3	15.3	37
RF2030VRP10T-S15B	15	10	61.65	63	3	15.3	37
RF2030VRP10T-S16A	16	10	61.65	63	3	15.3	37
RF2030VRP10T-S16B	16	10	61.65	63	3	15.3	37
RF2040VRP10T-S10A	10	10	82.2	85	4	20.4	52
RF2040VRP10T-S10B	10	10	82.2	85	4	20.4	52
RF2040VRP10T-S11A	11	10	82.2	85	4	20.4	52
RF2040VRP10T-S11B	11	10	82.2	85	4	20.4	52
RF2040VRP10T-S12A	12	10	82.2	85	4	20.4	52
RF2040VRP10T-S12B	12	10	82.2	85	4	20.4	52
RF2040VRP10T-S14A	14	10	82.2	85	4	20.4	52
RF2040VRP10T-S14B	14	10	82.2	85	4	20.4	52
RF2040VRP10T-S15A	15	10	82.2	85	4	20.4	52
RF2040VRP10T-S15B	15	10	82.2	85	4	20.4	52
RF2040VRP10T-S16A	16	10	82.2	85	4	20.4	52
RF2040VRP10T-S16B	16	10	82.2	85	4	20.4	52
RF2040VRP10T-S17A	17	10	82.2	85	4	20.4	52
RF2040VRP10T-S17B	17	10	82.2	85	4	20.4	52
RF2040VRP10T-S18A	18	10	82.2	85	4	20.4	52
RF2040VRP10T-S18B	18	10	82.2	85	4	20.4	52
RF2040VRP10T-S19A	19	10	82.2	85	4	20.4	52
RF2040VRP10T-S19B	19	10	82.2	85	4	20.4	52
RF2040VRP10T-S20A	20	10	82.2	85	4	20.4	52
RF2040VRP10T-S20B	20	10	82.2	85	4	20.4	52
RF2040VRP10T-S22A	22	10	82.2	85	4	20.4	52
RF2040VRP10T-S22B	22	10	82.2	85	4	20.4	52
RF2040VRP10T-S24A	24	10	82.2	85	4	20.4	52
RF2040VRP10T-S24B	24	10	82.2	85	4	20.4	52
RF2040VRP10T-S25A	25	10	82.2	85	4	20.4	52
RF2040VRP10T-S25B	25	10	82.2	85	4	20.4	52
RF2040VRP10T-S28A	28	10	82.2	85	4	20.4	52
RF2040VRP10T-S28B	28	10	82.2	85	4	20.4	52
RF2050VRP10T-S12A	12	10	102.75	107	5	25.5	66
RF2050VRP10T-S12B	12	10	102.75	107	5	25.5	66
RF2050VRP10T-S14A	14	10	102.75	107	5	25.5	66
RF2050VRP10T-S14B	14	10	102.75	107	5	25.5	66
RF2050VRP10T-S15A	15	10	102.75	107	5	25.5	66
RF2050VRP10T-S15B	15	10	102.75	107	5	25.5	66
RF2050VRP10T-S16A	16	10	102.75	107	5	25.5	66
RF2050VRP10T-S16B	16	10	102.75	107	5	25.5	66
RF2050VRP10T-S17A	17	10	102.75	107	5	25.5	66
RF2050VRP10T-S17B	17	10	102.75	107	5	25.5	66
RF2050VRP10T-S18A	18	10	102.75	107	5	25.5	66
RF2050VRP10T-S18B	18	10	102.75	107	5	25.5	66
RF2050VRP10T-S19A	19	10	102.75	107	5	25.5	66
RF2050VRP10T-S19B	19	10	102.75	107	5	25.5	66
RF2050VRP10T-S20A	20	10	102.75	107	5	25.5	66
RF2050VRP10T-S20B	20	10	102.75	107	5	25.5	66
RF2050VRP10T-S22A	22	10	102.75	107	5	25.5	66
RF2050VRP10T-S22B	22	10	102.75	107	5	25.5	66
RF2050VRP10T-S24A	24	10	102.75	107	5	25.5	66
RF2050VRP10T-S24B	24	10	102.75	107	5	25.5	66
RF2050VRP10T-S25A	25	10	102.75	107	5	25.5	66
RF2050VRP10T-S25B	25	10	102.75	107	5	25.5	66
RF2050VRP10T-S28A	28	10	102.75	107	5	25.5	66
RF2050VRP10T-S28B	28	10	102.75	107	5	25.5	66
RF2050VRP10T-S30A	30	10	102.75	107	5	25.5	66
RF2050VRP10T-S30B	30	10	102.75	107	5	25.5	66
RF2050VRP10T-S32A	32	10	102.75	107	5	25.5	66
RF2050VRP10T-S32B	32	10	102.75	107	5	25.5	66
RF2050VRP10T-S35A	35	10	102.75	107	5	25.5	66
RF2050VRP10T-S35B	35	10	102.75	107	5	25.5	66
RF2060VRP10T-S15A	15	10	123.3	128	6	30.5	81
RF2060VRP10T-S15B	15	10	123.3	128	6	30.5	81
RF2060VRP10T-S16A	16	10	123.3	128	6	30.5	81
RF2060VRP10T-S16B	16	10	123.3	128	6	30.5	81
RF2060VRP10T-S17A	17	10	123.3	128	6	30.5	81
RF2060VRP10T-S17B	17	10	123.3	128	6	30.5	81
RF2060VRP10T-S18A	18	10	123.3	128	6	30.5	81
RF2060VRP10T-S18B	18	10	123.3	128	6	30.5	81
RF2060VRP10T-S19A	19	10	123.3	128	6	30.5	81
RF2060VRP10T-S19B	19	10	123.3	128	6	30.5	81
RF2060VRP10T-S20A	20	10	123.3	128	6	30.5	81
RF2060VRP10T-S20B	20	10	123.3	128	6	30.5	81
RF2060VRP10T-S22A	22	10	123.3	128	6	30.5	81
RF2060VRP10T-S22B	22	10	123.3	128	6	30.5	81
RF2060VRP10T-S24A	24	10	123.3	128	6	30.5	81
RF2060VRP10T-S24B	24	10	123.3	128	6	30.5	81
RF2060VRP10T-S25A	25	10	123.3	128	6	30.5	81
RF2060VRP10T-S25B	25	10	123.3	128	6	30.5	81
RF2060VRP10T-S28A	28	10	123.3	128	6	30.5	81
RF2060VRP10T-S28B	28	10	123.3	128	6	30.5	81
RF2060VRP10T-S30A	30	10	123.3	128	6	30.5	81
RF2060VRP10T-S30B	30	10	123.3	128	6	30.5	81
RF2060VRP10T-S32A	32	10	123.3	128	6	30.5	81
RF2060VRP10T-S32B	32	10	123.3	128	6	30.5	81
RF2060VRP10T-S35A	35	10	123.3	128	6	30.5	81
RF2060VRP10T-S35B	35	10	123.3	128	6	30.5	81
RF2060VRP10T-S38A	38	10	123.3	128	6	30.5	81
RF2060VRP10T-S38B	38	10	123.3	128	6	30.5	81
RF2060VRP10T-S40A	40	10	123.3	128	6	30.5	81
RF2060VRP10T-S40B	40	10	123.3	128	6	30.5	81
RF2060VRP10T-S42A	42	10	123.3	128	6	30.5	81
RF2060VRP10T-S42B	42	10	123.3	128	6	30.5	81
RF2060VRP10T-S45A	45	10	123.3	128	6	30.5	81
RF2060VRP10T-S45B	45	10	123.3	128	6	30.5	81
RF2060VRP10T-S48A	48	10	123.3	128	6	30.5	81
RF2060VRP10T-S48B	48	10	123.3	128	6	30.5	81
RF2060VRP10T-S50A	50	10	123.3	128	6	30.5	81
RF2060VRP10T-S50B	50	10	123.3	128	6	30.5	81
RF2060VRP10T-S55A	55	10	123.3	128	6	30.5	81
RF2060VRP10T-S55B	55	10	123.3	128	6	30.5	81
RF2080VRP10T-S24A	24	10	164.39	172	12	47.5	110
RF2080VRP10T-S24B	24	10	164.39	172	12	47.5	110
RF2080VRP10T-S25A	25	10	164.39	172	12	47.5	110
RF2080VRP10T-S25B	25	10	164.39	172	12	47.5	110
RF2080VRP10T-S28A	28	10	164.39	172	12	47.5	110
RF2080VRP10T-S28B	28	10	164.39	172	12	47.5	110
RF2080VRP10T-S30A	30	10	164.39	172	12	47.5	110
RF2080VRP10T-S30B	30	10	164.39	172	12	47.5	110
RF2080VRP10T-S32A	32	10	164.39	172	12	47.5	110
RF2080VRP10T-S32B	32	10	164.39	172	12	47.5	110
RF2080VRP10T-S35A	35	10	164.39	172	12	47.5	110
RF2080VRP10T-S35B	35	10	164.39	172	12	47.5	110
RF2080VRP10T-S38A	38	10	164.39	172	12	47.5	110
RF2080VRP10T-S38B	38	10	164.39	172	12	47.5	110
RF2080VRP10T-S40A	40	10	164.39	172	12	47.5	110
RF2080VRP10T-S40B	40	10	164.39	172	12	47.5	110
RF2080VRP10T-S42A	42	10	164.39	172	12	47.5	110
RF2080VRP10T-S42B	42	10	164.39	172	12	47.5	110
RF2080VRP10T-S45A	45	10	164.39	172	12	47.5	110
RF2080VRP10T-S45B	45	10	164.39	172	12	47.5	110
RF2080VRP10T-S48A	48	10	164.39	172	12	47.5	110
RF2080VRP10T-S48B	48	10	164.39	172	12	47.5	110
RF2080VRP10T-S50A	50	10	164.39	172	12	47.5	110
RF2080VRP10T-S50B	50	10	164.39	172	12	47.5	110
RF2080VRP10T-S55A	55	10	164.39	172	12	47.5	110
RF2080VRP10T-S55B	55	10	164.39	172	12	47.5	110
RF2080VRP10T-S60A	60	10	164.39	172	12	47.5	110
RF2080VRP10T-S60B	60	10	164.39	172	12	47.5	110
RF2080VRP10T-S65A	65	10	164.39	172	12	47.5	110
RF2080VRP10T-S65B	65	10	164.39	172	12	47.5	110
RF2080VRP10T-S70A	70	10	164.39	172	12	47.5	110
RF2080VRP10T-S70B	70	10	164.39	172	12	47.5	110

형식	슬리브틀번호	Df (mm)	Dc (mm)	L1 (mm)	볼트사이즈 (M×L)	체결토르크 (N · m)	전달토르크 (N · m)
형식	슬리브틀번호	Df (mm)	Dc (mm)	L1 (mm)	볼트사이즈 (M×L)	체결토르크 (N · m)	전달토르크 (N · m)
RF2030VRP10T-S10A	S1	32	24	12	M4×16	4.2	43
RF2030VRP10T-S10B	S1	32	24	12	M4×16	4.2	43
RF2030VRP10T-S11A	S1	32	24	12	M4×16	4.2	48
RF2030VRP10T-S11B	S1	32	24	12	M4×16	4.2	48
RF2030VRP10T-S12A	S1	32	24	12	M4×16	4.2	52
RF2030VRP10T-S12B	S1	32	24	12	M4×16	4.2	52
RF2030VRP10T-S14A	S1	32	24	12	M4×16	4.2	60
RF2030VRP10T-S14B	S1	32	24	12	M4×16	4.2	60
RF2030VRP10T-S15A	S1	32	24	12	M4×16	4.2	65
RF2030VRP10T-S15B	S1	32	24	12	M4×16	4.2	65
RF2030VRP10T-S16A	S1	32	24	12	M4×16	4.2	69
RF2030VRP10T-S16B	S1	32	24	12	M4×16	4.2	69
RF2040VRP10T-S10A	S1	32	24	12	M4×16	4.2	43
RF2040VRP10T-S10B	S1	32	24	12	M4×16	4.2	43
RF2040VRP10T-S11A	S1	32	24	12	M4×16	4.2	48
RF2040VRP10T-S11B	S1	32	24	12	M4×16	4.2	48
RF2040VRP10T-S12A	S1	32	24	12	M4×16	4.2	52
RF2040VRP10T-S12B	S1	32	24	12	M4×16	4.2	52
RF2040VRP10T-S14A	S1	32	24	12	M4×16	4.2	60
RF2040VRP10T-S14B	S1	32	24	12	M4×16	4.2	60
RF2040VRP10T-S15A	S1	32	24	12	M4×16	4.2	65
RF2040VRP10T-S15B	S1	32	24	12	M4×16	4.2	65
RF2040VRP10T-S16A	S1	32	24	12	M4×16	4.2	69
RF2040VRP10T-S16B	S1	32	24	12	M4×16	4.2	69
RF2040VRP10T-S17A	S2	42	32	14	M5×18	8.3	158
RF2040VRP10T-S17B	S2	42	32	14	M5×18	8.3	158
RF2040VRP10T-S18A	S2	42	32	14	M5×18	8.3	167
RF2040VRP10T-S18B	S2	42	32	14	M5×18	8.3	167
RF2040VRP10T-S19A	S2	42	32	14	M5×18	8.3	177
RF2040VRP10T-S19B	S2	42	32	14	M5×18	8.3	177
RF2040VRP10T-S20A	S2	42	32	14	M5×18	8.3	186
RF2040VRP10T-S20B	S2	42	32	14	M5×18	8.3	186
RF2040VRP10T-S22A	S2	42	32	14	M5×18	8.3	205
RF2040VRP10T-S22B	S2	42	32	14	M5×18	8.3	205
RF2040VRP10T-S24A	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2040VRP10T-S24B	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2040VRP10T-S25A	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2040VRP10T-S25B	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2040VRP10T-S28A	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2040VRP10T-S28B	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2050VRP10T-S12A	S1	32	24	12	M4×16	4.2	86
RF2050VRP10T-S12B	S1	32	24	12	M4×16	4.2	86
RF2050VRP10T-S14A	S1	32	24	12	M4×16	4.2	101
RF2050VRP10T-S14B	S1	32	24	12	M4×16	4.2	101
RF2050VRP10T-S15A	S1	32	24	12	M4×16	4.2	108
RF2050VRP10T-S15B	S1	32	24	12	M4×16	4.2	108
RF2050VRP10T-S16A	S1	32	24	12	M4×16	4.2	115
RF2050VRP10T-S16B	S1	32	24	12	M4×16	4.2	115
RF2050VRP10T-S17A	S2	42	32	14	M5×18	8.3	158
RF2050VRP10T-S17B	S2	42	32	14	M5×18	8.3	158
RF2050VRP10T-S18A	S2	42	32	14	M5×18	8.3	167
RF2050VRP10T-S18B	S2	42	32	14	M5×18	8.3	167
RF2050VRP10T-S19A	S2	42	32	14	M5×18	8.3	177
RF2050VRP10T-S19B	S2	42	32	14	M5×18	8.3	177
RF2050VRP10T-S20A	S2	42	32	14	M5×18	8.3	186
RF2050VRP10T-S20B	S2	42	32	14	M5×18	8.3	186
RF2050VRP10T-S22A	S2	42	32	14	M5×18	8.3	205
RF2050VRP10T-S22B	S2	42	32	14	M5×18	8.3	205
RF2050VRP10T-S24A	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2050VRP10T-S24B	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2050VRP10T-S25A	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2050VRP10T-S25B	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2050VRP10T-S28A	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2050VRP10T-S28B	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2050VRP10T-S30A	S4	56	46	15.5	M5×20	8.3	279
RF2050VRP10T-S30B	S4	56	46	15.5	M5×20	8.3	279
RF2050VRP10T-S32A	S4	56	46	15.5	M5×20	8.3	298
RF2050VRP10T-S32B	S4	56	46	15.5	M5×20	8.3	298
RF2050VRP10T-S35A	S4	56	46	15.5	M5×20	8.3	325
RF2050VRP10T-S35B	S4	56	46	15.5	M5×20	8.3	325
RF2060VRP10T-S15A	S2	42	32	14	M5×18	8.3	139
RF2060VRP10T-S15B	S2	42	32	14	M5×18	8.3	139
RF2060VRP10T-S16A	S2	42	32	14	M5×18	8.3	149
RF2060VRP10T-S16B	S2	42	32	14	M5×18	8.3	149
RF2060VRP10T-S17A	S2	42	32	14	M5×18	8.3	158
RF2060VRP10T-S17B	S2	42	32	14	M5×18	8.3	158
RF2060VRP10T-S18A	S2	42	32	14	M5×18	8.3	167
RF2060VRP10T-S18B	S2	42	32	14	M5×18	8.3	167
RF2060VRP10T-S19A	S2	42	32	14	M5×18	8.3	177
RF2060VRP10T-S19B	S2	42	32	14	M5×18	8.3	177
RF2060VRP10T-S20A	S2	42	32	14	M5×18	8.3	186
RF2060VRP10T-S20B	S2	42	32	14	M5×18	8.3	186
RF2060VRP10T-S22A	S2	42	32	14	M5×18	8.3	205
RF2060VRP10T-S22B	S2	42	32	14	M5×18	8.3	205
RF2060VRP10T-S24A	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2060VRP10T-S24B	S3	48.5	38.5	15.5	M5×20	8.3	223
RF2060VRP10T-S25A	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2060VRP10T-S25B	S3	48.5	38.5	15.5	M5×20	8.3	232
RF2060VRP10T-S28A	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2060VRP10T-S28B	S3	48.5	38.5	15.5	M5×20	8.3	260
RF2060VRP10T-S30A	S4	56	46	15.5	M5×20	8.3	279
RF2060VRP10T-S30B	S4	56	46	15.5	M5×20	8.3	279
RF2060VRP10T-S32A	S4	56	46	15.5	M5×20	8.3	298
RF2060VRP10T-S32B	S4	56	46	15.5	M5×20	8.3	298
RF2060VRP10T-S35A	S4	56	46	15.5	M5×20	8.3	325
RF2060VRP10T-S35B	S4	56	46	15.5	M5×20	8.3	325
RF2060VRP10T-S38A	S5	66	56	17.5	M5×22	8.3	442
RF2060VRP10T-S38B	S5	66	56	17.5	M5×22	8.3	442
RF2060VRP10T-S40A	S5	66	56	17.5	M5×22	8.3	465
RF2060VRP10T-S40B	S5	66	56	17.5	M5×22	8.3	465
RF2060VRP10T-S42A	S5	66	56	17.5	M5×22	8.3	488
RF2060VRP10T-S42B	S5	66	56	17.5	M5×22	8.3	488
RF2060VRP10T-S45A	S5	66	56	17.5	M5×22	8.3	523
RF2060VRP10T-S45B	S5	66	56	17.5	M5×22	8.3	523
RF2060VRP10T-S48A	S6	80	68	21	M6×25	16.8	1116
RF2060VRP10T-S48B	S6	80	68	21	M6×25	16.8	1116
RF2060VRP10T-S50A	S6	80	68	21	M6×25	16.8	1162
RF2060VRP10T-S50B	S6	80	68	21	M6×25	16.8	1162
RF2060VRP10T-S55A	S6	80	68	21	M6×25	16.8	1279
RF2060VRP10T-S55B	S6	80	68	21	M6×25	16.8	1279
RF2080VRP10T-S24A	S4	56	46	15.5	M5×20	8.3	446
RF2080VRP10T-S24B	S4	56	46	15.5	M5×20	8.3	446
RF2080VRP10T-S25A	S4	56	46	15.5	M5×20	8.3	465
RF2080VRP10T-S25B	S4	56	46	15.5	M5×20	8.3	465
RF2080VRP10T-S28A	S4	56	46	15.5	M5×20	8.3	521
RF2080VRP10T-S28B	S4	56	46	15.5	M5×20	8.3	521
RF2080VRP10T-S30A	S4	56	46	15.5	M5×20	8.3	558
RF2080VRP10T-S30B	S4	56	46	15.5	M5×20	8.3	558
RF2080VRP10T-S32A	S4	56	46	15.5	M5×20	8.3	595
RF2080VRP10T-S32B	S4	56	46	15.5	M5×20	8.3	595
RF2080VRP10T-S35A	S4	56	46	15.5	M5×20	8.3	651
RF2080VRP10T-S35B	S4	56	46	15.5	M5×20	8.3	651
RF2080VRP10T-S38A	S5	66	56	17.5	M5×22	8.3	530
RF2080VRP10T-S38B	S5	66	56	17.5	M5×22	8.3	530
RF2080VRP10T-S40A	S5	66	56	17.5	M5×22	8.3	558
RF2080VRP10T-S40B	S5	66	56	17.5	M5×22	8.3	558
RF2080VRP10T-S42A	S5	66	56	17.5	M5×22	8.3	586
RF2080VRP10T-S42B	S5	66	56	17.5	M5×22	8.3	586
RF2080VRP10T-S45A	S5	66	56	17.5	M5×22	8.3	628
RF2080VRP10T-S45B	S5	66	56	17.5	M5×22	8.3	628
RF2080VRP10T-S48A	S6	80	68	21	M6×25	16.8	1116
RF2080VRP10T-S48B	S6	80	68	21	M6×25	16.8	1116
RF2080VRP10T-S50A	S6	80	68	21	M6×25	16.8	1162
RF2080VRP10T-S50B	S6	80	68	21	M6×25	16.8	1162
RF2080VRP10T-S55A	S6	80	68	21	M6×25	16.8	1279
RF2080VRP10T-S55B	S6	80	68	21	M6×25	16.8	1279
RF2080VRP10T-S60A	S7	100	86	24.5	M8×30	40.5	2140
RF2080VRP10T-S60B	S7	100	86	24.5	M8×30	40.5	2140
RF2080VRP10T-S65A	S7	100	86	24.5	M8×30	40.5	2319
RF2080VRP10T-S65B	S7	100	86	24.5	M8×30	40.5	2319
RF2080VRP10T-S70A	S7	100	86	24.5	M8×30	40.5	2492
RF2080VRP10T-S70B	S7	100	86	24.5	M8×30	40.5	2492

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RF2030VRP10T-S10A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S10B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S11A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S11B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S12A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S12B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S14A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S14B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S15A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S15B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S16A	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2030VRP10T-S16B	P	143,000	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S10A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S10B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S11A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S11B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S12A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S12B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S14A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S14B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S15A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S15B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S16A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S16B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S17A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S17B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S18A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S18B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S19A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S19B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S20A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S20B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S22A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S22B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S24A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S24B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S25A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S25B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S28A	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2040VRP10T-S28B	P	182,600	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S12A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S12B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S14A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S14B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S15A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S15B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S16A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S16B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S17A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S17B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S18A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S18B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S19A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S19B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S20A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S20B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S22A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S22B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S24A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S24B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S25A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S25B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S28A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S28B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S30A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S30B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S32A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S32B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S35A	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2050VRP10T-S35B	P	266,200	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S15A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S15B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S16A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S16B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S17A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S17B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S18A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S18B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S19A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S19B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S20A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S20B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S22A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S22B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S24A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S24B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S25A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S25B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S28A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S28B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S30A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S30B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S32A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S32B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S35A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S35B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S38A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S38B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S40A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S40B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S42A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S42B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S45A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S45B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S48A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S48B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S50A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S50B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S55A	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2060VRP10T-S55B	P	347,600	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S24A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S24B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S25A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S25B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S28A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S28B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S30A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S30B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S32A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S32B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S35A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S35B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S38A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S38B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S40A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S40B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S42A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S42B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S45A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S45B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S48A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S48B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S50A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S50B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S55A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S55B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S60A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S60B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S65A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S65B	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S70A	P	605,000	-	-	-	-	견적의뢰 / 주문
RF2080VRP10T-S70B	P	605,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
