HOME > 축연결구 > 커플링 > 디스크타입 > 엑트플렉스커플링 NEF > 엑트플렉스커플링 NEF시리즈(롱스페이서 타입)
엑트플렉스커플링 NEF

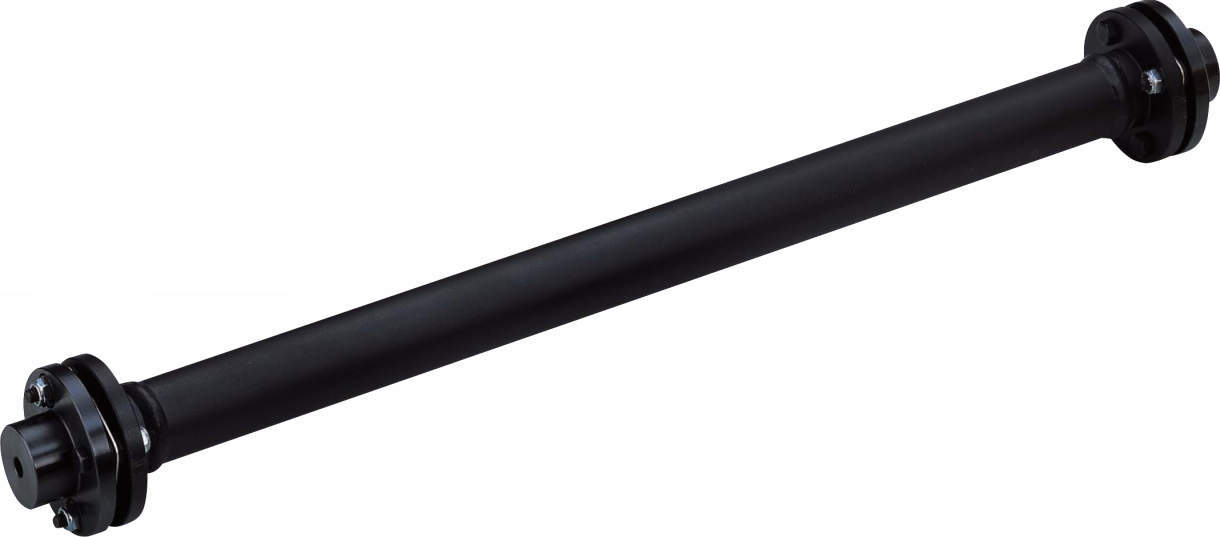

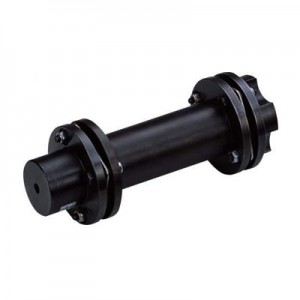

엑트플렉스커플링 NEF시리즈(롱스페이서 타입)
(주)츠바키 ( TSUBAKI )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    76건 중 1~76건 표시
    형식형상사이즈파이로트홀직경
    (mm)    		최대
    축구멍직경
    (mm)    		허용토크
    (N · ｍ)    		허용미스얼라이먼트허용미스얼라이먼트
    형식형상사이즈파이로트홀직경
    (mm)    		최대
    축구멍직경
    (mm)    		허용토크
    (N · ｍ)    		각도오차
    (deg)    		축방향변위
    (mm)
    NEF04W-NR×NR-J200J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J250J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J300J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J350J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J400J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J450J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J500J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J600J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J700J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J800J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J900J타입NEF04W82329.22±1.6
    NEF04W-NR×NR-J1000J타입NEF04W82329.22±1.6
    NEF10W-NR×NR-JS100JS타입NEF10W1032982±2.0
    NEF10W-NR×NR-JS140JS타입NEF10W1032982±2.0
    NEF10W-NR×NR-J200J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J250J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J300J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J350J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J400J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J450J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J500J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J600J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J700J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J800J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J900J타입NEF10W1032982±2.0
    NEF10W-NR×NR-J1000J타입NEF10W1032982±2.0
    NEF18W-NR×NR-JS100JS타입NEF18W12351762±2.4
    NEF18W-NR×NR-JS140JS타입NEF18W12351762±2.4
    NEF18W-NR×NR-J200J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J250J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J300J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J350J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J400J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J450J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J500J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J600J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J700J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J800J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J900J타입NEF18W12351762±2.4
    NEF18W-NR×NR-J1000J타입NEF18W12351762±2.4
    NEF25W-NR×NR-JS100JS타입NEF25W15422452±2.8
    NEF25W-NR×NR-JS127JS타입NEF25W15422452±2.8
    NEF25W-NR×NR-JS140JS타입NEF25W15422452±2.8
    NEF25W-NR×NR-J200J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J250J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J300J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J350J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J400J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J450J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J500J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J600J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J700J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J800J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J900J타입NEF25W15422452±2.8
    NEF25W-NR×NR-J1000J타입NEF25W15422452±2.8
    NEF45W-NR×NR-JS100JS타입NEF45W15504412±3.2
    NEF45W-NR×NR-JS127JS타입NEF45W15504412±3.2
    NEF45W-NR×NR-JS140JS타입NEF45W15504412±3.2
    NEF45W-NR×NR-JS180JS타입NEF45W15504412±3.2
    NEF45W-NR×NR-JS200JS타입NEF45W15504412±3.2
    NEF45W-NR×NR-JS250JS타입NEF45W15504412±3.2
    NEF80W-NR×NR-JS127JS타입NEF80W15607842±3.6
    NEF80W-NR×NR-JS140JS타입NEF80W15607842±3.6
    NEF80W-NR×NR-JS180JS타입NEF80W15607842±3.6
    NEF80W-NR×NR-JS200JS타입NEF80W15607842±3.6
    NEF80W-NR×NR-JS250JS타입NEF80W15607842±3.6
    NEF130W-NR×NR-JS127JS타입NEF130W257412702±5.0
    NEF130W-NR×NR-JS140JS타입NEF130W257412702±5.0
    NEF130W-NR×NR-JS180JS타입NEF130W257412702±5.0
    NEF130W-NR×NR-JS200JS타입NEF130W257412702±5.0
    NEF130W-NR×NR-JS250JS타입NEF130W257412702±5.0
    NEF210W-NR×NR-JS140JS타입NEF210W258320602±5.4
    NEF210W-NR×NR-JS180JS타입NEF210W258320602±5.4
    NEF210W-NR×NR-JS200JS타입NEF210W258320602±5.4
    NEF340W-NR×NR-JS180JS타입NEF340W459533302±6.6
    NEF340W-NR×NR-JS200JS타입NEF340W459533302±6.6

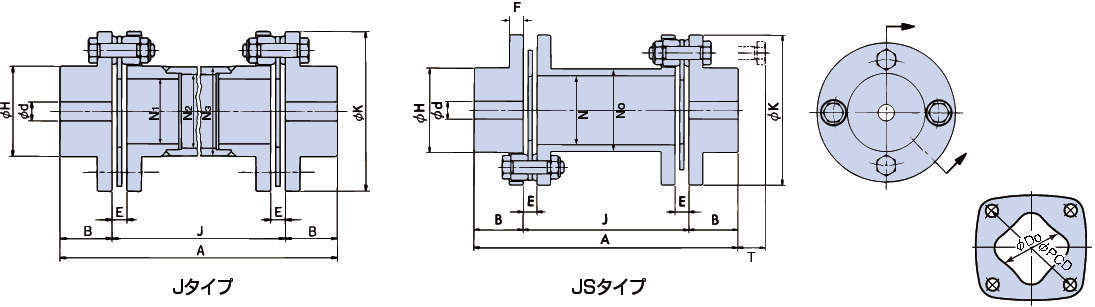

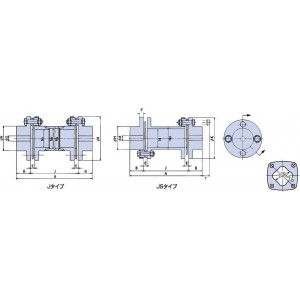

    형식A
    (mm)    		B
    (mm)    		DD
    (mm)    		E
    (mm)    		F
    (mm)    		H
    (mm)    		K
    (mm)    		N
    (mm)    		N0
    (mm)    		N1
    (mm)    		N2
    (mm)    		N3
    (mm)    		T
    (mm)    		PCD
    (mm)    		J
    (mm)
    형식A
    (mm)    		B
    (mm)    		DD
    (mm)    		E
    (mm)    		F
    (mm)    		H
    (mm)    		K
    (mm)    		N
    (mm)    		N0
    (mm)    		N1
    (mm)    		N2
    (mm)    		N3
    (mm)    		T
    (mm)    		PCD
    (mm)    		J
    (mm)
    NEF04W-NR×NR-J200250.825.4296.17.53467.5--17273215.549.5200
    NEF04W-NR×NR-J250300.825.4296.17.53467.5--17273215.549.5250
    NEF04W-NR×NR-J300350.825.4296.17.53467.5--17273215.549.5300
    NEF04W-NR×NR-J350400.825.4296.17.53467.5--17273215.549.5350
    NEF04W-NR×NR-J400450.825.4296.17.53467.5--17273215.549.5400
    NEF04W-NR×NR-J450500.825.4296.17.53467.5--17273215.549.5450
    NEF04W-NR×NR-J500550.825.4296.17.53467.5--17273215.549.5500
    NEF04W-NR×NR-J600650.825.4296.17.53467.5--17273215.549.5600
    NEF04W-NR×NR-J700750.825.4296.17.53467.5--17273215.549.5700
    NEF04W-NR×NR-J800850.825.4296.17.53467.5--17273215.549.5800
    NEF04W-NR×NR-J900950.825.4296.17.53467.5--17273215.549.5900
    NEF04W-NR×NR-J10001050.825.4296.17.53467.5--17273215.549.51000
    NEF10W-NR×NR-JS100150.825.4376.67546813746---1663100
    NEF10W-NR×NR-JS140190.825.4376.67546813746---1663140
    NEF10W-NR×NR-J200250.825.4376.6754681--2636421663200
    NEF10W-NR×NR-J250300.825.4376.6754681--2636421663250
    NEF10W-NR×NR-J300350.825.4376.6754681--2636421663300
    NEF10W-NR×NR-J350400.825.4376.6754681--2636421663350
    NEF10W-NR×NR-J400450.825.4376.6754681--2636421663400
    NEF10W-NR×NR-J450500.825.4376.6754681--2636421663450
    NEF10W-NR×NR-J500550.825.4376.6754681--2636421663500
    NEF10W-NR×NR-J600650.825.4376.6754681--2636421663600
    NEF10W-NR×NR-J700750.825.4376.6754681--2636421663700
    NEF10W-NR×NR-J800850.825.4376.6754681--2636421663800
    NEF10W-NR×NR-J900950.825.4376.6754681--2636421663900
    NEF10W-NR×NR-J10001050.825.4376.6754681--26364216631000
    NEF18W-NR×NR-JS100157.428.7398.3951933848---2371100
    NEF18W-NR×NR-JS140197.428.7398.3951933848---2371140
    NEF18W-NR×NR-J200257.428.7398.395193--3040462371200
    NEF18W-NR×NR-J250307.428.7398.395193--3040462371250
    NEF18W-NR×NR-J300357.428.7398.395193--3040462371300
    NEF18W-NR×NR-J350407.428.7398.395193--3040462371350
    NEF18W-NR×NR-J400457.428.7398.395193--3040462371400
    NEF18W-NR×NR-J450507.428.7398.395193--3040462371450
    NEF18W-NR×NR-J500557.428.7398.395193--3040462371500
    NEF18W-NR×NR-J600657.428.7398.395193--3040462371600
    NEF18W-NR×NR-J700757.428.7398.395193--3040462371700
    NEF18W-NR×NR-J800857.428.7398.395193--3040462371800
    NEF18W-NR×NR-J900957.428.7398.395193--3040462371900
    NEF18W-NR×NR-J10001057.428.7398.395193--30404623711000
    NEF25W-NR×NR-JS10016733.54511.29611044758---2182100
    NEF25W-NR×NR-JS12719433.54511.29611044758---2182127
    NEF25W-NR×NR-JS14020733.54511.29611044758---2182140
    NEF25W-NR×NR-J20026733.54511.2961104--3850562182200
    NEF25W-NR×NR-J25031733.54511.2961104--3850562182250
    NEF25W-NR×NR-J30036733.54511.2961104--3850562182300
    NEF25W-NR×NR-J35041733.54511.2961104--3850562182350
    NEF25W-NR×NR-J40046733.54511.2961104--3850562182400
    NEF25W-NR×NR-J45051733.54511.2961104--3850562182450
    NEF25W-NR×NR-J50056733.54511.2961104--3850562182500
    NEF25W-NR×NR-J60066733.54511.2961104--3850562182600
    NEF25W-NR×NR-J70076733.54511.2961104--3850562182700
    NEF25W-NR×NR-J80086733.54511.2961104--3850562182800
    NEF25W-NR×NR-J90096733.54511.2961104--3850562182900
    NEF25W-NR×NR-J1000106733.54511.2961104--38505621821000
    NEF45W-NR×NR-JS100182.241.15111.711.5711265869---2396100
    NEF45W-NR×NR-JS127209.241.15111.711.5711265869---2396127
    NEF45W-NR×NR-JS140222.241.15111.711.5711265869---2396140
    NEF45W-NR×NR-JS180262.241.15111.711.5711265869---2396180
    NEF45W-NR×NR-JS200282.241.15111.711.5711265869---2396200
    NEF45W-NR×NR-JS250332.241.15111.711.5711265869---2396250
    NEF80W-NR×NR-JS127222.647.86111.714841437181---29.5111127
    NEF80W-NR×NR-JS140235.647.86111.714841437181---29.5111140
    NEF80W-NR×NR-JS180275.647.86111.714841437181---29.5111180
    NEF80W-NR×NR-JS200295.647.86111.714841437181---29.5111200
    NEF80W-NR×NR-JS250345.647.86111.714841437181---29.5111250
    NEF130W-NR×NR-JS127241.457.27316.81410616892102---20134127
    NEF130W-NR×NR-JS140254.457.27316.81410616892102---20134140
    NEF130W-NR×NR-JS180294.457.27316.81410616892102---20134180
    NEF130W-NR×NR-JS200314.457.27316.81410616892102---20134200
    NEF130W-NR×NR-JS250364.457.27316.81410616892102---20134250
    NEF210W-NR×NR-JS14026763.5841716.5118194103114---32.5153140
    NEF210W-NR×NR-JS18030763.5841716.5118194103114---32.5153180
    NEF210W-NR×NR-JS20032763.5841716.5118194103114---32.5153200
    NEF340W-NR×NR-JS180332.476.29721.616.5137214118132---19.5172180
    NEF340W-NR×NR-JS200332.476.29721.616.5137214118132---19.5172180
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량
    (kg)    		견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량
    (kg)    		견적의뢰 및 주문
    NEF04W-NR×NR-J200P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J250P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J300P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J350P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J400P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J450P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J500P411,400----견적의뢰 / 주문
    NEF04W-NR×NR-J600P484,000----견적의뢰 / 주문
    NEF04W-NR×NR-J700P484,000----견적의뢰 / 주문
    NEF04W-NR×NR-J800P484,000----견적의뢰 / 주문
    NEF04W-NR×NR-J900P484,000----견적의뢰 / 주문
    NEF04W-NR×NR-J1000P484,000----견적의뢰 / 주문
    NEF10W-NR×NR-JS100P462,000----견적의뢰 / 주문
    NEF10W-NR×NR-JS140P484,000----견적의뢰 / 주문
    NEF10W-NR×NR-J200P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J250P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J300P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J350P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J400P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J450P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J500P497,200----견적의뢰 / 주문
    NEF10W-NR×NR-J600P585,200----견적의뢰 / 주문
    NEF10W-NR×NR-J700P585,200----견적의뢰 / 주문
    NEF10W-NR×NR-J800P585,200----견적의뢰 / 주문
    NEF10W-NR×NR-J900P585,200----견적의뢰 / 주문
    NEF10W-NR×NR-J1000P585,200----견적의뢰 / 주문
    NEF18W-NR×NR-JS100P528,000----견적의뢰 / 주문
    NEF18W-NR×NR-JS140P550,000----견적의뢰 / 주문
    NEF18W-NR×NR-J200P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J250P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J300P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J350P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J400P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J450P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J500P580,800----견적의뢰 / 주문
    NEF18W-NR×NR-J600P684,200----견적의뢰 / 주문
    NEF18W-NR×NR-J700P684,200----견적의뢰 / 주문
    NEF18W-NR×NR-J800P684,200----견적의뢰 / 주문
    NEF18W-NR×NR-J900P684,200----견적의뢰 / 주문
    NEF18W-NR×NR-J1000P684,200----견적의뢰 / 주문
    NEF25W-NR×NR-JS100P594,000----견적의뢰 / 주문
    NEF25W-NR×NR-JS127P616,000----견적의뢰 / 주문
    NEF25W-NR×NR-JS140P638,000----견적의뢰 / 주문
    NEF25W-NR×NR-J200P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J250P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J300P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J350P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J400P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J450P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J500P666,600----견적의뢰 / 주문
    NEF25W-NR×NR-J600P783,200----견적의뢰 / 주문
    NEF25W-NR×NR-J700P783,200----견적의뢰 / 주문
    NEF25W-NR×NR-J800P783,200----견적의뢰 / 주문
    NEF25W-NR×NR-J900P783,200----견적의뢰 / 주문
    NEF25W-NR×NR-J1000P783,200----견적의뢰 / 주문
    NEF45W-NR×NR-JS100P748,000----견적의뢰 / 주문
    NEF45W-NR×NR-JS127P770,000----견적의뢰 / 주문
    NEF45W-NR×NR-JS140P781,000----견적의뢰 / 주문
    NEF45W-NR×NR-JS180P803,000----견적의뢰 / 주문
    NEF45W-NR×NR-JS200P803,000----견적의뢰 / 주문
    NEF45W-NR×NR-JS250P803,000----견적의뢰 / 주문
    NEF80W-NR×NR-JS127P1,056,000----견적의뢰 / 주문
    NEF80W-NR×NR-JS140P1,100,000----견적의뢰 / 주문
    NEF80W-NR×NR-JS180P1,144,000----견적의뢰 / 주문
    NEF80W-NR×NR-JS200P1,144,000----견적의뢰 / 주문
    NEF80W-NR×NR-JS250P1,144,000----견적의뢰 / 주문
    NEF130W-NR×NR-JS127P1,485,000----견적의뢰 / 주문
    NEF130W-NR×NR-JS140P1,518,000----견적의뢰 / 주문
    NEF130W-NR×NR-JS180P1,551,000----견적의뢰 / 주문
    NEF130W-NR×NR-JS200P1,551,000----견적의뢰 / 주문
    NEF130W-NR×NR-JS250P1,551,000----견적의뢰 / 주문
    NEF210W-NR×NR-JS140P2,002,000----견적의뢰 / 주문
    NEF210W-NR×NR-JS180P2,013,000----견적의뢰 / 주문
    NEF210W-NR×NR-JS200P2,024,000----견적의뢰 / 주문
    NEF340W-NR×NR-JS180P3,179,000----견적의뢰 / 주문
    NEF340W-NR×NR-JS200P3,190,000----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
