HOME > 체인전도 > 드라이브체인 > BS람다체인(ISO606규격품·B시리즈)
드라이브체인

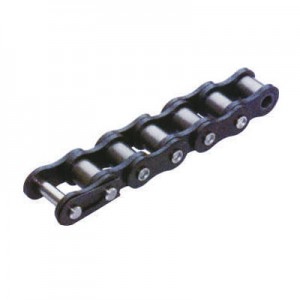

BS람다체인(ISO606규격품·B시리즈)
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    47건 중 1~47건 표시
    형식타입형상JIS번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    형식타입형상JIS번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    RF06B-LM-1유니트RF(플랫형)06B19.5256.355.72
    RS08B-LM-1유니트RS08B112.78.517.75
    RS10B-LM-1유니트RS10B115.87510.169.65
    RS12B-LM-1유니트RS12B119.0512.0711.68
    RS16B-LM-1유니트RS16B125.415.8817.02
    RF06B-LM-1-L링크RF(플랫형)06B19.5256.355.72
    RF06B-LM-2-L링크RF(플랫형)06B29.5256.355.72
    RS08B-LM-1-L링크RS08B112.78.517.75
    RS08B-LM-2-L링크RS08B212.78.517.75
    RS10B-LM-1-L링크RS10B115.87510.169.65
    RS10B-LM-2-L링크RS10B215.87510.169.65
    RS12B-LM-1-L링크RS12B119.0512.0711.68
    RS12B-LM-2-L링크RS12B219.0512.0711.68
    RS16B-LM-1-L링크RS16B125.415.8817.02
    RS16B-LM-2-L링크RS16B225.415.8817.02
    RS20B-LM-1-L링크RS20B131.7519.0519.56
    RS20B-LM-2-L링크RS20B231.7519.0519.56
    RS24B-LM-1-L링크RS24B138.125.425.4
    RS24B-LM-2-L링크RS24B238.125.425.4
    RF06B-LM-1-JL조인트링크RF(플랫형)06B19.5256.355.72
    RF06B-LM-2-JL조인트링크RF(플랫형)06B29.5256.355.72
    RS08B-LM-1-JL조인트링크RS08B112.78.517.75
    RS08B-LM-2-JL조인트링크RS08B212.78.517.75
    RS10B-LM-1-JL조인트링크RS10B115.87510.169.65
    RS10B-LM-2-JL조인트링크RS10B215.87510.169.65
    RS12B-LM-1-JL조인트링크RS12B119.0512.0711.68
    RS12B-LM-2-JL조인트링크RS12B219.0512.0711.68
    RS16B-LM-1-JL조인트링크RS16B125.415.8817.02
    RS16B-LM-2-JL조인트링크RS16B225.415.8817.02
    RS20B-LM-1-JL조인트링크RS20B131.7519.0519.56
    RS20B-LM-2-JL조인트링크RS20B231.7519.0519.56
    RS24B-LM-1-JL조인트링크RS24B138.125.425.4
    RS24B-LM-2-JL조인트링크RS24B238.125.425.4
    RF06B-LM-1-OL오프셋링크RF(플랫형)06B19.5256.355.72
    RF06B-LM-2-OL오프셋링크RF(플랫형)06B29.5256.355.72
    RS08B-LM-1-OL오프셋링크RS08B112.78.517.75
    RS08B-LM-2-OL오프셋링크RS08B212.78.517.75
    RS10B-LM-1-OL오프셋링크RS10B115.87510.169.65
    RS10B-LM-2-OL오프셋링크RS10B215.87510.169.65
    RS12B-LM-1-OL오프셋링크RS12B119.0512.0711.68
    RS12B-LM-2-OL오프셋링크RS12B219.0512.0711.68
    RS16B-LM-1-OL오프셋링크RS16B125.415.8817.02
    RS16B-LM-2-OL오프셋링크RS16B225.415.8817.02
    RS20B-LM-1-OL오프셋링크RS20B131.7519.0519.56
    RS20B-LM-2-OL오프셋링크RS20B231.7519.0519.56
    RS24B-LM-1-OL오프셋링크RS24B138.125.425.4
    RS24B-LM-2-OL오프셋링크RS24B238.125.425.4

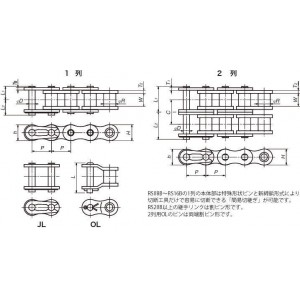

    형식플레이트(mm)플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)
    형식두께
    T1    		두께
    T2    		폭
    H    		폭
    h    		핀경
    D    		L1L2
    RF06B-LM-11.318.28.23.286.17.7
    RS08B-LM-11.61.611.810.44.458.410
    RS10B-LM-11.51.514.713.75.089.5511.25
    RS12B-LM-11.81.816.116.15.7211.113
    RS16B-LM-143.221218.2817.7519.95
    RF06B-LM-1-L1.318.28.23.286.17.7
    RF06B-LM-2-L1.318.28.23.2811.212.8
    RS08B-LM-1-L1.61.611.810.44.458.410
    RS08B-LM-2-L1.61.611.810.44.4515.316.9
    RS10B-LM-1-L1.51.514.713.75.089.5511.25
    RS10B-LM-2-L1.51.514.713.75.0817.8519.55
    RS12B-LM-1-L1.81.816.116.15.7211.113
    RS12B-LM-2-L1.81.816.116.15.7220.8522.75
    RS16B-LM-1-L43.221218.2817.7519.95
    RS16B-LM-2-L43.221218.2833.5535.75
    RS20B-LM-1-L4.43.4262610.1919.923.1
    RS20B-LM-2-L4.43.4262610.1938.2541.45
    RS24B-LM-1-L65.633.431.214.6326.6531.85
    RS24B-LM-2-L65.633.431.214.6350.856
    RF06B-LM-1-JL1.318.28.23.286.17.7
    RF06B-LM-2-JL1.318.28.23.2811.212.8
    RS08B-LM-1-JL1.61.611.810.44.458.410
    RS08B-LM-2-JL1.61.611.810.44.4515.316.9
    RS10B-LM-1-JL1.51.514.713.75.089.5511.25
    RS10B-LM-2-JL1.51.514.713.75.0817.8519.55
    RS12B-LM-1-JL1.81.816.116.15.7211.113
    RS12B-LM-2-JL1.81.816.116.15.7220.8522.75
    RS16B-LM-1-JL43.221218.2817.7519.95
    RS16B-LM-2-JL43.221218.2833.5535.75
    RS20B-LM-1-JL4.43.4262610.1919.923.1
    RS20B-LM-2-JL4.43.4262610.1938.2541.45
    RS24B-LM-1-JL65.633.431.214.6326.6531.85
    RS24B-LM-2-JL65.633.431.214.6350.856
    RF06B-LM-1-OL1.318.28.23.28--
    RF06B-LM-2-OL1.318.28.23.28--
    RS08B-LM-1-OL1.61.611.810.44.45--
    RS08B-LM-2-OL1.61.611.810.44.45--
    RS10B-LM-1-OL1.51.514.713.75.08--
    RS10B-LM-2-OL1.51.514.713.75.08--
    RS12B-LM-1-OL1.81.816.116.15.72--
    RS12B-LM-2-OL1.81.816.116.15.72--
    RS16B-LM-1-OL43.221218.28--
    RS16B-LM-2-OL43.221218.28--
    RS20B-LM-1-OL4.43.4262610.19--
    RS20B-LM-2-OL4.43.4262610.19--
    RS24B-LM-1-OL65.633.431.214.63--
    RS24B-LM-2-OL65.633.431.214.63--
    형식오프셋핀길이
    L
    (mm)    		횡피치
    C
    (mm)    		최소인장강도
    (KN)    		개략질량
    (kg/m)    		링크수
    형식오프셋핀길이
    L
    (mm)    		횡피치
    C
    (mm)    		최소인장강도
    (KN)    		개략질량
    (kg/m)    		링크수
    RF06B-LM-1--90.39320
    RS08B-LM-1--190.7240
    RS10B-LM-1--230.95192
    RS12B-LM-1--311.25160
    RS16B-LM-1--702.7120
    RF06B-LM-1-L--8.90.39-
    RF06B-LM-2-L-10.2416.90.75-
    RS08B-LM-1-L--17.80.7-
    RS08B-LM-2-L-13.9231.11.35-
    RS10B-LM-1-L--22.20.95-
    RS10B-LM-2-L-16.5944.51.85-
    RS12B-LM-1-L--28.91.25-
    RS12B-LM-2-L-19.4657.82.5-
    RS16B-LM-1-L--602.7-
    RS16B-LM-2-L-31.881065.4-
    RS20B-LM-1-L--953.85-
    RS20B-LM-2-L-36.451707.65-
    RS24B-LM-1-L--1607.45-
    RS24B-LM-2-L-48.3628014.65-
    RF06B-LM-1-JL--90.39-
    RF06B-LM-2-JL-10.24170.75-
    RS08B-LM-1-JL--190.7-
    RS08B-LM-2-JL-13.92321.35-
    RS10B-LM-1-JL--230.95-
    RS10B-LM-2-JL-16.5944.51.85-
    RS12B-LM-1-JL--311.25-
    RS12B-LM-2-JL-19.46612.5-
    RS16B-LM-1-JL--702.7-
    RS16B-LM-2-JL-31.881285.4-
    RS20B-LM-1-JL--98.13.85-
    RS20B-LM-2-JL-36.451977.65-
    RS24B-LM-1-JL--1677.45-
    RS24B-LM-2-JL-48.3633514.65-
    RF06B-LM-1-OL15.1-90.39-
    RF06B-LM-2-OL25.910.24170.75-
    RS08B-LM-1-OL18.6-190.7-
    RS08B-LM-2-OL34.513.92321.35-
    RS10B-LM-1-OL20.8-230.95-
    RS10B-LM-2-OL39.416.5944.51.85-
    RS12B-LM-1-OL24.4-311.25-
    RS12B-LM-2-OL45.919.46612.5-
    RS16B-LM-1-OL39.3-702.7-
    RS16B-LM-2-OL73.431.881285.4-
    RS20B-LM-1-OL46.6-98.13.85-
    RS20B-LM-2-OL84.636.451977.65-
    RS24B-LM-1-OL61.7-1677.45-
    RS24B-LM-2-OL112.848.3633514.65-
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    RF06B-LM-1P429,000----견적의뢰 / 주문
    RS08B-LM-1P343,200----견적의뢰 / 주문
    RS10B-LM-1P376,200----견적의뢰 / 주문
    RS12B-LM-1P486,200----견적의뢰 / 주문
    RS16B-LM-1P744,700----견적의뢰 / 주문
    RF06B-LM-1-LL1,342----견적의뢰 / 주문
    RF06B-LM-2-LL3,190----견적의뢰 / 주문
    RS08B-LM-1-LL1,430----견적의뢰 / 주문
    RS08B-LM-2-LL3,388----견적의뢰 / 주문
    RS10B-LM-1-LL1,958----견적의뢰 / 주문
    RS10B-LM-2-LL4,730----견적의뢰 / 주문
    RS12B-LM-1-LL3,036----견적의뢰 / 주문
    RS12B-LM-2-LL7,194----견적의뢰 / 주문
    RS16B-LM-1-LL6,204----견적의뢰 / 주문
    RS16B-LM-2-LL14,300----견적의뢰 / 주문
    RS20B-LM-1-LL12,100----견적의뢰 / 주문
    RS20B-LM-2-LL29,040----견적의뢰 / 주문
    RS24B-LM-1-LL27,280----견적의뢰 / 주문
    RS24B-LM-2-LL65,340----견적의뢰 / 주문
    RF06B-LM-1-JLP3,080----견적의뢰 / 주문
    RF06B-LM-2-JLP6,754----견적의뢰 / 주문
    RS08B-LM-1-JLP3,828----견적의뢰 / 주문
    RS08B-LM-2-JLP8,338----견적의뢰 / 주문
    RS10B-LM-1-JLP4,488----견적의뢰 / 주문
    RS10B-LM-2-JLP9,790----견적의뢰 / 주문
    RS12B-LM-1-JLP6,204----견적의뢰 / 주문
    RS12B-LM-2-JLP13,640----견적의뢰 / 주문
    RS16B-LM-1-JLP11,880----견적의뢰 / 주문
    RS16B-LM-2-JLP26,180----견적의뢰 / 주문
    RS20B-LM-1-JLP24,860----견적의뢰 / 주문
    RS20B-LM-2-JLP54,780----견적의뢰 / 주문
    RS24B-LM-1-JLP40,480----견적의뢰 / 주문
    RS24B-LM-2-JLP90,420----견적의뢰 / 주문
    RF06B-LM-1-OLP6,534----견적의뢰 / 주문
    RF06B-LM-2-OLP17,600----견적의뢰 / 주문
    RS08B-LM-1-OLP8,822----견적의뢰 / 주문
    RS08B-LM-2-OLP23,980----견적의뢰 / 주문
    RS10B-LM-1-OLP8,976----견적의뢰 / 주문
    RS10B-LM-2-OLP24,200----견적의뢰 / 주문
    RS12B-LM-1-OLP12,210----견적의뢰 / 주문
    RS12B-LM-2-OLP27,940----견적의뢰 / 주문
    RS16B-LM-1-OLP21,780----견적의뢰 / 주문
    RS16B-LM-2-OLP50,600----견적의뢰 / 주문
    RS20B-LM-1-OLP46,200----견적의뢰 / 주문
    RS20B-LM-2-OLP108,460----견적의뢰 / 주문
    RS24B-LM-1-OLP64,240----견적의뢰 / 주문
    RS24B-LM-2-OLP149,600----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
