HOME > 체인전도 > 드라이브체인 > BS롤러체인(ISO606규격품·B시리즈)
드라이브체인

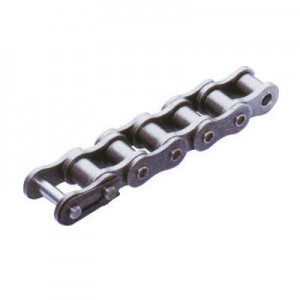

BS롤러체인(ISO606규격품·B시리즈)
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    134건 중 1~134건 표시
    형식타입형상JIS번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    형식타입형상JIS번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    RF06B-1유니트RF(플랫형)06B19.5256.355.72
    RF06B-2유니트RF(플랫형)06B29.5256.355.72
    RF06B-3유니트RF(플랫형)06B39.5256.355.72
    RS08B-1유니트RS08B112.78.517.75
    RS08B-2유니트RS08B212.78.517.75
    RS08B-3유니트RS08B312.78.517.75
    RS10B-1유니트RS10B115.87510.169.65
    RS10B-2유니트RS10B215.87510.169.65
    RS10B-3유니트RS10B315.87510.169.65
    RS12B-1유니트RS12B119.0512.0711.68
    RS12B-2유니트RS12B219.0512.0711.68
    RS12B-3유니트RS12B319.0512.0711.68
    RS16B-1유니트RS16B125.415.8817.02
    RS16B-2유니트RS16B225.415.8817.02
    RS16B-3유니트RS16B325.415.8817.02
    RS20B-1유니트RS20B131.7519.0519.56
    RS24B-1유니트RS24B138.125.425.4
    RS28B-1유니트RS28B144.4527.9430.99
    RS32B-1유니트RS32B150.829.2130.99
    RF06B-1-L링크RF(플랫형)06B19.5256.355.72
    RF06B-2-L링크RF(플랫형)06B29.5256.355.72
    RF06B-3-L링크RF(플랫형)06B39.5256.355.72
    RS08B-1-L링크RS08B112.78.517.75
    RS08B-2-L링크RS08B212.78.517.75
    RS08B-3-L링크RS08B312.78.517.75
    RS10B-1-L링크RS10B115.87510.169.65
    RS10B-2-L링크RS10B215.87510.169.65
    RS10B-3-L링크RS10B315.87510.169.65
    RS12B-1-L링크RS12B119.0512.0711.68
    RS12B-2-L링크RS12B219.0512.0711.68
    RS12B-3-L링크RS12B319.0512.0711.68
    RS16B-1-L링크RS16B125.415.8817.02
    RS16B-2-L링크RS16B225.415.8817.02
    RS16B-3-L링크RS16B325.415.8817.02
    RS20B-1-L링크RS20B131.7519.0519.56
    RS20B-2-L링크RS20B231.7519.0519.56
    RS20B-3-L링크RS20B331.7519.0519.56
    RS24B-1-L링크RS24B138.125.425.4
    RS24B-2-L링크RS24B238.125.425.4
    RS24B-3-L링크RS24B338.125.425.4
    RS28B-1-L링크RS28B144.4527.9430.99
    RS28B-2-L링크RS28B244.4527.9430.99
    RS28B-3-L링크RS28B344.4527.9430.99
    RS32B-1-L링크RS32B150.829.2130.99
    RS32B-2-L링크RS32B250.829.2130.99
    RS32B-3-L링크RS32B350.829.2130.99
    RS40B-1-L링크RS40B163.539.3738.1
    RS40B-2-L링크RS40B263.539.3738.1
    RS40B-3-L링크RS40B363.539.3738.1
    RF06B-1-JL조인트링크RF(플랫형)06B19.5256.355.72
    RF06B-2-JL조인트링크RF(플랫형)06B29.5256.355.72
    RF06B-3-JL조인트링크RF(플랫형)06B39.5256.355.72
    RS08B-1-JL조인트링크RS08B112.78.517.75
    RS08B-2-JL조인트링크RS08B212.78.517.75
    RS08B-3-JL조인트링크RS08B312.78.517.75
    RS10B-1-JL조인트링크RS10B115.87510.169.65
    RS10B-2-JL조인트링크RS10B215.87510.169.65
    RS10B-3-JL조인트링크RS10B315.87510.169.65
    RS12B-1-JL조인트링크RS12B119.0512.0711.68
    RS12B-2-JL조인트링크RS12B219.0512.0711.68
    RS12B-3-JL조인트링크RS12B319.0512.0711.68
    RS16B-1-JL조인트링크RS16B125.415.8817.02
    RS16B-2-JL조인트링크RS16B225.415.8817.02
    RS16B-3-JL조인트링크RS16B325.415.8817.02
    RS20B-1-JL조인트링크RS20B131.7519.0519.56
    RS20B-2-JL조인트링크RS20B231.7519.0519.56
    RS20B-3-JL조인트링크RS20B331.7519.0519.56
    RS24B-1-JL조인트링크RS24B138.125.425.4
    RS24B-2-JL조인트링크RS24B238.125.425.4
    RS24B-3-JL조인트링크RS24B338.125.425.4
    RS28B-1-JL조인트링크RS28B144.4527.9430.99
    RS28B-2-JL조인트링크RS28B244.4527.9430.99
    RS28B-3-JL조인트링크RS28B344.4527.9430.99
    RS32B-1-JL조인트링크RS32B150.829.2130.99
    RS32B-2-JL조인트링크RS32B250.829.2130.99
    RS32B-3-JL조인트링크RS32B350.829.2130.99
    RS40B-1-JL조인트링크RS40B163.539.3738.1
    RS40B-2-JL조인트링크RS40B263.539.3738.1
    RS40B-3-JL조인트링크RS40B363.539.3738.1
    RF06B-1-OL오프셋링크RF(플랫형)06B19.5256.355.72
    RS08B-1-OL오프셋링크RS08B112.78.517.75
    RS08B-2-OL오프셋링크RS08B212.78.517.75
    RS08B-3-OL오프셋링크RS08B312.78.517.75
    RS10B-1-OL오프셋링크RS10B115.87510.169.65
    RS10B-2-OL오프셋링크RS10B215.87510.169.65
    RS10B-3-OL오프셋링크RS10B315.87510.169.65
    RS12B-1-OL오프셋링크RS12B119.0512.0711.68
    RS12B-2-OL오프셋링크RS12B219.0512.0711.68
    RS12B-3-OL오프셋링크RS12B319.0512.0711.68
    RS16B-1-OL오프셋링크RS16B125.415.8817.02
    RS16B-2-OL오프셋링크RS16B225.415.8817.02
    RS16B-3-OL오프셋링크RS16B325.415.8817.02
    RS20B-1-OL오프셋링크RS20B131.7519.0519.56
    RS20B-2-OL오프셋링크RS20B231.7519.0519.56
    RS20B-3-OL오프셋링크RS20B331.7519.0519.56
    RS24B-1-OL오프셋링크RS24B138.125.425.4
    RS24B-2-OL오프셋링크RS24B238.125.425.4
    RS24B-3-OL오프셋링크RS24B338.125.425.4
    RS28B-1-OL오프셋링크RS28B144.4527.9430.99
    RS28B-2-OL오프셋링크RS28B244.4527.9430.99
    RS28B-3-OL오프셋링크RS28B344.4527.9430.99
    RS32B-1-OL오프셋링크RS32B150.829.2130.99
    RS32B-2-OL오프셋링크RS32B250.829.2130.99
    RS32B-3-OL오프셋링크RS32B350.829.2130.99
    RS40B-1-OL오프셋링크RS40B163.539.3738.1
    RS40B-2-OL오프셋링크RS40B263.539.3738.1
    RS40B-3-OL오프셋링크RS40B363.539.3738.1
    RS08B-1-2POL2P오프셋링크RS08B112.78.517.75
    RS08B-2-2POL2P오프셋링크RS08B212.78.517.75
    RS08B-3-2POL2P오프셋링크RS08B312.78.517.75
    RS10B-1-2POL2P오프셋링크RS10B115.87510.169.65
    RS10B-2-2POL2P오프셋링크RS10B215.87510.169.65
    RS10B-3-2POL2P오프셋링크RS10B315.87510.169.65
    RS12B-1-2POL2P오프셋링크RS12B119.0512.0711.68
    RS12B-2-2POL2P오프셋링크RS12B219.0512.0711.68
    RS12B-3-2POL2P오프셋링크RS12B319.0512.0711.68
    RS16B-1-2POL2P오프셋링크RS16B125.415.8817.02
    RS16B-2-2POL2P오프셋링크RS16B225.415.8817.02
    RS16B-3-2POL2P오프셋링크RS16B325.415.8817.02
    RS20B-1-2POL2P오프셋링크RS20B131.7519.0519.56
    RS20B-2-2POL2P오프셋링크RS20B231.7519.0519.56
    RS20B-3-2POL2P오프셋링크RS20B331.7519.0519.56
    RS24B-1-2POL2P오프셋링크RS24B138.125.425.4
    RS24B-2-2POL2P오프셋링크RS24B238.125.425.4
    RS24B-3-2POL2P오프셋링크RS24B338.125.425.4
    RS28B-1-2POL2P오프셋링크RS28B144.4527.9430.99
    RS28B-2-2POL2P오프셋링크RS28B244.4527.9430.99
    RS28B-3-2POL2P오프셋링크RS28B344.4527.9430.99
    RS32B-1-2POL2P오프셋링크RS32B150.829.2130.99
    RS32B-2-2POL2P오프셋링크RS32B250.829.2130.99
    RS32B-3-2POL2P오프셋링크RS32B350.829.2130.99
    RS40B-1-2POL2P오프셋링크RS40B163.539.3738.1
    RS40B-2-2POL2P오프셋링크RS40B263.539.3738.1
    RS40B-3-2POL2P오프셋링크RS40B363.539.3738.1

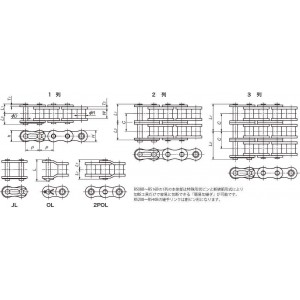

    형식플레이트(mm)플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)핀(mm)
    형식두께
    T1    		두께
    T2    		폭
    H    		폭
    h    		핀경
    D    		핀길이
    L1+L2    		L1L2
    RF06B-11.318.28.23.2813.86.17.7
    RF06B-21.318.28.23.282411.212.8
    RF06B-31.318.28.23.2834.316.417.9
    RS08B-11.61.611.810.44.4518.48.410
    RS08B-21.61.611.810.44.4532.215.316.9
    RS08B-31.61.611.810.44.4546.122.2523.85
    RS10B-11.51.514.713.75.0820.89.5511.25
    RS10B-21.51.514.713.75.0837.417.8519.55
    RS10B-31.51.514.713.75.085426.1527.85
    RS12B-11.81.816.116.15.7224.111.113
    RS12B-21.81.816.116.15.7243.620.8522.75
    RS12B-31.81.816.116.15.7263.130.632.5
    RS16B-143.221218.2837.717.7519.95
    RS16B-243.221218.2869.333.5535.75
    RS16B-343.221218.28101.249.551.7
    RS20B-14.43.4262610.194319.923.1
    RS24B-165.633.431.214.6358.526.6531.85
    RS28B-17.56.336.436.415.969.932.4537.45
    RS32B-176.342.241.617.8169.832.137.7
    RF06B-1-L1.318.28.23.2813.86.17.7
    RF06B-2-L1.318.28.23.282411.212.8
    RF06B-3-L1.318.28.23.2834.316.417.9
    RS08B-1-L1.61.611.810.44.4518.48.410
    RS08B-2-L1.61.611.810.44.4532.215.316.9
    RS08B-3-L1.61.611.810.44.4546.122.2523.85
    RS10B-1-L1.51.514.713.75.0820.89.5511.25
    RS10B-2-L1.51.514.713.75.0837.417.8519.55
    RS10B-3-L1.51.514.713.75.085426.1527.85
    RS12B-1-L1.81.816.116.15.7224.111.113
    RS12B-2-L1.81.816.116.15.7243.620.8522.75
    RS12B-3-L1.81.816.116.15.7263.130.632.5
    RS16B-1-L43.221218.2837.717.7519.95
    RS16B-2-L43.221218.2869.333.5535.75
    RS16B-3-L43.221218.28101.249.551.7
    RS20B-1-L4.43.4262610.194319.923.1
    RS20B-2-L4.43.4262610.1979.738.2541.45
    RS20B-3-L4.43.4262610.19116.256.559.7
    RS24B-1-L65.633.431.214.6358.526.6531.85
    RS24B-2-L65.633.431.214.63106.850.856
    RS24B-3-L65.633.431.214.63155.37580.2
    RS28B-1-L7.56.336.436.415.969.932.4537.45
    RS28B-2-L7.56.336.436.415.9129.362.1567.15
    RS28B-3-L7.56.336.436.415.9188.991.9596.95
    RS32B-1-L76.342.241.617.8169.832.137.7
    RS32B-2-L76.342.241.617.81128.161.2566.85
    RS32B-3-L76.342.241.617.81186.690.596.1
    RS40B-1-L8.5852.95222.8984.339.2545.05
    RS40B-2-L8.5852.95222.89156.675.481.2
    RS40B-3-L8.5852.95222.89228.8111.5117.3
    RF06B-1-JL1.318.28.23.2813.86.17.7
    RF06B-2-JL1.318.28.23.282411.212.8
    RF06B-3-JL1.318.28.23.2834.316.417.9
    RS08B-1-JL1.61.611.810.44.4518.48.410
    RS08B-2-JL1.61.611.810.44.4532.215.316.9
    RS08B-3-JL1.61.611.810.44.4546.122.2523.85
    RS10B-1-JL1.51.514.713.75.0820.89.5511.25
    RS10B-2-JL1.51.514.713.75.0837.417.8519.55
    RS10B-3-JL1.51.514.713.75.085426.1527.85
    RS12B-1-JL1.81.816.116.15.7224.111.113
    RS12B-2-JL1.81.816.116.15.7243.620.8522.75
    RS12B-3-JL1.81.816.116.15.7263.130.632.5
    RS16B-1-JL43.221218.2837.717.7519.95
    RS16B-2-JL43.221218.2869.333.5535.75
    RS16B-3-JL43.221218.28101.249.551.7
    RS20B-1-JL4.43.4262610.194319.923.1
    RS20B-2-JL4.43.4262610.1979.738.2541.45
    RS20B-3-JL4.43.4262610.19116.256.559.7
    RS24B-1-JL65.633.431.214.6358.526.6531.85
    RS24B-2-JL65.633.431.214.63106.850.856
    RS24B-3-JL65.633.431.214.63155.37580.2
    RS28B-1-JL7.56.336.436.415.969.932.4537.45
    RS28B-2-JL7.56.336.436.415.9129.362.1567.15
    RS28B-3-JL7.56.336.436.415.9188.991.9596.95
    RS32B-1-JL76.342.241.617.8169.832.137.7
    RS32B-2-JL76.342.241.617.81128.161.2566.85
    RS32B-3-JL76.342.241.617.81186.690.596.1
    RS40B-1-JL8.5852.95222.8984.339.2545.05
    RS40B-2-JL8.5852.95222.89156.675.481.2
    RS40B-3-JL8.5852.95222.89228.8111.5117.3
    RF06B-1-OL1.318.28.23.28---
    RS08B-1-OL1.61.611.810.44.45---
    RS08B-2-OL1.61.611.810.44.45---
    RS08B-3-OL1.61.611.810.44.45---
    RS10B-1-OL1.51.514.713.75.08---
    RS10B-2-OL1.51.514.713.75.08---
    RS10B-3-OL1.51.514.713.75.08---
    RS12B-1-OL1.81.816.116.15.72---
    RS12B-2-OL1.81.816.116.15.72---
    RS12B-3-OL1.81.816.116.15.72---
    RS16B-1-OL43.221218.28---
    RS16B-2-OL43.221218.28---
    RS16B-3-OL43.221218.28---
    RS20B-1-OL4.43.4262610.19---
    RS20B-2-OL4.43.4262610.19---
    RS20B-3-OL4.43.4262610.19---
    RS24B-1-OL65.633.431.214.63---
    RS24B-2-OL65.633.431.214.63---
    RS24B-3-OL65.633.431.214.63---
    RS28B-1-OL7.56.336.436.415.9---
    RS28B-2-OL7.56.336.436.415.9---
    RS28B-3-OL7.56.336.436.415.9---
    RS32B-1-OL76.342.241.617.81---
    RS32B-2-OL76.342.241.617.81---
    RS32B-3-OL76.342.241.617.81---
    RS40B-1-OL8.5852.95222.89---
    RS40B-2-OL8.5852.95222.89---
    RS40B-3-OL8.5852.95222.89---
    RS08B-1-2POL1.61.611.810.44.45-8.4-
    RS08B-2-2POL1.61.611.810.44.45-15.3-
    RS08B-3-2POL1.61.611.810.44.45-22.25-
    RS10B-1-2POL1.51.514.713.75.08-9.55-
    RS10B-2-2POL1.51.514.713.75.08-17.85-
    RS10B-3-2POL1.51.514.713.75.08-26.15-
    RS12B-1-2POL1.81.816.116.15.72-11.1-
    RS12B-2-2POL1.81.816.116.15.72-20.85-
    RS12B-3-2POL1.81.816.116.15.72-30.6-
    RS16B-1-2POL43.221218.28-17.75-
    RS16B-2-2POL43.221218.28-33.55-
    RS16B-3-2POL43.221218.28-49.5-
    RS20B-1-2POL4.43.4262610.19-19.9-
    RS20B-2-2POL4.43.4262610.19-38.25-
    RS20B-3-2POL4.43.4262610.19-56.5-
    RS24B-1-2POL65.633.431.214.63-26.65-
    RS24B-2-2POL65.633.431.214.63-50.8-
    RS24B-3-2POL65.633.431.214.63-75-
    RS28B-1-2POL7.56.336.436.415.9-32.45-
    RS28B-2-2POL7.56.336.436.415.9-62.15-
    RS28B-3-2POL7.56.336.436.415.9-91.95-
    RS32B-1-2POL76.342.241.617.81-32.1-
    RS32B-2-2POL76.342.241.617.81-61.25-
    RS32B-3-2POL76.342.241.617.81-90.5-
    RS40B-1-2POL8.5852.95222.89-39.25-
    RS40B-2-2POL8.5852.95222.89-75.4-
    RS40B-3-2POL8.5852.95222.89-111.5-
    형식오프셋핀길이
    L
    (mm)    		횡피치
    C
    (mm)    		최소인장강도
    (KN)    		ISO인장강도
    (KN)    		개략질량
    (kg/m)    		링크수
    형식오프셋핀길이
    L
    (mm)    		횡피치
    C
    (mm)    		최소인장강도
    (KN)    		ISO인장강도
    (KN)    		개략질량
    (kg/m)    		링크수
    RF06B-1--98.90.39320
    RF06B-2-10.241716.90.75320
    RF06B-3-10.2424.924.91.11320
    RS08B-1--1917.80.7240
    RS08B-2-13.923231.11.35240
    RS08B-3-13.9247.544.52240
    RS10B-1--2322.20.95192
    RS10B-2-16.5944.544.51.85192
    RS10B-3-16.5966.866.72.8192
    RS12B-1--3128.91.25160
    RS12B-2-19.466157.82.5160
    RS12B-3-19.469286.73.8160
    RS16B-1--70602.7120
    RS16B-2-31.881281065.4120
    RS16B-3-31.881921608120
    RS20B-1--98.1953.8596
    RS24B-1--1671607.4580
    RS28B-1--2002009.4568
    RS32B-1--25525010.2560
    RF06B-1-L--98.90.39-
    RF06B-2-L-10.241716.90.75-
    RF06B-3-L-10.2424.924.91.11-
    RS08B-1-L--1917.80.7-
    RS08B-2-L-13.923231.11.35-
    RS08B-3-L-13.9247.544.52-
    RS10B-1-L--2322.20.95-
    RS10B-2-L-16.5944.544.51.85-
    RS10B-3-L-16.5966.866.72.8-
    RS12B-1-L--3128.91.25-
    RS12B-2-L-19.466157.82.5-
    RS12B-3-L-19.469286.73.8-
    RS16B-1-L--70602.7-
    RS16B-2-L-31.881281065.4-
    RS16B-3-L-31.881921608-
    RS20B-1-L--98.1953.85-
    RS20B-2-L-36.451971707.65-
    RS20B-3-L-36.4529525011.45-
    RS24B-1-L--1671607.45-
    RS24B-2-L-48.3633528014.65-
    RS24B-3-L-48.3650042521.75-
    RS28B-1-L--2002009.45-
    RS28B-2-L-59.5637436018.8-
    RS28B-3-L-59.5656053028.2-
    RS32B-1-L--25525010.25-
    RS32B-2-L-58.5548545020.1-
    RS32B-3-L-58.5572967029.9-
    RS40B-1-L--37335516.35-
    RS40B-2-L-72.2971663032-
    RS40B-3-L-72.29108095047.75-
    RF06B-1-JL--98.90.39-
    RF06B-2-JL-10.241716.90.75-
    RF06B-3-JL-10.2424.924.91.11-
    RS08B-1-JL--1917.80.7-
    RS08B-2-JL-13.923231.11.35-
    RS08B-3-JL-13.9247.544.52-
    RS10B-1-JL--2322.20.95-
    RS10B-2-JL-16.5944.544.51.85-
    RS10B-3-JL-16.5966.866.72.8-
    RS12B-1-JL--3128.91.25-
    RS12B-2-JL-19.466157.82.5-
    RS12B-3-JL-19.469286.73.8-
    RS16B-1-JL--70602.7-
    RS16B-2-JL-31.881281065.4-
    RS16B-3-JL-31.881921608-
    RS20B-1-JL--98.1953.85-
    RS20B-2-JL-36.451971707.65-
    RS20B-3-JL-36.4529525011.45-
    RS24B-1-JL--1671607.45-
    RS24B-2-JL-48.3633528014.65-
    RS24B-3-JL-48.3650042521.75-
    RS28B-1-JL--2002009.45-
    RS28B-2-JL-59.5637436018.8-
    RS28B-3-JL-59.5656053028.2-
    RS32B-1-JL--25525010.25-
    RS32B-2-JL-58.5548545020.1-
    RS32B-3-JL-58.5572967029.9-
    RS40B-1-JL--37335516.35-
    RS40B-2-JL-72.2971663032-
    RS40B-3-JL-72.29108095047.75-
    RF06B-1-OL15.1-98.90.39-
    RS08B-1-OL18.6-1917.80.7-
    RS08B-2-OL34.513.923231.11.35-
    RS08B-3-OL48.413.9247.544.52-
    RS10B-1-OL20.8-2322.20.95-
    RS10B-2-OL39.416.5944.544.51.85-
    RS10B-3-OL5616.5966.866.72.8-
    RS12B-1-OL24.4-3128.91.25-
    RS12B-2-OL45.919.466157.82.5-
    RS12B-3-OL65.419.469286.73.8-
    RS16B-1-OL39.3-70602.7-
    RS16B-2-OL73.431.881281065.4-
    RS16B-3-OL105.331.881921608-
    RS20B-1-OL46.6-98.1953.85-
    RS20B-2-OL84.636.451971707.65-
    RS20B-3-OL12136.4529525011.45-
    RS24B-1-OL61.7-1671607.45-
    RS24B-2-OL112.848.3633528014.65-
    RS24B-3-OL161.148.3650042521.75-
    RS28B-1-OL74.4-2002009.45-
    RS28B-2-OL13659.5637436018.8-
    RS28B-3-OL195.959.5656053028.2-
    RS32B-1-OL73.3-25525010.25-
    RS32B-2-OL134.558.5548545020.1-
    RS32B-3-OL192.658.5572967029.9-
    RS40B-1-OL88.6-37335516.35-
    RS40B-2-OL163.272.2971663032-
    RS40B-3-OL235.372.29108095047.75-
    RS08B-1-2POL--1917.80.7-
    RS08B-2-2POL-13.923231.11.35-
    RS08B-3-2POL-13.9247.544.52-
    RS10B-1-2POL--2322.20.95-
    RS10B-2-2POL-16.5944.544.51.85-
    RS10B-3-2POL-16.5966.866.72.8-
    RS12B-1-2POL--3128.91.25-
    RS12B-2-2POL-19.466157.82.5-
    RS12B-3-2POL-19.469286.73.8-
    RS16B-1-2POL--70602.7-
    RS16B-2-2POL-31.881281065.4-
    RS16B-3-2POL-31.881921608-
    RS20B-1-2POL--98.1953.85-
    RS20B-2-2POL-36.451971707.65-
    RS20B-3-2POL-36.4529525011.45-
    RS24B-1-2POL--1671607.45-
    RS24B-2-2POL-48.3633528014.65-
    RS24B-3-2POL-48.3650042521.75-
    RS28B-1-2POL--2002009.45-
    RS28B-2-2POL-59.5637436018.8-
    RS28B-3-2POL-59.5656053028.2-
    RS32B-1-2POL--25525010.25-
    RS32B-2-2POL-58.5548545020.1-
    RS32B-3-2POL-58.5572967029.9-
    RS40B-1-2POL--37335516.35-
    RS40B-2-2POL-72.2971663032-
    RS40B-3-2POL-72.29108095047.75-
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    RF06B-1P134,200----견적의뢰 / 주문
    RF06B-2P288,200----견적의뢰 / 주문
    RF06B-3P1,221,000----견적의뢰 / 주문
    RS08B-1P105,600----견적의뢰 / 주문
    RS08B-2P237,600----견적의뢰 / 주문
    RS08B-3P348,700----견적의뢰 / 주문
    RS10B-1P122,100----견적의뢰 / 주문
    RS10B-2P270,600----견적의뢰 / 주문
    RS10B-3P401,500----견적의뢰 / 주문
    RS12B-1P158,400----견적의뢰 / 주문
    RS12B-2P345,400----견적의뢰 / 주문
    RS12B-3P517,000----견적의뢰 / 주문
    RS16B-1P301,400----견적의뢰 / 주문
    RS16B-2P662,200----견적의뢰 / 주문
    RS16B-3P997,700----견적의뢰 / 주문
    RS20B-1P464,200----견적의뢰 / 주문
    RS24B-1P856,900----견적의뢰 / 주문
    RS28B-1P1,031,800----견적의뢰 / 주문
    RS32B-1P1,144,000----견적의뢰 / 주문
    RF06B-1-LL418----견적의뢰 / 주문
    RF06B-2-LL902----견적의뢰 / 주문
    RF06B-3-LL3,828----견적의뢰 / 주문
    RS08B-1-LL440----견적의뢰 / 주문
    RS08B-2-LL990----견적의뢰 / 주문
    RS08B-3-LL1,452----견적의뢰 / 주문
    RS10B-1-LL638----견적의뢰 / 주문
    RS10B-2-LL1,408----견적의뢰 / 주문
    RS10B-3-LL2,090----견적의뢰 / 주문
    RS12B-1-LL990----견적의뢰 / 주문
    RS12B-2-LL2,156----견적의뢰 / 주문
    RS12B-3-LL3,234----견적의뢰 / 주문
    RS16B-1-LL2,508----견적의뢰 / 주문
    RS16B-2-LL5,522----견적의뢰 / 주문
    RS16B-3-LL8,316----견적의뢰 / 주문
    RS20B-1-LL4,840----견적의뢰 / 주문
    RS20B-2-LL10,670----견적의뢰 / 주문
    RS20B-3-LL15,950----견적의뢰 / 주문
    RS24B-1-LL10,714----견적의뢰 / 주문
    RS24B-2-LL23,540----견적의뢰 / 주문
    RS24B-3-LL35,420----견적의뢰 / 주문
    RS28B-1-LL15,180----견적의뢰 / 주문
    RS28B-2-LL33,440----견적의뢰 / 주문
    RS28B-3-LL49,940----견적의뢰 / 주문
    RS32B-1-LL19,030----견적의뢰 / 주문
    RS32B-2-LL41,580----견적의뢰 / 주문
    RS32B-3-LL62,920----견적의뢰 / 주문
    RS40B-1-LL41,360----견적의뢰 / 주문
    RS40B-2-LL91,300----견적의뢰 / 주문
    RS40B-3-LL137,500----견적의뢰 / 주문
    RF06B-1-JLP1,408----견적의뢰 / 주문
    RF06B-2-JLP3,058----견적의뢰 / 주문
    RF06B-3-JLP6,380----견적의뢰 / 주문
    RS08B-1-JLP2,420----견적의뢰 / 주문
    RS08B-2-JLP4,972----견적의뢰 / 주문
    RS08B-3-JLP7,304----견적의뢰 / 주문
    RS10B-1-JLP2,926----견적의뢰 / 주문
    RS10B-2-JLP6,006----견적의뢰 / 주문
    RS10B-3-JLP8,800----견적의뢰 / 주문
    RS12B-1-JLP4,026----견적의뢰 / 주문
    RS12B-2-JLP8,162----견적의뢰 / 주문
    RS12B-3-JLP11,880----견적의뢰 / 주문
    RS16B-1-JLP6,006----견적의뢰 / 주문
    RS16B-2-JLP12,210----견적의뢰 / 주문
    RS16B-3-JLP17,820----견적의뢰 / 주문
    RS20B-1-JLP10,714----견적의뢰 / 주문
    RS20B-2-JLP21,890----견적의뢰 / 주문
    RS20B-3-JLP32,340----견적의뢰 / 주문
    RS24B-1-JLP16,390----견적의뢰 / 주문
    RS24B-2-JLP33,220----견적의뢰 / 주문
    RS24B-3-JLP49,060----견적의뢰 / 주문
    RS28B-1-JLP23,320----견적의뢰 / 주문
    RS28B-2-JLP47,520----견적의뢰 / 주문
    RS28B-3-JLP69,740----견적의뢰 / 주문
    RS32B-1-JLP32,780----견적의뢰 / 주문
    RS32B-2-JLP66,660----견적의뢰 / 주문
    RS32B-3-JLP97,680----견적의뢰 / 주문
    RS40B-1-JLP77,880----견적의뢰 / 주문
    RS40B-2-JLP159,500----견적의뢰 / 주문
    RS40B-3-JLP233,200----견적의뢰 / 주문
    RF06B-1-OLP3,212----견적의뢰 / 주문
    RS08B-1-OLP4,026----견적의뢰 / 주문
    RS08B-2-OLP8,866----견적의뢰 / 주문
    RS08B-3-OLP13,310----견적의뢰 / 주문
    RS10B-1-OLP5,302----견적의뢰 / 주문
    RS10B-2-OLP11,660----견적의뢰 / 주문
    RS10B-3-OLP17,490----견적의뢰 / 주문
    RS12B-1-OLP7,304----견적의뢰 / 주문
    RS12B-2-OLP16,060----견적의뢰 / 주문
    RS12B-3-OLP23,980----견적의뢰 / 주문
    RS16B-1-OLP11,330----견적의뢰 / 주문
    RS16B-2-OLP24,860----견적의뢰 / 주문
    RS16B-3-OLP37,180----견적의뢰 / 주문
    RS20B-1-OLP19,800----견적의뢰 / 주문
    RS20B-2-OLP43,560----견적의뢰 / 주문
    RS20B-3-OLP65,120----견적의뢰 / 주문
    RS24B-1-OLP30,580----견적의뢰 / 주문
    RS24B-2-OLP67,100----견적의뢰 / 주문
    RS24B-3-OLP100,760----견적의뢰 / 주문
    RS28B-1-OLP44,220----견적의뢰 / 주문
    RS28B-2-OLP97,680----견적의뢰 / 주문
    RS28B-3-OLP147,400----견적의뢰 / 주문
    RS32B-1-OLP69,080----견적의뢰 / 주문
    RS32B-2-OLP151,800----견적의뢰 / 주문
    RS32B-3-OLP226,600----견적의뢰 / 주문
    RS40B-1-OLP166,100----견적의뢰 / 주문
    RS40B-2-OLP365,200----견적의뢰 / 주문
    RS40B-3-OLP547,800----견적의뢰 / 주문
    RS08B-1-2POLP4,510----견적의뢰 / 주문
    RS08B-2-2POLP9,878----견적의뢰 / 주문
    RS08B-3-2POLP14,850----견적의뢰 / 주문
    RS10B-1-2POLP6,072----견적의뢰 / 주문
    RS10B-2-2POLP13,200----견적의뢰 / 주문
    RS10B-3-2POLP19,800----견적의뢰 / 주문
    RS12B-1-2POLP8,426----견적의뢰 / 주문
    RS12B-2-2POLP18,370----견적의뢰 / 주문
    RS12B-3-2POLP27,280----견적의뢰 / 주문
    RS16B-1-2POLP14,300----견적의뢰 / 주문
    RS16B-2-2POLP30,800----견적의뢰 / 주문
    RS16B-3-2POLP46,420----견적의뢰 / 주문
    RS20B-1-2POLP25,740----견적의뢰 / 주문
    RS20B-2-2POLP54,780----견적의뢰 / 주문
    RS20B-3-2POLP83,160----견적의뢰 / 주문
    RS24B-1-2POLP43,340----견적의뢰 / 주문
    RS24B-2-2POLP93,280----견적의뢰 / 주문
    RS24B-3-2POLP140,800----견적의뢰 / 주문
    RS28B-1-2POLP62,700----견적의뢰 / 주문
    RS28B-2-2POLP134,200----견적의뢰 / 주문
    RS28B-3-2POLP198,000----견적의뢰 / 주문
    RS32B-1-2POLP89,540----견적의뢰 / 주문
    RS32B-2-2POLP191,400----견적의뢰 / 주문
    RS32B-3-2POLP292,600----견적의뢰 / 주문
    RS40B-1-2POLP216,700----견적의뢰 / 주문
    RS40B-2-2POLP466,400----견적의뢰 / 주문
    RS40B-3-2POLP701,800----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
