태형치형풀리(하혈제품)

태형치형풀리 H형

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


152건 중 1~152건 표시

형식	잇수	사용벨트	사용벨트	피치원직경 Dp (mm)	이끝원직경 Do (mm)	허브직경 Dh (mm)	Bw (mm)	BL (mm)
형식	잇수	호칭폭	폭 (mm)	피치원직경 Dp (mm)	이끝원직경 Do (mm)	허브직경 Dh (mm)	Bw (mm)	BL (mm)
PT14H100AF	14	100	25.4	56.6	55.22	-	33.5	-
PT15H100AF	15	100	25.4	60.64	59.27	-	33.5	-
PT16H100AF	16	100	25.4	64.68	63.31	-	33.5	-
PT18H100AF	18	100	25.4	72.77	71.39	-	33.5	-
PT19H100AF	19	100	25.4	76.81	75.44	-	33.5	-
PT20H100AF	20	100	25.4	80.85	79.48	-	33.5	-
PT21H100AF	21	100	25.4	94.89	83.52	-	33.5	-
PT22H100AF	22	100	25.4	88.94	87.56	-	33.5	-
PT24H100AF	24	100	25.4	97.02	95.65	-	33.5	-
PT25H100AF	25	100	25.4	101.06	99.69	-	33.5	-
PT26H100AF	26	100	25.4	105.11	103.73	-	33.5	-
PT28H100AF	28	100	25.4	113.19	111.82	-	33.5	-
PT30H100AF	30	100	25.4	121.28	119.9	-	33.5	-
PT32H100AF	32	100	25.4	129.36	127.99	-	33.5	-
PT34H100AF	34	100	25.4	137.45	136.07	-	33.5	-
PT36H100AF	36	100	25.4	145.53	144.16	-	33.5	-
PT40H100AF	40	100	25.4	161.7	160.33	-	33.5	-
PT14H150AF	14	150	38.1	56.6	55.22	-	46.2	-
PT15H150AF	15	150	38.1	60.64	59.27	-	46.2	-
PT16H150AF	16	150	38.1	64.68	63.31	-	46.2	-
PT18H150AF	18	150	38.1	72.77	71.39	-	46.2	-
PT19H150AF	19	150	38.1	76.81	75.44	-	46.2	-
PT20H150AF	20	150	38.1	80.85	79.48	-	46.2	-
PT21H150AF	21	150	38.1	94.89	83.52	-	46.2	-
PT22H150AF	22	150	38.1	88.94	87.56	-	46.2	-
PT24H150AF	24	150	38.1	97.02	95.65	-	46.2	-
PT25H150AF	25	150	38.1	101.06	99.69	-	46.2	-
PT26H150AF	26	150	38.1	105.11	103.73	-	46.2	-
PT28H150AF	28	150	38.1	113.19	111.82	-	46.2	-
PT30H150AF	30	150	38.1	121.28	119.9	-	46.2	-
PT32H150AF	32	150	38.1	129.36	127.99	-	46.2	-
PT34H150AF	34	150	38.1	137.45	136.07	-	46.2	-
PT36H150AF	36	150	38.1	145.53	144.16	-	46.2	-
PT40H150AF	40	150	38.1	161.7	160.33	-	46.2	-
PT14H200AF	14	200	50.8	56.6	55.22	-	59.6	-
PT15H200AF	15	200	50.8	60.64	59.27	-	59.6	-
PT16H200AF	16	200	50.8	64.68	63.31	-	59.6	-
PT18H200AF	18	200	50.8	72.77	71.39	-	59.6	-
PT19H200AF	19	200	50.8	76.81	75.44	-	59.6	-
PT20H200AF	20	200	50.8	80.85	79.48	-	59.6	-
PT21H200AF	21	200	50.8	94.89	83.52	-	59.6	-
PT22H200AF	22	200	50.8	88.94	87.56	-	59.6	-
PT24H200AF	24	200	50.8	97.02	95.65	-	59.6	-
PT25H200AF	25	200	50.8	101.06	99.69	-	59.6	-
PT26H200AF	26	200	50.8	105.11	103.73	-	59.6	-
PT28H200AF	28	200	50.8	113.19	111.82	-	59.6	-
PT30H200AF	30	200	50.8	121.28	119.9	-	59.6	-
PT32H200AF	32	200	50.8	129.36	127.99	-	59.6	-
PT34H200AF	34	200	50.8	137.45	136.07	-	59.6	-
PT36H200AF	36	200	50.8	145.53	144.16	-	59.6	-
PT40H200AF	40	200	50.8	161.7	160.33	-	59.6	-
PT16H300AF	16	300	76.2	64.68	63.31	-	86	-
PT18H300AF	18	300	76.2	72.77	71.39	-	86	-
PT19H300AF	19	300	76.2	76.81	75.44	-	86	-
PT20H300AF	20	300	76.2	80.85	79.48	-	86	-
PT21H300AF	21	300	76.2	94.89	83.52	-	86	-
PT22H300AF	22	300	76.2	88.94	87.56	-	86	-
PT24H300AF	24	300	76.2	97.02	95.65	-	86	-
PT25H300AF	25	300	76.2	101.06	99.69	-	86	-
PT26H300AF	26	300	76.2	105.11	103.73	-	86	-
PT28H300AF	28	300	76.2	113.19	111.82	-	86	-
PT30H300AF	30	300	76.2	121.28	119.9	-	86	-
PT32H300AF	32	300	76.2	129.36	127.99	-	86	-
PT34H300AF	34	300	76.2	137.45	136.07	-	86	-
PT36H300AF	36	300	76.2	145.53	144.16	-	86	-
PT40H300AF	40	300	76.2	161.7	160.33	-	86	-
PT14H100BF	14	100	25.4	56.6	55.22	41	33.5	46
PT15H100BF	15	100	25.4	60.64	59.27	46	33.5	46
PT16H100BF	16	100	25.4	64.68	63.31	50	33.5	49
PT18H100BF	18	100	25.4	72.77	71.39	58	33.5	49
PT19H100BF	19	100	25.4	76.81	75.44	58	33.5	49
PT20H100BF	20	100	25.4	80.85	79.48	60	33.5	49
PT21H100BF	21	100	25.4	94.89	83.52	60	33.5	49
PT22H100BF	22	100	25.4	88.94	87.56	60	33.5	49
PT24H100BF	24	100	25.4	97.02	95.65	60	33.5	49
PT25H100BF	25	100	25.4	101.06	99.69	60	33.5	49
PT26H100BF	26	100	25.4	105.11	103.73	60	33.5	49
PT28H100BF	28	100	25.4	113.19	111.82	60	33.5	49
PT30H100BF	30	100	25.4	121.28	119.9	60	33.5	49
PT32H100BF	32	100	25.4	129.36	127.99	64	33.5	52
PT34H100BF	34	100	25.4	137.45	136.07	64	33.5	52
PT36H100BF	36	100	25.4	145.53	144.16	64	33.5	52
PT40H100BF	40	100	25.4	161.7	160.33	68	33.5	52
PT42H100B	42	100	25.4	169.79	168.41	70	33.5	52
PT44H100B	44	100	25.4	177.87	176.5	70	33.5	52
PT48H100B	48	100	25.4	194.04	192.67	72	33.5	52
PT50H100B	50	100	25.4	202.13	200.75	72	33.5	52
PT60H100B	60	100	25.4	242.55	241.18	78	33.5	52
PT14H150BF	14	150	38.1	56.6	55.22	41	46.2	59
PT15H150BF	15	150	38.1	60.64	59.27	46	46.2	59
PT16H150BF	16	150	38.1	64.68	63.31	50	46.2	62
PT18H150BF	18	150	38.1	72.77	71.39	58	46.2	62
PT19H150BF	19	150	38.1	76.81	75.44	58	46.2	62
PT20H150BF	20	150	38.1	80.85	79.48	60	46.2	62
PT21H150BF	21	150	38.1	94.89	83.52	60	46.2	62
PT22H150BF	22	150	38.1	88.94	87.56	60	46.2	62
PT24H150BF	24	150	38.1	97.02	95.65	60	46.2	62
PT25H150BF	25	150	38.1	101.06	99.69	60	46.2	62
PT26H150BF	26	150	38.1	105.11	103.73	60	46.2	62
PT28H150BF	28	150	38.1	113.19	111.82	60	46.2	62
PT30H150BF	30	150	38.1	121.28	119.9	60	46.2	62
PT32H150BF	32	150	38.1	129.36	127.99	64	46.2	65
PT34H150BF	34	150	38.1	137.45	136.07	64	46.2	65
PT36H150BF	36	150	38.1	145.53	144.16	64	46.2	65
PT40H150BF	40	150	38.1	161.7	160.33	68	46.2	65
PT42H150B	42	150	38.1	169.79	168.41	70	46.2	65
PT44H150B	44	150	38.1	177.87	176.5	70	46.2	65
PT48H150B	48	150	38.1	194.04	192.67	72	46.2	65
PT50H150B	50	150	38.1	202.13	200.75	72	46.2	65
PT60H150B	60	150	38.1	242.55	241.18	78	46.2	65
PT14H200BF	14	200	50.8	56.6	55.22	41	59.6	73
PT15H200BF	15	200	50.8	60.64	59.27	46	59.6	76
PT16H200BF	16	200	50.8	64.68	63.31	50	59.6	76
PT18H200BF	18	200	50.8	72.77	71.39	58	59.6	76
PT19H200BF	19	200	50.8	76.81	75.44	58	59.6	79
PT20H200BF	20	200	50.8	80.85	79.48	64	59.6	79
PT21H200BF	21	200	50.8	94.89	83.52	72	59.6	79
PT22H200BF	22	200	50.8	88.94	87.56	72	59.6	79
PT24H200BF	24	200	50.8	97.02	95.65	75	59.6	79
PT25H200BF	25	200	50.8	101.06	99.69	75	59.6	79
PT26H200BF	26	200	50.8	105.11	103.73	75	59.6	79
PT28H200BF	28	200	50.8	113.19	111.82	78	59.6	82
PT30H200BF	30	200	50.8	121.28	119.9	80	59.6	82
PT32H200BF	32	200	50.8	129.36	127.99	80	59.6	82
PT34H200BF	34	200	50.8	137.45	136.07	80	59.6	82
PT36H200BF	36	200	50.8	145.53	144.16	85	59.6	82
PT40H200BF	40	200	50.8	161.7	160.33	85	59.6	82
PT42H200B	42	200	50.8	169.79	168.41	85	59.6	82
PT44H200B	44	200	50.8	177.87	176.5	85	59.6	82
PT48H200B	48	200	50.8	194.04	192.67	85	59.6	82
PT50H200B	50	200	50.8	202.13	200.76	85	59.6	82
PT60H200B	60	200	50.8	242.55	241.18	90	59.6	82
PT16H300BF	16	300	76.2	64.68	63.31	50	86	102
PT18H300BF	18	300	76.2	72.77	71.39	58	86	102
PT19H300BF	19	300	76.2	76.81	75.44	58	86	105
PT20H300BF	20	300	76.2	80.85	79.48	64	86	105
PT21H300BF	21	300	76.2	94.89	83.52	72	86	105
PT22H300BF	22	300	76.2	88.94	87.56	72	86	105
PT24H300BF	24	300	76.2	97.02	95.65	75	86	105
PT25H300BF	25	300	76.2	101.06	99.69	75	86	105
PT26H300BF	26	300	76.2	105.11	103.73	75	86	105
PT28H300BF	28	300	76.2	113.19	111.82	78	86	108
PT30H300BF	30	300	76.2	121.28	119.9	80	86	108
PT32H300BF	32	300	76.2	129.36	127.99	80	86	108
PT34H300BF	34	300	76.2	137.45	136.07	80	86	108
PT36H300BF	36	300	76.2	145.53	144.16	85	86	108
PT40H300BF	40	300	76.2	161.7	160.33	85	86	108
PT42H300B	42	300	76.2	169.79	168.41	85	86	108
PT44H300B	44	300	76.2	177.87	176.5	85	86	108
PT48H300B	48	300	76.2	194.04	192.67	85	86	108
PT50H300B	50	300	76.2	202.13	200.75	85	86	108
PT60H300B	60	300	76.2	242.55	241.18	90	86	108

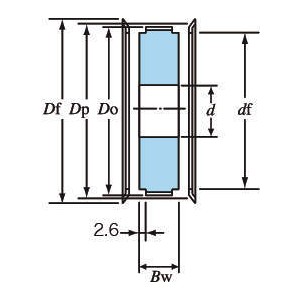

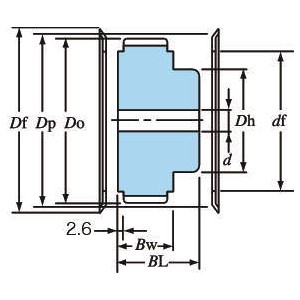

형식	사용축의직경d(mm)	사용축의직경d(mm)	풀리 형상	표준 플랜지	플랜지(mm)	플랜지(mm)	플랜지(mm)
형식	최소	최대	풀리 형상	표준 플랜지	두께 t	외경 Df	내경 df
PT14H100AF	14	27	AF	PTSF16620450	1.6	62	45
PT15H100AF	15	30	AF	PTSF16660500	1.6	66	50
PT16H100AF	15	34	AF	PTSF16700560	1.6	70	56
PT18H100AF	15	38	AF	PTSF16790630	1.6	79	63
PT19H100AF	15	38	AF	PTSF16820670	1.6	82	67
PT20H100AF	15	40	AF	PTSF16860710	1.6	86	71
PT21H100AF	15	40	AF	PTSF16910770	1.6	91	77
PT22H100AF	15	40	AF	PTSF16940770	1.6	94	77
PT24H100AF	20	40	AF	PTSF161030850	1.6	103	85
PT25H100AF	20	40	AF	PTSF161070900	1.6	107	90
PT26H100AF	20	40	AF	PTSF161110950	1.6	111	95
PT28H100AF	20	40	AF	PTSF1611901020	1.6	119	102
PT30H100AF	20	40	AF	PTSF1612701120	1.6	127	112
PT32H100AF	20	42	AF	PTSF1613501200	1.6	135	120
PT34H100AF	20	42	AF	PTSF1614301280	1.6	143	128
PT36H100AF	20	42	AF	PTSF1615101370	1.6	151	137
PT40H100AF	20	45	AF	PTSF1616701520	1.6	167	152
PT14H150AF	14	27	AF	PTSF16620450	1.6	62	45
PT15H150AF	15	30	AF	PTSF16660500	1.6	66	50
PT16H150AF	15	34	AF	PTSF16700560	1.6	70	56
PT18H150AF	15	38	AF	PTSF16790630	1.6	79	63
PT19H150AF	15	38	AF	PTSF16820670	1.6	82	67
PT20H150AF	15	40	AF	PTSF16860710	1.6	86	71
PT21H150AF	15	40	AF	PTSF16910770	1.6	91	77
PT22H150AF	15	40	AF	PTSF16940770	1.6	94	77
PT24H150AF	20	40	AF	PTSF161030850	1.6	103	85
PT25H150AF	20	40	AF	PTSF161070900	1.6	107	90
PT26H150AF	20	40	AF	PTSF161110950	1.6	111	95
PT28H150AF	20	40	AF	PTSF1611901020	1.6	119	102
PT30H150AF	20	40	AF	PTSF1612701120	1.6	127	112
PT32H150AF	20	42	AF	PTSF1613501200	1.6	135	120
PT34H150AF	20	42	AF	PTSF1614301280	1.6	143	128
PT36H150AF	20	42	AF	PTSF1615101370	1.6	151	137
PT40H150AF	20	45	AF	PTSF1616701520	1.6	167	152
PT14H200AF	16	27	AF	PTSF16620450	1.6	62	45
PT15H200AF	16	30	AF	PTSF16660500	1.6	66	50
PT16H200AF	16	34	AF	PTSF16700560	1.6	70	56
PT18H200AF	16	38	AF	PTSF16790630	1.6	79	63
PT19H200AF	16	38	AF	PTSF16820670	1.6	82	67
PT20H200AF	20	42	AF	PTSF16860710	1.6	86	71
PT21H200AF	20	42	AF	PTSF16910770	1.6	91	77
PT22H200AF	20	48	AF	PTSF16940770	1.6	94	77
PT24H200AF	20	50	AF	PTSF161030850	1.6	103	85
PT25H200AF	25	50	AF	PTSF161070900	1.6	107	90
PT26H200AF	25	50	AF	PTSF161110950	1.6	111	95
PT28H200AF	25	52	AF	PTSF1611901020	1.6	119	102
PT30H200AF	25	54	AF	PTSF1612701120	1.6	127	112
PT32H200AF	25	54	AF	PTSF1613501200	1.6	135	120
PT34H200AF	25	54	AF	PTSF1614301280	1.6	143	128
PT36H200AF	25	56	AF	PTSF1615101370	1.6	151	137
PT40H200AF	30	56	AF	PTSF1616701520	1.6	167	152
PT16H300AF	16	34	AF	PTSF16700560	1.6	70	56
PT18H300AF	16	38	AF	PTSF16790630	1.6	79	63
PT19H300AF	16	38	AF	PTSF16820670	1.6	82	67
PT20H300AF	20	42	AF	PTSF16860710	1.6	86	71
PT21H300AF	20	42	AF	PTSF16910770	1.6	91	77
PT22H300AF	20	48	AF	PTSF16940770	1.6	94	77
PT24H300AF	20	50	AF	PTSF161030850	1.6	103	85
PT25H300AF	25	50	AF	PTSF161070900	1.6	107	90
PT26H300AF	25	50	AF	PTSF161110950	1.6	111	95
PT28H300AF	25	52	AF	PTSF1611901020	1.6	119	102
PT30H300AF	25	54	AF	PTSF1612701120	1.6	127	112
PT32H300AF	25	54	AF	PTSF1613501200	1.6	135	120
PT34H300AF	25	54	AF	PTSF1614301280	1.6	143	128
PT36H300AF	25	56	AF	PTSF1615101370	1.6	151	137
PT40H300AF	30	56	AF	PTSF1616701520	1.6	167	152
PT14H100BF	15	27	BF	PTSF16620450	1.6	62	45
PT15H100BF	15	30	BF	PTSF16660500	1.6	66	50
PT16H100BF	15	34	BF	PTSF16700560	1.6	70	56
PT18H100BF	15	38	BF	PTSF16790630	1.6	79	63
PT19H100BF	15	38	BF	PTSF16820670	1.6	82	67
PT20H100BF	15	40	BF	PTSF16860710	1.6	86	71
PT21H100BF	15	40	BF	PTSF16910770	1.6	91	77
PT22H100BF	15	40	BF	PTSF16940770	1.6	94	77
PT24H100BF	20	40	BF	PTSF161030850	1.6	103	85
PT25H100BF	20	40	BF	PTSF161070900	1.6	107	90
PT26H100BF	20	40	BF	PTSF161110950	1.6	111	95
PT28H100BF	20	40	BF	PTSF1611901020	1.6	119	102
PT30H100BF	20	40	BF	PTSF1612701120	1.6	127	112
PT32H100BF	20	42	BF	PTSF1613501200	1.6	135	120
PT34H100BF	20	42	BF	PTSF1614301280	1.6	143	128
PT36H100BF	20	42	BF	PTSF1615101370	1.6	151	137
PT40H100BF	25	45	BF	PTSF1616701520	1.6	167	152
PT42H100B	25	45	B	-	-	-	-
PT44H100B	25	46	B	-	-	-	-
PT48H100B	25	48	B	-	-	-	-
PT50H100B	25	48	B	-	-	-	-
PT60H100B	25	52	B	-	-	-	-
PT14H150BF	15	27	BF	PTSF16620450	1.6	62	45
PT15H150BF	15	30	BF	PTSF16660500	1.6	66	50
PT16H150BF	15	34	BF	PTSF16700560	1.6	70	56
PT18H150BF	15	38	BF	PTSF16790630	1.6	79	63
PT19H150BF	15	38	BF	PTSF16820670	1.6	82	67
PT20H150BF	15	40	BF	PTSF16860710	1.6	86	71
PT21H150BF	15	40	BF	PTSF16910770	1.6	91	77
PT22H150BF	15	40	BF	PTSF16940770	1.6	94	77
PT24H150BF	20	40	BF	PTSF161030850	1.6	103	85
PT25H150BF	20	40	BF	PTSF161070900	1.6	107	90
PT26H150BF	20	40	BF	PTSF161110950	1.6	111	95
PT28H150BF	20	40	BF	PTSF1611901020	1.6	119	102
PT30H150BF	20	40	BF	PTSF1612701120	1.6	127	112
PT32H150BF	20	42	BF	PTSF1613501200	1.6	135	120
PT34H150BF	20	42	BF	PTSF1614301280	1.6	143	128
PT36H150BF	20	42	BF	PTSF1615101370	1.6	151	137
PT40H150BF	25	45	BF	PTSF1616701520	1.6	167	152
PT42H150B	25	45	B	-	-	-	-
PT44H150B	25	46	B	-	-	-	-
PT48H150B	25	48	B	-	-	-	-
PT50H150B	25	48	B	-	-	-	-
PT60H150B	25	52	B	-	-	-	-
PT14H200BF	20	27	BF	PTSF16620450	1.6	62	45
PT15H200BF	20	30	BF	PTSF16660500	1.6	66	50
PT16H200BF	20	34	BF	PTSF16700560	1.6	70	56
PT18H200BF	20	38	BF	PTSF16790630	1.6	79	63
PT19H200BF	20	38	BF	PTSF16820670	1.6	82	67
PT20H200BF	20	42	BF	PTSF16860710	1.6	86	71
PT21H200BF	20	42	BF	PTSF16910770	1.6	91	77
PT22H200BF	20	48	BF	PTSF16940770	1.6	94	77
PT24H200BF	20	50	BF	PTSF161030850	1.6	103	85
PT25H200BF	25	50	BF	PTSF161070900	1.6	107	90
PT26H200BF	25	50	BF	PTSF161110950	1.6	111	95
PT28H200BF	25	52	BF	PTSF1611901020	1.6	190.1	102
PT30H200BF	25	54	BF	PTSF1612701120	1.6	127	112
PT32H200BF	25	54	BF	PTSF1613501200	1.6	135	120
PT34H200BF	25	54	BF	PTSF1614301280	1.6	143	128
PT36H200BF	25	56	BF	PTSF1615101370	1.6	151	137
PT40H200BF	30	56	BF	PTSF1616701520	1.6	167	152
PT42H200B	30	56	B	-	-	-	-
PT44H200B	30	56	B	-	-	-	-
PT48H200B	30	56	B	-	-	-	-
PT50H200B	30	56	B	-	-	-	-
PT60H200B	30	60	B	-	-	-	-
PT16H300BF	20	34	BF	PTSF16700560	1.6	70	56
PT18H300BF	20	38	BF	PTSF16790630	1.6	79	63
PT19H300BF	20	38	BF	PTSF16820670	1.6	82	67
PT20H300BF	20	42	BF	PTSF16860710	1.6	86	71
PT21H300BF	20	42	BF	PTSF16910770	1.6	91	77
PT22H300BF	20	48	BF	PTSF16940770	1.6	94	77
PT24H300BF	20	50	BF	PTSF161030850	1.6	103	85
PT25H300BF	25	50	BF	PTSF161070900	1.6	107	90
PT26H300BF	25	50	BF	PTSF161110950	1.6	111	95
PT28H300BF	25	52	BF	PTSF1611901020	1.6	119	102
PT30H300BF	25	54	BF	PTSF1612701120	1.6	127	112
PT32H300BF	25	54	BF	PTSF1613501200	1.6	135	120
PT34H300BF	25	54	BF	PTSF1614301280	1.6	143	128
PT36H300BF	25	56	BF	PTSF1615101370	1.6	151	137
PT40H300BF	30	56	BF	PTSF1616701520	1.6	167	152
PT42H300B	30	56	B	-	-	-	-
PT44H300B	30	56	B	-	-	-	-
PT48H300B	30	56	B	-	-	-	-
PT50H300B	30	56	B	-	-	-	-
PT60H300B	30	60	B	-	-	-	-

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
PT14H100AF	P	50,820	-	-	-	-	견적의뢰 / 주문
PT15H100AF	P	54,340	-	-	-	-	견적의뢰 / 주문
PT16H100AF	P	58,300	-	-	-	-	견적의뢰 / 주문
PT18H100AF	P	64,020	-	-	-	-	견적의뢰 / 주문
PT19H100AF	P	69,740	-	-	-	-	견적의뢰 / 주문
PT20H100AF	P	72,160	-	-	-	-	견적의뢰 / 주문
PT21H100AF	P	78,760	-	-	-	-	견적의뢰 / 주문
PT22H100AF	P	80,740	-	-	-	-	견적의뢰 / 주문
PT24H100AF	P	91,080	-	-	-	-	견적의뢰 / 주문
PT25H100AF	P	98,560	-	-	-	-	견적의뢰 / 주문
PT26H100AF	P	100,320	-	-	-	-	견적의뢰 / 주문
PT28H100AF	P	109,120	-	-	-	-	견적의뢰 / 주문
PT30H100AF	P	115,500	-	-	-	-	견적의뢰 / 주문
PT32H100AF	P	126,500	-	-	-	-	견적의뢰 / 주문
PT34H100AF	P	147,400	-	-	-	-	견적의뢰 / 주문
PT36H100AF	P	155,100	-	-	-	-	견적의뢰 / 주문
PT40H100AF	P	173,800	-	-	-	-	견적의뢰 / 주문
PT14H150AF	P	63,140	-	-	-	-	견적의뢰 / 주문
PT15H150AF	P	68,640	-	-	-	-	견적의뢰 / 주문
PT16H150AF	P	69,740	-	-	-	-	견적의뢰 / 주문
PT18H150AF	P	78,760	-	-	-	-	견적의뢰 / 주문
PT19H150AF	P	86,460	-	-	-	-	견적의뢰 / 주문
PT20H150AF	P	86,460	-	-	-	-	견적의뢰 / 주문
PT21H150AF	P	98,560	-	-	-	-	견적의뢰 / 주문
PT22H150AF	P	101,640	-	-	-	-	견적의뢰 / 주문
PT24H150AF	P	109,120	-	-	-	-	견적의뢰 / 주문
PT25H150AF	P	114,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF	P	119,900	-	-	-	-	견적의뢰 / 주문
PT28H150AF	P	132,000	-	-	-	-	견적의뢰 / 주문
PT30H150AF	P	139,700	-	-	-	-	견적의뢰 / 주문
PT32H150AF	P	177,100	-	-	-	-	견적의뢰 / 주문
PT34H150AF	P	200,200	-	-	-	-	견적의뢰 / 주문
PT36H150AF	P	222,200	-	-	-	-	견적의뢰 / 주문
PT40H150AF	P	283,800	-	-	-	-	견적의뢰 / 주문
PT14H200AF	P	75,240	-	-	-	-	견적의뢰 / 주문
PT15H200AF	P	83,820	-	-	-	-	견적의뢰 / 주문
PT16H200AF	P	84,480	-	-	-	-	견적의뢰 / 주문
PT18H200AF	P	95,480	-	-	-	-	견적의뢰 / 주문
PT19H200AF	P	106,920	-	-	-	-	견적의뢰 / 주문
PT20H200AF	P	109,120	-	-	-	-	견적의뢰 / 주문
PT21H200AF	P	117,700	-	-	-	-	견적의뢰 / 주문
PT22H200AF	P	123,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF	P	137,500	-	-	-	-	견적의뢰 / 주문
PT25H200AF	P	149,600	-	-	-	-	견적의뢰 / 주문
PT26H200AF	P	150,700	-	-	-	-	견적의뢰 / 주문
PT28H200AF	P	161,700	-	-	-	-	견적의뢰 / 주문
PT30H200AF	P	172,700	-	-	-	-	견적의뢰 / 주문
PT32H200AF	P	204,600	-	-	-	-	견적의뢰 / 주문
PT34H200AF	P	224,400	-	-	-	-	견적의뢰 / 주문
PT36H200AF	P	294,800	-	-	-	-	견적의뢰 / 주문
PT40H200AF	P	336,600	-	-	-	-	견적의뢰 / 주문
PT16H300AF	P	114,400	-	-	-	-	견적의뢰 / 주문
PT18H300AF	P	132,000	-	-	-	-	견적의뢰 / 주문
PT19H300AF	P	143,000	-	-	-	-	견적의뢰 / 주문
PT20H300AF	P	151,800	-	-	-	-	견적의뢰 / 주문
PT21H300AF	P	162,800	-	-	-	-	견적의뢰 / 주문
PT22H300AF	P	168,300	-	-	-	-	견적의뢰 / 주문
PT24H300AF	P	190,300	-	-	-	-	견적의뢰 / 주문
PT25H300AF	P	207,900	-	-	-	-	견적의뢰 / 주문
PT26H300AF	P	222,200	-	-	-	-	견적의뢰 / 주문
PT28H300AF	P	235,400	-	-	-	-	견적의뢰 / 주문
PT30H300AF	P	255,200	-	-	-	-	견적의뢰 / 주문
PT32H300AF	P	277,200	-	-	-	-	견적의뢰 / 주문
PT34H300AF	P	299,200	-	-	-	-	견적의뢰 / 주문
PT36H300AF	P	325,600	-	-	-	-	견적의뢰 / 주문
PT40H300AF	P	411,400	-	-	-	-	견적의뢰 / 주문
PT14H100BF	P	63,580	-	-	-	-	견적의뢰 / 주문
PT15H100BF	P	65,780	-	-	-	-	견적의뢰 / 주문
PT16H100BF	P	69,300	-	-	-	-	견적의뢰 / 주문
PT18H100BF	P	79,420	-	-	-	-	견적의뢰 / 주문
PT19H100BF	P	83,380	-	-	-	-	견적의뢰 / 주문
PT20H100BF	P	86,020	-	-	-	-	견적의뢰 / 주문
PT21H100BF	P	93,500	-	-	-	-	견적의뢰 / 주문
PT22H100BF	P	99,660	-	-	-	-	견적의뢰 / 주문
PT24H100BF	P	112,200	-	-	-	-	견적의뢰 / 주문
PT25H100BF	P	122,100	-	-	-	-	견적의뢰 / 주문
PT26H100BF	P	126,500	-	-	-	-	견적의뢰 / 주문
PT28H100BF	P	139,700	-	-	-	-	견적의뢰 / 주문
PT30H100BF	P	150,700	-	-	-	-	견적의뢰 / 주문
PT32H100BF	P	167,200	-	-	-	-	견적의뢰 / 주문
PT34H100BF	P	170,500	-	-	-	-	견적의뢰 / 주문
PT36H100BF	P	178,200	-	-	-	-	견적의뢰 / 주문
PT40H100BF	P	200,200	-	-	-	-	견적의뢰 / 주문
PT42H100B	P	191,400	-	-	-	-	견적의뢰 / 주문
PT44H100B	P	200,200	-	-	-	-	견적의뢰 / 주문
PT48H100B	P	205,700	-	-	-	-	견적의뢰 / 주문
PT50H100B	P	228,800	-	-	-	-	견적의뢰 / 주문
PT60H100B	P	264,000	-	-	-	-	견적의뢰 / 주문
PT14H150BF	P	72,160	-	-	-	-	견적의뢰 / 주문
PT15H150BF	P	83,380	-	-	-	-	견적의뢰 / 주문
PT16H150BF	P	86,020	-	-	-	-	견적의뢰 / 주문
PT18H150BF	P	99,660	-	-	-	-	견적의뢰 / 주문
PT19H150BF	P	104,280	-	-	-	-	견적의뢰 / 주문
PT20H150BF	P	105,600	-	-	-	-	견적의뢰 / 주문
PT21H150BF	P	116,600	-	-	-	-	견적의뢰 / 주문
PT22H150BF	P	124,300	-	-	-	-	견적의뢰 / 주문
PT24H150BF	P	135,300	-	-	-	-	견적의뢰 / 주문
PT25H150BF	P	141,900	-	-	-	-	견적의뢰 / 주문
PT26H150BF	P	147,400	-	-	-	-	견적의뢰 / 주문
PT28H150BF	P	161,700	-	-	-	-	견적의뢰 / 주문
PT30H150BF	P	171,600	-	-	-	-	견적의뢰 / 주문
PT32H150BF	P	188,100	-	-	-	-	견적의뢰 / 주문
PT34H150BF	P	189,200	-	-	-	-	견적의뢰 / 주문
PT36H150BF	P	196,900	-	-	-	-	견적의뢰 / 주문
PT40H150BF	P	226,600	-	-	-	-	견적의뢰 / 주문
PT42H150B	P	222,200	-	-	-	-	견적의뢰 / 주문
PT44H150B	P	233,200	-	-	-	-	견적의뢰 / 주문
PT48H150B	P	255,200	-	-	-	-	견적의뢰 / 주문
PT50H150B	P	279,400	-	-	-	-	견적의뢰 / 주문
PT60H150B	P	343,200	-	-	-	-	견적의뢰 / 주문
PT14H200BF	P	87,560	-	-	-	-	견적의뢰 / 주문
PT15H200BF	P	96,580	-	-	-	-	견적의뢰 / 주문
PT16H200BF	P	103,840	-	-	-	-	견적의뢰 / 주문
PT18H200BF	P	114,400	-	-	-	-	견적의뢰 / 주문
PT19H200BF	P	125,400	-	-	-	-	견적의뢰 / 주문
PT20H200BF	P	129,800	-	-	-	-	견적의뢰 / 주문
PT21H200BF	P	139,700	-	-	-	-	견적의뢰 / 주문
PT22H200BF	P	145,200	-	-	-	-	견적의뢰 / 주문
PT24H200BF	P	159,500	-	-	-	-	견적의뢰 / 주문
PT25H200BF	P	174,900	-	-	-	-	견적의뢰 / 주문
PT26H200BF	P	185,900	-	-	-	-	견적의뢰 / 주문
PT28H200BF	P	196,900	-	-	-	-	견적의뢰 / 주문
PT30H200BF	P	211,200	-	-	-	-	견적의뢰 / 주문
PT32H200BF	P	233,200	-	-	-	-	견적의뢰 / 주문
PT34H200BF	P	239,800	-	-	-	-	견적의뢰 / 주문
PT36H200BF	P	248,600	-	-	-	-	견적의뢰 / 주문
PT40H200BF	P	290,400	-	-	-	-	견적의뢰 / 주문
PT42H200B	P	283,800	-	-	-	-	견적의뢰 / 주문
PT44H200B	P	325,600	-	-	-	-	견적의뢰 / 주문
PT48H200B	P	354,200	-	-	-	-	견적의뢰 / 주문
PT50H200B	P	382,800	-	-	-	-	견적의뢰 / 주문
PT60H200B	P	451,000	-	-	-	-	견적의뢰 / 주문
PT16H300BF	P	132,000	-	-	-	-	견적의뢰 / 주문
PT18H300BF	P	155,100	-	-	-	-	견적의뢰 / 주문
PT19H300BF	P	165,000	-	-	-	-	견적의뢰 / 주문
PT20H300BF	P	168,300	-	-	-	-	견적의뢰 / 주문
PT21H300BF	P	181,500	-	-	-	-	견적의뢰 / 주문
PT22H300BF	P	190,300	-	-	-	-	견적의뢰 / 주문
PT24H300BF	P	213,400	-	-	-	-	견적의뢰 / 주문
PT25H300BF	P	226,600	-	-	-	-	견적의뢰 / 주문
PT26H300BF	P	239,800	-	-	-	-	견적의뢰 / 주문
PT28H300BF	P	261,800	-	-	-	-	견적의뢰 / 주문
PT30H300BF	P	283,800	-	-	-	-	견적의뢰 / 주문
PT32H300BF	P	310,200	-	-	-	-	견적의뢰 / 주문
PT34H300BF	P	336,600	-	-	-	-	견적의뢰 / 주문
PT36H300BF	P	354,200	-	-	-	-	견적의뢰 / 주문
PT40H300BF	P	404,800	-	-	-	-	견적의뢰 / 주문
PT42H300B	P	402,600	-	-	-	-	견적의뢰 / 주문
PT44H300B	P	448,800	-	-	-	-	견적의뢰 / 주문
PT48H300B	P	501,600	-	-	-	-	견적의뢰 / 주문
PT50H300B	P	547,800	-	-	-	-	견적의뢰 / 주문
PT60H300B	P	649,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
