태형치형풀리(하혈제품)

태형치형풀리 L형

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


132건 중 1~132건 표시

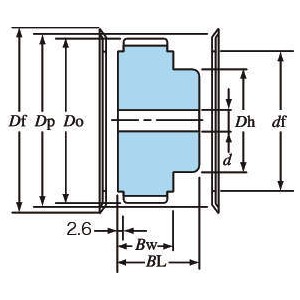

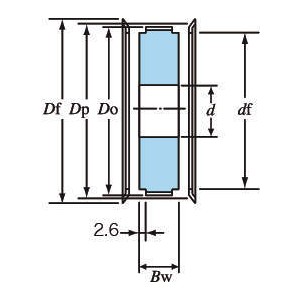

형식	잇수	사용벨트	사용벨트	피치원직경 Dp (mm)	이끝원직경 Do (mm)	허브직경 Dh (mm)	Bw (mm)	BL (mm)
형식	잇수	호칭폭	폭 (mm)	피치원직경 Dp (mm)	이끝원직경 Do (mm)	허브직경 Dh (mm)	Bw (mm)	BL (mm)
PT10L050AF	10	50	12.7	30.32	29.56	-	19.6	-
PT12L050AF	12	50	12.7	36.38	35.62	-	19.6	-
PT14L050AF	14	50	12.7	42.45	41.68	-	19.6	-
PT15L050AF	15	50	12.7	45.48	44.72	-	19.6	-
PT16L050AF	16	50	12.7	48.51	47.75	-	19.6	-
PT17L050AF	17	50	12.7	51.54	50.78	-	19.6	-
PT18L050AF	18	50	12.7	54.57	53.81	-	19.6	-
PT19L050AF	19	50	12.7	57.61	56.84	-	19.6	-
PT20L050AF	20	50	12.7	60.64	59.88	-	19.6	-
PT21L050AF	21	50	12.7	63.67	62.91	-	19.6	-
PT22L050AF	22	50	12.7	66.7	65.94	-	19.6	-
PT24L050AF	24	50	12.7	72.77	72	-	19.6	-
PT25L050AF	25	50	12.7	75.8	75.04	-	19.6	-
PT26L050AF	26	50	12.7	78.83	78.07	-	19.6	-
PT28L050AF	28	50	12.7	84.89	84.13	-	19.6	-
PT30L050AF	30	50	12.7	90.96	90.2	-	19.6	-
PT32L050AF	32	50	12.7	97.02	96.26	-	19.6	-
PT34L050AF	34	50	12.7	103.08	102.32	-	19.6	-
PT36L050AF	36	50	12.7	109.15	108.39	-	19.6	-
PT40L050AF	40	50	12.7	121.28	120.51	-	19.6	-
PT42L050AF	42	50	12.7	127.34	126.58	-	19.6	-
PT12L075AF	12	75	19.1	36.38	35.62	-	26	-
PT14L075AF	14	75	19.1	42.45	41.68	-	26	-
PT15L075AF	15	75	19.1	45.48	44.72	-	26	-
PT16L075AF	16	75	19.1	48.51	47.75	-	26	-
PT17L075AF	17	75	19.1	51.54	50.78	-	26	-
PT18L075AF	18	75	19.1	54.57	53.81	-	26	-
PT19L075AF	19	75	19.1	57.61	56.84	-	26	-
PT20L075AF	20	75	19.1	60.64	59.88	-	26	-
PT21L075AF	21	75	19.1	63.67	62.91	-	26	-
PT22L075AF	22	75	19.1	66.7	65.94	-	26	-
PT24L075AF	24	75	19.1	72.77	72	-	26	-
PT25L075AF	25	75	19.1	75.8	75.04	-	26	-
PT26L075AF	26	75	19.1	78.83	78.07	-	26	-
PT28L075AF	28	75	19.1	84.89	84.13	-	26	-
PT30L075AF	30	75	19.1	90.96	90.2	-	26	-
PT32L075AF	32	75	19.1	97.02	96.26	-	26	-
PT34L075AF	34	75	19.1	103.08	102.32	-	26	-
PT36L075AF	36	75	19.1	109.15	108.39	-	26	-
PT40L075AF	40	75	19.1	121.28	120.51	-	26	-
PT42L075AF	42	75	19.1	127.34	126.58	-	26	-
PT14L100AF	14	100	25.4	42.45	41.68	-	32.3	-
PT15L100AF	15	100	25.4	45.48	44.72	-	32.3	-
PT16L100AF	16	100	25.4	48.51	47.75	-	32.3	-
PT17L100AF	17	100	25.4	51.54	50.78	-	32.3	-
PT18L100AF	18	100	25.4	54.57	53.81	-	32.3	-
PT19L100AF	19	100	25.4	57.61	56.84	-	32.3	-
PT20L100AF	20	100	25.4	60.64	59.88	-	32.3	-
PT21L100AF	21	100	25.4	63.67	62.91	-	32.3	-
PT22L100AF	22	100	25.4	66.7	65.94	-	32.3	-
PT24L100AF	24	100	25.4	72.77	72	-	32.3	-
PT25L100AF	25	100	25.4	75.8	75.04	-	32.3	-
PT26L100AF	26	100	25.4	78.83	78.07	-	32.3	-
PT28L100AF	28	100	25.4	84.89	84.13	-	32.3	-
PT30L100AF	30	100	25.4	90.96	90.2	-	32.3	-
PT32L100AF	32	100	25.4	97.02	96.26	-	32.3	-
PT34L100AF	34	100	25.4	103.08	102.32	-	32.3	-
PT36L100AF	36	100	25.4	109.15	108.39	-	32.3	-
PT40L100AF	40	100	25.4	121.28	120.51	-	32.3	-
PT42L100AF	42	100	25.4	127.34	126.58	-	32.3	-
PT10L050BF	10	50	12.7	30.32	29.56	19	19.6	30.5
PT12L050BF	12	50	12.7	36.38	35.62	26	19.6	30.5
PT14L050BF	14	50	12.7	42.45	41.68	29	19.6	30.5
PT15L050BF	15	50	12.7	45.48	44.72	32	19.6	30.5
PT16L050BF	16	50	12.7	48.51	47.75	35	19.6	32.5
PT17L050BF	17	50	12.7	51.54	50.78	38	19.6	32.5
PT18L050BF	18	50	12.7	54.57	53.81	38	19.6	32.5
PT19L050BF	19	50	12.7	57.61	56.84	40	19.6	32.5
PT20L050BF	20	50	12.7	60.64	59.88	40	19.6	32.5
PT21L050BF	21	50	12.7	63.67	62.91	40	19.6	32.5
PT22L050BF	22	50	12.7	66.7	65.94	40	19.6	32.5
PT24L050BF	24	50	12.7	72.77	72	40	19.6	32.5
PT25L050BF	25	50	12.7	75.8	75.04	42	19.6	32.5
PT26L050BF	26	50	12.7	78.83	78.07	42	19.6	32.5
PT28L050BF	28	50	12.7	84.89	84.13	44	19.6	32.5
PT30L050BF	30	50	12.7	90.96	90.2	44	19.6	32.5
PT32L050BF	32	50	12.7	97.02	96.26	44	19.6	32.5
PT34L050BF	34	50	12.7	103.08	102.32	44	19.6	32.5
PT36L050BF	36	50	12.7	109.15	108.39	44	19.6	32.5
PT40L050BF	40	50	12.7	121.28	120.51	48	19.6	35.5
PT42L050BF	42	50	12.7	127.34	126.58	48	19.6	35.5
PT44L050BF	44	50	12.7	133.4	132.64	48	19.6	35.5
PT48L050BF	48	50	12.7	145.53	144.77	48	19.6	35.5
PT50L050BF	50	50	12.7	151.6	150.83	48	19.6	35.5
PT60L050BF	60	50	12.7	181.91	181.15	50	19.6	35.5
PT12L075BF	12	75	19.1	36.38	35.62	26	26	36.5
PT14L075BF	14	75	19.1	42.45	41.68	29	26	36.5
PT15L075BF	15	75	19.1	45.48	44.72	32	26	36.5
PT16L075BF	16	75	19.1	48.51	47.75	35	26	38.5
PT17L075BF	17	75	19.1	51.54	50.78	38	26	38.5
PT18L075BF	18	75	19.1	54.57	53.81	38	26	38.5
PT19L075BF	19	75	19.1	57.61	56.84	40	26	38.5
PT20L075BF	20	75	19.1	60.64	59.88	40	26	38.5
PT21L075BF	21	75	19.1	63.67	62.91	40	26	38.5
PT22L075BF	22	75	19.1	66.7	65.94	40	26	38.5
PT24L075BF	24	75	19.1	72.77	72	40	26	38.5
PT25L075BF	25	75	19.1	75.8	75.04	42	26	38.5
PT26L075BF	26	75	19.1	78.83	78.07	42	26	38.5
PT28L075BF	28	75	19.1	84.89	84.13	44	26	38.5
PT30L075BF	30	75	19.1	90.96	90.2	44	26	38.5
PT32L075BF	32	75	19.1	97.02	96.26	44	26	38.5
PT34L075BF	34	75	19.1	103.08	102.32	44	26	38.5
PT36L075BF	36	75	19.1	109.15	108.39	44	26	38.5
PT40L075BF	40	75	19.1	121.28	120.51	48	26	41.5
PT42L075BF	42	75	19.1	127.34	126.58	48	26	41.5
PT44L075BF	44	75	19.1	133.4	132.64	48	26	41.5
PT48L075BF	48	75	19.1	145.53	144.77	48	26	41.5
PT50L075BF	50	75	19.1	151.6	150.83	48	26	41.5
PT60L075BF	60	75	19.1	181.91	181.15	50	26	41.5
PT14L100BF	14	100	25.4	42.45	41.68	29	32.3	43
PT15L100BF	15	100	25.4	45.48	44.72	32	32.3	43
PT16L100BF	16	100	25.4	48.51	47.75	35	32.3	45
PT17L100BF	17	100	25.4	51.54	50.78	38	32.3	45
PT18L100BF	18	100	25.4	54.57	53.81	38	32.3	45
PT19L100BF	19	100	25.4	57.61	56.84	40	32.3	45
PT20L100BF	20	100	25.4	60.64	59.88	40	32.3	45
PT21L100BF	21	100	25.4	63.67	62.91	40	32.3	45
PT22L100BF	22	100	25.4	66.7	65.94	40	32.3	45
PT24L100BF	24	100	25.4	72.77	72	40	32.3	45
PT25L100BF	25	100	25.4	75.8	75.04	42	32.3	45
PT26L100BF	26	100	25.4	78.83	78.07	42	32.3	45
PT28L100BF	28	100	25.4	84.89	84.13	44	32.3	45
PT30L100BF	30	100	25.4	90.96	90.2	44	32.3	45
PT32L100BF	32	100	25.4	97.02	96.26	44	32.3	45
PT34L100BF	34	100	25.4	103.08	102.32	44	32.3	45
PT36L100BF	36	100	25.4	109.15	108.39	44	32.3	45
PT40L100BF	40	100	25.4	121.28	120.51	48	32.3	48
PT42L100BF	42	100	25.4	127.34	126.58	48	32.3	48
PT44L100BF	44	100	25.4	133.4	132.64	48	32.3	48
PT48L100BF	48	100	25.4	145.53	144.77	48	32.3	48
PT50L100BF	50	100	25.4	151.6	150.83	48	32.3	48
PT60L100BF	60	100	25.4	181.91	181.15	50	32.3	48

형식	사용축의직경d(mm)	사용축의직경d(mm)	풀리 형상	표준 플랜지	플랜지(mm)	플랜지(mm)	플랜지(mm)
형식	최소	최대	풀리 형상	표준 플랜지	두께 t	외경 Df	내경 df
PT10L050AF	5	12	AF	PTSF16360224	1.6	36	22.4
PT12L050AF	5	17	AF	PTSF16430300	1.6	43	30
PT14L050AF	10	19	AF	PTSF16490335	1.6	49	33.5
PT15L050AF	10	20	AF	PTSF16520375	1.6	52	37.5
PT16L050AF	10	22	AF	PTSF16550425	1.6	55	42.5
PT17L050AF	10	22	AF	PTSF16568420	1.6	56.8	42
PT18L050AF	12	25	AF	PTSF16610450	1.6	61	45
PT19L050AF	12	25	AF	PTSF16660500	1.6	66	50
PT20L050AF	12	26	AF	PTSF16670530	1.6	67	53
PT21L050AF	12	26	AF	PTSF16700560	1.6	70	56
PT22L050AF	12	26	AF	PTSF16730560	1.6	73	56
PT24L050AF	12	26	AF	PTSF16790630	1.6	79	63
PT25L050AF	12	28	AF	PTSF16820670	1.6	82	67
PT26L050AF	12	28	AF	PTSF16860710	1.6	86	71
PT28L050AF	12	30	AF	PTSF16910770	1.6	91	77
PT30L050AF	12	30	AF	PTSF16970800	1.6	97	80
PT32L050AF	12	30	AF	PTSF161030850	1.6	103	85
PT34L050AF	12	30	AF	PTSF161110950	1.6	111	95
PT36L050AF	15	30	AF	PTSF1611501020	1.6	115	102
PT40L050AF	15	32	AF	PTSF1612701120	1.6	127	112
PT42L050AF	15	32	AF	PTSF1613501200	1.6	135	120
PT12L075AF	5	17	AF	PTSF16430300	1.6	43	30
PT14L075AF	10	19	AF	PTSF16490335	1.6	49	33.5
PT15L075AF	10	20	AF	PTSF16520375	1.6	52	37.5
PT16L075AF	10	22	AF	PTSF16550425	1.6	55	42.5
PT17L075AF	10	22	AF	PTSF16568420	1.6	56.8	42
PT18L075AF	12	25	AF	PTSF16610450	1.6	61	45
PT19L075AF	12	25	AF	PTSF16660500	1.6	66	50
PT20L075AF	12	26	AF	PTSF16670530	1.6	67	53
PT21L075AF	12	26	AF	PTSF16700560	1.6	70	56
PT22L075AF	12	26	AF	PTSF16730560	1.6	73	56
PT24L075AF	12	26	AF	PTSF16790630	1.6	79	63
PT25L075AF	12	28	AF	PTSF16820670	1.6	82	67
PT26L075AF	12	28	AF	PTSF16860710	1.6	86	71
PT28L075AF	12	30	AF	PTSF16910770	1.6	91	77
PT30L075AF	12	30	AF	PTSF16970800	1.6	97	80
PT32L075AF	12	30	AF	PTSF161030850	1.6	103	85
PT34L075AF	12	30	AF	PTSF161110950	1.6	111	95
PT36L075AF	15	30	AF	PTSF1611501020	1.6	115	102
PT40L075AF	15	32	AF	PTSF1612701120	1.6	127	112
PT42L075AF	15	32	AF	PTSF1613501200	1.6	135	120
PT14L100AF	10	19	AF	PTSF16490335	1.6	49	33.5
PT15L100AF	10	20	AF	PTSF16520375	1.6	52	37.5
PT16L100AF	10	22	AF	PTSF16550425	1.6	55	42.5
PT17L100AF	10	22	AF	PTSF16568420	1.6	56.8	42
PT18L100AF	12	25	AF	PTSF16610450	1.6	61	45
PT19L100AF	12	25	AF	PTSF16660500	1.6	66	50
PT20L100AF	12	26	AF	PTSF16670530	1.6	67	53
PT21L100AF	12	26	AF	PTSF16700560	1.6	70	56
PT22L100AF	12	26	AF	PTSF16730560	1.6	73	56
PT24L100AF	12	26	AF	PTSF16790630	1.6	79	63
PT25L100AF	12	28	AF	PTSF16820670	1.6	82	67
PT26L100AF	12	28	AF	PTSF16860710	1.6	86	71
PT28L100AF	12	30	AF	PTSF16910770	1.6	91	77
PT30L100AF	12	30	AF	PTSF16970800	1.6	97	80
PT32L100AF	12	30	AF	PTSF161030850	1.6	103	85
PT34L100AF	12	30	AF	PTSF161110950	1.6	111	95
PT36L100AF	15	30	AF	PTSF1611501020	1.6	115	102
PT40L100AF	15	32	AF	PTSF1612701120	1.6	127	112
PT42L100AF	15	32	AF	PTSF1613501200	1.6	135	120
PT10L050BF	8	12	BF	PTSF16360224	1.6	36	22.4
PT12L050BF	8	17	BF	PTSF16430300	1.6	43	30
PT14L050BF	10	19	BF	PTSF16490335	1.6	49	33.5
PT15L050BF	10	20	BF	PTSF16520375	1.6	52	37.5
PT16L050BF	10	22	BF	PTSF16550425	1.6	55	42.5
PT17L050BF	10	22	BF	PTSF16568420	1.6	56.8	42
PT18L050BF	12	25	BF	PTSF16610450	1.6	61	45
PT19L050BF	12	25	BF	PTSF16660500	1.6	66	50
PT20L050BF	12	26	BF	PTSF16670530	1.6	67	53
PT21L050BF	12	26	BF	PTSF16700560	1.6	70	56
PT22L050BF	12	26	BF	PTSF16730560	1.6	73	56
PT24L050BF	12	26	BF	PTSF16790630	1.6	79	63
PT25L050BF	12	28	BF	PTSF16820670	1.6	82	67
PT26L050BF	12	28	BF	PTSF16860710	1.6	86	71
PT28L050BF	12	30	BF	PTSF16910770	1.6	91	77
PT30L050BF	12	30	BF	PTSF16970800	1.6	97	80
PT32L050BF	12	30	BF	PTSF161030850	1.6	103	85
PT34L050BF	12	30	BF	PTSF161110950	1.6	111	95
PT36L050BF	15	30	BF	PTSF1611501020	1.6	115	102
PT40L050BF	15	32	BF	PTSF1612701120	1.6	127	112
PT42L050BF	15	32	BF	PTSF1613501200	1.6	135	120
PT44L050BF	15	32	BF	PTSF1613901250	1.6	139	125
PT48L050BF	15	32	BF	PTSF1615101370	1.6	151	137
PT50L050BF	15	32	BF	PTSF1615801400	1.6	158	140
PT60L050BF	15	34	BF	PTSF1619001700	1.6	190	170
PT12L075BF	8	17	BF	PTSF16430300	1.6	43	30
PT14L075BF	10	19	BF	PTSF16490335	1.6	49	33.5
PT15L075BF	10	20	BF	PTSF16520375	1.6	52	37.5
PT16L075BF	10	22	BF	PTSF16550425	1.6	55	42.5
PT17L075BF	10	22	BF	PTSF16568420	1.6	56.8	42
PT18L075BF	12	25	BF	PTSF16610450	1.6	61	45
PT19L075BF	12	25	BF	PTSF16660500	1.6	66	50
PT20L075BF	12	26	BF	PTSF16670530	1.6	67	53
PT21L075BF	12	26	BF	PTSF16700560	1.6	70	56
PT22L075BF	12	26	BF	PTSF16730560	1.6	73	56
PT24L075BF	12	26	BF	PTSF16790630	1.6	79	63
PT25L075BF	12	28	BF	PTSF16820670	1.6	82	67
PT26L075BF	12	28	BF	PTSF16860710	1.6	86	71
PT28L075BF	12	30	BF	PTSF16910770	1.6	91	77
PT30L075BF	12	30	BF	PTSF16970800	1.6	97	80
PT32L075BF	12	30	BF	PTSF161030850	1.6	103	85
PT34L075BF	12	30	BF	PTSF161110950	1.6	111	95
PT36L075BF	15	30	BF	PTSF1611501020	1.6	115	102
PT40L075BF	15	32	BF	PTSF1612701120	1.6	127	112
PT42L075BF	15	32	BF	PTSF1613501200	1.6	135	120
PT44L075BF	15	32	BF	PTSF1613901250	1.6	139	125
PT48L075BF	15	32	BF	PTSF1615101370	1.6	151	137
PT50L075BF	15	32	BF	PTSF1615801400	1.6	158	140
PT60L075BF	15	34	BF	PTSF1619001700	1.6	190	170
PT14L100BF	10	19	BF	PTSF16490335	1.6	49	33.5
PT15L100BF	10	20	BF	PTSF16520375	1.6	52	37.5
PT16L100BF	10	22	BF	PTSF16550425	1.6	55	42.5
PT17L100BF	10	22	BF	PTSF16568420	1.6	56.8	42
PT18L100BF	12	25	BF	PTSF16610450	1.6	61	45
PT19L100BF	12	25	BF	PTSF16660500	1.6	66	50
PT20L100BF	12	26	BF	PTSF16670530	1.6	67	53
PT21L100BF	12	26	BF	PTSF16700560	1.6	70	56
PT22L100BF	12	26	BF	PTSF16730560	1.6	73	56
PT24L100BF	12	26	BF	PTSF16790630	1.6	79	63
PT25L100BF	12	28	BF	PTSF16820670	1.6	82	67
PT26L100BF	12	28	BF	PTSF16860710	1.6	86	71
PT28L100BF	12	30	BF	PTSF16910770	1.6	91	77
PT30L100BF	12	30	BF	PTSF16970800	1.6	97	80
PT32L100BF	12	30	BF	PTSF161030850	1.6	103	85
PT34L100BF	12	30	BF	PTSF161110950	1.6	111	95
PT36L100BF	15	30	BF	PTSF1611501020	1.6	115	102
PT40L100BF	15	32	BF	PTSF1612701120	1.6	127	112
PT42L100BF	15	32	BF	PTSF1613501200	1.6	135	120
PT44L100BF	15	32	BF	PTSF1613901250	1.6	139	125
PT48L100BF	15	32	BF	PTSF1615101370	1.6	151	137
PT50L100BF	15	32	BF	PTSF1615801400	1.6	158	140
PT60L100BF	15	34	BF	PTSF1619001700	1.6	190	170

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
PT10L050AF	P	32,780	-	-	-	-	견적의뢰 / 주문
PT12L050AF	P	37,620	-	-	-	-	견적의뢰 / 주문
PT14L050AF	P	38,940	-	-	-	-	견적의뢰 / 주문
PT15L050AF	P	40,920	-	-	-	-	견적의뢰 / 주문
PT16L050AF	P	43,120	-	-	-	-	견적의뢰 / 주문
PT17L050AF	P	43,560	-	-	-	-	견적의뢰 / 주문
PT18L050AF	P	44,000	-	-	-	-	견적의뢰 / 주문
PT19L050AF	P	45,100	-	-	-	-	견적의뢰 / 주문
PT20L050AF	P	47,300	-	-	-	-	견적의뢰 / 주문
PT21L050AF	P	47,960	-	-	-	-	견적의뢰 / 주문
PT22L050AF	P	49,940	-	-	-	-	견적의뢰 / 주문
PT24L050AF	P	55,000	-	-	-	-	견적의뢰 / 주문
PT25L050AF	P	55,880	-	-	-	-	견적의뢰 / 주문
PT26L050AF	P	60,500	-	-	-	-	견적의뢰 / 주문
PT28L050AF	P	66,220	-	-	-	-	견적의뢰 / 주문
PT30L050AF	P	69,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF	P	81,840	-	-	-	-	견적의뢰 / 주문
PT34L050AF	P	87,560	-	-	-	-	견적의뢰 / 주문
PT36L050AF	P	91,080	-	-	-	-	견적의뢰 / 주문
PT40L050AF	P	100,320	-	-	-	-	견적의뢰 / 주문
PT42L050AF	P	113,300	-	-	-	-	견적의뢰 / 주문
PT12L075AF	P	40,700	-	-	-	-	견적의뢰 / 주문
PT14L075AF	P	42,680	-	-	-	-	견적의뢰 / 주문
PT15L075AF	P	44,000	-	-	-	-	견적의뢰 / 주문
PT16L075AF	P	46,420	-	-	-	-	견적의뢰 / 주문
PT17L075AF	P	47,740	-	-	-	-	견적의뢰 / 주문
PT18L075AF	P	48,620	-	-	-	-	견적의뢰 / 주문
PT19L075AF	P	50,600	-	-	-	-	견적의뢰 / 주문
PT20L075AF	P	52,360	-	-	-	-	견적의뢰 / 주문
PT21L075AF	P	54,780	-	-	-	-	견적의뢰 / 주문
PT22L075AF	P	56,540	-	-	-	-	견적의뢰 / 주문
PT24L075AF	P	63,580	-	-	-	-	견적의뢰 / 주문
PT25L075AF	P	66,660	-	-	-	-	견적의뢰 / 주문
PT26L075AF	P	69,300	-	-	-	-	견적의뢰 / 주문
PT28L075AF	P	74,140	-	-	-	-	견적의뢰 / 주문
PT30L075AF	P	79,420	-	-	-	-	견적의뢰 / 주문
PT32L075AF	P	88,880	-	-	-	-	견적의뢰 / 주문
PT34L075AF	P	95,480	-	-	-	-	견적의뢰 / 주문
PT36L075AF	P	102,080	-	-	-	-	견적의뢰 / 주문
PT40L075AF	P	110,000	-	-	-	-	견적의뢰 / 주문
PT42L075AF	P	121,000	-	-	-	-	견적의뢰 / 주문
PT14L100AF	P	50,160	-	-	-	-	견적의뢰 / 주문
PT15L100AF	P	51,480	-	-	-	-	견적의뢰 / 주문
PT16L100AF	P	54,120	-	-	-	-	견적의뢰 / 주문
PT17L100AF	P	56,540	-	-	-	-	견적의뢰 / 주문
PT18L100AF	P	56,980	-	-	-	-	견적의뢰 / 주문
PT19L100AF	P	59,180	-	-	-	-	견적의뢰 / 주문
PT20L100AF	P	60,500	-	-	-	-	견적의뢰 / 주문
PT21L100AF	P	62,040	-	-	-	-	견적의뢰 / 주문
PT22L100AF	P	63,580	-	-	-	-	견적의뢰 / 주문
PT24L100AF	P	69,300	-	-	-	-	견적의뢰 / 주문
PT25L100AF	P	74,800	-	-	-	-	견적의뢰 / 주문
PT26L100AF	P	78,760	-	-	-	-	견적의뢰 / 주문
PT28L100AF	P	83,820	-	-	-	-	견적의뢰 / 주문
PT30L100AF	P	89,980	-	-	-	-	견적의뢰 / 주문
PT32L100AF	P	102,740	-	-	-	-	견적의뢰 / 주문
PT34L100AF	P	111,100	-	-	-	-	견적의뢰 / 주문
PT36L100AF	P	116,600	-	-	-	-	견적의뢰 / 주문
PT40L100AF	P	133,100	-	-	-	-	견적의뢰 / 주문
PT42L100AF	P	145,200	-	-	-	-	견적의뢰 / 주문
PT10L050BF	P	39,160	-	-	-	-	견적의뢰 / 주문
PT12L050BF	P	40,700	-	-	-	-	견적의뢰 / 주문
PT14L050BF	P	45,540	-	-	-	-	견적의뢰 / 주문
PT15L050BF	P	47,740	-	-	-	-	견적의뢰 / 주문
PT16L050BF	P	48,400	-	-	-	-	견적의뢰 / 주문
PT17L050BF	P	50,380	-	-	-	-	견적의뢰 / 주문
PT18L050BF	P	50,820	-	-	-	-	견적의뢰 / 주문
PT19L050BF	P	53,900	-	-	-	-	견적의뢰 / 주문
PT20L050BF	P	55,220	-	-	-	-	견적의뢰 / 주문
PT21L050BF	P	56,980	-	-	-	-	견적의뢰 / 주문
PT22L050BF	P	60,060	-	-	-	-	견적의뢰 / 주문
PT24L050BF	P	64,020	-	-	-	-	견적의뢰 / 주문
PT25L050BF	P	67,100	-	-	-	-	견적의뢰 / 주문
PT26L050BF	P	70,180	-	-	-	-	견적의뢰 / 주문
PT28L050BF	P	76,780	-	-	-	-	견적의뢰 / 주문
PT30L050BF	P	81,840	-	-	-	-	견적의뢰 / 주문
PT32L050BF	P	94,600	-	-	-	-	견적의뢰 / 주문
PT34L050BF	P	101,200	-	-	-	-	견적의뢰 / 주문
PT36L050BF	P	107,360	-	-	-	-	견적의뢰 / 주문
PT40L050BF	P	117,700	-	-	-	-	견적의뢰 / 주문
PT42L050BF	P	103,840	-	-	-	-	견적의뢰 / 주문
PT44L050BF	P	107,800	-	-	-	-	견적의뢰 / 주문
PT48L050BF	P	121,000	-	-	-	-	견적의뢰 / 주문
PT50L050BF	P	127,600	-	-	-	-	견적의뢰 / 주문
PT60L050BF	P	150,700	-	-	-	-	견적의뢰 / 주문
PT12L075BF	P	47,740	-	-	-	-	견적의뢰 / 주문
PT14L075BF	P	50,160	-	-	-	-	견적의뢰 / 주문
PT15L075BF	P	51,700	-	-	-	-	견적의뢰 / 주문
PT16L075BF	P	54,120	-	-	-	-	견적의뢰 / 주문
PT17L075BF	P	55,880	-	-	-	-	견적의뢰 / 주문
PT18L075BF	P	56,980	-	-	-	-	견적의뢰 / 주문
PT19L075BF	P	59,620	-	-	-	-	견적의뢰 / 주문
PT20L075BF	P	60,060	-	-	-	-	견적의뢰 / 주문
PT21L075BF	P	64,020	-	-	-	-	견적의뢰 / 주문
PT22L075BF	P	66,660	-	-	-	-	견적의뢰 / 주문
PT24L075BF	P	71,720	-	-	-	-	견적의뢰 / 주문
PT25L075BF	P	77,220	-	-	-	-	견적의뢰 / 주문
PT26L075BF	P	78,760	-	-	-	-	견적의뢰 / 주문
PT28L075BF	P	84,480	-	-	-	-	견적의뢰 / 주문
PT30L075BF	P	89,540	-	-	-	-	견적의뢰 / 주문
PT32L075BF	P	102,740	-	-	-	-	견적의뢰 / 주문
PT34L075BF	P	111,100	-	-	-	-	견적의뢰 / 주문
PT36L075BF	P	116,600	-	-	-	-	견적의뢰 / 주문
PT40L075BF	P	130,900	-	-	-	-	견적의뢰 / 주문
PT42L075BF	P	117,700	-	-	-	-	견적의뢰 / 주문
PT44L075BF	P	124,300	-	-	-	-	견적의뢰 / 주문
PT48L075BF	P	143,000	-	-	-	-	견적의뢰 / 주문
PT50L075BF	P	150,700	-	-	-	-	견적의뢰 / 주문
PT60L075BF	P	183,700	-	-	-	-	견적의뢰 / 주문
PT14L100BF	P	56,100	-	-	-	-	견적의뢰 / 주문
PT15L100BF	P	61,380	-	-	-	-	견적의뢰 / 주문
PT16L100BF	P	63,580	-	-	-	-	견적의뢰 / 주문
PT17L100BF	P	66,220	-	-	-	-	견적의뢰 / 주문
PT18L100BF	P	67,100	-	-	-	-	견적의뢰 / 주문
PT19L100BF	P	69,300	-	-	-	-	견적의뢰 / 주문
PT20L100BF	P	69,740	-	-	-	-	견적의뢰 / 주문
PT21L100BF	P	75,900	-	-	-	-	견적의뢰 / 주문
PT22L100BF	P	78,760	-	-	-	-	견적의뢰 / 주문
PT24L100BF	P	86,020	-	-	-	-	견적의뢰 / 주문
PT25L100BF	P	89,540	-	-	-	-	견적의뢰 / 주문
PT26L100BF	P	97,240	-	-	-	-	견적의뢰 / 주문
PT28L100BF	P	102,080	-	-	-	-	견적의뢰 / 주문
PT30L100BF	P	105,160	-	-	-	-	견적의뢰 / 주문
PT32L100BF	P	118,800	-	-	-	-	견적의뢰 / 주문
PT34L100BF	P	128,700	-	-	-	-	견적의뢰 / 주문
PT36L100BF	P	137,500	-	-	-	-	견적의뢰 / 주문
PT40L100BF	P	167,200	-	-	-	-	견적의뢰 / 주문
PT42L100BF	P	152,900	-	-	-	-	견적의뢰 / 주문
PT44L100BF	P	154,000	-	-	-	-	견적의뢰 / 주문
PT48L100BF	P	161,700	-	-	-	-	견적의뢰 / 주문
PT50L100BF	P	167,200	-	-	-	-	견적의뢰 / 주문
PT60L100BF	P	211,200	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
