(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
  • 카탈로그



  • 관련이미지

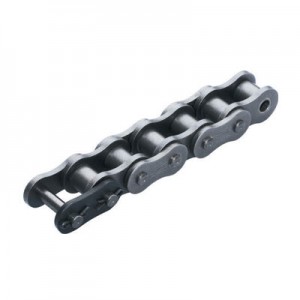

    상세사양
    49건 중 1~49건 표시
    형식타입체인번호열수피치
    P
    (mm)
    롤러경
    R
    (mm)
    안쪽링크내폭
    W
    (mm)
    형식타입체인번호열수피치
    P
    (mm)
    롤러경
    R
    (mm)
    안쪽링크내폭
    W
    (mm)
    RS60-HT-1유니트RS60119.0511.9112.7
    RS60-HT-1링크RS60119.0511.9112.7
    RS60-HT-2링크RS60219.0511.9112.7
    RS60-HT-3링크RS60319.0511.9112.7
    RS80-HT-1링크RS80125.415.8815.88
    RS80-HT-2링크RS80225.415.8815.88
    RS80-HT-3링크RS80325.415.8815.88
    RS100-HT-1링크RS100131.7519.0519.05
    RS100-HT-2링크RS100231.7519.0519.05
    RS100-HT-3링크RS100331.7519.0519.05
    RS120-HT-1링크RS120138.122.2325.4
    RS120-HT-2링크RS120238.122.2325.4
    RS120-HT-3링크RS120338.122.2325.4
    RS140-HT-1링크RS140144.4525.425.4
    RS140-HT-2링크RS140244.4525.425.4
    RS140-HT-3링크RS140344.4525.425.4
    RS160-HT-1링크RS160150.828.5831.75
    RS160-HT-2링크RS160250.828.5831.75
    RS160-HT-3링크RS160350.828.5831.75
    RS200-HT-1링크RS200163.539.6838.1
    RS200-HT-2링크RS200263.539.6838.1
    RS200-HT-3링크RS200363.539.6838.1
    RS240-HT-1링크RS240176.247.6347.63
    RS240-HT-2링크RS240276.247.6347.63
    RS240-HT-3링크RS240376.247.6347.63
    RS60-HT-1-JL조인트링크RS60119.0511.9112.7
    RS60-HT-2-JL조인트링크RS60219.0511.9112.7
    RS60-HT-3-JL조인트링크RS60319.0511.9112.7
    RS80-HT-1-JL조인트링크RS80125.415.8815.88
    RS80-HT-2-JL조인트링크RS80225.415.8815.88
    RS80-HT-3-JL조인트링크RS80325.415.8815.88
    RS100-HT-1-JL조인트링크RS100131.7519.0519.05
    RS100-HT-2-JL조인트링크RS100231.7519.0519.05
    RS100-HT-3-JL조인트링크RS100331.7519.0519.05
    RS120-HT-1-JL조인트링크RS120138.122.2325.4
    RS120-HT-2-JL조인트링크RS120238.122.2325.4
    RS120-HT-3-JL조인트링크RS120338.122.2325.4
    RS140-HT-1-JL조인트링크RS140144.4525.425.4
    RS140-HT-2-JL조인트링크RS140244.4525.425.4
    RS140-HT-3-JL조인트링크RS140344.4525.425.4
    RS160-HT-1-JL조인트링크RS160150.828.5831.75
    RS160-HT-2-JL조인트링크RS160250.828.5831.75
    RS160-HT-3-JL조인트링크RS160350.828.5831.75
    RS200-HT-1-JL조인트링크RS200163.539.6838.1
    RS200-HT-2-JL조인트링크RS200263.539.6838.1
    RS200-HT-3-JL조인트링크RS200363.539.6838.1
    RS240-HT-1-JL조인트링크RS240176.247.6347.63
    RS240-HT-2-JL조인트링크RS240276.247.6347.63
    RS240-HT-3-JL조인트링크RS240376.247.6347.63

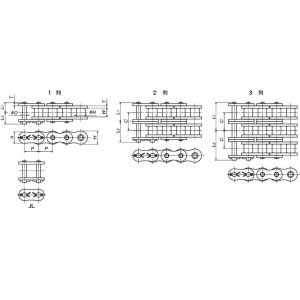

    형식플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)횡피치
    C
    (mm)
    형식두께
    T

    H

    h
    핀경
    D
    L1L2횡피치
    C
    (mm)
    RS60-HT-13.218.115.65.9614.817-
    RS60-HT-13.218.115.65.9614.817-
    RS60-HT-23.218.115.65.9627.829.926.1
    RS60-HT-33.218.115.65.9640.8542.9526.1
    RS80-HT-1424.120.87.9418.320-
    RS80-HT-2424.120.87.9434.637.232.6
    RS80-HT-3424.120.87.9450,9553.5532.6
    RS100-HT-14.830.1269.5421.824.5-
    RS100-HT-24.830.1269.5441.444.139.1
    RS100-HT-34.830.1269.546163.639.1
    RS120-HT-15.636.231.211.1126.9530.55-
    RS120-HT-25.636.231.211.1151.45548.9
    RS120-HT-35.636.231.211.1175.8579.5548.9
    RS140-HT-16.442.236.412.7128.933.1-
    RS140-HT-26.442.236.412.715559.552.2
    RS140-HT-36.442.236.412.7181.1585.2552.2
    RS160-HT-17.1548.241.614.2933.9538.45-
    RS160-HT-27.1548.241.614.2964.969.661.9
    RS160-HT-37.1548.241.614.2995.95100.4561.9
    RS200-HT-19.560.35219.8542.948.1-
    RS200-HT-29.560.35219.8582.0587.378.3
    RS200-HT-39.560.35219.85121.25126.5578.3
    RS240-HT-112.772.462.423.8154.862.3-
    RS240-HT-212.772.462.423.81105.3112.9101.2
    RS240-HT-312.772.462.423.81156.05163.55101.2
    RS60-HT-1-JL3.218.115.65.9614.817-
    RS60-HT-2-JL3.218.115.65.9627.829.926.1
    RS60-HT-3-JL3.218.115.65.9640.8542.9526.1
    RS80-HT-1-JL424.120.87.9418.320-
    RS80-HT-2-JL424.120.87.9434.637.232.6
    RS80-HT-3-JL424.120.87.9450,9553.5532.6
    RS100-HT-1-JL4.830.1269.5421.824.5-
    RS100-HT-2-JL4.830.1269.5441.444.139.1
    RS100-HT-3-JL4.830.1269.546163.639.1
    RS120-HT-1-JL5.636.231.211.1126.9530.55-
    RS120-HT-2-JL5.636.231.211.1151.45548.9
    RS120-HT-3-JL5.636.231.211.1175.8579.5548.9
    RS140-HT-1-JL6.442.236.412.7128.933.1-
    RS140-HT-2-JL6.442.236.412.715559.552.2
    RS140-HT-3-JL6.442.236.412.7181.1585.2552.2
    RS160-HT-1-JL7.1548.241.614.2933.9538.45-
    RS160-HT-2-JL7.1548.241.614.2964.969.661.9
    RS160-HT-3-JL7.1548.241.614.2995.95100.4561.9
    RS200-HT-1-JL9.560.35219.8542.948.1-
    RS200-HT-2-JL9.560.35219.8582.0587.378.3
    RS200-HT-3-JL9.560.35219.85121.25126.5578.3
    RS240-HT-1-JL12.772.462.423.8154.862.3-
    RS240-HT-2-JL12.772.462.423.81105.3112.9101.2
    RS240-HT-3-JL12.772.462.423.81156.05163.55101.2

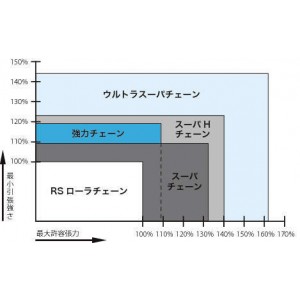

    형식최소인장장도
    (KN)
    평균인장장도
    (KN)
    최대허용장력
    (KN)
    개략질량
    (kg/m)
    링크수
    형식최소인장장도
    (KN)
    평균인장장도
    (KN)
    최대허용장력
    (KN)
    개략질량
    (kg/m)
    링크수
    RS60-HT-148.155.99.811.08160
    RS60-HT-148.155.99.811.08-
    RS60-HT-29.6111216.73.59-
    RS60-HT-314416824.55.36-
    RS80-HT-181.493.216.23.11-
    RS80-HT-216318627.66.18-
    RS80-HT-324427940.59.24-
    RS100-HT-112414224.54.58-
    RS100-HT-224728441.79.03-
    RS100-HT-337142761.312.54-
    RS120-HT-116719132.46.53-
    RS120-HT-23333825512.9-
    RS120-HT-350057480.919.33-
    RS140-HT-121825042.78.27-
    RS140-HT-243550072.616.38-
    RS140-HT-365375010724.54-
    RS160-HT-127831955.910.97-
    RS160-HT-25556389521.78-
    RS160-HT-383395614032.63-
    RS200-HT-148655978.518.41-
    RS200-HT-2973112013336.47-
    RS200-HT-31460168019654.77-
    RS240-HT-176888311329.13-
    RS240-HT-21540177019257.35-
    RS240-HT-32300265028285.47-
    RS60-HT-1-JL48.155.99.811.08-
    RS60-HT-2-JL9.6111216.73.59-
    RS60-HT-3-JL14416824.55.36-
    RS80-HT-1-JL81.493.216.23.11-
    RS80-HT-2-JL16318627.66.18-
    RS80-HT-3-JL24427940.59.24-
    RS100-HT-1-JL12414224.54.58-
    RS100-HT-2-JL24728441.79.03-
    RS100-HT-3-JL37142761.312.54-
    RS120-HT-1-JL16719132.46.53-
    RS120-HT-2-JL3333825512.9-
    RS120-HT-3-JL50057480.919.33-
    RS140-HT-1-JL21825042.78.27-
    RS140-HT-2-JL43550072.616.38-
    RS140-HT-3-JL65375010724.54-
    RS160-HT-1-JL27831955.910.97-
    RS160-HT-2-JL5556389521.78-
    RS160-HT-3-JL83395614032.63-
    RS200-HT-1-JL48655978.518.41-
    RS200-HT-2-JL973112013336.47-
    RS200-HT-3-JL1460168019654.77-
    RS240-HT-1-JL76888311329.13-
    RS240-HT-2-JL1540177019257.35-
    RS240-HT-3-JL2300265028285.47-
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커재고아린재고질량견적의뢰 및 주문
    RS60-HT-1P217,800----견적의뢰 / 주문
    RS60-HT-1L1,364----견적의뢰 / 주문
    RS60-HT-2L3,872----견적의뢰 / 주문
    RS60-HT-3L7,084----견적의뢰 / 주문
    RS80-HT-1L3,168----견적의뢰 / 주문
    RS80-HT-2L7,854----견적의뢰 / 주문
    RS80-HT-3L12,650----견적의뢰 / 주문
    RS100-HT-1L6,248----견적의뢰 / 주문
    RS100-HT-2L15,620----견적의뢰 / 주문
    RS100-HT-3L24,860----견적의뢰 / 주문
    RS120-HT-1L10,450----견적의뢰 / 주문
    RS120-HT-2L26,180----견적의뢰 / 주문
    RS120-HT-3L41,800----견적의뢰 / 주문
    RS140-HT-1L14,630----견적의뢰 / 주문
    RS140-HT-2L36,520----견적의뢰 / 주문
    RS140-HT-3L58,520----견적의뢰 / 주문
    RS160-HT-1L22,220----견적의뢰 / 주문
    RS160-HT-2L55,880----견적의뢰 / 주문
    RS160-HT-3L88,880----견적의뢰 / 주문
    RS200-HT-1L52,140----견적의뢰 / 주문
    RS200-HT-2L129,800----견적의뢰 / 주문
    RS200-HT-3L209,000----견적의뢰 / 주문
    RS240-HT-1L107,580----견적의뢰 / 주문
    RS240-HT-2L268,400----견적의뢰 / 주문
    RS240-HT-3L429,000----견적의뢰 / 주문
    RS60-HT-1-JLP4,554----견적의뢰 / 주문
    RS60-HT-2-JLP9,526----견적의뢰 / 주문
    RS60-HT-3-JLP14,850----견적의뢰 / 주문
    RS80-HT-1-JLP6,622----견적의뢰 / 주문
    RS80-HT-2-JLP13,750----견적의뢰 / 주문
    RS80-HT-3-JLP21,560----견적의뢰 / 주문
    RS100-HT-1-JLP11,770----견적의뢰 / 주문
    RS100-HT-2-JLP24,420----견적의뢰 / 주문
    RS100-HT-3-JLP38,500----견적의뢰 / 주문
    RS120-HT-1-JLP18,700----견적의뢰 / 주문
    RS120-HT-2-JLP38,940----견적의뢰 / 주문
    RS120-HT-3-JLP60,500----견적의뢰 / 주문
    RS140-HT-1-JLP27,500----견적의뢰 / 주문
    RS140-HT-2-JLP57,200----견적의뢰 / 주문
    RS140-HT-3-JLP89,540----견적의뢰 / 주문
    RS160-HT-1-JLP39,160----견적의뢰 / 주문
    RS160-HT-2-JLP82,060----견적의뢰 / 주문
    RS160-HT-3-JLP128,700----견적의뢰 / 주문
    RS200-HT-1-JLP92,840----견적의뢰 / 주문
    RS200-HT-2-JLP193,600----견적의뢰 / 주문
    RS200-HT-3-JLP303,600----견적의뢰 / 주문
    RS240-HT-1-JLP180,400----견적의뢰 / 주문
    RS240-HT-2-JLP376,200----견적의뢰 / 주문
    RS240-HT-3-JLP585,200----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 10만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.



    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
