카프리콘

카프리콘(슬리트타입) MST시리즈

나베야바이테크(주) ( NABEYA BI-TECH )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


188건 중 1~188건 표시

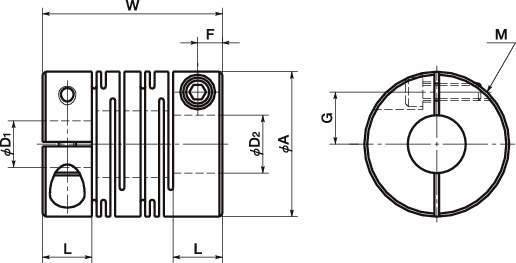

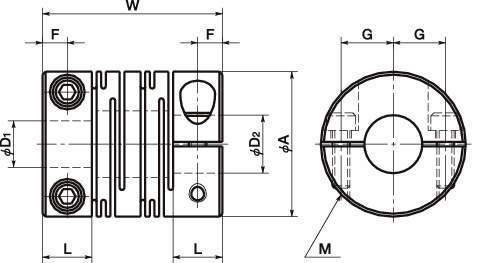

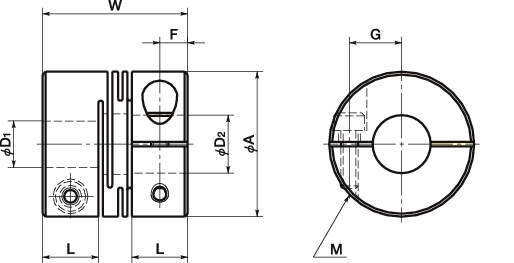

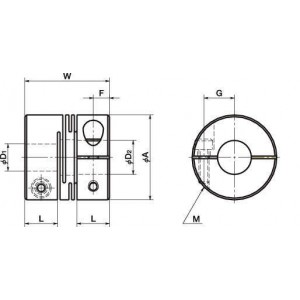

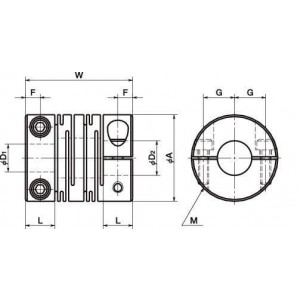

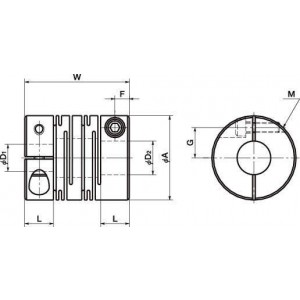

형식	사이즈	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)
형식	사이즈	A	L	W	F	G	M
XSTS-25C-5×5	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-5×6	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-5×8	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-5×10	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-6×6	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-6×8	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-6×10	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-8×8	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-8×10	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-25C-10×10	XSTS-25C	25	8.5	31	4.25	9	M3
XSTS-32C-8×8	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-8×10	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-8×11	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-8×12	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-8×14	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-10×10	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-10×11	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-10×12	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-10×14	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-11×11	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-11×12	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-11×14	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-12×12	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-12×14	XSTS-32C	32	12	41	6	11	M4
XSTS-32C-14×14	XSTS-32C	32	12	41	6	11	M4
XSTS-40C-8×8	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×10	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×11	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×12	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×14	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-8×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×10	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×11	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×12	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×14	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-10×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×11	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×12	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×14	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-11×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-12×12	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-12×14	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-12×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-12×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-12×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-14×14	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-14×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-14×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-14×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-15×15	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-15×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-15×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-16×16	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-16×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-40C-18×18	XSTS-40C	40	17	56	8.5	14	M5
XSTS-50C-12×12	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×14	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×15	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×16	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×18	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-12×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×14	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×15	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×16	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×18	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-14×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×15	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×16	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×18	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-15×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-16×16	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-16×18	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-16×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-16×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-16×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-18×18	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-18×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-18×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-18×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-19×19	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-19×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-19×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-20×20	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-20×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-50C-22×22	XSTS-50C	50	21	71	10.5	18	M6
XSTS-63C-14×14	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×15	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×16	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×18	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×19	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-14×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×15	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×16	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×18	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×19	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-15×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×16	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×18	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×19	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-16×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×18	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×19	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-18×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×19	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-19×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×20	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-20×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-22×22	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-22×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-22×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-22×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-22×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-24×24	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-24×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-24×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-24×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-25×25	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-25×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-25×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-28×28	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-28×30	XSTS-63C	63	26	90	13	24	M8
XSTS-63C-30×30	XSTS-63C	63	26	90	13	24	M8
XWSS-25C-5×5	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-5×6	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-5×8	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-5×10	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-6×6	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-6×8	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-6×10	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-8×8	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-8×10	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-25C-10×10	XWSS-25C	25	9.6	25	4.8	9	M3
XWSS-32C-8×8	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-8×10	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-8×11	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-8×12	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-8×14	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-10×10	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-10×11	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-10×12	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-10×14	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-11×11	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-11×12	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-11×14	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-12×12	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-12×14	XWSS-32C	32	12.6	32	6.3	11	M4
XWSS-32C-14×14	XWSS-32C	32	12.6	32	6.3	11	M4

형식	나사조임 토르크 (N · m)	표준축홀직경(mm)	표준축홀직경(mm)	상용 토르크 (N · m)	최대 토르크 (N · m)	최고 회전수 (min-1)
형식	나사조임 토르크 (N · m)	D1	D2	상용 토르크 (N · m)	최대 토르크 (N · m)	최고 회전수 (min-1)
XSTS-25C-5×5	1.5	5	5	2	4	25000
XSTS-25C-5×6	1.5	5	6	2	4	25000
XSTS-25C-5×8	1.5	5	8	2	4	25000
XSTS-25C-5×10	1.5	5	10	2	4	25000
XSTS-25C-6×6	1.5	6	6	2	4	25000
XSTS-25C-6×8	1.5	6	8	2	4	25000
XSTS-25C-6×10	1.5	6	10	2	4	25000
XSTS-25C-8×8	1.5	8	8	2	4	25000
XSTS-25C-8×10	1.5	8	10	2	4	25000
XSTS-25C-10×10	1.5	10	10	2	4	25000
XSTS-32C-8×8	2.5	8	8	3.5	7	19000
XSTS-32C-8×10	2.5	8	10	3.5	7	19000
XSTS-32C-8×11	2.5	8	11	3.5	7	19000
XSTS-32C-8×12	2.5	8	12	3.5	7	19000
XSTS-32C-8×14	2.5	8	14	3.5	7	19000
XSTS-32C-10×10	2.5	10	10	3.5	7	19000
XSTS-32C-10×11	2.5	10	11	3.5	7	19000
XSTS-32C-10×12	2.5	10	12	3.5	7	19000
XSTS-32C-10×14	2.5	10	14	3.5	7	19000
XSTS-32C-11×11	2.5	11	11	3.5	7	19000
XSTS-32C-11×12	2.5	11	12	3.5	7	19000
XSTS-32C-11×14	2.5	11	14	3.5	7	19000
XSTS-32C-12×12	2.5	12	12	3.5	7	19000
XSTS-32C-12×14	2.5	12	14	3.5	7	19000
XSTS-32C-14×14	2.5	14	14	3.5	7	19000
XSTS-40C-8×8	4	8	8	8	16	15000
XSTS-40C-8×10	4	8	10	8	16	15000
XSTS-40C-8×11	4	8	11	8	16	15000
XSTS-40C-8×12	4	8	12	8	16	15000
XSTS-40C-8×14	4	8	14	8	16	15000
XSTS-40C-8×15	4	8	15	8	16	15000
XSTS-40C-8×16	4	8	16	8	16	15000
XSTS-40C-8×18	4	8	18	8	16	15000
XSTS-40C-10×10	4	10	10	8	16	15000
XSTS-40C-10×11	4	10	11	8	16	15000
XSTS-40C-10×12	4	10	12	8	16	15000
XSTS-40C-10×14	4	10	14	8	16	15000
XSTS-40C-10×15	4	10	15	8	16	15000
XSTS-40C-10×16	4	10	16	8	16	15000
XSTS-40C-10×18	4	10	18	8	16	15000
XSTS-40C-11×11	4	11	11	8	16	15000
XSTS-40C-11×12	4	11	12	8	16	15000
XSTS-40C-11×14	4	11	14	8	16	15000
XSTS-40C-11×15	4	11	15	8	16	15000
XSTS-40C-11×16	4	11	16	8	16	15000
XSTS-40C-11×18	4	11	18	8	16	15000
XSTS-40C-12×12	4	12	12	8	16	15000
XSTS-40C-12×14	4	12	14	8	16	15000
XSTS-40C-12×15	4	12	15	8	16	15000
XSTS-40C-12×16	4	12	16	8	16	15000
XSTS-40C-12×18	4	12	18	8	16	15000
XSTS-40C-14×14	4	14	14	8	16	15000
XSTS-40C-14×15	4	14	15	8	16	15000
XSTS-40C-14×16	4	14	16	8	16	15000
XSTS-40C-14×18	4	14	18	8	16	15000
XSTS-40C-15×15	4	15	15	8	16	15000
XSTS-40C-15×16	4	15	16	8	16	15000
XSTS-40C-15×18	4	15	18	8	16	15000
XSTS-40C-16×16	4	16	16	8	16	15000
XSTS-40C-16×18	4	16	18	8	16	15000
XSTS-40C-18×18	4	18	18	8	16	15000
XSTS-50C-12×12	8	12	12	15	30	12000
XSTS-50C-12×14	8	12	14	15	30	12000
XSTS-50C-12×15	8	12	15	15	30	12000
XSTS-50C-12×16	8	12	16	15	30	12000
XSTS-50C-12×18	8	12	18	15	30	12000
XSTS-50C-12×19	8	12	19	15	30	12000
XSTS-50C-12×20	8	12	20	15	30	12000
XSTS-50C-12×22	8	12	22	15	30	12000
XSTS-50C-14×14	8	14	14	15	30	12000
XSTS-50C-14×15	8	14	15	15	30	12000
XSTS-50C-14×16	8	14	16	15	30	12000
XSTS-50C-14×18	8	14	18	15	30	12000
XSTS-50C-14×19	8	14	19	15	30	12000
XSTS-50C-14×20	8	14	20	15	30	12000
XSTS-50C-14×22	8	14	22	15	30	12000
XSTS-50C-15×15	8	15	15	15	30	12000
XSTS-50C-15×16	8	15	16	15	30	12000
XSTS-50C-15×18	8	15	18	15	30	12000
XSTS-50C-15×19	8	15	19	15	30	12000
XSTS-50C-15×20	8	15	20	15	30	12000
XSTS-50C-15×22	8	15	22	15	30	12000
XSTS-50C-16×16	8	16	16	15	30	12000
XSTS-50C-16×18	8	16	18	15	30	12000
XSTS-50C-16×19	8	16	19	15	30	12000
XSTS-50C-16×20	8	16	20	15	30	12000
XSTS-50C-16×22	8	16	22	15	30	12000
XSTS-50C-18×18	8	18	18	15	30	12000
XSTS-50C-18×19	8	18	19	15	30	12000
XSTS-50C-18×20	8	18	20	15	30	12000
XSTS-50C-18×22	8	18	22	15	30	12000
XSTS-50C-19×19	8	19	19	15	30	12000
XSTS-50C-19×20	8	19	20	15	30	12000
XSTS-50C-19×22	8	19	22	15	30	12000
XSTS-50C-20×20	8	20	20	15	30	12000
XSTS-50C-20×22	8	20	22	15	30	12000
XSTS-50C-22×22	8	22	22	15	30	12000
XSTS-63C-14×14	16	14	14	35	70	10000
XSTS-63C-14×15	16	14	15	35	70	10000
XSTS-63C-14×16	16	14	16	35	70	10000
XSTS-63C-14×18	16	14	18	35	70	10000
XSTS-63C-14×19	16	14	19	35	70	10000
XSTS-63C-14×20	16	14	20	35	70	10000
XSTS-63C-14×22	16	14	22	35	70	10000
XSTS-63C-14×24	16	14	24	35	70	10000
XSTS-63C-14×25	16	14	25	35	70	10000
XSTS-63C-14×28	16	14	28	35	70	10000
XSTS-63C-14×30	16	14	30	35	70	10000
XSTS-63C-15×15	16	15	15	35	70	10000
XSTS-63C-15×16	16	15	16	35	70	10000
XSTS-63C-15×18	16	15	18	35	70	10000
XSTS-63C-15×19	16	15	19	35	70	10000
XSTS-63C-15×20	16	15	20	35	70	10000
XSTS-63C-15×22	16	15	22	35	70	10000
XSTS-63C-15×24	16	15	24	35	70	10000
XSTS-63C-15×25	16	15	25	35	70	10000
XSTS-63C-15×28	16	15	28	35	70	10000
XSTS-63C-15×30	16	15	30	35	70	10000
XSTS-63C-16×16	16	16	16	35	70	10000
XSTS-63C-16×18	16	16	18	35	70	10000
XSTS-63C-16×19	16	16	19	35	70	10000
XSTS-63C-16×20	16	16	20	35	70	10000
XSTS-63C-16×22	16	16	22	35	70	10000
XSTS-63C-16×24	16	16	24	35	70	10000
XSTS-63C-16×25	16	16	25	35	70	10000
XSTS-63C-16×28	16	16	28	35	70	10000
XSTS-63C-16×30	16	16	30	35	70	10000
XSTS-63C-18×18	16	18	18	35	70	10000
XSTS-63C-18×19	16	18	19	35	70	10000
XSTS-63C-18×20	16	18	20	35	70	10000
XSTS-63C-18×22	16	18	22	35	70	10000
XSTS-63C-18×24	16	18	24	35	70	10000
XSTS-63C-18×25	16	18	25	35	70	10000
XSTS-63C-18×28	16	18	28	35	70	10000
XSTS-63C-18×30	16	18	30	35	70	10000
XSTS-63C-19×19	16	19	19	35	70	10000
XSTS-63C-19×20	16	19	20	35	70	10000
XSTS-63C-19×22	16	19	22	35	70	10000
XSTS-63C-19×24	16	19	24	35	70	10000
XSTS-63C-19×25	16	19	25	35	70	10000
XSTS-63C-19×28	16	19	28	35	70	10000
XSTS-63C-19×30	16	19	30	35	70	10000
XSTS-63C-20×20	16	20	20	35	70	10000
XSTS-63C-20×22	16	20	22	35	70	10000
XSTS-63C-20×24	16	20	24	35	70	10000
XSTS-63C-20×25	16	20	25	35	70	10000
XSTS-63C-20×28	16	20	28	35	70	10000
XSTS-63C-20×30	16	20	30	35	70	10000
XSTS-63C-22×22	16	22	22	35	70	10000
XSTS-63C-22×24	16	22	24	35	70	10000
XSTS-63C-22×25	16	22	25	35	70	10000
XSTS-63C-22×28	16	22	28	35	70	10000
XSTS-63C-22×30	16	22	30	35	70	10000
XSTS-63C-24×24	16	24	24	35	70	10000
XSTS-63C-24×25	16	24	25	35	70	10000
XSTS-63C-24×28	16	24	28	35	70	10000
XSTS-63C-24×30	16	24	30	35	70	10000
XSTS-63C-25×25	16	25	25	35	70	10000
XSTS-63C-25×28	16	25	28	35	70	10000
XSTS-63C-25×30	16	25	30	35	70	10000
XSTS-63C-28×28	16	28	28	35	70	10000
XSTS-63C-28×30	16	28	30	35	70	10000
XSTS-63C-30×30	16	30	30	35	70	10000
XWSS-25C-5×5	1.5	5	5	2	4	25000
XWSS-25C-5×6	1.5	5	6	2	4	25000
XWSS-25C-5×8	1.5	5	8	2	4	25000
XWSS-25C-5×10	1.5	5	10	2	4	25000
XWSS-25C-6×6	1.5	6	6	2	4	25000
XWSS-25C-6×8	1.5	6	8	2	4	25000
XWSS-25C-6×10	1.5	6	10	2	4	25000
XWSS-25C-8×8	1.5	8	8	2	4	25000
XWSS-25C-8×10	1.5	8	10	2	4	25000
XWSS-25C-10×10	1.5	10	10	2	4	25000
XWSS-32C-8×8	2.5	8	8	3.5	7	19000
XWSS-32C-8×10	2.5	8	10	3.5	7	19000
XWSS-32C-8×11	2.5	8	11	3.5	7	19000
XWSS-32C-8×12	2.5	8	12	3.5	7	19000
XWSS-32C-8×14	2.5	8	14	3.5	7	19000
XWSS-32C-10×10	2.5	10	10	3.5	7	19000
XWSS-32C-10×11	2.5	10	11	3.5	7	19000
XWSS-32C-10×12	2.5	10	12	3.5	7	19000
XWSS-32C-10×14	2.5	10	14	3.5	7	19000
XWSS-32C-11×11	2.5	11	11	3.5	7	19000
XWSS-32C-11×12	2.5	11	12	3.5	7	19000
XWSS-32C-11×14	2.5	11	14	3.5	7	19000
XWSS-32C-12×12	2.5	12	12	3.5	7	19000
XWSS-32C-12×14	2.5	12	14	3.5	7	19000
XWSS-32C-14×14	2.5	14	14	3.5	7	19000

형식	관성 모멘트 (kg · cm2)	정적비틀림 스프링정수 (N · m/rad）	허용 편심 (mm)	허용 편각 (°)	허용 엔드플레이 (mm)
형식	관성 모멘트 (kg · cm2)	정적비틀림 스프링정수 (N · m/rad）	허용 편심 (mm)	허용 편각 (°)	허용 엔드플레이 (mm)
XSTS-25C-5×5	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-5×6	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-5×8	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-5×10	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-6×6	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-6×8	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-6×10	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-8×8	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-8×10	7.1×10^-6	330	0.15	2	±0.4
XSTS-25C-10×10	7.1×10^-6	330	0.15	2	±0.4
XSTS-32C-8×8	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-8×10	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-8×11	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-8×12	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-8×14	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-10×10	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-10×11	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-10×12	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-10×14	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-11×11	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-11×12	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-11×14	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-12×12	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-12×14	2.7×10^-5	850	0.15	2	±0.5
XSTS-32C-14×14	2.7×10^-5	850	0.15	2	±0.5
XSTS-40C-8×8	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×10	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×11	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×12	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×14	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-8×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×10	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×11	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×12	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×14	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-10×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×11	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×12	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×14	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-11×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-12×12	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-12×14	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-12×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-12×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-12×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-14×14	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-14×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-14×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-14×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-15×15	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-15×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-15×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-16×16	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-16×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-40C-18×18	9.0×10^-5	1000	0.2	2	±0.5
XSTS-50C-12×12	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×14	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×15	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×16	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×18	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-12×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×14	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×15	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×16	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×18	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-14×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×15	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×16	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×18	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-15×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-16×16	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-16×18	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-16×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-16×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-16×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-18×18	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-18×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-18×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-18×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-19×19	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-19×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-19×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-20×20	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-20×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-50C-22×22	2.8×10^-4	1400	0.2	2	±0.5
XSTS-63C-14×14	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×15	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×16	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×18	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×19	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-14×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×15	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×16	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×18	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×19	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-15×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×16	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×18	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×19	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-16×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×18	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×19	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-18×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×19	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-19×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×20	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-20×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-22×22	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-22×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-22×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-22×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-22×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-24×24	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-24×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-24×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-24×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-25×25	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-25×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-25×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-28×28	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-28×30	8.8×10^-4	1800	0.2	2	±0.5
XSTS-63C-30×30	8.8×10^-4	1800	0.2	2	±0.5
XWSS-25C-5×5	6.3×10^-6	720	-	1	±0.2
XWSS-25C-5×6	6.3×10^-6	720	-	1	±0.2
XWSS-25C-5×8	6.3×10^-6	720	-	1	±0.2
XWSS-25C-5×10	6.3×10^-6	720	-	1	±0.2
XWSS-25C-6×6	6.3×10^-6	720	-	1	±0.2
XWSS-25C-6×8	6.3×10^-6	720	-	1	±0.2
XWSS-25C-6×10	6.3×10^-6	720	-	1	±0.2
XWSS-25C-8×8	6.3×10^-6	720	-	1	±0.2
XWSS-25C-8×10	6.3×10^-6	720	-	1	±0.2
XWSS-25C-10×10	6.3×10^-6	720	-	1	±0.2
XWSS-32C-8×8	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-8×10	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-8×11	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-8×12	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-8×14	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-10×10	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-10×11	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-10×12	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-10×14	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-11×11	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-11×12	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-11×14	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-12×12	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-12×14	2.2×10^-5	1300	-	1	±0.2
XWSS-32C-14×14	2.2×10^-5	1300	-	1	±0.2

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (g)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (g)	견적의뢰 및 주문
XSTS-25C-5×5	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-5×6	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-5×8	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-5×10	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-6×6	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-6×8	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-6×10	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-8×8	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-8×10	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-25C-10×10	P	321,200	-	-	-	78	견적의뢰 / 주문
XSTS-32C-8×8	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-8×10	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-8×11	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-8×12	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-8×14	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-10×10	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-10×11	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-10×12	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-10×14	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-11×11	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-11×12	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-11×14	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-12×12	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-12×14	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-32C-14×14	P	363,000	-	-	-	170	견적의뢰 / 주문
XSTS-40C-8×8	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×10	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×11	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×12	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×14	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-8×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×10	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×11	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×12	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×14	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-10×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×11	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×12	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×14	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-11×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-12×12	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-12×14	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-12×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-12×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-12×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-14×14	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-14×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-14×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-14×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-15×15	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-15×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-15×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-16×16	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-16×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-40C-18×18	P	816,200	-	-	-	370	견적의뢰 / 주문
XSTS-50C-12×12	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×14	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×15	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×16	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×18	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-12×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×14	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×15	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×16	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×18	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-14×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×15	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×16	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×18	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-15×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-16×16	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-16×18	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-16×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-16×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-16×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-18×18	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-18×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-18×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-18×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-19×19	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-19×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-19×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-20×20	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-20×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-50C-22×22	P	1,430,000	-	-	-	750	견적의뢰 / 주문
XSTS-63C-14×14	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×15	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×16	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×18	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×19	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-14×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×15	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×16	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×18	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×19	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-15×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×16	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×18	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×19	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-16×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×18	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×19	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-18×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×19	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-19×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×20	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-20×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-22×22	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-22×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-22×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-22×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-22×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-24×24	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-24×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-24×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-24×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-25×25	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-25×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-25×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-28×28	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-28×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XSTS-63C-30×30	P	2,926,000	-	-	-	1,400	견적의뢰 / 주문
XWSS-25C-5×5	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-5×6	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-5×8	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-5×10	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-6×6	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-6×8	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-6×10	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-8×8	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-8×10	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-25C-10×10	P	228,800	-	-	-	69	견적의뢰 / 주문
XWSS-32C-8×8	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-8×10	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-8×11	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-8×12	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-8×14	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-10×10	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-10×11	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-10×12	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-10×14	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-11×11	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-11×12	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-11×14	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-12×12	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-12×14	P	303,600	-	-	-	150	견적의뢰 / 주문
XWSS-32C-14×14	P	303,600	-	-	-	150	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
