상품 상세보기 : 죠맥스

죠맥스

나베야바이테크(주) ( NABEYA BI-TECH )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


2045건 중 1~500건 표시

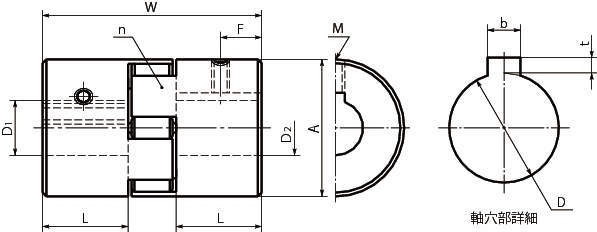

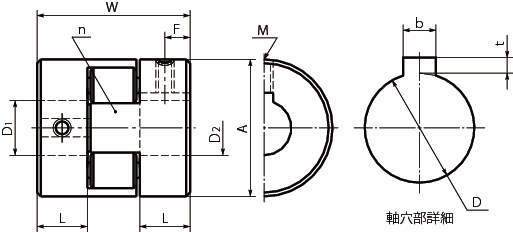

형식	사이즈	재질		치수(mm)
		허브	스파이더	A	L	W	F	M	n

L035-S-5H7×5H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L035-S-5H7×6H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L035-S-5H7×8H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L035-S-6H7×6H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L035-S-6H7×8H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L035-S-8H7×8H7	L035	철계소결금속	NBR	15.9	6.7	20.6	3	M3	2
L050-S-10H7×10H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×11H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×12H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×14H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×14G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-10H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×11H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×12H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×14H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×14G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-11H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×12H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×14H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×14G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-12H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14H7×14H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14H7×14G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14H7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14G7×14G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14G7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14G7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-14G7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-15H7×15H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-15H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-15H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-16H7×16H7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-16H7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L050-S-16G7×16G7	L050	철계소결금속	NBR	27.3	15.6	43.4	8	M6	2
L070-S-11H7×11H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×12H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×14H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×14G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×15H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-11H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×12H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×14H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×14G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×15H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-12H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×14H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×14G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×15H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×14G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×15H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-14G7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×15H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-15H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×16H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16G7×16G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16G7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16G7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16G7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-16G7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-17H7×17H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-17H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-17H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-17H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-18H7×18H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-18H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-18H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-19H7×19H7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-19H7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L070-S-19G7×19G7	L070	철계소결금속	NBR	34.4	19	50.2	8	M6	2
L075-S-14H7×14H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×14G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×15H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×16H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×16G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×14G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×15H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×16H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×16G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-14G7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×15H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×16H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×16G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-15H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×16H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×16G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×16G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-16G7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×17H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-17H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-18H7×18H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-18H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-18H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-18H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-18H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19H7×19H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19H7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19G7×19G7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19G7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-19G7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-20H7×20H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-20H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L075-S-22H7×22H7	L075	철계소결금속	NBR	44.5	20.7	54.1	8	M6	3
L090-S-18H7×18H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×19H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×19G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×20H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×22H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×24H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-18H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×19H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×19G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×20H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×22H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×24H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19G7×19G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19G7×20H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-19G7×22H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-20H7×20H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-20H7×22H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-20H7×24H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-20H7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-20H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-22H7×22H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-22H7×24H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-22H7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-22H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-24H7×24H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-24H7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-24H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-24G7×24G7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-24G7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L090-S-25H7×25H7	L090	철계소결금속	NBR	53.6	20.7	54.6	11.2	M6	3
L095-S-18H7×18H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×19H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×19G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×20H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×22H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-18H7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×19H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×19G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×20H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×22H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19H7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×19G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×20H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×22H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-19G7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-20H7×20H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-20H7×22H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-20H7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-20H7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-20H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×22H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-22H7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24H7×24H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24H7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24G7×24G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24G7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24G7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-24G7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-25H7×25H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-25H7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-25H7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-28H7×28H7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-28H7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L095-S-28G7×28G7	L095	철계소결금속	NBR	53.6	25.3	63.8	11.2	M8	3
L099-S-20H7×20H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×22H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×24H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×24G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×25H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-20H7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×22H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×24H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×24G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×25H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-22H7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×24H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×24G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×25H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24H7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24G7×24G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24G7×25H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24G7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24G7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-24G7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-25H7×25H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-25H7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-25H7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-25H7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-28H7×28H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-28H7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-28H7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-28G7×28G7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-28G7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L099-S-30H7×30H7	L099	철계소결금속	NBR	64.5	27	72.1	11.2	M8	3
L100-S-20H7×20H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×22H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×24H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×24G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×25H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-20H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×22H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×24H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×24G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×25H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-22H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×24H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×24G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×25H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×24G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×25H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-24G7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-25H7×25H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-25H7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-25H7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-25H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-25H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28H7×28H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28H7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28G7×28G7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28G7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-28G7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-30H7×30H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-30H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L100-S-32H7×32H7	L100	철계소결금속	NBR	64.5	35	88.3	11.2	M8	3
L110-S-30H7×30H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×32H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×35H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×38H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×38F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-30H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×32H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×35H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×38H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×38F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-32H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×35H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×38H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×38F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-35H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38H7×38H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38H7×38F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38H7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38F7×38F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38F7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38F7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-38F7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-40H7×40H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-40H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-40H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-42H7×42H7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-42H7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L110-S-42F7×42F7	L110	철계소결금속	NBR	84.3	42.7	107.2	19.1	M10	3
L150-S-32H7×32H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×35H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×38H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×38F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×40H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-32H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×35H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×38H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×38F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×40H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-35H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×38H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×38F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×40H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×38F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×40H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-38F7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×40H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-40H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42H7×42H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42H7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42F7×42F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42F7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42F7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-42F7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-45H7×45H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-45H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-45H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-48H7×48H7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-48H7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L150-S-48F7×48F7	L150	철계소결금속	NBR	95.3	44.5	114.3	19.1	M10	3
L050-U-10H7×10H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×11H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×12H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×14H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×14G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-10H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×11H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×12H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×14H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×14G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-11H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×12H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×14H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×14G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-12H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14H7×14H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14H7×14G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14H7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14G7×14G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14G7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14G7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-14G7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-15H7×15H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-15H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-15H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-16H7×16H7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-16H7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L050-U-16G7×16G7	L050	철계소결금속	폴리우레탄	27.3	15.6	43.4	8	M6	2
L070-U-11H7×11H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×12H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×14H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×14G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×15H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×16H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×16G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×17H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×18H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×19H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-11H7×19G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×12H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×14H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×14G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×15H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×16H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×16G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×17H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×18H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×19H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-12H7×19G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×14H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×14G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×15H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×16H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×16G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×17H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×18H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×19H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14H7×19G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×14G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×15H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×16H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×16G7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×17H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2
L070-U-14G7×18H7	L070	철계소결금속	폴리우레탄	34.4	19	50.2	8	M6	2

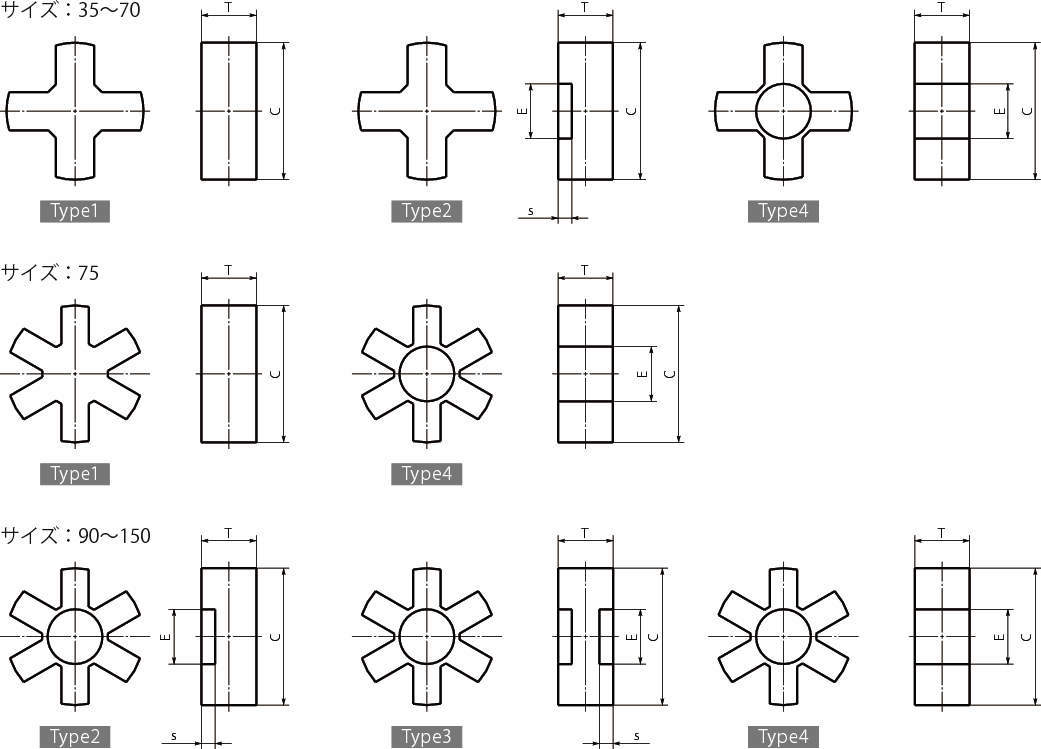

형식	스파이더(mm)	스파이더(mm)	스파이더(mm)	스파이더(mm)	스파이더(mm)	나사체결 토르크 (N · m)	표준축홀경	표준축홀경	표준축홀경	표준축홀경
형식	타입	C	T	E	s	나사체결 토르크 (N · m)	D1	D1	D2	D2
형식						나사체결 토르크 (N · m)	(mm)	공차	(mm)	공차
L035-S-5H7×5H7	2	15.7	7.1	4.1	1.2	0.6	5	H7	5	H7
L035-S-5H7×6H7	2	15.7	7.1	4.1	1.2	0.6	5	H7	6	H7
L035-S-5H7×8H7	2	15.7	7.1	4.1	1.2	0.6	5	H7	8	H7
L035-S-6H7×6H7	2	15.7	7.1	4.1	1.2	0.6	6	H7	6	H7
L035-S-6H7×8H7	2	15.7	7.1	4.1	1.2	0.6	6	H7	8	H7
L035-S-8H7×8H7	2	15.7	7.1	4.1	1.2	0.6	8	H7	8	H7
L050-S-10H7×10H7	1	27.2	10.7	-	-	5	10	H7	10	H7
L050-S-10H7×11H7	1	27.2	10.7	-	-	5	10	H7	11	H7
L050-S-10H7×12H7	1	27.2	10.7	-	-	5	10	H7	12	H7
L050-S-10H7×14H7	1	27.2	10.7	-	-	5	10	H7	14	H7
L050-S-10H7×14G7	1	27.2	10.7	-	-	5	10	H7	14	G7
L050-S-10H7×15H7	1	27.2	10.7	-	-	5	10	H7	15	H7
L050-S-10H7×16H7	1	27.2	10.7	-	-	5	10	H7	16	H7
L050-S-10H7×16G7	1	27.2	10.7	-	-	5	10	H7	16	G7
L050-S-11H7×11H7	1	27.2	10.7	-	-	5	11	H7	11	H7
L050-S-11H7×12H7	1	27.2	10.7	-	-	5	11	H7	12	H7
L050-S-11H7×14H7	1	27.2	10.7	-	-	5	11	H7	14	H7
L050-S-11H7×14G7	1	27.2	10.7	-	-	5	11	H7	14	G7
L050-S-11H7×15H7	1	27.2	10.7	-	-	5	11	H7	15	H7
L050-S-11H7×16H7	1	27.2	10.7	-	-	5	11	H7	16	H7
L050-S-11H7×16G7	1	27.2	10.7	-	-	5	11	H7	16	G7
L050-S-12H7×12H7	1	27.2	10.7	-	-	5	12	H7	12	H7
L050-S-12H7×14H7	1	27.2	10.7	-	-	5	12	H7	14	H7
L050-S-12H7×14G7	1	27.2	10.7	-	-	5	12	H7	14	G7
L050-S-12H7×15H7	1	27.2	10.7	-	-	5	12	H7	15	H7
L050-S-12H7×16H7	1	27.2	10.7	-	-	5	12	H7	16	H7
L050-S-12H7×16G7	1	27.2	10.7	-	-	5	12	H7	16	G7
L050-S-14H7×14H7	1	27.2	10.7	-	-	5	14	H7	14	H7
L050-S-14H7×14G7	1	27.2	10.7	-	-	5	14	H7	14	G7
L050-S-14H7×15H7	1	27.2	10.7	-	-	5	14	H7	15	H7
L050-S-14H7×16H7	1	27.2	10.7	-	-	5	14	H7	16	H7
L050-S-14H7×16G7	1	27.2	10.7	-	-	5	14	H7	16	G7
L050-S-14G7×14G7	1	27.2	10.7	-	-	5	14	G7	14	G7
L050-S-14G7×15H7	1	27.2	10.7	-	-	5	14	G7	15	H7
L050-S-14G7×16H7	1	27.2	10.7	-	-	5	14	G7	16	H7
L050-S-14G7×16G7	1	27.2	10.7	-	-	5	14	G7	16	G7
L050-S-15H7×15H7	1	27.2	10.7	-	-	5	15	H7	15	H7
L050-S-15H7×16H7	1	27.2	10.7	-	-	5	15	H7	16	H7
L050-S-15H7×16G7	1	27.2	10.7	-	-	5	15	H7	16	G7
L050-S-16H7×16H7	1	27.2	10.7	-	-	5	16	H7	16	H7
L050-S-16H7×16G7	1	27.2	10.7	-	-	5	16	H7	16	G7
L050-S-16G7×16G7	1	27.2	10.7	-	-	5	16	G7	16	G7
L070-S-11H7×11H7	1	35.1	10.7	-	-	5	11	H7	11	H7
L070-S-11H7×12H7	1	35.1	10.7	-	-	5	11	H7	12	H7
L070-S-11H7×14H7	1	35.1	10.7	-	-	5	11	H7	14	H7
L070-S-11H7×14G7	1	35.1	10.7	-	-	5	11	H7	14	G7
L070-S-11H7×15H7	1	35.1	10.7	-	-	5	11	H7	15	H7
L070-S-11H7×16H7	1	35.1	10.7	-	-	5	11	H7	16	H7
L070-S-11H7×16G7	1	35.1	10.7	-	-	5	11	H7	16	G7
L070-S-11H7×17H7	1	35.1	10.7	-	-	5	11	H7	17	H7
L070-S-11H7×18H7	1	35.1	10.7	-	-	5	11	H7	18	H7
L070-S-11H7×19H7	1	35.1	10.7	-	-	5	11	H7	19	H7
L070-S-11H7×19G7	1	35.1	10.7	-	-	5	11	H7	19	G7
L070-S-12H7×12H7	1	35.1	10.7	-	-	5	12	H7	12	H7
L070-S-12H7×14H7	1	35.1	10.7	-	-	5	12	H7	14	H7
L070-S-12H7×14G7	1	35.1	10.7	-	-	5	12	H7	14	G7
L070-S-12H7×15H7	1	35.1	10.7	-	-	5	12	H7	15	H7
L070-S-12H7×16H7	1	35.1	10.7	-	-	5	12	H7	16	H7
L070-S-12H7×16G7	1	35.1	10.7	-	-	5	12	H7	16	G7
L070-S-12H7×17H7	1	35.1	10.7	-	-	5	12	H7	17	H7
L070-S-12H7×18H7	1	35.1	10.7	-	-	5	12	H7	18	H7
L070-S-12H7×19H7	1	35.1	10.7	-	-	5	12	H7	19	H7
L070-S-12H7×19G7	1	35.1	10.7	-	-	5	12	H7	19	G7
L070-S-14H7×14H7	1	35.1	10.7	-	-	5	14	H7	14	H7
L070-S-14H7×14G7	1	35.1	10.7	-	-	5	14	H7	14	G7
L070-S-14H7×15H7	1	35.1	10.7	-	-	5	14	H7	15	H7
L070-S-14H7×16H7	1	35.1	10.7	-	-	5	14	H7	16	H7
L070-S-14H7×16G7	1	35.1	10.7	-	-	5	14	H7	16	G7
L070-S-14H7×17H7	1	35.1	10.7	-	-	5	14	H7	17	H7
L070-S-14H7×18H7	1	35.1	10.7	-	-	5	14	H7	18	H7
L070-S-14H7×19H7	1	35.1	10.7	-	-	5	14	H7	19	H7
L070-S-14H7×19G7	1	35.1	10.7	-	-	5	14	H7	19	G7
L070-S-14G7×14G7	1	35.1	10.7	-	-	5	14	G7	14	G7
L070-S-14G7×15H7	1	35.1	10.7	-	-	5	14	G7	15	H7
L070-S-14G7×16H7	1	35.1	10.7	-	-	5	14	G7	16	H7
L070-S-14G7×16G7	1	35.1	10.7	-	-	5	14	G7	16	G7
L070-S-14G7×17H7	1	35.1	10.7	-	-	5	14	G7	17	H7
L070-S-14G7×18H7	1	35.1	10.7	-	-	5	14	G7	18	H7
L070-S-14G7×19H7	1	35.1	10.7	-	-	5	14	G7	19	H7
L070-S-14G7×19G7	1	35.1	10.7	-	-	5	14	G7	19	G7
L070-S-15H7×15H7	1	35.1	10.7	-	-	5	15	H7	15	H7
L070-S-15H7×16H7	1	35.1	10.7	-	-	5	15	H7	16	H7
L070-S-15H7×16G7	1	35.1	10.7	-	-	5	15	H7	16	G7
L070-S-15H7×17H7	1	35.1	10.7	-	-	5	15	H7	17	H7
L070-S-15H7×18H7	1	35.1	10.7	-	-	5	15	H7	18	H7
L070-S-15H7×19H7	1	35.1	10.7	-	-	5	15	H7	19	H7
L070-S-15H7×19G7	1	35.1	10.7	-	-	5	15	H7	19	G7
L070-S-16H7×16H7	1	35.1	10.7	-	-	5	16	H7	16	H7
L070-S-16H7×16G7	1	35.1	10.7	-	-	5	16	H7	16	G7
L070-S-16H7×17H7	1	35.1	10.7	-	-	5	16	H7	17	H7
L070-S-16H7×18H7	1	35.1	10.7	-	-	5	16	H7	18	H7
L070-S-16H7×19H7	1	35.1	10.7	-	-	5	16	H7	19	H7
L070-S-16H7×19G7	1	35.1	10.7	-	-	5	16	H7	19	G7
L070-S-16G7×16G7	1	35.1	10.7	-	-	5	16	G7	16	G7
L070-S-16G7×17H7	1	35.1	10.7	-	-	5	16	G7	17	H7
L070-S-16G7×18H7	1	35.1	10.7	-	-	5	16	G7	18	H7
L070-S-16G7×19H7	1	35.1	10.7	-	-	5	16	G7	19	H7
L070-S-16G7×19G7	1	35.1	10.7	-	-	5	16	G7	19	G7
L070-S-17H7×17H7	1	35.1	10.7	-	-	5	17	H7	17	H7
L070-S-17H7×18H7	1	35.1	10.7	-	-	5	17	H7	18	H7
L070-S-17H7×19H7	1	35.1	10.7	-	-	5	17	H7	19	H7
L070-S-17H7×19G7	1	35.1	10.7	-	-	5	17	H7	19	G7
L070-S-18H7×18H7	1	35.1	10.7	-	-	5	18	H7	18	H7
L070-S-18H7×19H7	1	35.1	10.7	-	-	5	18	H7	19	H7
L070-S-18H7×19G7	1	35.1	10.7	-	-	5	18	H7	19	G7
L070-S-19H7×19H7	1	35.1	10.7	-	-	5	19	H7	19	H7
L070-S-19H7×19G7	1	35.1	10.7	-	-	5	19	H7	19	G7
L070-S-19G7×19G7	1	35.1	10.7	-	-	5	19	G7	19	G7
L075-S-14H7×14H7	1	44.5	11.2	-	-	7	14	H7	14	H7
L075-S-14H7×14G7	1	44.5	11.2	-	-	7	14	H7	14	G7
L075-S-14H7×15H7	1	44.5	11.2	-	-	7	14	H7	15	H7
L075-S-14H7×16H7	1	44.5	11.2	-	-	7	14	H7	16	H7
L075-S-14H7×16G7	1	44.5	11.2	-	-	7	14	H7	16	G7
L075-S-14H7×17H7	1	44.5	11.2	-	-	7	14	H7	17	H7
L075-S-14H7×18H7	1	44.5	11.2	-	-	7	14	H7	18	H7
L075-S-14H7×19H7	1	44.5	11.2	-	-	7	14	H7	19	H7
L075-S-14H7×19G7	1	44.5	11.2	-	-	7	14	H7	19	G7
L075-S-14H7×20H7	1	44.5	11.2	-	-	7	14	H7	20	H7
L075-S-14H7×22H7	1	44.5	11.2	-	-	7	14	H7	22	H7
L075-S-14G7×14G7	1	44.5	11.2	-	-	7	14	G7	14	G7
L075-S-14G7×15H7	1	44.5	11.2	-	-	7	14	G7	15	H7
L075-S-14G7×16H7	1	44.5	11.2	-	-	7	14	G7	16	H7
L075-S-14G7×16G7	1	44.5	11.2	-	-	7	14	G7	16	G7
L075-S-14G7×17H7	1	44.5	11.2	-	-	7	14	G7	17	H7
L075-S-14G7×18H7	1	44.5	11.2	-	-	7	14	G7	18	H7
L075-S-14G7×19H7	1	44.5	11.2	-	-	7	14	G7	19	H7
L075-S-14G7×19G7	1	44.5	11.2	-	-	7	14	G7	19	G7
L075-S-14G7×20H7	1	44.5	11.2	-	-	7	14	G7	20	H7
L075-S-14G7×22H7	1	44.5	11.2	-	-	7	14	G7	22	H7
L075-S-15H7×15H7	1	44.5	11.2	-	-	7	15	H7	15	H7
L075-S-15H7×16H7	1	44.5	11.2	-	-	7	15	H7	16	H7
L075-S-15H7×16G7	1	44.5	11.2	-	-	7	15	H7	16	G7
L075-S-15H7×17H7	1	44.5	11.2	-	-	7	15	H7	17	H7
L075-S-15H7×18H7	1	44.5	11.2	-	-	7	15	H7	18	H7
L075-S-15H7×19H7	1	44.5	11.2	-	-	7	15	H7	19	H7
L075-S-15H7×19G7	1	44.5	11.2	-	-	7	15	H7	19	G7
L075-S-15H7×20H7	1	44.5	11.2	-	-	7	15	H7	20	H7
L075-S-16H7×16H7	1	44.5	11.2	-	-	7	16	H7	16	H7
L075-S-16H7×16G7	1	44.5	11.2	-	-	7	16	H7	16	G7
L075-S-16H7×17H7	1	44.5	11.2	-	-	7	16	H7	17	H7
L075-S-16H7×18H7	1	44.5	11.2	-	-	7	16	H7	18	H7
L075-S-16H7×19H7	1	44.5	11.2	-	-	7	16	H7	19	H7
L075-S-16H7×19G7	1	44.5	11.2	-	-	7	16	H7	19	G7
L075-S-16H7×20H7	1	44.5	11.2	-	-	7	16	H7	20	H7
L075-S-16H7×22H7	1	44.5	11.2	-	-	7	16	H7	22	H7
L075-S-16G7×16G7	1	44.5	11.2	-	-	7	16	G7	16	G7
L075-S-16G7×17H7	1	44.5	11.2	-	-	7	16	G7	17	H7
L075-S-16G7×18H7	1	44.5	11.2	-	-	7	16	G7	18	H7
L075-S-16G7×19H7	1	44.5	11.2	-	-	7	16	G7	19	H7
L075-S-16G7×19G7	1	44.5	11.2	-	-	7	16	G7	19	G7
L075-S-16G7×20H7	1	44.5	11.2	-	-	7	16	G7	20	H7
L075-S-16G7×22H7	1	44.5	11.2	-	-	7	16	G7	22	H7
L075-S-17H7×17H7	1	44.5	11.2	-	-	7	17	H7	17	H7
L075-S-17H7×18H7	1	44.5	11.2	-	-	7	17	H7	18	H7
L075-S-17H7×19H7	1	44.5	11.2	-	-	7	17	H7	19	H7
L075-S-17H7×19G7	1	44.5	11.2	-	-	7	17	H7	19	G7
L075-S-17H7×20H7	1	44.5	11.2	-	-	7	17	H7	20	H7
L075-S-17H7×22H7	1	44.5	11.2	-	-	7	17	H7	22	H7
L075-S-18H7×18H7	1	44.5	11.2	-	-	7	18	H7	18	H7
L075-S-18H7×19H7	1	44.5	11.2	-	-	7	18	H7	19	H7
L075-S-18H7×19G7	1	44.5	11.2	-	-	7	18	H7	19	G7
L075-S-18H7×20H7	1	44.5	11.2	-	-	7	18	H7	20	H7
L075-S-18H7×22H7	1	44.5	11.2	-	-	7	18	H7	22	H7
L075-S-19H7×19H7	1	44.5	11.2	-	-	7	19	H7	19	H7
L075-S-19H7×19G7	1	44.5	11.2	-	-	7	19	H7	19	G7
L075-S-19H7×20H7	1	44.5	11.2	-	-	7	19	H7	20	H7
L075-S-19H7×22H7	1	44.5	11.2	-	-	7	19	H7	22	H7
L075-S-19G7×19G7	1	44.5	11.2	-	-	7	19	G7	19	G7
L075-S-19G7×20H7	1	44.5	11.2	-	-	7	19	G7	20	H7
L075-S-19G7×22H7	1	44.5	11.2	-	-	7	19	G7	22	H7
L075-S-20H7×20H7	1	44.5	11.2	-	-	7	20	H7	20	H7
L075-S-20H7×22H7	1	44.5	11.2	-	-	7	20	H7	22	H7
L075-S-22H7×22H7	1	44.5	11.2	-	-	7	22	H7	22	H7
L090-S-18H7×18H7	2	53.9	11.2	22.4	4.6	7	18	H7	18	H7
L090-S-18H7×19H7	2	53.9	11.2	22.4	4.6	7	18	H7	19	H7
L090-S-18H7×19G7	2	53.9	11.2	22.4	4.6	7	18	H7	19	G7
L090-S-18H7×20H7	2	53.9	11.2	22.4	4.6	7	18	H7	20	H7
L090-S-18H7×22H7	2	53.9	11.2	22.4	4.6	7	18	H7	22	H7
L090-S-18H7×24H7	2	53.9	11.2	22.4	4.6	7	18	H7	24	H7
L090-S-18H7×24G7	2	53.9	11.2	22.4	4.6	7	18	H7	24	G7
L090-S-18H7×25H7	2	53.9	11.2	22.4	4.6	7	18	H7	25	H7
L090-S-19H7×19H7	2	53.9	11.2	22.4	4.6	7	19	H7	19	H7
L090-S-19H7×19G7	2	53.9	11.2	22.4	4.6	7	19	H7	19	G7
L090-S-19H7×20H7	2	53.9	11.2	22.4	4.6	7	19	H7	20	H7
L090-S-19H7×22H7	2	53.9	11.2	22.4	4.6	7	19	H7	22	H7
L090-S-19H7×24H7	2	53.9	11.2	22.4	4.6	7	19	H7	24	H7
L090-S-19H7×24G7	2	53.9	11.2	22.4	4.6	7	19	H7	24	G7
L090-S-19H7×25H7	2	53.9	11.2	22.4	4.6	7	19	H7	25	H7
L090-S-19G7×19G7	2	53.9	11.2	22.4	4.6	7	19	G7	19	G7
L090-S-19G7×20H7	2	53.9	11.2	22.4	4.6	7	19	G7	20	H7
L090-S-19G7×22H7	2	53.9	11.2	22.4	4.6	7	19	G7	22	H7
L090-S-20H7×20H7	2	53.9	11.2	22.4	4.6	7	20	H7	20	H7
L090-S-20H7×22H7	2	53.9	11.2	22.4	4.6	7	20	H7	22	H7
L090-S-20H7×24H7	2	53.9	11.2	22.4	4.6	7	20	H7	24	H7
L090-S-20H7×24G7	2	53.9	11.2	22.4	4.6	7	20	H7	24	G7
L090-S-20H7×25H7	2	53.9	11.2	22.4	4.6	7	20	H7	25	H7
L090-S-22H7×22H7	2	53.9	11.2	22.4	4.6	7	22	H7	22	H7
L090-S-22H7×24H7	2	53.9	11.2	22.4	4.6	7	22	H7	24	H7
L090-S-22H7×24G7	2	53.9	11.2	22.4	4.6	7	22	H7	24	G7
L090-S-22H7×25H7	2	53.9	11.2	22.4	4.6	7	22	H7	25	H7
L090-S-24H7×24H7	2	53.9	11.2	22.4	4.6	7	24	H7	24	H7
L090-S-24H7×24G7	2	53.9	11.2	22.4	4.6	7	24	H7	24	G7
L090-S-24H7×25H7	2	53.9	11.2	22.4	4.6	7	24	H7	25	H7
L090-S-24G7×24G7	2	53.9	11.2	22.4	4.6	7	24	G7	24	G7
L090-S-24G7×25H7	2	53.9	11.2	22.4	4.6	7	24	G7	25	H7
L090-S-25H7×25H7	2	53.9	11.2	22.4	4.6	7	25	H7	25	H7
L095-S-18H7×18H7	2	53.9	11.2	22.4	4.6	10	18	H7	18	H7
L095-S-18H7×19H7	2	53.9	11.2	22.4	4.6	10	18	H7	19	H7
L095-S-18H7×19G7	2	53.9	11.2	22.4	4.6	10	18	H7	19	G7
L095-S-18H7×20H7	2	53.9	11.2	22.4	4.6	10	18	H7	20	H7
L095-S-18H7×22H7	2	53.9	11.2	22.4	4.6	10	18	H7	22	H7
L095-S-18H7×24H7	2	53.9	11.2	22.4	4.6	10	18	H7	24	H7
L095-S-18H7×24G7	2	53.9	11.2	22.4	4.6	10	18	H7	24	G7
L095-S-18H7×25H7	2	53.9	11.2	22.4	4.6	10	18	H7	25	H7
L095-S-18H7×28H7	2	53.9	11.2	22.4	4.6	10	18	H7	28	H7
L095-S-18H7×28G7	2	53.9	11.2	22.4	4.6	10	18	H7	28	G7
L095-S-19H7×19H7	2	53.9	11.2	22.4	4.6	10	19	H7	19	H7
L095-S-19H7×19G7	2	53.9	11.2	22.4	4.6	10	19	H7	19	G7
L095-S-19H7×20H7	2	53.9	11.2	22.4	4.6	10	19	H7	20	H7
L095-S-19H7×22H7	2	53.9	11.2	22.4	4.6	10	19	H7	22	H7
L095-S-19H7×24H7	2	53.9	11.2	22.4	4.6	10	19	H7	24	H7
L095-S-19H7×24G7	2	53.9	11.2	22.4	4.6	10	19	H7	24	G7
L095-S-19H7×25H7	2	53.9	11.2	22.4	4.6	10	19	H7	25	H7
L095-S-19H7×28H7	2	53.9	11.2	22.4	4.6	10	19	H7	28	H7
L095-S-19H7×28G7	2	53.9	11.2	22.4	4.6	10	19	H7	28	G7
L095-S-19G7×19G7	2	53.9	11.2	22.4	4.6	10	19	G7	19	G7
L095-S-19G7×20H7	2	53.9	11.2	22.4	4.6	10	19	G7	20	H7
L095-S-19G7×22H7	2	53.9	11.2	22.4	4.6	10	19	G7	22	H7
L095-S-19G7×24H7	2	53.9	11.2	22.4	4.6	10	19	G7	24	H7
L095-S-19G7×24G7	2	53.9	11.2	22.4	4.6	10	19	G7	24	G7
L095-S-19G7×25H7	2	53.9	11.2	22.4	4.6	10	19	G7	25	H7
L095-S-19G7×28H7	2	53.9	11.2	22.4	4.6	10	19	G7	28	H7
L095-S-19G7×28G7	2	53.9	11.2	22.4	4.6	10	19	G7	28	G7
L095-S-20H7×20H7	2	53.9	11.2	22.4	4.6	10	20	H7	20	H7
L095-S-20H7×22H7	2	53.9	11.2	22.4	4.6	10	20	H7	22	H7
L095-S-20H7×24H7	2	53.9	11.2	22.4	4.6	10	20	H7	24	H7
L095-S-20H7×24G7	2	53.9	11.2	22.4	4.6	10	20	H7	24	G7
L095-S-20H7×25H7	2	53.9	11.2	22.4	4.6	10	20	H7	25	H7
L095-S-22H7×22H7	2	53.9	11.2	22.4	4.6	10	22	H7	22	H7
L095-S-22H7×24H7	2	53.9	11.2	22.4	4.6	10	22	H7	24	H7
L095-S-22H7×24G7	2	53.9	11.2	22.4	4.6	10	22	H7	24	G7
L095-S-22H7×25H7	2	53.9	11.2	22.4	4.6	10	22	H7	25	H7
L095-S-22H7×28H7	2	53.9	11.2	22.4	4.6	10	22	H7	28	H7
L095-S-22H7×28G7	2	53.9	11.2	22.4	4.6	10	22	H7	28	G7
L095-S-24H7×24H7	2	53.9	11.2	22.4	4.6	10	24	H7	24	H7
L095-S-24H7×24G7	2	53.9	11.2	22.4	4.6	10	24	H7	24	G7
L095-S-24H7×25H7	2	53.9	11.2	22.4	4.6	10	24	H7	25	H7
L095-S-24G7×24G7	2	53.9	11.2	22.4	4.6	10	24	G7	24	G7
L095-S-24G7×25H7	2	53.9	11.2	22.4	4.6	10	24	G7	25	H7
L095-S-24G7×28H7	2	53.9	11.2	22.4	4.6	10	24	G7	28	H7
L095-S-24G7×28G7	2	53.9	11.2	22.4	4.6	10	24	G7	28	G7
L095-S-25H7×25H7	2	53.9	11.2	22.4	4.6	10	25	H7	25	H7
L095-S-25H7×28H7	2	53.9	11.2	22.4	4.6	10	25	H7	28	H7
L095-S-25H7×28G7	2	53.9	11.2	22.4	4.6	10	25	H7	28	G7
L095-S-28H7×28H7	2	53.9	11.2	22.4	4.6	10	28	H7	28	H7
L095-S-28H7×28G7	2	53.9	11.2	22.4	4.6	10	28	H7	28	G7
L095-S-28G7×28G7	2	53.9	11.2	22.4	4.6	10	28	G7	28	G7
L099-S-20H7×20H7	3	64.5	15.5	26.2	6.4	16	20	H7	20	H7
L099-S-20H7×22H7	3	64.5	15.5	26.2	6.4	16	20	H7	22	H7
L099-S-20H7×24H7	3	64.5	15.5	26.2	6.4	16	20	H7	24	H7
L099-S-20H7×24G7	3	64.5	15.5	26.2	6.4	16	20	H7	24	G7
L099-S-20H7×25H7	3	64.5	15.5	26.2	6.4	16	20	H7	25	H7
L099-S-20H7×28H7	3	64.5	15.5	26.2	6.4	16	20	H7	28	H7
L099-S-20H7×28G7	3	64.5	15.5	26.2	6.4	16	20	H7	28	G7
L099-S-22H7×22H7	3	64.5	15.5	26.2	6.4	16	22	H7	22	H7
L099-S-22H7×24H7	3	64.5	15.5	26.2	6.4	16	22	H7	24	H7
L099-S-22H7×24G7	3	64.5	15.5	26.2	6.4	16	22	H7	24	G7
L099-S-22H7×25H7	3	64.5	15.5	26.2	6.4	16	22	H7	25	H7
L099-S-22H7×28H7	3	64.5	15.5	26.2	6.4	16	22	H7	28	H7
L099-S-22H7×28G7	3	64.5	15.5	26.2	6.4	16	22	H7	28	G7
L099-S-22H7×30H7	3	64.5	15.5	26.2	6.4	16	22	H7	30	H7
L099-S-24H7×24H7	3	64.5	15.5	26.2	6.4	16	24	H7	24	H7
L099-S-24H7×24G7	3	64.5	15.5	26.2	6.4	16	24	H7	24	G7
L099-S-24H7×25H7	3	64.5	15.5	26.2	6.4	16	24	H7	25	H7
L099-S-24H7×28H7	3	64.5	15.5	26.2	6.4	16	24	H7	28	H7
L099-S-24H7×28G7	3	64.5	15.5	26.2	6.4	16	24	H7	28	G7
L099-S-24H7×30H7	3	64.5	15.5	26.2	6.4	16	24	H7	30	H7
L099-S-24G7×24G7	3	64.5	15.5	26.2	6.4	16	24	G7	24	G7
L099-S-24G7×25H7	3	64.5	15.5	26.2	6.4	16	24	G7	25	H7
L099-S-24G7×28H7	3	64.5	15.5	26.2	6.4	16	24	G7	28	H7
L099-S-24G7×28G7	3	64.5	15.5	26.2	6.4	16	24	G7	28	G7
L099-S-24G7×30H7	3	64.5	15.5	26.2	6.4	16	24	G7	30	H7
L099-S-25H7×25H7	3	64.5	15.5	26.2	6.4	16	25	H7	25	H7
L099-S-25H7×28H7	3	64.5	15.5	26.2	6.4	16	25	H7	28	H7
L099-S-25H7×28G7	3	64.5	15.5	26.2	6.4	16	25	H7	28	G7
L099-S-25H7×30H7	3	64.5	15.5	26.2	6.4	16	25	H7	30	H7
L099-S-28H7×28H7	3	64.5	15.5	26.2	6.4	16	28	H7	28	H7
L099-S-28H7×28G7	3	64.5	15.5	26.2	6.4	16	28	H7	28	G7
L099-S-28H7×30H7	3	64.5	15.5	26.2	6.4	16	28	H7	30	H7
L099-S-28G7×28G7	3	64.5	15.5	26.2	6.4	16	28	G7	28	G7
L099-S-28G7×30H7	3	64.5	15.5	26.2	6.4	16	28	G7	30	H7
L099-S-30H7×30H7	3	64.5	15.5	26.2	6.4	16	30	H7	30	H7
L100-S-20H7×20H7	3	64.5	15.5	26.2	6.4	16	20	H7	20	H7
L100-S-20H7×22H7	3	64.5	15.5	26.2	6.4	16	20	H7	22	H7
L100-S-20H7×24H7	3	64.5	15.5	26.2	6.4	16	20	H7	24	H7
L100-S-20H7×24G7	3	64.5	15.5	26.2	6.4	16	20	H7	24	G7
L100-S-20H7×25H7	3	64.5	15.5	26.2	6.4	16	20	H7	25	H7
L100-S-20H7×28H7	3	64.5	15.5	26.2	6.4	16	20	H7	28	H7
L100-S-20H7×28G7	3	64.5	15.5	26.2	6.4	16	20	H7	28	G7
L100-S-20H7×30H7	3	64.5	15.5	26.2	6.4	16	20	H7	30	H7
L100-S-20H7×32H7	3	64.5	15.5	26.2	6.4	16	20	H7	32	H7
L100-S-22H7×22H7	3	64.5	15.5	26.2	6.4	16	22	H7	22	H7
L100-S-22H7×24H7	3	64.5	15.5	26.2	6.4	16	22	H7	24	H7
L100-S-22H7×24G7	3	64.5	15.5	26.2	6.4	16	22	H7	24	G7
L100-S-22H7×25H7	3	64.5	15.5	26.2	6.4	16	22	H7	25	H7
L100-S-22H7×28H7	3	64.5	15.5	26.2	6.4	16	22	H7	28	H7
L100-S-22H7×28G7	3	64.5	15.5	26.2	6.4	16	22	H7	28	G7
L100-S-22H7×30H7	3	64.5	15.5	26.2	6.4	16	22	H7	30	H7
L100-S-22H7×32H7	3	64.5	15.5	26.2	6.4	16	22	H7	32	H7
L100-S-24H7×24H7	3	64.5	15.5	26.2	6.4	16	24	H7	24	H7
L100-S-24H7×24G7	3	64.5	15.5	26.2	6.4	16	24	H7	24	G7
L100-S-24H7×25H7	3	64.5	15.5	26.2	6.4	16	24	H7	25	H7
L100-S-24H7×28H7	3	64.5	15.5	26.2	6.4	16	24	H7	28	H7
L100-S-24H7×28G7	3	64.5	15.5	26.2	6.4	16	24	H7	28	G7
L100-S-24H7×30H7	3	64.5	15.5	26.2	6.4	16	24	H7	30	H7
L100-S-24H7×32H7	3	64.5	15.5	26.2	6.4	16	24	H7	32	H7
L100-S-24G7×24G7	3	64.5	15.5	26.2	6.4	16	24	G7	24	G7
L100-S-24G7×25H7	3	64.5	15.5	26.2	6.4	16	24	G7	25	H7
L100-S-24G7×28H7	3	64.5	15.5	26.2	6.4	16	24	G7	28	H7
L100-S-24G7×28G7	3	64.5	15.5	26.2	6.4	16	24	G7	28	G7
L100-S-24G7×30H7	3	64.5	15.5	26.2	6.4	16	24	G7	30	H7
L100-S-24G7×32H7	3	64.5	15.5	26.2	6.4	16	24	G7	32	H7
L100-S-25H7×25H7	3	64.5	15.5	26.2	6.4	16	25	H7	25	H7
L100-S-25H7×28H7	3	64.5	15.5	26.2	6.4	16	25	H7	28	H7
L100-S-25H7×28G7	3	64.5	15.5	26.2	6.4	16	25	H7	28	G7
L100-S-25H7×30H7	3	64.5	15.5	26.2	6.4	16	25	H7	30	H7
L100-S-25H7×32H7	3	64.5	15.5	26.2	6.4	16	25	H7	32	H7
L100-S-28H7×28H7	3	64.5	15.5	26.2	6.4	16	28	H7	28	H7
L100-S-28H7×28G7	3	64.5	15.5	26.2	6.4	16	28	H7	28	G7
L100-S-28H7×30H7	3	64.5	15.5	26.2	6.4	16	28	H7	30	H7
L100-S-28H7×32H7	3	64.5	15.5	26.2	6.4	16	28	H7	32	H7
L100-S-28G7×28G7	3	64.5	15.5	26.2	6.4	16	28	G7	28	G7
L100-S-28G7×30H7	3	64.5	15.5	26.2	6.4	16	28	G7	30	H7
L100-S-28G7×32H7	3	64.5	15.5	26.2	6.4	16	28	G7	32	H7
L100-S-30H7×30H7	3	64.5	15.5	26.2	6.4	16	30	H7	30	H7
L100-S-30H7×32H7	3	64.5	15.5	26.2	6.4	16	30	H7	32	H7
L100-S-32H7×32H7	3	64.5	15.5	26.2	6.4	16	32	H7	32	H7
L110-S-30H7×30H7	3	84.1	19.1	30.2	6.4	32	30	H7	30	H7
L110-S-30H7×32H7	3	84.1	19.1	30.2	6.4	32	30	H7	32	H7
L110-S-30H7×35H7	3	84.1	19.1	30.2	6.4	32	30	H7	35	H7
L110-S-30H7×38H7	3	84.1	19.1	30.2	6.4	32	30	H7	38	H7
L110-S-30H7×38F7	3	84.1	19.1	30.2	6.4	32	30	H7	38	F7
L110-S-30H7×40H7	3	84.1	19.1	30.2	6.4	32	30	H7	40	H7
L110-S-30H7×42H7	3	84.1	19.1	30.2	6.4	32	30	H7	42	H7
L110-S-30H7×42F7	3	84.1	19.1	30.2	6.4	32	30	H7	42	F7
L110-S-32H7×32H7	3	84.1	19.1	30.2	6.4	32	32	H7	32	H7
L110-S-32H7×35H7	3	84.1	19.1	30.2	6.4	32	32	H7	35	H7
L110-S-32H7×38H7	3	84.1	19.1	30.2	6.4	32	32	H7	38	H7
L110-S-32H7×38F7	3	84.1	19.1	30.2	6.4	32	32	H7	38	F7
L110-S-32H7×40H7	3	84.1	19.1	30.2	6.4	32	32	H7	40	H7
L110-S-32H7×42H7	3	84.1	19.1	30.2	6.4	32	32	H7	42	H7
L110-S-32H7×42F7	3	84.1	19.1	30.2	6.4	32	32	H7	42	F7
L110-S-35H7×35H7	3	84.1	19.1	30.2	6.4	32	35	H7	35	H7
L110-S-35H7×38H7	3	84.1	19.1	30.2	6.4	32	35	H7	38	H7
L110-S-35H7×38F7	3	84.1	19.1	30.2	6.4	32	35	H7	38	F7
L110-S-35H7×40H7	3	84.1	19.1	30.2	6.4	32	35	H7	40	H7
L110-S-35H7×42H7	3	84.1	19.1	30.2	6.4	32	35	H7	42	H7
L110-S-35H7×42F7	3	84.1	19.1	30.2	6.4	32	35	H7	42	F7
L110-S-38H7×38H7	3	84.1	19.1	30.2	6.4	32	38	H7	38	H7
L110-S-38H7×38F7	3	84.1	19.1	30.2	6.4	32	38	H7	38	F7
L110-S-38H7×40H7	3	84.1	19.1	30.2	6.4	32	38	H7	40	H7
L110-S-38H7×42H7	3	84.1	19.1	30.2	6.4	32	38	H7	42	H7
L110-S-38H7×42F7	3	84.1	19.1	30.2	6.4	32	38	H7	42	F7
L110-S-38F7×38F7	3	84.1	19.1	30.2	6.4	32	38	F7	38	F7
L110-S-38F7×40H7	3	84.1	19.1	30.2	6.4	32	38	F7	40	H7
L110-S-38F7×42H7	3	84.1	19.1	30.2	6.4	32	38	F7	42	H7
L110-S-38F7×42F7	3	84.1	19.1	30.2	6.4	32	38	F7	42	F7
L110-S-40H7×40H7	3	84.1	19.1	30.2	6.4	32	40	H7	40	H7
L110-S-40H7×42H7	3	84.1	19.1	30.2	6.4	32	40	H7	42	H7
L110-S-40H7×42F7	3	84.1	19.1	30.2	6.4	32	40	H7	42	F7
L110-S-42H7×42H7	3	84.1	19.1	30.2	6.4	32	42	H7	42	H7
L110-S-42H7×42F7	3	84.1	19.1	30.2	6.4	32	42	H7	42	F7
L110-S-42F7×42F7	3	84.1	19.1	30.2	6.4	32	42	F7	42	F7
L150-S-32H7×32H7	3	9.53	22.4	31.8	7.9	32	32	H7	32	H7
L150-S-32H7×35H7	3	9.53	22.4	31.8	7.9	32	32	H7	35	H7
L150-S-32H7×38H7	3	9.53	22.4	31.8	7.9	32	32	H7	38	H7
L150-S-32H7×38F7	3	9.53	22.4	31.8	7.9	32	32	H7	38	F7
L150-S-32H7×40H7	3	9.53	22.4	31.8	7.9	32	32	H7	40	H7
L150-S-32H7×42H7	3	9.53	22.4	31.8	7.9	32	32	H7	42	H7
L150-S-32H7×42F7	3	9.53	22.4	31.8	7.9	32	32	H7	42	F7
L150-S-32H7×45H7	3	9.53	22.4	31.8	7.9	32	32	H7	45	H7
L150-S-32H7×48H7	3	9.53	22.4	31.8	7.9	32	32	H7	48	H7
L150-S-32H7×48F7	3	9.53	22.4	31.8	7.9	32	32	H7	48	F7
L150-S-35H7×35H7	3	9.53	22.4	31.8	7.9	32	35	H7	35	H7
L150-S-35H7×38H7	3	9.53	22.4	31.8	7.9	32	35	H7	38	H7
L150-S-35H7×38F7	3	9.53	22.4	31.8	7.9	32	35	H7	38	F7
L150-S-35H7×40H7	3	9.53	22.4	31.8	7.9	32	35	H7	40	H7
L150-S-35H7×42H7	3	9.53	22.4	31.8	7.9	32	35	H7	42	H7
L150-S-35H7×42F7	3	9.53	22.4	31.8	7.9	32	35	H7	42	F7
L150-S-35H7×45H7	3	9.53	22.4	31.8	7.9	32	35	H7	45	H7
L150-S-35H7×48H7	3	9.53	22.4	31.8	7.9	32	35	H7	48	H7
L150-S-35H7×48F7	3	9.53	22.4	31.8	7.9	32	35	H7	48	F7
L150-S-38H7×38H7	3	9.53	22.4	31.8	7.9	32	38	H7	38	H7
L150-S-38H7×38F7	3	9.53	22.4	31.8	7.9	32	38	H7	38	F7
L150-S-38H7×40H7	3	9.53	22.4	31.8	7.9	32	38	H7	40	H7
L150-S-38H7×42H7	3	9.53	22.4	31.8	7.9	32	38	H7	42	H7
L150-S-38H7×42F7	3	9.53	22.4	31.8	7.9	32	38	H7	42	F7
L150-S-38H7×45H7	3	9.53	22.4	31.8	7.9	32	38	H7	45	H7
L150-S-38H7×48H7	3	9.53	22.4	31.8	7.9	32	38	H7	48	H7
L150-S-38H7×48F7	3	9.53	22.4	31.8	7.9	32	38	H7	48	F7
L150-S-38F7×38F7	3	9.53	22.4	31.8	7.9	32	38	F7	38	F7
L150-S-38F7×40H7	3	9.53	22.4	31.8	7.9	32	38	F7	40	H7
L150-S-38F7×42H7	3	9.53	22.4	31.8	7.9	32	38	F7	42	H7
L150-S-38F7×42F7	3	9.53	22.4	31.8	7.9	32	38	F7	42	F7
L150-S-38F7×45H7	3	9.53	22.4	31.8	7.9	32	38	F7	45	H7
L150-S-38F7×48H7	3	9.53	22.4	31.8	7.9	32	38	F7	48	H7
L150-S-38F7×48F7	3	9.53	22.4	31.8	7.9	32	38	F7	48	F7
L150-S-40H7×40H7	3	9.53	22.4	31.8	7.9	32	40	H7	40	H7
L150-S-40H7×42H7	3	9.53	22.4	31.8	7.9	32	40	H7	42	H7
L150-S-40H7×42F7	3	9.53	22.4	31.8	7.9	32	40	H7	42	F7
L150-S-40H7×45H7	3	9.53	22.4	31.8	7.9	32	40	H7	45	H7
L150-S-40H7×48H7	3	9.53	22.4	31.8	7.9	32	40	H7	48	H7
L150-S-40H7×48F7	3	9.53	22.4	31.8	7.9	32	40	H7	48	F7
L150-S-42H7×42H7	3	9.53	22.4	31.8	7.9	32	42	H7	42	H7
L150-S-42H7×42F7	3	9.53	22.4	31.8	7.9	32	42	H7	42	F7
L150-S-42H7×45H7	3	9.53	22.4	31.8	7.9	32	42	H7	45	H7
L150-S-42H7×48H7	3	9.53	22.4	31.8	7.9	32	42	H7	48	H7
L150-S-42H7×48F7	3	9.53	22.4	31.8	7.9	32	42	H7	48	F7
L150-S-42F7×42F7	3	9.53	22.4	31.8	7.9	32	42	F7	42	F7
L150-S-42F7×45H7	3	9.53	22.4	31.8	7.9	32	42	F7	45	H7
L150-S-42F7×48H7	3	9.53	22.4	31.8	7.9	32	42	F7	48	H7
L150-S-42F7×48F7	3	9.53	22.4	31.8	7.9	32	42	F7	48	F7
L150-S-45H7×45H7	3	9.53	22.4	31.8	7.9	32	45	H7	45	H7
L150-S-45H7×48H7	3	9.53	22.4	31.8	7.9	32	45	H7	48	H7
L150-S-45H7×48F7	3	9.53	22.4	31.8	7.9	32	45	H7	48	F7
L150-S-48H7×48H7	3	9.53	22.4	31.8	7.9	32	48	H7	48	H7
L150-S-48H7×48F7	3	9.53	22.4	31.8	7.9	32	48	H7	48	F7
L150-S-48F7×48F7	3	9.53	22.4	31.8	7.9	32	48	F7	48	F7
L050-U-10H7×10H7	1	27.2	10.7	-	-	5	10	H7	10	H7
L050-U-10H7×11H7	1	27.2	10.7	-	-	5	10	H7	11	H7
L050-U-10H7×12H7	1	27.2	10.7	-	-	5	10	H7	12	H7
L050-U-10H7×14H7	1	27.2	10.7	-	-	5	10	H7	14	H7
L050-U-10H7×14G7	1	27.2	10.7	-	-	5	10	H7	14	G7
L050-U-10H7×15H7	1	27.2	10.7	-	-	5	10	H7	15	H7
L050-U-10H7×16H7	1	27.2	10.7	-	-	5	10	H7	16	H7
L050-U-10H7×16G7	1	27.2	10.7	-	-	5	10	H7	16	G7
L050-U-11H7×11H7	1	27.2	10.7	-	-	5	11	H7	11	H7
L050-U-11H7×12H7	1	27.2	10.7	-	-	5	11	H7	12	H7
L050-U-11H7×14H7	1	27.2	10.7	-	-	5	11	H7	14	H7
L050-U-11H7×14G7	1	27.2	10.7	-	-	5	11	H7	14	G7
L050-U-11H7×15H7	1	27.2	10.7	-	-	5	11	H7	15	H7
L050-U-11H7×16H7	1	27.2	10.7	-	-	5	11	H7	16	H7
L050-U-11H7×16G7	1	27.2	10.7	-	-	5	11	H7	16	G7
L050-U-12H7×12H7	1	27.2	10.7	-	-	5	12	H7	12	H7
L050-U-12H7×14H7	1	27.2	10.7	-	-	5	12	H7	14	H7
L050-U-12H7×14G7	1	27.2	10.7	-	-	5	12	H7	14	G7
L050-U-12H7×15H7	1	27.2	10.7	-	-	5	12	H7	15	H7
L050-U-12H7×16H7	1	27.2	10.7	-	-	5	12	H7	16	H7
L050-U-12H7×16G7	1	27.2	10.7	-	-	5	12	H7	16	G7
L050-U-14H7×14H7	1	27.2	10.7	-	-	5	14	H7	14	H7
L050-U-14H7×14G7	1	27.2	10.7	-	-	5	14	H7	14	G7
L050-U-14H7×15H7	1	27.2	10.7	-	-	5	14	H7	15	H7
L050-U-14H7×16H7	1	27.2	10.7	-	-	5	14	H7	16	H7
L050-U-14H7×16G7	1	27.2	10.7	-	-	5	14	H7	16	G7
L050-U-14G7×14G7	1	27.2	10.7	-	-	5	14	G7	14	G7
L050-U-14G7×15H7	1	27.2	10.7	-	-	5	14	G7	15	H7
L050-U-14G7×16H7	1	27.2	10.7	-	-	5	14	G7	16	H7
L050-U-14G7×16G7	1	27.2	10.7	-	-	5	14	G7	16	G7
L050-U-15H7×15H7	1	27.2	10.7	-	-	5	15	H7	15	H7
L050-U-15H7×16H7	1	27.2	10.7	-	-	5	15	H7	16	H7
L050-U-15H7×16G7	1	27.2	10.7	-	-	5	15	H7	16	G7
L050-U-16H7×16H7	1	27.2	10.7	-	-	5	16	H7	16	H7
L050-U-16H7×16G7	1	27.2	10.7	-	-	5	16	H7	16	G7
L050-U-16G7×16G7	1	27.2	10.7	-	-	5	16	G7	16	G7
L070-U-11H7×11H7	1	35.1	10.7	-	-	5	11	H7	11	H7
L070-U-11H7×12H7	1	35.1	10.7	-	-	5	11	H7	12	H7
L070-U-11H7×14H7	1	35.1	10.7	-	-	5	11	H7	14	H7
L070-U-11H7×14G7	1	35.1	10.7	-	-	5	11	H7	14	G7
L070-U-11H7×15H7	1	35.1	10.7	-	-	5	11	H7	15	H7
L070-U-11H7×16H7	1	35.1	10.7	-	-	5	11	H7	16	H7
L070-U-11H7×16G7	1	35.1	10.7	-	-	5	11	H7	16	G7
L070-U-11H7×17H7	1	35.1	10.7	-	-	5	11	H7	17	H7
L070-U-11H7×18H7	1	35.1	10.7	-	-	5	11	H7	18	H7
L070-U-11H7×19H7	1	35.1	10.7	-	-	5	11	H7	19	H7
L070-U-11H7×19G7	1	35.1	10.7	-	-	5	11	H7	19	G7
L070-U-12H7×12H7	1	35.1	10.7	-	-	5	12	H7	12	H7
L070-U-12H7×14H7	1	35.1	10.7	-	-	5	12	H7	14	H7
L070-U-12H7×14G7	1	35.1	10.7	-	-	5	12	H7	14	G7
L070-U-12H7×15H7	1	35.1	10.7	-	-	5	12	H7	15	H7
L070-U-12H7×16H7	1	35.1	10.7	-	-	5	12	H7	16	H7
L070-U-12H7×16G7	1	35.1	10.7	-	-	5	12	H7	16	G7
L070-U-12H7×17H7	1	35.1	10.7	-	-	5	12	H7	17	H7
L070-U-12H7×18H7	1	35.1	10.7	-	-	5	12	H7	18	H7
L070-U-12H7×19H7	1	35.1	10.7	-	-	5	12	H7	19	H7
L070-U-12H7×19G7	1	35.1	10.7	-	-	5	12	H7	19	G7
L070-U-14H7×14H7	1	35.1	10.7	-	-	5	14	H7	14	H7
L070-U-14H7×14G7	1	35.1	10.7	-	-	5	14	H7	14	G7
L070-U-14H7×15H7	1	35.1	10.7	-	-	5	14	H7	15	H7
L070-U-14H7×16H7	1	35.1	10.7	-	-	5	14	H7	16	H7
L070-U-14H7×16G7	1	35.1	10.7	-	-	5	14	H7	16	G7
L070-U-14H7×17H7	1	35.1	10.7	-	-	5	14	H7	17	H7
L070-U-14H7×18H7	1	35.1	10.7	-	-	5	14	H7	18	H7
L070-U-14H7×19H7	1	35.1	10.7	-	-	5	14	H7	19	H7
L070-U-14H7×19G7	1	35.1	10.7	-	-	5	14	H7	19	G7
L070-U-14G7×14G7	1	35.1	10.7	-	-	5	14	G7	14	G7
L070-U-14G7×15H7	1	35.1	10.7	-	-	5	14	G7	15	H7
L070-U-14G7×16H7	1	35.1	10.7	-	-	5	14	G7	16	H7
L070-U-14G7×16G7	1	35.1	10.7	-	-	5	14	G7	16	G7
L070-U-14G7×17H7	1	35.1	10.7	-	-	5	14	G7	17	H7
L070-U-14G7×18H7	1	35.1	10.7	-	-	5	14	G7	18	H7

형식	키홈D1측	키홈D1측	키홈D1측	키홈D1측	키홈D1측	키홈D2측	키홈D2측	키홈D2측	키홈D2측	키홈D2측
형식	호칭 치수	b	b	t	t	호칭 치수	b	b	t	t
형식		(mm)	허용차	(mm)	허용차		(mm)	허용차	(mm)	허용차
L035-S-5H7×5H7	-	-	-	-	-	-	-	-	-	-
L035-S-5H7×6H7	-	-	-	-	-	-	-	-	-	-
L035-S-5H7×8H7	-	-	-	-	-	-	-	-	-	-
L035-S-6H7×6H7	-	-	-	-	-	-	-	-	-	-
L035-S-6H7×8H7	-	-	-	-	-	-	-	-	-	-
L035-S-8H7×8H7	-	-	-	-	-	-	-	-	-	-
L050-S-10H7×10H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	3×3	3	JS9(±0.0125)	1.4	=0.1/0
L050-S-10H7×11H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-S-10H7×12H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-S-10H7×14H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-10H7×14G7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-10H7×15H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-10H7×16H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-10H7×16G7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-11H7×11H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-S-11H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-S-11H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-11H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-11H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-11H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-11H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-12H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-S-12H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-12H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-12H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-12H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-12H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14H7×14H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14H7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14G7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14G7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14G7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-14G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-15H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-15H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-15H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-16H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-16H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-S-16G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×11H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-S-11H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-S-11H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×17H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-11H7×18H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-11H7×19H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-11H7×19G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-12H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-S-12H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×17H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-12H7×18H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-12H7×19H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-12H7×19G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14H7×14H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14G7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14G7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14G7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14G7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-14G7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14G7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-14G7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-15H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-15H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-15H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-15H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-15H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-15H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-15H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-16H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-16H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-16H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-16G7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-16G7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16G7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-16G7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-17H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-S-17H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-17H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-17H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-18H7×18H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-18H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-18H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-19H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-19H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-S-19G7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14H7×14H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14H7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14H7×22H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14G7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14G7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14G7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14G7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-14G7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14G7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14G7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14G7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-14G7×22H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-15H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-15H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-15H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-15H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-15H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-15H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-15H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-15H7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-16H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-16H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-16H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16H7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16H7×22H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-16G7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-16G7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16G7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16G7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16G7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-16G7×22H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-17H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L075-S-17H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-17H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-17H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-17H7×20H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-17H7×22H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-18H7×18H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-18H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-18H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-18H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-18H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19G7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19G7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-19G7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-20H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-20H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L075-S-22H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×18H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-18H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-18H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-18H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-19H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-19H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-19H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-19G7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19G7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-19G7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-20H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-20H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-20H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-20H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-20H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-22H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L090-S-22H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-22H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-22H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-24H7×24H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-24H7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-24H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-24G7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-24G7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L090-S-25H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-18H7×18H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-18H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-18H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-18H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-18H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-18H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-18H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-18H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-18H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-18H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19H7×19H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19H7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19G7×19G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19G7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19G7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-19G7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19G7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19G7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19G7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-19G7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-20H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-20H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-20H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-20H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-20H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-22H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L095-S-22H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-22H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-22H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-22H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-22H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24H7×24H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24H7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24G7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24G7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24G7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-24G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-25H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-25H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-25H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-28H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-28H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L095-S-28G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-20H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L099-S-20H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L099-S-20H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-20H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-20H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-20H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-20H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L099-S-22H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-22H7×30H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×24H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24G7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24G7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24G7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-24G7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-25H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-25H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-25H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-25H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-28H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-28H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-28H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-28G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-28G7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L099-S-30H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×20H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L100-S-20H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L100-S-20H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×30H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-20H7×32H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×22H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L100-S-22H7×24H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×24G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×25H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×28H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×28G7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×30H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-22H7×32H7	6×6	6	JS9(±0.0150)	2.8	=0.1/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×24H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24H7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×24G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-24G7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-25H7×25H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-25H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-25H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-25H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-25H7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-28H7×28H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-28H7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-28H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-28H7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-28G7×28G7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-28G7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-28G7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-30H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L100-S-30H7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L100-S-32H7×32H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×30H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	8×7	8	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×32H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×35H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×38H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×38F7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-30H7×40H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-30H7×42H7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-30H7×42F7	8×7	8	JS9(±0.0180)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-32H7×32H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-32H7×35H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-32H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-32H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-32H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-32H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-32H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-35H7×35H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-35H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-35H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-35H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-35H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-35H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-38H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-38H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38F7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L110-S-38F7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38F7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-38F7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-40H7×40H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-40H7×42H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-40H7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-42H7×42H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-42H7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L110-S-42F7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-32H7×32H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-32H7×35H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-32H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-32H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-32H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-32H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-32H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-32H7×45H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-32H7×48H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-32H7×48F7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-35H7×35H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-35H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-35H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-35H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-35H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-35H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-35H7×45H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-35H7×48H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-35H7×48F7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38H7×38H7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-38H7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-38H7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38H7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38H7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38H7×45H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38H7×48H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38H7×48F7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38F7×38F7	10×8	10	JS9(±0.0180)	8	=0.2/0	10×8	10	JS9(±0.0180)	3.3	=0.2/0
L150-S-38F7×40H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38F7×42H7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38F7×42F7	10×8	10	JS9(±0.0180)	8	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-38F7×45H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38F7×48H7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-38F7×48F7	10×8	10	JS9(±0.0180)	8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-40H7×40H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-40H7×42H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-40H7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-40H7×45H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-40H7×48H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-40H7×48F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42H7×42H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-42H7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-42H7×45H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42H7×48H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42H7×48F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42F7×42F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	12×8	12	JS9(±0.0215)	3.3	=0.2/0
L150-S-42F7×45H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42F7×48H7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-42F7×48F7	12×8	12	JS9(±0.0215)	3.3	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-45H7×45H7	14×9	14	JS9(±0.0215)	3.8	=0.2/0	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-45H7×48H7	14×9	14	JS9(±0.0215)	3.8	-	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-45H7×48F7	14×9	14	JS9(±0.0215)	3.8	-	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-48H7×48H7	14×9	14	JS9(±0.0215)	3.8	-	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-48H7×48F7	14×9	14	JS9(±0.0215)	3.8	-	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L150-S-48F7×48F7	14×9	14	JS9(±0.0215)	3.8	-	14×9	14	JS9(±0.0215)	3.8	=0.2/0
L050-U-10H7×10H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	3×3	3	JS9(±0.0125)	1.4	=0.1/0
L050-U-10H7×11H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-U-10H7×12H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-U-10H7×14H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-10H7×14G7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-10H7×15H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-10H7×16H7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-10H7×16G7	3×3	3	JS9(±0.0125)	1.4	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-11H7×11H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-U-11H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-U-11H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-11H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-11H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-11H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-11H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-12H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L050-U-12H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-12H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-12H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-12H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-12H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14H7×14H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14H7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14G7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14G7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14G7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-14G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-15H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-15H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-15H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-16H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-16H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L050-U-16G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×11H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-U-11H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-U-11H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×17H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-11H7×18H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-11H7×19H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-11H7×19G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-12H7×12H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	4×4	4	JS9(±0.0150)	1.8	=0.1/0
L070-U-12H7×14H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×14G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×15H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×16H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×16G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×17H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-12H7×18H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-12H7×19H7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-12H7×19G7	4×4	4	JS9(±0.0150)	1.8	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-14H7×14H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14H7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-14H7×19H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-14H7×19G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0
L070-U-14G7×14G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14G7×15H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14G7×16H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14G7×16G7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14G7×17H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	5×5	5	JS9(±0.0150)	2.3	=0.1/0
L070-U-14G7×18H7	5×5	5	JS9(±0.0150)	2.3	=0.1/0	6×6	6	JS9(±0.0150)	2.8	=0.1/0

형식	상용 토르크 (N · m)	최대 토르크 (N · m)	최고 회전수 (mm-1)	관성 모멘트 (kg · m2)	정적비틀림 스프링정수 (N · m/rad)	허용	허용	허용
형식	상용 토르크 (N · m)	최대 토르크 (N · m)	최고 회전수 (mm-1)	관성 모멘트 (kg · m2)	정적비틀림 스프링정수 (N · m/rad)	편심 (mm)	편각 (°)	엔드플레이 (mm)
형식	상용 토르크 (N · m)	최대 토르크 (N · m)	최고 회전수 (mm-1)	관성 모멘트 (kg · m2)	정적비틀림 스프링정수 (N · m/rad)
L035-S-5H7×5H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L035-S-5H7×6H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L035-S-5H7×8H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L035-S-6H7×6H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L035-S-6H7×8H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L035-S-8H7×8H7	0.3	0.6	31000	8.7×10^-7	9.38	0.38	1	+0.7/0
L050-S-10H7×10H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×11H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×12H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×14H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×14G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-10H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×11H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×12H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×14H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×14G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-11H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×12H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×14H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×14G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-12H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14H7×14H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14H7×14G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14H7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14G7×14G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14G7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14G7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-14G7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-15H7×15H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-15H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-15H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-16H7×16H7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-16H7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L050-S-16G7×16G7	2.1	4.5	18000	1.6×10^-5	33.4	0.38	1	+1.0/0
L070-S-11H7×11H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×12H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×14H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×14G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×15H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-11H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×12H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×14H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×14G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×15H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-12H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×14H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×14G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×15H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×14G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×15H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-14G7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×15H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-15H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×16H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16G7×16G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16G7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16G7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16G7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-16G7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-17H7×17H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-17H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-17H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-17H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-18H7×18H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-18H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-18H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-19H7×19H7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-19H7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L070-S-19G7×19G7	3.6	7.6	14000	3.3×10^-5	77.7	0.38	1	+1.0/0
L075-S-14H7×14H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×14G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×15H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×16H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×16G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×14G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×15H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×16H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×16G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-14G7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×15H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×16H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×16G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-15H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×16H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×16G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×16G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-16G7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×17H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-17H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-18H7×18H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-18H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-18H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-18H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-18H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19H7×19H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19H7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19G7×19G7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19G7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-19G7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-20H7×20H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-20H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L075-S-22H7×22H7	8.4	17.5	11000	1.1×10^-4	241	0.38	1	+1.1/0
L090-S-18H7×18H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×19H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×19G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×20H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×22H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×24H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-18H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×19H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×19G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×20H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×22H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×24H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19G7×19G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19G7×20H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-19G7×22H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-20H7×20H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-20H7×22H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-20H7×24H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-20H7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-20H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-22H7×22H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-22H7×24H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-22H7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-22H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-24H7×24H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-24H7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-24H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-24G7×24G7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-24G7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L090-S-25H7×25H7	9.8	20.9	9000	2.2×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×18H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×19H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×19G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×20H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×22H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-18H7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×19H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×19G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×20H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×22H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19H7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×19G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×20H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×22H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-19G7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-20H7×20H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-20H7×22H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-20H7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-20H7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-20H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×22H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-22H7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24H7×24H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24H7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24G7×24G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24G7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24G7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-24G7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-25H7×25H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-25H7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-25H7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-28H7×28H7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-28H7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L095-S-28G7×28G7	13.1	27.8	9000	2.6×10^-4	317	0.38	1	+1.1/0
L099-S-20H7×20H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×22H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×24H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×24G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×25H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-20H7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×22H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×24H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×24G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×25H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-22H7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×24H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×24G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×25H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24H7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24G7×24G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24G7×25H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24G7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24G7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-24G7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-25H7×25H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-25H7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-25H7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-25H7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-28H7×28H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-28H7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-28H7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-28G7×28G7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-28G7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L099-S-30H7×30H7	18.4	39.2	7000	6.0×10^-4	635	0.38	1	+1.5/0
L100-S-20H7×20H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×22H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×24H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×24G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×25H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-20H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×22H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×24H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×24G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×25H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-22H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×24H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×24G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×25H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×24G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×25H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-24G7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-25H7×25H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-25H7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-25H7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-25H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-25H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28H7×28H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28H7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28G7×28G7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28G7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-28G7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-30H7×30H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-30H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L100-S-32H7×32H7	24.2	51.5	7000	6.1×10^-4	625	0.38	1	+1.5/0
L110-S-30H7×30H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×32H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×35H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×38H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×38F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-30H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×32H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×35H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×38H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×38F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-32H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×35H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×38H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×38F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-35H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38H7×38H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38H7×38F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38H7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38F7×38F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38F7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38F7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-38F7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-40H7×40H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-40H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-40H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-42H7×42H7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-42H7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L110-S-42F7×42F7	58	117	5000	2.6×10^-3	1882	0.38	1	+1.9/0
L150-S-32H7×32H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×35H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×38H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×38F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×40H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-32H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×35H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×38H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×38F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×40H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-35H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×38H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×38F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×40H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×38F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×40H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-38F7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×40H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-40H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42H7×42H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42H7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42F7×42F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42F7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42F7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-42F7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-45H7×45H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-45H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-45H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-48H7×48H7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-48H7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L150-S-48F7×48F7	85	170	5000	3.3×10^-3	2454	0.38	1	+2.2/0
L050-U-10H7×10H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×11H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×12H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×14H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×14G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-10H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×11H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×12H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×14H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×14G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-11H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×12H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×14H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×14G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-12H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14H7×14H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14H7×14G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14H7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14G7×14G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14G7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14G7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-14G7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-15H7×15H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-15H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-15H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-16H7×16H7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-16H7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L050-U-16G7×16G7	3.2	6.8	18000	1.6×10^-5	133.8	0.38	1	+1.0/0
L070-U-11H7×11H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×12H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×14H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×14G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×15H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×16H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×16G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×17H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×18H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×19H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-11H7×19G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×12H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×14H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×14G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×15H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×16H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×16G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×17H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×18H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×19H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-12H7×19G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×14H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×14G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×15H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×16H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×16G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×17H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×18H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×19H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14H7×19G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×14G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×15H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×16H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×16G7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×17H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0
L070-U-14G7×18H7	5.4	11.4	14000	3.3×10^-5	287.9	0.38	1	+1.0/0

1 2 3 4 5

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)				질량 (kg)	견적의뢰 및 주문
L035-S-5H7×5H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L035-S-5H7×6H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L035-S-5H7×8H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L035-S-6H7×6H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L035-S-6H7×8H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L035-S-8H7×8H7	P	28,600	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×10H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×11H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×12H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×14H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×14G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×16H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-10H7×16G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×11H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×12H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×14H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×14G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×16H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-11H7×16G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×12H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×14H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×14G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×16H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-12H7×16G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14H7×14H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14H7×14G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14H7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14H7×16H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14H7×16G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14G7×14G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14G7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14G7×16H7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-14G7×16G7	P	31,900	-	-	-	-	견적의뢰 / 주문
L050-S-15H7×15H7	P	31,900	-	-	-	-	견적의뢰 / 주문
