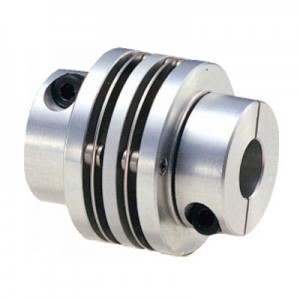

카프리콘(싱글디스크타입) MDS시리즈
나베야바이테크(주) ( NABEYA BI-TECH )
|
|
| 140건 중 1~140건 표시 | |
| 형식 | 사이즈 | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) |

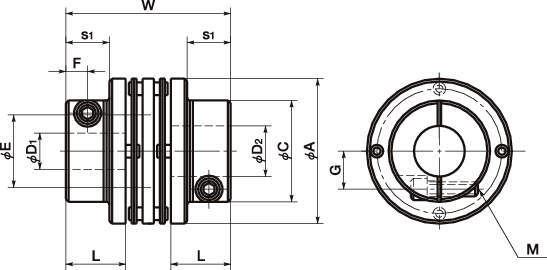

| 형식 | 사이즈 | A | L | W | C | s1 | E | F | G | M |
| MHW-32C-6×6 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-6×6 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-6×8 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-6×8 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-6×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-6×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-8×8 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-8×8 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-8×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-8×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-10×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-32C-10×10 | MHW-32C | 32 | 13.7 | 40 | 22 | 9 | 15 | 4 | 8 | M3 |
| MHW-40C-8×8 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×8 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×10 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×10 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-8×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×10 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×10 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-10×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×11 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-11×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-12×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-12×12 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-12×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-12×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-14×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-40C-14×14 | MHW-40C | 40 | 16.5 | 46 | 28 | 12 | 20 | 6 | 10.5 | M4 |
| MHW-50C-12×12 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×12 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×14 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×14 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-12×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×14 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×14 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-14×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×15 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-15×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×16 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-16×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×18 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-18×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-19×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-19×19 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-19×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-19×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-20×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-50C-20×20 | MHW-50C | 50 | 19.4 | 52 | 39 | 15 | 25 | 7 | 14.75 | M5 |
| MHW-63C-15×15 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×15 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×16 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×16 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-15×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×16 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×16 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-16×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×18 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-18×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×19 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-19×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-20×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-20×20 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-20×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-20×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-25×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| MHW-63C-25×25 | MHW-63C | 63 | 22.3 | 58 | 45 | 18 | 32 | 8 | 17 | M6 |
| 형식 | 나사체결 토크 (N · m) | 표준축구멍경(mm) | 표준축구멍경(mm) | 상용 토크 (N · m) | 최대 토크 (N · m) | 최고회전수 (min-1) |
| 형식 | 나사체결 토크 (N · m) | D1 | D2 | 상용 토크 (N · m) | 최대 토크 (N · m) | 최고회전수 (min-1) |
| MHW-32C-6×6 | 1.5 | 6 | 6 | 2 | 4 | 19000 |
| MHW-32C-6×6 | 1.5 | 6 | 6 | 2 | 4 | 19000 |
| MHW-32C-6×8 | 1.5 | 6 | 8 | 2 | 4 | 19000 |
| MHW-32C-6×8 | 1.5 | 6 | 8 | 2 | 4 | 19000 |
| MHW-32C-6×10 | 1.5 | 6 | 10 | 2 | 4 | 19000 |
| MHW-32C-6×10 | 1.5 | 6 | 10 | 2 | 4 | 19000 |
| MHW-32C-8×8 | 1.5 | 8 | 8 | 2 | 4 | 19000 |
| MHW-32C-8×8 | 1.5 | 8 | 8 | 2 | 4 | 19000 |
| MHW-32C-8×10 | 1.5 | 8 | 10 | 2 | 4 | 19000 |
| MHW-32C-8×10 | 1.5 | 8 | 10 | 2 | 4 | 19000 |
| MHW-32C-10×10 | 1.5 | 10 | 10 | 2 | 4 | 19000 |
| MHW-32C-10×10 | 1.5 | 10 | 10 | 2 | 4 | 19000 |
| MHW-40C-8×8 | 2.5 | 8 | 8 | 4 | 8 | 15000 |
| MHW-40C-8×8 | 2.5 | 8 | 8 | 4 | 8 | 15000 |
| MHW-40C-8×10 | 2.5 | 8 | 10 | 4 | 8 | 15000 |
| MHW-40C-8×10 | 2.5 | 8 | 10 | 4 | 8 | 15000 |
| MHW-40C-8×11 | 2.5 | 8 | 11 | 4 | 8 | 15000 |
| MHW-40C-8×11 | 2.5 | 8 | 11 | 4 | 8 | 15000 |
| MHW-40C-8×12 | 2.5 | 8 | 12 | 4 | 8 | 15000 |
| MHW-40C-8×12 | 2.5 | 8 | 12 | 4 | 8 | 15000 |
| MHW-40C-8×14 | 2.5 | 8 | 14 | 4 | 8 | 15000 |
| MHW-40C-8×14 | 2.5 | 8 | 14 | 4 | 8 | 15000 |
| MHW-40C-10×10 | 2.5 | 10 | 10 | 4 | 8 | 15000 |
| MHW-40C-10×10 | 2.5 | 10 | 10 | 4 | 8 | 15000 |
| MHW-40C-10×11 | 2.5 | 10 | 11 | 4 | 8 | 15000 |
| MHW-40C-10×11 | 2.5 | 10 | 11 | 4 | 8 | 15000 |
| MHW-40C-10×12 | 2.5 | 10 | 12 | 4 | 8 | 15000 |
| MHW-40C-10×12 | 2.5 | 10 | 12 | 4 | 8 | 15000 |
| MHW-40C-10×14 | 2.5 | 10 | 14 | 4 | 8 | 15000 |
| MHW-40C-10×14 | 2.5 | 10 | 14 | 4 | 8 | 15000 |
| MHW-40C-11×11 | 2.5 | 11 | 11 | 4 | 8 | 15000 |
| MHW-40C-11×11 | 2.5 | 11 | 11 | 4 | 8 | 15000 |
| MHW-40C-11×12 | 2.5 | 11 | 12 | 4 | 8 | 15000 |
| MHW-40C-11×12 | 2.5 | 11 | 12 | 4 | 8 | 15000 |
| MHW-40C-11×14 | 2.5 | 11 | 14 | 4 | 8 | 15000 |
| MHW-40C-11×14 | 2.5 | 11 | 14 | 4 | 8 | 15000 |
| MHW-40C-12×12 | 2.5 | 12 | 12 | 4 | 8 | 15000 |
| MHW-40C-12×12 | 2.5 | 12 | 12 | 4 | 8 | 15000 |
| MHW-40C-12×14 | 2.5 | 12 | 14 | 4 | 8 | 15000 |
| MHW-40C-12×14 | 2.5 | 12 | 14 | 4 | 8 | 15000 |
| MHW-40C-14×14 | 2.5 | 14 | 14 | 4 | 8 | 15000 |
| MHW-40C-14×14 | 2.5 | 14 | 14 | 4 | 8 | 15000 |
| MHW-50C-12×12 | 7 | 12 | 12 | 7.5 | 15 | 12000 |
| MHW-50C-12×12 | 7 | 12 | 12 | 7.5 | 15 | 12000 |
| MHW-50C-12×14 | 7 | 12 | 14 | 7.5 | 15 | 12000 |
| MHW-50C-12×14 | 7 | 12 | 14 | 7.5 | 15 | 12000 |
| MHW-50C-12×15 | 7 | 12 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-12×15 | 7 | 12 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-12×16 | 7 | 12 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-12×16 | 7 | 12 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-12×18 | 7 | 12 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-12×18 | 7 | 12 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-12×19 | 7 | 12 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-12×19 | 7 | 12 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-12×20 | 7 | 12 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-12×20 | 7 | 12 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-14×14 | 7 | 14 | 14 | 7.5 | 15 | 12000 |
| MHW-50C-14×14 | 7 | 14 | 14 | 7.5 | 15 | 12000 |
| MHW-50C-14×15 | 7 | 14 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-14×15 | 7 | 14 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-14×16 | 7 | 14 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-14×16 | 7 | 14 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-14×18 | 7 | 14 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-14×18 | 7 | 14 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-14×19 | 7 | 14 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-14×19 | 7 | 14 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-14×20 | 7 | 14 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-14×20 | 7 | 14 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-15×15 | 7 | 15 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-15×15 | 7 | 15 | 15 | 7.5 | 15 | 12000 |
| MHW-50C-15×16 | 7 | 15 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-15×16 | 7 | 15 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-15×18 | 7 | 15 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-15×18 | 7 | 15 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-15×19 | 7 | 15 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-15×19 | 7 | 15 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-15×20 | 7 | 15 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-15×20 | 7 | 15 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-16×16 | 7 | 16 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-16×16 | 7 | 16 | 16 | 7.5 | 15 | 12000 |
| MHW-50C-16×18 | 7 | 16 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-16×18 | 7 | 16 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-16×19 | 7 | 16 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-16×19 | 7 | 16 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-16×20 | 7 | 16 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-16×20 | 7 | 16 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-18×18 | 7 | 18 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-18×18 | 7 | 18 | 18 | 7.5 | 15 | 12000 |
| MHW-50C-18×19 | 7 | 18 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-18×19 | 7 | 18 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-18×20 | 7 | 18 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-18×20 | 7 | 18 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-19×19 | 7 | 19 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-19×19 | 7 | 19 | 19 | 7.5 | 15 | 12000 |
| MHW-50C-19×20 | 7 | 19 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-19×20 | 7 | 19 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-20×20 | 7 | 20 | 20 | 7.5 | 15 | 12000 |
| MHW-50C-20×20 | 7 | 20 | 20 | 7.5 | 15 | 12000 |
| MHW-63C-15×15 | 12 | 15 | 15 | 10 | 20 | 10000 |
| MHW-63C-15×15 | 12 | 15 | 15 | 10 | 20 | 10000 |
| MHW-63C-15×16 | 12 | 15 | 16 | 10 | 20 | 10000 |
| MHW-63C-15×16 | 12 | 15 | 16 | 10 | 20 | 10000 |
| MHW-63C-15×18 | 12 | 15 | 18 | 10 | 20 | 10000 |
| MHW-63C-15×18 | 12 | 15 | 18 | 10 | 20 | 10000 |
| MHW-63C-15×19 | 12 | 15 | 19 | 10 | 20 | 10000 |
| MHW-63C-15×19 | 12 | 15 | 19 | 10 | 20 | 10000 |
| MHW-63C-15×20 | 12 | 15 | 20 | 10 | 20 | 10000 |
| MHW-63C-15×20 | 12 | 15 | 20 | 10 | 20 | 10000 |
| MHW-63C-15×25 | 12 | 15 | 25 | 10 | 20 | 10000 |
| MHW-63C-15×25 | 12 | 15 | 25 | 10 | 20 | 10000 |
| MHW-63C-16×16 | 12 | 16 | 16 | 10 | 20 | 10000 |
| MHW-63C-16×16 | 12 | 16 | 16 | 10 | 20 | 10000 |
| MHW-63C-16×18 | 12 | 16 | 18 | 10 | 20 | 10000 |
| MHW-63C-16×18 | 12 | 16 | 18 | 10 | 20 | 10000 |
| MHW-63C-16×19 | 12 | 16 | 19 | 10 | 20 | 10000 |
| MHW-63C-16×19 | 12 | 16 | 19 | 10 | 20 | 10000 |
| MHW-63C-16×20 | 12 | 16 | 20 | 10 | 20 | 10000 |
| MHW-63C-16×20 | 12 | 16 | 20 | 10 | 20 | 10000 |
| MHW-63C-16×25 | 12 | 16 | 25 | 10 | 20 | 10000 |
| MHW-63C-16×25 | 12 | 16 | 25 | 10 | 20 | 10000 |
| MHW-63C-18×18 | 12 | 18 | 18 | 10 | 20 | 10000 |
| MHW-63C-18×18 | 12 | 18 | 18 | 10 | 20 | 10000 |
| MHW-63C-18×19 | 12 | 18 | 19 | 10 | 20 | 10000 |
| MHW-63C-18×19 | 12 | 18 | 19 | 10 | 20 | 10000 |
| MHW-63C-18×20 | 12 | 18 | 20 | 10 | 20 | 10000 |
| MHW-63C-18×20 | 12 | 18 | 20 | 10 | 20 | 10000 |
| MHW-63C-18×25 | 12 | 18 | 25 | 10 | 20 | 10000 |
| MHW-63C-18×25 | 12 | 18 | 25 | 10 | 20 | 10000 |
| MHW-63C-19×19 | 12 | 19 | 19 | 10 | 20 | 10000 |
| MHW-63C-19×19 | 12 | 19 | 19 | 10 | 20 | 10000 |
| MHW-63C-19×20 | 12 | 19 | 20 | 10 | 20 | 10000 |
| MHW-63C-19×20 | 12 | 19 | 20 | 10 | 20 | 10000 |
| MHW-63C-19×25 | 12 | 19 | 25 | 10 | 20 | 10000 |
| MHW-63C-19×25 | 12 | 19 | 25 | 10 | 20 | 10000 |
| MHW-63C-20×20 | 12 | 20 | 20 | 10 | 20 | 10000 |
| MHW-63C-20×20 | 12 | 20 | 20 | 10 | 20 | 10000 |
| MHW-63C-20×25 | 12 | 20 | 25 | 10 | 20 | 10000 |
| MHW-63C-20×25 | 12 | 20 | 25 | 10 | 20 | 10000 |
| MHW-63C-25×25 | 12 | 25 | 25 | 10 | 20 | 10000 |
| MHW-63C-25×25 | 12 | 25 | 25 | 10 | 20 | 10000 |
| 형식 | 관성 모멘트 (kg/m2) | 정적비틀림 스프링정수 (N · m/rad) | 허용 편심 (mm) | 허용 편각 (°) | 허용 엔드플레이 (mm) |
| 형식 | 관성 모멘트 (kg/m2) | 정적비틀림 스프링정수 (N · m/rad) | 허용 편심 (mm) | 허용 편각 (°) | 허용 엔드플레이 (mm) |
| MHW-32C-6×6 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-6×6 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-6×8 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-6×8 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-6×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-6×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-8×8 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-8×8 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-8×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-8×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-10×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-32C-10×10 | 6.2×10^-6 | 1000 | 0.15 | 2 | ±0.4 |
| MHW-40C-8×8 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×8 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×10 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×10 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-8×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×10 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×10 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-10×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×11 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-11×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-12×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-12×12 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-12×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-12×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-14×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-40C-14×14 | 1.6×10^-5 | 1500 | 0.2 | 2 | ±0.5 |
| MHW-50C-12×12 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×12 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×14 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×14 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-12×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×14 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×14 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-14×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×15 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-15×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×16 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-16×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×18 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-18×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-19×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-19×19 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-19×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-19×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-20×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-50C-20×20 | 4.6×10^-5 | 2000 | 0.2 | 2 | ±0.6 |
| MHW-63C-15×15 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×15 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×16 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×16 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-15×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×16 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×16 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-16×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×18 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-18×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×19 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-19×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-20×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-20×20 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-20×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-20×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-25×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| MHW-63C-25×25 | 1.1×10^-4 | 2500 | 0.3 | 2 | ±0.8 |
| 형식 | 단위 | 판매정가 (원) | 기준납기 | 기준납기 | 기준납기 | 질량 (g) | 견적의뢰 및 주문 |
| 형식 | 단위 | 판매정가 (원) | 유통재고 | 메이커재고 | 아린재고 | 질량 (g) | 견적의뢰 및 주문 |
| MHW-32C-6×6 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-6×6 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-6×8 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-6×8 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-6×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-6×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-8×8 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-8×8 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-8×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-8×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-10×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-32C-10×10 | P | 144,100 | - | - | - | 48 | 견적의뢰 / 주문 |
| MHW-40C-8×8 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×8 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×10 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×10 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-8×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×10 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×10 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-10×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×11 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-11×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-12×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-12×12 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-12×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-12×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-14×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-40C-14×14 | P | 161,700 | - | - | - | 81 | 견적의뢰 / 주문 |
| MHW-50C-12×12 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×12 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×14 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×14 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-12×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×14 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×14 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-14×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×15 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-15×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×16 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-16×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×18 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-18×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-19×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-19×19 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-19×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-19×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-20×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-50C-20×20 | P | 192,500 | - | - | - | 150 | 견적의뢰 / 주문 |
| MHW-63C-15×15 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×15 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×16 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×16 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-15×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×16 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×16 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-16×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×18 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-18×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×19 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-19×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-20×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-20×20 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-20×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-20×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-25×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
| MHW-63C-25×25 | P | 272,800 | - | - | - | 230 | 견적의뢰 / 주문 |
 |
- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다. - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오. - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다. - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.
|
 |
- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다. - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다. |
