카프리콘(디스크타입) MDW시리즈
나베야바이테크(주) ( NABEYA BI-TECH )
|
|
| 251건 중 1~251건 표시 | |

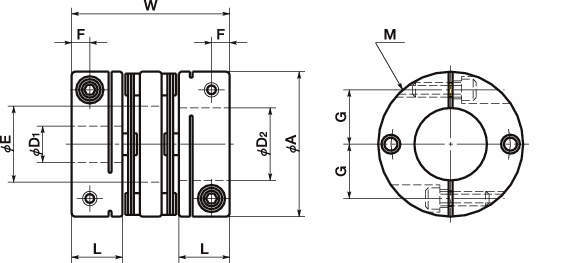

| 형식 | 사이즈 | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) | 치수(mm) |
| 형식 | 사이즈 | A | L | W | E | F | G | M |
| MDW-19C-4×4 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-4×5 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-4×6 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-4×7 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-4×8 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-5×5 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-5×6 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-5×7 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-5×8 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-6×6 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-6×7 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-6×8 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-7×7 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-7×8 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-19C-8×8 | MDW-19C | 19 | 8 | 27 | 8.5 | 2.5 | 6.5 | M2 |
| MDW-25C-6×6 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×6.35 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×8 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×9 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×10 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×6.35 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×8 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×9 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×10 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-6.35×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-8×8 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-8×9 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-8×10 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-8×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-8×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-9×9 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-9×10 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-9×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-9×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-10×10 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-10×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-10×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-11×11 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-11×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-25C-12×12 | MDW-25C | 25 | 10 | 31 | 12.5 | 3.5 | 9 | M2.5 |
| MDW-32C-8×8 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-8×10 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-8×11 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-8×12 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-8×14 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-8×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-10×10 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-10×11 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-10×12 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-10×14 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-10×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-11×11 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-11×12 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-11×14 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-11×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-12×12 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-12×14 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-12×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-14×14 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-14×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-32C-15×15 | MDW-32C | 32 | 12 | 40 | 16 | 4 | 11 | M3 |
| MDW-40C-8×8 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×10 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×11 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×12 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×14 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-8×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×10 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×11 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×12 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×14 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-10×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×11 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×12 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×14 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-11×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×12 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×14 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-12×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×14 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-14×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×15 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-15×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-16×16 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-16×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-16×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-16×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-16×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-17×17 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-17×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-17×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-17×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-18×18 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-18×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-18×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-19×19 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-19×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-40C-20×20 | MDW-40C | 40 | 14 | 44 | 21 | 5 | 15 | M4 |
| MDW-50C-14×14 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×15 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×16 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×17 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×18 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-14×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×15 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×16 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×17 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×18 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-15×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×16 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×17 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×18 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-16×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×17 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×18 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-17×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×18 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-18×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-19×19 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-19×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-19×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-19×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-19×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-20×20 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-20×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-20×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-20×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-22×22 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-22×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-22×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-24×24 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-24×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-50C-25×25 | MDW-50C | 50 | 18 | 57 | 26 | 6 | 18 | M5 |
| MDW-63C-15×15 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×16 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×17 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×18 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×19 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-15×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×16 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×17 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×18 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×19 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-16×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×17 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×18 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×19 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-17×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×18 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×19 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-18×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×19 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-19×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×20 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-20×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-22×22 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-22×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-22×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-22×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-22×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-24×24 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-24×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-24×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-24×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-25×25 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-25×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-25×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-28×28 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-28×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| MDW-63C-30×30 | MDW-63C | 63 | 20 | 61 | 35 | 7 | 24 | M6 |
| 형식 | 나사체결 토크 (N · m) | 표준축구멍직경Φ | 표준축구멍직경Φ | 상용 토크 (N · m) | 최대 토크 (N · m) | 최고 회전속도 (min-1) |
| 형식 | 나사체결 토크 (N · m) | D1 | D2 | 상용 토크 (N · m) | 최대 토크 (N · m) | 최고 회전속도 (min-1) |
| MDW-19C-4×4 | 0.5 | 4 | 4 | 0.7 | 1.5 | 33000 |
| MDW-19C-4×5 | 0.5 | 4 | 5 | 0.7 | 1.5 | 33000 |
| MDW-19C-4×6 | 0.5 | 4 | 6 | 0.7 | 1.5 | 33000 |
| MDW-19C-4×7 | 0.5 | 4 | 7 | 0.7 | 1.5 | 33000 |
| MDW-19C-4×8 | 0.5 | 4 | 8 | 0.7 | 1.5 | 33000 |
| MDW-19C-5×5 | 0.5 | 5 | 5 | 0.7 | 1.5 | 33000 |
| MDW-19C-5×6 | 0.5 | 5 | 6 | 0.7 | 1.5 | 33000 |
| MDW-19C-5×7 | 0.5 | 5 | 7 | 0.7 | 1.5 | 33000 |
| MDW-19C-5×8 | 0.5 | 5 | 8 | 0.7 | 1.5 | 33000 |
| MDW-19C-6×6 | 0.5 | 6 | 6 | 0.7 | 1.5 | 33000 |
| MDW-19C-6×7 | 0.5 | 6 | 7 | 0.7 | 1.5 | 33000 |
| MDW-19C-6×8 | 0.5 | 6 | 8 | 0.7 | 1.5 | 33000 |
| MDW-19C-7×7 | 0.5 | 7 | 7 | 0.7 | 1.5 | 33000 |
| MDW-19C-7×8 | 0.5 | 7 | 8 | 0.7 | 1.5 | 33000 |
| MDW-19C-8×8 | 0.5 | 8 | 8 | 0.7 | 1.5 | 33000 |
| MDW-25C-6×6 | 1 | 6 | 6 | 1 | 2 | 25000 |
| MDW-25C-6×6.35 | 1 | 6 | 6.35 | 1 | 2 | 25000 |
| MDW-25C-6×8 | 1 | 6 | 8 | 1 | 2 | 25000 |
| MDW-25C-6×9 | 1 | 6 | 9 | 1 | 2 | 25000 |
| MDW-25C-6×10 | 1 | 6 | 10 | 1 | 2 | 25000 |
| MDW-25C-6×11 | 1 | 6 | 11 | 1 | 2 | 25000 |
| MDW-25C-6×12 | 1 | 6 | 12 | 1 | 2 | 25000 |
| MDW-25C-6.35×6.35 | 1 | 6.35 | 6.35 | 1 | 2 | 25000 |
| MDW-25C-6.35×8 | 1 | 6.35 | 8 | 1 | 2 | 25000 |
| MDW-25C-6.35×9 | 1 | 6.35 | 9 | 1 | 2 | 25000 |
| MDW-25C-6.35×10 | 1 | 6.35 | 10 | 1 | 2 | 25000 |
| MDW-25C-6.35×11 | 1 | 6.35 | 11 | 1 | 2 | 25000 |
| MDW-25C-6.35×12 | 1 | 6.35 | 12 | 1 | 2 | 25000 |
| MDW-25C-8×8 | 1 | 8 | 8 | 1 | 2 | 25000 |
| MDW-25C-8×9 | 1 | 8 | 9 | 1 | 2 | 25000 |
| MDW-25C-8×10 | 1 | 8 | 10 | 1 | 2 | 25000 |
| MDW-25C-8×11 | 1 | 8 | 11 | 1 | 2 | 25000 |
| MDW-25C-8×12 | 1 | 8 | 12 | 1 | 2 | 25000 |
| MDW-25C-9×9 | 1 | 9 | 9 | 1 | 2 | 25000 |
| MDW-25C-9×10 | 1 | 9 | 10 | 1 | 2 | 25000 |
| MDW-25C-9×11 | 1 | 9 | 11 | 1 | 2 | 25000 |
| MDW-25C-9×12 | 1 | 9 | 12 | 1 | 2 | 25000 |
| MDW-25C-10×10 | 1 | 10 | 10 | 1 | 2 | 25000 |
| MDW-25C-10×11 | 1 | 10 | 11 | 1 | 2 | 25000 |
| MDW-25C-10×12 | 1 | 10 | 12 | 1 | 2 | 25000 |
| MDW-25C-11×11 | 1 | 11 | 11 | 1 | 2 | 25000 |
| MDW-25C-11×12 | 1 | 11 | 12 | 1 | 2 | 25000 |
| MDW-25C-12×12 | 1 | 12 | 12 | 1 | 2 | 25000 |
| MDW-32C-8×8 | 1.5 | 8 | 8 | 2.5 | 5 | 19000 |
| MDW-32C-8×10 | 1.5 | 8 | 10 | 2.5 | 5 | 19000 |
| MDW-32C-8×11 | 1.5 | 8 | 11 | 2.5 | 5 | 19000 |
| MDW-32C-8×12 | 1.5 | 8 | 12 | 2.5 | 5 | 19000 |
| MDW-32C-8×14 | 1.5 | 8 | 14 | 2.5 | 5 | 19000 |
| MDW-32C-8×15 | 1.5 | 8 | 15 | 2.5 | 5 | 19000 |
| MDW-32C-10×10 | 1.5 | 10 | 10 | 2.5 | 5 | 19000 |
| MDW-32C-10×11 | 1.5 | 10 | 11 | 2.5 | 5 | 19000 |
| MDW-32C-10×12 | 1.5 | 10 | 12 | 2.5 | 5 | 19000 |
| MDW-32C-10×14 | 1.5 | 10 | 14 | 2.5 | 5 | 19000 |
| MDW-32C-10×15 | 1.5 | 10 | 15 | 2.5 | 5 | 19000 |
| MDW-32C-11×11 | 1.5 | 11 | 11 | 2.5 | 5 | 19000 |
| MDW-32C-11×12 | 1.5 | 11 | 12 | 2.5 | 5 | 19000 |
| MDW-32C-11×14 | 1.5 | 11 | 14 | 2.5 | 5 | 19000 |
| MDW-32C-11×15 | 1.5 | 11 | 15 | 2.5 | 5 | 19000 |
| MDW-32C-12×12 | 1.5 | 12 | 12 | 2.5 | 5 | 19000 |
| MDW-32C-12×14 | 1.5 | 12 | 14 | 2.5 | 5 | 19000 |
| MDW-32C-12×15 | 1.5 | 12 | 15 | 2.5 | 5 | 19000 |
| MDW-32C-14×14 | 1.5 | 14 | 14 | 2.5 | 5 | 19000 |
| MDW-32C-14×15 | 1.5 | 14 | 15 | 2.5 | 5 | 19000 |
| MDW-32C-15×15 | 1.5 | 15 | 15 | 2.5 | 5 | 19000 |
| MDW-40C-8×8 | 2.5 | 8 | 8 | 3.5 | 7 | 15000 |
| MDW-40C-8×10 | 2.5 | 8 | 10 | 3.5 | 7 | 15000 |
| MDW-40C-8×11 | 2.5 | 8 | 11 | 3.5 | 7 | 15000 |
| MDW-40C-8×12 | 2.5 | 8 | 12 | 3.5 | 7 | 15000 |
| MDW-40C-8×14 | 2.5 | 8 | 14 | 3.5 | 7 | 15000 |
| MDW-40C-8×15 | 2.5 | 8 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-8×16 | 2.5 | 8 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-8×17 | 2.5 | 8 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-8×18 | 2.5 | 8 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-8×19 | 2.5 | 8 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-8×20 | 2.5 | 8 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-10×10 | 2.5 | 10 | 10 | 3.5 | 7 | 15000 |
| MDW-40C-10×11 | 2.5 | 10 | 11 | 3.5 | 7 | 15000 |
| MDW-40C-10×12 | 2.5 | 10 | 12 | 3.5 | 7 | 15000 |
| MDW-40C-10×14 | 2.5 | 10 | 14 | 3.5 | 7 | 15000 |
| MDW-40C-10×15 | 2.5 | 10 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-10×16 | 2.5 | 10 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-10×17 | 2.5 | 10 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-10×18 | 2.5 | 10 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-10×19 | 2.5 | 10 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-10×20 | 2.5 | 10 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-11×11 | 2.5 | 11 | 11 | 3.5 | 7 | 15000 |
| MDW-40C-11×12 | 2.5 | 11 | 12 | 3.5 | 7 | 15000 |
| MDW-40C-11×14 | 2.5 | 11 | 14 | 3.5 | 7 | 15000 |
| MDW-40C-11×15 | 2.5 | 11 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-11×16 | 2.5 | 11 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-11×17 | 2.5 | 11 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-11×18 | 2.5 | 11 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-11×19 | 2.5 | 11 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-11×20 | 2.5 | 11 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-12×12 | 2.5 | 12 | 12 | 3.5 | 7 | 15000 |
| MDW-40C-12×14 | 2.5 | 12 | 14 | 3.5 | 7 | 15000 |
| MDW-40C-12×15 | 2.5 | 12 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-12×16 | 2.5 | 12 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-12×17 | 2.5 | 12 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-12×18 | 2.5 | 12 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-12×19 | 2.5 | 12 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-12×20 | 2.5 | 12 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-14×14 | 2.5 | 14 | 14 | 3.5 | 7 | 15000 |
| MDW-40C-14×15 | 2.5 | 14 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-14×16 | 2.5 | 14 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-14×17 | 2.5 | 14 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-14×18 | 2.5 | 14 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-14×19 | 2.5 | 14 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-14×20 | 2.5 | 14 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-15×15 | 2.5 | 15 | 15 | 3.5 | 7 | 15000 |
| MDW-40C-15×16 | 2.5 | 15 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-15×17 | 2.5 | 15 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-15×18 | 2.5 | 15 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-15×19 | 2.5 | 15 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-15×20 | 2.5 | 15 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-16×16 | 2.5 | 16 | 16 | 3.5 | 7 | 15000 |
| MDW-40C-16×17 | 2.5 | 16 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-16×18 | 2.5 | 16 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-16×19 | 2.5 | 16 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-16×20 | 2.5 | 16 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-17×17 | 2.5 | 17 | 17 | 3.5 | 7 | 15000 |
| MDW-40C-17×18 | 2.5 | 17 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-17×19 | 2.5 | 17 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-17×20 | 2.5 | 17 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-18×18 | 2.5 | 18 | 18 | 3.5 | 7 | 15000 |
| MDW-40C-18×19 | 2.5 | 18 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-18×20 | 2.5 | 18 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-19×19 | 2.5 | 19 | 19 | 3.5 | 7 | 15000 |
| MDW-40C-19×20 | 2.5 | 19 | 20 | 3.5 | 7 | 15000 |
| MDW-40C-20×20 | 2.5 | 20 | 20 | 3.5 | 7 | 15000 |
| MDW-50C-14×14 | 7 | 14 | 14 | 9 | 18 | 12000 |
| MDW-50C-14×15 | 7 | 14 | 15 | 9 | 18 | 12000 |
| MDW-50C-14×16 | 7 | 14 | 16 | 9 | 18 | 12000 |
| MDW-50C-14×17 | 7 | 14 | 17 | 9 | 18 | 12000 |
| MDW-50C-14×18 | 7 | 14 | 18 | 9 | 18 | 12000 |
| MDW-50C-14×19 | 7 | 14 | 19 | 9 | 18 | 12000 |
| MDW-50C-14×20 | 7 | 14 | 20 | 9 | 18 | 12000 |
| MDW-50C-14×22 | 7 | 14 | 22 | 9 | 18 | 12000 |
| MDW-50C-14×24 | 7 | 14 | 24 | 9 | 18 | 12000 |
| MDW-50C-14×25 | 7 | 14 | 25 | 9 | 18 | 12000 |
| MDW-50C-15×15 | 7 | 15 | 15 | 9 | 18 | 12000 |
| MDW-50C-15×16 | 7 | 15 | 16 | 9 | 18 | 12000 |
| MDW-50C-15×17 | 7 | 15 | 17 | 9 | 18 | 12000 |
| MDW-50C-15×18 | 7 | 15 | 18 | 9 | 18 | 12000 |
| MDW-50C-15×19 | 7 | 15 | 19 | 9 | 18 | 12000 |
| MDW-50C-15×20 | 7 | 15 | 20 | 9 | 18 | 12000 |
| MDW-50C-15×22 | 7 | 15 | 22 | 9 | 18 | 12000 |
| MDW-50C-15×24 | 7 | 15 | 24 | 9 | 18 | 12000 |
| MDW-50C-15×25 | 7 | 15 | 25 | 9 | 18 | 12000 |
| MDW-50C-16×16 | 7 | 16 | 16 | 9 | 18 | 12000 |
| MDW-50C-16×17 | 7 | 16 | 17 | 9 | 18 | 12000 |
| MDW-50C-16×18 | 7 | 16 | 18 | 9 | 18 | 12000 |
| MDW-50C-16×19 | 7 | 16 | 19 | 9 | 18 | 12000 |
| MDW-50C-16×20 | 7 | 16 | 20 | 9 | 18 | 12000 |
| MDW-50C-16×22 | 7 | 16 | 22 | 9 | 18 | 12000 |
| MDW-50C-16×24 | 7 | 16 | 24 | 9 | 18 | 12000 |
| MDW-50C-16×25 | 7 | 16 | 25 | 9 | 18 | 12000 |
| MDW-50C-17×17 | 7 | 17 | 17 | 9 | 18 | 12000 |
| MDW-50C-17×18 | 7 | 17 | 18 | 9 | 18 | 12000 |
| MDW-50C-17×19 | 7 | 17 | 19 | 9 | 18 | 12000 |
| MDW-50C-17×20 | 7 | 17 | 20 | 9 | 18 | 12000 |
| MDW-50C-17×22 | 7 | 17 | 22 | 9 | 18 | 12000 |
| MDW-50C-17×24 | 7 | 17 | 24 | 9 | 18 | 12000 |
| MDW-50C-17×25 | 7 | 17 | 25 | 9 | 18 | 12000 |
| MDW-50C-18×18 | 7 | 18 | 18 | 9 | 18 | 12000 |
| MDW-50C-18×19 | 7 | 18 | 19 | 9 | 18 | 12000 |
| MDW-50C-18×20 | 7 | 18 | 20 | 9 | 18 | 12000 |
| MDW-50C-18×22 | 7 | 18 | 22 | 9 | 18 | 12000 |
| MDW-50C-18×24 | 7 | 18 | 24 | 9 | 18 | 12000 |
| MDW-50C-18×25 | 7 | 18 | 25 | 9 | 18 | 12000 |
| MDW-50C-19×19 | 7 | 19 | 19 | 9 | 18 | 12000 |
| MDW-50C-19×20 | 7 | 19 | 20 | 9 | 18 | 12000 |
| MDW-50C-19×22 | 7 | 19 | 22 | 9 | 18 | 12000 |
| MDW-50C-19×24 | 7 | 19 | 24 | 9 | 18 | 12000 |
| MDW-50C-19×25 | 7 | 19 | 25 | 9 | 18 | 12000 |
| MDW-50C-20×20 | 7 | 20 | 20 | 9 | 18 | 12000 |
| MDW-50C-20×22 | 7 | 20 | 22 | 9 | 18 | 12000 |
| MDW-50C-20×24 | 7 | 20 | 24 | 9 | 18 | 12000 |
| MDW-50C-20×25 | 7 | 20 | 25 | 9 | 18 | 12000 |
| MDW-50C-22×22 | 7 | 22 | 22 | 9 | 18 | 12000 |
| MDW-50C-22×24 | 7 | 22 | 24 | 9 | 18 | 12000 |
| MDW-50C-22×25 | 7 | 22 | 25 | 9 | 18 | 12000 |
| MDW-50C-24×24 | 7 | 24 | 24 | 9 | 18 | 12000 |
| MDW-50C-24×25 | 7 | 24 | 25 | 9 | 18 | 12000 |
| MDW-50C-25×25 | 7 | 25 | 25 | 9 | 18 | 12000 |
| MDW-63C-15×15 | 12 | 15 | 15 | 12.5 | 25 | 10000 |
| MDW-63C-15×16 | 12 | 15 | 16 | 12.5 | 25 | 10000 |
| MDW-63C-15×17 | 12 | 15 | 17 | 12.5 | 25 | 10000 |
| MDW-63C-15×18 | 12 | 15 | 18 | 12.5 | 25 | 10000 |
| MDW-63C-15×19 | 12 | 15 | 19 | 12.5 | 25 | 10000 |
| MDW-63C-15×20 | 12 | 15 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-15×22 | 12 | 15 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-15×24 | 12 | 15 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-15×25 | 12 | 15 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-15×28 | 12 | 15 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-15×30 | 12 | 15 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-16×16 | 12 | 16 | 16 | 12.5 | 25 | 10000 |
| MDW-63C-16×17 | 12 | 16 | 17 | 12.5 | 25 | 10000 |
| MDW-63C-16×18 | 12 | 16 | 18 | 12.5 | 25 | 10000 |
| MDW-63C-16×19 | 12 | 16 | 19 | 12.5 | 25 | 10000 |
| MDW-63C-16×20 | 12 | 16 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-16×22 | 12 | 16 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-16×24 | 12 | 16 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-16×25 | 12 | 16 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-16×28 | 12 | 16 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-16×30 | 12 | 16 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-17×17 | 12 | 17 | 17 | 12.5 | 25 | 10000 |
| MDW-63C-17×18 | 12 | 17 | 18 | 12.5 | 25 | 10000 |
| MDW-63C-17×19 | 12 | 17 | 19 | 12.5 | 25 | 10000 |
| MDW-63C-17×20 | 12 | 17 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-17×22 | 12 | 17 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-17×24 | 12 | 17 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-17×25 | 12 | 17 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-17×28 | 12 | 17 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-17×30 | 12 | 17 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-18×18 | 12 | 18 | 18 | 12.5 | 25 | 10000 |
| MDW-63C-18×19 | 12 | 18 | 19 | 12.5 | 25 | 10000 |
| MDW-63C-18×20 | 12 | 18 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-18×22 | 12 | 18 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-18×24 | 12 | 18 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-18×25 | 12 | 18 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-18×28 | 12 | 18 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-18×30 | 12 | 18 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-19×19 | 12 | 19 | 19 | 12.5 | 25 | 10000 |
| MDW-63C-19×20 | 12 | 19 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-19×22 | 12 | 19 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-19×24 | 12 | 19 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-19×25 | 12 | 19 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-19×28 | 12 | 19 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-19×30 | 12 | 19 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-20×20 | 12 | 20 | 20 | 12.5 | 25 | 10000 |
| MDW-63C-20×22 | 12 | 20 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-20×24 | 12 | 20 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-20×25 | 12 | 20 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-20×28 | 12 | 20 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-20×30 | 12 | 20 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-22×22 | 12 | 22 | 22 | 12.5 | 25 | 10000 |
| MDW-63C-22×24 | 12 | 22 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-22×25 | 12 | 22 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-22×28 | 12 | 22 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-22×30 | 12 | 22 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-24×24 | 12 | 24 | 24 | 12.5 | 25 | 10000 |
| MDW-63C-24×25 | 12 | 24 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-24×28 | 12 | 24 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-24×30 | 12 | 24 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-25×25 | 12 | 25 | 25 | 12.5 | 25 | 10000 |
| MDW-63C-25×28 | 12 | 25 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-25×30 | 12 | 25 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-28×28 | 12 | 28 | 28 | 12.5 | 25 | 10000 |
| MDW-63C-28×30 | 12 | 28 | 30 | 12.5 | 25 | 10000 |
| MDW-63C-30×30 | 12 | 30 | 30 | 12.5 | 25 | 10000 |
| 형식 | 관성 모멘트 (kg/m2) | 정적비틀림 스프링정수 (N · m/rad) | 허용 편심 (mm) | 허용 편각 (°) | 허용 엔드플레이 (mm) |
| 형식 | 관성 모멘트 (kg/m2) | 정적비틀림 스프링정수 (N · m/rad) | 허용 편심 (mm) | 허용 편각 (°) | 허용 엔드플레이 (mm) |
| MDW-19C-4×4 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-4×5 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-4×6 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-4×7 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-4×8 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-5×5 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-5×6 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-5×7 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-5×8 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-6×6 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-6×7 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-6×8 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-7×7 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-7×8 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-19C-8×8 | 8.7×10^-7 | 200 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×6 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×6.35 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×8 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×9 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×10 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×6.35 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×8 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×9 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×10 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-6.35×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-8×8 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-8×9 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-8×10 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-8×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-8×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-9×9 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-9×10 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-9×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-9×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-10×10 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-10×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-10×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-11×11 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-11×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-25C-12×12 | 2.7×10^-6 | 450 | 0.12 | 1.5 | ±0.5 |
| MDW-32C-8×8 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-8×10 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-8×11 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-8×12 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-8×14 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-8×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-10×10 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-10×11 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-10×12 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-10×14 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-10×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-11×11 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-11×12 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-11×14 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-11×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-12×12 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-12×14 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-12×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-14×14 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-14×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-32C-15×15 | 9.6×10^-6 | 1100 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×8 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×10 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×11 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×12 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×14 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-8×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×10 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×11 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×12 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×14 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-10×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×11 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×12 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×14 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-11×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×12 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×14 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-12×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×14 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-14×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×15 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-15×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-16×16 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-16×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-16×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-16×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-16×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-17×17 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-17×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-17×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-17×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-18×18 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-18×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-18×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-19×19 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-19×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-40C-20×20 | 1.9×10^-5 | 1400 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×14 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×15 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×16 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×17 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×18 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-14×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×15 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×16 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×17 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×18 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-15×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×16 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×17 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×18 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-16×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×17 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×18 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-17×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×18 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-18×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-19×19 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-19×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-19×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-19×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-19×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-20×20 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-20×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-20×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-20×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-22×22 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-22×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-22×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-24×24 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-24×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-50C-25×25 | 8.1×10^-5 | 2200 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×15 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×16 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×17 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×18 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×19 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-15×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×16 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×17 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×18 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×19 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-16×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×17 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×18 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×19 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-17×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×18 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×19 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-18×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×19 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-19×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×20 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-20×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-22×22 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-22×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-22×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-22×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-22×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-24×24 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-24×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-24×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-24×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-25×25 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-25×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-25×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-28×28 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-28×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| MDW-63C-30×30 | 2.1×10^-4 | 3000 | 0.15 | 1.5 | ±0.5 |
| 형식 | 단위 | 판매정가 (원) | 기준납기 | 기준납기 | 기준납기 | 질량 (g) | 견적의뢰 및 주문 |
| 형식 | 단위 | 판매정가 (원) | 유통재고 | 메이커재고 | 아린재고 | 질량 (g) | 견적의뢰 및 주문 |
| MDW-19C-4×4 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-4×5 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-4×6 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-4×7 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-4×8 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-5×5 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-5×6 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-5×7 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-5×8 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-6×6 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-6×7 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-6×8 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-7×7 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-7×8 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-19C-8×8 | P | 90,640 | - | - | - | 18 | 견적의뢰 / 주문 |
| MDW-25C-6×6 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×6.35 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×8 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×9 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×10 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×6.35 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×8 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×9 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×10 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-6.35×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-8×8 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-8×9 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-8×10 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-8×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-8×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-9×9 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-9×10 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-9×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-9×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-10×10 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-10×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-10×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-11×11 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-11×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-25C-12×12 | P | 104,280 | - | - | - | 25 | 견적의뢰 / 주문 |
| MDW-32C-8×8 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-8×10 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-8×11 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-8×12 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-8×14 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-8×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-10×10 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-10×11 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-10×12 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-10×14 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-10×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-11×11 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-11×12 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-11×14 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-11×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-12×12 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-12×14 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-12×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-14×14 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-14×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-32C-15×15 | P | 117,700 | - | - | - | 60 | 견적의뢰 / 주문 |
| MDW-40C-8×8 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×10 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×11 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×12 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×14 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-8×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×10 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×11 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×12 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×14 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-10×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×11 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×12 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×14 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-11×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×12 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×14 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-12×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×14 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-14×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×15 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-15×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-16×16 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-16×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-16×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-16×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-16×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-17×17 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-17×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-17×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-17×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-18×18 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-18×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-18×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-19×19 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-19×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-40C-20×20 | P | 140,800 | - | - | - | 100 | 견적의뢰 / 주문 |
| MDW-50C-14×14 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×15 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×16 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×17 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×18 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-14×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×15 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×16 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×17 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×18 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-15×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×16 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×17 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×18 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-16×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×17 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×18 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-17×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×18 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-18×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-19×19 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-19×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-19×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-19×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-19×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-20×20 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-20×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-20×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-20×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-22×22 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-22×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-22×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-24×24 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-24×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-50C-25×25 | P | 176,000 | - | - | - | 210 | 견적의뢰 / 주문 |
| MDW-63C-15×15 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×16 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×17 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×18 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×19 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-15×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×16 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×17 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×18 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×19 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-16×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×17 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×18 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×19 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-17×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×18 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×19 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-18×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×19 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-19×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×20 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-20×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-22×22 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-22×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-22×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-22×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-22×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-24×24 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-24×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-24×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-24×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-25×25 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-25×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-25×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-28×28 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-28×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
| MDW-63C-30×30 | P | 239,800 | - | - | - | 340 | 견적의뢰 / 주문 |
 |
- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다. - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오. - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다. - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.
|
 |
- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다. - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다. |
