센터플렉스커플링

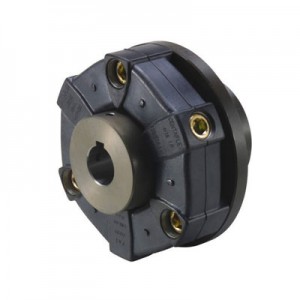

센터플렉스커플링 CF-A

미키풀리(주) ( MIKI PULLEY )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


102건 중 1~102건 표시

형식	타입	사이즈	取付け型	축홀경(mm)	축홀경(mm)	축홀경(mm)	축홀경(mm)	D (mm)
형식	타입	사이즈	取付け型	d1	d1	d2	d2	D (mm)
형식	타입	사이즈	取付け型	파이로트홀	최대	파이로트홀	최대	D (mm)

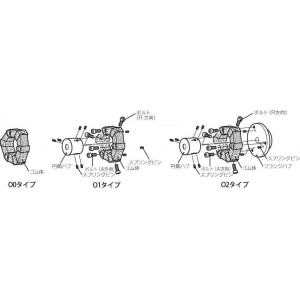

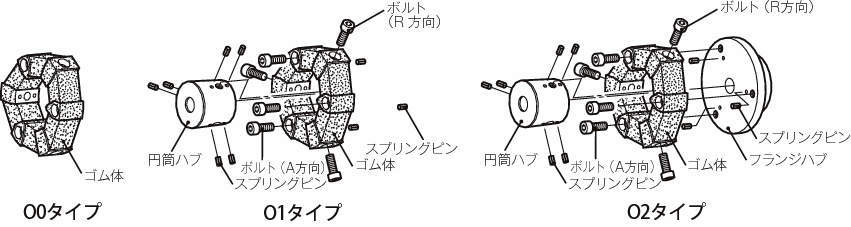

CF-A-001-O0-1360	O0타입	CF-A-001	볼트취부형	8	19	8	22	56
CF-A-002-O0-1360	O0타입	CF-A-002	볼트취부형	10	28	9	30	85
CF-A-004-O0-1360	O0타입	CF-A-004	볼트취부형	12	30	11	36	100
CF-A-008-O0-1360	O0타입	CF-A-008	볼트취부형	12	38	15	46	120
CF-A-012-O0-1360	O0타입	CF-A-012	볼트취부형	12	38	15	46	120
CF-A-016-O0-1360	O0타입	CF-A-016	볼트취부형	15	48	19	56	150
CF-A-022-O0-1360	O0타입	CF-A-022	볼트취부형	15	48	19	56	150
CF-A-025-O0-1360	O0타입	CF-A-025	볼트취부형	15	55	19	65	170
CF-A-028-O0-1360	O0타입	CF-A-028	볼트취부형	15	55	19	65	170
CF-A-030-O0-1360	O0타입	CF-A-030	볼트취부형	20	65	28	80	200
CF-A-050-O0-1360	O0타입	CF-A-050	볼트취부형	20	65	28	80	200
CF-A-080-O0-1360	O0타입	CF-A-080	볼트취부형	20	65	28	80	205
CF-A-090-O0-1360	O0타입	CF-A-090	볼트취부형	30	85	30	95	260
CF-A-140-O0-1360	O0타입	CF-A-140	볼트취부형	30	85	30	95	260
CF-A-200-O0-1360	O0타입	CF-A-200	볼트취부형	35	105	35	110	300
CF-A-250-O0-1360	O0타입	CF-A-250	볼트취부형	40	115	40	120	340
CF-A-400-O0-1360	O0타입	CF-A-400	볼트취부형	40	115	40	130	370
CF-A-001-O1-1360	O1타입	CF-A-001	볼트취부형	8	19	8	22	56
CF-A-002-O1-1360	O1타입	CF-A-002	볼트취부형	10	28	9	30	85
CF-A-004-O1-1360	O1타입	CF-A-004	볼트취부형	12	30	11	36	100
CF-A-008-O1-1360	O1타입	CF-A-008	볼트취부형	12	38	15	46	120
CF-A-012-O1-1360	O1타입	CF-A-012	볼트취부형	12	38	15	46	120
CF-A-016-O1-1360	O1타입	CF-A-016	볼트취부형	15	48	19	56	150
CF-A-022-O1-1360	O1타입	CF-A-022	볼트취부형	15	48	19	56	150
CF-A-025-O1-1360	O1타입	CF-A-025	볼트취부형	15	55	19	65	170
CF-A-028-O1-1360	O1타입	CF-A-028	볼트취부형	15	55	19	65	170
CF-A-030-O1-1360	O1타입	CF-A-030	볼트취부형	20	65	28	80	200
CF-A-050-O1-1360	O1타입	CF-A-050	볼트취부형	20	65	28	80	200
CF-A-080-O1-1360	O1타입	CF-A-080	볼트취부형	20	65	28	80	205
CF-A-090-O1-1360	O1타입	CF-A-090	볼트취부형	30	85	30	95	260
CF-A-140-O1-1360	O1타입	CF-A-140	볼트취부형	30	85	30	95	260
CF-A-200-O1-1360	O1타입	CF-A-200	볼트취부형	35	105	35	110	300
CF-A-250-O1-1360	O1타입	CF-A-250	볼트취부형	40	115	40	120	340
CF-A-400-O1-1360	O1타입	CF-A-400	볼트취부형	40	115	40	130	370
CF-A-001-O2-1360	O2타입	CF-A-001	볼트취부형	8	19	8	22	56
CF-A-002-O2-1360	O2타입	CF-A-002	볼트취부형	10	28	9	30	85
CF-A-004-O2-1360	O2타입	CF-A-004	볼트취부형	12	30	11	36	100
CF-A-008-O2-1360	O2타입	CF-A-008	볼트취부형	12	38	15	46	120
CF-A-012-O2-1360	O2타입	CF-A-012	볼트취부형	12	38	15	46	120
CF-A-016-O2-1360	O2타입	CF-A-016	볼트취부형	15	48	19	56	150
CF-A-022-O2-1360	O2타입	CF-A-022	볼트취부형	15	48	19	56	150
CF-A-025-O2-1360	O2타입	CF-A-025	볼트취부형	15	55	19	65	170
CF-A-028-O2-1360	O2타입	CF-A-028	볼트취부형	15	55	19	65	170
CF-A-030-O2-1360	O2타입	CF-A-030	볼트취부형	20	65	28	80	200
CF-A-050-O2-1360	O2타입	CF-A-050	볼트취부형	20	65	28	80	200
CF-A-080-O2-1360	O2타입	CF-A-080	볼트취부형	20	65	28	80	205
CF-A-090-O2-1360	O2타입	CF-A-090	볼트취부형	30	85	30	95	260
CF-A-140-O2-1360	O2타입	CF-A-140	볼트취부형	30	85	30	95	260
CF-A-200-O2-1360	O2타입	CF-A-200	볼트취부형	35	105	35	110	300
CF-A-250-O2-1360	O2타입	CF-A-250	볼트취부형	40	115	40	120	340
CF-A-400-O2-1360	O2타입	CF-A-400	볼트취부형	40	115	40	130	370

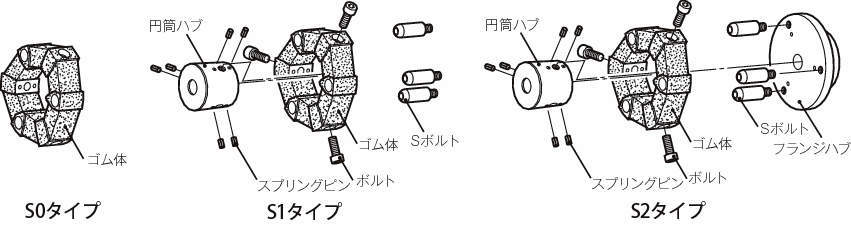

CF-A-001-S0-1360	S0타입	CF-A-001	볼트끼워넣음취부형	8	19	8	22	56
CF-A-002-S0-1360	S0타입	CF-A-002	볼트끼워넣음취부형	10	28	9	30	85
CF-A-004-S0-1360	S0타입	CF-A-004	볼트끼워넣음취부형	12	30	11	36	100
CF-A-008-S0-1360	S0타입	CF-A-008	볼트끼워넣음취부형	12	38	15	46	120
CF-A-012-S0-1360	S0타입	CF-A-012	볼트끼워넣음취부형	12	38	15	46	120
CF-A-016-S0-1360	S0타입	CF-A-016	볼트끼워넣음취부형	15	48	19	56	150
CF-A-022-S0-1360	S0타입	CF-A-022	볼트끼워넣음취부형	15	48	19	56	150
CF-A-025-S0-1360	S0타입	CF-A-025	볼트끼워넣음취부형	15	55	19	65	170
CF-A-028-S0-1360	S0타입	CF-A-028	볼트끼워넣음취부형	15	55	19	65	170
CF-A-030-S0-1360	S0타입	CF-A-030	볼트끼워넣음취부형	20	65	28	80	200
CF-A-050-S0-1360	S0타입	CF-A-050	볼트끼워넣음취부형	20	65	28	80	200
CF-A-080-S0-1360	S0타입	CF-A-080	볼트끼워넣음취부형	20	65	28	80	205
CF-A-090-S0-1360	S0타입	CF-A-090	볼트끼워넣음취부형	30	85	30	95	260
CF-A-140-S0-1360	S0타입	CF-A-140	볼트끼워넣음취부형	30	85	30	95	260
CF-A-200-S0-1360	S0타입	CF-A-200	볼트끼워넣음취부형	35	105	35	110	300
CF-A-250-S0-1360	S0타입	CF-A-250	볼트끼워넣음취부형	40	115	40	120	340
CF-A-400-S0-1360	S0타입	CF-A-400	볼트끼워넣음취부형	40	115	40	130	370
CF-A-001-S1-1360	S1타입	CF-A-001	볼트끼워넣음취부형	8	19	8	22	56
CF-A-002-S1-1360	S1타입	CF-A-002	볼트끼워넣음취부형	10	28	9	30	85
CF-A-004-S1-1360	S1타입	CF-A-004	볼트끼워넣음취부형	12	30	11	36	100
CF-A-008-S1-1360	S1타입	CF-A-008	볼트끼워넣음취부형	12	38	15	46	120
CF-A-012-S1-1360	S1타입	CF-A-012	볼트끼워넣음취부형	12	38	15	46	120
CF-A-016-S1-1360	S1타입	CF-A-016	볼트끼워넣음취부형	15	48	19	56	150
CF-A-022-S1-1360	S1타입	CF-A-022	볼트끼워넣음취부형	15	48	19	56	150
CF-A-025-S1-1360	S1타입	CF-A-025	볼트끼워넣음취부형	15	55	19	65	170
CF-A-028-S1-1360	S1타입	CF-A-028	볼트끼워넣음취부형	15	55	19	65	170
CF-A-030-S1-1360	S1타입	CF-A-030	볼트끼워넣음취부형	20	65	28	80	200
CF-A-050-S1-1360	S1타입	CF-A-050	볼트끼워넣음취부형	20	65	28	80	200
CF-A-080-S1-1360	S1타입	CF-A-080	볼트끼워넣음취부형	20	65	28	80	205
CF-A-090-S1-1360	S1타입	CF-A-090	볼트끼워넣음취부형	30	85	30	95	260
CF-A-140-S1-1360	S1타입	CF-A-140	볼트끼워넣음취부형	30	85	30	95	260
CF-A-200-S1-1360	S1타입	CF-A-200	볼트끼워넣음취부형	35	105	35	110	300
CF-A-250-S1-1360	S1타입	CF-A-250	볼트끼워넣음취부형	40	115	40	120	340
CF-A-400-S1-1360	S1타입	CF-A-400	볼트끼워넣음취부형	40	115	40	130	370
CF-A-001-S2-1360	S2타입	CF-A-001	볼트끼워넣음취부형	8	19	8	22	56
CF-A-002-S2-1360	S2타입	CF-A-002	볼트끼워넣음취부형	10	28	9	30	85
CF-A-004-S2-1360	S2타입	CF-A-004	볼트끼워넣음취부형	12	30	11	36	100
CF-A-008-S2-1360	S2타입	CF-A-008	볼트끼워넣음취부형	12	38	15	46	120
CF-A-012-S2-1360	S2타입	CF-A-012	볼트끼워넣음취부형	12	38	15	46	120
CF-A-016-S2-1360	S2타입	CF-A-016	볼트끼워넣음취부형	15	48	19	56	150
CF-A-022-S2-1360	S2타입	CF-A-022	볼트끼워넣음취부형	15	48	19	56	150
CF-A-025-S2-1360	S2타입	CF-A-025	볼트끼워넣음취부형	15	55	19	65	170
CF-A-028-S2-1360	S2타입	CF-A-028	볼트끼워넣음취부형	15	55	19	65	170
CF-A-030-S2-1360	S2타입	CF-A-030	볼트끼워넣음취부형	20	65	28	80	200
CF-A-050-S2-1360	S2타입	CF-A-050	볼트끼워넣음취부형	20	65	28	80	200
CF-A-080-S2-1360	S2타입	CF-A-080	볼트끼워넣음취부형	20	65	28	80	205
CF-A-090-S2-1360	S2타입	CF-A-090	볼트끼워넣음취부형	30	85	30	95	260
CF-A-140-S2-1360	S2타입	CF-A-140	볼트끼워넣음취부형	30	85	30	95	260
CF-A-200-S2-1360	S2타입	CF-A-200	볼트끼워넣음취부형	35	105	35	110	300
CF-A-250-S2-1360	S2타입	CF-A-250	볼트끼워넣음취부형	40	115	40	120	340
CF-A-400-S2-1360	S2타입	CF-A-400	볼트끼워넣음취부형	40	115	40	130	370

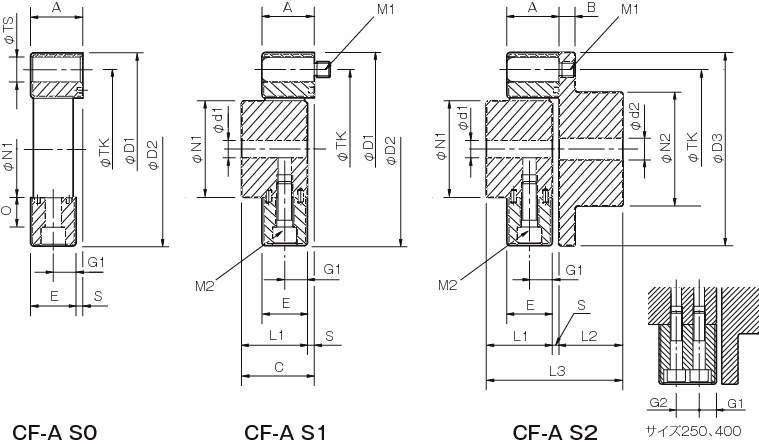

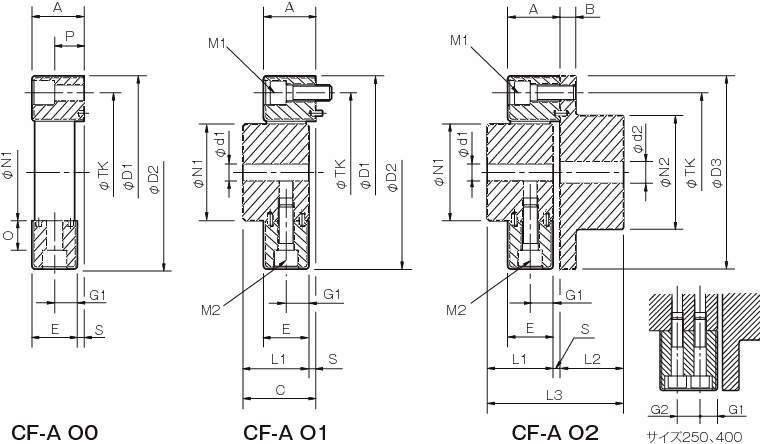

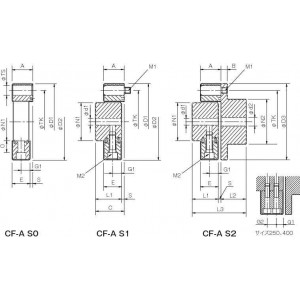

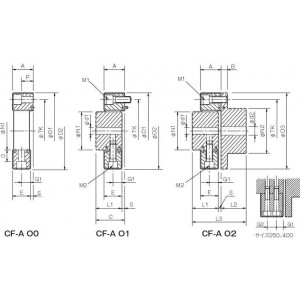

형식	N1 (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)	A (mm)	B (mm)	C (mm)	E (mm)
형식	N1 (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)	A (mm)	B (mm)	C (mm)	E (mm)
형식	N1 (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)	A (mm)	B (mm)	C (mm)	E (mm)
CF-A-001-O0-1360	30	36	32	24	58	24	7	34	22
CF-A-002-O0-1360	40	45	30	28	62	24	8	34	20
CF-A-004-O0-1360	45	55	34	30	68	28	8	38	24
CF-A-008-O0-1360	60	70	40	42	86	32	10	44	28
CF-A-012-O0-1360	60	70	40	42	86	32	10	44	28
CF-A-016-O0-1360	70	85	52	50	108	42	12	58	36
CF-A-022-O0-1360	70	85	52	50	108	42	12	58	36
CF-A-025-O0-1360	85	100	58	56	120	46	14	64	40
CF-A-028-O0-1360	85	100	58	56	120	46	14	64	40
CF-A-030-O0-1360	100	120	68	66	142	58	16	76	50
CF-A-050-O0-1360	100	120	68	66	142	58	16	76	50
CF-A-080-O0-1360	100	120	80	66	150	65	16	84	61
CF-A-090-O0-1360	125	140	84	80	172	70	19	92	62
CF-A-140-O0-1360	125	140	84	80	172	70	19	92	62
CF-A-200-O0-1360	145	160	94	90	192	80	19	102	72
CF-A-250-O0-1360	160	180	100	100	208	85	19	108	77
CF-A-400-O0-1360	170	200	125	125	260	105	29	135	95
CF-A-001-O1-1360	30	36	32	24	58	24	7	34	22
CF-A-002-O1-1360	40	45	30	28	62	24	8	34	20
CF-A-004-O1-1360	45	55	34	30	68	28	8	38	24
CF-A-008-O1-1360	60	70	40	42	86	32	10	44	28
CF-A-012-O1-1360	60	70	40	42	86	32	10	44	28
CF-A-016-O1-1360	70	85	52	50	108	42	12	58	36
CF-A-022-O1-1360	70	85	52	50	108	42	12	58	36
CF-A-025-O1-1360	85	100	58	56	120	46	14	64	40
CF-A-028-O1-1360	85	100	58	56	120	46	14	64	40
CF-A-030-O1-1360	100	120	68	66	142	58	16	76	50
CF-A-050-O1-1360	100	120	68	66	142	58	16	76	50
CF-A-080-O1-1360	100	120	80	66	150	65	16	84	61
CF-A-090-O1-1360	125	140	84	80	172	70	19	92	62
CF-A-140-O1-1360	125	140	84	80	172	70	19	92	62
CF-A-200-O1-1360	145	160	94	90	192	80	19	102	72
CF-A-250-O1-1360	160	180	100	100	208	85	19	108	77
CF-A-400-O1-1360	170	200	125	125	260	105	29	135	95
CF-A-001-O2-1360	30	36	32	24	58	24	7	34	22
CF-A-002-O2-1360	40	45	30	28	62	24	8	34	20
CF-A-004-O2-1360	45	55	34	30	68	28	8	38	24
CF-A-008-O2-1360	60	70	40	42	86	32	10	44	28
CF-A-012-O2-1360	60	70	40	42	86	32	10	44	28
CF-A-016-O2-1360	70	85	52	50	108	42	12	58	36
CF-A-022-O2-1360	70	85	52	50	108	42	12	58	36
CF-A-025-O2-1360	85	100	58	56	120	46	14	64	40
CF-A-028-O2-1360	85	100	58	56	120	46	14	64	40
CF-A-030-O2-1360	100	120	68	66	142	58	16	76	50
CF-A-050-O2-1360	100	120	68	66	142	58	16	76	50
CF-A-080-O2-1360	100	120	80	66	150	65	16	84	61
CF-A-090-O2-1360	125	140	84	80	172	70	19	92	62
CF-A-140-O2-1360	125	140	84	80	172	70	19	92	62
CF-A-200-O2-1360	145	160	94	90	192	80	19	102	72
CF-A-250-O2-1360	160	180	100	100	208	85	19	108	77
CF-A-400-O2-1360	170	200	125	125	260	105	29	135	95
CF-A-001-S0-1360	30	36	32	24	58	24	7	34	22
CF-A-002-S0-1360	40	45	30	28	62	24	8	34	20
CF-A-004-S0-1360	45	55	34	30	68	28	8	38	24
CF-A-008-S0-1360	60	70	40	42	86	32	10	44	28
CF-A-012-S0-1360	60	70	40	42	86	32	10	44	28
CF-A-016-S0-1360	70	85	52	50	108	42	12	58	36
CF-A-022-S0-1360	70	85	52	50	108	42	12	58	36
CF-A-025-S0-1360	85	100	58	56	120	46	14	64	40
CF-A-028-S0-1360	85	100	58	56	120	46	14	64	40
CF-A-030-S0-1360	100	120	68	66	142	58	16	76	50
CF-A-050-S0-1360	100	120	68	66	142	58	16	76	50
CF-A-080-S0-1360	100	120	80	66	150	65	16	84	61
CF-A-090-S0-1360	125	140	84	80	172	70	19	92	62
CF-A-140-S0-1360	125	140	84	80	172	70	19	92	62
CF-A-200-S0-1360	145	160	94	90	192	80	19	102	72
CF-A-250-S0-1360	160	180	100	100	208	85	19	108	77
CF-A-400-S0-1360	170	200	125	125	260	105	29	135	95
CF-A-001-S1-1360	30	36	32	24	58	24	7	34	22
CF-A-002-S1-1360	40	45	30	28	62	24	8	34	20
CF-A-004-S1-1360	45	55	34	30	68	28	8	38	24
CF-A-008-S1-1360	60	70	40	42	86	32	10	44	28
CF-A-012-S1-1360	60	70	40	42	86	32	10	44	28
CF-A-016-S1-1360	70	85	52	50	108	42	12	58	36
CF-A-022-S1-1360	70	85	52	50	108	42	12	58	36
CF-A-025-S1-1360	85	100	58	56	120	46	14	64	40
CF-A-028-S1-1360	85	100	58	56	120	46	14	64	40
CF-A-030-S1-1360	100	120	68	66	142	58	16	76	50
CF-A-050-S1-1360	100	120	68	66	142	58	16	76	50
CF-A-080-S1-1360	100	120	80	66	150	65	16	84	61
CF-A-090-S1-1360	125	140	84	80	172	70	19	92	62
CF-A-140-S1-1360	125	140	84	80	172	70	19	92	62
CF-A-200-S1-1360	145	160	94	90	192	80	19	102	72
CF-A-250-S1-1360	160	180	100	100	208	85	19	108	77
CF-A-400-S1-1360	170	200	125	125	260	105	29	135	95
CF-A-001-S2-1360	30	36	32	24	58	24	7	34	22
CF-A-002-S2-1360	40	45	30	28	62	24	8	34	20
CF-A-004-S2-1360	45	55	34	30	68	28	8	38	24
CF-A-008-S2-1360	60	70	40	42	86	32	10	44	28
CF-A-012-S2-1360	60	70	40	42	86	32	10	44	28
CF-A-016-S2-1360	70	85	52	50	108	42	12	58	36
CF-A-022-S2-1360	70	85	52	50	108	42	12	58	36
CF-A-025-S2-1360	85	100	58	56	120	46	14	64	40
CF-A-028-S2-1360	85	100	58	56	120	46	14	64	40
CF-A-030-S2-1360	100	120	68	66	142	58	16	76	50
CF-A-050-S2-1360	100	120	68	66	142	58	16	76	50
CF-A-080-S2-1360	100	120	80	66	150	65	16	84	61
CF-A-090-S2-1360	125	140	84	80	172	70	19	92	62
CF-A-140-S2-1360	125	140	84	80	172	70	19	92	62
CF-A-200-S2-1360	145	160	94	90	192	80	19	102	72
CF-A-250-S2-1360	160	180	100	100	208	85	19	108	77
CF-A-400-S2-1360	170	200	125	125	260	105	29	135	95

형식	G (mm)	O (mm)	P (mm)	S (mm)	TS (mm)	TK (mm)	M1	M2
형식	G (mm)	O (mm)	P (mm)	S (mm)	TS (mm)	TK (mm)	M1	M2
형식	G (mm)	O (mm)	P (mm)	S (mm)	TS (mm)	TK (mm)	M1	M2
CF-A-001-O0-1360	11	5	18	2	-	44	2-M6	2-M6
CF-A-002-O0-1360	10	14	12	4	-	68	2-M8	2-M8
CF-A-004-O0-1360	12	18	17	4	-	80	3-M8	3-M8
CF-A-008-O0-1360	14	20	20	4	-	100	3-M10	3-M10
CF-A-012-O0-1360	14	20	20	4	-	100	4-M10	4-M10
CF-A-016-O0-1360	18	25	24	6	-	125	3-M12	3-M12
CF-A-022-O0-1360	18	25	24	6	-	125	4-M12	4-M12
CF-A-025-O0-1360	20	26	26	6	-	140	3-M14	3-M14
CF-A-028-O0-1360	20	26	26	6	-	140	4-M14	4-M14
CF-A-030-O0-1360	25	33	35	8	-	165	3-M16	3-M16
CF-A-050-O0-1360	25	33	35	8	-	16	4-M16	4-M16
CF-A-080-O0-1360	30.5	33	35	4	-	165	4-M16	4-M16
CF-A-090-O0-1360	31	46	45	8	-	215	3-M20	3-M20
CF-A-140-O0-1360	31	46	45	8	-	215	4-M20	4-M20
CF-A-200-O0-1360	36	46	45	8	-	250	4-M20	4-M20
CF-A-250-O0-1360	22.5 · 54.5	60	60	8	-	280	4-M20	8-M20
CF-A-400-O0-1360	28.5 · 66.5	70.5	67	10	-	300	4-M24	8-M20
CF-A-001-O1-1360	11	5	18	2	-	44	2-M6	2-M8
CF-A-002-O1-1360	10	14	12	4	-	68	2-M8	3-M14
CF-A-004-O1-1360	12	18	17	4	-	80	3-M8	3-M8
CF-A-008-O1-1360	14	20	20	4	-	100	3-M10	3-M10
CF-A-012-O1-1360	14	20	20	4	-	100	4-M10	4-M10
CF-A-016-O1-1360	18	25	24	6	-	125	3-M12	3-M12
CF-A-022-O1-1360	18	25	24	6	-	125	4-M12	4-M12
CF-A-025-O1-1360	20	26	26	6	-	140	3-M14	3-M14
CF-A-028-O1-1360	20	26	26	6	-	140	4-M14	4-M14
CF-A-030-O1-1360	25	33	35	8	-	165	3-M16	3-M16
CF-A-050-O1-1360	25	33	35	8	-	16	4-M16	4-M16
CF-A-080-O1-1360	30.5	33	35	4	-	165	4-M16	4-M16
CF-A-090-O1-1360	31	46	45	8	-	215	3-M20	3-M20
CF-A-140-O1-1360	31	46	45	8	-	215	4-M20	4-M20
CF-A-200-O1-1360	36	46	45	8	-	250	4-M20	4-M20
CF-A-250-O1-1360	22.5 · 54.5	60	60	8	-	280	4-M20	8-M20
CF-A-400-O1-1360	28.5 · 66.5	70.5	67	10	-	300	4-M24	8-M20
CF-A-001-O2-1360	11	5	18	2	-	44	2-M6	3-M8
CF-A-002-O2-1360	10	14	12	4	-	68	2-M8	4-M14
CF-A-004-O2-1360	12	18	17	4	-	80	3-M8	3-M8
CF-A-008-O2-1360	14	20	20	4	-	100	3-M10	3-M10
CF-A-012-O2-1360	14	20	20	4	-	100	4-M10	4-M10
CF-A-016-O2-1360	18	25	24	6	-	125	3-M12	3-M12
CF-A-022-O2-1360	18	25	24	6	-	125	4-M12	4-M12
CF-A-025-O2-1360	20	26	26	6	-	140	3-M14	3-M14
CF-A-028-O2-1360	20	26	26	6	-	140	4-M14	4-M14
CF-A-030-O2-1360	25	33	35	8	-	165	3-M16	3-M16
CF-A-050-O2-1360	25	33	35	8	-	16	4-M16	4-M16
CF-A-080-O2-1360	30.5	33	35	4	-	165	4-M16	4-M16
CF-A-090-O2-1360	31	46	45	8	-	215	3-M20	3-M20
CF-A-140-O2-1360	31	46	45	8	-	215	4-M20	4-M20
CF-A-200-O2-1360	36	46	45	8	-	250	4-M20	4-M20
CF-A-250-O2-1360	22.5 · 54.5	60	60	8	-	280	4-M20	8-M20
CF-A-400-O2-1360	28.5 · 66.5	70.5	67	10	-	300	4-M24	8-M20
CF-A-001-S0-1360	11	5	-	2	10	44	2-M6	3-M10
CF-A-002-S0-1360	10	14	-	4	14	68	2-M8	3-M16
CF-A-004-S0-1360	12	18	-	4	-	80	3-M8	3-M8
CF-A-008-S0-1360	14	20	-	4	17	100	3-M10	3-M10
CF-A-012-S0-1360	14	20	-	4	17	100	4-M10	4-M10
CF-A-016-S0-1360	18	25	-	6	19	125	3-M12	3-M12
CF-A-022-S0-1360	18	25	-	6	19	125	4-M12	4-M12
CF-A-025-S0-1360	20	26	-	6	22	140	3-M14	3-M14
CF-A-028-S0-1360	20	26	-	6	22	140	4-M14	4-M14
CF-A-030-S0-1360	25	33	-	8	25	165	3-M16	3-M16
CF-A-050-S0-1360	25	33	-	8	25	16	4-M16	4-M16
CF-A-080-S0-1360	30.5	33	-	4	25	165	4-M16	4-M16
CF-A-090-S0-1360	31	46	-	8	32	215	3-M20	3-M20
CF-A-140-S0-1360	31	46	-	8	32	215	4-M20	4-M20
CF-A-200-S0-1360	36	46	-	8	32	250	4-M20	4-M20
CF-A-250-S0-1360	22.5 · 54.5	60	-	8	32	280	4-M20	8-M20
CF-A-400-S0-1360	28.5 · 66.5	70.5	-	10	45	300	4-M24	8-M20
CF-A-001-S1-1360	11	5	-	2	10	44	2-M6	4-M10
CF-A-002-S1-1360	10	14	-	4	14	68	2-M8	4-M16
CF-A-004-S1-1360	12	18	-	4	14	80	3-M8	3-M8
CF-A-008-S1-1360	14	20	-	4	17	100	3-M10	3-M10
CF-A-012-S1-1360	14	20	-	4	17	100	4-M10	4-M10
CF-A-016-S1-1360	18	25	-	6	19	125	3-M12	3-M12
CF-A-022-S1-1360	18	25	-	6	19	125	4-M12	4-M12
CF-A-025-S1-1360	20	26	-	6	22	140	3-M14	3-M14
CF-A-028-S1-1360	20	26	-	6	22	140	4-M14	4-M14
CF-A-030-S1-1360	25	33	-	8	25	165	3-M16	3-M16
CF-A-050-S1-1360	25	33	-	8	25	16	4-M16	4-M16
CF-A-080-S1-1360	30.5	33	-	4	25	165	4-M16	4-M16
CF-A-090-S1-1360	31	46	-	8	32	215	3-M20	3-M20
CF-A-140-S1-1360	31	46	-	8	32	215	4-M20	4-M20
CF-A-200-S1-1360	36	46	-	8	32	250	4-M20	4-M20
CF-A-250-S1-1360	22.5 · 54.5	60	-	8	32	280	4-M20	8-M20
CF-A-400-S1-1360	28.5 · 66.5	70.5	-	10	45	300	4-M24	8-M20
CF-A-001-S2-1360	11	5	-	2	10	44	2-M6	3-M12
CF-A-002-S2-1360	10	14	-	4	14	68	2-M8	4-M16
CF-A-004-S2-1360	12	18	-	4	14	80	3-M8	3-M8
CF-A-008-S2-1360	14	20	-	4	17	100	3-M10	3-M10
CF-A-012-S2-1360	14	20	-	4	17	100	4-M10	4-M10
CF-A-016-S2-1360	18	25	-	6	19	125	3-M12	3-M12
CF-A-022-S2-1360	18	25	-	6	19	125	4-M12	4-M12
CF-A-025-S2-1360	20	26	-	6	22	140	3-M14	3-M14
CF-A-028-S2-1360	20	26	-	6	22	140	4-M14	4-M14
CF-A-030-S2-1360	25	33	-	8	25	165	3-M16	3-M16
CF-A-050-S2-1360	25	33	-	8	25	16	4-M16	4-M16
CF-A-080-S2-1360	30.5	33	-	4	25	165	4-M16	4-M16
CF-A-090-S2-1360	31	46	-	8	32	215	3-M20	3-M20
CF-A-140-S2-1360	31	46	-	8	32	215	4-M20	4-M20
CF-A-200-S2-1360	36	46	-	8	32	250	4-M20	4-M20
CF-A-250-S2-1360	22.5 · 54.5	60	-	8	32	280	4-M20	8-M20
CF-A-400-S2-1360	28.5 · 66.5	70.5	-	10	45	300	4-M24	8-M20

형식	토크	토크	토크	최고회전수 (min-1)	정적비틀림 스프링정수 (N · m/rad)
형식	상용 (N · m)	최대 (N · m)	최대허용변동 (N · m/10Hz)	최고회전수 (min-1)	정적비틀림 스프링정수 (N · m/rad)
형식				최고회전수 (min-1)	정적비틀림 스프링정수 (N · m/rad)
CF-A-001-O0-1360	10	25	±4	10000	1.47×10^2
CF-A-002-O0-1360	20	50	±8	8000	2.92×10^2
CF-A-004-O0-1360	40	100	±16	7000	7.59×10^2
CF-A-008-O0-1360	80	200	±32	6500	1.44×10^3
CF-A-012-O0-1360	120	300	±48	6500	4.38×10^3
CF-A-016-O0-1360	160	400	±64	6000	3.28×10^3
CF-A-022-O0-1360	220	550	±88	6000	8.26×10^3
CF-A-025-O0-1360	250	630	±100	5000	4.12×10^3
CF-A-028-O0-1360	350	880	±140	5000	1.05×10^4
CF-A-030-O0-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-O0-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-O0-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-O0-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-O0-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-O0-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-O0-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-O0-1360	5000	12500	±1600	2800	1.25×10^5
CF-A-001-O1-1360	10	25	±4	10000	1.47×10^2
CF-A-002-O1-1360	20	50	±8	8000	2.92×10^2
CF-A-004-O1-1360	40	100	±16	7000	7.59×10^2
CF-A-008-O1-1360	80	200	±32	6500	1.44×10^3
CF-A-012-O1-1360	120	300	±48	6500	4.38×10^3
CF-A-016-O1-1360	160	400	±64	6000	3.28×10^3
CF-A-022-O1-1360	220	550	±88	6000	8.26×10^3
CF-A-025-O1-1360	250	630	±100	5000	4.12×10^3
CF-A-028-O1-1360	350	880	±140	5000	1.05×10^4
CF-A-030-O1-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-O1-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-O1-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-O1-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-O1-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-O1-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-O1-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-O1-1360	5000	12500	±1600	2800	1.25×10^5
CF-A-001-O2-1360	10	25	±4	10000	1.47×10^2
CF-A-002-O2-1360	20	50	±8	8000	2.92×10^2
CF-A-004-O2-1360	40	100	±16	7000	7.59×10^2
CF-A-008-O2-1360	80	200	±32	6500	1.44×10^3
CF-A-012-O2-1360	120	300	±48	6500	4.38×10^3
CF-A-016-O2-1360	160	400	±64	6000	3.28×10^3
CF-A-022-O2-1360	220	550	±88	6000	8.26×10^3
CF-A-025-O2-1360	250	630	±100	5000	4.12×10^3
CF-A-028-O2-1360	350	880	±140	5000	1.05×10^4
CF-A-030-O2-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-O2-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-O2-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-O2-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-O2-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-O2-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-O2-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-O2-1360	5000	12500	±1600	2800	1.25×10^5
CF-A-001-S0-1360	10	25	±4	10000	1.47×10^2
CF-A-002-S0-1360	20	50	±8	8000	2.92×10^2
CF-A-004-S0-1360	40	100	±16	7000	7.59×10^2
CF-A-008-S0-1360	80	200	±32	6500	1.44×10^3
CF-A-012-S0-1360	120	300	±48	6500	4.38×10^3
CF-A-016-S0-1360	160	400	±64	6000	3.28×10^3
CF-A-022-S0-1360	220	550	±88	6000	8.26×10^3
CF-A-025-S0-1360	250	630	±100	5000	4.12×10^3
CF-A-028-S0-1360	350	880	±140	5000	1.05×10^4
CF-A-030-S0-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-S0-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-S0-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-S0-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-S0-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-S0-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-S0-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-S0-1360	5000	12500	±1600	2800	1.25×10^5
CF-A-001-S1-1360	10	25	±4	10000	1.47×10^2
CF-A-002-S1-1360	20	50	±8	8000	2.92×10^2
CF-A-004-S1-1360	40	100	±16	7000	7.59×10^2
CF-A-008-S1-1360	80	200	±32	6500	1.44×10^3
CF-A-012-S1-1360	120	300	±48	6500	4.38×10^3
CF-A-016-S1-1360	160	400	±64	6000	3.28×10^3
CF-A-022-S1-1360	220	550	±88	6000	8.26×10^3
CF-A-025-S1-1360	250	630	±100	5000	4.12×10^3
CF-A-028-S1-1360	350	880	±140	5000	1.05×10^4
CF-A-030-S1-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-S1-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-S1-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-S1-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-S1-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-S1-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-S1-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-S1-1360	5000	12500	±1600	2800	1.25×10^5
CF-A-001-S2-1360	10	25	±4	10000	1.47×10^2
CF-A-002-S2-1360	20	50	±8	8000	2.92×10^2
CF-A-004-S2-1360	40	100	±16	7000	7.59×10^2
CF-A-008-S2-1360	80	200	±32	6500	1.44×10^3
CF-A-012-S2-1360	120	300	±48	6500	4.38×10^3
CF-A-016-S2-1360	160	400	±64	6000	3.28×10^3
CF-A-022-S2-1360	220	550	±88	6000	8.26×10^3
CF-A-025-S2-1360	250	630	±100	5000	4.12×10^3
CF-A-028-S2-1360	350	880	±140	5000	1.05×10^4
CF-A-030-S2-1360	400	1000	±160	4000	6.40×10^3
CF-A-050-S2-1360	600	1500	±240	4000	1.48×10^4
CF-A-080-S2-1360	800	2000	±320	4000	2.17×10^4
CF-A-090-S2-1360	900	2250	±360	3600	1.37×10^4
CF-A-140-S2-1360	1400	3500	±560	3600	2.90×10^4
CF-A-200-S2-1360	2000	5000	±800	3200	6.08×10^4
CF-A-250-S2-1360	3000	8750	±1000	3000	8.28×10^4
CF-A-400-S2-1360	5000	12500	±1600	2800	1.25×10^5

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)				질량	견적의뢰 및 주문
CF-A-001-O0-1360	P	115,500	-	-	-	-	견적의뢰 / 주문
CF-A-002-O0-1360	P	123,200	-	-	-	-	견적의뢰 / 주문
CF-A-004-O0-1360	P	145,200	-	-	-	-	견적의뢰 / 주문
CF-A-008-O0-1360	P	168,300	-	-	-	-	견적의뢰 / 주문
CF-A-012-O0-1360	P	209,000	-	-	-	-	견적의뢰 / 주문
CF-A-016-O0-1360	P	250,800	-	-	-	-	견적의뢰 / 주문
CF-A-022-O0-1360	P	272,800	-	-	-	-	견적의뢰 / 주문
CF-A-025-O0-1360	P	283,800	-	-	-	-	견적의뢰 / 주문
CF-A-028-O0-1360	P	316,800	-	-	-	-	견적의뢰 / 주문
CF-A-030-O0-1360	P	316,800	-	-	-	-	견적의뢰 / 주문
CF-A-050-O0-1360	P	400,400	-	-	-	-	견적의뢰 / 주문
CF-A-080-O0-1360	P	690,800	-	-	-	-	견적의뢰 / 주문
CF-A-090-O0-1360	P	1,188,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-O0-1360	P	1,430,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-O0-1360	P	1,980,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-O0-1360	P	2,442,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-O0-1360	P	4,334,000	-	-	-	-	견적의뢰 / 주문
CF-A-001-O1-1360	P	141,900	-	-	-	-	견적의뢰 / 주문
CF-A-002-O1-1360	P	160,600	-	-	-	-	견적의뢰 / 주문
CF-A-004-O1-1360	P	193,600	-	-	-	-	견적의뢰 / 주문
CF-A-008-O1-1360	P	235,400	-	-	-	-	견적의뢰 / 주문
CF-A-012-O1-1360	P	283,800	-	-	-	-	견적의뢰 / 주문
CF-A-016-O1-1360	P	358,600	-	-	-	-	견적의뢰 / 주문
CF-A-022-O1-1360	P	396,000	-	-	-	-	견적의뢰 / 주문
CF-A-025-O1-1360	P	462,000	-	-	-	-	견적의뢰 / 주문
CF-A-028-O1-1360	P	512,600	-	-	-	-	견적의뢰 / 주문
CF-A-030-O1-1360	P	567,600	-	-	-	-	견적의뢰 / 주문
CF-A-050-O1-1360	P	690,800	-	-	-	-	견적의뢰 / 주문
CF-A-080-O1-1360	P	987,800	-	-	-	-	견적의뢰 / 주문
CF-A-090-O1-1360	P	1,727,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-O1-1360	P	2,002,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-O1-1360	P	2,596,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-O1-1360	P	3,102,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-O1-1360	P	6,468,000	-	-	-	-	견적의뢰 / 주문
CF-A-001-O2-1360	P	179,300	-	-	-	-	견적의뢰 / 주문
CF-A-002-O2-1360	P	201,300	-	-	-	-	견적의뢰 / 주문
CF-A-004-O2-1360	P	268,400	-	-	-	-	견적의뢰 / 주문
CF-A-008-O2-1360	P	347,600	-	-	-	-	견적의뢰 / 주문
CF-A-012-O2-1360	P	400,400	-	-	-	-	견적의뢰 / 주문
CF-A-016-O2-1360	P	536,800	-	-	-	-	견적의뢰 / 주문
CF-A-022-O2-1360	P	583,000	-	-	-	-	견적의뢰 / 주문
CF-A-025-O2-1360	P	739,200	-	-	-	-	견적의뢰 / 주문
CF-A-028-O2-1360	P	794,200	-	-	-	-	견적의뢰 / 주문
CF-A-030-O2-1360	P	937,200	-	-	-	-	견적의뢰 / 주문
CF-A-050-O2-1360	P	1,058,200	-	-	-	-	견적의뢰 / 주문
CF-A-080-O2-1360	P	1,353,000	-	-	-	-	견적의뢰 / 주문
CF-A-090-O2-1360	P	2,200,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-O2-1360	P	2,486,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-O2-1360	P	3,608,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-O2-1360	P	4,554,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-O2-1360	P	8,360,000	-	-	-	-	견적의뢰 / 주문
CF-A-001-S0-1360	P	134,200	-	-	-	-	견적의뢰 / 주문
CF-A-002-S0-1360	P	145,200	-	-	-	-	견적의뢰 / 주문
CF-A-004-S0-1360	P	187,000	-	-	-	-	견적의뢰 / 주문
CF-A-008-S0-1360	P	212,300	-	-	-	-	견적의뢰 / 주문
CF-A-012-S0-1360	P	257,400	-	-	-	-	견적의뢰 / 주문
CF-A-016-S0-1360	P	299,200	-	-	-	-	견적의뢰 / 주문
CF-A-022-S0-1360	P	321,200	-	-	-	-	견적의뢰 / 주문
CF-A-025-S0-1360	P	336,600	-	-	-	-	견적의뢰 / 주문
CF-A-028-S0-1360	P	369,600	-	-	-	-	견적의뢰 / 주문
CF-A-030-S0-1360	P	369,600	-	-	-	-	견적의뢰 / 주문
CF-A-050-S0-1360	P	470,800	-	-	-	-	견적의뢰 / 주문
CF-A-080-S0-1360	P	787,600	-	-	-	-	견적의뢰 / 주문
CF-A-090-S0-1360	P	1,276,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-S0-1360	P	1,518,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-S0-1360	P	2,112,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-S0-1360	P	2,618,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-S0-1360	P	4,642,000	-	-	-	-	견적의뢰 / 주문
CF-A-001-S1-1360	P	163,900	-	-	-	-	견적의뢰 / 주문
CF-A-002-S1-1360	P	198,000	-	-	-	-	견적의뢰 / 주문
CF-A-004-S1-1360	P	250,800	-	-	-	-	견적의뢰 / 주문
CF-A-008-S1-1360	P	310,200	-	-	-	-	견적의뢰 / 주문
CF-A-012-S1-1360	P	369,600	-	-	-	-	견적의뢰 / 주문
CF-A-016-S1-1360	P	462,000	-	-	-	-	견적의뢰 / 주문
CF-A-022-S1-1360	P	514,800	-	-	-	-	견적의뢰 / 주문
CF-A-025-S1-1360	P	589,600	-	-	-	-	견적의뢰 / 주문
CF-A-028-S1-1360	P	660,000	-	-	-	-	견적의뢰 / 주문
CF-A-030-S1-1360	P	690,800	-	-	-	-	견적의뢰 / 주문
CF-A-050-S1-1360	P	851,400	-	-	-	-	견적의뢰 / 주문
CF-A-080-S1-1360	P	1,166,000	-	-	-	-	견적의뢰 / 주문
CF-A-090-S1-1360	P	1,815,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-S1-1360	P	2,079,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-S1-1360	P	2,750,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-S1-1360	P	3,278,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-S1-1360	P	6,754,000	-	-	-	-	견적의뢰 / 주문
CF-A-001-S2-1360	P	201,300	-	-	-	-	견적의뢰 / 주문
CF-A-002-S2-1360	P	244,200	-	-	-	-	견적의뢰 / 주문
CF-A-004-S2-1360	P	341,000	-	-	-	-	견적의뢰 / 주문
CF-A-008-S2-1360	P	422,400	-	-	-	-	견적의뢰 / 주문
CF-A-012-S2-1360	P	488,400	-	-	-	-	견적의뢰 / 주문
CF-A-016-S2-1360	P	585,200	-	-	-	-	견적의뢰 / 주문
CF-A-022-S2-1360	P	644,600	-	-	-	-	견적의뢰 / 주문
CF-A-025-S2-1360	P	862,400	-	-	-	-	견적의뢰 / 주문
CF-A-028-S2-1360	P	943,800	-	-	-	-	견적의뢰 / 주문
CF-A-030-S2-1360	P	1,056,000	-	-	-	-	견적의뢰 / 주문
CF-A-050-S2-1360	P	1,221,000	-	-	-	-	견적의뢰 / 주문
CF-A-080-S2-1360	P	1,496,000	-	-	-	-	견적의뢰 / 주문
CF-A-090-S2-1360	P	2,288,000	-	-	-	-	견적의뢰 / 주문
CF-A-140-S2-1360	P	2,574,000	-	-	-	-	견적의뢰 / 주문
CF-A-200-S2-1360	P	3,784,000	-	-	-	-	견적의뢰 / 주문
CF-A-250-S2-1360	P	4,730,000	-	-	-	-	견적의뢰 / 주문
CF-A-400-S2-1360	P	8,646,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
