육각볼트

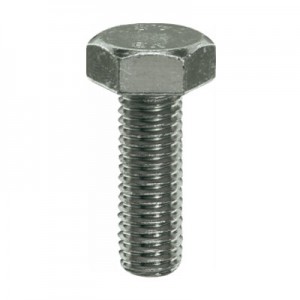

HBIRZ 육각볼트 전체나사 3가크로메이트

와이에이치티 ( YHT )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


251건 중 1~251건 표시

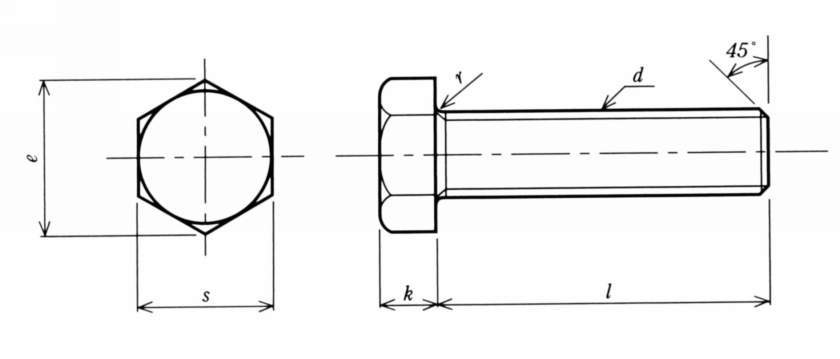

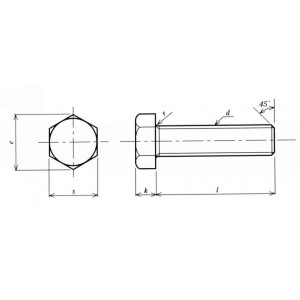

형식	호칭d	l (mm)	포장개수	피치p (mm)	머리부분 높이k (mm)	머리부분 높이k (mm)	이면폭s (mm)	이면폭s (mm)	e (약mm)
형식	호칭d	l (mm)	포장개수	피치p (mm)	기준치수	허용차	기준치수	허용차	e (약mm)
HBIRZ4-8-10	M4	8	10	0.7	2.8	-	7	-	8.1
HBIRZ4-8-200	M4	8	200	0.7	2.8	-	7	-	8.1
HBIRZ4-10-10	M4	10	10	0.7	2.8	-	7	-	8.1
HBIRZ4-10-200	M4	10	200	0.7	2.8	-	7	-	8.1
HBIRZ4-12-10	M4	12	10	0.7	2.8	-	7	-	8.1
HBIRZ4-12-200	M4	12	200	0.7	2.8	-	7	-	8.1
HBIRZ4-15-10	M4	15	10	0.7	2.8	-	7	-	8.1
HBIRZ4-15-200	M4	15	200	0.7	2.8	-	7	-	8.1
HBIRZ4-16-10	M4	16	10	0.7	2.8	-	7	-	8.1
HBIRZ4-16-200	M4	16	200	0.7	2.8	-	7	-	8.1
HBIRZ4-20-10	M4	20	10	0.7	2.8	-	7	-	8.1
HBIRZ4-20-200	M4	20	200	0.7	2.8	-	7	-	8.1
HBIRZ4-25-10	M4	25	10	0.7	2.8	-	7	-	8.1
HBIRZ4-25-200	M4	25	200	0.7	2.8	-	7	-	8.1
HBIRZ4-30-10	M4	30	10	0.7	2.8	-	7	-	8.1
HBIRZ4-30-200	M4	30	200	0.7	2.8	-	7	-	8.1
HBIRZ5-6-10	M5	6	10	0.8	3.5	-	8	-	9.2
HBIRZ5-6-200	M5	6	200	0.8	3.5	-	8	-	9.2
HBIRZ5-8-10	M5	8	10	0.8	3.5	-	8	-	9.2
HBIRZ5-8-200	M5	8	200	0.8	3.5	-	8	-	9.2
HBIRZ5-10-10	M5	10	10	0.8	3.5	-	8	-	9.2
HBIRZ5-10-200	M5	10	200	0.8	3.5	-	8	-	9.2
HBIRZ5-12-10	M5	12	10	0.8	3.5	-	8	-	9.2
HBIRZ5-12-200	M5	12	200	0.8	3.5	-	8	-	9.2
HBIRZ5-14-10	M5	14	10	0.8	3.5	-	8	-	9.2
HBIRZ5-14-200	M5	14	200	0.8	3.5	-	8	-	9.2
HBIRZ5-15-10	M5	15	10	0.8	3.5	-	8	-	9.2
HBIRZ5-15-200	M5	15	200	0.8	3.5	-	8	-	9.2
HBIRZ5-16-10	M5	16	10	0.8	3.5	-	8	-	9.2
HBIRZ5-16-200	M5	16	200	0.8	3.5	-	8	-	9.2
HBIRZ5-20-10	M5	20	10	0.8	3.5	-	8	-	9.2
HBIRZ5-20-200	M5	20	200	0.8	3.5	-	8	-	9.2
HBIRZ5-22-10	M5	22	10	0.8	3.5	-	8	-	9.2
HBIRZ5-22-200	M5	22	200	0.8	3.5	-	8	-	9.2
HBIRZ5-25-10	M5	25	10	0.8	3.5	-	8	-	9.2
HBIRZ5-25-200	M5	25	200	0.8	3.5	-	8	-	9.2
HBIRZ5-30-10	M5	30	10	0.8	3.5	-	8	-	9.2
HBIRZ5-30-200	M5	30	200	0.8	3.5	-	8	-	9.2
HBIRZ5-35-10	M5	35	10	0.8	3.5	-	8	-	9.2
HBIRZ5-35-200	M5	35	200	0.8	3.5	-	8	-	9.2
HBIRZ5-40-10	M5	40	10	0.8	3.5	-	8	-	9.2
HBIRZ5-40-200	M5	40	200	0.8	3.5	-	8	-	9.2
HBIRZ6-8-10	M6	8	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-8-200	M6	8	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-10-10	M6	10	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-10-200	M6	10	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-12-10	M6	12	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-12-200	M6	12	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-14-10	M6	14	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-14-200	M6	14	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-15-10	M6	15	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-15-200	M6	15	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-16-10	M6	16	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-16-200	M6	16	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-18-10	M6	18	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-18-200	M6	18	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-20-10	M6	20	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-20-200	M6	20	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-22-10	M6	22	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-22-200	M6	22	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-25-10	M6	25	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-25-200	M6	25	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-30-10	M6	30	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-30-200	M6	30	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-35-10	M6	35	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-35-200	M6	35	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-40-10	M6	40	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-40-200	M6	40	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-45-10	M6	45	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-45-200	M6	45	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-50-10	M6	50	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-50-200	M6	50	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-55-10	M6	55	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-55-200	M6	55	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-60-10	M6	60	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-60-200	M6	60	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-65-10	M6	65	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-65-200	M6	65	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-70-10	M6	70	10	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-70-200	M6	70	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-75	M6	75	1	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-75-200	M6	75	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-85	M6	85	1	1	4	±0.25	10	0-0.6	11.5
HBIRZ6-85-200	M6	85	200	1	4	±0.25	10	0-0.6	11.5
HBIRZ8-10	M8	10	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-10-100	M8	10	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-12	M8	12	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-12-100	M8	12	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-15	M8	15	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-15-100	M8	15	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-16	M8	16	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-16-100	M8	16	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-18	M8	18	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-18-100	M8	18	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-20	M8	20	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-20-100	M8	20	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-25	M8	25	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-25-100	M8	25	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-30	M8	30	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-30-100	M8	30	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-35	M8	35	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-35-100	M8	35	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-40	M8	40	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-40-100	M8	40	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-45	M8	45	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-45-100	M8	45	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-50	M8	50	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-50-100	M8	50	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-55	M8	55	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-55-100	M8	55	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-60	M8	60	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-60-100	M8	60	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-65	M8	65	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-65-100	M8	65	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-70	M8	70	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-70-100	M8	70	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-75	M8	75	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-75-100	M8	75	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-80	M8	80	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-80-100	M8	80	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-85	M8	85	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-85-100	M8	85	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-90	M8	90	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-90-100	M8	90	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-100	M8	100	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-100-100	M8	100	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-130	M8	130	1	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ8-130-100	M8	130	100	1.25	5.5	±0.25	13	0-0.7	15
HBIRZ10-16	M10	16	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-16-100	M10	16	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-20	M10	20	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-20-100	M10	20	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-25	M10	25	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-25-100	M10	25	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-30	M10	30	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-30-100	M10	30	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-35	M10	35	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-35-100	M10	35	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-40	M10	40	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-40-100	M10	40	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-45	M10	45	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-45-100	M10	45	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-50	M10	50	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-50-100	M10	50	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-55	M10	55	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-55-100	M10	55	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-60	M10	60	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-60-100	M10	60	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-65	M10	65	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-65-100	M10	65	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-70	M10	70	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-70-100	M10	70	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-75	M10	75	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-75-100	M10	75	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-80	M10	80	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-80-100	M10	80	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-100	M10	100	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-100-100	M10	100	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-150	M10	150	1	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ10-150-100	M10	150	100	1.5	7	±0.3	17	0-0.7	19.6
HBIRZ12-20	M12	20	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-20-100	M12	20	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-25	M12	25	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-25-100	M12	25	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-30	M12	30	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-30-100	M12	30	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-35	M12	35	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-35-100	M12	35	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-40	M12	40	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-40-100	M12	40	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-45	M12	45	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-45-100	M12	45	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-50	M12	50	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-50-100	M12	50	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-55	M12	55	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-55-100	M12	55	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-60	M12	60	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-60-100	M12	60	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-65	M12	65	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-65-100	M12	65	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-70	M12	70	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-70-100	M12	70	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-75	M12	75	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-75-100	M12	75	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-80	M12	80	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-80-100	M12	80	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-85	M12	85	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-85-100	M12	85	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-90	M12	90	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-90-100	M12	90	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-100	M12	100	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-100-100	M12	100	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-150	M12	150	1	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ12-150-100	M12	150	100	1.75	8	±0.3	19	0-0.8	21.9
HBIRZ14-50	M14	50	1	2	9	±0.3	22	0-0.8	25.4
HBIRZ14-50-50	M14	50	50	2	9	±0.3	22	0-0.8	25.4
HBIRZ14-200	M14	200	1	2	9	±0.3	22	0-0.8	25.4
HBIRZ16-25	M16	25	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-25-50	M16	25	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-30	M16	30	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-30-50	M16	30	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-35	M16	35	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-35-50	M16	35	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-40	M16	40	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-40-50	M16	40	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-45	M16	45	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-45-50	M16	45	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-50	M16	50	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-50-50	M16	50	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-55	M16	55	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-55-50	M16	55	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-60	M16	60	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-60-50	M16	60	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-65	M16	65	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-65-50	M16	65	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-70	M16	70	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-70-50	M16	70	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-75	M16	75	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-75-50	M16	75	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-80	M16	80	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-80-50	M16	80	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-100	M16	100	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-100-50	M16	100	50	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-110	M16	110	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-110-10	M16	110	10	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-120	M16	120	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-120-10	M16	120	10	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-150	M16	150	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-150-10	M16	150	10	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-180	M16	180	1	2	10	±0.3	24	0-0.8	27.7
HBIRZ16-180-10	M16	180	10	2	10	±0.3	24	0-0.8	27.7
HBIRZ20-40	M20	40	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-40-10	M20	40	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-45	M20	45	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-45-10	M20	45	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-50	M20	50	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-50-10	M20	50	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-55	M20	55	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-55-10	M20	55	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-60	M20	60	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-60-10	M20	60	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-70	M20	70	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-70-10	M20	70	10	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ20-200	M20	200	1	2.5	13	±0.35	30	0-0.8	34.6
HBIRZ24-30	M24	30	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ24-40	M24	40	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ24-45	M24	45	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ24-50	M24	50	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ24-60	M24	60	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ24-90	M24	90	1	3	15	±0.35	36	0-1.0	41.6
HBIRZ30-45	M30	45	1	3.5	19	±0.4	46	0-1.0	53.1

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
HBIRZ4-8-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-8-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-10-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-10-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-12-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-12-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-15-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-15-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-16-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-16-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-20-10	C	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ4-20-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-25-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ4-25-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ4-30-10	C	6,160	-	-	-	-	견적의뢰 / 주문
HBIRZ4-30-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-6-10	C	10,120	-	-	-	-	견적의뢰 / 주문
HBIRZ5-6-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBIRZ5-8-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ5-8-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-10-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ5-10-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-12-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ5-12-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-14-10	C	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ5-14-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-15-10	C	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ5-15-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-16-10	C	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ5-16-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-20-10	C	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ5-20-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-22-10	C	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ5-22-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ5-25-10	C	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ5-25-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ5-30-10	C	7,480	-	-	-	-	견적의뢰 / 주문
HBIRZ5-30-200	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ5-35-10	C	10,560	-	-	-	-	견적의뢰 / 주문
HBIRZ5-35-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ5-40-10	C	11,000	-	-	-	-	견적의뢰 / 주문
HBIRZ5-40-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-8-10	C	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ6-8-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-10-10	C	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ6-10-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-12-10	C	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ6-12-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-14-10	C	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ6-14-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-15-10	C	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ6-15-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-16-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ6-16-200	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-18-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ6-18-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-20-10	C	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ6-20-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-22-10	C	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-22-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-25-10	C	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-25-200	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-30-10	C	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-30-200	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-35-10	C	7,040	-	-	-	-	견적의뢰 / 주문
HBIRZ6-35-200	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-40-10	C	7,480	-	-	-	-	견적의뢰 / 주문
HBIRZ6-40-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ6-45-10	C	7,920	-	-	-	-	견적의뢰 / 주문
HBIRZ6-45-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ6-50-10	C	8,360	-	-	-	-	견적의뢰 / 주문
HBIRZ6-50-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ6-55-10	C	9,240	-	-	-	-	견적의뢰 / 주문
HBIRZ6-55-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ6-60-10	C	10,120	-	-	-	-	견적의뢰 / 주문
HBIRZ6-60-200	C	123,200	-	-	-	-	견적의뢰 / 주문
HBIRZ6-65-10	C	11,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-65-200	C	132,000	-	-	-	-	견적의뢰 / 주문
HBIRZ6-70-10	C	11,880	-	-	-	-	견적의뢰 / 주문
HBIRZ6-70-200	C	140,800	-	-	-	-	견적의뢰 / 주문
HBIRZ6-75	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ6-75-200	C	158,400	-	-	-	-	견적의뢰 / 주문
HBIRZ6-85	P	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ6-85-200	C	501,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-10	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-10-100	C	35,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-12	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-12-100	C	35,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-15	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-15-100	C	35,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-16	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-16-100	C	35,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-18	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-18-100	C	39,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-20	P	1,320	-	-	-	-	견적의뢰 / 주문
HBIRZ8-20-100	C	39,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-25	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-25-100	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ8-30	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-30-100	C	44,000	-	-	-	-	견적의뢰 / 주문
HBIRZ8-35	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-35-100	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ8-40	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-40-100	C	57,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-45	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-45-100	C	57,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-50	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ8-50-100	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-55	P	2,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-55-100	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ8-60	P	2,200	-	-	-	-	견적의뢰 / 주문
HBIRZ8-60-100	C	74,800	-	-	-	-	견적의뢰 / 주문
HBIRZ8-65	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ8-65-100	C	83,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-70	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ8-70-100	C	88,000	-	-	-	-	견적의뢰 / 주문
HBIRZ8-75	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ8-75-100	C	96,800	-	-	-	-	견적의뢰 / 주문
HBIRZ8-80	P	3,080	-	-	-	-	견적의뢰 / 주문
HBIRZ8-80-100	C	132,000	-	-	-	-	견적의뢰 / 주문
HBIRZ8-85	P	3,520	-	-	-	-	견적의뢰 / 주문
HBIRZ8-85-100	C	154,000	-	-	-	-	견적의뢰 / 주문
HBIRZ8-90	P	3,960	-	-	-	-	견적의뢰 / 주문
HBIRZ8-90-100	C	162,800	-	-	-	-	견적의뢰 / 주문
HBIRZ8-100	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ8-100-100	C	193,600	-	-	-	-	견적의뢰 / 주문
HBIRZ8-130	P	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ8-130-100	C	264,000	-	-	-	-	견적의뢰 / 주문
HBIRZ10-16	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ10-16-100	C	66,000	-	-	-	-	견적의뢰 / 주문
HBIRZ10-20	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ10-20-100	C	66,000	-	-	-	-	견적의뢰 / 주문
HBIRZ10-25	P	1,760	-	-	-	-	견적의뢰 / 주문
HBIRZ10-25-100	C	74,800	-	-	-	-	견적의뢰 / 주문
HBIRZ10-30	P	2,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-30-100	C	83,600	-	-	-	-	견적의뢰 / 주문
HBIRZ10-35	P	2,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-35-100	C	92,400	-	-	-	-	견적의뢰 / 주문
HBIRZ10-40	P	2,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-40-100	C	101,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-45	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ10-45-100	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ10-50	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ10-50-100	C	110,000	-	-	-	-	견적의뢰 / 주문
HBIRZ10-55	P	3,080	-	-	-	-	견적의뢰 / 주문
HBIRZ10-55-100	C	123,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-60	P	3,080	-	-	-	-	견적의뢰 / 주문
HBIRZ10-60-100	C	140,800	-	-	-	-	견적의뢰 / 주문
HBIRZ10-65	P	3,520	-	-	-	-	견적의뢰 / 주문
HBIRZ10-65-100	C	149,600	-	-	-	-	견적의뢰 / 주문
HBIRZ10-70	P	3,960	-	-	-	-	견적의뢰 / 주문
HBIRZ10-70-100	C	158,400	-	-	-	-	견적의뢰 / 주문
HBIRZ10-75	P	3,960	-	-	-	-	견적의뢰 / 주문
HBIRZ10-75-100	C	167,200	-	-	-	-	견적의뢰 / 주문
HBIRZ10-80	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ10-80-100	C	176,000	-	-	-	-	견적의뢰 / 주문
HBIRZ10-100	P	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ10-100-100	C	237,600	-	-	-	-	견적의뢰 / 주문
HBIRZ10-150	P	10,560	-	-	-	-	견적의뢰 / 주문
HBIRZ10-150-100	C	484,000	-	-	-	-	견적의뢰 / 주문
HBIRZ12-20	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ12-20-100	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ12-25	P	2,640	-	-	-	-	견적의뢰 / 주문
HBIRZ12-25-100	C	110,000	-	-	-	-	견적의뢰 / 주문
HBIRZ12-30	P	3,080	-	-	-	-	견적의뢰 / 주문
HBIRZ12-30-100	C	118,800	-	-	-	-	견적의뢰 / 주문
HBIRZ12-35	P	3,080	-	-	-	-	견적의뢰 / 주문
HBIRZ12-35-100	C	127,600	-	-	-	-	견적의뢰 / 주문
HBIRZ12-40	P	3,520	-	-	-	-	견적의뢰 / 주문
HBIRZ12-40-100	C	136,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-45	P	3,520	-	-	-	-	견적의뢰 / 주문
HBIRZ12-45-100	C	145,200	-	-	-	-	견적의뢰 / 주문
HBIRZ12-50	P	3,960	-	-	-	-	견적의뢰 / 주문
HBIRZ12-50-100	C	158,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-55	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-55-100	C	176,000	-	-	-	-	견적의뢰 / 주문
HBIRZ12-60	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-60-100	C	189,200	-	-	-	-	견적의뢰 / 주문
HBIRZ12-65	P	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ12-65-100	C	198,000	-	-	-	-	견적의뢰 / 주문
HBIRZ12-70	P	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ12-70-100	C	211,200	-	-	-	-	견적의뢰 / 주문
HBIRZ12-75	P	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ12-75-100	C	224,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-80	P	5,280	-	-	-	-	견적의뢰 / 주문
HBIRZ12-80-100	C	242,000	-	-	-	-	견적의뢰 / 주문
HBIRZ12-85	P	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ12-85-100	C	246,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-90	P	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ12-90-100	C	290,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-100	P	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ12-100-100	C	356,400	-	-	-	-	견적의뢰 / 주문
HBIRZ12-150	P	8,800	-	-	-	-	견적의뢰 / 주문
HBIRZ12-150-100	C	479,600	-	-	-	-	견적의뢰 / 주문
HBIRZ14-50	P	7,480	-	-	-	-	견적의뢰 / 주문
HBIRZ14-50-50	C	154,000	-	-	-	-	견적의뢰 / 주문
HBIRZ14-200	P	17,600	-	-	-	-	견적의뢰 / 주문
HBIRZ16-25	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ16-25-50	C	118,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-30	P	4,400	-	-	-	-	견적의뢰 / 주문
HBIRZ16-30-50	C	118,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-35	P	4,840	-	-	-	-	견적의뢰 / 주문
HBIRZ16-35-50	C	118,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-40	P	5,060	-	-	-	-	견적의뢰 / 주문
HBIRZ16-40-50	C	127,600	-	-	-	-	견적의뢰 / 주문
HBIRZ16-45	P	5,500	-	-	-	-	견적의뢰 / 주문
HBIRZ16-45-50	C	132,000	-	-	-	-	견적의뢰 / 주문
HBIRZ16-50	P	5,720	-	-	-	-	견적의뢰 / 주문
HBIRZ16-50-50	C	145,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-55	P	6,160	-	-	-	-	견적의뢰 / 주문
HBIRZ16-55-50	C	167,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-60	P	6,600	-	-	-	-	견적의뢰 / 주문
HBIRZ16-60-50	C	180,400	-	-	-	-	견적의뢰 / 주문
HBIRZ16-65	P	7,040	-	-	-	-	견적의뢰 / 주문
HBIRZ16-65-50	C	189,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-70	P	7,260	-	-	-	-	견적의뢰 / 주문
HBIRZ16-70-50	C	202,400	-	-	-	-	견적의뢰 / 주문
HBIRZ16-75	P	7,700	-	-	-	-	견적의뢰 / 주문
HBIRZ16-75-50	C	211,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-80	P	7,920	-	-	-	-	견적의뢰 / 주문
HBIRZ16-80-50	C	228,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-100	P	8,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-100-50	C	299,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-110	P	9,680	-	-	-	-	견적의뢰 / 주문
HBIRZ16-110-10	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ16-120	P	10,560	-	-	-	-	견적의뢰 / 주문
HBIRZ16-120-10	C	66,000	-	-	-	-	견적의뢰 / 주문
HBIRZ16-150	P	11,880	-	-	-	-	견적의뢰 / 주문
HBIRZ16-150-10	C	74,800	-	-	-	-	견적의뢰 / 주문
HBIRZ16-180	P	13,200	-	-	-	-	견적의뢰 / 주문
HBIRZ16-180-10	C	105,600	-	-	-	-	견적의뢰 / 주문
HBIRZ20-40	P	7,040	-	-	-	-	견적의뢰 / 주문
HBIRZ20-40-10	C	48,400	-	-	-	-	견적의뢰 / 주문
HBIRZ20-45	P	7,480	-	-	-	-	견적의뢰 / 주문
HBIRZ20-45-10	C	48,400	-	-	-	-	견적의뢰 / 주문
HBIRZ20-50	P	7,920	-	-	-	-	견적의뢰 / 주문
HBIRZ20-50-10	C	52,800	-	-	-	-	견적의뢰 / 주문
HBIRZ20-55	P	8,800	-	-	-	-	견적의뢰 / 주문
HBIRZ20-55-10	C	61,600	-	-	-	-	견적의뢰 / 주문
HBIRZ20-60	P	9,240	-	-	-	-	견적의뢰 / 주문
HBIRZ20-60-10	C	66,000	-	-	-	-	견적의뢰 / 주문
HBIRZ20-70	P	10,560	-	-	-	-	견적의뢰 / 주문
HBIRZ20-70-10	C	70,400	-	-	-	-	견적의뢰 / 주문
HBIRZ20-200	P	20,680	-	-	-	-	견적의뢰 / 주문
HBIRZ24-30	P	8,800	-	-	-	-	견적의뢰 / 주문
HBIRZ24-40	P	9,680	-	-	-	-	견적의뢰 / 주문
HBIRZ24-45	P	8,800	-	-	-	-	견적의뢰 / 주문
HBIRZ24-50	P	9,240	-	-	-	-	견적의뢰 / 주문
HBIRZ24-60	P	14,960	-	-	-	-	견적의뢰 / 주문
HBIRZ24-90	P	31,680	-	-	-	-	견적의뢰 / 주문
HBIRZ30-45	P	34,760	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
