육각볼트

HBSK 스테인레스육각볼트

와이에이치티 ( YHT )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


448건 중 1~448건 표시

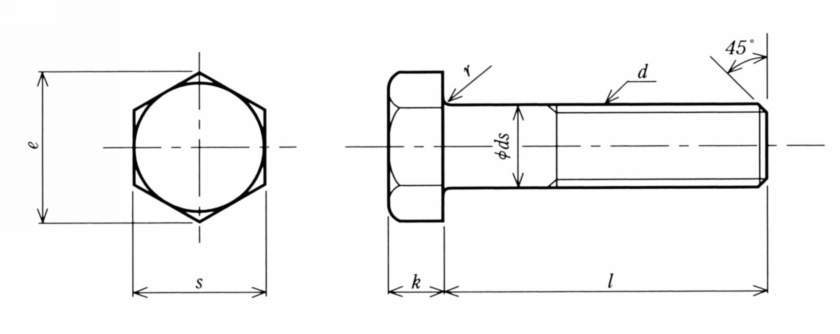

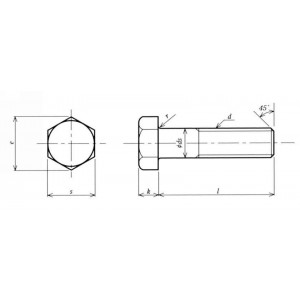

형식	호칭d	l (mm)	포장개수	피치p (mm)	축경ds(mm)	축경ds(mm)	머리부분 높이k (mm)	머리부분 높이k (mm)
형식	호칭d	l (mm)	포장개수	피치p (mm)	기준치수	허용차	기준치수	허용차
HBSK3-8	M3	8	1	0.5	3	-	2	-
HBSK3-8-200	M3	8	200	0.5	3	-	2	-
HBSK3-10	M3	10	1	0.5	3	-	2	-
HBSK3-10-200	M3	10	200	0.5	3	-	2	-
HBSK3-12	M3	12	1	0.5	3	-	2	-
HBSK3-12-200	M3	12	200	0.5	3	-	2	-
HBSK3-16	M3	16	1	0.5	3	-	2	-
HBSK3-16-200	M3	16	200	0.5	3	-	2	-
HBSK3-20	M3	20	1	0.5	3	-	2	-
HBSK3-20-200	M3	20	200	0.5	3	-	2	-
HBSK3-25	M3	25	1	0.5	3	-	2	-
HBSK3-25-200	M3	25	200	0.5	3	-	2	-
HBSK4-6	M4	6	1	0.7	4	-	2.8	-
HBSK4-6-200	M4	6	200	0.7	4	-	2.8	-
HBSK4-8	M4	8	1	0.7	4	-	2.8	-
HBSK4-8-200	M4	8	200	0.7	4	-	2.8	-
HBSK4-10	M4	10	1	0.7	4	-	2.8	-
HBSK4-10-200	M4	10	200	0.7	4	-	2.8	-
HBSK4-12	M4	12	1	0.7	4	-	2.8	-
HBSK4-12-200	M4	12	200	0.7	4	-	2.8	-
HBSK4-15	M4	15	1	0.7	4	-	2.8	-
HBSK4-15-200	M4	15	200	0.7	4	-	2.8	-
HBSK4-16	M4	16	1	0.7	4	-	2.8	-
HBSK4-16-200	M4	16	200	0.7	4	-	2.8	-
HBSK4-20	M4	20	1	0.7	4	-	2.8	-
HBSK4-20-200	M4	20	200	0.7	4	-	2.8	-
HBSK4-25	M4	25	1	0.7	4	-	2.8	-
HBSK4-25-200	M4	25	200	0.7	4	-	2.8	-
HBSK4-30	M4	30	1	0.7	4	-	2.8	-
HBSK4-30-200	M4	30	200	0.7	4	-	2.8	-
HBSK4-35	M4	35	1	0.7	4	-	2.8	-
HBSK4-35-200	M4	35	200	0.7	4	-	2.8	-
HBSK4-40	M4	40	1	0.7	4	-	2.8	-
HBSK4-40-200	M4	40	200	0.7	4	-	2.8	-
HBSK4-45	M4	45	1	0.7	4	-	2.8	-
HBSK4-45-200	M4	45	200	0.7	4	-	2.8	-
HBSK4-50	M4	50	1	0.7	4	-	2.8	-
HBSK4-50-200	M4	50	200	0.7	4	-	2.8	-
HBSK5-8	M5	8	1	0.8	5	-	3.5	-
HBSK5-8-200	M5	8	200	0.8	5	-	3.5	-
HBSK5-10	M5	10	1	0.8	5	-	3.5	-
HBSK5-10-200	M5	10	200	0.8	5	-	3.5	-
HBSK5-12	M5	12	1	0.8	5	-	3.5	-
HBSK5-12-200	M5	12	200	0.8	5	-	3.5	-
HBSK5-14	M5	14	1	0.8	5	-	3.5	-
HBSK5-14-200	M5	14	200	0.8	5	-	3.5	-
HBSK5-15	M5	15	1	0.8	5	-	3.5	-
HBSK5-15-200	M5	15	200	0.8	5	-	3.5	-
HBSK5-16	M5	16	1	0.8	5	-	3.5	-
HBSK5-16-200	M5	16	200	0.8	5	-	3.5	-
HBSK5-18	M5	18	1	0.8	5	-	3.5	-
HBSK5-18-200	M5	18	200	0.8	5	-	3.5	-
HBSK5-20	M5	20	1	0.8	5	-	3.5	-
HBSK5-20-200	M5	20	200	0.8	5	-	3.5	-
HBSK5-25	M5	25	1	0.8	5	-	3.5	-
HBSK5-25-200	M5	25	200	0.8	5	-	3.5	-
HBSK5-30	M5	30	1	0.8	5	-	3.5	-
HBSK5-30-200	M5	30	200	0.8	5	-	3.5	-
HBSK5-35	M5	35	1	0.8	5	-	3.5	-
HBSK5-35-200	M5	35	200	0.8	5	-	3.5	-
HBSK5-40	M5	40	1	0.8	5	-	3.5	-
HBSK5-40-200	M5	40	200	0.8	5	-	3.5	-
HBSK5-45	M5	45	1	0.8	5	-	3.5	-
HBSK5-45-200	M5	45	200	0.8	5	-	3.5	-
HBSK5-50	M5	50	1	0.8	5	-	3.5	-
HBSK5-50-200	M5	50	200	0.8	5	-	3.5	-
HBSK5-60	M5	60	1	0.8	5	-	3.5	-
HBSK5-60-200	M5	60	200	0.8	5	-	3.5	-
HBSK5-65	M5	65	1	0.8	5	-	3.5	-
HBSK5-65-200	M5	65	200	0.8	5	-	3.5	-
HBSK5-70	M5	70	1	0.8	5	-	3.5	-
HBSK5-70-200	M5	70	200	0.8	5	-	3.5	-
HBSK5-75	M5	75	1	0.8	5	-	3.5	-
HBSK5-75-200	M5	75	200	0.8	5	-	3.5	-
HBSK6-8	M6	8	1	1	6	0-0.2	4	±0.25
HBSK6-8-100	M6	8	100	1	6	0-0.2	4	±0.25
HBSK6-10	M6	10	1	1	6	0-0.2	4	±0.25
HBSK6-10-100	M6	10	100	1	6	0-0.2	4	±0.25
HBSK6-12	M6	12	1	1	6	0-0.2	4	±0.25
HBSK6-12-100	M6	12	100	1	6	0-0.2	4	±0.25
HBSK6-14	M6	14	1	1	6	0-0.2	4	±0.25
HBSK6-14-100	M6	14	100	1	6	0-0.2	4	±0.25
HBSK6-15	M6	15	1	1	6	0-0.2	4	±0.25
HBSK6-15-100	M6	15	100	1	6	0-0.2	4	±0.25
HBSK6-16	M6	16	1	1	6	0-0.2	4	±0.25
HBSK6-16-100	M6	16	100	1	6	0-0.2	4	±0.25
HBSK6-18	M6	18	1	1	6	0-0.2	4	±0.25
HBSK6-18-100	M6	18	100	1	6	0-0.2	4	±0.25
HBSK6-20	M6	20	1	1	6	0-0.2	4	±0.25
HBSK6-20-100	M6	20	100	1	6	0-0.2	4	±0.25
HBSK6-25	M6	25	1	1	6	0-0.2	4	±0.25
HBSK6-25-100	M6	25	100	1	6	0-0.2	4	±0.25
HBSK6-30	M6	30	1	1	6	0-0.2	4	±0.25
HBSK6-30-100	M6	30	100	1	6	0-0.2	4	±0.25
HBSK6-35	M6	35	1	1	6	0-0.2	4	±0.25
HBSK6-35-100	M6	35	100	1	6	0-0.2	4	±0.25
HBSK6-40	M6	40	1	1	6	0-0.2	4	±0.25
HBSK6-40-100	M6	40	100	1	6	0-0.2	4	±0.25
HBSK6-45	M6	45	1	1	6	0-0.2	4	±0.25
HBSK6-45-100	M6	45	100	1	6	0-0.2	4	±0.25
HBSK6-50	M6	50	1	1	6	0-0.2	4	±0.25
HBSK6-50-100	M6	50	100	1	6	0-0.2	4	±0.25
HBSK6-55	M6	55	1	1	6	0-0.2	4	±0.25
HBSK6-55-100	M6	55	100	1	6	0-0.2	4	±0.25
HBSK6-60	M6	60	1	1	6	0-0.2	4	±0.25
HBSK6-60-100	M6	60	100	1	6	0-0.2	4	±0.25
HBSK6-65	M6	65	1	1	6	0-0.2	4	±0.25
HBSK6-65-100	M6	65	100	1	6	0-0.2	4	±0.25
HBSK6-70	M6	70	1	1	6	0-0.2	4	±0.25
HBSK6-70-100	M6	70	100	1	6	0-0.2	4	±0.25
HBSK6-75	M6	75	1	1	6	0-0.2	4	±0.25
HBSK6-75-100	M6	75	100	1	6	0-0.2	4	±0.25
HBSK6-80	M6	80	1	1	6	0-0.2	4	±0.25
HBSK6-80-100	M6	80	100	1	6	0-0.2	4	±0.25
HBSK6-85	M6	85	1	1	6	0-0.2	4	±0.25
HBSK6-85-100	M6	85	100	1	6	0-0.2	4	±0.25
HBSK6-90	M6	90	1	1	6	0-0.2	4	±0.25
HBSK6-90-150	M6	90	150	1	6	0-0.2	4	±0.25
HBSK6-100	M6	100	1	1	6	0-0.2	4	±0.25
HBSK6-100-150	M6	100	150	1	6	0-0.2	4	±0.25
HBSK6-110	M6	110	1	1	6	0-0.2	4	±0.25
HBSK6-110-150	M6	110	150	1	6	0-0.2	4	±0.25
HBSK6-120	M6	120	1	1	6	0-0.2	4	±0.25
HBSK6-120-150	M6	120	150	1	6	0-0.2	4	±0.25
HBSK6-130	M6	130	1	1	6	0-0.2	4	±0.25
HBSK6-130-150	M6	130	150	1	6	0-0.2	4	±0.25
HBSK6-140	M6	140	1	1	6	0-0.2	4	±0.25
HBSK6-140-150	M6	140	150	1	6	0-0.2	4	±0.25
HBSK6-150	M6	150	1	1	6	0-0.2	4	±0.25
HBSK6-150-150	M6	150	150	1	6	0-0.2	4	±0.25
HBSK8-10	M8	10	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-10-200	M8	10	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-12	M8	12	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-12-200	M8	12	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-14	M8	14	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-14-200	M8	14	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-15	M8	15	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-15-200	M8	15	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-16	M8	16	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-16-200	M8	16	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-18	M8	18	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-18-200	M8	18	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-20	M8	20	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-20-200	M8	20	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-25	M8	25	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-25-200	M8	25	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-30	M8	30	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-30-200	M8	30	200	1.25	8	0-0.2	5.5	±0.25
HBSK8-35	M8	35	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-35-100	M8	35	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-40	M8	40	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-40-100	M8	40	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-45	M8	45	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-45-100	M8	45	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-50	M8	50	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-50-100	M8	50	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-55	M8	55	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-55-100	M8	55	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-60	M8	60	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-60-100	M8	60	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-65	M8	65	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-65-100	M8	65	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-70	M8	70	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-70-100	M8	70	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-75	M8	75	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-75-100	M8	75	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-80	M8	80	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-80-100	M8	80	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-85	M8	85	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-85-100	M8	85	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-90	M8	90	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-90-100	M8	90	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-95	M8	95	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-95-100	M8	95	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-100	M8	100	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-100-100	M8	100	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-110	M8	110	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-110-100	M8	110	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-120	M8	120	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-120-100	M8	120	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-130	M8	130	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-130-100	M8	130	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-140	M8	140	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-140-100	M8	140	100	1.25	8	0-0.2	5.5	±0.25
HBSK8-150	M8	150	1	1.25	8	0-0.2	5.5	±0.25
HBSK8-150-50	M8	150	50	1.25	8	0-0.2	5.5	±0.25
HBSK10-14	M10	14	1	1.5	10	0-0.2	7	±0.3
HBSK10-14-100	M10	14	100	1.5	10	0-0.2	7	±0.3
HBSK10-15	M10	15	1	1.5	10	0-0.2	7	±0.3
HBSK10-15-100	M10	15	100	1.5	10	0-0.2	7	±0.3
HBSK10-16	M10	16	1	1.5	10	0-0.2	7	±0.3
HBSK10-16-100	M10	16	100	1.5	10	0-0.2	7	±0.3
HBSK10-18	M10	18	1	1.5	10	0-0.2	7	±0.3
HBSK10-18-100	M10	18	100	1.5	10	0-0.2	7	±0.3
HBSK10-20	M10	20	1	1.5	10	0-0.2	7	±0.3
HBSK10-20-100	M10	20	100	1.5	10	0-0.2	7	±0.3
HBSK10-22	M10	22	1	1.5	10	0-0.2	7	±0.3
HBSK10-22-100	M10	22	100	1.5	10	0-0.2	7	±0.3
HBSK10-25	M10	25	1	1.5	10	0-0.2	7	±0.3
HBSK10-25-100	M10	25	100	1.5	10	0-0.2	7	±0.3
HBSK10-30	M10	30	1	1.5	10	0-0.2	7	±0.3
HBSK10-30-100	M10	30	100	1.5	10	0-0.2	7	±0.3
HBSK10-35	M10	35	1	1.5	10	0-0.2	7	±0.3
HBSK10-35-100	M10	35	100	1.5	10	0-0.2	7	±0.3
HBSK10-40	M10	40	1	1.5	10	0-0.2	7	±0.3
HBSK10-40-100	M10	40	100	1.5	10	0-0.2	7	±0.3
HBSK10-45	M10	45	1	1.5	10	0-0.2	7	±0.3
HBSK10-45-100	M10	45	100	1.5	10	0-0.2	7	±0.3
HBSK10-50	M10	50	1	1.5	10	0-0.2	7	±0.3
HBSK10-50-100	M10	50	100	1.5	10	0-0.2	7	±0.3
HBSK10-55	M10	55	1	1.5	10	0-0.2	7	±0.3
HBSK10-55-100	M10	55	100	1.5	10	0-0.2	7	±0.3
HBSK10-60	M10	60	1	1.5	10	0-0.2	7	±0.3
HBSK10-60-100	M10	60	100	1.5	10	0-0.2	7	±0.3
HBSK10-65	M10	65	1	1.5	10	0-0.2	7	±0.3
HBSK10-65-100	M10	65	100	1.5	10	0-0.2	7	±0.3
HBSK10-70	M10	70	1	1.5	10	0-0.2	7	±0.3
HBSK10-70-50	M10	70	50	1.5	10	0-0.2	7	±0.3
HBSK10-75	M10	75	1	1.5	10	0-0.2	7	±0.3
HBSK10-75-50	M10	75	50	1.5	10	0-0.2	7	±0.3
HBSK10-80	M10	80	1	1.5	10	0-0.2	7	±0.3
HBSK10-80-50	M10	80	50	1.5	10	0-0.2	7	±0.3
HBSK10-85	M10	85	1	1.5	10	0-0.2	7	±0.3
HBSK10-85-50	M10	85	50	1.5	10	0-0.2	7	±0.3
HBSK10-90	M10	90	1	1.5	10	0-0.2	7	±0.3
HBSK10-90-50	M10	90	50	1.5	10	0-0.2	7	±0.3
HBSK10-95	M10	95	1	1.5	10	0-0.2	7	±0.3
HBSK10-95-50	M10	95	50	1.5	10	0-0.2	7	±0.3
HBSK10-100	M10	100	1	1.5	10	0-0.2	7	±0.3
HBSK10-100-50	M10	100	50	1.5	10	0-0.2	7	±0.3
HBSK10-110	M10	110	1	1.5	10	0-0.2	7	±0.3
HBSK10-110-50	M10	110	50	1.5	10	0-0.2	7	±0.3
HBSK10-120	M10	120	1	1.5	10	0-0.2	7	±0.3
HBSK10-120-50	M10	120	50	1.5	10	0-0.2	7	±0.3
HBSK10-130	M10	130	1	1.5	10	0-0.2	7	±0.3
HBSK10-130-50	M10	130	50	1.5	10	0-0.2	7	±0.3
HBSK10-140	M10	140	1	1.5	10	0-0.2	7	±0.3
HBSK10-140-50	M10	140	50	1.5	10	0-0.2	7	±0.3
HBSK10-150	M10	150	1	1.5	10	0-0.2	7	±0.3
HBSK10-150-50	M10	150	50	1.5	10	0-0.2	7	±0.3
HBSK10-160	M10	160	1	1.5	10	0-0.2	7	±0.3
HBSK10-170	M10	170	1	1.5	10	0-0.2	7	±0.3
HBSK10-180	M10	180	1	1.5	10	0-0.2	7	±0.3
HBSK12-20	M12	20	1	1.75	12	0-0.25	8	±0.3
HBSK12-20-100	M12	20	100	1.75	12	0-0.25	8	±0.3
HBSK12-25	M12	25	1	1.75	12	0-0.25	8	±0.3
HBSK12-25-100	M12	25	100	1.75	12	0-0.25	8	±0.3
HBSK12-30	M12	30	1	1.75	12	0-0.25	8	±0.3
HBSK12-30-100	M12	30	100	1.75	12	0-0.25	8	±0.3
HBSK12-35	M12	35	1	1.75	12	0-0.25	8	±0.3
HBSK12-35-100	M12	35	100	1.75	12	0-0.25	8	±0.3
HBSK12-40	M12	40	1	1.75	12	0-0.25	8	±0.3
HBSK12-40-100	M12	40	100	1.75	12	0-0.25	8	±0.3
HBSK12-45	M12	45	1	1.75	12	0-0.25	8	±0.3
HBSK12-45-100	M12	45	100	1.75	12	0-0.25	8	±0.3
HBSK12-50	M12	50	1	1.75	12	0-0.25	8	±0.3
HBSK12-50-50	M12	50	50	1.75	12	0-0.25	8	±0.3
HBSK12-55	M12	55	1	1.75	12	0-0.25	8	±0.3
HBSK12-55-50	M12	55	50	1.75	12	0-0.25	8	±0.3
HBSK12-60	M12	60	1	1.75	12	0-0.25	8	±0.3
HBSK12-60-50	M12	60	50	1.75	12	0-0.25	8	±0.3
HBSK12-65	M12	65	1	1.75	12	0-0.25	8	±0.3
HBSK12-65-50	M12	65	50	1.75	12	0-0.25	8	±0.3
HBSK12-70	M12	70	1	1.75	12	0-0.25	8	±0.3
HBSK12-70-50	M12	70	50	1.75	12	0-0.25	8	±0.3
HBSK12-75	M12	75	1	1.75	12	0-0.25	8	±0.3
HBSK12-75-50	M12	75	50	1.75	12	0-0.25	8	±0.3
HBSK12-80	M12	80	1	1.75	12	0-0.25	8	±0.3
HBSK12-80-50	M12	80	50	1.75	12	0-0.25	8	±0.3
HBSK12-85	M12	85	1	1.75	12	0-0.25	8	±0.3
HBSK12-85-50	M12	85	50	1.75	12	0-0.25	8	±0.3
HBSK12-90	M12	90	1	1.75	12	0-0.25	8	±0.3
HBSK12-90-50	M12	90	50	1.75	12	0-0.25	8	±0.3
HBSK12-95	M12	95	1	1.75	12	0-0.25	8	±0.3
HBSK12-95-50	M12	95	50	1.75	12	0-0.25	8	±0.3
HBSK12-100	M12	100	1	1.75	12	0-0.25	8	±0.3
HBSK12-100-50	M12	100	50	1.75	12	0-0.25	8	±0.3
HBSK12-110	M12	110	1	1.75	12	0-0.25	8	±0.3
HBSK12-110-50	M12	110	50	1.75	12	0-0.25	8	±0.3
HBSK12-120	M12	120	1	1.75	12	0-0.25	8	±0.3
HBSK12-120-50	M12	120	50	1.75	12	0-0.25	8	±0.3
HBSK12-130	M12	130	1	1.75	12	0-0.25	8	±0.3
HBSK12-130-50	M12	130	50	1.75	12	0-0.25	8	±0.3
HBSK12-140	M12	140	1	1.75	12	0-0.25	8	±0.3
HBSK12-140-40	M12	140	40	1.75	12	0-0.25	8	±0.3
HBSK12-150	M12	150	1	1.75	12	0-0.25	8	±0.3
HBSK12-150-40	M12	150	40	1.75	12	0-0.25	8	±0.3
HBSK12-160	M12	160	1	1.75	12	0-0.25	8	±0.3
HBSK12-170	M12	170	1	1.75	12	0-0.25	8	±0.3
HBSK12-180	M12	180	1	1.75	12	0-0.25	8	±0.3
HBSK12-200	M12	200	1	1.75	12	0-0.25	8	±0.3
HBSK14-25	M14	25	1	2	14	0-0.25	9	±0.3
HBSK14-25-50	M14	25	50	2	14	0-0.25	9	±0.3
HBSK14-30	M14	30	1	2	14	0-0.25	9	±0.3
HBSK14-30-50	M14	30	50	2	14	0-0.25	9	±0.3
HBSK14-35	M14	35	1	2	14	0-0.25	9	±0.3
HBSK14-35-50	M14	35	50	2	14	0-0.25	9	±0.3
HBSK14-40	M14	40	1	2	14	0-0.25	9	±0.3
HBSK14-40-50	M14	40	50	2	14	0-0.25	9	±0.3
HBSK14-45	M14	45	1	2	14	0-0.25	9	±0.3
HBSK14-45-50	M14	45	50	2	14	0-0.25	9	±0.3
HBSK14-50	M14	50	1	2	14	0-0.25	9	±0.3
HBSK14-50-50	M14	50	50	2	14	0-0.25	9	±0.3
HBSK14-55	M14	55	1	2	14	0-0.25	9	±0.3
HBSK14-55-40	M14	55	40	2	14	0-0.25	9	±0.3
HBSK14-60	M14	60	1	2	14	0-0.25	9	±0.3
HBSK14-60-40	M14	60	40	2	14	0-0.25	9	±0.3
HBSK14-65	M14	65	1	2	14	0-0.25	9	±0.3
HBSK14-65-40	M14	65	40	2	14	0-0.25	9	±0.3
HBSK14-70	M14	70	1	2	14	0-0.25	9	±0.3
HBSK14-70-30	M14	70	30	2	14	0-0.25	9	±0.3
HBSK14-75	M14	75	1	2	14	0-0.25	9	±0.3
HBSK14-75-30	M14	75	30	2	14	0-0.25	9	±0.3
HBSK14-80	M14	80	1	2	14	0-0.25	9	±0.3
HBSK14-80-35	M14	80	35	2	14	0-0.25	9	±0.3
HBSK14-90	M14	90	1	2	14	0-0.25	9	±0.3
HBSK14-90-30	M14	90	30	2	14	0-0.25	9	±0.3
HBSK14-100	M14	100	1	2	14	0-0.25	9	±0.3
HBSK14-100-20	M14	100	20	2	14	0-0.25	9	±0.3
HBSK16-25	M16	25	1	2	16	0-0.25	10	±0.3
HBSK16-25-50	M16	25	50	2	16	0-0.25	10	±0.3
HBSK16-30	M16	30	1	2	16	0-0.25	10	±0.3
HBSK16-30-50	M16	30	50	2	16	0-0.25	10	±0.3
HBSK16-35	M16	35	1	2	16	0-0.25	10	±0.3
HBSK16-35-50	M16	35	50	2	16	0-0.25	10	±0.3
HBSK16-40	M16	40	1	2	16	0-0.25	10	±0.3
HBSK16-40-50	M16	40	50	2	16	0-0.25	10	±0.3
HBSK16-45	M16	45	1	2	16	0-0.25	10	±0.3
HBSK16-45-50	M16	45	50	2	16	0-0.25	10	±0.3
HBSK16-50	M16	50	1	2	16	0-0.25	10	±0.3
HBSK16-50-50	M16	50	50	2	16	0-0.25	10	±0.3
HBSK16-55	M16	55	1	2	16	0-0.25	10	±0.3
HBSK16-55-40	M16	55	40	2	16	0-0.25	10	±0.3
HBSK16-60	M16	60	1	2	16	0-0.25	10	±0.3
HBSK16-60-35	M16	60	35	2	16	0-0.25	10	±0.3
HBSK16-65	M16	65	1	2	16	0-0.25	10	±0.3
HBSK16-65-30	M16	65	30	2	16	0-0.25	10	±0.3
HBSK16-70	M16	70	1	2	16	0-0.25	10	±0.3
HBSK16-70-30	M16	70	30	2	16	0-0.25	10	±0.3
HBSK16-75	M16	75	1	2	16	0-0.25	10	±0.3
HBSK16-75-30	M16	75	30	2	16	0-0.25	10	±0.3
HBSK16-80	M16	80	1	2	16	0-0.25	10	±0.3
HBSK16-80-30	M16	80	30	2	16	0-0.25	10	±0.3
HBSK16-85	M16	85	1	2	16	0-0.25	10	±0.3
HBSK16-85-30	M16	85	30	2	16	0-0.25	10	±0.3
HBSK16-90	M16	90	1	2	16	0-0.25	10	±0.3
HBSK16-90-30	M16	90	30	2	16	0-0.25	10	±0.3
HBSK16-95	M16	95	1	2	16	0-0.25	10	±0.3
HBSK16-95-30	M16	95	30	2	16	0-0.25	10	±0.3
HBSK16-100	M16	100	1	2	16	0-0.25	10	±0.3
HBSK16-100-30	M16	100	30	2	16	0-0.25	10	±0.3
HBSK16-110	M16	110	1	2	16	0-0.25	10	±0.3
HBSK16-110-30	M16	110	30	2	16	0-0.25	10	±0.3
HBSK16-120	M16	120	1	2	16	0-0.25	10	±0.3
HBSK16-120-25	M16	120	25	2	16	0-0.25	10	±0.3
HBSK16-130	M16	130	1	2	16	0-0.25	10	±0.3
HBSK16-130-25	M16	130	25	2	16	0-0.25	10	±0.3
HBSK16-140	M16	140	1	2	16	0-0.25	10	±0.3
HBSK16-140-20	M16	140	20	2	16	0-0.25	10	±0.3
HBSK16-150	M16	150	1	2	16	0-0.25	10	±0.3
HBSK16-150-20	M16	150	20	2	16	0-0.25	10	±0.3
HBSK16-160	M16	160	1	2	16	0-0.25	10	±0.3
HBSK16-170	M16	170	1	2	16	0-0.25	10	±0.3
HBSK16-180	M16	180	1	2	16	0-0.25	10	±0.3
HBSK16-190	M16	190	1	2	16	0-0.25	10	±0.3
HBSK16-200	M16	200	1	2	16	0-0.25	10	±0.3
HBSK18-40	M18	40	1	2.5	18	0-0.25	12	±0.35
HBSK18-45	M18	45	1	2.5	18	0-0.25	12	±0.35
HBSK18-50	M18	50	1	2.5	18	0-0.25	12	±0.35
HBSK18-55	M18	55	1	2.5	18	0-0.25	12	±0.35
HBSK18-60	M18	60	1	2.5	18	0-0.25	12	±0.35
HBSK18-65	M18	65	1	2.5	18	0-0.25	12	±0.35
HBSK18-70	M18	70	1	2.5	18	0-0.25	12	±0.35
HBSK18-75	M18	75	1	2.5	18	0-0.25	12	±0.35
HBSK18-80	M18	80	1	2.5	18	0-0.25	12	±0.35
HBSK18-90	M18	90	1	2.5	18	0-0.25	12	±0.35
HBSK18-100	M18	100	1	2.5	18	0-0.25	12	±0.35
HBSK20-35	M20	35	1	2.5	20	0-0.35	13	±0.35
HBSK20-40	M20	40	1	2.5	20	0-0.35	13	±0.35
HBSK20-45	M20	45	1	2.5	20	0-0.35	13	±0.35
HBSK20-50	M20	50	1	2.5	20	0-0.35	13	±0.35
HBSK20-55	M20	55	1	2.5	20	0-0.35	13	±0.35
HBSK20-60	M20	60	1	2.5	20	0-0.35	13	±0.35
HBSK20-65	M20	65	1	2.5	20	0-0.35	13	±0.35
HBSK20-70	M20	70	1	2.5	20	0-0.35	13	±0.35
HBSK20-75	M20	75	1	2.5	20	0-0.35	13	±0.35
HBSK20-80	M20	80	1	2.5	20	0-0.35	13	±0.35
HBSK20-85	M20	85	1	2.5	20	0-0.35	13	±0.35
HBSK20-90	M20	90	1	2.5	20	0-0.35	13	±0.35
HBSK20-95	M20	95	1	2.5	20	0-0.35	13	±0.35
HBSK20-100	M20	100	1	2.5	20	0-0.35	13	±0.35
HBSK20-110	M20	110	1	2.5	20	0-0.35	13	±0.35
HBSK20-120	M20	120	1	2.5	20	0-0.35	13	±0.35
HBSK20-130	M20	130	1	2.5	20	0-0.35	13	±0.35
HBSK20-140	M20	140	1	2.5	20	0-0.35	13	±0.35
HBSK20-150	M20	150	1	2.5	20	0-0.35	13	±0.35
HBSK20-160	M20	160	1	2.5	20	0-0.35	13	±0.35
HBSK20-170	M20	170	1	2.5	20	0-0.35	13	±0.35
HBSK20-180	M20	180	1	2.5	20	0-0.35	13	±0.35
HBSK20-190	M20	190	1	2.5	20	0-0.35	13	±0.35
HBSK20-200	M20	200	1	2.5	20	0-0.35	13	±0.35
HBSK22-50	M22	50	1	2.5	22	0-0.35	14	±0.35
HBSK22-55	M22	55	1	2.5	22	0-0.35	14	±0.35
HBSK22-60	M22	60	1	2.5	22	0-0.35	14	±0.35
HBSK22-65	M22	65	1	2.5	22	0-0.35	14	±0.35
HBSK22-70	M22	70	1	2.5	22	0-0.35	14	±0.35
HBSK22-75	M22	75	1	2.5	22	0-0.35	14	±0.35
HBSK22-80	M22	80	1	2.5	22	0-0.35	14	±0.35
HBSK22-85	M22	85	1	2.5	22	0-0.35	14	±0.35
HBSK22-90	M22	90	1	2.5	22	0-0.35	14	±0.35
HBSK22-95	M22	95	1	2.5	22	0-0.35	14	±0.35
HBSK22-100	M22	100	1	2.5	22	0-0.35	14	±0.35
HBSK22-110	M22	110	1	2.5	22	0-0.35	14	±0.35
HBSK22-120	M22	120	1	2.5	22	0-0.35	14	±0.35
HBSK22-130	M22	130	1	2.5	22	0-0.35	14	±0.35
HBSK22-140	M22	140	1	2.5	22	0-0.35	14	±0.35
HBSK22-150	M22	150	1	2.5	22	0-0.35	14	±0.35
HBSK22-160	M22	160	1	2.5	22	0-0.35	14	±0.35
HBSK22-170	M22	170	1	2.5	22	0-0.35	14	±0.35
HBSK24-40	M24	40	1	3	24	0-0.35	15	±0.35
HBSK24-45	M24	45	1	3	24	0-0.35	15	±0.35
HBSK24-50	M24	50	1	3	24	0-0.35	15	±0.35
HBSK24-55	M24	55	1	3	24	0-0.35	15	±0.35
HBSK24-60	M24	60	1	3	24	0-0.35	15	±0.35
HBSK24-65	M24	65	1	3	24	0-0.35	15	±0.35
HBSK24-70	M24	70	1	3	24	0-0.35	15	±0.35
HBSK24-75	M24	75	1	3	24	0-0.35	15	±0.35
HBSK24-80	M24	80	1	3	24	0-0.35	15	±0.35
HBSK24-85	M24	85	1	3	24	0-0.35	15	±0.35
HBSK24-90	M24	90	1	3	24	0-0.35	15	±0.35
HBSK24-95	M24	95	1	3	24	0-0.35	15	±0.35
HBSK24-100	M24	100	1	3	24	0-0.35	15	±0.35
HBSK24-110	M24	110	1	3	24	0-0.35	15	±0.35
HBSK24-120	M24	120	1	3	24	0-0.35	15	±0.35
HBSK24-130	M24	130	1	3	24	0-0.35	15	±0.35
HBSK24-140	M24	140	1	3	24	0-0.35	15	±0.35
HBSK24-150	M24	150	1	3	24	0-0.35	15	±0.35
HBSK30-70	M30	70	1	3.5	30	0-0.35	19	±0.4
HBSK30-75	M30	75	1	3.5	30	0-0.35	19	±0.4
HBSK30-80	M30	80	1	3.5	30	0-0.35	19	±0.4
HBSK30-85	M30	85	1	3.5	30	0-0.35	19	±0.4
HBSK30-90	M30	90	1	3.5	30	0-0.35	19	±0.4
HBSK30-100	M30	100	1	3.5	30	0-0.35	19	±0.4
HBSK30-110	M30	110	1	3.5	30	0-0.35	19	±0.4
HBSK30-120	M30	120	1	3.5	30	0-0.35	19	±0.4
HBSK30-130	M30	130	1	3.5	30	0-0.35	19	±0.4
HBSK30-140	M30	140	1	3.5	30	0-0.35	19	±0.4
HBSK30-150	M30	150	1	3.5	30	0-0.35	19	±0.4

형식	이면폭s (mm)	이면폭s (mm)	e (약mm)
형식	기준치수	허용차	e (약mm)
HBSK3-8	5.5	-	6.4
HBSK3-8-200	5.5	-	6.4
HBSK3-10	5.5	-	6.4
HBSK3-10-200	5.5	-	6.4
HBSK3-12	5.5	-	6.4
HBSK3-12-200	5.5	-	6.4
HBSK3-16	5.5	-	6.4
HBSK3-16-200	5.5	-	6.4
HBSK3-20	5.5	-	6.4
HBSK3-20-200	5.5	-	6.4
HBSK3-25	5.5	-	6.4
HBSK3-25-200	5.5	-	6.4
HBSK4-6	7	-	8.1
HBSK4-6-200	7	-	8.1
HBSK4-8	7	-	8.1
HBSK4-8-200	7	-	8.1
HBSK4-10	7	-	8.1
HBSK4-10-200	7	-	8.1
HBSK4-12	7	-	8.1
HBSK4-12-200	7	-	8.1
HBSK4-15	7	-	8.1
HBSK4-15-200	7	-	8.1
HBSK4-16	7	-	8.1
HBSK4-16-200	7	-	8.1
HBSK4-20	7	-	8.1
HBSK4-20-200	7	-	8.1
HBSK4-25	7	-	8.1
HBSK4-25-200	7	-	8.1
HBSK4-30	7	-	8.1
HBSK4-30-200	7	-	8.1
HBSK4-35	7	-	8.1
HBSK4-35-200	7	-	8.1
HBSK4-40	7	-	8.1
HBSK4-40-200	7	-	8.1
HBSK4-45	7	-	8.1
HBSK4-45-200	7	-	8.1
HBSK4-50	7	-	8.1
HBSK4-50-200	7	-	8.1
HBSK5-8	8	-	9.2
HBSK5-8-200	8	-	9.2
HBSK5-10	8	-	9.2
HBSK5-10-200	8	-	9.2
HBSK5-12	8	-	9.2
HBSK5-12-200	8	-	9.2
HBSK5-14	8	-	9.2
HBSK5-14-200	8	-	9.2
HBSK5-15	8	-	9.2
HBSK5-15-200	8	-	9.2
HBSK5-16	8	-	9.2
HBSK5-16-200	8	-	9.2
HBSK5-18	8	-	9.2
HBSK5-18-200	8	-	9.2
HBSK5-20	8	-	9.2
HBSK5-20-200	8	-	9.2
HBSK5-25	8	-	9.2
HBSK5-25-200	8	-	9.2
HBSK5-30	8	-	9.2
HBSK5-30-200	8	-	9.2
HBSK5-35	8	-	9.2
HBSK5-35-200	8	-	9.2
HBSK5-40	8	-	9.2
HBSK5-40-200	8	-	9.2
HBSK5-45	8	-	9.2
HBSK5-45-200	8	-	9.2
HBSK5-50	8	-	9.2
HBSK5-50-200	8	-	9.2
HBSK5-60	8	-	9.2
HBSK5-60-200	8	-	9.2
HBSK5-65	8	-	9.2
HBSK5-65-200	8	-	9.2
HBSK5-70	8	-	9.2
HBSK5-70-200	8	-	9.2
HBSK5-75	8	-	9.2
HBSK5-75-200	8	-	9.2
HBSK6-8	10	0-0.6	11.5
HBSK6-8-100	10	0-0.6	11.5
HBSK6-10	10	0-0.6	11.5
HBSK6-10-100	10	0-0.6	11.5
HBSK6-12	10	0-0.6	11.5
HBSK6-12-100	10	0-0.6	11.5
HBSK6-14	10	0-0.6	11.5
HBSK6-14-100	10	0-0.6	11.5
HBSK6-15	10	0-0.6	11.5
HBSK6-15-100	10	0-0.6	11.5
HBSK6-16	10	0-0.6	11.5
HBSK6-16-100	10	0-0.6	11.5
HBSK6-18	10	0-0.6	11.5
HBSK6-18-100	10	0-0.6	11.5
HBSK6-20	10	0-0.6	11.5
HBSK6-20-100	10	0-0.6	11.5
HBSK6-25	10	0-0.6	11.5
HBSK6-25-100	10	0-0.6	11.5
HBSK6-30	10	0-0.6	11.5
HBSK6-30-100	10	0-0.6	11.5
HBSK6-35	10	0-0.6	11.5
HBSK6-35-100	10	0-0.6	11.5
HBSK6-40	10	0-0.6	11.5
HBSK6-40-100	10	0-0.6	11.5
HBSK6-45	10	0-0.6	11.5
HBSK6-45-100	10	0-0.6	11.5
HBSK6-50	10	0-0.6	11.5
HBSK6-50-100	10	0-0.6	11.5
HBSK6-55	10	0-0.6	11.5
HBSK6-55-100	10	0-0.6	11.5
HBSK6-60	10	0-0.6	11.5
HBSK6-60-100	10	0-0.6	11.5
HBSK6-65	10	0-0.6	11.5
HBSK6-65-100	10	0-0.6	11.5
HBSK6-70	10	0-0.6	11.5
HBSK6-70-100	10	0-0.6	11.5
HBSK6-75	10	0-0.6	11.5
HBSK6-75-100	10	0-0.6	11.5
HBSK6-80	10	0-0.6	11.5
HBSK6-80-100	10	0-0.6	11.5
HBSK6-85	10	0-0.6	11.5
HBSK6-85-100	10	0-0.6	11.5
HBSK6-90	10	0-0.6	11.5
HBSK6-90-150	10	0-0.6	11.5
HBSK6-100	10	0-0.6	11.5
HBSK6-100-150	10	0-0.6	11.5
HBSK6-110	10	0-0.6	11.5
HBSK6-110-150	10	0-0.6	11.5
HBSK6-120	10	0-0.6	11.5
HBSK6-120-150	10	0-0.6	11.5
HBSK6-130	10	0-0.6	11.5
HBSK6-130-150	10	0-0.6	11.5
HBSK6-140	10	0-0.6	11.5
HBSK6-140-150	10	0-0.6	11.5
HBSK6-150	10	0-0.6	11.5
HBSK6-150-150	10	0-0.6	11.5
HBSK8-10	13	0-0.7	15
HBSK8-10-200	13	0-0.7	15
HBSK8-12	13	0-0.7	15
HBSK8-12-200	13	0-0.7	15
HBSK8-14	13	0-0.7	15
HBSK8-14-200	13	0-0.7	15
HBSK8-15	13	0-0.7	15
HBSK8-15-200	13	0-0.7	15
HBSK8-16	13	0-0.7	15
HBSK8-16-200	13	0-0.7	15
HBSK8-18	13	0-0.7	15
HBSK8-18-200	13	0-0.7	15
HBSK8-20	13	0-0.7	15
HBSK8-20-200	13	0-0.7	15
HBSK8-25	13	0-0.7	15
HBSK8-25-200	13	0-0.7	15
HBSK8-30	13	0-0.7	15
HBSK8-30-200	13	0-0.7	15
HBSK8-35	13	0-0.7	15
HBSK8-35-100	13	0-0.7	15
HBSK8-40	13	0-0.7	15
HBSK8-40-100	13	0-0.7	15
HBSK8-45	13	0-0.7	15
HBSK8-45-100	13	0-0.7	15
HBSK8-50	13	0-0.7	15
HBSK8-50-100	13	0-0.7	15
HBSK8-55	13	0-0.7	15
HBSK8-55-100	13	0-0.7	15
HBSK8-60	13	0-0.7	15
HBSK8-60-100	13	0-0.7	15
HBSK8-65	13	0-0.7	15
HBSK8-65-100	13	0-0.7	15
HBSK8-70	13	0-0.7	15
HBSK8-70-100	13	0-0.7	15
HBSK8-75	13	0-0.7	15
HBSK8-75-100	13	0-0.7	15
HBSK8-80	13	0-0.7	15
HBSK8-80-100	13	0-0.7	15
HBSK8-85	13	0-0.7	15
HBSK8-85-100	13	0-0.7	15
HBSK8-90	13	0-0.7	15
HBSK8-90-100	13	0-0.7	15
HBSK8-95	13	0-0.7	15
HBSK8-95-100	13	0-0.7	15
HBSK8-100	13	0-0.7	15
HBSK8-100-100	13	0-0.7	15
HBSK8-110	13	0-0.7	15
HBSK8-110-100	13	0-0.7	15
HBSK8-120	13	0-0.7	15
HBSK8-120-100	13	0-0.7	15
HBSK8-130	13	0-0.7	15
HBSK8-130-100	13	0-0.7	15
HBSK8-140	13	0-0.7	15
HBSK8-140-100	13	0-0.7	15
HBSK8-150	13	0-0.7	15
HBSK8-150-50	13	0-0.7	15
HBSK10-14	17	0-0.7	19.6
HBSK10-14-100	17	0-0.7	19.6
HBSK10-15	17	0-0.7	19.6
HBSK10-15-100	17	0-0.7	19.6
HBSK10-16	17	0-0.7	19.6
HBSK10-16-100	17	0-0.7	19.6
HBSK10-18	17	0-0.7	19.6
HBSK10-18-100	17	0-0.7	19.6
HBSK10-20	17	0-0.7	19.6
HBSK10-20-100	17	0-0.7	19.6
HBSK10-22	17	0-0.7	19.6
HBSK10-22-100	17	0-0.7	19.6
HBSK10-25	17	0-0.7	19.6
HBSK10-25-100	17	0-0.7	19.6
HBSK10-30	17	0-0.7	19.6
HBSK10-30-100	17	0-0.7	19.6
HBSK10-35	17	0-0.7	19.6
HBSK10-35-100	17	0-0.7	19.6
HBSK10-40	17	0-0.7	19.6
HBSK10-40-100	17	0-0.7	19.6
HBSK10-45	17	0-0.7	19.6
HBSK10-45-100	17	0-0.7	19.6
HBSK10-50	17	0-0.7	19.6
HBSK10-50-100	17	0-0.7	19.6
HBSK10-55	17	0-0.7	19.6
HBSK10-55-100	17	0-0.7	19.6
HBSK10-60	17	0-0.7	19.6
HBSK10-60-100	17	0-0.7	19.6
HBSK10-65	17	0-0.7	19.6
HBSK10-65-100	17	0-0.7	19.6
HBSK10-70	17	0-0.7	19.6
HBSK10-70-50	17	0-0.7	19.6
HBSK10-75	17	0-0.7	19.6
HBSK10-75-50	17	0-0.7	19.6
HBSK10-80	17	0-0.7	19.6
HBSK10-80-50	17	0-0.7	19.6
HBSK10-85	17	0-0.7	19.6
HBSK10-85-50	17	0-0.7	19.6
HBSK10-90	17	0-0.7	19.6
HBSK10-90-50	17	0-0.7	19.6
HBSK10-95	17	0-0.7	19.6
HBSK10-95-50	17	0-0.7	19.6
HBSK10-100	17	0-0.7	19.6
HBSK10-100-50	17	0-0.7	19.6
HBSK10-110	17	0-0.7	19.6
HBSK10-110-50	17	0-0.7	19.6
HBSK10-120	17	0-0.7	19.6
HBSK10-120-50	17	0-0.7	19.6
HBSK10-130	17	0-0.7	19.6
HBSK10-130-50	17	0-0.7	19.6
HBSK10-140	17	0-0.7	19.6
HBSK10-140-50	17	0-0.7	19.6
HBSK10-150	17	0-0.7	19.6
HBSK10-150-50	17	0-0.7	19.6
HBSK10-160	17	0-0.7	19.6
HBSK10-170	17	0-0.7	19.6
HBSK10-180	17	0-0.7	19.6
HBSK12-20	19	0-0.8	21.9
HBSK12-20-100	19	0-0.8	21.9
HBSK12-25	19	0-0.8	21.9
HBSK12-25-100	19	0-0.8	21.9
HBSK12-30	19	0-0.8	21.9
HBSK12-30-100	19	0-0.8	21.9
HBSK12-35	19	0-0.8	21.9
HBSK12-35-100	19	0-0.8	21.9
HBSK12-40	19	0-0.8	21.9
HBSK12-40-100	19	0-0.8	21.9
HBSK12-45	19	0-0.8	21.9
HBSK12-45-100	19	0-0.8	21.9
HBSK12-50	19	0-0.8	21.9
HBSK12-50-50	19	0-0.8	21.9
HBSK12-55	19	0-0.8	21.9
HBSK12-55-50	19	0-0.8	21.9
HBSK12-60	19	0-0.8	21.9
HBSK12-60-50	19	0-0.8	21.9
HBSK12-65	19	0-0.8	21.9
HBSK12-65-50	19	0-0.8	21.9
HBSK12-70	19	0-0.8	21.9
HBSK12-70-50	19	0-0.8	21.9
HBSK12-75	19	0-0.8	21.9
HBSK12-75-50	19	0-0.8	21.9
HBSK12-80	19	0-0.8	21.9
HBSK12-80-50	19	0-0.8	21.9
HBSK12-85	19	0-0.8	21.9
HBSK12-85-50	19	0-0.8	21.9
HBSK12-90	19	0-0.8	21.9
HBSK12-90-50	19	0-0.8	21.9
HBSK12-95	19	0-0.8	21.9
HBSK12-95-50	19	0-0.8	21.9
HBSK12-100	19	0-0.8	21.9
HBSK12-100-50	19	0-0.8	21.9
HBSK12-110	19	0-0.8	21.9
HBSK12-110-50	19	0-0.8	21.9
HBSK12-120	19	0-0.8	21.9
HBSK12-120-50	19	0-0.8	21.9
HBSK12-130	19	0-0.8	21.9
HBSK12-130-50	19	0-0.8	21.9
HBSK12-140	19	0-0.8	21.9
HBSK12-140-40	19	0-0.8	21.9
HBSK12-150	19	0-0.8	21.9
HBSK12-150-40	19	0-0.8	21.9
HBSK12-160	19	0-0.8	21.9
HBSK12-170	19	0-0.8	21.9
HBSK12-180	19	0-0.8	21.9
HBSK12-200	19	0-0.8	21.9
HBSK14-25	22	0-0.8	25.4
HBSK14-25-50	22	0-0.8	25.4
HBSK14-30	22	0-0.8	25.4
HBSK14-30-50	22	0-0.8	25.4
HBSK14-35	22	0-0.8	25.4
HBSK14-35-50	22	0-0.8	25.4
HBSK14-40	22	0-0.8	25.4
HBSK14-40-50	22	0-0.8	25.4
HBSK14-45	22	0-0.8	25.4
HBSK14-45-50	22	0-0.8	25.4
HBSK14-50	22	0-0.8	25.4
HBSK14-50-50	22	0-0.8	25.4
HBSK14-55	22	0-0.8	25.4
HBSK14-55-40	22	0-0.8	25.4
HBSK14-60	22	0-0.8	25.4
HBSK14-60-40	22	0-0.8	25.4
HBSK14-65	22	0-0.8	25.4
HBSK14-65-40	22	0-0.8	25.4
HBSK14-70	22	0-0.8	25.4
HBSK14-70-30	22	0-0.8	25.4
HBSK14-75	22	0-0.8	25.4
HBSK14-75-30	22	0-0.8	25.4
HBSK14-80	22	0-0.8	25.4
HBSK14-80-35	22	0-0.8	25.4
HBSK14-90	22	0-0.8	25.4
HBSK14-90-30	22	0-0.8	25.4
HBSK14-100	22	0-0.8	25.4
HBSK14-100-20	22	0-0.8	25.4
HBSK16-25	24	0-0.8	27.7
HBSK16-25-50	24	0-0.8	27.7
HBSK16-30	24	0-0.8	27.7
HBSK16-30-50	24	0-0.8	27.7
HBSK16-35	24	0-0.8	27.7
HBSK16-35-50	24	0-0.8	27.7
HBSK16-40	24	0-0.8	27.7
HBSK16-40-50	24	0-0.8	27.7
HBSK16-45	24	0-0.8	27.7
HBSK16-45-50	24	0-0.8	27.7
HBSK16-50	24	0-0.8	27.7
HBSK16-50-50	24	0-0.8	27.7
HBSK16-55	24	0-0.8	27.7
HBSK16-55-40	24	0-0.8	27.7
HBSK16-60	24	0-0.8	27.7
HBSK16-60-35	24	0-0.8	27.7
HBSK16-65	24	0-0.8	27.7
HBSK16-65-30	24	0-0.8	27.7
HBSK16-70	24	0-0.8	27.7
HBSK16-70-30	24	0-0.8	27.7
HBSK16-75	24	0-0.8	27.7
HBSK16-75-30	24	0-0.8	27.7
HBSK16-80	24	0-0.8	27.7
HBSK16-80-30	24	0-0.8	27.7
HBSK16-85	24	0-0.8	27.7
HBSK16-85-30	24	0-0.8	27.7
HBSK16-90	24	0-0.8	27.7
HBSK16-90-30	24	0-0.8	27.7
HBSK16-95	24	0-0.8	27.7
HBSK16-95-30	24	0-0.8	27.7
HBSK16-100	24	0-0.8	27.7
HBSK16-100-30	24	0-0.8	27.7
HBSK16-110	24	0-0.8	27.7
HBSK16-110-30	24	0-0.8	27.7
HBSK16-120	24	0-0.8	27.7
HBSK16-120-25	24	0-0.8	27.7
HBSK16-130	24	0-0.8	27.7
HBSK16-130-25	24	0-0.8	27.7
HBSK16-140	24	0-0.8	27.7
HBSK16-140-20	24	0-0.8	27.7
HBSK16-150	24	0-0.8	27.7
HBSK16-150-20	24	0-0.8	27.7
HBSK16-160	24	0-0.8	27.7
HBSK16-170	24	0-0.8	27.7
HBSK16-180	24	0-0.8	27.7
HBSK16-190	24	0-0.8	27.7
HBSK16-200	24	0-0.8	27.7
HBSK18-40	27	0-0.8	31.2
HBSK18-45	27	0-0.8	31.2
HBSK18-50	27	0-0.8	31.2
HBSK18-55	27	0-0.8	31.2
HBSK18-60	27	0-0.8	31.2
HBSK18-65	27	0-0.8	31.2
HBSK18-70	27	0-0.8	31.2
HBSK18-75	27	0-0.8	31.2
HBSK18-80	27	0-0.8	31.2
HBSK18-90	27	0-0.8	31.2
HBSK18-100	27	0-0.8	31.2
HBSK20-35	30	0-0.8	34.6
HBSK20-40	30	0-0.8	34.6
HBSK20-45	30	0-0.8	34.6
HBSK20-50	30	0-0.8	34.6
HBSK20-55	30	0-0.8	34.6
HBSK20-60	30	0-0.8	34.6
HBSK20-65	30	0-0.8	34.6
HBSK20-70	30	0-0.8	34.6
HBSK20-75	30	0-0.8	34.6
HBSK20-80	30	0-0.8	34.6
HBSK20-85	30	0-0.8	34.6
HBSK20-90	30	0-0.8	34.6
HBSK20-95	30	0-0.8	34.6
HBSK20-100	30	0-0.8	34.6
HBSK20-110	30	0-0.8	34.6
HBSK20-120	30	0-0.8	34.6
HBSK20-130	30	0-0.8	34.6
HBSK20-140	30	0-0.8	34.6
HBSK20-150	30	0-0.8	34.6
HBSK20-160	30	0-0.8	34.6
HBSK20-170	30	0-0.8	34.6
HBSK20-180	30	0-0.8	34.6
HBSK20-190	30	0-0.8	34.6
HBSK20-200	30	0-0.8	34.6
HBSK22-50	32	0-1.0	37
HBSK22-55	32	0-1.0	37
HBSK22-60	32	0-1.0	37
HBSK22-65	32	0-1.0	37
HBSK22-70	32	0-1.0	37
HBSK22-75	32	0-1.0	37
HBSK22-80	32	0-1.0	37
HBSK22-85	32	0-1.0	37
HBSK22-90	32	0-1.0	37
HBSK22-95	32	0-1.0	37
HBSK22-100	32	0-1.0	37
HBSK22-110	32	0-1.0	37
HBSK22-120	32	0-1.0	37
HBSK22-130	32	0-1.0	37
HBSK22-140	32	0-1.0	37
HBSK22-150	32	0-1.0	37
HBSK22-160	32	0-1.0	37
HBSK22-170	32	0-1.0	37
HBSK24-40	36	0-1.0	41.6
HBSK24-45	36	0-1.0	41.6
HBSK24-50	36	0-1.0	41.6
HBSK24-55	36	0-1.0	41.6
HBSK24-60	36	0-1.0	41.6
HBSK24-65	36	0-1.0	41.6
HBSK24-70	36	0-1.0	41.6
HBSK24-75	36	0-1.0	41.6
HBSK24-80	36	0-1.0	41.6
HBSK24-85	36	0-1.0	41.6
HBSK24-90	36	0-1.0	41.6
HBSK24-95	36	0-1.0	41.6
HBSK24-100	36	0-1.0	41.6
HBSK24-110	36	0-1.0	41.6
HBSK24-120	36	0-1.0	41.6
HBSK24-130	36	0-1.0	41.6
HBSK24-140	36	0-1.0	41.6
HBSK24-150	36	0-1.0	41.6
HBSK30-70	46	0-1.0	53.1
HBSK30-75	46	0-1.0	53.1
HBSK30-80	46	0-1.0	53.1
HBSK30-85	46	0-1.0	53.1
HBSK30-90	46	0-1.0	53.1
HBSK30-100	46	0-1.0	53.1
HBSK30-110	46	0-1.0	53.1
HBSK30-120	46	0-1.0	53.1
HBSK30-130	46	0-1.0	53.1
HBSK30-140	46	0-1.0	53.1
HBSK30-150	46	0-1.0	53.1

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
HBSK3-8	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK3-8-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBSK3-10	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK3-10-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBSK3-12	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK3-12-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBSK3-16	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK3-16-200	C	88,000	-	-	-	-	견적의뢰 / 주문
HBSK3-20	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK3-20-200	C	96,800	-	-	-	-	견적의뢰 / 주문
HBSK3-25	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK3-25-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBSK4-6	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK4-6-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBSK4-8	P	880	-	-	-	-	견적의뢰 / 주문
HBSK4-8-200	C	66,000	-	-	-	-	견적의뢰 / 주문
HBSK4-10	P	880	-	-	-	-	견적의뢰 / 주문
HBSK4-10-200	C	66,000	-	-	-	-	견적의뢰 / 주문
HBSK4-12	P	1,100	-	-	-	-	견적의뢰 / 주문
HBSK4-12-200	C	70,400	-	-	-	-	견적의뢰 / 주문
HBSK4-15	P	1,100	-	-	-	-	견적의뢰 / 주문
HBSK4-15-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBSK4-16	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK4-16-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBSK4-20	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK4-20-200	C	88,000	-	-	-	-	견적의뢰 / 주문
HBSK4-25	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK4-25-200	C	96,800	-	-	-	-	견적의뢰 / 주문
HBSK4-30	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK4-30-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBSK4-35	P	1,980	-	-	-	-	견적의뢰 / 주문
HBSK4-35-200	C	123,200	-	-	-	-	견적의뢰 / 주문
HBSK4-40	P	1,980	-	-	-	-	견적의뢰 / 주문
HBSK4-40-200	C	132,000	-	-	-	-	견적의뢰 / 주문
HBSK4-45	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK4-45-200	C	140,800	-	-	-	-	견적의뢰 / 주문
HBSK4-50	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK4-50-200	C	158,400	-	-	-	-	견적의뢰 / 주문
HBSK5-8	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK5-8-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBSK5-10	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK5-10-200	C	79,200	-	-	-	-	견적의뢰 / 주문
HBSK5-12	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK5-12-200	C	88,000	-	-	-	-	견적의뢰 / 주문
HBSK5-14	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK5-14-200	C	88,000	-	-	-	-	견적의뢰 / 주문
HBSK5-15	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK5-15-200	C	96,800	-	-	-	-	견적의뢰 / 주문
HBSK5-16	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK5-16-200	C	96,800	-	-	-	-	견적의뢰 / 주문
HBSK5-18	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK5-18-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBSK5-20	P	1,980	-	-	-	-	견적의뢰 / 주문
HBSK5-20-200	C	105,600	-	-	-	-	견적의뢰 / 주문
HBSK5-25	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK5-25-200	C	114,400	-	-	-	-	견적의뢰 / 주문
HBSK5-30	P	2,420	-	-	-	-	견적의뢰 / 주문
HBSK5-30-200	C	132,000	-	-	-	-	견적의뢰 / 주문
HBSK5-35	P	2,640	-	-	-	-	견적의뢰 / 주문
HBSK5-35-200	C	149,600	-	-	-	-	견적의뢰 / 주문
HBSK5-40	P	2,860	-	-	-	-	견적의뢰 / 주문
HBSK5-40-200	C	158,400	-	-	-	-	견적의뢰 / 주문
HBSK5-45	P	3,080	-	-	-	-	견적의뢰 / 주문
HBSK5-45-200	C	176,000	-	-	-	-	견적의뢰 / 주문
HBSK5-50	P	3,300	-	-	-	-	견적의뢰 / 주문
HBSK5-50-200	C	184,800	-	-	-	-	견적의뢰 / 주문
HBSK5-60	P	3,520	-	-	-	-	견적의뢰 / 주문
HBSK5-60-200	C	264,000	-	-	-	-	견적의뢰 / 주문
HBSK5-65	P	3,960	-	-	-	-	견적의뢰 / 주문
HBSK5-65-200	C	352,000	-	-	-	-	견적의뢰 / 주문
HBSK5-70	P	4,400	-	-	-	-	견적의뢰 / 주문
HBSK5-70-200	C	387,200	-	-	-	-	견적의뢰 / 주문
HBSK5-75	P	4,840	-	-	-	-	견적의뢰 / 주문
HBSK5-75-200	C	413,600	-	-	-	-	견적의뢰 / 주문
HBSK6-8	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-8-100	C	66,000	-	-	-	-	견적의뢰 / 주문
HBSK6-10	P	1,320	-	-	-	-	견적의뢰 / 주문
HBSK6-10-100	C	48,400	-	-	-	-	견적의뢰 / 주문
HBSK6-12	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK6-12-100	C	52,800	-	-	-	-	견적의뢰 / 주문
HBSK6-14	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK6-14-100	C	57,200	-	-	-	-	견적의뢰 / 주문
HBSK6-15	P	1,540	-	-	-	-	견적의뢰 / 주문
HBSK6-15-100	C	52,800	-	-	-	-	견적의뢰 / 주문
HBSK6-16	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-16-100	C	52,800	-	-	-	-	견적의뢰 / 주문
HBSK6-18	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-18-100	C	57,200	-	-	-	-	견적의뢰 / 주문
HBSK6-20	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-20-100	C	57,200	-	-	-	-	견적의뢰 / 주문
HBSK6-25	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-25-100	C	66,000	-	-	-	-	견적의뢰 / 주문
HBSK6-30	P	1,760	-	-	-	-	견적의뢰 / 주문
HBSK6-30-100	C	70,400	-	-	-	-	견적의뢰 / 주문
HBSK6-35	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK6-35-100	C	83,600	-	-	-	-	견적의뢰 / 주문
HBSK6-40	P	2,420	-	-	-	-	견적의뢰 / 주문
HBSK6-40-100	C	96,800	-	-	-	-	견적의뢰 / 주문
HBSK6-45	P	2,640	-	-	-	-	견적의뢰 / 주문
HBSK6-45-100	C	105,600	-	-	-	-	견적의뢰 / 주문
HBSK6-50	P	2,860	-	-	-	-	견적의뢰 / 주문
HBSK6-50-100	C	110,000	-	-	-	-	견적의뢰 / 주문
HBSK6-55	P	3,300	-	-	-	-	견적의뢰 / 주문
HBSK6-55-100	C	132,000	-	-	-	-	견적의뢰 / 주문
HBSK6-60	P	3,520	-	-	-	-	견적의뢰 / 주문
HBSK6-60-100	C	136,400	-	-	-	-	견적의뢰 / 주문
HBSK6-65	P	3,740	-	-	-	-	견적의뢰 / 주문
HBSK6-65-100	C	149,600	-	-	-	-	견적의뢰 / 주문
HBSK6-70	P	3,960	-	-	-	-	견적의뢰 / 주문
HBSK6-70-100	C	154,000	-	-	-	-	견적의뢰 / 주문
HBSK6-75	P	4,180	-	-	-	-	견적의뢰 / 주문
HBSK6-75-100	C	171,600	-	-	-	-	견적의뢰 / 주문
HBSK6-80	P	4,400	-	-	-	-	견적의뢰 / 주문
HBSK6-80-100	C	193,600	-	-	-	-	견적의뢰 / 주문
HBSK6-85	P	4,840	-	-	-	-	견적의뢰 / 주문
HBSK6-85-100	C	202,400	-	-	-	-	견적의뢰 / 주문
HBSK6-90	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK6-90-150	C	343,200	-	-	-	-	견적의뢰 / 주문
HBSK6-100	P	5,720	-	-	-	-	견적의뢰 / 주문
HBSK6-100-150	C	396,000	-	-	-	-	견적의뢰 / 주문
HBSK6-110	P	6,160	-	-	-	-	견적의뢰 / 주문
HBSK6-110-150	C	435,600	-	-	-	-	견적의뢰 / 주문
HBSK6-120	P	6,600	-	-	-	-	견적의뢰 / 주문
HBSK6-120-150	C	475,200	-	-	-	-	견적의뢰 / 주문
HBSK6-130	P	7,700	-	-	-	-	견적의뢰 / 주문
HBSK6-130-150	C	561,000	-	-	-	-	견적의뢰 / 주문
HBSK6-140	P	8,800	-	-	-	-	견적의뢰 / 주문
HBSK6-140-150	C	646,800	-	-	-	-	견적의뢰 / 주문
HBSK6-150	P	9,680	-	-	-	-	견적의뢰 / 주문
HBSK6-150-150	C	686,400	-	-	-	-	견적의뢰 / 주문
HBSK8-10	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK8-10-200	C	237,600	-	-	-	-	견적의뢰 / 주문
HBSK8-12	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK8-12-200	C	237,600	-	-	-	-	견적의뢰 / 주문
HBSK8-14	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK8-14-200	C	237,600	-	-	-	-	견적의뢰 / 주문
HBSK8-15	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK8-15-200	C	220,000	-	-	-	-	견적의뢰 / 주문
HBSK8-16	P	2,200	-	-	-	-	견적의뢰 / 주문
HBSK8-16-200	C	224,400	-	-	-	-	견적의뢰 / 주문
HBSK8-18	P	2,420	-	-	-	-	견적의뢰 / 주문
HBSK8-18-200	C	246,400	-	-	-	-	견적의뢰 / 주문
HBSK8-20	P	2,420	-	-	-	-	견적의뢰 / 주문
HBSK8-20-200	C	220,000	-	-	-	-	견적의뢰 / 주문
HBSK8-25	P	2,640	-	-	-	-	견적의뢰 / 주문
HBSK8-25-200	C	220,000	-	-	-	-	견적의뢰 / 주문
HBSK8-30	P	3,080	-	-	-	-	견적의뢰 / 주문
HBSK8-30-200	C	255,200	-	-	-	-	견적의뢰 / 주문
HBSK8-35	P	3,520	-	-	-	-	견적의뢰 / 주문
HBSK8-35-100	C	132,000	-	-	-	-	견적의뢰 / 주문
HBSK8-40	P	3,740	-	-	-	-	견적의뢰 / 주문
HBSK8-40-100	C	149,600	-	-	-	-	견적의뢰 / 주문
HBSK8-45	P	3,960	-	-	-	-	견적의뢰 / 주문
HBSK8-45-100	C	158,400	-	-	-	-	견적의뢰 / 주문
HBSK8-50	P	4,180	-	-	-	-	견적의뢰 / 주문
HBSK8-50-100	C	176,000	-	-	-	-	견적의뢰 / 주문
HBSK8-55	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK8-55-100	C	220,000	-	-	-	-	견적의뢰 / 주문
HBSK8-60	P	5,500	-	-	-	-	견적의뢰 / 주문
HBSK8-60-100	C	242,000	-	-	-	-	견적의뢰 / 주문
HBSK8-65	P	5,940	-	-	-	-	견적의뢰 / 주문
HBSK8-65-100	C	255,200	-	-	-	-	견적의뢰 / 주문
HBSK8-70	P	6,380	-	-	-	-	견적의뢰 / 주문
HBSK8-70-100	C	277,200	-	-	-	-	견적의뢰 / 주문
HBSK8-75	P	6,600	-	-	-	-	견적의뢰 / 주문
HBSK8-75-100	C	290,400	-	-	-	-	견적의뢰 / 주문
HBSK8-80	P	7,480	-	-	-	-	견적의뢰 / 주문
HBSK8-80-100	C	325,600	-	-	-	-	견적의뢰 / 주문
HBSK8-85	P	8,360	-	-	-	-	견적의뢰 / 주문
HBSK8-85-100	C	356,400	-	-	-	-	견적의뢰 / 주문
HBSK8-90	P	8,800	-	-	-	-	견적의뢰 / 주문
HBSK8-90-100	C	360,800	-	-	-	-	견적의뢰 / 주문
HBSK8-95	P	9,240	-	-	-	-	견적의뢰 / 주문
HBSK8-95-100	C	418,000	-	-	-	-	견적의뢰 / 주문
HBSK8-100	P	9,680	-	-	-	-	견적의뢰 / 주문
HBSK8-100-100	C	418,000	-	-	-	-	견적의뢰 / 주문
HBSK8-110	P	11,440	-	-	-	-	견적의뢰 / 주문
HBSK8-110-100	C	686,400	-	-	-	-	견적의뢰 / 주문
HBSK8-120	P	12,760	-	-	-	-	견적의뢰 / 주문
HBSK8-120-100	C	761,200	-	-	-	-	견적의뢰 / 주문
HBSK8-130	P	13,640	-	-	-	-	견적의뢰 / 주문
HBSK8-130-100	C	818,400	-	-	-	-	견적의뢰 / 주문
HBSK8-140	P	14,520	-	-	-	-	견적의뢰 / 주문
HBSK8-140-100	C	866,800	-	-	-	-	견적의뢰 / 주문
HBSK8-150	P	15,400	-	-	-	-	견적의뢰 / 주문
HBSK8-150-50	C	466,400	-	-	-	-	견적의뢰 / 주문
HBSK10-14	P	8,360	-	-	-	-	견적의뢰 / 주문
HBSK10-14-100	C	374,000	-	-	-	-	견적의뢰 / 주문
HBSK10-15	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK10-15-100	C	250,800	-	-	-	-	견적의뢰 / 주문
HBSK10-16	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK10-16-100	C	250,800	-	-	-	-	견적의뢰 / 주문
HBSK10-18	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK10-18-100	C	250,800	-	-	-	-	견적의뢰 / 주문
HBSK10-20	P	4,840	-	-	-	-	견적의뢰 / 주문
HBSK10-20-100	C	189,200	-	-	-	-	견적의뢰 / 주문
HBSK10-22	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK10-22-100	C	272,800	-	-	-	-	견적의뢰 / 주문
HBSK10-25	P	5,280	-	-	-	-	견적의뢰 / 주문
HBSK10-25-100	C	202,400	-	-	-	-	견적의뢰 / 주문
HBSK10-30	P	5,720	-	-	-	-	견적의뢰 / 주문
HBSK10-30-100	C	220,000	-	-	-	-	견적의뢰 / 주문
HBSK10-35	P	6,160	-	-	-	-	견적의뢰 / 주문
HBSK10-35-100	C	246,400	-	-	-	-	견적의뢰 / 주문
HBSK10-40	P	6,600	-	-	-	-	견적의뢰 / 주문
HBSK10-40-100	C	264,000	-	-	-	-	견적의뢰 / 주문
HBSK10-45	P	7,480	-	-	-	-	견적의뢰 / 주문
HBSK10-45-100	C	299,200	-	-	-	-	견적의뢰 / 주문
HBSK10-50	P	7,920	-	-	-	-	견적의뢰 / 주문
HBSK10-50-100	C	316,800	-	-	-	-	견적의뢰 / 주문
HBSK10-55	P	8,800	-	-	-	-	견적의뢰 / 주문
HBSK10-55-100	C	378,400	-	-	-	-	견적의뢰 / 주문
HBSK10-60	P	10,120	-	-	-	-	견적의뢰 / 주문
HBSK10-60-100	C	404,800	-	-	-	-	견적의뢰 / 주문
HBSK10-65	P	10,560	-	-	-	-	견적의뢰 / 주문
HBSK10-65-100	C	431,200	-	-	-	-	견적의뢰 / 주문
HBSK10-70	P	11,440	-	-	-	-	견적의뢰 / 주문
HBSK10-70-50	C	226,600	-	-	-	-	견적의뢰 / 주문
HBSK10-75	P	12,320	-	-	-	-	견적의뢰 / 주문
HBSK10-75-50	C	242,000	-	-	-	-	견적의뢰 / 주문
HBSK10-80	P	13,200	-	-	-	-	견적의뢰 / 주문
HBSK10-80-50	C	266,200	-	-	-	-	견적의뢰 / 주문
HBSK10-85	P	14,080	-	-	-	-	견적의뢰 / 주문
HBSK10-85-50	C	303,600	-	-	-	-	견적의뢰 / 주문
HBSK10-90	P	14,960	-	-	-	-	견적의뢰 / 주문
HBSK10-90-50	C	294,800	-	-	-	-	견적의뢰 / 주문
HBSK10-95	P	15,840	-	-	-	-	견적의뢰 / 주문
HBSK10-95-50	C	338,800	-	-	-	-	견적의뢰 / 주문
HBSK10-100	P	16,280	-	-	-	-	견적의뢰 / 주문
HBSK10-100-50	C	321,200	-	-	-	-	견적의뢰 / 주문
HBSK10-110	P	17,160	-	-	-	-	견적의뢰 / 주문
HBSK10-110-50	C	462,000	-	-	-	-	견적의뢰 / 주문
HBSK10-120	P	18,480	-	-	-	-	견적의뢰 / 주문
HBSK10-120-50	C	497,200	-	-	-	-	견적의뢰 / 주문
HBSK10-130	P	19,360	-	-	-	-	견적의뢰 / 주문
HBSK10-130-50	C	532,400	-	-	-	-	견적의뢰 / 주문
HBSK10-140	P	20,240	-	-	-	-	견적의뢰 / 주문
HBSK10-140-50	C	567,600	-	-	-	-	견적의뢰 / 주문
HBSK10-150	P	22,000	-	-	-	-	견적의뢰 / 주문
HBSK10-150-50	C	602,800	-	-	-	-	견적의뢰 / 주문
HBSK10-160	P	31,680	-	-	-	-	견적의뢰 / 주문
HBSK10-170	P	32,560	-	-	-	-	견적의뢰 / 주문
HBSK10-180	P	34,320	-	-	-	-	견적의뢰 / 주문
HBSK12-20	P	7,480	-	-	-	-	견적의뢰 / 주문
HBSK12-20-100	C	369,600	-	-	-	-	견적의뢰 / 주문
HBSK12-25	P	7,480	-	-	-	-	견적의뢰 / 주문
HBSK12-25-100	C	378,400	-	-	-	-	견적의뢰 / 주문
HBSK12-30	P	7,480	-	-	-	-	견적의뢰 / 주문
HBSK12-30-100	C	387,200	-	-	-	-	견적의뢰 / 주문
HBSK12-35	P	8,360	-	-	-	-	견적의뢰 / 주문
HBSK12-35-100	C	409,200	-	-	-	-	견적의뢰 / 주문
HBSK12-40	P	8,360	-	-	-	-	견적의뢰 / 주문
HBSK12-40-100	C	418,000	-	-	-	-	견적의뢰 / 주문
HBSK12-45	P	8,800	-	-	-	-	견적의뢰 / 주문
HBSK12-45-100	C	448,800	-	-	-	-	견적의뢰 / 주문
HBSK12-50	P	9,680	-	-	-	-	견적의뢰 / 주문
HBSK12-50-50	C	242,000	-	-	-	-	견적의뢰 / 주문
HBSK12-55	P	10,560	-	-	-	-	견적의뢰 / 주문
HBSK12-55-50	C	264,000	-	-	-	-	견적의뢰 / 주문
HBSK12-60	P	11,000	-	-	-	-	견적의뢰 / 주문
HBSK12-60-50	C	277,200	-	-	-	-	견적의뢰 / 주문
HBSK12-65	P	11,880	-	-	-	-	견적의뢰 / 주문
HBSK12-65-50	C	303,600	-	-	-	-	견적의뢰 / 주문
HBSK12-70	P	12,760	-	-	-	-	견적의뢰 / 주문
HBSK12-70-50	C	316,800	-	-	-	-	견적의뢰 / 주문
HBSK12-75	P	13,200	-	-	-	-	견적의뢰 / 주문
HBSK12-75-50	C	338,800	-	-	-	-	견적의뢰 / 주문
HBSK12-80	P	14,080	-	-	-	-	견적의뢰 / 주문
HBSK12-80-50	C	365,200	-	-	-	-	견적의뢰 / 주문
HBSK12-85	P	14,960	-	-	-	-	견적의뢰 / 주문
HBSK12-85-50	C	422,400	-	-	-	-	견적의뢰 / 주문
HBSK12-90	P	15,840	-	-	-	-	견적의뢰 / 주문
HBSK12-90-50	C	409,200	-	-	-	-	견적의뢰 / 주문
HBSK12-95	P	17,160	-	-	-	-	견적의뢰 / 주문
HBSK12-95-50	C	475,200	-	-	-	-	견적의뢰 / 주문
HBSK12-100	P	18,040	-	-	-	-	견적의뢰 / 주문
HBSK12-100-50	C	448,800	-	-	-	-	견적의뢰 / 주문
HBSK12-110	P	19,800	-	-	-	-	견적의뢰 / 주문
HBSK12-110-50	C	572,000	-	-	-	-	견적의뢰 / 주문
HBSK12-120	P	21,120	-	-	-	-	견적의뢰 / 주문
HBSK12-120-50	C	620,400	-	-	-	-	견적의뢰 / 주문
HBSK12-130	P	22,000	-	-	-	-	견적의뢰 / 주문
HBSK12-130-50	C	673,200	-	-	-	-	견적의뢰 / 주문
HBSK12-140	P	23,760	-	-	-	-	견적의뢰 / 주문
HBSK12-140-40	C	572,000	-	-	-	-	견적의뢰 / 주문
HBSK12-150	P	25,520	-	-	-	-	견적의뢰 / 주문
HBSK12-150-40	C	607,200	-	-	-	-	견적의뢰 / 주문
HBSK12-160	P	29,480	-	-	-	-	견적의뢰 / 주문
HBSK12-170	P	30,800	-	-	-	-	견적의뢰 / 주문
HBSK12-180	P	32,560	-	-	-	-	견적의뢰 / 주문
HBSK12-200	P	43,560	-	-	-	-	견적의뢰 / 주문
HBSK14-25	P	13,200	-	-	-	-	견적의뢰 / 주문
HBSK14-25-50	C	396,000	-	-	-	-	견적의뢰 / 주문
HBSK14-30	P	14,080	-	-	-	-	견적의뢰 / 주문
HBSK14-30-50	C	418,000	-	-	-	-	견적의뢰 / 주문
HBSK14-35	P	14,960	-	-	-	-	견적의뢰 / 주문
HBSK14-35-50	C	440,000	-	-	-	-	견적의뢰 / 주문
HBSK14-40	P	14,960	-	-	-	-	견적의뢰 / 주문
HBSK14-40-50	C	440,000	-	-	-	-	견적의뢰 / 주문
HBSK14-45	P	15,840	-	-	-	-	견적의뢰 / 주문
HBSK14-45-50	C	453,200	-	-	-	-	견적의뢰 / 주문
HBSK14-50	P	16,500	-	-	-	-	견적의뢰 / 주문
HBSK14-50-50	C	497,200	-	-	-	-	견적의뢰 / 주문
HBSK14-55	P	17,600	-	-	-	-	견적의뢰 / 주문
HBSK14-55-40	C	427,900	-	-	-	-	견적의뢰 / 주문
HBSK14-60	P	18,920	-	-	-	-	견적의뢰 / 주문
HBSK14-60-40	C	454,300	-	-	-	-	견적의뢰 / 주문
HBSK14-65	P	19,800	-	-	-	-	견적의뢰 / 주문
HBSK14-65-40	C	475,200	-	-	-	-	견적의뢰 / 주문
HBSK14-70	P	21,560	-	-	-	-	견적의뢰 / 주문
HBSK14-70-30	C	388,300	-	-	-	-	견적의뢰 / 주문
HBSK14-75	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK14-75-30	C	435,600	-	-	-	-	견적의뢰 / 주문
HBSK14-80	P	25,960	-	-	-	-	견적의뢰 / 주문
HBSK14-80-35	C	551,100	-	-	-	-	견적의뢰 / 주문
HBSK14-90	P	28,160	-	-	-	-	견적의뢰 / 주문
HBSK14-90-30	C	507,100	-	-	-	-	견적의뢰 / 주문
HBSK14-100	P	30,800	-	-	-	-	견적의뢰 / 주문
HBSK14-100-20	C	382,800	-	-	-	-	견적의뢰 / 주문
HBSK16-25	P	14,960	-	-	-	-	견적의뢰 / 주문
HBSK16-25-50	C	378,400	-	-	-	-	견적의뢰 / 주문
HBSK16-30	P	15,180	-	-	-	-	견적의뢰 / 주문
HBSK16-30-50	C	382,800	-	-	-	-	견적의뢰 / 주문
HBSK16-35	P	15,840	-	-	-	-	견적의뢰 / 주문
HBSK16-35-50	C	404,800	-	-	-	-	견적의뢰 / 주문
HBSK16-40	P	16,720	-	-	-	-	견적의뢰 / 주문
HBSK16-40-50	C	422,400	-	-	-	-	견적의뢰 / 주문
HBSK16-45	P	18,040	-	-	-	-	견적의뢰 / 주문
HBSK16-45-50	C	453,200	-	-	-	-	견적의뢰 / 주문
HBSK16-50	P	18,040	-	-	-	-	견적의뢰 / 주문
HBSK16-50-50	C	453,200	-	-	-	-	견적의뢰 / 주문
HBSK16-55	P	19,360	-	-	-	-	견적의뢰 / 주문
HBSK16-55-40	C	392,700	-	-	-	-	견적의뢰 / 주문
HBSK16-60	P	20,680	-	-	-	-	견적의뢰 / 주문
HBSK16-60-35	C	361,900	-	-	-	-	견적의뢰 / 주문
HBSK16-65	P	21,560	-	-	-	-	견적의뢰 / 주문
HBSK16-65-30	C	327,800	-	-	-	-	견적의뢰 / 주문
HBSK16-70	P	22,880	-	-	-	-	견적의뢰 / 주문
HBSK16-70-30	C	344,300	-	-	-	-	견적의뢰 / 주문
HBSK16-75	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK16-75-30	C	371,800	-	-	-	-	견적의뢰 / 주문
HBSK16-80	P	25,520	-	-	-	-	견적의뢰 / 주문
HBSK16-80-30	C	383,900	-	-	-	-	견적의뢰 / 주문
HBSK16-85	P	26,840	-	-	-	-	견적의뢰 / 주문
HBSK16-85-30	C	408,100	-	-	-	-	견적의뢰 / 주문
HBSK16-90	P	28,160	-	-	-	-	견적의뢰 / 주문
HBSK16-90-30	C	423,500	-	-	-	-	견적의뢰 / 주문
HBSK16-95	P	29,480	-	-	-	-	견적의뢰 / 주문
HBSK16-95-30	C	487,300	-	-	-	-	견적의뢰 / 주문
HBSK16-100	P	30,800	-	-	-	-	견적의뢰 / 주문
HBSK16-100-30	C	463,100	-	-	-	-	견적의뢰 / 주문
HBSK16-110	P	33,000	-	-	-	-	견적의뢰 / 주문
HBSK16-110-30	C	576,400	-	-	-	-	견적의뢰 / 주문
HBSK16-120	P	35,200	-	-	-	-	견적의뢰 / 주문
HBSK16-120-25	C	511,500	-	-	-	-	견적의뢰 / 주문
HBSK16-130	P	37,400	-	-	-	-	견적의뢰 / 주문
HBSK16-130-25	C	541,200	-	-	-	-	견적의뢰 / 주문
HBSK16-140	P	39,600	-	-	-	-	견적의뢰 / 주문
HBSK16-140-20	C	466,400	-	-	-	-	견적의뢰 / 주문
HBSK16-150	P	41,800	-	-	-	-	견적의뢰 / 주문
HBSK16-150-20	C	510,400	-	-	-	-	견적의뢰 / 주문
HBSK16-160	P	45,100	-	-	-	-	견적의뢰 / 주문
HBSK16-170	P	48,400	-	-	-	-	견적의뢰 / 주문
HBSK16-180	P	51,700	-	-	-	-	견적의뢰 / 주문
HBSK16-190	P	55,000	-	-	-	-	견적의뢰 / 주문
HBSK16-200	P	58,300	-	-	-	-	견적의뢰 / 주문
HBSK18-40	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK18-45	P	25,300	-	-	-	-	견적의뢰 / 주문
HBSK18-50	P	26,400	-	-	-	-	견적의뢰 / 주문
HBSK18-55	P	26,400	-	-	-	-	견적의뢰 / 주문
HBSK18-60	P	26,400	-	-	-	-	견적의뢰 / 주문
HBSK18-65	P	27,500	-	-	-	-	견적의뢰 / 주문
HBSK18-70	P	28,600	-	-	-	-	견적의뢰 / 주문
HBSK18-75	P	29,700	-	-	-	-	견적의뢰 / 주문
HBSK18-80	P	30,800	-	-	-	-	견적의뢰 / 주문
HBSK18-90	P	33,000	-	-	-	-	견적의뢰 / 주문
HBSK18-100	P	35,200	-	-	-	-	견적의뢰 / 주문
HBSK20-35	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-40	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-45	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-50	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-55	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-60	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-65	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-70	P	24,200	-	-	-	-	견적의뢰 / 주문
HBSK20-75	P	25,300	-	-	-	-	견적의뢰 / 주문
HBSK20-80	P	26,400	-	-	-	-	견적의뢰 / 주문
HBSK20-85	P	27,500	-	-	-	-	견적의뢰 / 주문
HBSK20-90	P	28,600	-	-	-	-	견적의뢰 / 주문
HBSK20-95	P	29,920	-	-	-	-	견적의뢰 / 주문
HBSK20-100	P	31,240	-	-	-	-	견적의뢰 / 주문
HBSK20-110	P	35,200	-	-	-	-	견적의뢰 / 주문
HBSK20-120	P	37,400	-	-	-	-	견적의뢰 / 주문
HBSK20-130	P	39,600	-	-	-	-	견적의뢰 / 주문
HBSK20-140	P	44,000	-	-	-	-	견적의뢰 / 주문
HBSK20-150	P	46,200	-	-	-	-	견적의뢰 / 주문
HBSK20-160	P	50,600	-	-	-	-	견적의뢰 / 주문
HBSK20-170	P	53,900	-	-	-	-	견적의뢰 / 주문
HBSK20-180	P	59,400	-	-	-	-	견적의뢰 / 주문
HBSK20-190	P	62,700	-	-	-	-	견적의뢰 / 주문
HBSK20-200	P	66,000	-	-	-	-	견적의뢰 / 주문
HBSK22-50	P	33,000	-	-	-	-	견적의뢰 / 주문
HBSK22-55	P	33,000	-	-	-	-	견적의뢰 / 주문
HBSK22-60	P	33,000	-	-	-	-	견적의뢰 / 주문
HBSK22-65	P	34,100	-	-	-	-	견적의뢰 / 주문
HBSK22-70	P	35,200	-	-	-	-	견적의뢰 / 주문
HBSK22-75	P	36,300	-	-	-	-	견적의뢰 / 주문
HBSK22-80	P	37,400	-	-	-	-	견적의뢰 / 주문
HBSK22-85	P	38,500	-	-	-	-	견적의뢰 / 주문
HBSK22-90	P	39,600	-	-	-	-	견적의뢰 / 주문
HBSK22-95	P	41,800	-	-	-	-	견적의뢰 / 주문
HBSK22-100	P	44,000	-	-	-	-	견적의뢰 / 주문
HBSK22-110	P	46,200	-	-	-	-	견적의뢰 / 주문
HBSK22-120	P	49,720	-	-	-	-	견적의뢰 / 주문
HBSK22-130	P	52,360	-	-	-	-	견적의뢰 / 주문
HBSK22-140	P	55,000	-	-	-	-	견적의뢰 / 주문
HBSK22-150	P	57,640	-	-	-	-	견적의뢰 / 주문
HBSK22-160	P	66,000	-	-	-	-	견적의뢰 / 주문
HBSK22-170	P	70,400	-	-	-	-	견적의뢰 / 주문
HBSK24-40	P	35,200	-	-	-	-	견적의뢰 / 주문
HBSK24-45	P	37,400	-	-	-	-	견적의뢰 / 주문
HBSK24-50	P	39,600	-	-	-	-	견적의뢰 / 주문
HBSK24-55	P	39,600	-	-	-	-	견적의뢰 / 주문
HBSK24-60	P	41,800	-	-	-	-	견적의뢰 / 주문
HBSK24-65	P	40,920	-	-	-	-	견적의뢰 / 주문
HBSK24-70	P	43,560	-	-	-	-	견적의뢰 / 주문
HBSK24-75	P	45,760	-	-	-	-	견적의뢰 / 주문
HBSK24-80	P	46,640	-	-	-	-	견적의뢰 / 주문
HBSK24-85	P	48,840	-	-	-	-	견적의뢰 / 주문
HBSK24-90	P	51,040	-	-	-	-	견적의뢰 / 주문
HBSK24-95	P	53,240	-	-	-	-	견적의뢰 / 주문
HBSK24-100	P	55,440	-	-	-	-	견적의뢰 / 주문
HBSK24-110	P	59,840	-	-	-	-	견적의뢰 / 주문
HBSK24-120	P	63,800	-	-	-	-	견적의뢰 / 주문
HBSK24-130	P	66,440	-	-	-	-	견적의뢰 / 주문
HBSK24-140	P	70,840	-	-	-	-	견적의뢰 / 주문
HBSK24-150	P	75,240	-	-	-	-	견적의뢰 / 주문
HBSK30-70	P	103,400	-	-	-	-	견적의뢰 / 주문
HBSK30-75	P	104,500	-	-	-	-	견적의뢰 / 주문
HBSK30-80	P	105,600	-	-	-	-	견적의뢰 / 주문
HBSK30-85	P	110,000	-	-	-	-	견적의뢰 / 주문
HBSK30-90	P	114,400	-	-	-	-	견적의뢰 / 주문
HBSK30-100	P	118,800	-	-	-	-	견적의뢰 / 주문
HBSK30-110	P	125,400	-	-	-	-	견적의뢰 / 주문
HBSK30-120	P	132,000	-	-	-	-	견적의뢰 / 주문
HBSK30-130	P	139,700	-	-	-	-	견적의뢰 / 주문
HBSK30-140	P	146,300	-	-	-	-	견적의뢰 / 주문
HBSK30-150	P	154,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
