HOME > 제어·계측기기 > 계측기기 > 신호변환기 > 절연변환기(아이솔레이터)
신호변환기

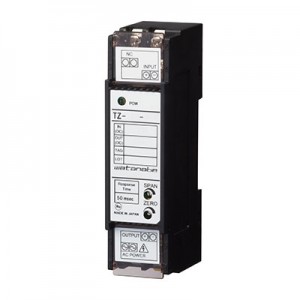

절연변환기(아이솔레이터)
와타나베전기공업(주) ( WATANABE ELECTRIC )
공통사양
캐드자료
    • 카탈로그
    		•

    제품소개


    신호변환기 사용법


    상세사양
    260건 중 1~260건 표시
    형식전원입력출력반응시간
    형식전원입력출력반응시간
    TZ-1XA-00L100~240VAC ±10%0~5VDC0~5VDC50ms
    TZ-1XA-00H100~240VAC ±10%0~5VDC0~5VDC1ms
    TZ-1XA-01L100~240VAC ±10%0~5VDC1~5VDC50ms
    TZ-1XA-01H100~240VAC ±10%0~5VDC1~5VDC1ms
    TZ-1XA-02L100~240VAC ±10%0~5VDC0~10VDC50ms
    TZ-1XA-02H100~240VAC ±10%0~5VDC0~10VDC1ms
    TZ-1XA-03L100~240VAC ±10%0~5VDC±10VDC50ms
    TZ-1XA-03H100~240VAC ±10%0~5VDC±10VDC1ms
    TZ-1XA-04L100~240VAC ±10%0~5VDC±2VDC50ms
    TZ-1XA-04H100~240VAC ±10%0~5VDC±2VDC1ms
    TZ-1XA-05L100~240VAC ±10%0~5VDC±2.5VDC50ms
    TZ-1XA-05H100~240VAC ±10%0~5VDC±2.5VDC1ms
    TZ-1XA-06L100~240VAC ±10%0~5VDC±5VDC50ms
    TZ-1XA-06H100~240VAC ±10%0~5VDC±5VDC1ms
    TZ-1XA-07L100~240VAC ±10%0~5VDC0~4VDC50ms
    TZ-1XA-07H100~240VAC ±10%0~5VDC0~4VDC1ms
    TZ-1XA-0AL100~240VAC ±10%0~5VDC4~20mADC50ms
    TZ-1XA-0BL100~240VAC ±10%0~5VDC0~20mADC50ms
    TZ-1XA-0YL100~240VAC ±10%0~5VDCSpecial (Inform range)50ms
    TZ-1XA-0YH100~240VAC ±10%0~5VDCSpecial (Inform range)1ms
    TZ-1XA-10L100~240VAC ±10%1~5VDC0~5VDC50ms
    TZ-1XA-10H100~240VAC ±10%1~5VDC0~5VDC1ms
    TZ-1XA-11L100~240VAC ±10%1~5VDC1~5VDC50ms
    TZ-1XA-11H100~240VAC ±10%1~5VDC1~5VDC1ms
    TZ-1XA-12L100~240VAC ±10%1~5VDC0~10VDC50ms
    TZ-1XA-12H100~240VAC ±10%1~5VDC0~10VDC1ms
    TZ-1XA-13L100~240VAC ±10%1~5VDC±10VDC50ms
    TZ-1XA-13H100~240VAC ±10%1~5VDC±10VDC1ms
    TZ-1XA-14L100~240VAC ±10%1~5VDC±2VDC50ms
    TZ-1XA-14H100~240VAC ±10%1~5VDC±2VDC1ms
    TZ-1XA-15L100~240VAC ±10%1~5VDC±2.5VDC50ms
    TZ-1XA-15H100~240VAC ±10%1~5VDC±2.5VDC1ms
    TZ-1XA-16L100~240VAC ±10%1~5VDC±5VDC50ms
    TZ-1XA-16H100~240VAC ±10%1~5VDC±5VDC1ms
    TZ-1XA-17L100~240VAC ±10%1~5VDC0~4VDC50ms
    TZ-1XA-17H100~240VAC ±10%1~5VDC0~4VDC1ms
    TZ-1XA-1AL100~240VAC ±10%1~5VDC4~20mADC50ms
    TZ-1XA-1BL100~240VAC ±10%1~5VDC0~20mADC50ms
    TZ-1XA-1YL100~240VAC ±10%1~5VDCSpecial (Inform range)50ms
    TZ-1XA-1YH100~240VAC ±10%1~5VDCSpecial (Inform range)1ms
    TZ-1XA-20L100~240VAC ±10%0~10VDC0~5VDC50ms
    TZ-1XA-20H100~240VAC ±10%0~10VDC0~5VDC1ms
    TZ-1XA-21L100~240VAC ±10%0~10VDC1~5VDC50ms
    TZ-1XA-21H100~240VAC ±10%0~10VDC1~5VDC1ms
    TZ-1XA-22L100~240VAC ±10%0~10VDC0~10VDC50ms
    TZ-1XA-22H100~240VAC ±10%0~10VDC0~10VDC1ms
    TZ-1XA-23L100~240VAC ±10%0~10VDC±10VDC50ms
    TZ-1XA-23H100~240VAC ±10%0~10VDC±10VDC1ms
    TZ-1XA-24L100~240VAC ±10%0~10VDC±2VDC50ms
    TZ-1XA-24H100~240VAC ±10%0~10VDC±2VDC1ms
    TZ-1XA-25L100~240VAC ±10%0~10VDC±2.5VDC50ms
    TZ-1XA-25H100~240VAC ±10%0~10VDC±2.5VDC1ms
    TZ-1XA-26L100~240VAC ±10%0~10VDC±5VDC50ms
    TZ-1XA-26H100~240VAC ±10%0~10VDC±5VDC1ms
    TZ-1XA-27L100~240VAC ±10%0~10VDC0~4VDC50ms
    TZ-1XA-27H100~240VAC ±10%0~10VDC0~4VDC1ms
    TZ-1XA-2AL100~240VAC ±10%0~10VDC4~20mADC50ms
    TZ-1XA-2BL100~240VAC ±10%0~10VDC0~20mADC50ms
    TZ-1XA-2YL100~240VAC ±10%0~10VDCSpecial (Inform range)50ms
    TZ-1XA-2YH100~240VAC ±10%0~10VDCSpecial (Inform range)1ms
    TZ-1XA-30L100~240VAC ±10%±10VDC0~5VDC50ms
    TZ-1XA-30H100~240VAC ±10%±10VDC0~5VDC1ms
    TZ-1XA-31L100~240VAC ±10%±10VDC1~5VDC50ms
    TZ-1XA-31H100~240VAC ±10%±10VDC1~5VDC1ms
    TZ-1XA-32L100~240VAC ±10%±10VDC0~10VDC50ms
    TZ-1XA-32H100~240VAC ±10%±10VDC0~10VDC1ms
    TZ-1XA-33L100~240VAC ±10%±10VDC±10VDC50ms
    TZ-1XA-33H100~240VAC ±10%±10VDC±10VDC1ms
    TZ-1XA-34L100~240VAC ±10%±10VDC±2VDC50ms
    TZ-1XA-34H100~240VAC ±10%±10VDC±2VDC1ms
    TZ-1XA-35L100~240VAC ±10%±10VDC±2.5VDC50ms
    TZ-1XA-35H100~240VAC ±10%±10VDC±2.5VDC1ms
    TZ-1XA-36L100~240VAC ±10%±10VDC±5VDC50ms
    TZ-1XA-36H100~240VAC ±10%±10VDC±5VDC1ms
    TZ-1XA-37L100~240VAC ±10%±10VDC0~4VDC50ms
    TZ-1XA-37H100~240VAC ±10%±10VDC0~4VDC1ms
    TZ-1XA-3AL100~240VAC ±10%±10VDC4~20mADC50ms
    TZ-1XA-3BL100~240VAC ±10%±10VDC0~20mADC50ms
    TZ-1XA-3YL100~240VAC ±10%±10VDCSpecial (Inform range)50ms
    TZ-1XA-3YH100~240VAC ±10%±10VDCSpecial (Inform range)1ms
    TZ-1XA-40L100~240VAC ±10%0~1VDC0~5VDC50ms
    TZ-1XA-40H100~240VAC ±10%0~1VDC0~5VDC1ms
    TZ-1XA-41L100~240VAC ±10%0~1VDC1~5VDC50ms
    TZ-1XA-41H100~240VAC ±10%0~1VDC1~5VDC1ms
    TZ-1XA-42L100~240VAC ±10%0~1VDC0~10VDC50ms
    TZ-1XA-42H100~240VAC ±10%0~1VDC0~10VDC1ms
    TZ-1XA-43L100~240VAC ±10%0~1VDC±10VDC50ms
    TZ-1XA-43H100~240VAC ±10%0~1VDC±10VDC1ms
    TZ-1XA-44L100~240VAC ±10%0~1VDC±2VDC50ms
    TZ-1XA-44H100~240VAC ±10%0~1VDC±2VDC1ms
    TZ-1XA-45L100~240VAC ±10%0~1VDC±2.5VDC50ms
    TZ-1XA-45H100~240VAC ±10%0~1VDC±2.5VDC1ms
    TZ-1XA-46L100~240VAC ±10%0~1VDC±5VDC50ms
    TZ-1XA-46H100~240VAC ±10%0~1VDC±5VDC1ms
    TZ-1XA-47L100~240VAC ±10%0~1VDC0~4VDC50ms
    TZ-1XA-47H100~240VAC ±10%0~1VDC0~4VDC1ms
    TZ-1XA-4AL100~240VAC ±10%0~1VDC4~20mADC50ms
    TZ-1XA-4BL100~240VAC ±10%0~1VDC0~20mADC50ms
    TZ-1XA-4YL100~240VAC ±10%0~1VDCSpecial (Inform range)50ms
    TZ-1XA-4YH100~240VAC ±10%0~1VDCSpecial (Inform range)1ms
    TZ-1XA-50L100~240VAC ±10%0~0.1VDC0~5VDC50ms
    TZ-1XA-50H100~240VAC ±10%0~0.1VDC0~5VDC1ms
    TZ-1XA-51L100~240VAC ±10%0~0.1VDC1~5VDC50ms
    TZ-1XA-51H100~240VAC ±10%0~0.1VDC1~5VDC1ms
    TZ-1XA-52L100~240VAC ±10%0~0.1VDC0~10VDC50ms
    TZ-1XA-52H100~240VAC ±10%0~0.1VDC0~10VDC1ms
    TZ-1XA-53L100~240VAC ±10%0~0.1VDC±10VDC50ms
    TZ-1XA-53H100~240VAC ±10%0~0.1VDC±10VDC1ms
    TZ-1XA-54L100~240VAC ±10%0~0.1VDC±2VDC50ms
    TZ-1XA-54H100~240VAC ±10%0~0.1VDC±2VDC1ms
    TZ-1XA-55L100~240VAC ±10%0~0.1VDC±2.5VDC50ms
    TZ-1XA-55H100~240VAC ±10%0~0.1VDC±2.5VDC1ms
    TZ-1XA-56L100~240VAC ±10%0~0.1VDC±5VDC50ms
    TZ-1XA-56H100~240VAC ±10%0~0.1VDC±5VDC1ms
    TZ-1XA-57L100~240VAC ±10%0~0.1VDC0~4VDC50ms
    TZ-1XA-57H100~240VAC ±10%0~0.1VDC0~4VDC1ms
    TZ-1XA-5AL100~240VAC ±10%0~0.1VDC4~20mADC50ms
    TZ-1XA-5BL100~240VAC ±10%0~0.1VDC0~20mADC50ms
    TZ-1XA-5YL100~240VAC ±10%0~0.1VDCSpecial (Inform range)50ms
    TZ-1XA-5YH100~240VAC ±10%0~0.1VDCSpecial (Inform range)1ms
    TZ-1XA-60L100~240VAC ±10%0~0.06VDC0~5VDC50ms
    TZ-1XA-60H100~240VAC ±10%0~0.06VDC0~5VDC1ms
    TZ-1XA-61L100~240VAC ±10%0~0.06VDC1~5VDC50ms
    TZ-1XA-61H100~240VAC ±10%0~0.06VDC1~5VDC1ms
    TZ-1XA-62L100~240VAC ±10%0~0.06VDC0~10VDC50ms
    TZ-1XA-62H100~240VAC ±10%0~0.06VDC0~10VDC1ms
    TZ-1XA-63L100~240VAC ±10%0~0.06VDC±10VDC50ms
    TZ-1XA-63H100~240VAC ±10%0~0.06VDC±10VDC1ms
    TZ-1XA-64L100~240VAC ±10%0~0.06VDC±2VDC50ms
    TZ-1XA-64H100~240VAC ±10%0~0.06VDC±2VDC1ms
    TZ-1XA-65L100~240VAC ±10%0~0.06VDC±2.5VDC50ms
    TZ-1XA-65H100~240VAC ±10%0~0.06VDC±2.5VDC1ms
    TZ-1XA-66L100~240VAC ±10%0~0.06VDC±5VDC50ms
    TZ-1XA-66H100~240VAC ±10%0~0.06VDC±5VDC1ms
    TZ-1XA-67L100~240VAC ±10%0~0.06VDC0~4VDC50ms
    TZ-1XA-67H100~240VAC ±10%0~0.06VDC0~4VDC1ms
    TZ-1XA-6AL100~240VAC ±10%0~0.06VDC4~20mADC50ms
    TZ-1XA-6BL100~240VAC ±10%0~0.06VDC0~20mADC50ms
    TZ-1XA-6YL100~240VAC ±10%0~0.06VDCSpecial (Inform range)50ms
    TZ-1XA-6YH100~240VAC ±10%0~0.06VDCSpecial (Inform range)1ms
    TZ-1XA-70L100~240VAC ±10%0~20VDC0~5VDC50ms
    TZ-1XA-70H100~240VAC ±10%0~20VDC0~5VDC1ms
    TZ-1XA-71L100~240VAC ±10%0~20VDC1~5VDC50ms
    TZ-1XA-71H100~240VAC ±10%0~20VDC1~5VDC1ms
    TZ-1XA-72L100~240VAC ±10%0~20VDC0~10VDC50ms
    TZ-1XA-72H100~240VAC ±10%0~20VDC0~10VDC1ms
    TZ-1XA-73L100~240VAC ±10%0~20VDC±10VDC50ms
    TZ-1XA-73H100~240VAC ±10%0~20VDC±10VDC1ms
    TZ-1XA-74L100~240VAC ±10%0~20VDC±2VDC50ms
    TZ-1XA-74H100~240VAC ±10%0~20VDC±2VDC1ms
    TZ-1XA-75L100~240VAC ±10%0~20VDC±2.5VDC50ms
    TZ-1XA-75H100~240VAC ±10%0~20VDC±2.5VDC1ms
    TZ-1XA-76L100~240VAC ±10%0~20VDC±5VDC50ms
    TZ-1XA-76H100~240VAC ±10%0~20VDC±5VDC1ms
    TZ-1XA-77L100~240VAC ±10%0~20VDC0~4VDC50ms
    TZ-1XA-77H100~240VAC ±10%0~20VDC0~4VDC1ms
    TZ-1XA-7AL100~240VAC ±10%0~20VDC4~20mADC50ms
    TZ-1XA-7BL100~240VAC ±10%0~20VDC0~20mADC50ms
    TZ-1XA-7YL100~240VAC ±10%0~20VDCSpecial (Inform range)50ms
    TZ-1XA-7YH100~240VAC ±10%0~20VDCSpecial (Inform range)1ms
    TZ-1XA-80L100~240VAC ±10%±2VDC0~5VDC50ms
    TZ-1XA-80H100~240VAC ±10%±2VDC0~5VDC1ms
    TZ-1XA-81L100~240VAC ±10%±2VDC1~5VDC50ms
    TZ-1XA-81H100~240VAC ±10%±2VDC1~5VDC1ms
    TZ-1XA-82L100~240VAC ±10%±2VDC0~10VDC50ms
    TZ-1XA-82H100~240VAC ±10%±2VDC0~10VDC1ms
    TZ-1XA-83L100~240VAC ±10%±2VDC±10VDC50ms
    TZ-1XA-83H100~240VAC ±10%±2VDC±10VDC1ms
    TZ-1XA-84L100~240VAC ±10%±2VDC±2VDC50ms
    TZ-1XA-84H100~240VAC ±10%±2VDC±2VDC1ms
    TZ-1XA-85L100~240VAC ±10%±2VDC±2.5VDC50ms
    TZ-1XA-85H100~240VAC ±10%±2VDC±2.5VDC1ms
    TZ-1XA-86L100~240VAC ±10%±2VDC±5VDC50ms
    TZ-1XA-86H100~240VAC ±10%±2VDC±5VDC1ms
    TZ-1XA-87L100~240VAC ±10%±2VDC0~4VDC50ms
    TZ-1XA-87H100~240VAC ±10%±2VDC0~4VDC1ms
    TZ-1XA-8AL100~240VAC ±10%±2VDC4~20mADC50ms
    TZ-1XA-8BL100~240VAC ±10%±2VDC0~20mADC50ms
    TZ-1XA-8YL100~240VAC ±10%±2VDCSpecial (Inform range)50ms
    TZ-1XA-8YH100~240VAC ±10%±2VDCSpecial (Inform range)1ms
    TZ-1XA-90L100~240VAC ±10%±5VDC0~5VDC50ms
    TZ-1XA-90H100~240VAC ±10%±5VDC0~5VDC1ms
    TZ-1XA-91L100~240VAC ±10%±5VDC1~5VDC50ms
    TZ-1XA-91H100~240VAC ±10%±5VDC1~5VDC1ms
    TZ-1XA-92L100~240VAC ±10%±5VDC0~10VDC50ms
    TZ-1XA-92H100~240VAC ±10%±5VDC0~10VDC1ms
    TZ-1XA-93L100~240VAC ±10%±5VDC±10VDC50ms
    TZ-1XA-93H100~240VAC ±10%±5VDC±10VDC1ms
    TZ-1XA-94L100~240VAC ±10%±5VDC±2VDC50ms
    TZ-1XA-94H100~240VAC ±10%±5VDC±2VDC1ms
    TZ-1XA-95L100~240VAC ±10%±5VDC±2.5VDC50ms
    TZ-1XA-95H100~240VAC ±10%±5VDC±2.5VDC1ms
    TZ-1XA-96L100~240VAC ±10%±5VDC±5VDC50ms
    TZ-1XA-96H100~240VAC ±10%±5VDC±5VDC1ms
    TZ-1XA-97L100~240VAC ±10%±5VDC0~4VDC50ms
    TZ-1XA-97H100~240VAC ±10%±5VDC0~4VDC1ms
    TZ-1XA-9AL100~240VAC ±10%±5VDC4~20mADC50ms
    TZ-1XA-9BL100~240VAC ±10%±5VDC0~20mADC50ms
    TZ-1XA-9YL100~240VAC ±10%±5VDCSpecial (Inform range)50ms
    TZ-1XA-9YH100~240VAC ±10%±5VDCSpecial (Inform range)1ms
    TZ-1XA-A0L100~240VAC ±10%4~20mADC0~5VDC50ms
    TZ-1XA-A0H100~240VAC ±10%4~20mADC0~5VDC1ms
    TZ-1XA-A1L100~240VAC ±10%4~20mADC1~5VDC50ms
    TZ-1XA-A1H100~240VAC ±10%4~20mADC1~5VDC1ms
    TZ-1XA-A2L100~240VAC ±10%4~20mADC0~10VDC50ms
    TZ-1XA-A2H100~240VAC ±10%4~20mADC0~10VDC1ms
    TZ-1XA-A3L100~240VAC ±10%4~20mADC±10VDC50ms
    TZ-1XA-A3H100~240VAC ±10%4~20mADC±10VDC1ms
    TZ-1XA-A4L100~240VAC ±10%4~20mADC±2VDC50ms
    TZ-1XA-A4H100~240VAC ±10%4~20mADC±2VDC1ms
    TZ-1XA-A5L100~240VAC ±10%4~20mADC±2.5VDC50ms
    TZ-1XA-A5H100~240VAC ±10%4~20mADC±2.5VDC1ms
    TZ-1XA-A6L100~240VAC ±10%4~20mADC±5VDC50ms
    TZ-1XA-A6H100~240VAC ±10%4~20mADC±5VDC1ms
    TZ-1XA-A7L100~240VAC ±10%4~20mADC0~4VDC50ms
    TZ-1XA-A7H100~240VAC ±10%4~20mADC0~4VDC1ms
    TZ-1XA-AAL100~240VAC ±10%4~20mADC4~20mADC50ms
    TZ-1XA-ABL100~240VAC ±10%4~20mADC0~20mADC50ms
    TZ-1XA-AYL100~240VAC ±10%4~20mADCSpecial (Inform range)50ms
    TZ-1XA-AYH100~240VAC ±10%4~20mADCSpecial (Inform range)1ms
    TZ-1XA-B0L100~240VAC ±10%0~20mADC0~5VDC50ms
    TZ-1XA-B0H100~240VAC ±10%0~20mADC0~5VDC1ms
    TZ-1XA-B1L100~240VAC ±10%0~20mADC1~5VDC50ms
    TZ-1XA-B1H100~240VAC ±10%0~20mADC1~5VDC1ms
    TZ-1XA-B2L100~240VAC ±10%0~20mADC0~10VDC50ms
    TZ-1XA-B2H100~240VAC ±10%0~20mADC0~10VDC1ms
    TZ-1XA-B3L100~240VAC ±10%0~20mADC±10VDC50ms
    TZ-1XA-B3H100~240VAC ±10%0~20mADC±10VDC1ms
    TZ-1XA-B4L100~240VAC ±10%0~20mADC±2VDC50ms
    TZ-1XA-B4H100~240VAC ±10%0~20mADC±2VDC1ms
    TZ-1XA-B5L100~240VAC ±10%0~20mADC±2.5VDC50ms
    TZ-1XA-B5H100~240VAC ±10%0~20mADC±2.5VDC1ms
    TZ-1XA-B6L100~240VAC ±10%0~20mADC±5VDC50ms
    TZ-1XA-B6H100~240VAC ±10%0~20mADC±5VDC1ms
    TZ-1XA-B7L100~240VAC ±10%0~20mADC0~4VDC50ms
    TZ-1XA-B7H100~240VAC ±10%0~20mADC0~4VDC1ms
    TZ-1XA-BAL100~240VAC ±10%0~20mADC4~20mADC50ms
    TZ-1XA-BBL100~240VAC ±10%0~20mADC0~20mADC50ms
    TZ-1XA-BYL100~240VAC ±10%0~20mADCSpecial (Inform range)50ms
    TZ-1XA-BYH100~240VAC ±10%0~20mADCSpecial (Inform range)1ms
    TZ-1XA-Y0L100~240VAC ±10%Special (Inform range)0~5VDC50ms
    TZ-1XA-Y0H100~240VAC ±10%Special (Inform range)0~5VDC1ms
    TZ-1XA-Y1L100~240VAC ±10%Special (Inform range)1~5VDC50ms
    TZ-1XA-Y1H100~240VAC ±10%Special (Inform range)1~5VDC1ms
    TZ-1XA-Y2L100~240VAC ±10%Special (Inform range)0~10VDC50ms
    TZ-1XA-Y2H100~240VAC ±10%Special (Inform range)0~10VDC1ms
    TZ-1XA-Y3L100~240VAC ±10%Special (Inform range)±10VDC50ms
    TZ-1XA-Y3H100~240VAC ±10%Special (Inform range)±10VDC1ms
    TZ-1XA-Y4L100~240VAC ±10%Special (Inform range)±2VDC50ms
    TZ-1XA-Y4H100~240VAC ±10%Special (Inform range)±2VDC1ms
    TZ-1XA-Y5L100~240VAC ±10%Special (Inform range)±2.5VDC50ms
    TZ-1XA-Y5H100~240VAC ±10%Special (Inform range)±2.5VDC1ms
    TZ-1XA-Y6L100~240VAC ±10%Special (Inform range)±5VDC50ms
    TZ-1XA-Y6H100~240VAC ±10%Special (Inform range)±5VDC1ms
    TZ-1XA-Y7L100~240VAC ±10%Special (Inform range)0~4VDC50ms
    TZ-1XA-Y7H100~240VAC ±10%Special (Inform range)0~4VDC1ms
    TZ-1XA-YAL100~240VAC ±10%Special (Inform range)4~20mADC50ms
    TZ-1XA-YBL100~240VAC ±10%Special (Inform range)0~20mADC50ms
    TZ-1XA-YYL100~240VAC ±10%Special (Inform range)Special (Inform range)50ms
    TZ-1XA-YYH100~240VAC ±10%Special (Inform range)Special (Inform range)1ms
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    TZ-1XA-00LP425,700----견적의뢰 / 주문
    TZ-1XA-00HP425,700----견적의뢰 / 주문
    TZ-1XA-01LP425,700----견적의뢰 / 주문
    TZ-1XA-01HP425,700----견적의뢰 / 주문
    TZ-1XA-02LP425,700----견적의뢰 / 주문
    TZ-1XA-02HP425,700----견적의뢰 / 주문
    TZ-1XA-03LP425,700----견적의뢰 / 주문
    TZ-1XA-03HP425,700----견적의뢰 / 주문
    TZ-1XA-04LP425,700----견적의뢰 / 주문
    TZ-1XA-04HP425,700----견적의뢰 / 주문
    TZ-1XA-05LP425,700----견적의뢰 / 주문
    TZ-1XA-05HP425,700----견적의뢰 / 주문
    TZ-1XA-06LP425,700----견적의뢰 / 주문
    TZ-1XA-06HP425,700----견적의뢰 / 주문
    TZ-1XA-07LP425,700----견적의뢰 / 주문
    TZ-1XA-07HP425,700----견적의뢰 / 주문
    TZ-1XA-0ALP425,700----견적의뢰 / 주문
    TZ-1XA-0BLP425,700----견적의뢰 / 주문
    TZ-1XA-0YLP563,200----견적의뢰 / 주문
    TZ-1XA-0YHP563,200----견적의뢰 / 주문
    TZ-1XA-10LP425,700----견적의뢰 / 주문
    TZ-1XA-10HP425,700----견적의뢰 / 주문
    TZ-1XA-11LP425,700----견적의뢰 / 주문
    TZ-1XA-11HP425,700----견적의뢰 / 주문
    TZ-1XA-12LP425,700----견적의뢰 / 주문
    TZ-1XA-12HP425,700----견적의뢰 / 주문
    TZ-1XA-13LP425,700----견적의뢰 / 주문
    TZ-1XA-13HP425,700----견적의뢰 / 주문
    TZ-1XA-14LP425,700----견적의뢰 / 주문
    TZ-1XA-14HP425,700----견적의뢰 / 주문
    TZ-1XA-15LP425,700----견적의뢰 / 주문
    TZ-1XA-15HP425,700----견적의뢰 / 주문
    TZ-1XA-16LP425,700----견적의뢰 / 주문
    TZ-1XA-16HP425,700----견적의뢰 / 주문
    TZ-1XA-17LP425,700----견적의뢰 / 주문
    TZ-1XA-17HP425,700----견적의뢰 / 주문
    TZ-1XA-1ALP425,700----견적의뢰 / 주문
    TZ-1XA-1BLP425,700----견적의뢰 / 주문
    TZ-1XA-1YLP563,200----견적의뢰 / 주문
    TZ-1XA-1YHP563,200----견적의뢰 / 주문
    TZ-1XA-20LP425,700----견적의뢰 / 주문
    TZ-1XA-20HP425,700----견적의뢰 / 주문
    TZ-1XA-21LP425,700----견적의뢰 / 주문
    TZ-1XA-21HP425,700----견적의뢰 / 주문
    TZ-1XA-22LP425,700----견적의뢰 / 주문
    TZ-1XA-22HP425,700----견적의뢰 / 주문
    TZ-1XA-23LP425,700----견적의뢰 / 주문
    TZ-1XA-23HP425,700----견적의뢰 / 주문
    TZ-1XA-24LP425,700----견적의뢰 / 주문
    TZ-1XA-24HP425,700----견적의뢰 / 주문
    TZ-1XA-25LP425,700----견적의뢰 / 주문
    TZ-1XA-25HP425,700----견적의뢰 / 주문
    TZ-1XA-26LP425,700----견적의뢰 / 주문
    TZ-1XA-26HP425,700----견적의뢰 / 주문
    TZ-1XA-27LP425,700----견적의뢰 / 주문
    TZ-1XA-27HP425,700----견적의뢰 / 주문
    TZ-1XA-2ALP425,700----견적의뢰 / 주문
    TZ-1XA-2BLP425,700----견적의뢰 / 주문
    TZ-1XA-2YLP563,200----견적의뢰 / 주문
    TZ-1XA-2YHP563,200----견적의뢰 / 주문
    TZ-1XA-30LP425,700----견적의뢰 / 주문
    TZ-1XA-30HP425,700----견적의뢰 / 주문
    TZ-1XA-31LP425,700----견적의뢰 / 주문
    TZ-1XA-31HP425,700----견적의뢰 / 주문
    TZ-1XA-32LP425,700----견적의뢰 / 주문
    TZ-1XA-32HP425,700----견적의뢰 / 주문
    TZ-1XA-33LP425,700----견적의뢰 / 주문
    TZ-1XA-33HP425,700----견적의뢰 / 주문
    TZ-1XA-34LP425,700----견적의뢰 / 주문
    TZ-1XA-34HP425,700----견적의뢰 / 주문
    TZ-1XA-35LP425,700----견적의뢰 / 주문
    TZ-1XA-35HP425,700----견적의뢰 / 주문
    TZ-1XA-36LP425,700----견적의뢰 / 주문
    TZ-1XA-36HP425,700----견적의뢰 / 주문
    TZ-1XA-37LP425,700----견적의뢰 / 주문
    TZ-1XA-37HP425,700----견적의뢰 / 주문
    TZ-1XA-3ALP425,700----견적의뢰 / 주문
    TZ-1XA-3BLP425,700----견적의뢰 / 주문
    TZ-1XA-3YLP563,200----견적의뢰 / 주문
    TZ-1XA-3YHP563,200----견적의뢰 / 주문
    TZ-1XA-40LP425,700----견적의뢰 / 주문
    TZ-1XA-40HP425,700----견적의뢰 / 주문
    TZ-1XA-41LP425,700----견적의뢰 / 주문
    TZ-1XA-41HP425,700----견적의뢰 / 주문
    TZ-1XA-42LP425,700----견적의뢰 / 주문
    TZ-1XA-42HP425,700----견적의뢰 / 주문
    TZ-1XA-43LP425,700----견적의뢰 / 주문
    TZ-1XA-43HP425,700----견적의뢰 / 주문
    TZ-1XA-44LP425,700----견적의뢰 / 주문
    TZ-1XA-44HP425,700----견적의뢰 / 주문
    TZ-1XA-45LP425,700----견적의뢰 / 주문
    TZ-1XA-45HP425,700----견적의뢰 / 주문
    TZ-1XA-46LP425,700----견적의뢰 / 주문
    TZ-1XA-46HP425,700----견적의뢰 / 주문
    TZ-1XA-47LP425,700----견적의뢰 / 주문
    TZ-1XA-47HP425,700----견적의뢰 / 주문
    TZ-1XA-4ALP425,700----견적의뢰 / 주문
    TZ-1XA-4BLP425,700----견적의뢰 / 주문
    TZ-1XA-4YLP563,200----견적의뢰 / 주문
    TZ-1XA-4YHP563,200----견적의뢰 / 주문
    TZ-1XA-50LP425,700----견적의뢰 / 주문
    TZ-1XA-50HP425,700----견적의뢰 / 주문
    TZ-1XA-51LP425,700----견적의뢰 / 주문
    TZ-1XA-51HP425,700----견적의뢰 / 주문
    TZ-1XA-52LP425,700----견적의뢰 / 주문
    TZ-1XA-52HP425,700----견적의뢰 / 주문
    TZ-1XA-53LP425,700----견적의뢰 / 주문
    TZ-1XA-53HP425,700----견적의뢰 / 주문
    TZ-1XA-54LP425,700----견적의뢰 / 주문
    TZ-1XA-54HP425,700----견적의뢰 / 주문
    TZ-1XA-55LP425,700----견적의뢰 / 주문
    TZ-1XA-55HP425,700----견적의뢰 / 주문
    TZ-1XA-56LP425,700----견적의뢰 / 주문
    TZ-1XA-56HP425,700----견적의뢰 / 주문
    TZ-1XA-57LP425,700----견적의뢰 / 주문
    TZ-1XA-57HP425,700----견적의뢰 / 주문
    TZ-1XA-5ALP425,700----견적의뢰 / 주문
    TZ-1XA-5BLP425,700----견적의뢰 / 주문
    TZ-1XA-5YLP563,200----견적의뢰 / 주문
    TZ-1XA-5YHP563,200----견적의뢰 / 주문
    TZ-1XA-60LP425,700----견적의뢰 / 주문
    TZ-1XA-60HP425,700----견적의뢰 / 주문
    TZ-1XA-61LP425,700----견적의뢰 / 주문
    TZ-1XA-61HP425,700----견적의뢰 / 주문
    TZ-1XA-62LP425,700----견적의뢰 / 주문
    TZ-1XA-62HP425,700----견적의뢰 / 주문
    TZ-1XA-63LP425,700----견적의뢰 / 주문
    TZ-1XA-63HP425,700----견적의뢰 / 주문
    TZ-1XA-64LP425,700----견적의뢰 / 주문
    TZ-1XA-64HP425,700----견적의뢰 / 주문
    TZ-1XA-65LP425,700----견적의뢰 / 주문
    TZ-1XA-65HP425,700----견적의뢰 / 주문
    TZ-1XA-66LP425,700----견적의뢰 / 주문
    TZ-1XA-66HP425,700----견적의뢰 / 주문
    TZ-1XA-67LP425,700----견적의뢰 / 주문
    TZ-1XA-67HP425,700----견적의뢰 / 주문
    TZ-1XA-6ALP425,700----견적의뢰 / 주문
    TZ-1XA-6BLP425,700----견적의뢰 / 주문
    TZ-1XA-6YLP563,200----견적의뢰 / 주문
    TZ-1XA-6YHP563,200----견적의뢰 / 주문
    TZ-1XA-70LP425,700----견적의뢰 / 주문
    TZ-1XA-70HP425,700----견적의뢰 / 주문
    TZ-1XA-71LP425,700----견적의뢰 / 주문
    TZ-1XA-71HP425,700----견적의뢰 / 주문
    TZ-1XA-72LP425,700----견적의뢰 / 주문
    TZ-1XA-72HP425,700----견적의뢰 / 주문
    TZ-1XA-73LP425,700----견적의뢰 / 주문
    TZ-1XA-73HP425,700----견적의뢰 / 주문
    TZ-1XA-74LP425,700----견적의뢰 / 주문
    TZ-1XA-74HP425,700----견적의뢰 / 주문
    TZ-1XA-75LP425,700----견적의뢰 / 주문
    TZ-1XA-75HP425,700----견적의뢰 / 주문
    TZ-1XA-76LP425,700----견적의뢰 / 주문
    TZ-1XA-76HP425,700----견적의뢰 / 주문
    TZ-1XA-77LP425,700----견적의뢰 / 주문
    TZ-1XA-77HP425,700----견적의뢰 / 주문
    TZ-1XA-7ALP425,700----견적의뢰 / 주문
    TZ-1XA-7BLP425,700----견적의뢰 / 주문
    TZ-1XA-7YLP563,200----견적의뢰 / 주문
    TZ-1XA-7YHP563,200----견적의뢰 / 주문
    TZ-1XA-80LP425,700----견적의뢰 / 주문
    TZ-1XA-80HP425,700----견적의뢰 / 주문
    TZ-1XA-81LP425,700----견적의뢰 / 주문
    TZ-1XA-81HP425,700----견적의뢰 / 주문
    TZ-1XA-82LP425,700----견적의뢰 / 주문
    TZ-1XA-82HP425,700----견적의뢰 / 주문
    TZ-1XA-83LP425,700----견적의뢰 / 주문
    TZ-1XA-83HP425,700----견적의뢰 / 주문
    TZ-1XA-84LP425,700----견적의뢰 / 주문
    TZ-1XA-84HP425,700----견적의뢰 / 주문
    TZ-1XA-85LP425,700----견적의뢰 / 주문
    TZ-1XA-85HP425,700----견적의뢰 / 주문
    TZ-1XA-86LP425,700----견적의뢰 / 주문
    TZ-1XA-86HP425,700----견적의뢰 / 주문
    TZ-1XA-87LP425,700----견적의뢰 / 주문
    TZ-1XA-87HP425,700----견적의뢰 / 주문
    TZ-1XA-8ALP425,700----견적의뢰 / 주문
    TZ-1XA-8BLP425,700----견적의뢰 / 주문
    TZ-1XA-8YLP563,200----견적의뢰 / 주문
    TZ-1XA-8YHP563,200----견적의뢰 / 주문
    TZ-1XA-90LP425,700----견적의뢰 / 주문
    TZ-1XA-90HP425,700----견적의뢰 / 주문
    TZ-1XA-91LP425,700----견적의뢰 / 주문
    TZ-1XA-91HP425,700----견적의뢰 / 주문
    TZ-1XA-92LP425,700----견적의뢰 / 주문
    TZ-1XA-92HP425,700----견적의뢰 / 주문
    TZ-1XA-93LP425,700----견적의뢰 / 주문
    TZ-1XA-93HP425,700----견적의뢰 / 주문
    TZ-1XA-94LP425,700----견적의뢰 / 주문
    TZ-1XA-94HP425,700----견적의뢰 / 주문
    TZ-1XA-95LP425,700----견적의뢰 / 주문
    TZ-1XA-95HP425,700----견적의뢰 / 주문
    TZ-1XA-96LP425,700----견적의뢰 / 주문
    TZ-1XA-96HP425,700----견적의뢰 / 주문
    TZ-1XA-97LP425,700----견적의뢰 / 주문
    TZ-1XA-97HP425,700----견적의뢰 / 주문
    TZ-1XA-9ALP425,700----견적의뢰 / 주문
    TZ-1XA-9BLP425,700----견적의뢰 / 주문
    TZ-1XA-9YLP563,200----견적의뢰 / 주문
    TZ-1XA-9YHP563,200----견적의뢰 / 주문
    TZ-1XA-A0LP425,700----견적의뢰 / 주문
    TZ-1XA-A0HP425,700----견적의뢰 / 주문
    TZ-1XA-A1LP425,700----견적의뢰 / 주문
    TZ-1XA-A1HP425,700----견적의뢰 / 주문
    TZ-1XA-A2LP425,700----견적의뢰 / 주문
    TZ-1XA-A2HP425,700----견적의뢰 / 주문
    TZ-1XA-A3LP425,700----견적의뢰 / 주문
    TZ-1XA-A3HP425,700----견적의뢰 / 주문
    TZ-1XA-A4LP425,700----견적의뢰 / 주문
    TZ-1XA-A4HP425,700----견적의뢰 / 주문
    TZ-1XA-A5LP425,700----견적의뢰 / 주문
    TZ-1XA-A5HP425,700----견적의뢰 / 주문
    TZ-1XA-A6LP425,700----견적의뢰 / 주문
    TZ-1XA-A6HP425,700----견적의뢰 / 주문
    TZ-1XA-A7LP425,700----견적의뢰 / 주문
    TZ-1XA-A7HP425,700----견적의뢰 / 주문
    TZ-1XA-AALP425,700----견적의뢰 / 주문
    TZ-1XA-ABLP425,700----견적의뢰 / 주문
    TZ-1XA-AYLP563,200----견적의뢰 / 주문
    TZ-1XA-AYHP563,200----견적의뢰 / 주문
    TZ-1XA-B0LP425,700----견적의뢰 / 주문
    TZ-1XA-B0HP425,700----견적의뢰 / 주문
    TZ-1XA-B1LP425,700----견적의뢰 / 주문
    TZ-1XA-B1HP425,700----견적의뢰 / 주문
    TZ-1XA-B2LP425,700----견적의뢰 / 주문
    TZ-1XA-B2HP425,700----견적의뢰 / 주문
    TZ-1XA-B3LP425,700----견적의뢰 / 주문
    TZ-1XA-B3HP425,700----견적의뢰 / 주문
    TZ-1XA-B4LP425,700----견적의뢰 / 주문
    TZ-1XA-B4HP425,700----견적의뢰 / 주문
    TZ-1XA-B5LP425,700----견적의뢰 / 주문
    TZ-1XA-B5HP425,700----견적의뢰 / 주문
    TZ-1XA-B6LP425,700----견적의뢰 / 주문
    TZ-1XA-B6HP425,700----견적의뢰 / 주문
    TZ-1XA-B7LP425,700----견적의뢰 / 주문
    TZ-1XA-B7HP425,700----견적의뢰 / 주문
    TZ-1XA-BALP425,700----견적의뢰 / 주문
    TZ-1XA-BBLP425,700----견적의뢰 / 주문
    TZ-1XA-BYLP563,200----견적의뢰 / 주문
    TZ-1XA-BYHP563,200----견적의뢰 / 주문
    TZ-1XA-Y0LP563,200----견적의뢰 / 주문
    TZ-1XA-Y0HP563,200----견적의뢰 / 주문
    TZ-1XA-Y1LP563,200----견적의뢰 / 주문
    TZ-1XA-Y1HP563,200----견적의뢰 / 주문
    TZ-1XA-Y2LP563,200----견적의뢰 / 주문
    TZ-1XA-Y2HP563,200----견적의뢰 / 주문
    TZ-1XA-Y3LP563,200----견적의뢰 / 주문
    TZ-1XA-Y3HP563,200----견적의뢰 / 주문
    TZ-1XA-Y4LP563,200----견적의뢰 / 주문
    TZ-1XA-Y4HP563,200----견적의뢰 / 주문
    TZ-1XA-Y5LP563,200----견적의뢰 / 주문
    TZ-1XA-Y5HP563,200----견적의뢰 / 주문
    TZ-1XA-Y6LP563,200----견적의뢰 / 주문
    TZ-1XA-Y6HP563,200----견적의뢰 / 주문
    TZ-1XA-Y7LP563,200----견적의뢰 / 주문
    TZ-1XA-Y7HP563,200----견적의뢰 / 주문
    TZ-1XA-YALP563,200----견적의뢰 / 주문
    TZ-1XA-YBLP563,200----견적의뢰 / 주문
    TZ-1XA-YYLP700,700----견적의뢰 / 주문
    TZ-1XA-YYHP700,700----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
