HOME > 배관기기 > 밸브 > 버터플라이밸브 > Tom Disco 302Y/304Y
버터플라이밸브

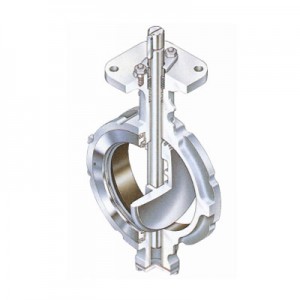

Tom Disco 302Y/304Y
토모에밸브(주) ( TOMOE )
공통사양
캐드자료
  • 카탈로그



  • 상세사양
    63건 중 1~63건 표시
    형식타입최고
    허용압력
    (MPa)
    적용
    플랜지
    규격
    밸브
    (mm)
    형식타입최고
    허용압력
    (MPa)
    적용
    플랜지
    규격
    밸브
    (mm)
    302Y-1T-10K-50A-FCD450/SUS316로크레버식2JIS 10K50
    302Y-1T-10K-65A-FCD450/SUS316로크레버식2JIS 10K65
    302Y-1T-10K-80A-FCD450/SUS316로크레버식2JIS 10K80
    302Y-1T-10K-100A-FCD450/SUS316로크레버식2JIS 10K100
    302Y-1T-10K-125A-FCD450/SUS316로크레버식2JIS 10K125
    302Y-1T-10K-150A-FCD450/SUS316로크레버식2JIS 10K150
    302Y-1T-10K-40A-SCS13A/SUS316로크레버식2JIS 10K40
    302Y-1T-10K-50A-SCS13A/SUS316로크레버식2JIS 10K50
    302Y-1T-10K-65A-SCS13A/SUS316로크레버식2JIS 10K65
    302Y-1T-10K-80A-SCS13A/SUS316로크레버식2JIS 10K80
    302Y-1T-10K-100A-SCS13A/SUS316로크레버식2JIS 10K100
    302Y-1T-10K-125A-SCS13A/SUS316로크레버식2JIS 10K125
    302Y-1T-10K-150A-SCS13A/SUS316로크레버식2JIS 10K150
    302Y-2U-10K-50A-FCD450/SUS316웜기어식2JIS 10K50
    302Y-2U-10K-80A-FCD450/SUS316웜기어식2JIS 10K80
    302Y-2U-10K-100A-FCD450/SUS316웜기어식2JIS 10K100
    302Y-2U-10K-125A-FCD450/SUS316웜기어식2JIS 10K125
    302Y-2U-10K-150A-FCD450/SUS316웜기어식2JIS 10K150
    302Y-2S-10K-200A-FCD450/SUS316웜기어식2JIS 10K200
    302Y-2S-10K-250A-FCD450/SUS316웜기어식1.6JIS 10K250
    302Y-2S-10K-300A-FCD450/SUS316웜기어식1.6JIS 10K300
    302Y-2U-10K-40A-SCS13A/SUS316웜기어식2JIS 10K40
    302Y-2U-10K-50A-SCS13A/SUS316웜기어식2JIS 10K50
    302Y-2U-10K-65A-SCS13A/SUS316웜기어식2JIS 10K65
    302Y-2U-10K-80A-SCS13A/SUS316웜기어식2JIS 10K80
    302Y-2U-10K-100A-SCS13A/SUS316웜기어식2JIS 10K100
    302Y-2U-10K-125A-SCS13A/SUS316웜기어식2JIS 10K125
    302Y-2U-10K-150A-SCS13A/SUS316웜기어식2JIS 10K150
    302Y-2S-10K-200A-SCS13A/SUS316웜기어식2JIS 10K200
    302Y-2S-10K-250A-SCS13A/SUS316웜기어식1.6JIS 10K250
    302Y-2S-10K-300A-SCS13A/SUS316웜기어식1.6JIS 10K300
    304Y-1T-10K-50A-FCD450/RPTFE로크레버식2JIS 10K50
    304Y-1T-10K-65A-FCD450/RPTFE로크레버식2JIS 10K65
    304Y-1T-10K-80A-FCD450/RPTFE로크레버식2JIS 10K80
    304Y-1T-10K-100A-FCD450/RPTFE로크레버식2JIS 10K100
    304Y-1T-10K-125A-FCD450/RPTFE로크레버식2JIS 10K125
    304Y-1T-10K-150A-FCD450/RPTFE로크레버식2JIS 10K150
    304Y-1T-10K-40A-SCS13A/RPTFE로크레버식2JIS 10K40
    304Y-1T-10K-50A-SCS13A/RPTFE로크레버식2JIS 10K50
    304Y-1T-10K-65A-SCS13A/RPTFE로크레버식2JIS 10K65
    304Y-1T-10K-80A-SCS13A/RPTFE로크레버식2JIS 10K80
    304Y-1T-10K-100A-SCS13A/RPTFE로크레버식2JIS 10K100
    304Y-1T-10K-125A-SCS13A/RPTFE로크레버식2JIS 10K125
    304Y-1T-10K-150A-SCS13A/RPTFE로크레버식2JIS 10K150
    304Y-2U-10K-50A-FCD450/RPTFE웜기어식2JIS 10K50
    304Y-2U-10K-65A-FCD450/RPTFE웜기어식2JIS 10K65
    304Y-2U-10K-80A-FCD450/RPTFE웜기어식2JIS 10K80
    304Y-2U-10K-100A-FCD450/RPTFE웜기어식2JIS 10K100
    304Y-2U-10K-125A-FCD450/RPTFE웜기어식2JIS 10K125
    304Y-2U-10K-150A-FCD450/RPTFE웜기어식2JIS 10K150
    304Y-2U-10K-200A-FCD450/RPTFE웜기어식2JIS 10K200
    304Y-2U-10K-250A-FCD450/RPTFE웜기어식2JIS 10K250
    304Y-2U-10K-300A-FCD450/RPTFE웜기어식2JIS 10K300
    304Y-2U-10K-40A-SCS13A/RPTFE웜기어식2JIS 10K40
    304Y-2U-10K-50A-SCS13A/RPTFE웜기어식2JIS 10K50
    304Y-2U-10K-65A-SCS13A/RPTFE웜기어식2JIS 10K65
    304Y-2U-10K-80A-SCS13A/RPTFE웜기어식2JIS 10K80
    304Y-2U-10K-100A-SCS13A/RPTFE웜기어식2JIS 10K100
    304Y-2U-10K-125A-SCS13A/RPTFE웜기어식2JIS 10K125
    304Y-2U-10K-150A-SCS13A/RPTFE웜기어식2JIS 10K150
    304Y-2U-10K-200A-SCS13A/RPTFE웜기어식2JIS 10K200
    304Y-2U-10K-250A-SCS13A/RPTFE웜기어식2JIS 10K250
    304Y-2U-10K-300A-SCS13A/RPTFE웜기어식2JIS 10K300
    형식재질재질재질재질재질
    형식본체밸브본체밸브봉시트
    그랜드패킹
    302Y-1T-10K-50A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-65A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-80A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-100A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-125A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-150A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-1T-10K-40A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-50A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-65A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-80A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-100A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-125A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-1T-10K-150A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-50A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-2U-10K-80A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-2U-10K-100A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-2U-10K-125A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-2U-10K-150A-FCD450/SUS316FCD450SCS13ASUS420J2SUS316RPTEE
    302Y-2S-10K-200A-FCD450/SUS316FCD450SCS13ASUS329J2SUS316RPTEE
    302Y-2S-10K-250A-FCD450/SUS316FCD450SCS13ASUS329J2SUS316RPTEE
    302Y-2S-10K-300A-FCD450/SUS316FCD450SCS13ASUS329J2SUS316RPTEE
    302Y-2U-10K-40A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-50A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-65A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-80A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-100A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-125A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2U-10K-150A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2S-10K-200A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2S-10K-250A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    302Y-2S-10K-300A-SCS13A/SUS316SCS13ASCS13ASUS329J1SUS316RPTEE
    304Y-1T-10K-50A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-65A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-80A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-100A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-125A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-150A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-1T-10K-40A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-50A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-65A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-80A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-100A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-125A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-1T-10K-150A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-50A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-65A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-80A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-100A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-125A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-150A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-200A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-250A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-300A-FCD450/RPTFEFCD450SCS13ASUS420J2RPTFERPTEE
    304Y-2U-10K-40A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-50A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-65A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-80A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-100A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-125A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-150A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-200A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-250A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    304Y-2U-10K-300A-SCS13A/RPTFESCS13ASCS13ASUS329J1RPTFERPTEE
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커재고아린재고질량견적의뢰 및 주문
    302Y-1T-10K-50A-FCD450/SUS316P2,167,000----견적의뢰 / 주문
    302Y-1T-10K-65A-FCD450/SUS316P2,464,000----견적의뢰 / 주문
    302Y-1T-10K-80A-FCD450/SUS316P2,794,000----견적의뢰 / 주문
    302Y-1T-10K-100A-FCD450/SUS316P3,234,000----견적의뢰 / 주문
    302Y-1T-10K-125A-FCD450/SUS316P4,092,000----견적의뢰 / 주문
    302Y-1T-10K-150A-FCD450/SUS316P4,884,000----견적의뢰 / 주문
    302Y-1T-10K-40A-SCS13A/SUS316P2,882,000----견적의뢰 / 주문
    302Y-1T-10K-50A-SCS13A/SUS316P3,058,000----견적의뢰 / 주문
    302Y-1T-10K-65A-SCS13A/SUS316P3,542,000----견적의뢰 / 주문
    302Y-1T-10K-80A-SCS13A/SUS316P4,092,000----견적의뢰 / 주문
    302Y-1T-10K-100A-SCS13A/SUS316P4,752,000----견적의뢰 / 주문
    302Y-1T-10K-125A-SCS13A/SUS316P5,918,000----견적의뢰 / 주문
    302Y-1T-10K-150A-SCS13A/SUS316P7,194,000----견적의뢰 / 주문
    302Y-2U-10K-50A-FCD450/SUS316P2,508,000----견적의뢰 / 주문
    302Y-2U-10K-80A-FCD450/SUS316P3,146,000----견적의뢰 / 주문
    302Y-2U-10K-100A-FCD450/SUS316P3,564,000----견적의뢰 / 주문
    302Y-2U-10K-125A-FCD450/SUS316P4,774,000----견적의뢰 / 주문
    302Y-2U-10K-150A-FCD450/SUS316P5,544,000----견적의뢰 / 주문
    302Y-2S-10K-200A-FCD450/SUS316P8,030,000----견적의뢰 / 주문
    302Y-2S-10K-250A-FCD450/SUS316P13,618,000----견적의뢰 / 주문
    302Y-2S-10K-300A-FCD450/SUS316P16,962,000----견적의뢰 / 주문
    302Y-2U-10K-40A-SCS13A/SUS316P3,168,000----견적의뢰 / 주문
    302Y-2U-10K-50A-SCS13A/SUS316P3,366,000----견적의뢰 / 주문
    302Y-2U-10K-65A-SCS13A/SUS316P3,850,000----견적의뢰 / 주문
    302Y-2U-10K-80A-SCS13A/SUS316P4,312,000----견적의뢰 / 주문
    302Y-2U-10K-100A-SCS13A/SUS316P5,038,000----견적의뢰 / 주문
    302Y-2U-10K-125A-SCS13A/SUS316P6,512,000----견적의뢰 / 주문
    302Y-2U-10K-150A-SCS13A/SUS316P7,788,000----견적의뢰 / 주문
    302Y-2S-10K-200A-SCS13A/SUS316P10,692,000----견적의뢰 / 주문
    302Y-2S-10K-250A-SCS13A/SUS316P15,466,000----견적의뢰 / 주문
    302Y-2S-10K-300A-SCS13A/SUS316P21,032,000----견적의뢰 / 주문
    304Y-1T-10K-50A-FCD450/RPTFEP1,870,000----견적의뢰 / 주문
    304Y-1T-10K-65A-FCD450/RPTFEP2,079,000----견적의뢰 / 주문
    304Y-1T-10K-80A-FCD450/RPTFEP2,420,000----견적의뢰 / 주문
    304Y-1T-10K-100A-FCD450/RPTFEP2,728,000----견적의뢰 / 주문
    304Y-1T-10K-125A-FCD450/RPTFEP3,410,000----견적의뢰 / 주문
    304Y-1T-10K-150A-FCD450/RPTFEP4,026,000----견적의뢰 / 주문
    304Y-1T-10K-40A-SCS13A/RPTFEP2,574,000----견적의뢰 / 주문
    304Y-1T-10K-50A-SCS13A/RPTFEP2,750,000----견적의뢰 / 주문
    304Y-1T-10K-65A-SCS13A/RPTFEP3,212,000----견적의뢰 / 주문
    304Y-1T-10K-80A-SCS13A/RPTFEP3,696,000----견적의뢰 / 주문
    304Y-1T-10K-100A-SCS13A/RPTFEP4,334,000----견적의뢰 / 주문
    304Y-1T-10K-125A-SCS13A/RPTFEP5,324,000----견적의뢰 / 주문
    304Y-1T-10K-150A-SCS13A/RPTFEP6,512,000----견적의뢰 / 주문
    304Y-2U-10K-50A-FCD450/RPTFEP2,200,000----견적의뢰 / 주문
    304Y-2U-10K-65A-FCD450/RPTFEP2,420,000----견적의뢰 / 주문
    304Y-2U-10K-80A-FCD450/RPTFEP2,728,000----견적의뢰 / 주문
    304Y-2U-10K-100A-FCD450/RPTFEP3,036,000----견적의뢰 / 주문
    304Y-2U-10K-125A-FCD450/RPTFEP3,718,000----견적의뢰 / 주문
    304Y-2U-10K-150A-FCD450/RPTFEP4,686,000----견적의뢰 / 주문
    304Y-2U-10K-200A-FCD450/RPTFEP6,094,000----견적의뢰 / 주문
    304Y-2U-10K-250A-FCD450/RPTFEP10,450,000----견적의뢰 / 주문
    304Y-2U-10K-300A-FCD450/RPTFEP14,058,000----견적의뢰 / 주문
    304Y-2U-10K-40A-SCS13A/RPTFEP2,860,000----견적의뢰 / 주문
    304Y-2U-10K-50A-SCS13A/RPTFEP3,058,000----견적의뢰 / 주문
    304Y-2U-10K-65A-SCS13A/RPTFEP3,476,000----견적의뢰 / 주문
    304Y-2U-10K-80A-SCS13A/RPTFEP3,960,000----견적의뢰 / 주문
    304Y-2U-10K-100A-SCS13A/RPTFEP4,620,000----견적의뢰 / 주문
    304Y-2U-10K-125A-SCS13A/RPTFEP5,632,000----견적의뢰 / 주문
    304Y-2U-10K-150A-SCS13A/RPTFEP7,128,000----견적의뢰 / 주문
    304Y-2U-10K-200A-SCS13A/RPTFEP9,306,000----견적의뢰 / 주문
    304Y-2U-10K-250A-SCS13A/RPTFEP12,452,000----견적의뢰 / 주문
    304Y-2U-10K-300A-SCS13A/RPTFEP18,216,000----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.



    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
