락스프라켓(체결구붙이)

RS35 록스프라켓 N타입

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


183건 중 1~183건 표시

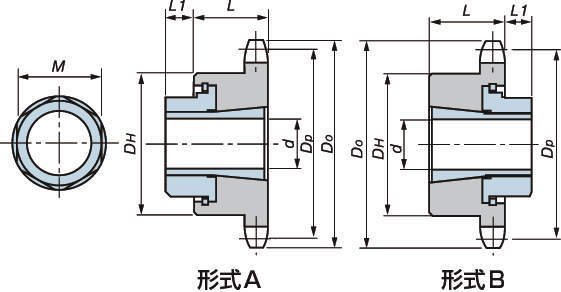

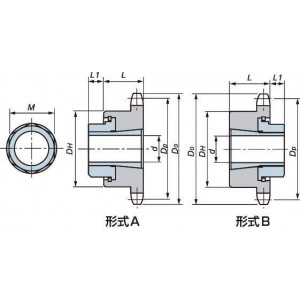

형식	체인 번호	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	축구멍직경 d (mm)
형식	체인 번호	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	축구멍직경 d (mm)
RS35-1B12T-N17A	RS35	12	36.8	40	31	20	7
RS35-1B12T-N18A	RS35	12	36.8	40	31	20	8
RS35-1B12T-N19A	RS35	12	36.8	40	31	20	9
RS35-1B13T-N17A	RS35	13	39.8	44	32	20	7
RS35-1B13T-N17B	RS35	13	39.8	44	32	20	7
RS35-1B13T-N18A	RS35	13	39.8	44	32	20	8
RS35-1B13T-N18B	RS35	13	39.8	44	32	20	8
RS35-1B13T-N19A	RS35	13	39.8	44	32	20	9
RS35-1B13T-N19B	RS35	13	39.8	44	32	20	9
RS35-1B14T-N17A	RS35	14	42.8	46	30	20	7
RS35-1B14T-N17B	RS35	14	42.8	46	30	20	7
RS35-1B14T-N18A	RS35	14	42.8	46	30	20	8
RS35-1B14T-N18B	RS35	14	42.8	46	30	20	8
RS35-1B14T-N19A	RS35	14	42.8	46	30	20	9
RS35-1B14T-N19B	RS35	14	42.8	46	30	20	9
RS35-1B15T-N17A	RS35	15	45.81	51	35	20	7
RS35-1B15T-N17B	RS35	15	45.81	51	35	20	7
RS35-1B15T-N18A	RS35	15	45.81	51	35	20	8
RS35-1B15T-N18B	RS35	15	45.81	51	35	20	8
RS35-1B15T-N19A	RS35	15	45.81	51	35	20	9
RS35-1B15T-N19B	RS35	15	45.81	51	35	20	9
RS35-1B15T-N210A	RS35	15	45.81	51	35	20	10
RS35-1B15T-N210B	RS35	15	45.81	51	35	20	10
RS35-1B15T-N211A	RS35	15	45.81	51	35	20	11
RS35-1B15T-N211B	RS35	15	45.81	51	35	20	11
RS35-1B15T-N212A	RS35	15	45.81	51	35	20	12
RS35-1B15T-N212B	RS35	15	45.81	51	35	20	12
RS35-1B16T-N17A	RS35	16	48.82	53	37	20	7
RS35-1B16T-N17B	RS35	16	48.82	53	37	20	7
RS35-1B16T-N18A	RS35	16	48.82	53	37	20	8
RS35-1B16T-N18B	RS35	16	48.82	53	37	20	8
RS35-1B16T-N19A	RS35	16	48.82	53	37	20	9
RS35-1B16T-N19B	RS35	16	48.82	53	37	20	9
RS35-1B16T-N210A	RS35	16	48.82	53	37	20	10
RS35-1B16T-N210B	RS35	16	48.82	53	37	20	10
RS35-1B16T-N211A	RS35	16	48.82	53	37	20	11
RS35-1B16T-N211B	RS35	16	48.82	53	37	20	11
RS35-1B16T-N212A	RS35	16	48.82	53	37	20	12
RS35-1B16T-N212B	RS35	16	48.82	53	37	20	12
RS35-1B17T-N19A	RS35	17	51.84	57	41	20	9
RS35-1B17T-N19B	RS35	17	51.84	57	41	20	9
RS35-1B17T-N210A	RS35	17	51.84	57	41	20	10
RS35-1B17T-N210B	RS35	17	51.84	57	41	20	10
RS35-1B17T-N211A	RS35	17	51.84	57	41	20	11
RS35-1B17T-N211B	RS35	17	51.84	57	41	20	11
RS35-1B17T-N212A	RS35	17	51.84	57	41	20	12
RS35-1B17T-N212B	RS35	17	51.84	57	41	20	12
RS35-1B18T-N210A	RS35	18	54.85	60	44	20	10
RS35-1B18T-N210B	RS35	18	54.85	60	44	20	10
RS35-1B18T-N211A	RS35	18	54.85	60	44	20	11
RS35-1B18T-N211B	RS35	18	54.85	60	44	20	11
RS35-1B18T-N212A	RS35	18	54.85	60	44	20	12
RS35-1B18T-N212B	RS35	18	54.85	60	44	20	12
RS35-1B19T-N210A	RS35	19	57.87	63	47	20	10
RS35-1B19T-N210B	RS35	19	57.87	63	47	20	10
RS35-1B19T-N211A	RS35	19	57.87	63	47	20	11
RS35-1B19T-N211B	RS35	19	57.87	63	47	20	11
RS35-1B19T-N212A	RS35	19	57.87	63	47	20	12
RS35-1B19T-N212B	RS35	19	57.87	63	47	20	12
RS35-1B20T-N210A	RS35	20	60.89	66	50	20	10
RS35-1B20T-N210B	RS35	20	60.89	66	50	20	10
RS35-1B20T-N211A	RS35	20	60.89	66	50	20	11
RS35-1B20T-N211B	RS35	20	60.89	66	50	20	11
RS35-1B20T-N212A	RS35	20	60.89	66	50	20	12
RS35-1B20T-N212B	RS35	20	60.89	66	50	20	12
RS35-1B21T-N210A	RS35	21	63.91	69	53	20	10
RS35-1B21T-N210B	RS35	21	63.91	69	53	20	10
RS35-1B21T-N211A	RS35	21	63.91	69	53	20	11
RS35-1B21T-N211B	RS35	21	63.91	69	53	20	11
RS35-1B21T-N212A	RS35	21	63.91	69	53	20	12
RS35-1B21T-N212B	RS35	21	63.91	69	53	20	12
RS35-1B22T-N210A	RS35	22	66.93	72	53	20	10
RS35-1B22T-N210B	RS35	22	66.93	72	53	20	10
RS35-1B22T-N211A	RS35	22	66.93	72	53	20	11
RS35-1B22T-N211B	RS35	22	66.93	72	53	20	11
RS35-1B22T-N212A	RS35	22	66.93	72	53	20	12
RS35-1B22T-N212B	RS35	22	66.93	72	53	20	12
RS35-1B23T-N210A	RS35	23	69.95	75	53	20	10
RS35-1B23T-N210B	RS35	23	69.95	75	53	20	10
RS35-1B23T-N211A	RS35	23	69.95	75	53	20	11
RS35-1B23T-N211B	RS35	23	69.95	75	53	20	11
RS35-1B23T-N212A	RS35	23	69.95	75	53	20	12
RS35-1B23T-N212B	RS35	23	69.95	75	53	20	12
RS35-1B24T-N210A	RS35	24	72.97	78	53	22	10
RS35-1B24T-N210B	RS35	24	72.97	78	53	22	10
RS35-1B24T-N211A	RS35	24	72.97	78	53	22	11
RS35-1B24T-N211B	RS35	24	72.97	78	53	22	11
RS35-1B24T-N212A	RS35	24	72.97	78	53	22	12
RS35-1B24T-N212B	RS35	24	72.97	78	53	22	12
RS35-1B24T-N314A	RS35	24	72.97	78	53	22	14
RS35-1B24T-N314B	RS35	24	72.97	78	53	22	14
RS35-1B24T-N315A	RS35	24	72.97	78	53	22	15
RS35-1B24T-N315B	RS35	24	72.97	78	53	22	15
RS35-1B24T-N316A	RS35	24	72.97	78	53	22	16
RS35-1B24T-N316B	RS35	24	72.97	78	53	22	16
RS35-1B25T-N211A	RS35	25	76	81	53	22	11
RS35-1B25T-N211B	RS35	25	76	81	53	22	11
RS35-1B25T-N212A	RS35	25	76	81	53	22	12
RS35-1B25T-N212B	RS35	25	76	81	53	22	12
RS35-1B25T-N314A	RS35	25	76	81	53	22	14
RS35-1B25T-N314B	RS35	25	76	81	53	22	14
RS35-1B25T-N315A	RS35	25	76	81	53	22	15
RS35-1B25T-N315B	RS35	25	76	81	53	22	15
RS35-1B25T-N316A	RS35	25	76	81	53	22	16
RS35-1B25T-N316B	RS35	25	76	81	53	22	16
RS35-1B26T-N211A	RS35	26	79.02	83	53	22	11
RS35-1B26T-N211B	RS35	26	79.02	83	53	22	11
RS35-1B26T-N212A	RS35	26	79.02	83	53	22	12
RS35-1B26T-N212B	RS35	26	79.02	83	53	22	12
RS35-1B26T-N314A	RS35	26	79.02	83	53	22	14
RS35-1B26T-N314B	RS35	26	79.02	83	53	22	14
RS35-1B26T-N315A	RS35	26	79.02	83	53	22	15
RS35-1B26T-N315B	RS35	26	79.02	83	53	22	15
RS35-1B26T-N316A	RS35	26	79.02	83	53	22	16
RS35-1B26T-N316B	RS35	26	79.02	83	53	22	16
RS35-1B27T-N212A	RS35	27	82.05	87	53	22	12
RS35-1B27T-N212B	RS35	27	82.05	87	53	22	12
RS35-1B27T-N314A	RS35	27	82.05	87	53	22	14
RS35-1B27T-N314B	RS35	27	82.05	87	53	22	14
RS35-1B27T-N315A	RS35	27	82.05	87	53	22	15
RS35-1B27T-N315B	RS35	27	82.05	87	53	22	15
RS35-1B27T-N316A	RS35	27	82.05	87	53	22	16
RS35-1B27T-N316B	RS35	27	82.05	87	53	22	16
RS35-1B28T-N314A	RS35	28	85.07	90	53	22	14
RS35-1B28T-N314B	RS35	28	85.07	90	53	22	14
RS35-1B28T-N315A	RS35	28	85.07	90	53	22	15
RS35-1B28T-N315B	RS35	28	85.07	90	53	22	15
RS35-1B28T-N316A	RS35	28	85.07	90	53	22	16
RS35-1B28T-N316B	RS35	28	85.07	90	53	22	16
RS35-1B30T-N314A	RS35	30	91.12	96	53	22	14
RS35-1B30T-N314B	RS35	30	91.12	96	53	22	14
RS35-1B30T-N315A	RS35	30	91.12	96	53	22	15
RS35-1B30T-N315B	RS35	30	91.12	96	53	22	15
RS35-1B30T-N316A	RS35	30	91.12	96	53	22	16
RS35-1B30T-N316B	RS35	30	91.12	96	53	22	16
RS35-1B32T-N314A	RS35	32	97.18	102	53	22	14
RS35-1B32T-N314B	RS35	32	97.18	102	53	22	14
RS35-1B32T-N315A	RS35	32	97.18	102	53	22	15
RS35-1B32T-N315B	RS35	32	97.18	102	53	22	15
RS35-1B32T-N316A	RS35	32	97.18	102	53	22	16
RS35-1B32T-N316B	RS35	32	97.18	102	53	22	16
RS35-1B34T-N314A	RS35	34	103.23	109	53	22	14
RS35-1B34T-N314B	RS35	34	103.23	109	53	22	14
RS35-1B34T-N315A	RS35	34	103.23	109	53	22	15
RS35-1B34T-N315B	RS35	34	103.23	109	53	22	15
RS35-1B34T-N316A	RS35	34	103.23	109	53	22	16
RS35-1B34T-N316B	RS35	34	103.23	109	53	22	16
RS35-1B35T-N314A	RS35	35	106.26	112	53	22	14
RS35-1B35T-N314B	RS35	35	106.26	112	53	22	14
RS35-1B35T-N315A	RS35	35	106.26	112	53	22	15
RS35-1B35T-N315B	RS35	35	106.26	112	53	22	15
RS35-1B35T-N316A	RS35	35	106.26	112	53	22	16
RS35-1B35T-N316B	RS35	35	106.26	112	53	22	16
RS35-1B36T-N314A	RS35	36	109.29	115	53	22	14
RS35-1B36T-N314B	RS35	36	109.29	115	53	22	14
RS35-1B36T-N315A	RS35	36	109.29	115	53	22	15
RS35-1B36T-N315B	RS35	36	109.29	115	53	22	15
RS35-1B36T-N316A	RS35	36	109.29	115	53	22	16
RS35-1B36T-N316B	RS35	36	109.29	115	53	22	16
RS35-1B38T-N314A	RS35	38	115.34	121	63	25	14
RS35-1B38T-N314B	RS35	38	115.34	121	63	25	14
RS35-1B38T-N315A	RS35	38	115.34	121	63	25	15
RS35-1B38T-N315B	RS35	38	115.34	121	63	25	15
RS35-1B38T-N316A	RS35	38	115.34	121	63	25	16
RS35-1B38T-N316B	RS35	38	115.34	121	63	25	16
RS35-1B38T-N417A	RS35	38	115.34	121	63	25	17
RS35-1B38T-N417B	RS35	38	115.34	121	63	25	17
RS35-1B38T-N418A	RS35	38	115.34	121	63	25	18
RS35-1B38T-N418B	RS35	38	115.34	121	63	25	18
RS35-1B38T-N419A	RS35	38	115.34	121	63	25	19
RS35-1B38T-N419B	RS35	38	115.34	121	63	25	19
RS35-1B40T-N314A	RS35	40	121.4	127	63	25	14
RS35-1B40T-N314B	RS35	40	121.4	127	63	25	14
RS35-1B40T-N315A	RS35	40	121.4	127	63	25	15
RS35-1B40T-N315B	RS35	40	121.4	127	63	25	15
RS35-1B40T-N316A	RS35	40	121.4	127	63	25	16
RS35-1B40T-N316B	RS35	40	121.4	127	63	25	16
RS35-1B40T-N417A	RS35	40	121.4	127	63	25	17
RS35-1B40T-N417B	RS35	40	121.4	127	63	25	17
RS35-1B40T-N418A	RS35	40	121.4	127	63	25	18
RS35-1B40T-N418B	RS35	40	121.4	127	63	25	18
RS35-1B40T-N419A	RS35	40	121.4	127	63	25	19
RS35-1B40T-N419B	RS35	40	121.4	127	63	25	19

형식	취부 형식	슬리브 틀번호	슬리브토출치수 L1 (mm)	너트이면폭 M (mm)	너트체결 토르크 (N · m)	최대허용 전달토르크 (N · m)
형식	취부 형식	슬리브 틀번호	슬리브토출치수 L1 (mm)	너트이면폭 M (mm)	너트체결 토르크 (N · m)	최대허용 전달토르크 (N · m)
RS35-1B12T-N17A	A	N1	5	18	18	23
RS35-1B12T-N18A	A	N1	5	18	18	26
RS35-1B12T-N19A	A	N1	5	18	18	29
RS35-1B13T-N17A	A	N1	5	18	18	23
RS35-1B13T-N17B	B	N1	5	18	18	23
RS35-1B13T-N18A	A	N1	5	18	18	26
RS35-1B13T-N18B	B	N1	5	18	18	26
RS35-1B13T-N19A	A	N1	5	18	18	29
RS35-1B13T-N19B	B	N1	5	18	18	29
RS35-1B14T-N17A	A	N1	5	18	18	23
RS35-1B14T-N17B	B	N1	5	18	18	23
RS35-1B14T-N18A	A	N1	5	18	18	26
RS35-1B14T-N18B	B	N1	5	18	18	26
RS35-1B14T-N19A	A	N1	5	18	18	29
RS35-1B14T-N19B	B	N1	5	18	18	29
RS35-1B15T-N17A	A	N1	5	18	18	23
RS35-1B15T-N17B	B	N1	5	18	18	23
RS35-1B15T-N18A	A	N1	5	18	18	26
RS35-1B15T-N18B	B	N1	5	18	18	26
RS35-1B15T-N19A	A	N1	5	18	18	29
RS35-1B15T-N19B	B	N1	5	18	18	29
RS35-1B15T-N210A	A	N2	6	22	28	42
RS35-1B15T-N210B	B	N2	6	22	28	42
RS35-1B15T-N211A	A	N2	6	22	28	46
RS35-1B15T-N211B	B	N2	6	22	28	46
RS35-1B15T-N212A	A	N2	6	22	28	50
RS35-1B15T-N212B	B	N2	6	22	28	50
RS35-1B16T-N17A	A	N1	5	18	18	23
RS35-1B16T-N17B	B	N1	5	18	18	23
RS35-1B16T-N18A	A	N1	5	18	18	26
RS35-1B16T-N18B	B	N1	5	18	18	26
RS35-1B16T-N19A	A	N1	5	18	18	29
RS35-1B16T-N19B	B	N1	5	18	18	29
RS35-1B16T-N210A	A	N2	6	22	28	42
RS35-1B16T-N210B	B	N2	6	22	28	42
RS35-1B16T-N211A	A	N2	6	22	28	46
RS35-1B16T-N211B	B	N2	6	22	28	46
RS35-1B16T-N212A	A	N2	6	22	28	50
RS35-1B16T-N212B	B	N2	6	22	28	50
RS35-1B17T-N19A	A	N1	5	18	18	29
RS35-1B17T-N19B	B	N1	5	18	18	29
RS35-1B17T-N210A	A	N2	6	22	28	42
RS35-1B17T-N210B	B	N2	6	22	28	42
RS35-1B17T-N211A	A	N2	6	22	28	46
RS35-1B17T-N211B	B	N2	6	22	28	46
RS35-1B17T-N212A	A	N2	6	22	28	50
RS35-1B17T-N212B	B	N2	6	22	28	50
RS35-1B18T-N210A	A	N2	6	22	28	42
RS35-1B18T-N210B	B	N2	6	22	28	42
RS35-1B18T-N211A	A	N2	6	22	28	46
RS35-1B18T-N211B	B	N2	6	22	28	46
RS35-1B18T-N212A	A	N2	6	22	28	50
RS35-1B18T-N212B	B	N2	6	22	28	50
RS35-1B19T-N210A	A	N2	6	22	28	42
RS35-1B19T-N210B	B	N2	6	22	28	42
RS35-1B19T-N211A	A	N2	6	22	28	46
RS35-1B19T-N211B	B	N2	6	22	28	46
RS35-1B19T-N212A	A	N2	6	22	28	50
RS35-1B19T-N212B	B	N2	6	22	28	50
RS35-1B20T-N210A	A	N2	6	22	28	42
RS35-1B20T-N210B	B	N2	6	22	28	42
RS35-1B20T-N211A	A	N2	6	22	28	46
RS35-1B20T-N211B	B	N2	6	22	28	46
RS35-1B20T-N212A	A	N2	6	22	28	50
RS35-1B20T-N212B	B	N2	6	22	28	50
RS35-1B21T-N210A	A	N2	6	22	28	42
RS35-1B21T-N210B	B	N2	6	22	28	42
RS35-1B21T-N211A	A	N2	6	22	28	46
RS35-1B21T-N211B	B	N2	6	22	28	46
RS35-1B21T-N212A	A	N2	6	22	28	50
RS35-1B21T-N212B	B	N2	6	22	28	50
RS35-1B22T-N210A	A	N2	6	22	28	42
RS35-1B22T-N210B	B	N2	6	22	28	42
RS35-1B22T-N211A	A	N2	6	22	28	46
RS35-1B22T-N211B	B	N2	6	22	28	46
RS35-1B22T-N212A	A	N2	6	22	28	50
RS35-1B22T-N212B	B	N2	6	22	28	50
RS35-1B23T-N210A	A	N2	6	22	28	42
RS35-1B23T-N210B	B	N2	6	22	28	42
RS35-1B23T-N211A	A	N2	6	22	28	46
RS35-1B23T-N211B	B	N2	6	22	28	46
RS35-1B23T-N212A	A	N2	6	22	28	50
RS35-1B23T-N212B	B	N2	6	22	28	50
RS35-1B24T-N210A	A	N2	6	22	28	42
RS35-1B24T-N210B	B	N2	6	22	28	42
RS35-1B24T-N211A	A	N2	6	22	28	46
RS35-1B24T-N211B	B	N2	6	22	28	46
RS35-1B24T-N212A	A	N2	6	22	28	50
RS35-1B24T-N212B	B	N2	6	22	28	50
RS35-1B24T-N314A	A	N3	8	35	65	104
RS35-1B24T-N314B	B	N3	8	35	65	104
RS35-1B24T-N315A	A	N3	8	35	65	111
RS35-1B24T-N315B	B	N3	8	35	65	111
RS35-1B24T-N316A	A	N3	8	35	65	119
RS35-1B24T-N316B	B	N3	8	35	65	119
RS35-1B25T-N211A	A	N2	6	22	28	46
RS35-1B25T-N211B	B	N2	6	22	28	46
RS35-1B25T-N212A	A	N2	6	22	28	50
RS35-1B25T-N212B	B	N2	6	22	28	50
RS35-1B25T-N314A	A	N3	8	35	65	104
RS35-1B25T-N314B	B	N3	8	35	65	104
RS35-1B25T-N315A	A	N3	8	35	65	111
RS35-1B25T-N315B	B	N3	8	35	65	111
RS35-1B25T-N316A	A	N3	8	35	65	119
RS35-1B25T-N316B	B	N3	8	35	65	119
RS35-1B26T-N211A	A	N2	6	22	28	46
RS35-1B26T-N211B	B	N2	6	22	28	46
RS35-1B26T-N212A	A	N2	6	22	28	50
RS35-1B26T-N212B	B	N2	6	22	28	50
RS35-1B26T-N314A	A	N3	8	35	65	104
RS35-1B26T-N314B	B	N3	8	35	65	104
RS35-1B26T-N315A	A	N3	8	35	65	111
RS35-1B26T-N315B	B	N3	8	35	65	111
RS35-1B26T-N316A	A	N3	8	35	65	119
RS35-1B26T-N316B	B	N3	8	35	65	119
RS35-1B27T-N212A	A	N2	6	22	28	50
RS35-1B27T-N212B	B	N2	6	22	28	50
RS35-1B27T-N314A	A	N3	8	35	65	104
RS35-1B27T-N314B	B	N3	8	35	65	104
RS35-1B27T-N315A	A	N3	8	35	65	111
RS35-1B27T-N315B	B	N3	8	35	65	111
RS35-1B27T-N316A	A	N3	8	35	65	119
RS35-1B27T-N316B	B	N3	8	35	65	119
RS35-1B28T-N314A	A	N3	8	30	65	104
RS35-1B28T-N314B	B	N3	8	30	65	104
RS35-1B28T-N315A	A	N3	8	30	65	111
RS35-1B28T-N315B	B	N3	8	30	65	111
RS35-1B28T-N316A	A	N3	8	30	65	119
RS35-1B28T-N316B	B	N3	8	30	65	119
RS35-1B30T-N314A	A	N3	8	30	65	104
RS35-1B30T-N314B	B	N3	8	30	65	104
RS35-1B30T-N315A	A	N3	8	30	65	111
RS35-1B30T-N315B	B	N3	8	30	65	111
RS35-1B30T-N316A	A	N3	8	30	65	119
RS35-1B30T-N316B	B	N3	8	30	65	119
RS35-1B32T-N314A	A	N3	8	30	65	104
RS35-1B32T-N314B	B	N3	8	30	65	104
RS35-1B32T-N315A	A	N3	8	30	65	111
RS35-1B32T-N315B	B	N3	8	30	65	111
RS35-1B32T-N316A	A	N3	8	30	65	119
RS35-1B32T-N316B	B	N3	8	30	65	119
RS35-1B34T-N314A	A	N3	8	30	65	104
RS35-1B34T-N314B	B	N3	8	30	65	104
RS35-1B34T-N315A	A	N3	8	30	65	111
RS35-1B34T-N315B	B	N3	8	30	65	111
RS35-1B34T-N316A	A	N3	8	30	65	119
RS35-1B34T-N316B	B	N3	8	30	65	119
RS35-1B35T-N314A	A	N3	8	30	65	104
RS35-1B35T-N314B	B	N3	8	30	65	104
RS35-1B35T-N315A	A	N3	8	30	65	111
RS35-1B35T-N315B	B	N3	8	30	65	111
RS35-1B35T-N316A	A	N3	8	30	65	119
RS35-1B35T-N316B	B	N3	8	30	65	119
RS35-1B36T-N314A	A	N3	8	30	65	104
RS35-1B36T-N314B	B	N3	8	30	65	104
RS35-1B36T-N315A	A	N3	8	30	65	111
RS35-1B36T-N315B	B	N3	8	30	65	111
RS35-1B36T-N316A	A	N3	8	30	65	119
RS35-1B36T-N316B	B	N3	8	30	65	119
RS35-1B38T-N314A	A	N3	8	30	65	104
RS35-1B38T-N314B	B	N3	8	30	65	104
RS35-1B38T-N315A	A	N3	8	30	65	111
RS35-1B38T-N315B	B	N3	8	30	65	111
RS35-1B38T-N316A	A	N3	8	30	65	119
RS35-1B38T-N316B	B	N3	8	30	65	119
RS35-1B38T-N417A	A	N4	10	36	100	161
RS35-1B38T-N417B	B	N4	10	36	100	161
RS35-1B38T-N418A	A	N4	10	36	100	171
RS35-1B38T-N418B	B	N4	10	36	100	171
RS35-1B38T-N419A	A	N4	10	36	100	180
RS35-1B38T-N419B	B	N4	10	36	100	180
RS35-1B40T-N314A	A	N3	8	30	65	104
RS35-1B40T-N314B	B	N3	8	30	65	104
RS35-1B40T-N315A	A	N3	8	30	65	111
RS35-1B40T-N315B	B	N3	8	30	65	111
RS35-1B40T-N316A	A	N3	8	30	65	119
RS35-1B40T-N316B	B	N3	8	30	65	119
RS35-1B40T-N417A	A	N4	10	36	100	161
RS35-1B40T-N417B	B	N4	10	36	100	161
RS35-1B40T-N418A	A	N4	10	36	100	171
RS35-1B40T-N418B	B	N4	10	36	100	171
RS35-1B40T-N419A	A	N4	10	36	100	180
RS35-1B40T-N419B	B	N4	10	36	100	180

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RS35-1B12T-N17A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B12T-N18A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B12T-N19A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N17A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N17B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N18A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N18B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N19A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B13T-N19B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N17A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N17B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N18A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N18B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N19A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B14T-N19B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N17A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N17B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N18A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N18B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N19A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N19B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N210A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N210B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N211A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N211B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N212A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B15T-N212B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N17A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N17B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N18A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N18B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N19A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N19B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N210A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N210B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N211A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N211B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N212A	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B16T-N212B	P	101,200	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N19A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N19B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N210A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N210B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N211A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N211B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N212A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B17T-N212B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N210A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N210B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N211A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N211B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N212A	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B18T-N212B	P	105,600	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N210A	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N210B	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N211A	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N211B	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N212A	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B19T-N212B	P	107,800	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N210A	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N210B	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N211A	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N211B	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N212A	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B20T-N212B	P	110,000	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N210A	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N210B	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N211A	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N211B	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N212A	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B21T-N212B	P	112,200	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N210A	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N210B	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N211A	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N211B	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N212A	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B22T-N212B	P	114,400	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N210A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N210B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N211A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N211B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N212A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B23T-N212B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N210A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N210B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N211A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N211B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N212A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N212B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N314A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N314B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N315A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N315B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N316A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B24T-N316B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N211A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N211B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N212A	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N212B	P	116,600	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N314A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N314B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N315A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N315B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N316A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B25T-N316B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N211A	P	118,800	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N211B	P	118,800	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N212A	P	118,800	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N212B	P	118,800	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N314A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N314B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N315A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N315B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N316A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B26T-N316B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N212A	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N212B	P	121,000	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N314A	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N314B	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N315A	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N315B	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N316A	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B27T-N316B	P	123,200	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N314A	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N314B	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N315A	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N315B	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N316A	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B28T-N316B	P	125,400	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N314A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N314B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N315A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N315B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N316A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B30T-N316B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N314A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N314B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N315A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N315B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N316A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B32T-N316B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N314A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N314B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N315A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N315B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N316A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B34T-N316B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N314A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N314B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N315A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N315B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N316A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B35T-N316B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N314A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N314B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N315A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N315B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N316A	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B36T-N316B	P	127,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N314A	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N314B	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N315A	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N315B	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N316A	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N316B	P	132,000	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N417A	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N417B	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N418A	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N418B	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N419A	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B38T-N419B	P	138,600	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N314A	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N314B	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N315A	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N315B	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N316A	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N316B	P	134,200	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N417A	P	140,800	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N417B	P	140,800	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N418A	P	140,800	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N418B	P	140,800	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N419A	P	140,800	-	-	-	-	견적의뢰 / 주문
RS35-1B40T-N419B	P	140,800	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
