상품 상세보기 : 스테인리스스프라켓(축구멍사상) - RS60 스테인레스피트보어스프라켓 1B타입

HOME > 체인전도 > 스프라켓 > 스프라켓 > 스테인리스스프라켓(축구멍사상) > RS60 스테인레스피트보어스프라켓 1B타입

스테인리스스프라켓(축구멍사상)

RS60 스테인레스피트보어스프라켓 1B타입

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


308건 중 1~308건 표시

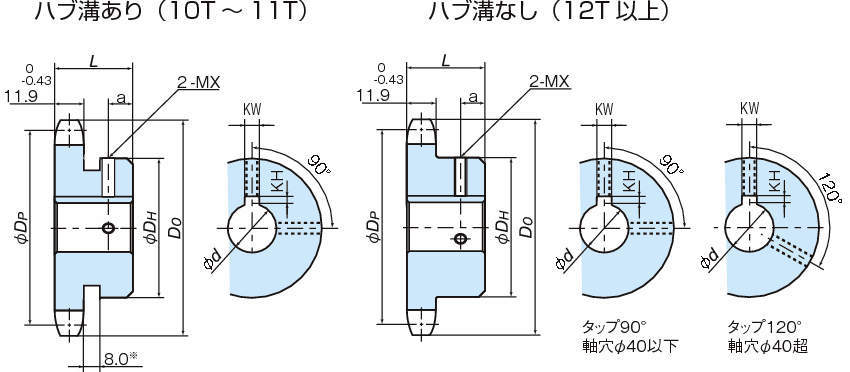

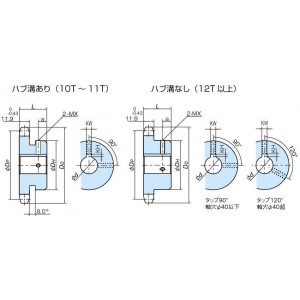

형식	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	홈직경 (mm)	마감축구멍직경 d (mm)
형식	잇수	피치원직경 DP (mm)	외경 Do (mm)	허브직경 DH (mm)	허브길이 L (mm)	홈직경 (mm)	마감축구멍직경 d (mm)
RS60-1B10T-SS-H14J	10	61.65	70	49	32	37	14
RS60-1B10T-SS-H15J	10	61.65	70	49	32	37	15
RS60-1B10T-SS-H16J	10	61.65	70	49	32	37	16
RS60-1B10T-SS-H17J	10	61.65	70	49	32	37	17
RS60-1B10T-SS-H18J	10	61.65	70	49	32	37	18
RS60-1B10T-SS-H19J	10	61.65	70	49	32	37	19
RS60-1B10T-SS-H20J	10	61.65	70	49	32	37	20
RS60-1B10T-SS-H22J	10	61.65	70	49	32	37	22
RS60-1B10T-SS-H24J	10	61.65	70	49	32	37	24
RS60-1B10T-SS-H25J	10	61.65	70	49	32	37	25
RS60-1B10T-SS-H28J	10	61.65	70	49	32	37	28
RS60-1B10T-SS-H30J	10	61.65	70	49	32	37	30
RS60-1B11T-SS-H14J	11	67.62	76	51	32	45	14
RS60-1B11T-SS-H15J	11	67.62	76	51	32	45	15
RS60-1B11T-SS-H16J	11	67.62	76	51	32	45	16
RS60-1B11T-SS-H17J	11	67.62	76	51	32	45	17
RS60-1B11T-SS-H18J	11	67.62	76	51	32	45	18
RS60-1B11T-SS-H19J	11	67.62	76	51	32	45	19
RS60-1B11T-SS-H20J	11	67.62	76	51	32	45	20
RS60-1B11T-SS-H22J	11	67.62	76	51	32	45	22
RS60-1B11T-SS-H24J	11	67.62	76	51	32	45	24
RS60-1B11T-SS-H25J	11	67.62	76	51	32	45	25
RS60-1B11T-SS-H28J	11	67.62	76	51	32	45	28
RS60-1B11T-SS-H30J	11	67.62	76	51	32	45	30
RS60-1B11T-SS-H32J	11	67.62	76	51	32	45	32
RS60-1B12T-SS-H14J	12	73.6	83	51	32	-	14
RS60-1B12T-SS-H15J	12	73.6	83	51	32	-	15
RS60-1B12T-SS-H16J	12	73.6	83	51	32	-	16
RS60-1B12T-SS-H17J	12	73.6	83	51	32	-	17
RS60-1B12T-SS-H18J	12	73.6	83	51	32	-	18
RS60-1B12T-SS-H19J	12	73.6	83	51	32	-	19
RS60-1B12T-SS-H20J	12	73.6	83	51	32	-	20
RS60-1B12T-SS-H22J	12	73.6	83	51	32	-	22
RS60-1B12T-SS-H24J	12	73.6	83	51	32	-	24
RS60-1B12T-SS-H25J	12	73.6	83	51	32	-	25
RS60-1B12T-SS-H28J	12	73.6	83	51	32	-	28
RS60-1B12T-SS-H30J	12	73.6	83	51	32	-	30
RS60-1B12T-SS-H32J	12	73.6	83	51	32	-	32
RS60-1B13T-SS-H17J	13	79.6	89	57	32	-	17
RS60-1B13T-SS-H18J	13	79.6	89	57	32	-	18
RS60-1B13T-SS-H19J	13	79.6	89	57	32	-	19
RS60-1B13T-SS-H20J	13	79.6	89	57	32	-	20
RS60-1B13T-SS-H22J	13	79.6	89	57	32	-	22
RS60-1B13T-SS-H24J	13	79.6	89	57	32	-	24
RS60-1B13T-SS-H25J	13	79.6	89	57	32	-	25
RS60-1B13T-SS-H28J	13	79.6	89	57	32	-	28
RS60-1B13T-SS-H30J	13	79.6	89	57	32	-	30
RS60-1B13T-SS-H32J	13	79.6	89	57	32	-	32
RS60-1B13T-SS-H35J	13	79.6	89	57	32	-	35
RS60-1B14T-SS-H17J	14	85.61	95	62	32	-	17
RS60-1B14T-SS-H18J	14	85.61	95	62	32	-	18
RS60-1B14T-SS-H19J	14	85.61	95	62	32	-	19
RS60-1B14T-SS-H20J	14	85.61	95	62	32	-	20
RS60-1B14T-SS-H22J	14	85.61	95	62	32	-	22
RS60-1B14T-SS-H24J	14	85.61	95	62	32	-	24
RS60-1B14T-SS-H25J	14	85.61	95	62	32	-	25
RS60-1B14T-SS-H28J	14	85.61	95	62	32	-	28
RS60-1B14T-SS-H30J	14	85.61	95	62	32	-	30
RS60-1B14T-SS-H32J	14	85.61	95	62	32	-	32
RS60-1B14T-SS-H35J	14	85.61	95	62	32	-	35
RS60-1B14T-SS-H38J	14	85.61	95	62	32	-	38
RS60-1B15T-SS-H17J	15	91.62	101	68	32	-	17
RS60-1B15T-SS-H18J	15	91.62	101	68	32	-	18
RS60-1B15T-SS-H19J	15	91.62	101	68	32	-	19
RS60-1B15T-SS-H20J	15	91.62	101	68	32	-	20
RS60-1B15T-SS-H22J	15	91.62	101	68	32	-	22
RS60-1B15T-SS-H24J	15	91.62	101	68	32	-	24
RS60-1B15T-SS-H25J	15	91.62	101	68	32	-	25
RS60-1B15T-SS-H28J	15	91.62	101	68	32	-	28
RS60-1B15T-SS-H30J	15	91.62	101	68	32	-	30
RS60-1B15T-SS-H32J	15	91.62	101	68	32	-	32
RS60-1B15T-SS-H35J	15	91.62	101	68	32	-	35
RS60-1B15T-SS-H38J	15	91.62	101	68	32	-	38
RS60-1B15T-SS-H40J	15	91.62	101	68	32	-	40
RS60-1B15T-SS-H42J	15	91.62	101	68	32	-	42
RS60-1B15T-SS-H45J	15	91.62	101	68	32	-	45
RS60-1B16T-SS-H17J	16	97.65	107	73	32	-	17
RS60-1B16T-SS-H18J	16	97.65	107	73	32	-	18
RS60-1B16T-SS-H19J	16	97.65	107	73	32	-	19
RS60-1B16T-SS-H20J	16	97.65	107	73	32	-	20
RS60-1B16T-SS-H22J	16	97.65	107	73	32	-	22
RS60-1B16T-SS-H24J	16	97.65	107	73	32	-	24
RS60-1B16T-SS-H25J	16	97.65	107	73	32	-	25
RS60-1B16T-SS-H28J	16	97.65	107	73	32	-	28
RS60-1B16T-SS-H30J	16	97.65	107	73	32	-	30
RS60-1B16T-SS-H32J	16	97.65	107	73	32	-	32
RS60-1B16T-SS-H35J	16	97.65	107	73	32	-	35
RS60-1B16T-SS-H38J	16	97.65	107	73	32	-	38
RS60-1B16T-SS-H40J	16	97.65	107	73	32	-	40
RS60-1B16T-SS-H42J	16	97.65	107	73	32	-	42
RS60-1B16T-SS-H45J	16	97.65	107	73	32	-	45
RS60-1B17T-SS-H17J	17	103.67	113	73	32	-	17
RS60-1B17T-SS-H18J	17	103.67	113	73	32	-	18
RS60-1B17T-SS-H19J	17	103.67	113	73	32	-	19
RS60-1B17T-SS-H20J	17	103.67	113	73	32	-	20
RS60-1B17T-SS-H22J	17	103.67	113	73	32	-	22
RS60-1B17T-SS-H24J	17	103.67	113	73	32	-	24
RS60-1B17T-SS-H25J	17	103.67	113	73	32	-	25
RS60-1B17T-SS-H28J	17	103.67	113	73	32	-	28
RS60-1B17T-SS-H30J	17	103.67	113	73	32	-	30
RS60-1B17T-SS-H32J	17	103.67	113	73	32	-	32
RS60-1B17T-SS-H35J	17	103.67	113	73	32	-	35
RS60-1B17T-SS-H38J	17	103.67	113	73	32	-	38
RS60-1B17T-SS-H40J	17	103.67	113	73	32	-	40
RS60-1B17T-SS-H42J	17	103.67	113	73	32	-	42
RS60-1B17T-SS-H45J	17	103.67	113	73	32	-	45
RS60-1B18T-SS-H17J	18	109.71	119	83	40	-	17
RS60-1B18T-SS-H18J	18	109.71	119	83	40	-	18
RS60-1B18T-SS-H19J	18	109.71	119	83	40	-	19
RS60-1B18T-SS-H20J	18	109.71	119	83	40	-	20
RS60-1B18T-SS-H22J	18	109.71	119	83	40	-	22
RS60-1B18T-SS-H24J	18	109.71	119	83	40	-	24
RS60-1B18T-SS-H25J	18	109.71	119	83	40	-	25
RS60-1B18T-SS-H28J	18	109.71	119	83	40	-	28
RS60-1B18T-SS-H30J	18	109.71	119	83	40	-	30
RS60-1B18T-SS-H32J	18	109.71	119	83	40	-	32
RS60-1B18T-SS-H35J	18	109.71	119	83	40	-	35
RS60-1B18T-SS-H38J	18	109.71	119	83	40	-	38
RS60-1B18T-SS-H40J	18	109.71	119	83	40	-	40
RS60-1B18T-SS-H42J	18	109.71	119	83	40	-	42
RS60-1B18T-SS-H45J	18	109.71	119	83	40	-	45
RS60-1B18T-SS-H48J	18	109.71	119	83	40	-	48
RS60-1B18T-SS-H50J	18	109.71	119	83	40	-	50
RS60-1B18T-SS-H55J	18	109.71	119	83	40	-	55
RS60-1B19T-SS-H17J	19	115.74	126	83	40	-	17
RS60-1B19T-SS-H18J	19	115.74	126	83	40	-	18
RS60-1B19T-SS-H19J	19	115.74	126	83	40	-	19
RS60-1B19T-SS-H20J	19	115.74	126	83	40	-	20
RS60-1B19T-SS-H22J	19	115.74	126	83	40	-	22
RS60-1B19T-SS-H24J	19	115.74	126	83	40	-	24
RS60-1B19T-SS-H25J	19	115.74	126	83	40	-	25
RS60-1B19T-SS-H28J	19	115.74	126	83	40	-	28
RS60-1B19T-SS-H30J	19	115.74	126	83	40	-	30
RS60-1B19T-SS-H32J	19	115.74	126	83	40	-	32
RS60-1B19T-SS-H35J	19	115.74	126	83	40	-	35
RS60-1B19T-SS-H38J	19	115.74	126	83	40	-	38
RS60-1B19T-SS-H40J	19	115.74	126	83	40	-	40
RS60-1B19T-SS-H42J	19	115.74	126	83	40	-	42
RS60-1B19T-SS-H45J	19	115.74	126	83	40	-	45
RS60-1B19T-SS-H48J	19	115.74	126	83	40	-	48
RS60-1B19T-SS-H50J	19	115.74	126	83	40	-	50
RS60-1B19T-SS-H55J	19	115.74	126	83	40	-	55
RS60-1B20T-SS-H17J	20	121.78	132	83	40	-	17
RS60-1B20T-SS-H18J	20	121.78	132	83	40	-	18
RS60-1B20T-SS-H19J	20	121.78	132	83	40	-	19
RS60-1B20T-SS-H20J	20	121.78	132	83	40	-	20
RS60-1B20T-SS-H22J	20	121.78	132	83	40	-	22
RS60-1B20T-SS-H24J	20	121.78	132	83	40	-	24
RS60-1B20T-SS-H25J	20	121.78	132	83	40	-	25
RS60-1B20T-SS-H28J	20	121.78	132	83	40	-	28
RS60-1B20T-SS-H30J	20	121.78	132	83	40	-	30
RS60-1B20T-SS-H32J	20	121.78	132	83	40	-	32
RS60-1B20T-SS-H35J	20	121.78	132	83	40	-	35
RS60-1B20T-SS-H38J	20	121.78	132	83	40	-	38
RS60-1B20T-SS-H40J	20	121.78	132	83	40	-	40
RS60-1B20T-SS-H42J	20	121.78	132	83	40	-	42
RS60-1B20T-SS-H45J	20	121.78	132	83	40	-	45
RS60-1B20T-SS-H48J	20	121.78	132	83	40	-	48
RS60-1B20T-SS-H50J	20	121.78	132	83	40	-	50
RS60-1B20T-SS-H55J	20	121.78	132	83	40	-	55
RS60-1B21T-SS-H17J	21	127.82	138	83	40	-	17
RS60-1B21T-SS-H18J	21	127.82	138	83	40	-	18
RS60-1B21T-SS-H19J	21	127.82	138	83	40	-	19
RS60-1B21T-SS-H20J	21	127.82	138	83	40	-	20
RS60-1B21T-SS-H22J	21	127.82	138	83	40	-	22
RS60-1B21T-SS-H24J	21	127.82	138	83	40	-	24
RS60-1B21T-SS-H25J	21	127.82	138	83	40	-	25
RS60-1B21T-SS-H28J	21	127.82	138	83	40	-	28
RS60-1B21T-SS-H30J	21	127.82	138	83	40	-	30
RS60-1B21T-SS-H32J	21	127.82	138	83	40	-	32
RS60-1B21T-SS-H35J	21	127.82	138	83	40	-	35
RS60-1B21T-SS-H38J	21	127.82	138	83	40	-	38
RS60-1B21T-SS-H40J	21	127.82	138	83	40	-	40
RS60-1B21T-SS-H42J	21	127.82	138	83	40	-	42
RS60-1B21T-SS-H45J	21	127.82	138	83	40	-	45
RS60-1B21T-SS-H48J	21	127.82	138	83	40	-	48
RS60-1B21T-SS-H50J	21	127.82	138	83	40	-	50
RS60-1B21T-SS-H55J	21	127.82	138	83	40	-	55
RS60-1B22T-SS-H17J	22	133.86	144	83	40	-	17
RS60-1B22T-SS-H18J	22	133.86	144	83	40	-	18
RS60-1B22T-SS-H19J	22	133.86	144	83	40	-	19
RS60-1B22T-SS-H20J	22	133.86	144	83	40	-	20
RS60-1B22T-SS-H22J	22	133.86	144	83	40	-	22
RS60-1B22T-SS-H24J	22	133.86	144	83	40	-	24
RS60-1B22T-SS-H25J	22	133.86	144	83	40	-	25
RS60-1B22T-SS-H28J	22	133.86	144	83	40	-	28
RS60-1B22T-SS-H30J	22	133.86	144	83	40	-	30
RS60-1B22T-SS-H32J	22	133.86	144	83	40	-	32
RS60-1B22T-SS-H35J	22	133.86	144	83	40	-	35
RS60-1B22T-SS-H38J	22	133.86	144	83	40	-	38
RS60-1B22T-SS-H40J	22	133.86	144	83	40	-	40
RS60-1B22T-SS-H42J	22	133.86	144	83	40	-	42
RS60-1B22T-SS-H45J	22	133.86	144	83	40	-	45
RS60-1B22T-SS-H48J	22	133.86	144	83	40	-	48
RS60-1B22T-SS-H50J	22	133.86	144	83	40	-	50
RS60-1B22T-SS-H55J	22	133.86	144	83	40	-	55
RS60-1B23T-SS-H19J	23	139.9	150	83	40	-	19
RS60-1B23T-SS-H20J	23	139.9	150	83	40	-	20
RS60-1B23T-SS-H22J	23	139.9	150	83	40	-	22
RS60-1B23T-SS-H24J	23	139.9	150	83	40	-	24
RS60-1B23T-SS-H25J	23	139.9	150	83	40	-	25
RS60-1B23T-SS-H28J	23	139.9	150	83	40	-	28
RS60-1B23T-SS-H30J	23	139.9	150	83	40	-	30
RS60-1B23T-SS-H32J	23	139.9	150	83	40	-	32
RS60-1B23T-SS-H35J	23	139.9	150	83	40	-	35
RS60-1B23T-SS-H38J	23	139.9	150	83	40	-	38
RS60-1B23T-SS-H40J	23	139.9	150	83	40	-	40
RS60-1B23T-SS-H42J	23	139.9	150	83	40	-	42
RS60-1B23T-SS-H45J	23	139.9	150	83	40	-	45
RS60-1B23T-SS-H48J	23	139.9	150	83	40	-	48
RS60-1B23T-SS-H50J	23	139.9	150	83	40	-	50
RS60-1B23T-SS-H55J	23	139.9	150	83	40	-	55
RS60-1B24T-SS-H19J	24	145.95	156	83	40	-	19
RS60-1B24T-SS-H20J	24	145.95	156	83	40	-	20
RS60-1B24T-SS-H22J	24	145.95	156	83	40	-	22
RS60-1B24T-SS-H24J	24	145.95	156	83	40	-	24
RS60-1B24T-SS-H25J	24	145.95	156	83	40	-	25
RS60-1B24T-SS-H28J	24	145.95	156	83	40	-	28
RS60-1B24T-SS-H30J	24	145.95	156	83	40	-	30
RS60-1B24T-SS-H32J	24	145.95	156	83	40	-	32
RS60-1B24T-SS-H35J	24	145.95	156	83	40	-	35
RS60-1B24T-SS-H38J	24	145.95	156	83	40	-	38
RS60-1B24T-SS-H40J	24	145.95	156	83	40	-	40
RS60-1B24T-SS-H42J	24	145.95	156	83	40	-	42
RS60-1B24T-SS-H45J	24	145.95	156	83	40	-	45
RS60-1B24T-SS-H48J	24	145.95	156	83	40	-	48
RS60-1B24T-SS-H50J	24	145.95	156	83	40	-	50
RS60-1B24T-SS-H55J	24	145.95	156	83	40	-	55
RS60-1B25T-SS-H19J	25	151.99	162	83	40	-	19
RS60-1B25T-SS-H20J	25	151.99	162	83	40	-	20
RS60-1B25T-SS-H22J	25	151.99	162	83	40	-	22
RS60-1B25T-SS-H24J	25	151.99	162	83	40	-	24
RS60-1B25T-SS-H25J	25	151.99	162	83	40	-	25
RS60-1B25T-SS-H28J	25	151.99	162	83	40	-	28
RS60-1B25T-SS-H30J	25	151.99	162	83	40	-	30
RS60-1B25T-SS-H32J	25	151.99	162	83	40	-	32
RS60-1B25T-SS-H35J	25	151.99	162	83	40	-	35
RS60-1B25T-SS-H38J	25	151.99	162	83	40	-	38
RS60-1B25T-SS-H40J	25	151.99	162	83	40	-	40
RS60-1B25T-SS-H42J	25	151.99	162	83	40	-	42
RS60-1B25T-SS-H45J	25	151.99	162	83	40	-	45
RS60-1B25T-SS-H48J	25	151.99	162	83	40	-	48
RS60-1B25T-SS-H50J	25	151.99	162	83	40	-	50
RS60-1B25T-SS-H55J	25	151.99	162	83	40	-	55
RS60-1B26T-SS-H19J	26	158.04	168	83	40	-	19
RS60-1B26T-SS-H20J	26	158.04	168	83	40	-	20
RS60-1B26T-SS-H22J	26	158.04	168	83	40	-	22
RS60-1B26T-SS-H24J	26	158.04	168	83	40	-	24
RS60-1B26T-SS-H25J	26	158.04	168	83	40	-	25
RS60-1B26T-SS-H28J	26	158.04	168	83	40	-	28
RS60-1B26T-SS-H30J	26	158.04	168	83	40	-	30
RS60-1B26T-SS-H32J	26	158.04	168	83	40	-	32
RS60-1B26T-SS-H35J	26	158.04	168	83	40	-	35
RS60-1B26T-SS-H38J	26	158.04	168	83	40	-	38
RS60-1B26T-SS-H40J	26	158.04	168	83	40	-	40
RS60-1B26T-SS-H42J	26	158.04	168	83	40	-	42
RS60-1B26T-SS-H45J	26	158.04	168	83	40	-	45
RS60-1B26T-SS-H48J	26	158.04	168	83	40	-	48
RS60-1B26T-SS-H50J	26	158.04	168	83	40	-	50
RS60-1B26T-SS-H55J	26	158.04	168	83	40	-	55
RS60-1B27T-SS-H19J	27	164.09	174	83	40	-	19
RS60-1B27T-SS-H20J	27	164.09	174	83	40	-	20
RS60-1B27T-SS-H22J	27	164.09	174	83	40	-	22
RS60-1B27T-SS-H24J	27	164.09	174	83	40	-	24
RS60-1B27T-SS-H25J	27	164.09	174	83	40	-	25
RS60-1B27T-SS-H28J	27	164.09	174	83	40	-	28
RS60-1B27T-SS-H30J	27	164.09	174	83	40	-	30
RS60-1B27T-SS-H32J	27	164.09	174	83	40	-	32
RS60-1B27T-SS-H35J	27	164.09	174	83	40	-	35
RS60-1B27T-SS-H38J	27	164.09	174	83	40	-	38
RS60-1B27T-SS-H40J	27	164.09	174	83	40	-	40
RS60-1B27T-SS-H42J	27	164.09	174	83	40	-	42
RS60-1B27T-SS-H45J	27	164.09	174	83	40	-	45
RS60-1B27T-SS-H48J	27	164.09	174	83	40	-	48
RS60-1B27T-SS-H50J	27	164.09	174	83	40	-	50
RS60-1B27T-SS-H55J	27	164.09	174	83	40	-	55
RS60-1B28T-SS-H19J	28	170.14	180	83	40	-	19
RS60-1B28T-SS-H20J	28	170.14	180	83	40	-	20
RS60-1B28T-SS-H22J	28	170.14	180	83	40	-	22
RS60-1B28T-SS-H24J	28	170.14	180	83	40	-	24
RS60-1B28T-SS-H25J	28	170.14	180	83	40	-	25
RS60-1B28T-SS-H28J	28	170.14	180	83	40	-	28
RS60-1B28T-SS-H30J	28	170.14	180	83	40	-	30
RS60-1B28T-SS-H32J	28	170.14	180	83	40	-	32
RS60-1B28T-SS-H35J	28	170.14	180	83	40	-	35
RS60-1B28T-SS-H38J	28	170.14	180	83	40	-	38
RS60-1B28T-SS-H40J	28	170.14	180	83	40	-	40
RS60-1B28T-SS-H42J	28	170.14	180	83	40	-	42
RS60-1B28T-SS-H45J	28	170.14	180	83	40	-	45
RS60-1B28T-SS-H48J	28	170.14	180	83	40	-	48
RS60-1B28T-SS-H50J	28	170.14	180	83	40	-	50
RS60-1B28T-SS-H55J	28	170.14	180	83	40	-	55
RS60-1B30T-SS-H19J	30	182.25	193	83	40	-	19
RS60-1B30T-SS-H20J	30	182.25	193	83	40	-	20
RS60-1B30T-SS-H22J	30	182.25	193	83	40	-	22
RS60-1B30T-SS-H24J	30	182.25	193	83	40	-	24
RS60-1B30T-SS-H25J	30	182.25	193	83	40	-	25
RS60-1B30T-SS-H28J	30	182.25	193	83	40	-	28
RS60-1B30T-SS-H30J	30	182.25	193	83	40	-	30
RS60-1B30T-SS-H32J	30	182.25	193	83	40	-	32
RS60-1B30T-SS-H35J	30	182.25	193	83	40	-	35
RS60-1B30T-SS-H38J	30	182.25	193	83	40	-	38
RS60-1B30T-SS-H40J	30	182.25	193	83	40	-	40
RS60-1B30T-SS-H42J	30	182.25	193	83	40	-	42
RS60-1B30T-SS-H45J	30	182.25	193	83	40	-	45
RS60-1B30T-SS-H48J	30	182.25	193	83	40	-	48
RS60-1B30T-SS-H50J	30	182.25	193	83	40	-	50
RS60-1B30T-SS-H55J	30	182.25	193	83	40	-	55

형식	탭위치 a (mm)	키홈폭 KW	키홈폭 KW	키홈깊이 KH	키홈깊이 KH	고정나사 사이즈
형식	탭위치 a (mm)	(mm)	공차	(mm)	공차	고정나사 사이즈
RS60-1B10T-SS-H14J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B10T-SS-H15J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B10T-SS-H16J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B10T-SS-H17J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B10T-SS-H18J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B10T-SS-H19J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B10T-SS-H20J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B10T-SS-H22J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B10T-SS-H24J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B10T-SS-H25J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B10T-SS-H28J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B10T-SS-H30J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B11T-SS-H14J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B11T-SS-H15J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B11T-SS-H16J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B11T-SS-H17J	6	5	±0.0150	2.3	0.1/0	M5
RS60-1B11T-SS-H18J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B11T-SS-H19J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B11T-SS-H20J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B11T-SS-H22J	6	6	±0.0150	2.8	0.1/0	M6
RS60-1B11T-SS-H24J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B11T-SS-H25J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B11T-SS-H28J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B11T-SS-H30J	6	8	±0.0180	3.3	0.2/0	M6
RS60-1B11T-SS-H32J	6	10	±0.0180	3.3	0.2/0	M8
RS60-1B12T-SS-H14J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B12T-SS-H15J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B12T-SS-H16J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B12T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B12T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B12T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B12T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B12T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B12T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B12T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B12T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B12T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B12T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B13T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B13T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B13T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B13T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B13T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B13T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B13T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B13T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B13T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B13T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B13T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B14T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B14T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B14T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B14T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B14T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B14T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B14T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B14T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B14T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B14T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B14T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B14T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B15T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B15T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B15T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B15T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B15T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B15T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B15T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B15T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B15T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B15T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B15T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B15T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B15T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B15T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B15T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B16T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B16T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B16T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B16T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B16T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B16T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B16T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B16T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B16T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B16T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B16T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B16T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B16T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B16T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B16T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B17T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B17T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B17T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B17T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B17T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B17T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B17T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B17T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B17T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B17T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B17T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B17T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B17T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B17T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B17T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B18T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B18T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B18T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B18T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B18T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B18T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B18T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B18T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B18T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B18T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B18T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B18T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B18T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B18T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B18T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B18T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B18T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B18T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B19T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B19T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B19T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B19T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B19T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B19T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B19T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B19T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B19T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B19T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B19T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B19T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B19T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B19T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B19T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B19T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B19T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B19T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B20T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B20T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B20T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B20T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B20T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B20T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B20T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B20T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B20T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B20T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B20T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B20T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B20T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B20T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B20T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B20T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B20T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B20T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B21T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B21T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B21T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B21T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B21T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B21T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B21T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B21T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B21T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B21T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B21T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B21T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B21T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B21T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B21T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B21T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B21T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B21T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B22T-SS-H17J	12	5	±0.0150	2.3	0.1/0	M5
RS60-1B22T-SS-H18J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B22T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B22T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B22T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B22T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B22T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B22T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B22T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B22T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B22T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B22T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B22T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B22T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B22T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B22T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B22T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B22T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B23T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B23T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B23T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B23T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B23T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B23T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B23T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B23T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B23T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B23T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B23T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B23T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B23T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B23T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B23T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B23T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B24T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B24T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B24T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B24T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B24T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B24T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B24T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B24T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B24T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B24T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B24T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B24T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B24T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B24T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B24T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B24T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B25T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B25T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B25T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B25T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B25T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B25T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B25T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B25T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B25T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B25T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B25T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B25T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B25T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B25T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B25T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B25T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B26T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B26T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B26T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B26T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B26T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B26T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B26T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B26T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B26T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B26T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B26T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B26T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B26T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B26T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B26T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B26T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B27T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B27T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B27T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B27T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B27T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B27T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B27T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B27T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B27T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B27T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B27T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B27T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B27T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B27T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B27T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B27T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B28T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B28T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B28T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B28T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B28T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B28T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B28T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B28T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B28T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B28T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B28T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B28T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B28T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B28T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B28T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B28T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10
RS60-1B30T-SS-H19J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B30T-SS-H20J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B30T-SS-H22J	12	6	±0.0150	2.8	0.1/0	M6
RS60-1B30T-SS-H24J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B30T-SS-H25J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B30T-SS-H28J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B30T-SS-H30J	12	8	±0.0180	3.3	0.2/0	M6
RS60-1B30T-SS-H32J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B30T-SS-H35J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B30T-SS-H38J	12	10	±0.0180	3.3	0.2/0	M8
RS60-1B30T-SS-H40J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B30T-SS-H42J	12	12	±0.0215	3.3	0.2/0	M8
RS60-1B30T-SS-H45J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B30T-SS-H48J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B30T-SS-H50J	12	14	±0.0215	3.8	0.2/0	M8
RS60-1B30T-SS-H55J	12	16	±0.0215	4.3	0.2/0	M10

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RS60-1B10T-SS-H14J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H15J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H16J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H17J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H18J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H19J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H20J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H22J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H24J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H25J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H28J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B10T-SS-H30J	P	132,000	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H14J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H15J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H16J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H17J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H18J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H19J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H20J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H22J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H24J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H25J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H28J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H30J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B11T-SS-H32J	P	152,900	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H14J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H15J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H16J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H17J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H18J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H19J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H20J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H22J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H24J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H25J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H28J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H30J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B12T-SS-H32J	P	161,700	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H17J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H18J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H19J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H20J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H22J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H24J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H25J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H28J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H30J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H32J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B13T-SS-H35J	P	180,400	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H17J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H18J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H19J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H20J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H22J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H24J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H25J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H28J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H30J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H32J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H35J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B14T-SS-H38J	P	193,600	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H17J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H18J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H19J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H20J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H22J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H24J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H25J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H28J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H30J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H32J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H35J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H38J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H40J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H42J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B15T-SS-H45J	P	209,000	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H17J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H18J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H19J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H20J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H22J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H24J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H25J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H28J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H30J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H32J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H35J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H38J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H40J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H42J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B16T-SS-H45J	P	224,400	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H17J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H18J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H19J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H20J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H22J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H24J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H25J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H28J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H30J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H32J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H35J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H38J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H40J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H42J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B17T-SS-H45J	P	259,600	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H17J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H18J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H19J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H20J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H22J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H24J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H25J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H28J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H30J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H32J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H35J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H38J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H40J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H42J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H45J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H48J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H50J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B18T-SS-H55J	P	283,800	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H17J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H18J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H19J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H20J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H22J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H24J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H25J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H28J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H30J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H32J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H35J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H38J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H40J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H42J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H45J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H48J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H50J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B19T-SS-H55J	P	292,600	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H17J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H18J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H19J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H20J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H22J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H24J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H25J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H28J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H30J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H32J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H35J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H38J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H40J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H42J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H45J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H48J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H50J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B20T-SS-H55J	P	332,200	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H17J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H18J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H19J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H20J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H22J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H24J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H25J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H28J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H30J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H32J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H35J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H38J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H40J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H42J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H45J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H48J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H50J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B21T-SS-H55J	P	345,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H17J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H18J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H19J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H20J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H22J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H24J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H25J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H28J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H30J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H32J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H35J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H38J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H40J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H42J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H45J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H48J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H50J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B22T-SS-H55J	P	356,400	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H19J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H20J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H22J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H24J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H25J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H28J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H30J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H32J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H35J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H38J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H40J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H42J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H45J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H48J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H50J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B23T-SS-H55J	P	371,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H19J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H20J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H22J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H24J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H25J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H28J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H30J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H32J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H35J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H38J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H40J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H42J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H45J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H48J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H50J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B24T-SS-H55J	P	393,800	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H19J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H20J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H22J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H24J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H25J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H28J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H30J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H32J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H35J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H38J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H40J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H42J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H45J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H48J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H50J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B25T-SS-H55J	P	400,400	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H19J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H20J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H22J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H24J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H25J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H28J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H30J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H32J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H35J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H38J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H40J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H42J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H45J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H48J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H50J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B26T-SS-H55J	P	415,800	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H19J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H20J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H22J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H24J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H25J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H28J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H30J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H32J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H35J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H38J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H40J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H42J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H45J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H48J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H50J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B27T-SS-H55J	P	424,600	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H19J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H20J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H22J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H24J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H25J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H28J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H30J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H32J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H35J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H38J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H40J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H42J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H45J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H48J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H50J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B28T-SS-H55J	P	448,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H19J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H20J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H22J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H24J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H25J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H28J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H30J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H32J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H35J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H38J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H40J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H42J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H45J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H48J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H50J	P	492,800	-	-	-	-	견적의뢰 / 주문
RS60-1B30T-SS-H55J	P	492,800	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
