상품 상세보기 : 간헐반송체인 - 니들부시체인(스테인레스사양)

HOME > 체인전도 > 콘베어체인 > 간헐반송체인 > 니들부시체인(스테인레스사양)

간헐반송체인

니들부시체인(스테인레스사양)

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


96건 중 1~96건 표시

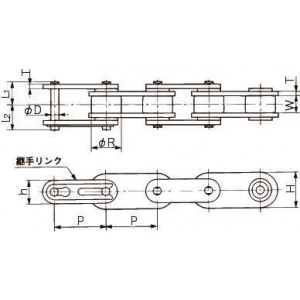

형식	타입	체인번호	롤러형식	어태치먼트	어태치먼트	피치 P (mm)	롤러경 R (mm)	안쪽링크내폭 W (mm)
형식	타입	체인번호	롤러형식	형식	간격	피치 P (mm)	롤러경 R (mm)	안쪽링크내폭 W (mm)
RF2040R-NB-SS-L	링크	RF2040	R	-	-	25.4	15.88	7.95
RF2050R-NB-SS-L	링크	RF2050	R	-	-	31.75	19.05	9.53
RF2060R-NB-SS-L	링크	RF2060	R	-	-	38.1	22.23	12.7
RF2080R-NB-SS-L	링크	RF2080	R	-	-	50.8	28.58	15.88
RF2040R-NB-SS-10LA2-L	링크	RF2040	R	A2	10L	25.4	15.88	7.95
RF2040R-NB-SS-1LA2-L	링크	RF2040	R	A2	1L	25.4	15.88	7.95
RF2040R-NB-SS-2LA2-L	링크	RF2040	R	A2	2L	25.4	15.88	7.95
RF2040R-NB-SS-3LA2-L	링크	RF2040	R	A2	3L	25.4	15.88	7.95
RF2040R-NB-SS-4LA2-L	링크	RF2040	R	A2	4L	25.4	15.88	7.95
RF2040R-NB-SS-5LA2-L	링크	RF2040	R	A2	5L	25.4	15.88	7.95
RF2040R-NB-SS-6LA2-L	링크	RF2040	R	A2	6L	25.4	15.88	7.95
RF2040R-NB-SS-7LA2-L	링크	RF2040	R	A2	7L	25.4	15.88	7.95
RF2040R-NB-SS-8LA2-L	링크	RF2040	R	A2	8L	25.4	15.88	7.95
RF2040R-NB-SS-9LA2-L	링크	RF2040	R	A2	9L	25.4	15.88	7.95
RF2050R-NB-SS-10LA2-L	링크	RF2050	R	A2	10L	31.75	19.05	9.53
RF2050R-NB-SS-1LA2-L	링크	RF2050	R	A2	1L	31.75	19.05	9.53
RF2050R-NB-SS-2LA2-L	링크	RF2050	R	A2	2L	31.75	19.05	9.53
RF2050R-NB-SS-3LA2-L	링크	RF2050	R	A2	3L	31.75	19.05	9.53
RF2050R-NB-SS-4LA2-L	링크	RF2050	R	A2	4L	31.75	19.05	9.53
RF2050R-NB-SS-5LA2-L	링크	RF2050	R	A2	5L	31.75	19.05	9.53
RF2050R-NB-SS-6LA2-L	링크	RF2050	R	A2	6L	31.75	19.05	9.53
RF2050R-NB-SS-7LA2-L	링크	RF2050	R	A2	7L	31.75	19.05	9.53
RF2050R-NB-SS-8LA2-L	링크	RF2050	R	A2	8L	31.75	19.05	9.53
RF2050R-NB-SS-9LA2-L	링크	RF2050	R	A2	9L	31.75	19.05	9.53
RF2060R-NB-SS-10LA2-L	링크	RF2060	R	A2	10L	38.1	22.23	12.7
RF2060R-NB-SS-1LA2-L	링크	RF2060	R	A2	1L	38.1	22.23	12.7
RF2060R-NB-SS-2LA2-L	링크	RF2060	R	A2	2L	38.1	22.23	12.7
RF2060R-NB-SS-3LA2-L	링크	RF2060	R	A2	3L	38.1	22.23	12.7
RF2060R-NB-SS-4LA2-L	링크	RF2060	R	A2	4L	38.1	22.23	12.7
RF2060R-NB-SS-5LA2-L	링크	RF2060	R	A2	5L	38.1	22.23	12.7
RF2060R-NB-SS-6LA2-L	링크	RF2060	R	A2	6L	38.1	22.23	12.7
RF2060R-NB-SS-7LA2-L	링크	RF2060	R	A2	7L	38.1	22.23	12.7
RF2060R-NB-SS-8LA2-L	링크	RF2060	R	A2	8L	38.1	22.23	12.7
RF2060R-NB-SS-9LA2-L	링크	RF2060	R	A2	9L	38.1	22.23	12.7
RF2080R-NB-SS-10LA2-L	링크	RF2080	R	A2	10L	50.8	28.58	15.88
RF2080R-NB-SS-1LA2-L	링크	RF2080	R	A2	1L	50.8	28.58	15.88
RF2080R-NB-SS-2LA2-L	링크	RF2080	R	A2	2L	50.8	28.58	15.88
RF2080R-NB-SS-3LA2-L	링크	RF2080	R	A2	3L	50.8	28.58	15.88
RF2080R-NB-SS-4LA2-L	링크	RF2080	R	A2	4L	50.8	28.58	15.88
RF2080R-NB-SS-5LA2-L	링크	RF2080	R	A2	5L	50.8	28.58	15.88
RF2080R-NB-SS-6LA2-L	링크	RF2080	R	A2	6L	50.8	28.58	15.88
RF2080R-NB-SS-7LA2-L	링크	RF2080	R	A2	7L	50.8	28.58	15.88
RF2080R-NB-SS-8LA2-L	링크	RF2080	R	A2	8L	50.8	28.58	15.88
RF2080R-NB-SS-9LA2-L	링크	RF2080	R	A2	9L	50.8	28.58	15.88
RF2040R-NB-SS-10LK2-L	링크	RF2040	R	K2	10L	25.4	15.88	7.95
RF2040R-NB-SS-1LK2-L	링크	RF2040	R	K2	1L	25.4	15.88	7.95
RF2040R-NB-SS-2LK2-L	링크	RF2040	R	K2	2L	25.4	15.88	7.95
RF2040R-NB-SS-3LK2-L	링크	RF2040	R	K2	3L	25.4	15.88	7.95
RF2040R-NB-SS-4LK2-L	링크	RF2040	R	K2	4L	25.4	15.88	7.95
RF2040R-NB-SS-5LK2-L	링크	RF2040	R	K2	5L	25.4	15.88	7.95
RF2040R-NB-SS-6LK2-L	링크	RF2040	R	K2	6L	25.4	15.88	7.95
RF2040R-NB-SS-7LK2-L	링크	RF2040	R	K2	7L	25.4	15.88	7.95
RF2040R-NB-SS-8LK2-L	링크	RF2040	R	K2	8L	25.4	15.88	7.95
RF2040R-NB-SS-9LK2-L	링크	RF2040	R	K2	9L	25.4	15.88	7.95
RF2050R-NB-SS-10LK2-L	링크	RF2050	R	K2	10L	31.75	19.05	9.53
RF2050R-NB-SS-1LK2-L	링크	RF2050	R	K2	1L	31.75	19.05	9.53
RF2050R-NB-SS-2LK2-L	링크	RF2050	R	K2	2L	31.75	19.05	9.53
RF2050R-NB-SS-3LK2-L	링크	RF2050	R	K2	3L	31.75	19.05	9.53
RF2050R-NB-SS-4LK2-L	링크	RF2050	R	K2	4L	31.75	19.05	9.53
RF2050R-NB-SS-5LK2-L	링크	RF2050	R	K2	5L	31.75	19.05	9.53
RF2050R-NB-SS-6LK2-L	링크	RF2050	R	K2	6L	31.75	19.05	9.53
RF2050R-NB-SS-7LK2-L	링크	RF2050	R	K2	7L	31.75	19.05	9.53
RF2050R-NB-SS-8LK2-L	링크	RF2050	R	K2	8L	31.75	19.05	9.53
RF2050R-NB-SS-9LK2-L	링크	RF2050	R	K2	9L	31.75	19.05	9.53
RF2060R-NB-SS-10LK2-L	링크	RF2060	R	K2	10L	38.1	22.23	12.7
RF2060R-NB-SS-1LK2-L	링크	RF2060	R	K2	1L	38.1	22.23	12.7
RF2060R-NB-SS-2LK2-L	링크	RF2060	R	K2	2L	38.1	22.23	12.7
RF2060R-NB-SS-3LK2-L	링크	RF2060	R	K2	3L	38.1	22.23	12.7
RF2060R-NB-SS-4LK2-L	링크	RF2060	R	K2	4L	38.1	22.23	12.7
RF2060R-NB-SS-5LK2-L	링크	RF2060	R	K2	5L	38.1	22.23	12.7
RF2060R-NB-SS-6LK2-L	링크	RF2060	R	K2	6L	38.1	22.23	12.7
RF2060R-NB-SS-7LK2-L	링크	RF2060	R	K2	7L	38.1	22.23	12.7
RF2060R-NB-SS-8LK2-L	링크	RF2060	R	K2	8L	38.1	22.23	12.7
RF2060R-NB-SS-9LK2-L	링크	RF2060	R	K2	9L	38.1	22.23	12.7
RF2080R-NB-SS-10LK2-L	링크	RF2080	R	K2	10L	50.8	28.58	15.88
RF2080R-NB-SS-1LK2-L	링크	RF2080	R	K2	1L	50.8	28.58	15.88
RF2080R-NB-SS-2LK2-L	링크	RF2080	R	K2	2L	50.8	28.58	15.88
RF2080R-NB-SS-3LK2-L	링크	RF2080	R	K2	3L	50.8	28.58	15.88
RF2080R-NB-SS-4LK2-L	링크	RF2080	R	K2	4L	50.8	28.58	15.88
RF2080R-NB-SS-5LK2-L	링크	RF2080	R	K2	5L	50.8	28.58	15.88
RF2080R-NB-SS-6LK2-L	링크	RF2080	R	K2	6L	50.8	28.58	15.88
RF2080R-NB-SS-7LK2-L	링크	RF2080	R	K2	7L	50.8	28.58	15.88
RF2080R-NB-SS-8LK2-L	링크	RF2080	R	K2	8L	50.8	28.58	15.88
RF2080R-NB-SS-9LK2-L	링크	RF2080	R	K2	9L	50.8	28.58	15.88
RF2040-NB-SS-JL	조인트링크	RF2040	-	-	-	25.4	15.88	7.95
RF2050-NB-SS-JL	조인트링크	RF2050	-	-	-	31.75	19.05	9.53
RF2060-NB-SS-JL	조인트링크	RF2060	-	-	-	38.1	22.23	12.7
RF2080-NB-SS-JL	조인트링크	RF2080	-	-	-	50.8	28.58	15.88
RF2040-NB-SS-A2-JL	조인트링크	RF2040	-	A2	-	25.4	15.88	7.95
RF2050-NB-SS-A2-JL	조인트링크	RF2050	-	A2	-	31.75	19.05	9.53
RF2060-NB-SS-A2-JL	조인트링크	RF2060	-	A2	-	38.1	22.23	12.7
RF2080-NB-SS-A2-JL	조인트링크	RF2080	-	A2	-	50.8	28.58	15.88
RF2040-NB-SS-K2-JL	조인트링크	RF2040	-	K2	-	25.4	15.88	7.95
RF2050-NB-SS-K2-JL	조인트링크	RF2050	-	K2	-	31.75	19.05	9.53
RF2060-NB-SS-K2-JL	조인트링크	RF2060	-	K2	-	38.1	22.23	12.7
RF2080-NB-SS-K2-JL	조인트링크	RF2080	-	K2	-	50.8	28.58	15.88

형식	플레이트(mm)	플레이트(mm)	플레이트(mm)	핀경 D	핀(mm)	핀(mm)
형식	두께 T	폭 h	폭 H	핀경 D	L1	L2
RF2040R-NB-SS-L	1.5	12	17.5	3.97	10.45	12.15
RF2050R-NB-SS-L	2	15	21	4.97	12.6	14.3
RF2060R-NB-SS-L	3.2	17.2	26	5.96	16.8	18.7
RF2080R-NB-SS-L	4	23	35..0	7.94	21.5	24.4
RF2040R-NB-SS-10LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-1LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-2LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-3LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-4LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-5LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-6LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-7LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-8LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-9LA2-L	1.5	12	17.5	3.97	10.45	12.15
RF2050R-NB-SS-10LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-1LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-2LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-3LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-4LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-5LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-6LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-7LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-8LA2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-9LA2-L	2	15	21	4.97	12.6	14.3
RF2060R-NB-SS-10LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-1LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-2LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-3LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-4LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-5LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-6LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-7LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-8LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-9LA2-L	3.2	17.2	26	5.96	16.8	18.7
RF2080R-NB-SS-10LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-1LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-2LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-3LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-4LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-5LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-6LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-7LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-8LA2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-9LA2-L	4	23	35..0	7.94	21.5	24.4
RF2040R-NB-SS-10LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-1LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-2LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-3LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-4LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-5LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-6LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-7LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-8LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2040R-NB-SS-9LK2-L	1.5	12	17.5	3.97	10.45	12.15
RF2050R-NB-SS-10LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-1LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-2LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-3LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-4LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-5LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-6LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-7LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-8LK2-L	2	15	21	4.97	12.6	14.3
RF2050R-NB-SS-9LK2-L	2	15	21	4.97	12.6	14.3
RF2060R-NB-SS-10LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-1LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-2LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-3LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-4LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-5LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-6LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-7LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-8LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2060R-NB-SS-9LK2-L	3.2	17.2	26	5.96	16.8	18.7
RF2080R-NB-SS-10LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-1LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-2LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-3LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-4LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-5LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-6LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-7LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-8LK2-L	4	23	35..0	7.94	21.5	24.4
RF2080R-NB-SS-9LK2-L	4	23	35..0	7.94	21.5	24.4
RF2040-NB-SS-JL	1.5	12	17.5	3.97	10.45	12.15
RF2050-NB-SS-JL	2	15	21	4.97	12.6	14.3
RF2060-NB-SS-JL	3.2	17.2	26	5.96	16.8	18.7
RF2080-NB-SS-JL	4	23	35..0	7.94	21.5	24.4
RF2040-NB-SS-A2-JL	1.5	12	17.5	3.97	10.45	12.15
RF2050-NB-SS-A2-JL	2	15	21	4.97	12.6	14.3
RF2060-NB-SS-A2-JL	3.2	17.2	26	5.96	16.8	18.7
RF2080-NB-SS-A2-JL	4	23	35..0	7.94	21.5	24.4
RF2040-NB-SS-K2-JL	1.5	12	17.5	3.97	10.45	12.15
RF2050-NB-SS-K2-JL	2	15	21	4.97	12.6	14.3
RF2060-NB-SS-K2-JL	3.2	17.2	26	5.96	16.8	18.7
RF2080-NB-SS-K2-JL	4	23	35..0	7.94	21.5	24.4

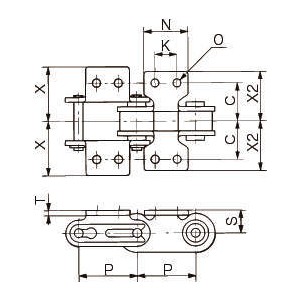

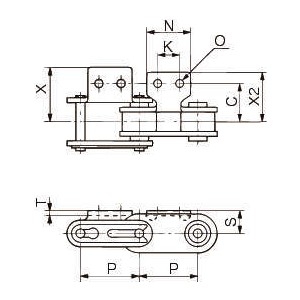

형식	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	최대 허용장력 (kN)	개략질량 (kg/m)	어태치먼트1개당 부가질량 (kg)
형식	S	C	X	X2	N	K	O	최대 허용장력 (kN)	개략질량 (kg/m)	어태치먼트1개당 부가질량 (kg)
RF2040R-NB-SS-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	-
RF2050R-NB-SS-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	-
RF2060R-NB-SS-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	-
RF2080R-NB-SS-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	-
RF2040R-NB-SS-10LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-1LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-2LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-3LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-4LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-5LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-6LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-7LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-8LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2040R-NB-SS-9LA2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2050R-NB-SS-10LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-1LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-2LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-3LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-4LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-5LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-6LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-7LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-8LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2050R-NB-SS-9LA2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2060R-NB-SS-10LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-1LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-2LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-3LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-4LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-5LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-6LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-7LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-8LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2060R-NB-SS-9LA2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2080R-NB-SS-10LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-1LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-2LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-3LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-4LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-5LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-6LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-7LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-8LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2080R-NB-SS-9LA2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2040R-NB-SS-10LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-1LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-2LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-3LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-4LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-5LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-6LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-7LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-8LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2040R-NB-SS-9LK2-L	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2050R-NB-SS-10LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-1LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-2LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-3LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-4LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-5LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-6LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-7LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-8LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2050R-NB-SS-9LK2-L	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2060R-NB-SS-10LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-1LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-2LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-3LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-4LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-5LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-6LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-7LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-8LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2060R-NB-SS-9LK2-L	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2080R-NB-SS-10LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-1LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-2LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-3LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-4LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-5LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-6LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-7LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-8LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2080R-NB-SS-9LK2-L	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064
RF2040-NB-SS-JL	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	-
RF2050-NB-SS-JL	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	-
RF2060-NB-SS-JL	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	-
RF2080-NB-SS-JL	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	-
RF2040-NB-SS-A2-JL	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.003
RF2050-NB-SS-A2-JL	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.006
RF2060-NB-SS-A2-JL	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.017
RF2080-NB-SS-A2-JL	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.032
RF2040-NB-SS-K2-JL	9.1	14.9	21.5	19.3	19.1	9.5	3.6	1.06	0.99	0.006
RF2050-NB-SS-K2-JL	11.1	18.2	26.5	24.2	23.8	11.9	5.2	0.69	1.82	0.012
RF2060-NB-SS-K2-JL	14.7	23.7	33.95	31.5	28.6	14.3	5.2	1.03	4.07	0.034
RF2080-NB-SS-K2-JL	19.1	31	43.9	40.7	38.1	19.1	6.8	1.77	4.07	0.064

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RF2040R-NB-SS-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-L	L	133,100	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-L	L	145,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-L	L	174,900	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-10LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-1LA2-L	L	122,100	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-2LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-3LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-4LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-5LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-6LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-7LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-8LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-9LA2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-10LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-1LA2-L	L	136,400	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-2LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-3LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-4LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-5LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-6LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-7LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-8LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-9LA2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-10LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-1LA2-L	L	149,600	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-2LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-3LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-4LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-5LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-6LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-7LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-8LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-9LA2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-10LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-1LA2-L	L	181,500	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-2LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-3LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-4LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-5LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-6LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-7LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-8LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-9LA2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-10LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-1LK2-L	L	124,300	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-2LK2-L	L	122,100	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-3LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-4LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-5LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-6LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-7LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-8LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2040R-NB-SS-9LK2-L	L	121,000	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-10LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-1LK2-L	L	139,700	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-2LK2-L	L	136,400	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-3LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-4LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-5LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-6LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-7LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-8LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2050R-NB-SS-9LK2-L	L	134,200	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-10LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-1LK2-L	L	156,200	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-2LK2-L	L	149,600	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-3LK2-L	L	148,500	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-4LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-5LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-6LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-7LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-8LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2060R-NB-SS-9LK2-L	L	146,300	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-10LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-1LK2-L	L	188,100	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-2LK2-L	L	181,500	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-3LK2-L	L	179,300	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-4LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-5LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-6LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-7LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-8LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2080R-NB-SS-9LK2-L	L	178,200	-	-	-	-	견적의뢰 / 주문
RF2040-NB-SS-JL	P	15,180	-	-	-	-	견적의뢰 / 주문
RF2050-NB-SS-JL	P	18,150	-	-	-	-	견적의뢰 / 주문
RF2060-NB-SS-JL	P	25,740	-	-	-	-	견적의뢰 / 주문
RF2080-NB-SS-JL	P	46,640	-	-	-	-	견적의뢰 / 주문
RF2040-NB-SS-A2-JL	P	27,940	-	-	-	-	견적의뢰 / 주문
RF2050-NB-SS-A2-JL	P	31,900	-	-	-	-	견적의뢰 / 주문
RF2060-NB-SS-A2-JL	P	43,120	-	-	-	-	견적의뢰 / 주문
RF2080-NB-SS-A2-JL	P	69,520	-	-	-	-	견적의뢰 / 주문
RF2040-NB-SS-K2-JL	P	40,040	-	-	-	-	견적의뢰 / 주문
RF2050-NB-SS-K2-JL	P	46,640	-	-	-	-	견적의뢰 / 주문
RF2060-NB-SS-K2-JL	P	58,300	-	-	-	-	견적의뢰 / 주문
RF2080-NB-SS-K2-JL	P	92,400	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
