태형치형풀리(축구멍사상)

태형치형피트보어풀리 H형

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


1046건 중 1~500건 표시

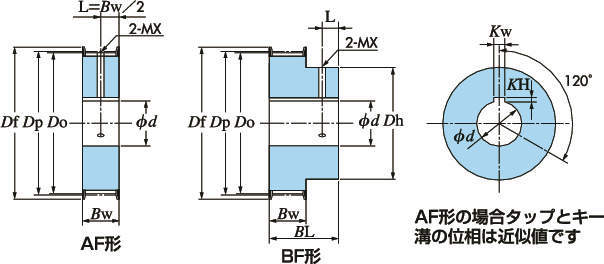

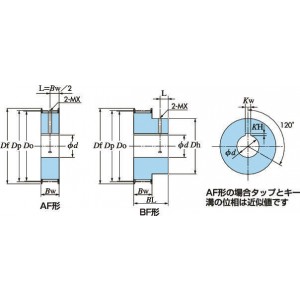

형식	잇수	사용벨트	사용벨트	피치원직경 Dp (mm)	이끝원직경 Do (mm)	플랜지외경 Df (mm)	허브직경 Dh (mm)
형식	잇수	호칭폭	폭 (mm)	피치원직경 Dp (mm)	이끝원직경 Do (mm)	플랜지외경 Df (mm)	허브직경 Dh (mm)
PT14H100AF-15TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-16TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-17TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-18TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-19TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-20TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-22TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-24TJ	14	100	25.4	56.6	55.22	62	41
PT14H100AF-25TJ	14	100	25.4	56.6	55.22	62	41
PT15H100AF-15TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-16TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-17TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-18TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-19TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-20TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-22TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-24TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-25TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-28TJ	15	100	25.4	60.64	59.27	66	46
PT15H100AF-30TJ	15	100	25.4	60.64	59.27	66	46
PT16H100AF-15TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-16TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-17TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-18TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-19TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-20TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-22TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-24TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-25TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-28TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-30TJ	16	100	25.4	64.68	63.31	70	50
PT16H100AF-32TJ	16	100	25.4	64.68	63.31	70	50
PT18H100AF-15TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-16TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-17TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-18TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-19TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-20TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-22TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-24TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-25TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-28TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-30TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-32TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-35TJ	18	100	25.4	72.77	71.39	79	58
PT18H100AF-38TJ	18	100	25.4	72.77	71.39	79	58
PT19H100AF-15TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-16TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-17TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-18TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-19TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-20TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-22TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-24TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-25TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-28TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-30TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-32TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-35TJ	19	100	25.4	76.81	75.44	82	58
PT19H100AF-38TJ	19	100	25.4	76.81	75.44	82	58
PT20H100AF-15TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-16TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-17TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-18TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-19TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-20TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-22TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-24TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-25TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-28TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-30TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-32TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-35TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-38TJ	20	100	25.4	80.85	79.48	86	60
PT20H100AF-40TJ	20	100	25.4	80.85	79.48	86	60
PT21H100AF-15TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-16TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-17TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-18TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-19TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-20TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-22TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-24TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-25TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-28TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-30TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-32TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-35TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-38TJ	21	100	25.4	84.89	83.52	91	60
PT21H100AF-40TJ	21	100	25.4	84.89	83.52	91	60
PT22H100AF-15TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-16TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-17TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-18TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-19TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-20TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-22TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-24TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-25TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-28TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-30TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-32TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-35TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-38TJ	22	100	25.4	88.94	87.56	94	60
PT22H100AF-40TJ	22	100	25.4	88.94	87.56	94	60
PT24H100AF-20TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-22TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-24TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-25TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-28TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-30TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-32TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-35TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-38TJ	24	100	25.4	97.02	95.65	103	60
PT24H100AF-40TJ	24	100	25.4	97.02	95.65	103	60
PT25H100AF-20TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-22TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-24TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-25TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-28TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-30TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-32TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-35TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-38TJ	25	100	25.4	101.06	99.69	107	60
PT25H100AF-40TJ	25	100	25.4	101.06	99.69	107	60
PT26H100AF-20TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-22TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-24TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-25TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-28TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-30TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-32TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-35TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-38TJ	26	100	25.4	105.11	103.73	111	60
PT26H100AF-40TJ	26	100	25.4	105.11	103.73	111	60
PT28H100AF-20TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-22TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-24TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-25TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-28TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-30TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-32TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-35TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-38TJ	28	100	25.4	113.19	111.82	119	60
PT28H100AF-40TJ	28	100	25.4	113.19	111.82	119	60
PT30H100AF-20TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-22TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-24TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-25TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-28TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-30TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-32TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-35TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-38TJ	30	100	25.4	121.28	119.9	127	60
PT30H100AF-40TJ	30	100	25.4	121.28	119.9	127	60
PT32H100AF-20TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-22TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-24TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-25TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-28TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-30TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-32TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-35TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-38TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-40TJ	32	100	25.4	129.36	127.99	135	64
PT32H100AF-42TJ	32	100	25.4	129.36	127.99	135	64
PT34H100AF-20TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-22TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-24TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-25TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-28TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-30TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-32TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-35TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-38TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-40TJ	34	100	25.4	137.45	136.07	143	64
PT34H100AF-42TJ	34	100	25.4	137.45	136.07	143	64
PT36H100AF-20TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-22TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-24TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-25TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-28TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-30TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-32TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-35TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-38TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-40TJ	36	100	25.4	145.35	144.16	151	64
PT36H100AF-42TJ	36	100	25.4	145.35	144.16	151	64
PT40H100AF-20TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-22TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-24TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-25TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-28TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-30TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-32TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-35TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-38TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-40TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-42TJ	40	100	25.4	161.7	160.33	167	68
PT40H100AF-45TJ	40	100	25.4	161.7	160.33	167	68
PT14H150AF-15TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-16TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-17TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-18TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-19TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-20TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-22TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-24TJ	14	150	38.1	56.6	55.22	62	41
PT14H150AF-25TJ	14	150	38.1	56.6	55.22	62	41
PT15H150AF-15TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-16TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-17TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-18TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-19TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-20TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-22TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-24TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-25TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-28TJ	15	150	38.1	60.64	59.27	66	46
PT15H150AF-30TJ	15	150	38.1	60.64	59.27	66	46
PT16H150AF-15TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-16TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-17TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-18TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-19TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-20TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-22TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-24TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-25TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-28TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-30TJ	16	150	38.1	64.68	63.31	70	50
PT16H150AF-32TJ	16	150	38.1	64.68	63.31	70	50
PT18H150AF-18TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-19TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-20TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-22TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-24TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-25TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-28TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-30TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-32TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-35TJ	18	150	38.1	72.77	71.39	79	58
PT18H150AF-38TJ	18	150	38.1	72.77	71.39	79	58
PT19H150AF-20TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-22TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-24TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-25TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-28TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-30TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-32TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-35TJ	19	150	38.1	76.81	75.44	82	58
PT19H150AF-38TJ	19	150	38.1	76.81	75.44	82	58
PT20H150AF-20TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-22TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-24TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-25TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-28TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-30TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-32TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-35TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-38TJ	20	150	38.1	80.85	79.48	86	60
PT20H150AF-40TJ	20	150	38.1	80.85	79.48	86	60
PT21H150AF-20TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-22TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-24TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-25TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-28TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-30TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-32TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-35TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-38TJ	21	150	38.1	84.89	83.52	91	60
PT21H150AF-40TJ	21	150	38.1	84.89	83.52	91	60
PT22H150AF-20TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-22TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-24TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-25TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-28TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-30TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-32TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-35TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-38TJ	22	150	38.1	88.94	87.56	94	60
PT22H150AF-40TJ	22	150	38.1	88.94	87.56	94	60
PT24H150AF-20TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-22TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-24TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-25TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-28TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-30TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-32TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-35TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-38TJ	24	150	38.1	97.02	95.65	103	60
PT24H150AF-40TJ	24	150	38.1	97.02	95.65	103	60
PT25H150AF-20TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-22TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-24TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-25TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-28TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-30TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-32TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-35TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-38TJ	25	150	38.1	101.06	99.69	107	60
PT25H150AF-40TJ	25	150	38.1	101.06	99.69	107	60
PT26H150AF-20TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-22TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-24TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-25TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-28TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-30TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-32TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-35TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-38TJ	26	150	38.1	105.11	103.73	111	60
PT26H150AF-40TJ	26	150	38.1	105.11	103.73	111	60
PT28H150AF-20TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-22TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-24TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-25TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-28TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-30TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-32TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-35TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-38TJ	28	150	38.1	113.19	111.82	119	60
PT28H150AF-40TJ	28	150	38.1	113.19	111.82	119	60
PT30H150AF-20TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-22TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-24TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-25TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-28TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-30TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-32TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-35TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-38TJ	30	150	38.1	121.28	119.9	127	60
PT30H150AF-40TJ	30	150	38.1	121.28	119.9	127	60
PT32H150AF-20TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-22TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-24TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-25TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-28TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-30TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-32TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-35TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-38TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-40TJ	32	150	38.1	129.36	127.99	135	64
PT32H150AF-42TJ	32	150	38.1	129.36	127.99	135	64
PT34H150AF-20TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-22TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-24TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-25TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-28TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-30TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-32TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-35TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-38TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-40TJ	34	150	38.1	137.45	136.07	143	64
PT34H150AF-42TJ	34	150	38.1	137.45	136.07	143	64
PT36H150AF-20TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-22TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-24TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-25TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-28TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-30TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-32TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-35TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-38TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-40TJ	36	150	38.1	145.35	144.16	151	64
PT36H150AF-42TJ	36	150	38.1	145.35	144.16	151	64
PT40H150AF-20TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-22TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-24TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-25TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-28TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-30TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-32TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-35TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-38TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-40TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-42TJ	40	150	38.1	161.7	160.33	167	68
PT40H150AF-45TJ	40	150	38.1	161.7	160.33	167	68
PT14H200AF-20TJ	14	200	50.8	56.6	55.22	62	41
PT14H200AF-22TJ	14	200	50.8	56.6	55.22	62	41
PT14H200AF-24TJ	14	200	50.8	56.6	55.22	62	41
PT14H200AF-25TJ	14	200	50.8	56.6	55.22	62	41
PT15H200AF-20TJ	15	200	50.8	60.64	59.27	66	46
PT15H200AF-22TJ	15	200	50.8	60.64	59.27	66	46
PT15H200AF-24TJ	15	200	50.8	60.64	59.27	66	46
PT15H200AF-25TJ	15	200	50.8	60.64	59.27	66	46
PT15H200AF-28TJ	15	200	50.8	60.64	59.27	66	46
PT15H200AF-30TJ	15	200	50.8	60.64	59.27	66	46
PT16H200AF-20TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-22TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-24TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-25TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-28TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-30TJ	16	200	50.8	64.68	63.31	70	50
PT16H200AF-32TJ	16	200	50.8	64.68	63.31	70	50
PT18H200AF-20TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-22TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-24TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-25TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-28TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-30TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-32TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-35TJ	18	200	50.8	72.77	71.39	79	58
PT18H200AF-38TJ	18	200	50.8	72.77	71.39	79	58
PT19H200AF-20TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-22TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-24TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-25TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-28TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-30TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-32TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-35TJ	19	200	50.8	76.81	75.44	82	58
PT19H200AF-38TJ	19	200	50.8	76.81	75.44	82	58
PT20H200AF-20TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-22TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-24TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-25TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-28TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-30TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-32TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-35TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-38TJ	20	200	50.8	80.85	79.48	86	60
PT20H200AF-40TJ	20	200	50.8	80.85	79.48	86	60
PT21H200AF-20TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-22TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-24TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-25TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-28TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-30TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-32TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-35TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-38TJ	21	200	50.8	84.89	83.52	91	60
PT21H200AF-40TJ	21	200	50.8	84.89	83.52	91	60
PT22H200AF-20TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-22TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-24TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-25TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-28TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-30TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-32TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-35TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-38TJ	22	200	50.8	88.94	87.56	94	60
PT22H200AF-40TJ	22	200	50.8	88.94	87.56	94	60
PT24H200AF-20TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-22TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-24TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-25TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-28TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-30TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-32TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-35TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-38TJ	24	200	50.8	97.02	95.65	103	60
PT24H200AF-40TJ	24	200	50.8	97.02	95.65	103	60
PT25H200AF-20TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-22TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-24TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-25TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-28TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-30TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-32TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-35TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-38TJ	25	200	50.8	101.06	99.69	107	60
PT25H200AF-40TJ	25	200	50.8	101.06	99.69	107	60
PT26H200AF-24TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-25TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-28TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-30TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-32TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-35TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-38TJ	26	200	50.8	105.11	103.73	111	60
PT26H200AF-40TJ	26	200	50.8	105.11	103.73	111	60
PT28H200AF-24TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-25TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-28TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-30TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-32TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-35TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-38TJ	28	200	50.8	113.19	111.82	119	60
PT28H200AF-40TJ	28	200	50.8	113.19	111.82	119	60
PT30H200AF-24TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-25TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-28TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-30TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-32TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-35TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-38TJ	30	200	50.8	121.28	119.9	127	60
PT30H200AF-40TJ	30	200	50.8	121.28	119.9	127	60
PT32H200AF-24TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-25TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-28TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-30TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-32TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-35TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-38TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-40TJ	32	200	50.8	129.36	127.99	135	64
PT32H200AF-42TJ	32	200	50.8	129.36	127.99	135	64
PT34H200AF-24TJ	34	200	50.8	137.45	136.07	143	64
PT34H200AF-25TJ	34	200	50.8	137.45	136.07	143	64
PT34H200AF-28TJ	34	200	50.8	137.45	136.07	143	64
PT34H200AF-30TJ	34	200	50.8	137.45	136.07	143	64
PT34H200AF-32TJ	34	200	50.8	137.45	136.07	143	64

형식	Bw (mm)	BL (mm)	L (mm)	축구멍직경 Φd (mm)	키 Kw×KH (mm)	탭	풀리 형상
형식	Bw (mm)	BL (mm)	L (mm)	축구멍직경 Φd (mm)	키 Kw×KH (mm)	탭	풀리 형상
PT14H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT14H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT14H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT14H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT14H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT14H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT14H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT14H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT14H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT15H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT15H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT15H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT15H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT15H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT15H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT15H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT15H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT15H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT15H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT15H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT16H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT16H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT16H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT16H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT16H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT16H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT16H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT16H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT16H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT16H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT16H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT16H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT18H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT18H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT18H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT18H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT18H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT18H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT18H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT18H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT18H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT18H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT18H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT18H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT18H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT18H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT19H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT19H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT19H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT19H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT19H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT19H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT19H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT19H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT19H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT19H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT19H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT19H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT19H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT19H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT20H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT20H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT20H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT20H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT20H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT20H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT20H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT20H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT20H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT20H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT20H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT20H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT20H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT20H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT20H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT21H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT21H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT21H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT21H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT21H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT21H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT21H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT21H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT21H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT21H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT21H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT21H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT21H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT21H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT21H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT22H100AF-15TJ	34	-	17	15	5×2.3	M5	AF
PT22H100AF-16TJ	34	-	17	16	5×2.3	M5	AF
PT22H100AF-17TJ	34	-	17	17	5×2.3	M5	AF
PT22H100AF-18TJ	34	-	17	18	6×2.8	M6	AF
PT22H100AF-19TJ	34	-	17	19	6×2.8	M6	AF
PT22H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT22H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT22H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT22H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT22H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT22H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT22H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT22H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT22H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT22H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT24H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT24H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT24H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT24H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT24H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT24H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT24H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT24H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT24H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT24H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT25H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT25H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT25H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT25H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT25H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT25H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT25H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT25H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT25H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT25H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT26H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT26H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT26H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT26H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT26H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT26H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT26H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT26H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT26H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT26H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT28H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT28H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT28H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT28H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT28H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT28H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT28H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT28H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT28H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT28H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT30H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT30H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT30H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT30H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT30H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT30H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT30H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT30H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT30H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT30H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT32H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT32H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT32H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT32H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT32H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT32H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT32H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT32H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT32H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT32H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT32H100AF-42TJ	34	-	17	42	12×3.3	M8	AF
PT34H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT34H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT34H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT34H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT34H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT34H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT34H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT34H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT34H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT34H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT34H100AF-42TJ	34	-	17	42	12×3.3	M8	AF
PT36H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT36H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT36H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT36H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT36H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT36H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT36H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT36H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT36H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT36H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT36H100AF-42TJ	34	-	17	42	12×3.3	M8	AF
PT40H100AF-20TJ	34	-	17	20	6×2.8	M6	AF
PT40H100AF-22TJ	34	-	17	22	6×2.8	M6	AF
PT40H100AF-24TJ	34	-	17	24	8×3.3	M6	AF
PT40H100AF-25TJ	34	-	17	25	8×3.3	M6	AF
PT40H100AF-28TJ	34	-	17	28	8×3.3	M6	AF
PT40H100AF-30TJ	34	-	17	30	8×3.3	M6	AF
PT40H100AF-32TJ	34	-	17	32	10×3.3	M8	AF
PT40H100AF-35TJ	34	-	17	35	10×3.3	M8	AF
PT40H100AF-38TJ	34	-	17	38	10×3.3	M8	AF
PT40H100AF-40TJ	34	-	17	40	12×3.3	M8	AF
PT40H100AF-42TJ	34	-	17	42	12×3.3	M8	AF
PT40H100AF-45TJ	34	-	17	45	14×3.8	M8	AF
PT14H150AF-15TJ	46	-	23	15	5×2.3	M5	AF
PT14H150AF-16TJ	46	-	23	16	5×2.3	M5	AF
PT14H150AF-17TJ	46	-	23	17	5×2.3	M5	AF
PT14H150AF-18TJ	46	-	23	18	6×2.8	M6	AF
PT14H150AF-19TJ	46	-	23	19	6×2.8	M6	AF
PT14H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT14H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT14H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT14H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT15H150AF-15TJ	46	-	23	15	5×2.3	M5	AF
PT15H150AF-16TJ	46	-	23	16	5×2.3	M5	AF
PT15H150AF-17TJ	46	-	23	17	5×2.3	M5	AF
PT15H150AF-18TJ	46	-	23	18	6×2.8	M6	AF
PT15H150AF-19TJ	46	-	23	19	6×2.8	M6	AF
PT15H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT15H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT15H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT15H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT15H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT15H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT16H150AF-15TJ	46	-	23	15	5×2.3	M5	AF
PT16H150AF-16TJ	46	-	23	16	5×2.3	M5	AF
PT16H150AF-17TJ	46	-	23	17	5×2.3	M5	AF
PT16H150AF-18TJ	46	-	23	18	6×2.8	M6	AF
PT16H150AF-19TJ	46	-	23	19	6×2.8	M6	AF
PT16H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT16H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT16H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT16H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT16H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT16H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT16H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT18H150AF-18TJ	46	-	23	18	6×2.8	M6	AF
PT18H150AF-19TJ	46	-	23	19	6×2.8	M6	AF
PT18H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT18H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT18H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT18H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT18H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT18H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT18H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT18H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT18H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT19H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT19H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT19H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT19H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT19H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT19H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT19H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT19H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT19H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT20H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT20H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT20H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT20H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT20H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT20H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT20H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT20H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT20H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT20H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT21H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT21H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT21H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT21H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT21H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT21H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT21H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT21H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT21H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT21H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT22H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT22H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT22H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT22H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT22H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT22H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT22H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT22H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT22H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT22H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT24H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT24H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT24H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT24H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT24H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT24H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT24H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT24H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT24H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT24H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT25H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT25H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT25H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT25H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT25H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT25H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT25H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT25H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT25H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT25H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT26H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT26H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT26H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT26H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT26H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT26H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT26H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT26H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT26H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT26H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT28H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT28H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT28H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT28H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT28H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT28H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT28H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT28H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT28H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT28H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT30H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT30H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT30H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT30H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT30H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT30H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT30H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT30H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT30H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT30H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT32H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT32H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT32H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT32H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT32H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT32H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT32H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT32H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT32H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT32H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT32H150AF-42TJ	46	-	23	42	12×3.3	M8	AF
PT34H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT34H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT34H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT34H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT34H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT34H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT34H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT34H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT34H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT34H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT34H150AF-42TJ	46	-	23	42	12×3.3	M8	AF
PT36H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT36H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT36H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT36H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT36H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT36H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT36H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT36H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT36H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT36H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT36H150AF-42TJ	46	-	23	42	12×3.3	M8	AF
PT40H150AF-20TJ	46	-	23	20	6×2.8	M6	AF
PT40H150AF-22TJ	46	-	23	22	6×2.8	M6	AF
PT40H150AF-24TJ	46	-	23	24	8×3.3	M6	AF
PT40H150AF-25TJ	46	-	23	25	8×3.3	M6	AF
PT40H150AF-28TJ	46	-	23	28	8×3.3	M6	AF
PT40H150AF-30TJ	46	-	23	30	8×3.3	M6	AF
PT40H150AF-32TJ	46	-	23	32	10×3.3	M8	AF
PT40H150AF-35TJ	46	-	23	35	10×3.3	M8	AF
PT40H150AF-38TJ	46	-	23	38	10×3.3	M8	AF
PT40H150AF-40TJ	46	-	23	40	12×3.3	M8	AF
PT40H150AF-42TJ	46	-	23	42	12×3.3	M8	AF
PT40H150AF-45TJ	46	-	23	45	14×3.8	M8	AF
PT14H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT14H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT14H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT14H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT15H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT15H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT15H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT15H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT15H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT15H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT16H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT16H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT16H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT16H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT16H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT16H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT16H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT18H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT18H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT18H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT18H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT18H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT18H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT18H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT18H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT18H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT19H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT19H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT19H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT19H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT19H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT19H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT19H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT19H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT19H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT20H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT20H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT20H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT20H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT20H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT20H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT20H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT20H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT20H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT20H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT21H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT21H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT21H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT21H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT21H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT21H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT21H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT21H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT21H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT21H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT22H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT22H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT22H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT22H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT22H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT22H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT22H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT22H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT22H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT22H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT24H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT24H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT24H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT24H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT24H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT24H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT24H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT24H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT24H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT24H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT25H200AF-20TJ	60	-	30	20	6×2.8	M6	AF
PT25H200AF-22TJ	60	-	30	22	6×2.8	M6	AF
PT25H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT25H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT25H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT25H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT25H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT25H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT25H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT25H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT26H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT26H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT26H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT26H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT26H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT26H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT26H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT26H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT28H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT28H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT28H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT28H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT28H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT28H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT28H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT28H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT30H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT30H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT30H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT30H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT30H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT30H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT30H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT30H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT32H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT32H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT32H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT32H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT32H200AF-32TJ	60	-	30	32	10×3.3	M8	AF
PT32H200AF-35TJ	60	-	30	35	10×3.3	M8	AF
PT32H200AF-38TJ	60	-	30	38	10×3.3	M8	AF
PT32H200AF-40TJ	60	-	30	40	12×3.3	M8	AF
PT32H200AF-42TJ	60	-	30	42	12×3.3	M8	AF
PT34H200AF-24TJ	60	-	30	24	8×3.3	M6	AF
PT34H200AF-25TJ	60	-	30	25	8×3.3	M6	AF
PT34H200AF-28TJ	60	-	30	28	8×3.3	M6	AF
PT34H200AF-30TJ	60	-	30	30	8×3.3	M6	AF
PT34H200AF-32TJ	60	-	30	32	10×3.3	M8	AF

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
PT14H100AF-15TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-16TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-17TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-18TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-19TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-20TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-22TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-24TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT14H100AF-25TJ	P	146,300	-	-	-	-	견적의뢰 / 주문
PT15H100AF-15TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-16TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-17TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-18TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-19TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-20TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-22TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-24TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-25TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-28TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT15H100AF-30TJ	P	149,600	-	-	-	-	견적의뢰 / 주문
PT16H100AF-15TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-16TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-17TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-18TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-19TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-20TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-22TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-24TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-25TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-28TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-30TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT16H100AF-32TJ	P	152,900	-	-	-	-	견적의뢰 / 주문
PT18H100AF-15TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-16TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-17TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-18TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-19TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-20TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-22TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-24TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-25TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-28TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-30TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-32TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-35TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT18H100AF-38TJ	P	155,100	-	-	-	-	견적의뢰 / 주문
PT19H100AF-15TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-16TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-17TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-18TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-19TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-20TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-22TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-24TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-25TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-28TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-30TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-32TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-35TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19H100AF-38TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT20H100AF-15TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-16TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-17TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-18TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-19TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-20TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-22TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-24TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-25TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-28TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-30TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-32TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-35TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-38TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT20H100AF-40TJ	P	172,700	-	-	-	-	견적의뢰 / 주문
PT21H100AF-15TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-16TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-17TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-18TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-19TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-20TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-22TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-24TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-25TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-28TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-30TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-32TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-35TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-38TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21H100AF-40TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT22H100AF-15TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-16TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-17TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-18TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-19TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-20TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-22TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-24TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-25TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-28TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-30TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-32TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-35TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-38TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT22H100AF-40TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT24H100AF-20TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-22TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-24TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-25TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-28TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-30TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-32TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-35TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-38TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT24H100AF-40TJ	P	212,300	-	-	-	-	견적의뢰 / 주문
PT25H100AF-20TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-22TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-24TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-25TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-28TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-30TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-32TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-35TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-38TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT25H100AF-40TJ	P	222,200	-	-	-	-	견적의뢰 / 주문
PT26H100AF-20TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-22TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-24TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-25TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-28TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-30TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-32TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-35TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-38TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26H100AF-40TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT28H100AF-20TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-22TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-24TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-25TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-28TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-30TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-32TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-35TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-38TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT28H100AF-40TJ	P	233,200	-	-	-	-	견적의뢰 / 주문
PT30H100AF-20TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-22TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-24TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-25TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-28TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-30TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-32TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-35TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-38TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT30H100AF-40TJ	P	242,000	-	-	-	-	견적의뢰 / 주문
PT32H100AF-20TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-22TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-24TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-25TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-28TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-30TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-32TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-35TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-38TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-40TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT32H100AF-42TJ	P	257,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-20TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-22TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-24TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-25TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-28TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-30TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-32TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-35TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-38TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-40TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT34H100AF-42TJ	P	279,400	-	-	-	-	견적의뢰 / 주문
PT36H100AF-20TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-22TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-24TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-25TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-28TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-30TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-32TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-35TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-38TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-40TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT36H100AF-42TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT40H100AF-20TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-22TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-24TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-25TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-28TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-30TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-32TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-35TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-38TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-40TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-42TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT40H100AF-45TJ	P	301,400	-	-	-	-	견적의뢰 / 주문
PT14H150AF-15TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-16TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-17TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-18TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-19TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-20TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-22TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-24TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT14H150AF-25TJ	P	160,600	-	-	-	-	견적의뢰 / 주문
PT15H150AF-15TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-16TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-17TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-18TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-19TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-20TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-22TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-24TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-25TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-28TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT15H150AF-30TJ	P	165,000	-	-	-	-	견적의뢰 / 주문
PT16H150AF-15TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-16TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-17TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-18TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-19TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-20TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-22TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-24TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-25TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-28TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-30TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT16H150AF-32TJ	P	166,100	-	-	-	-	견적의뢰 / 주문
PT18H150AF-18TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-19TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-20TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-22TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-24TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-25TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-28TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-30TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-32TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-35TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT18H150AF-38TJ	P	173,800	-	-	-	-	견적의뢰 / 주문
PT19H150AF-20TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-22TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-24TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-25TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-28TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-30TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-32TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-35TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT19H150AF-38TJ	P	180,400	-	-	-	-	견적의뢰 / 주문
PT20H150AF-20TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-22TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-24TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-25TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-28TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-30TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-32TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-35TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-38TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT20H150AF-40TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-20TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-22TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-24TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-25TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-28TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-30TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-32TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-35TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-38TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT21H150AF-40TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT22H150AF-20TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-22TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-24TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-25TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-28TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-30TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-32TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-35TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-38TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT22H150AF-40TJ	P	201,300	-	-	-	-	견적의뢰 / 주문
PT24H150AF-20TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-22TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-24TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-25TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-28TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-30TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-32TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-35TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-38TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT24H150AF-40TJ	P	235,400	-	-	-	-	견적의뢰 / 주문
PT25H150AF-20TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-22TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-24TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-25TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-28TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-30TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-32TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-35TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-38TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT25H150AF-40TJ	P	239,800	-	-	-	-	견적의뢰 / 주문
PT26H150AF-20TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-22TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-24TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-25TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-28TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-30TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-32TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-35TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-38TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT26H150AF-40TJ	P	246,400	-	-	-	-	견적의뢰 / 주문
PT28H150AF-20TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-22TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-24TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-25TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-28TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-30TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-32TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-35TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-38TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT28H150AF-40TJ	P	261,800	-	-	-	-	견적의뢰 / 주문
PT30H150AF-20TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-22TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-24TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-25TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-28TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-30TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-32TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-35TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-38TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT30H150AF-40TJ	P	270,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-20TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-22TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-24TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-25TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-28TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-30TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-32TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-35TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-38TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-40TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT32H150AF-42TJ	P	314,600	-	-	-	-	견적의뢰 / 주문
PT34H150AF-20TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-22TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-24TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-25TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-28TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-30TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-32TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-35TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-38TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-40TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT34H150AF-42TJ	P	343,200	-	-	-	-	견적의뢰 / 주문
PT36H150AF-20TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-22TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-24TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-25TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-28TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-30TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-32TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-35TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-38TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-40TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT36H150AF-42TJ	P	371,800	-	-	-	-	견적의뢰 / 주문
PT40H150AF-20TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-22TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-24TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-25TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-28TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-30TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-32TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-35TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-38TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-40TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-42TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT40H150AF-45TJ	P	429,000	-	-	-	-	견적의뢰 / 주문
PT14H200AF-20TJ	P	169,400	-	-	-	-	견적의뢰 / 주문
PT14H200AF-22TJ	P	169,400	-	-	-	-	견적의뢰 / 주문
PT14H200AF-24TJ	P	169,400	-	-	-	-	견적의뢰 / 주문
PT14H200AF-25TJ	P	169,400	-	-	-	-	견적의뢰 / 주문
PT15H200AF-20TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT15H200AF-22TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT15H200AF-24TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT15H200AF-25TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT15H200AF-28TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT15H200AF-30TJ	P	178,200	-	-	-	-	견적의뢰 / 주문
PT16H200AF-20TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-22TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-24TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-25TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-28TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-30TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT16H200AF-32TJ	P	179,300	-	-	-	-	견적의뢰 / 주문
PT18H200AF-20TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-22TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-24TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-25TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-28TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-30TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-32TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-35TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT18H200AF-38TJ	P	188,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-20TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-22TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-24TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-25TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-28TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-30TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-32TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-35TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT19H200AF-38TJ	P	199,100	-	-	-	-	견적의뢰 / 주문
PT20H200AF-20TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-22TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-24TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-25TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-28TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-30TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-32TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-35TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-38TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT20H200AF-40TJ	P	216,700	-	-	-	-	견적의뢰 / 주문
PT21H200AF-20TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-22TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-24TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-25TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-28TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-30TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-32TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-35TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-38TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT21H200AF-40TJ	P	224,400	-	-	-	-	견적의뢰 / 주문
PT22H200AF-20TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-22TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-24TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-25TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-28TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-30TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-32TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-35TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-38TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT22H200AF-40TJ	P	228,800	-	-	-	-	견적의뢰 / 주문
PT24H200AF-20TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-22TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-24TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-25TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-28TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-30TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-32TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-35TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-38TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT24H200AF-40TJ	P	277,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-20TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-22TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-24TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-25TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-28TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-30TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-32TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-35TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-38TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT25H200AF-40TJ	P	288,200	-	-	-	-	견적의뢰 / 주문
PT26H200AF-24TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-25TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-28TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-30TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-32TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-35TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-38TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT26H200AF-40TJ	P	290,400	-	-	-	-	견적의뢰 / 주문
PT28H200AF-24TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-25TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-28TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-30TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-32TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-35TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-38TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT28H200AF-40TJ	P	297,000	-	-	-	-	견적의뢰 / 주문
PT30H200AF-24TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-25TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-28TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-30TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-32TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-35TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-38TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT30H200AF-40TJ	P	354,200	-	-	-	-	견적의뢰 / 주문
PT32H200AF-24TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-25TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-28TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-30TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-32TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-35TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-38TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-40TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT32H200AF-42TJ	P	391,600	-	-	-	-	견적의뢰 / 주문
PT34H200AF-24TJ	P	415,800	-	-	-	-	견적의뢰 / 주문
PT34H200AF-25TJ	P	415,800	-	-	-	-	견적의뢰 / 주문
PT34H200AF-28TJ	P	415,800	-	-	-	-	견적의뢰 / 주문
PT34H200AF-30TJ	P	415,800	-	-	-	-	견적의뢰 / 주문
PT34H200AF-32TJ	P	415,800	-	-	-	-	견적의뢰 / 주문

1 2 3

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
