HOME > 체인전도 > 드라이브체인 > 코팅드라이브체인(NEP사양)
드라이브체인

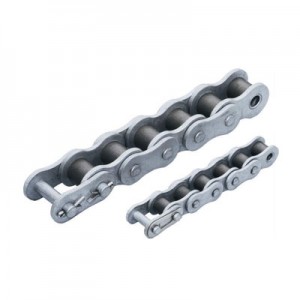

코팅드라이브체인(NEP사양)
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
  • 카탈로그



  • 관련이미지
    상세사양
    56건 중 1~56건 표시
    형식타입체인번호열수피치
    P
    (mm)
    롤러경
    R
    (mm)
    안쪽링크내폭
    W
    (mm)
    형식타입체인번호열수피치
    P
    (mm)
    롤러경
    R
    (mm)
    안쪽링크내폭
    W
    (mm)
    RS35-NEP-1-U유니트RS3519.5255.084.78
    RS40-NEP-1-U유니트RS40112.77.927.95
    RS40-NEP-2유니트RS40212.77.927.95
    RS50-NEP-1-U유니트RS50115.87510.169.53
    RS50-NEP-2유니트RS50215.87510.169.53
    RS60-NEP-1-U유니트RS60119.0511.9112.7
    RS60-NEP-2유니트RS60219.0511.9112.7
    RS80-NEP-1-U유니트RS80125.415.8815.88
    RS80-NEP-2유니트RS80225.415.8815.88
    RS100-NEP-1-U유니트RS100131.7519.0519.05
    RS100-NEP-2유니트RS100231.7519.0519.05
    RS120-NEP-1유니트RS120138.122.2325.4
    RS140-NEP-1유니트RS140144.4525.425.4
    RS160-NEP-1유니트RS160150.828.5831.75
    RS35-NEP-1링크RS3519.5255.084.78
    RS40-NEP-1링크RS40112.77.927.95
    RS40-NEP-2링크RS40212.77.927.95
    RS50-NEP-1링크RS50115.87510.169.53
    RS50-NEP-2링크RS50215.87510.169.53
    RS60-NEP-1링크RS60119.0511.9112.7
    RS60-NEP-2링크RS60219.0511.9112.7
    RS80-NEP-1링크RS80125.415.8815.88
    RS80-NEP-2링크RS80225.415.8815.88
    RS100-NEP-1링크RS100131.7519.0519.05
    RS100-NEP-2링크RS100231.7519.0519.05
    RS120-NEP-1링크RS120138.122.2325.4
    RS140-NEP-1링크RS140144.4525.425.4
    RS160-NEP-1링크RS160150.828.5831.75
    RS35-NEP-1-JL조인트링크RS3519.5255.084.78
    RS40-NEP-1-JL조인트링크RS40112.77.927.95
    RS40-NEP-2-JL조인트링크RS40212.77.927.95
    RS50-NEP-1-JL조인트링크RS50115.87510.169.53
    RS50-NEP-2-JL조인트링크RS50215.87510.169.53
    RS60-NEP-1-JL조인트링크RS60119.0511.9112.7
    RS60-NEP-2-JL조인트링크RS60219.0511.9112.7
    RS80-NEP-1-JL조인트링크RS80125.415.8815.88
    RS80-NEP-2-JL조인트링크RS80225.415.8815.88
    RS100-NEP-1-JL조인트링크RS100131.7519.0519.05
    RS100-NEP-2-JL조인트링크RS100231.7519.0519.05
    RS120-NEP-1-JL조인트링크RS120138.122.2325.4
    RS140-NEP-1-JL조인트링크RS140144.4525.425.4
    RS160-NEP-1-JL조인트링크RS160150.828.5831.75
    RS35-NEP-1-OL오프셋링크RS3519.5255.084.78
    RS40-NEP-1-OL오프셋링크RS40112.77.927.95
    RS40-NEP-2-OL오프셋링크RS40212.77.927.95
    RS50-NEP-1-OL오프셋링크RS50115.87510.169.53
    RS50-NEP-2-OL오프셋링크RS50215.87510.169.53
    RS60-NEP-1-OL오프셋링크RS60119.0511.9112.7
    RS60-NEP-2-OL오프셋링크RS60219.0511.9112.7
    RS80-NEP-1-OL오프셋링크RS80125.415.8815.88
    RS80-NEP-2-OL오프셋링크RS80225.415.8815.88
    RS100-NEP-1-OL오프셋링크RS100131.7519.0519.05
    RS100-NEP-2-OL오프셋링크RS100231.7519.0519.05
    RS120-NEP-1-OL오프셋링크RS120138.122.2325.4
    RS140-NEP-1-OL오프셋링크RS140144.4525.425.4
    RS160-NEP-1-OL오프셋링크RS160150.828.5831.75

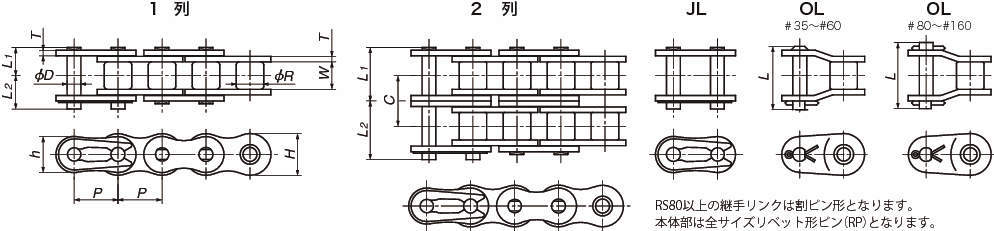

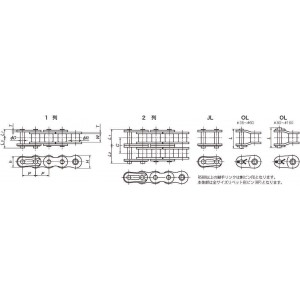

    형식플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)핀(mm)오프셋핀길이
    L(mm)
    횡피치
    C
    (mm)
    형식두께
    T

    H

    h
    핀경
    D
    핀길이
    L1+L2
    L1L2오프셋핀길이
    L(mm)
    횡피치
    C
    (mm)
    RS35-NEP-1-U1.2597.83.5912.75.856.85--
    RS40-NEP-1-U1.51210.43.9718.28.259.95--
    RS40-NEP-21.51210.43.9732.615.4517.15-14.4
    RS50-NEP-1-U215135.0922.310.312--
    RS50-NEP-2215135.0940.519.3521.15-18.1
    RS60-NEP-1-U2.418.115.65.9627.612.8514.75--
    RS60-NEP-22.418.115.65.9650.524.2526.25-22.8
    RS80-NEP-1-U3.224.120.87.9435.516.2519.25--
    RS80-NEP-23.224.120.87.9464.830.933.9-29.3
    RS100-NEP-1-U430.1269.5442.619.7522.85--
    RS100-NEP-2430.1269.5478.537.740.8-35.8
    RS120-NEP-14.836.231.211.1153.824.928.9--
    RS140-NEP-15.642.236.412.7158.626.931.7--
    RS160-NEP-16.448.241.614.2968.731.8536.85--
    RS35-NEP-11.2597.83.5912.75.856.85--
    RS40-NEP-11.51210.43.9718.28.259.95--
    RS40-NEP-21.51210.43.9732.615.4517.15-14.4
    RS50-NEP-1215135.0922.310.312--
    RS50-NEP-2215135.0940.519.3521.15-18.1
    RS60-NEP-12.418.115.65.9627.612.8514.75--
    RS60-NEP-22.418.115.65.9650.524.2526.25-22.8
    RS80-NEP-13.224.120.87.9435.516.2519.25--
    RS80-NEP-23.224.120.87.9464.830.933.9-29.3
    RS100-NEP-1430.1269.5442.619.7522.85--
    RS100-NEP-2430.1269.5478.537.740.8-35.8
    RS120-NEP-14.836.231.211.1153.824.928.9--
    RS140-NEP-15.642.236.412.7158.626.931.7--
    RS160-NEP-16.448.241.614.2968.731.8536.85--
    RS35-NEP-1-JL1.2597.83.5912.75.856.85--
    RS40-NEP-1-JL1.51210.43.9718.28.259.95--
    RS40-NEP-2-JL1.51210.43.9732.615.4517.15-14.4
    RS50-NEP-1-JL215135.0922.310.312--
    RS50-NEP-2-JL215135.0940.519.3521.15-18.1
    RS60-NEP-1-JL2.418.115.65.9627.612.8514.75--
    RS60-NEP-2-JL2.418.115.65.9650.524.2526.25-22.8
    RS80-NEP-1-JL3.224.120.87.9435.516.2519.25--
    RS80-NEP-2-JL3.224.120.87.9464.830.933.9-29.3
    RS100-NEP-1-JL430.1269.5442.619.7522.85--
    RS100-NEP-2-JL430.1269.5478.537.740.8-35.8
    RS120-NEP-1-JL4.836.231.211.1153.824.928.9--
    RS140-NEP-1-JL5.642.236.412.7158.626.931.7--
    RS160-NEP-1-JL6.448.241.614.2968.731.8536.85--
    RS35-NEP-1-OL1.2597.83.5912.75.856.8513.5-
    RS40-NEP-1-OL1.51210.43.9718.28.259.9518.2-
    RS40-NEP-2-OL1.51210.43.9732.615.4517.1533.514.4
    RS50-NEP-1-OL215135.0922.310.31222.6-
    RS50-NEP-2-OL215135.0940.519.3521.1541.818.1
    RS60-NEP-1-OL2.418.115.65.9627.612.8514.7528.2-
    RS60-NEP-2-OL2.418.115.65.9650.524.2526.2552.622.8
    RS80-NEP-1-OL3.224.120.87.9435.516.2519.2538.2-
    RS80-NEP-2-OL3.224.120.87.9464.830.933.967.529.3
    RS100-NEP-1-OL430.1269.5442.619.7522.8545.7-
    RS100-NEP-2-OL430.1269.5478.537.740.881.535.8
    RS120-NEP-1-OL4.836.231.211.1153.824.928.957.8-
    RS140-NEP-1-OL5.642.236.412.7158.626.931.763.4-
    RS160-NEP-1-OL6.448.241.614.2968.731.8536.8573.6-
    형식최소인장강도
    (kN)
    최대허용장력
    (kN)
    개략질량
    (kg/m)
    링크수
    형식최소인장강도
    (kN)
    최대허용장력
    (kN)
    개략질량
    (kg/m)
    링크수
    RS35-NEP-1-U9.812.160.33320
    RS40-NEP-1-U17.73.630.64240
    RS40-NEP-235.36.181.27240
    RS50-NEP-1-U28.46.371.04192
    RS50-NEP-256.910.72.07192
    RS60-NEP-1-U40.28.831.53160
    RS60-NEP-280.4153.04160
    RS80-NEP-1-U71.614.72.66120
    RS80-NEP-2143255.27120
    RS100-NEP-1-U10722.63.9996
    RS100-NEP-221438.37.8596
    RS120-NEP-114830.45.9380
    RS140-NEP-119340.27.4968
    RS160-NEP-12555310.160
    RS35-NEP-19.812.160.33-
    RS40-NEP-117.73.630.64-
    RS40-NEP-235.36.181.27-
    RS50-NEP-128.46.371.04-
    RS50-NEP-256.910.72.07-
    RS60-NEP-140.28.831.53-
    RS60-NEP-280.4153.04-
    RS80-NEP-171.614.72.66-
    RS80-NEP-2143255.27-
    RS100-NEP-110722.63.99-
    RS100-NEP-221438.37.85-
    RS120-NEP-114830.45.93-
    RS140-NEP-119340.27.49-
    RS160-NEP-12555310.1-
    RS35-NEP-1-JL9.812.160.33-
    RS40-NEP-1-JL17.73.630.64-
    RS40-NEP-2-JL35.36.181.27-
    RS50-NEP-1-JL28.46.371.04-
    RS50-NEP-2-JL56.910.72.07-
    RS60-NEP-1-JL40.28.831.53-
    RS60-NEP-2-JL80.4153.04-
    RS80-NEP-1-JL71.614.72.66-
    RS80-NEP-2-JL143255.27-
    RS100-NEP-1-JL10722.63.99-
    RS100-NEP-2-JL21438.37.85-
    RS120-NEP-1-JL14830.45.93-
    RS140-NEP-1-JL19340.27.49-
    RS160-NEP-1-JL2555310.1-
    RS35-NEP-1-OL9.812.160.33-
    RS40-NEP-1-OL17.73.630.64-
    RS40-NEP-2-OL35.36.181.27-
    RS50-NEP-1-OL28.46.371.04-
    RS50-NEP-2-OL56.910.72.07-
    RS60-NEP-1-OL40.28.831.53-
    RS60-NEP-2-OL80.4153.04-
    RS80-NEP-1-OL71.614.72.66-
    RS80-NEP-2-OL143255.27-
    RS100-NEP-1-OL10722.63.99-
    RS100-NEP-2-OL21438.37.85-
    RS120-NEP-1-OL14830.45.93-
    RS140-NEP-1-OL19340.27.49-
    RS160-NEP-1-OL2555310.1-
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커재고아린재고질량견적의뢰 및 주문
    RS35-NEP-1-UP170,500----견적의뢰 / 주문
    RS40-NEP-1-UP188,100----견적의뢰 / 주문
    RS40-NEP-2P422,400----견적의뢰 / 주문
    RS50-NEP-1-UP253,000----견적의뢰 / 주문
    RS50-NEP-2P548,900----견적의뢰 / 주문
    RS60-NEP-1-UP347,600----견적의뢰 / 주문
    RS60-NEP-2P760,100----견적의뢰 / 주문
    RS80-NEP-1-UP607,200----견적의뢰 / 주문
    RS80-NEP-2P1,342,000----견적의뢰 / 주문
    RS100-NEP-1-UP1,040,600----견적의뢰 / 주문
    RS100-NEP-2P2,277,000----견적의뢰 / 주문
    RS120-NEP-1P1,507,000----견적의뢰 / 주문
    RS140-NEP-1P1,793,000----견적의뢰 / 주문
    RS160-NEP-1P2,255,000----견적의뢰 / 주문
    RS35-NEP-1L550----견적의뢰 / 주문
    RS40-NEP-1L814----견적의뢰 / 주문
    RS40-NEP-2L1,760----견적의뢰 / 주문
    RS50-NEP-1L1,364----견적의뢰 / 주문
    RS50-NEP-2L2,860----견적의뢰 / 주문
    RS60-NEP-1L2,244----견적의뢰 / 주문
    RS60-NEP-2L4,752----견적의뢰 / 주문
    RS80-NEP-1L5,214----견적의뢰 / 주문
    RS80-NEP-2L11,220----견적의뢰 / 주문
    RS100-NEP-1L11,110----견적의뢰 / 주문
    RS100-NEP-2L23,760----견적의뢰 / 주문
    RS120-NEP-1L18,810----견적의뢰 / 주문
    RS140-NEP-1L26,400----견적의뢰 / 주문
    RS160-NEP-1L37,620----견적의뢰 / 주문
    RS35-NEP-1-JLP4,136----견적의뢰 / 주문
    RS40-NEP-1-JLP4,268----견적의뢰 / 주문
    RS40-NEP-2-JLP8,954----견적의뢰 / 주문
    RS50-NEP-1-JLP5,412----견적의뢰 / 주문
    RS50-NEP-2-JLP11,440----견적의뢰 / 주문
    RS60-NEP-1-JLP8,294----견적의뢰 / 주문
    RS60-NEP-2-JLP17,490----견적의뢰 / 주문
    RS80-NEP-1-JLP10,890----견적의뢰 / 주문
    RS80-NEP-2-JLP22,880----견적의뢰 / 주문
    RS100-NEP-1-JLP23,100----견적의뢰 / 주문
    RS100-NEP-2-JLP48,620----견적의뢰 / 주문
    RS120-NEP-1-JLP37,400----견적의뢰 / 주문
    RS140-NEP-1-JLP54,120----견적의뢰 / 주문
    RS160-NEP-1-JLP77,880----견적의뢰 / 주문
    RS35-NEP-1-OLP7,216----견적의뢰 / 주문
    RS40-NEP-1-OLP7,942----견적의뢰 / 주문
    RS40-NEP-2-OLP17,490----견적의뢰 / 주문
    RS50-NEP-1-OLP10,472----견적의뢰 / 주문
    RS50-NEP-2-OLP23,100----견적의뢰 / 주문
    RS60-NEP-1-OLP14,410----견적의뢰 / 주문
    RS60-NEP-2-OLP31,900----견적의뢰 / 주문
    RS80-NEP-1-OLP21,670----견적의뢰 / 주문
    RS80-NEP-2-OLP47,740----견적의뢰 / 주문
    RS100-NEP-1-OLP39,820----견적의뢰 / 주문
    RS100-NEP-2-OLP87,120----견적의뢰 / 주문
    RS120-NEP-1-OLP64,460----견적의뢰 / 주문
    RS140-NEP-1-OLP92,620----견적의뢰 / 주문
    RS160-NEP-1-OLP146,300----견적의뢰 / 주문
