간헐반송체인

니들게이지체인

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


96건 중 1~96건 표시

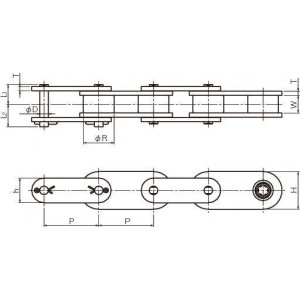

형식	타입	체인번호	롤러형식	어태치먼트	어태치먼트	피치 P (mm)	롤러경 R (mm)	안쪽링크내폭 W (mm)
형식	타입	체인번호	롤러형식	형식	간격	피치 P (mm)	롤러경 R (mm)	안쪽링크내폭 W (mm)
RF2040R-NC-L	링크	RF2040	R	-	-	25.4	15.88	7.95
RF2050R-NC-L	링크	RF2050	R	-	-	31.75	19.05	9.53
RF2060R-NC-L	링크	RF2060	R	-	-	38.1	22.23	12.7
RF2080R-NC-L	링크	RF2080	R	-	-	50.8	28.58	15.88
RF2040R-NC-1LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-2LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-3LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-4LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-5LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-6LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-7LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-8LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-9LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2040R-NC-10LA2-L	링크	RF2040	R	A2	-	25.4	15.88	7.95
RF2050R-NC-1LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-2LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-3LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-4LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-5LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-6LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-7LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-8LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-9LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2050R-NC-10LA2-L	링크	RF2050	R	A2	-	31.75	19.05	9.53
RF2060R-NC-1LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-2LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-3LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-4LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-5LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-6LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-7LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-8LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-9LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2060R-NC-10LA2-L	링크	RF2060	R	A2	-	38.1	22.23	12.7
RF2080R-NC-1LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-2LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-3LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-4LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-5LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-6LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-7LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-8LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-9LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2080R-NC-10LA2-L	링크	RF2080	R	A2	-	50.8	28.58	15.88
RF2040R-NC-1LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-2LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-3LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-4LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-5LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-6LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-7LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-8LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-9LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2040R-NC-10LK2-L	링크	RF2040	R	K2	-	25.4	15.88	7.95
RF2050R-NC-1LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-2LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-3LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-4LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-5LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-6LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-7LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-8LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-9LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2050R-NC-10LK2-L	링크	RF2050	R	K2	-	31.75	19.05	9.53
RF2060R-NC-1LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-2LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-3LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-4LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-5LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-6LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-7LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-8LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-9LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2060R-NC-10LK2-L	링크	RF2060	R	K2	-	38.1	22.23	12.7
RF2080R-NC-1LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-2LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-3LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-4LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-5LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-6LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-7LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-8LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-9LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2080R-NC-10LK2-L	링크	RF2080	R	K2	-	50.8	28.58	15.88
RF2040-NC-JL	조인트링크	RF2040	-	-	-	25.4	15.88	7.95
RF2050-NC-JL	조인트링크	RF2050	-	-	-	31.75	19.05	9.53
RF2060-NC-JL	조인트링크	RF2060	-	-	-	38.1	22.23	12.7
RF2080-NC-JL	조인트링크	RF2080	-	-	-	50.8	28.58	15.88
RF2040-NC-A2-JL	조인트링크	RF2040	-	A2	-	25.4	15.88	7.95
RF2050-NC-A2-JL	조인트링크	RF2050	-	A2	-	31.75	19.05	9.53
RF2060-NC-A2-JL	조인트링크	RF2060	-	A2	-	38.1	22.23	12.7
RF2080-NC-A2-JL	조인트링크	RF2080	-	A2	-	50.8	28.58	15.88
RF2040-NC-K2-JL	조인트링크	RF2040	-	K2	-	25.4	15.88	7.95
RF2050-NC-K2-JL	조인트링크	RF2050	-	K2	-	31.75	19.05	9.53
RF2060-NC-K2-JL	조인트링크	RF2060	-	K2	-	38.1	22.23	12.7
RF2080-NC-K2-JL	조인트링크	RF2080	-	K2	-	50.8	28.58	15.88

형식	플레이트(mm)	플레이트(mm)	플레이트(mm)	핀경 D	핀(mm)	핀(mm)
형식	두께 T	폭 h	폭 H	핀경 D	L1	L2
RF2040R-NC-L	1.5	12	17.5	3.97	8.25	9.95
RF2050R-NC-L	2	15	21	5.09	10.3	12
RF2060R-NC-L	3.2	17.2	26	5.96	14.55	16.55
RF2080R-NC-L	4	23	35	7.94	18.3	20.9
RF2040R-NC-1LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-2LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-3LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-4LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-5LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-6LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-7LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-8LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-9LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-10LA2-L	1.5	12	17.5	3.97	8.25	9.95
RF2050R-NC-1LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-2LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-3LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-4LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-5LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-6LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-7LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-8LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-9LA2-L	2	15	21	5.09	10.3	12
RF2050R-NC-10LA2-L	2	15	21	5.09	10.3	12
RF2060R-NC-1LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-2LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-3LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-4LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-5LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-6LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-7LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-8LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-9LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-10LA2-L	3.2	17.2	26	5.96	14.55	16.55
RF2080R-NC-1LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-2LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-3LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-4LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-5LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-6LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-7LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-8LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-9LA2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-10LA2-L	4	23	35	7.94	18.3	20.9
RF2040R-NC-1LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-2LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-3LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-4LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-5LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-6LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-7LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-8LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-9LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2040R-NC-10LK2-L	1.5	12	17.5	3.97	8.25	9.95
RF2050R-NC-1LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-2LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-3LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-4LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-5LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-6LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-7LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-8LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-9LK2-L	2	15	21	5.09	10.3	12
RF2050R-NC-10LK2-L	2	15	21	5.09	10.3	12
RF2060R-NC-1LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-2LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-3LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-4LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-5LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-6LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-7LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-8LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-9LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2060R-NC-10LK2-L	3.2	17.2	26	5.96	14.55	16.55
RF2080R-NC-1LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-2LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-3LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-4LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-5LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-6LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-7LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-8LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-9LK2-L	4	23	35	7.94	18.3	20.9
RF2080R-NC-10LK2-L	4	23	35	7.94	18.3	20.9
RF2040-NC-JL	1.5	12	17.5	3.97	8.25	9.95
RF2050-NC-JL	2	15	21	5.09	10.3	12
RF2060-NC-JL	3.2	17.2	26	5.96	14.55	16.55
RF2080-NC-JL	4	23	35	7.94	18.3	20.9
RF2040-NC-A2-JL	1.5	12	17.5	3.97	8.25	9.95
RF2050-NC-A2-JL	2	15	21	5.09	10.3	12
RF2060-NC-A2-JL	3.2	17.2	26	5.96	14.55	16.55
RF2080-NC-A2-JL	4	23	35	7.94	18.3	20.9
RF2040-NC-K2-JL	1.5	12	17.5	3.97	8.25	9.95
RF2050-NC-K2-JL	2	15	21	5.09	10.3	12
RF2060-NC-K2-JL	3.2	17.2	26	5.96	14.55	16.55
RF2080-NC-K2-JL	4	23	35	7.94	18.3	20.9

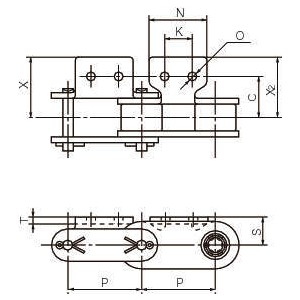

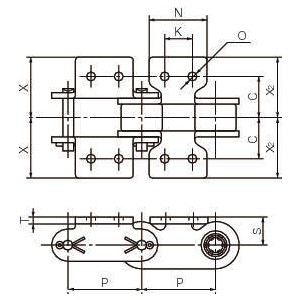

형식	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	어태치먼트(mm)	최대 허용장력 (kN)	개략질량 (kg/m)	어태치먼트1개당 부가질량 (kg)
형식	S	C	X	X2	N	K	O	최대 허용장력 (kN)	개략질량 (kg/m)	어태치먼트1개당 부가질량 (kg)
RF2040R-NC-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	-
RF2050R-NC-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	-
RF2060R-NC-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	-
RF2080R-NC-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	-
RF2040R-NC-1LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-2LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-3LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-4LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-5LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-6LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-7LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-8LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-9LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2040R-NC-10LA2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2050R-NC-1LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-2LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-3LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-4LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-5LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-6LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-7LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-8LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-9LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2050R-NC-10LA2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2060R-NC-1LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-2LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-3LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-4LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-5LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-6LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-7LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-8LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-9LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2060R-NC-10LA2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2080R-NC-1LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-2LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-3LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-4LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-5LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-6LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-7LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-8LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-9LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2080R-NC-10LA2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2040R-NC-1LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-2LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-3LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-4LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-5LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-6LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-7LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-8LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-9LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2040R-NC-10LK2-L	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2050R-NC-1LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-2LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-3LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-4LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-5LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-6LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-7LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-8LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-9LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2050R-NC-10LK2-L	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2060R-NC-1LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-2LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-3LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-4LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-5LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-6LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-7LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-8LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-9LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2060R-NC-10LK2-L	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2080R-NC-1LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-2LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-3LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-4LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-5LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-6LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-7LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-8LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-9LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2080R-NC-10LK2-L	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064
RF2040-NC-JL	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	-
RF2050-NC-JL	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	-
RF2060-NC-JL	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	-
RF2080-NC-JL	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	-
RF2040-NC-A2-JL	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.003
RF2050-NC-A2-JL	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.006
RF2060-NC-A2-JL	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.017
RF2080-NC-A2-JL	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.032
RF2040-NC-K2-JL	9.1	12.7	19.3	19.3	19.1	9.5	3.6	0.44	0.99	0.006
RF2050-NC-K2-JL	11.1	15.9	24.2	24.2	23.8	11.9	5.2	0.69	1.72	0.012
RF2060-NC-K2-JL	14.7	21.45	31.5	31.5	28.6	14.3	5.2	1.03	2.57	0.034
RF2080-NC-K2-JL	19.1	27.8	40.7	40.7	38.1	19.1	6.8	1.77	3.88	0.064

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
RF2040R-NC-L	L	29,260	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-L	L	33,220	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-L	L	37,180	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-L	L	39,820	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-1LA2-L	L	30,140	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-2LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-3LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-4LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-5LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-6LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-7LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-8LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-9LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-10LA2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-1LA2-L	L	33,880	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-2LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-3LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-4LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-5LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-6LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-7LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-8LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-9LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-10LA2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-1LA2-L	L	37,840	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-2LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-3LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-4LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-5LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-6LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-7LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-8LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-9LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-10LA2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-1LA2-L	L	40,700	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-2LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-3LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-4LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-5LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-6LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-7LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-8LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-9LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-10LA2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-1LK2-L	L	30,360	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-2LK2-L	L	30,140	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-3LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-4LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-5LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-6LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-7LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-8LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-9LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2040R-NC-10LK2-L	L	29,920	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-1LK2-L	L	34,760	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-2LK2-L	L	33,880	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-3LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-4LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-5LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-6LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-7LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-8LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-9LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2050R-NC-10LK2-L	L	33,440	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-1LK2-L	L	39,820	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-2LK2-L	L	37,840	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-3LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-4LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-5LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-6LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-7LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-8LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-9LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2060R-NC-10LK2-L	L	37,400	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-1LK2-L	L	42,020	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-2LK2-L	L	40,700	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-3LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-4LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-5LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-6LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-7LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-8LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-9LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2080R-NC-10LK2-L	L	40,040	-	-	-	-	견적의뢰 / 주문
RF2040-NC-JL	P	6,380	-	-	-	-	견적의뢰 / 주문
RF2050-NC-JL	P	7,018	-	-	-	-	견적의뢰 / 주문
RF2060-NC-JL	P	8,756	-	-	-	-	견적의뢰 / 주문
RF2080-NC-JL	P	13,750	-	-	-	-	견적의뢰 / 주문
RF2040-NC-A2-JL	P	9,372	-	-	-	-	견적의뢰 / 주문
RF2050-NC-A2-JL	P	11,000	-	-	-	-	견적의뢰 / 주문
RF2060-NC-A2-JL	P	15,070	-	-	-	-	견적의뢰 / 주문
RF2080-NC-A2-JL	P	23,100	-	-	-	-	견적의뢰 / 주문
RF2040-NC-K2-JL	P	11,770	-	-	-	-	견적의뢰 / 주문
RF2050-NC-K2-JL	P	13,420	-	-	-	-	견적의뢰 / 주문
RF2060-NC-K2-JL	P	19,800	-	-	-	-	견적의뢰 / 주문
RF2080-NC-K2-JL	P	30,800	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
