상품 상세보기 : 태형치형락풀리 - 태형치형록풀리 S타입 L형

HOME > 벨트전도 > 타이밍벨트·풀리 > 태형치형 타이밍벨트·풀리 > 태형치형락풀리 > 태형치형록풀리 S타입 L형

태형치형락풀리

태형치형록풀리 S타입 L형

(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


1197건 중 1~500건 표시

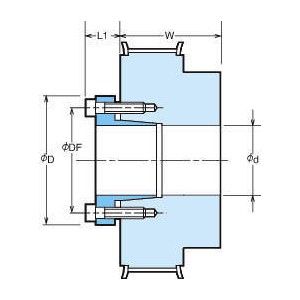

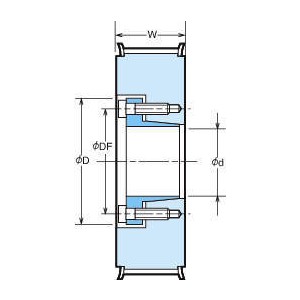

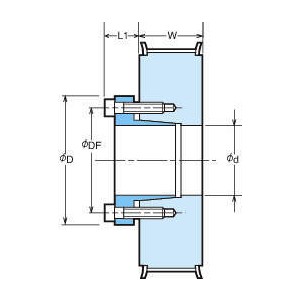

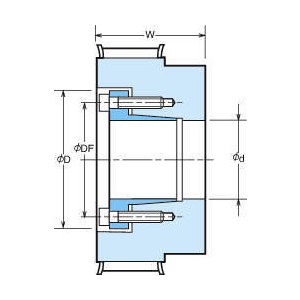

형식	잇수	풀리 형상	사용벨트	사용벨트	피치원 직경 (mm)	이끝원 직경 (mm)	플랜지 외경 (mm)	폭 W (mm)	L1 (mm)	축구멍직경 d (mm)
형식	잇수	풀리 형상	호칭폭	폭 (mm)	피치원 직경 (mm)	이끝원 직경 (mm)	플랜지 외경 (mm)	폭 W (mm)	L1 (mm)	축구멍직경 d (mm)
PT14L050AF-SS1410	14	AF	50	12.7	42.45	41.68	49	19.6	12	10
PT14L050AF-SS1411	14	AF	50	12.7	42.45	41.68	49	19.6	12	11
PT14L050AF-SS1412	14	AF	50	12.7	42.45	41.68	49	19.6	12	12
PT14L050AF-SS1414	14	AF	50	12.7	42.45	41.68	49	19.6	12	14
PT14L050AF-SS1415	14	AF	50	12.7	42.45	41.68	49	19.6	12	15
PT14L050AF-SS1416	14	AF	50	12.7	42.45	41.68	49	19.6	12	16
PT15L050AF-SS1410	15	AF	50	12.7	45.48	44.72	52	19.6	12	10
PT15L050AF-SS1411	15	AF	50	12.7	45.48	44.72	52	19.6	12	11
PT15L050AF-SS1412	15	AF	50	12.7	45.48	44.72	52	19.6	12	12
PT15L050AF-SS1414	15	AF	50	12.7	45.48	44.72	52	19.6	12	14
PT15L050AF-SS1415	15	AF	50	12.7	45.48	44.72	52	19.6	12	15
PT15L050AF-SS1416	15	AF	50	12.7	45.48	44.72	52	19.6	12	16
PT16L050AF-SS1410	16	AF	50	12.7	48.51	47.75	55	19.6	12	10
PT16L050AF-SS1411	16	AF	50	12.7	48.51	47.75	55	19.6	12	11
PT16L050AF-SS1412	16	AF	50	12.7	48.51	47.75	55	19.6	12	12
PT16L050AF-SS1414	16	AF	50	12.7	48.51	47.75	55	19.6	12	14
PT16L050AF-SS1415	16	AF	50	12.7	48.51	47.75	55	19.6	12	15
PT16L050AF-SS1416	16	AF	50	12.7	48.51	47.75	55	19.6	12	16
PT16L050AF-SS2417	16	AF	50	12.7	48.51	47.75	55	19.6	14	17
PT16L050AF-SS2418	16	AF	50	12.7	48.51	47.75	55	19.6	14	18
PT16L050AF-SS2419	16	AF	50	12.7	48.51	47.75	55	19.6	14	19
PT16L050AF-SS2420	16	AF	50	12.7	48.51	47.75	55	19.6	14	20
PT16L050AF-SS2422	16	AF	50	12.7	48.51	47.75	55	19.6	14	22
PT17L050AF-SS1410	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	10
PT17L050AF-SS1411	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	11
PT17L050AF-SS1412	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	12
PT17L050AF-SS1414	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	14
PT17L050AF-SS1415	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	15
PT17L050AF-SS1416	17	AF	50	12.7	51.54	50.78	56.8	19.6	12	16
PT17L050AF-SS2417	17	AF	50	12.7	51.54	50.78	56.8	19.6	14	17
PT17L050AF-SS2418	17	AF	50	12.7	51.54	50.78	56.8	19.6	14	18
PT17L050AF-SS2419	17	AF	50	12.7	51.54	50.78	56.8	19.6	14	19
PT17L050AF-SS2420	17	AF	50	12.7	51.54	50.78	56.8	19.6	14	20
PT17L050AF-SS2422	17	AF	50	12.7	51.54	50.78	56.8	19.6	14	22
PT18L050AF-SS1412	18	AF	50	12.7	54.57	53.81	61	19.6	12	12
PT18L050AF-SS1414	18	AF	50	12.7	54.57	53.81	61	19.6	12	14
PT18L050AF-SS1415	18	AF	50	12.7	54.57	53.81	61	19.6	12	15
PT18L050AF-SS1416	18	AF	50	12.7	54.57	53.81	61	19.6	12	16
PT18L050AF-SS2417	18	AF	50	12.7	54.57	53.81	61	19.6	14	17
PT18L050AF-SS2418	18	AF	50	12.7	54.57	53.81	61	19.6	14	18
PT18L050AF-SS2419	18	AF	50	12.7	54.57	53.81	61	19.6	14	19
PT18L050AF-SS2420	18	AF	50	12.7	54.57	53.81	61	19.6	14	20
PT18L050AF-SS2422	18	AF	50	12.7	54.57	53.81	61	19.6	14	22
PT19L050AF-SS1412	19	AF	50	12.7	57.61	56.84	66	19.6	12	12
PT19L050AF-SS1414	19	AF	50	12.7	57.61	56.84	66	19.6	12	14
PT19L050AF-SS1415	19	AF	50	12.7	57.61	56.84	66	19.6	12	15
PT19L050AF-SS1416	19	AF	50	12.7	57.61	56.84	66	19.6	12	16
PT19L050AF-SS2417	19	AF	50	12.7	57.61	56.84	66	19.6	14	17
PT19L050AF-SS2418	19	AF	50	12.7	57.61	56.84	66	19.6	14	18
PT19L050AF-SS2419	19	AF	50	12.7	57.61	56.84	66	19.6	14	19
PT19L050AF-SS2420	19	AF	50	12.7	57.61	56.84	66	19.6	14	20
PT19L050AF-SS2422	19	AF	50	12.7	57.61	56.84	66	19.6	14	22
PT19L050AF-SS3324	19	AF	50	12.7	57.61	56.84	66	19.6	15.5	24
PT19L050AF-SS3325	19	AF	50	12.7	57.61	56.84	66	19.6	15.5	25
PT19L050AF-SS3328	19	AF	50	12.7	57.61	56.84	66	19.6	15.5	28
PT20L050AF-SS1412	20	AF	50	12.7	60.64	59.88	67	19.6	12	12
PT20L050AF-SS1414	20	AF	50	12.7	60.64	59.88	67	19.6	12	14
PT20L050AF-SS1415	20	AF	50	12.7	60.64	59.88	67	19.6	12	15
PT20L050AF-SS1416	20	AF	50	12.7	60.64	59.88	67	19.6	12	16
PT20L050AF-SS2417	20	AF	50	12.7	60.64	59.88	67	19.6	14	17
PT20L050AF-SS2418	20	AF	50	12.7	60.64	59.88	67	19.6	14	18
PT20L050AF-SS2419	20	AF	50	12.7	60.64	59.88	67	19.6	14	19
PT20L050AF-SS2420	20	AF	50	12.7	60.64	59.88	67	19.6	14	20
PT20L050AF-SS2422	20	AF	50	12.7	60.64	59.88	67	19.6	14	22
PT20L050AF-SS3324	20	AF	50	12.7	60.64	59.88	67	19.6	15.5	24
PT20L050AF-SS3325	20	AF	50	12.7	60.64	59.88	67	19.6	15.5	25
PT20L050AF-SS3328	20	AF	50	12.7	60.64	59.88	67	19.6	15.5	28
PT21L050AF-SS1412	21	AF	50	12.7	63.67	62.91	70	19.6	12	12
PT21L050AF-SS1414	21	AF	50	12.7	63.67	62.91	70	19.6	12	14
PT21L050AF-SS1415	21	AF	50	12.7	63.67	62.91	70	19.6	12	15
PT21L050AF-SS1416	21	AF	50	12.7	63.67	62.91	70	19.6	12	16
PT21L050AF-SS2417	21	AF	50	12.7	63.67	62.91	70	19.6	14	17
PT21L050AF-SS2418	21	AF	50	12.7	63.67	62.91	70	19.6	14	18
PT21L050AF-SS2419	21	AF	50	12.7	63.67	62.91	70	19.6	14	19
PT21L050AF-SS2420	21	AF	50	12.7	63.67	62.91	70	19.6	14	20
PT21L050AF-SS2422	21	AF	50	12.7	63.67	62.91	70	19.6	14	22
PT21L050AF-SS3324	21	AF	50	12.7	63.67	62.91	70	19.6	15.5	24
PT21L050AF-SS3325	21	AF	50	12.7	63.67	62.91	70	19.6	15.5	25
PT21L050AF-SS3328	21	AF	50	12.7	63.67	62.91	70	19.6	15.5	28
PT22L050AF-SS1412	22	AF	50	12.7	66.7	65.94	73	19.6	12	12
PT22L050AF-SS1414	22	AF	50	12.7	66.7	65.94	73	19.6	12	14
PT22L050AF-SS1415	22	AF	50	12.7	66.7	65.94	73	19.6	12	15
PT22L050AF-SS1416	22	AF	50	12.7	66.7	65.94	73	19.6	12	16
PT22L050AF-SS2417	22	AF	50	12.7	66.7	65.94	73	19.6	14	17
PT22L050AF-SS2418	22	AF	50	12.7	66.7	65.94	73	19.6	14	18
PT22L050AF-SS2419	22	AF	50	12.7	66.7	65.94	73	19.6	14	19
PT22L050AF-SS2420	22	AF	50	12.7	66.7	65.94	73	19.6	14	20
PT22L050AF-SS2422	22	AF	50	12.7	66.7	65.94	73	19.6	14	22
PT22L050AF-SS3324	22	AF	50	12.7	66.7	65.94	73	19.6	15.5	24
PT22L050AF-SS3325	22	AF	50	12.7	66.7	65.94	73	19.6	15.5	25
PT22L050AF-SS3328	22	AF	50	12.7	66.7	65.94	73	19.6	15.5	28
PT24L050AF-SS1412	24	AF	50	12.7	72.77	72	79	19.6	12	12
PT24L050AF-SS1414	24	AF	50	12.7	72.77	72	79	19.6	12	14
PT24L050AF-SS1415	24	AF	50	12.7	72.77	72	79	19.6	12	15
PT24L050AF-SS1416	24	AF	50	12.7	72.77	72	79	19.6	12	16
PT24L050AF-SS2417	24	AF	50	12.7	72.77	72	79	19.6	14	17
PT24L050AF-SS2418	24	AF	50	12.7	72.77	72	79	19.6	14	18
PT24L050AF-SS2419	24	AF	50	12.7	72.77	72	79	19.6	14	19
PT24L050AF-SS2420	24	AF	50	12.7	72.77	72	79	19.6	14	20
PT24L050AF-SS2422	24	AF	50	12.7	72.77	72	79	19.6	14	22
PT24L050AF-SS4424	24	AF	50	12.7	72.77	72	79	19.6	15.5	24
PT24L050AF-SS4425	24	AF	50	12.7	72.77	72	79	19.6	15.5	25
PT24L050AF-SS4428	24	AF	50	12.7	72.77	72	79	19.6	15.5	28
PT24L050AF-SS4430	24	AF	50	12.7	72.77	72	79	19.6	15.5	30
PT24L050AF-SS4432	24	AF	50	12.7	72.77	72	79	19.6	15.5	32
PT24L050AF-SS4435	24	AF	50	12.7	72.77	72	79	19.6	15.5	35
PT25L050AF-SS1412	25	AF	50	12.7	75.8	75.04	82	19.6	12	12
PT25L050AF-SS1414	25	AF	50	12.7	75.8	75.04	82	19.6	12	14
PT25L050AF-SS1415	25	AF	50	12.7	75.8	75.04	82	19.6	12	15
PT25L050AF-SS1416	25	AF	50	12.7	75.8	75.04	82	19.6	12	16
PT25L050AF-SS2417	25	AF	50	12.7	75.8	75.04	82	19.6	14	17
PT25L050AF-SS2418	25	AF	50	12.7	75.8	75.04	82	19.6	14	18
PT25L050AF-SS2419	25	AF	50	12.7	75.8	75.04	82	19.6	14	19
PT25L050AF-SS2420	25	AF	50	12.7	75.8	75.04	82	19.6	14	20
PT25L050AF-SS2422	25	AF	50	12.7	75.8	75.04	82	19.6	14	22
PT25L050AF-SS4424	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	24
PT25L050AF-SS4425	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	25
PT25L050AF-SS4428	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	28
PT25L050AF-SS4430	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	30
PT25L050AF-SS4432	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	32
PT25L050AF-SS4435	25	AF	50	12.7	75.8	75.04	82	19.6	15.5	35
PT26L050AF-SS1412	26	AF	50	12.7	78.83	78.07	86	19.6	12	12
PT26L050AF-SS1414	26	AF	50	12.7	78.83	78.07	86	19.6	12	14
PT26L050AF-SS1415	26	AF	50	12.7	78.83	78.07	86	19.6	12	15
PT26L050AF-SS1416	26	AF	50	12.7	78.83	78.07	86	19.6	12	16
PT26L050AF-SS2417	26	AF	50	12.7	78.83	78.07	86	19.6	14	17
PT26L050AF-SS2418	26	AF	50	12.7	78.83	78.07	86	19.6	14	18
PT26L050AF-SS2419	26	AF	50	12.7	78.83	78.07	86	19.6	14	19
PT26L050AF-SS2420	26	AF	50	12.7	78.83	78.07	86	19.6	14	20
PT26L050AF-SS2422	26	AF	50	12.7	78.83	78.07	86	19.6	14	22
PT26L050AF-SS4424	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	24
PT26L050AF-SS4425	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	25
PT26L050AF-SS4428	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	28
PT26L050AF-SS4430	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	30
PT26L050AF-SS4432	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	32
PT26L050AF-SS4435	26	AF	50	12.7	78.83	78.07	86	19.6	15.5	35
PT28L050AF-SS1412	28	AF	50	12.7	84.89	84.13	91	19.6	12	12
PT28L050AF-SS1414	28	AF	50	12.7	84.89	84.13	91	19.6	12	14
PT28L050AF-SS1415	28	AF	50	12.7	84.89	84.13	91	19.6	12	15
PT28L050AF-SS1416	28	AF	50	12.7	84.89	84.13	91	19.6	12	16
PT28L050AF-SS2417	28	AF	50	12.7	84.89	84.13	91	19.6	14	17
PT28L050AF-SS2418	28	AF	50	12.7	84.89	84.13	91	19.6	14	18
PT28L050AF-SS2419	28	AF	50	12.7	84.89	84.13	91	19.6	14	19
PT28L050AF-SS2420	28	AF	50	12.7	84.89	84.13	91	19.6	14	20
PT28L050AF-SS2422	28	AF	50	12.7	84.89	84.13	91	19.6	14	22
PT28L050AF-SS4424	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	24
PT28L050AF-SS4425	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	25
PT28L050AF-SS4428	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	28
PT28L050AF-SS4430	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	30
PT28L050AF-SS4432	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	32
PT28L050AF-SS4435	28	AF	50	12.7	84.89	84.13	91	19.6	15.5	35
PT30L050AF-SS1412	30	AF	50	12.7	90.96	90.2	97	19.6	12	12
PT30L050AF-SS1414	30	AF	50	12.7	90.96	90.2	97	19.6	12	14
PT30L050AF-SS1415	30	AF	50	12.7	90.96	90.2	97	19.6	12	15
PT30L050AF-SS1416	30	AF	50	12.7	90.96	90.2	97	19.6	12	16
PT30L050AF-SS2417	30	AF	50	12.7	90.96	90.2	97	19.6	14	17
PT30L050AF-SS2418	30	AF	50	12.7	90.96	90.2	97	19.6	14	18
PT30L050AF-SS2419	30	AF	50	12.7	90.96	90.2	97	19.6	14	19
PT30L050AF-SS2420	30	AF	50	12.7	90.96	90.2	97	19.6	14	20
PT30L050AF-SS2422	30	AF	50	12.7	90.96	90.2	97	19.6	14	22
PT30L050AF-SS4424	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	24
PT30L050AF-SS4425	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	25
PT30L050AF-SS4428	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	28
PT30L050AF-SS4430	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	30
PT30L050AF-SS4432	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	32
PT30L050AF-SS4435	30	AF	50	12.7	90.96	90.2	97	19.6	15.5	35
PT32L050AF-SS1412	32	AF	50	12.7	97.02	96.26	103	19.6	12	12
PT32L050AF-SS1414	32	AF	50	12.7	97.02	96.26	103	19.6	12	14
PT32L050AF-SS1415	32	AF	50	12.7	97.02	96.26	103	19.6	12	15
PT32L050AF-SS1416	32	AF	50	12.7	97.02	96.26	103	19.6	12	16
PT32L050AF-SS2417	32	AF	50	12.7	97.02	96.26	103	19.6	14	17
PT32L050AF-SS2418	32	AF	50	12.7	97.02	96.26	103	19.6	14	18
PT32L050AF-SS2419	32	AF	50	12.7	97.02	96.26	103	19.6	14	19
PT32L050AF-SS2420	32	AF	50	12.7	97.02	96.26	103	19.6	14	20
PT32L050AF-SS2422	32	AF	50	12.7	97.02	96.26	103	19.6	14	22
PT32L050AF-SS4424	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	24
PT32L050AF-SS4425	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	25
PT32L050AF-SS4428	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	28
PT32L050AF-SS4430	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	30
PT32L050AF-SS4432	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	32
PT32L050AF-SS4435	32	AF	50	12.7	97.02	96.26	103	19.6	15.5	35
PT34L050AF-SS1412	34	AF	50	12.7	103.08	102.32	111	19.6	12	12
PT34L050AF-SS1414	34	AF	50	12.7	103.08	102.32	111	19.6	12	14
PT34L050AF-SS1415	34	AF	50	12.7	103.08	102.32	111	19.6	12	15
PT34L050AF-SS1416	34	AF	50	12.7	103.08	102.32	111	19.6	12	16
PT34L050AF-SS2417	34	AF	50	12.7	103.08	102.32	111	19.6	14	17
PT34L050AF-SS2418	34	AF	50	12.7	103.08	102.32	111	19.6	14	18
PT34L050AF-SS2419	34	AF	50	12.7	103.08	102.32	111	19.6	14	19
PT34L050AF-SS2420	34	AF	50	12.7	103.08	102.32	111	19.6	14	20
PT34L050AF-SS2422	34	AF	50	12.7	103.08	102.32	111	19.6	14	22
PT34L050AF-SS4424	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	24
PT34L050AF-SS4425	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	25
PT34L050AF-SS4428	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	28
PT34L050AF-SS4430	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	30
PT34L050AF-SS4432	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	32
PT34L050AF-SS4435	34	AF	50	12.7	103.08	102.32	111	19.6	15.5	35
PT36L050AF-SS2415	36	AF	50	12.7	109.15	108.39	115	19.6	14	15
PT36L050AF-SS2416	36	AF	50	12.7	109.15	108.39	115	19.6	14	16
PT36L050AF-SS2417	36	AF	50	12.7	109.15	108.39	115	19.6	14	17
PT36L050AF-SS2418	36	AF	50	12.7	109.15	108.39	115	19.6	14	18
PT36L050AF-SS2419	36	AF	50	12.7	109.15	108.39	115	19.6	14	19
PT36L050AF-SS2420	36	AF	50	12.7	109.15	108.39	115	19.6	14	20
PT36L050AF-SS2422	36	AF	50	12.7	109.15	108.39	115	19.6	14	22
PT36L050AF-SS4424	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	24
PT36L050AF-SS4425	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	25
PT36L050AF-SS4428	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	28
PT36L050AF-SS4430	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	30
PT36L050AF-SS4432	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	32
PT36L050AF-SS4435	36	AF	50	12.7	109.15	108.39	115	19.6	15.5	35
PT40L050AF-SS2415	40	AF	50	12.7	121.28	120.51	127	19.6	14	15
PT40L050AF-SS2416	40	AF	50	12.7	121.28	120.51	127	19.6	14	16
PT40L050AF-SS2417	40	AF	50	12.7	121.28	120.51	127	19.6	14	17
PT40L050AF-SS2418	40	AF	50	12.7	121.28	120.51	127	19.6	14	18
PT40L050AF-SS2419	40	AF	50	12.7	121.28	120.51	127	19.6	14	19
PT40L050AF-SS2420	40	AF	50	12.7	121.28	120.51	127	19.6	14	20
PT40L050AF-SS2422	40	AF	50	12.7	121.28	120.51	127	19.6	14	22
PT40L050AF-SS4424	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	24
PT40L050AF-SS4425	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	25
PT40L050AF-SS4428	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	28
PT40L050AF-SS4430	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	30
PT40L050AF-SS4432	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	32
PT40L050AF-SS4435	40	AF	50	12.7	121.28	120.51	127	19.6	15.5	35
PT42L050AF-SS2415	42	AF	50	12.7	127.34	126.58	135	19.6	14	15
PT42L050AF-SS2416	42	AF	50	12.7	127.34	126.58	135	19.6	14	16
PT42L050AF-SS2417	42	AF	50	12.7	127.34	126.58	135	19.6	14	17
PT42L050AF-SS2418	42	AF	50	12.7	127.34	126.58	135	19.6	14	18
PT42L050AF-SS2419	42	AF	50	12.7	127.34	126.58	135	19.6	14	19
PT42L050AF-SS2420	42	AF	50	12.7	127.34	126.58	135	19.6	14	20
PT42L050AF-SS2422	42	AF	50	12.7	127.34	126.58	135	19.6	14	22
PT42L050AF-SS4424	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	24
PT42L050AF-SS4425	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	25
PT42L050AF-SS4428	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	28
PT42L050AF-SS4430	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	30
PT42L050AF-SS4432	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	32
PT42L050AF-SS4435	42	AF	50	12.7	127.34	126.58	135	19.6	15.5	35
PT44L050BF-SS2617	44	BF	50	12.7	133.4	132.64	139	35.5	14	17
PT44L050BF-SS2618	44	BF	50	12.7	133.4	132.64	139	35.5	14	18
PT44L050BF-SS2619	44	BF	50	12.7	133.4	132.64	139	35.5	14	19
PT44L050BF-SS2620	44	BF	50	12.7	133.4	132.64	139	35.5	14	20
PT44L050BF-SS2622	44	BF	50	12.7	133.4	132.64	139	35.5	14	22
PT44L050BF-SS4424	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	24
PT44L050BF-SS4425	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	25
PT44L050BF-SS4428	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	28
PT44L050BF-SS4430	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	30
PT44L050BF-SS4432	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	32
PT44L050BF-SS4435	44	BF	50	12.7	133.4	132.64	139	35.5	15.5	35
PT44L050BF-SS5538	44	BF	50	12.7	133.4	132.64	139	35.5	17.5	38
PT44L050BF-SS5540	44	BF	50	12.7	133.4	132.64	139	35.5	17.5	40
PT44L050BF-SS5542	44	BF	50	12.7	133.4	132.64	139	35.5	17.5	42
PT44L050BF-SS5545	44	BF	50	12.7	133.4	132.64	139	35.5	17.5	45
PT48L050BF-SS2617	48	BF	50	12.7	145.53	144.77	151	35.5	14	17
PT48L050BF-SS2618	48	BF	50	12.7	145.53	144.77	151	35.5	14	18
PT48L050BF-SS2619	48	BF	50	12.7	145.53	144.77	151	35.5	14	19
PT48L050BF-SS2620	48	BF	50	12.7	145.53	144.77	151	35.5	14	20
PT48L050BF-SS2622	48	BF	50	12.7	145.53	144.77	151	35.5	14	22
PT48L050BF-SS4424	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	24
PT48L050BF-SS4425	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	25
PT48L050BF-SS4428	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	28
PT48L050BF-SS4430	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	30
PT48L050BF-SS4432	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	32
PT48L050BF-SS4435	48	BF	50	12.7	145.53	144.77	151	35.5	15.5	35
PT48L050BF-SS5538	48	BF	50	12.7	145.53	144.77	151	35.5	17.5	38
PT48L050BF-SS5540	48	BF	50	12.7	145.53	144.77	151	35.5	17.5	40
PT48L050BF-SS5542	48	BF	50	12.7	145.53	144.77	151	35.5	17.5	42
PT48L050BF-SS5545	48	BF	50	12.7	145.53	144.77	151	35.5	17.5	45
PT50L050BF-SS2617	50	BF	50	12.7	151.6	150.83	158	35.5	14	17
PT50L050BF-SS2618	50	BF	50	12.7	151.6	150.83	158	35.5	14	18
PT50L050BF-SS2619	50	BF	50	12.7	151.6	150.83	158	35.5	14	19
PT50L050BF-SS2620	50	BF	50	12.7	151.6	150.83	158	35.5	14	20
PT50L050BF-SS2622	50	BF	50	12.7	151.6	150.83	158	35.5	14	22
PT50L050BF-SS4424	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	24
PT50L050BF-SS4425	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	25
PT50L050BF-SS4428	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	28
PT50L050BF-SS4430	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	30
PT50L050BF-SS4432	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	32
PT50L050BF-SS4435	50	BF	50	12.7	151.6	150.83	158	35.5	15.5	35
PT50L050BF-SS5538	50	BF	50	12.7	151.6	150.83	158	35.5	17.5	38
PT50L050BF-SS5540	50	BF	50	12.7	151.6	150.83	158	35.5	17.5	40
PT50L050BF-SS5542	50	BF	50	12.7	151.6	150.83	158	35.5	17.5	42
PT50L050BF-SS5545	50	BF	50	12.7	151.6	150.83	158	35.5	17.5	45
PT60L050BF-SS2617	60	BF	50	12.7	181.9	181.15	190	35.5	14	17
PT60L050BF-SS2618	60	BF	50	12.7	181.9	181.15	190	35.5	14	18
PT60L050BF-SS2619	60	BF	50	12.7	181.9	181.15	190	35.5	14	19
PT60L050BF-SS2620	60	BF	50	12.7	181.9	181.15	190	35.5	14	20
PT60L050BF-SS2622	60	BF	50	12.7	181.9	181.15	190	35.5	14	22
PT60L050BF-SS4424	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	24
PT60L050BF-SS4425	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	25
PT60L050BF-SS4428	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	28
PT60L050BF-SS4430	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	30
PT60L050BF-SS4432	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	32
PT60L050BF-SS4435	60	BF	50	12.7	181.9	181.15	190	35.5	15.5	35
PT60L050BF-SS5538	60	BF	50	12.7	181.9	181.15	190	35.5	17.5	38
PT60L050BF-SS5540	60	BF	50	12.7	181.9	181.15	190	35.5	17.5	40
PT60L050BF-SS5542	60	BF	50	12.7	181.9	181.15	190	35.5	17.5	42
PT60L050BF-SS5545	60	BF	50	12.7	181.9	181.15	190	35.5	17.5	45
PT14L075AF-SS1410	14	AF	75	19.1	42.45	41.68	49	26	12	10
PT14L075AF-SS1411	14	AF	75	19.1	42.45	41.68	49	26	12	11
PT14L075AF-SS1412	14	AF	75	19.1	42.45	41.68	49	26	12	12
PT14L075AF-SS1414	14	AF	75	19.1	42.45	41.68	49	26	12	14
PT14L075AF-SS1415	14	AF	75	19.1	42.45	41.68	49	26	12	15
PT14L075AF-SS1416	14	AF	75	19.1	42.45	41.68	49	26	12	16
PT15L075AF-SS1410	15	AF	75	19.1	45.48	44.72	52	26	12	10
PT15L075AF-SS1411	15	AF	75	19.1	45.48	44.72	52	26	12	11
PT15L075AF-SS1412	15	AF	75	19.1	45.48	44.72	52	26	12	12
PT15L075AF-SS1414	15	AF	75	19.1	45.48	44.72	52	26	12	14
PT15L075AF-SS1415	15	AF	75	19.1	45.48	44.72	52	26	12	15
PT15L075AF-SS1416	15	AF	75	19.1	45.48	44.72	52	26	12	16
PT16L075AF-SS1410	16	AF	75	19.1	48.51	47.75	55	26	12	10
PT16L075AF-SS1411	16	AF	75	19.1	48.51	47.75	55	26	12	11
PT16L075AF-SS1412	16	AF	75	19.1	48.51	47.75	55	26	12	12
PT16L075AF-SS1414	16	AF	75	19.1	48.51	47.75	55	26	12	14
PT16L075AF-SS1415	16	AF	75	19.1	48.51	47.75	55	26	12	15
PT16L075AF-SS1416	16	AF	75	19.1	48.51	47.75	55	26	12	16
PT16L075AF-SS2417	16	AF	75	19.1	48.51	47.75	55	26	14	17
PT16L075AF-SS2418	16	AF	75	19.1	48.51	47.75	55	26	14	18
PT16L075AF-SS2419	16	AF	75	19.1	48.51	47.75	55	26	14	19
PT16L075AF-SS2420	16	AF	75	19.1	48.51	47.75	55	26	14	20
PT16L075AF-SS2422	16	AF	75	19.1	48.51	47.75	55	26	14	22
PT17L075AF-SS1410	17	AF	75	19.1	51.54	50.78	56.8	26	12	10
PT17L075AF-SS1411	17	AF	75	19.1	51.54	50.78	56.8	26	12	11
PT17L075AF-SS1412	17	AF	75	19.1	51.54	50.78	56.8	26	12	12
PT17L075AF-SS1414	17	AF	75	19.1	51.54	50.78	56.8	26	12	14
PT17L075AF-SS1415	17	AF	75	19.1	51.54	50.78	56.8	26	12	15
PT17L075AF-SS1416	17	AF	75	19.1	51.54	50.78	56.8	26	12	16
PT17L075AF-SS2417	17	AF	75	19.1	51.54	50.78	56.8	26	14	17
PT17L075AF-SS2418	17	AF	75	19.1	51.54	50.78	56.8	26	14	18
PT17L075AF-SS2419	17	AF	75	19.1	51.54	50.78	56.8	26	14	19
PT17L075AF-SS2420	17	AF	75	19.1	51.54	50.78	56.8	26	14	20
PT17L075AF-SS2422	17	AF	75	19.1	51.54	50.78	56.8	26	14	22
PT18L075AF-SS1412	18	AF	75	19.1	54.57	53.81	61	26	12	12
PT18L075AF-SS1414	18	AF	75	19.1	54.57	53.81	61	26	12	14
PT18L075AF-SS1415	18	AF	75	19.1	54.57	53.81	61	26	12	15
PT18L075AF-SS1416	18	AF	75	19.1	54.57	53.81	61	26	12	16
PT18L075AF-SS2417	18	AF	75	19.1	54.57	53.81	61	26	14	17
PT18L075AF-SS2418	18	AF	75	19.1	54.57	53.81	61	26	14	18
PT18L075AF-SS2419	18	AF	75	19.1	54.57	53.81	61	26	14	19
PT18L075AF-SS2420	18	AF	75	19.1	54.57	53.81	61	26	14	20
PT18L075AF-SS2422	18	AF	75	19.1	54.57	53.81	61	26	14	22
PT19L075AF-SS1412	19	AF	75	19.1	57.61	56.84	66	26	12	12
PT19L075AF-SS1414	19	AF	75	19.1	57.61	56.84	66	26	12	14
PT19L075AF-SS1415	19	AF	75	19.1	57.61	56.84	66	26	12	15
PT19L075AF-SS1416	19	AF	75	19.1	57.61	56.84	66	26	12	16
PT19L075AF-SS2417	19	AF	75	19.1	57.61	56.84	66	26	14	17
PT19L075AF-SS2418	19	AF	75	19.1	57.61	56.84	66	26	14	18
PT19L075AF-SS2419	19	AF	75	19.1	57.61	56.84	66	26	14	19
PT19L075AF-SS2420	19	AF	75	19.1	57.61	56.84	66	26	14	20
PT19L075AF-SS2422	19	AF	75	19.1	57.61	56.84	66	26	14	22
PT19L075AF-SS3324	19	AF	75	19.1	57.61	56.84	66	26	15.5	24
PT19L075AF-SS3325	19	AF	75	19.1	57.61	56.84	66	26	15.5	25
PT19L075AF-SS3328	19	AF	75	19.1	57.61	56.84	66	26	15.5	28
PT20L075AF-SS1412	20	AF	75	19.1	60.64	59.88	67	26	12	12
PT20L075AF-SS1414	20	AF	75	19.1	60.64	59.88	67	26	12	14
PT20L075AF-SS1415	20	AF	75	19.1	60.64	59.88	67	26	12	15
PT20L075AF-SS1416	20	AF	75	19.1	60.64	59.88	67	26	12	16
PT20L075AF-SS2417	20	AF	75	19.1	60.64	59.88	67	26	14	17
PT20L075AF-SS2418	20	AF	75	19.1	60.64	59.88	67	26	14	18
PT20L075AF-SS2419	20	AF	75	19.1	60.64	59.88	67	26	14	19
PT20L075AF-SS2420	20	AF	75	19.1	60.64	59.88	67	26	14	20
PT20L075AF-SS2422	20	AF	75	19.1	60.64	59.88	67	26	14	22
PT20L075AF-SS3324	20	AF	75	19.1	60.64	59.88	67	26	15.5	24
PT20L075AF-SS3325	20	AF	75	19.1	60.64	59.88	67	26	15.5	25
PT20L075AF-SS3328	20	AF	75	19.1	60.64	59.88	67	26	15.5	28
PT21L075AF-SS1412	21	AF	75	19.1	63.67	62.91	70	26	12	12
PT21L075AF-SS1414	21	AF	75	19.1	63.67	62.91	70	26	12	14
PT21L075AF-SS1415	21	AF	75	19.1	63.67	62.91	70	26	12	15
PT21L075AF-SS1416	21	AF	75	19.1	63.67	62.91	70	26	12	16
PT21L075AF-SS2417	21	AF	75	19.1	63.67	62.91	70	26	14	17
PT21L075AF-SS2418	21	AF	75	19.1	63.67	62.91	70	26	14	18
PT21L075AF-SS2419	21	AF	75	19.1	63.67	62.91	70	26	14	19
PT21L075AF-SS2420	21	AF	75	19.1	63.67	62.91	70	26	14	20
PT21L075AF-SS2422	21	AF	75	19.1	63.67	62.91	70	26	14	22
PT21L075AF-SS3324	21	AF	75	19.1	63.67	62.91	70	26	15.5	24
PT21L075AF-SS3325	21	AF	75	19.1	63.67	62.91	70	26	15.5	25
PT21L075AF-SS3328	21	AF	75	19.1	63.67	62.91	70	26	15.5	28
PT22L075AF-SS1412	22	AF	75	19.1	66.7	65.94	73	26	12	12
PT22L075AF-SS1414	22	AF	75	19.1	66.7	65.94	73	26	12	14
PT22L075AF-SS1415	22	AF	75	19.1	66.7	65.94	73	26	12	15
PT22L075AF-SS1416	22	AF	75	19.1	66.7	65.94	73	26	12	16
PT22L075AF-SS2417	22	AF	75	19.1	66.7	65.94	73	26	14	17
PT22L075AF-SS2418	22	AF	75	19.1	66.7	65.94	73	26	14	18
PT22L075AF-SS2419	22	AF	75	19.1	66.7	65.94	73	26	14	19
PT22L075AF-SS2420	22	AF	75	19.1	66.7	65.94	73	26	14	20
PT22L075AF-SS2422	22	AF	75	19.1	66.7	65.94	73	26	14	22
PT22L075AF-SS3324	22	AF	75	19.1	66.7	65.94	73	26	15.5	24
PT22L075AF-SS3325	22	AF	75	19.1	66.7	65.94	73	26	15.5	25
PT22L075AF-SS3328	22	AF	75	19.1	66.7	65.94	73	26	15.5	28
PT24L075AF-SS1412	24	AF	75	19.1	72.77	72	79	26	12	12
PT24L075AF-SS1414	24	AF	75	19.1	72.77	72	79	26	12	14
PT24L075AF-SS1415	24	AF	75	19.1	72.77	72	79	26	12	15
PT24L075AF-SS1416	24	AF	75	19.1	72.77	72	79	26	12	16
PT24L075AF-SS2417	24	AF	75	19.1	72.77	72	79	26	14	17
PT24L075AF-SS2418	24	AF	75	19.1	72.77	72	79	26	14	18
PT24L075AF-SS2419	24	AF	75	19.1	72.77	72	79	26	14	19
PT24L075AF-SS2420	24	AF	75	19.1	72.77	72	79	26	14	20
PT24L075AF-SS2422	24	AF	75	19.1	72.77	72	79	26	14	22
PT24L075AF-SS4424	24	AF	75	19.1	72.77	72	79	26	15.5	24
PT24L075AF-SS4425	24	AF	75	19.1	72.77	72	79	26	15.5	25
PT24L075AF-SS4428	24	AF	75	19.1	72.77	72	79	26	15.5	28
PT24L075AF-SS4430	24	AF	75	19.1	72.77	72	79	26	15.5	30
PT24L075AF-SS4432	24	AF	75	19.1	72.77	72	79	26	15.5	32
PT24L075AF-SS4435	24	AF	75	19.1	72.77	72	79	26	15.5	35
PT25L075AF-SS1412	25	AF	75	19.1	75.8	75.04	82	26	12	12
PT25L075AF-SS1414	25	AF	75	19.1	75.8	75.04	82	26	12	14
PT25L075AF-SS1415	25	AF	75	19.1	75.8	75.04	82	26	12	15
PT25L075AF-SS1416	25	AF	75	19.1	75.8	75.04	82	26	12	16
PT25L075AF-SS2417	25	AF	75	19.1	75.8	75.04	82	26	14	17
PT25L075AF-SS2418	25	AF	75	19.1	75.8	75.04	82	26	14	18
PT25L075AF-SS2419	25	AF	75	19.1	75.8	75.04	82	26	14	19
PT25L075AF-SS2420	25	AF	75	19.1	75.8	75.04	82	26	14	20
PT25L075AF-SS2422	25	AF	75	19.1	75.8	75.04	82	26	14	22
PT25L075AF-SS4424	25	AF	75	19.1	75.8	75.04	82	26	15.5	24
PT25L075AF-SS4425	25	AF	75	19.1	75.8	75.04	82	26	15.5	25
PT25L075AF-SS4428	25	AF	75	19.1	75.8	75.04	82	26	15.5	28
PT25L075AF-SS4430	25	AF	75	19.1	75.8	75.04	82	26	15.5	30
PT25L075AF-SS4432	25	AF	75	19.1	75.8	75.04	82	26	15.5	32
PT25L075AF-SS4435	25	AF	75	19.1	75.8	75.04	82	26	15.5	35
PT26L075AF-SS2415	26	AF	75	19.1	78.83	78.07	86	26	14	15
PT26L075AF-SS2416	26	AF	75	19.1	78.83	78.07	86	26	14	16
PT26L075AF-SS2417	26	AF	75	19.1	78.83	78.07	86	26	14	17
PT26L075AF-SS2418	26	AF	75	19.1	78.83	78.07	86	26	14	18
PT26L075AF-SS2419	26	AF	75	19.1	78.83	78.07	86	26	14	19
PT26L075AF-SS2420	26	AF	75	19.1	78.83	78.07	86	26	14	20
PT26L075AF-SS2422	26	AF	75	19.1	78.83	78.07	86	26	14	22
PT26L075AF-SS4424	26	AF	75	19.1	78.83	78.07	86	26	15.5	24
PT26L075AF-SS4425	26	AF	75	19.1	78.83	78.07	86	26	15.5	25
PT26L075AF-SS4428	26	AF	75	19.1	78.83	78.07	86	26	15.5	28
PT26L075AF-SS4430	26	AF	75	19.1	78.83	78.07	86	26	15.5	30
PT26L075AF-SS4432	26	AF	75	19.1	78.83	78.07	86	26	15.5	32
PT26L075AF-SS4435	26	AF	75	19.1	78.83	78.07	86	26	15.5	35
PT26L075AF-SS5538	26	AF	75	19.1	78.83	78.07	86	26	17.5	38
PT26L075AF-SS5540	26	AF	75	19.1	78.83	78.07	86	26	17.5	40
PT26L075AF-SS5542	26	AF	75	19.1	78.83	78.07	86	26	17.5	42
PT26L075AF-SS5545	26	AF	75	19.1	78.83	78.07	86	26	17.5	45
PT28L075AF-SS2415	28	AF	75	19.1	84.89	84.13	91	26	14	15
PT28L075AF-SS2416	28	AF	75	19.1	84.89	84.13	91	26	14	16
PT28L075AF-SS2417	28	AF	75	19.1	84.89	84.13	91	26	14	17
PT28L075AF-SS2418	28	AF	75	19.1	84.89	84.13	91	26	14	18
PT28L075AF-SS2419	28	AF	75	19.1	84.89	84.13	91	26	14	19
PT28L075AF-SS2420	28	AF	75	19.1	84.89	84.13	91	26	14	20
PT28L075AF-SS2422	28	AF	75	19.1	84.89	84.13	91	26	14	22
PT28L075AF-SS4424	28	AF	75	19.1	84.89	84.13	91	26	15.5	24
PT28L075AF-SS4425	28	AF	75	19.1	84.89	84.13	91	26	15.5	25
PT28L075AF-SS4428	28	AF	75	19.1	84.89	84.13	91	26	15.5	28
PT28L075AF-SS4430	28	AF	75	19.1	84.89	84.13	91	26	15.5	30
PT28L075AF-SS4432	28	AF	75	19.1	84.89	84.13	91	26	15.5	32
PT28L075AF-SS4435	28	AF	75	19.1	84.89	84.13	91	26	15.5	35
PT28L075AF-SS5538	28	AF	75	19.1	84.89	84.13	91	26	17.5	38
PT28L075AF-SS5540	28	AF	75	19.1	84.89	84.13	91	26	17.5	40
PT28L075AF-SS5542	28	AF	75	19.1	84.89	84.13	91	26	17.5	42
PT28L075AF-SS5545	28	AF	75	19.1	84.89	84.13	91	26	17.5	45
PT30L075AF-SS2415	30	AF	75	19.1	90.96	90.2	97	26	14	15
PT30L075AF-SS2416	30	AF	75	19.1	90.96	90.2	97	26	14	16
PT30L075AF-SS2417	30	AF	75	19.1	90.96	90.2	97	26	14	17
PT30L075AF-SS2418	30	AF	75	19.1	90.96	90.2	97	26	14	18
PT30L075AF-SS2419	30	AF	75	19.1	90.96	90.2	97	26	14	19
PT30L075AF-SS2420	30	AF	75	19.1	90.96	90.2	97	26	14	20
PT30L075AF-SS2422	30	AF	75	19.1	90.96	90.2	97	26	14	22
PT30L075AF-SS4424	30	AF	75	19.1	90.96	90.2	97	26	15.5	24
PT30L075AF-SS4425	30	AF	75	19.1	90.96	90.2	97	26	15.5	25
PT30L075AF-SS4428	30	AF	75	19.1	90.96	90.2	97	26	15.5	28
PT30L075AF-SS4430	30	AF	75	19.1	90.96	90.2	97	26	15.5	30
PT30L075AF-SS4432	30	AF	75	19.1	90.96	90.2	97	26	15.5	32
PT30L075AF-SS4435	30	AF	75	19.1	90.96	90.2	97	26	15.5	35
PT30L075AF-SS5538	30	AF	75	19.1	90.96	90.2	97	26	17.5	38
PT30L075AF-SS5540	30	AF	75	19.1	90.96	90.2	97	26	17.5	40
PT30L075AF-SS5542	30	AF	75	19.1	90.96	90.2	97	26	17.5	42
PT30L075AF-SS5545	30	AF	75	19.1	90.96	90.2	97	26	17.5	45
PT32L075AF-SS2415	32	AF	75	19.1	97.02	96.26	103	26	14	15
PT32L075AF-SS2416	32	AF	75	19.1	97.02	96.26	103	26	14	16
PT32L075AF-SS2417	32	AF	75	19.1	97.02	96.26	103	26	14	17
PT32L075AF-SS2418	32	AF	75	19.1	97.02	96.26	103	26	14	18
PT32L075AF-SS2419	32	AF	75	19.1	97.02	96.26	103	26	14	19
PT32L075AF-SS2420	32	AF	75	19.1	97.02	96.26	103	26	14	20
PT32L075AF-SS2422	32	AF	75	19.1	97.02	96.26	103	26	14	22
PT32L075AF-SS4424	32	AF	75	19.1	97.02	96.26	103	26	15.5	24
PT32L075AF-SS4425	32	AF	75	19.1	97.02	96.26	103	26	15.5	25
PT32L075AF-SS4428	32	AF	75	19.1	97.02	96.26	103	26	15.5	28
PT32L075AF-SS4430	32	AF	75	19.1	97.02	96.26	103	26	15.5	30
PT32L075AF-SS4432	32	AF	75	19.1	97.02	96.26	103	26	15.5	32
PT32L075AF-SS4435	32	AF	75	19.1	97.02	96.26	103	26	15.5	35
PT32L075AF-SS5538	32	AF	75	19.1	97.02	96.26	103	26	17.5	38
PT32L075AF-SS5540	32	AF	75	19.1	97.02	96.26	103	26	17.5	40
PT32L075AF-SS5542	32	AF	75	19.1	97.02	96.26	103	26	17.5	42
PT32L075AF-SS5545	32	AF	75	19.1	97.02	96.26	103	26	17.5	45
PT34L075AF-SS2415	34	AF	75	19.1	103.08	102.32	111	26	14	15
PT34L075AF-SS2416	34	AF	75	19.1	103.08	102.32	111	26	14	16
PT34L075AF-SS2417	34	AF	75	19.1	103.08	102.32	111	26	14	17
PT34L075AF-SS2418	34	AF	75	19.1	103.08	102.32	111	26	14	18
PT34L075AF-SS2419	34	AF	75	19.1	103.08	102.32	111	26	14	19
PT34L075AF-SS2420	34	AF	75	19.1	103.08	102.32	111	26	14	20
PT34L075AF-SS2422	34	AF	75	19.1	103.08	102.32	111	26	14	22
PT34L075AF-SS4424	34	AF	75	19.1	103.08	102.32	111	26	15.5	24
PT34L075AF-SS4425	34	AF	75	19.1	103.08	102.32	111	26	15.5	25
PT34L075AF-SS4428	34	AF	75	19.1	103.08	102.32	111	26	15.5	28
PT34L075AF-SS4430	34	AF	75	19.1	103.08	102.32	111	26	15.5	30
PT34L075AF-SS4432	34	AF	75	19.1	103.08	102.32	111	26	15.5	32
PT34L075AF-SS4435	34	AF	75	19.1	103.08	102.32	111	26	15.5	35
PT34L075AF-SS5538	34	AF	75	19.1	103.08	102.32	111	26	17.5	38
PT34L075AF-SS5540	34	AF	75	19.1	103.08	102.32	111	26	17.5	40
PT34L075AF-SS5542	34	AF	75	19.1	103.08	102.32	111	26	17.5	42

형식	취부 형식	슬리브	슬리브	슬리브	슬리브	슬리브	슬리브	슬리브	슬리브

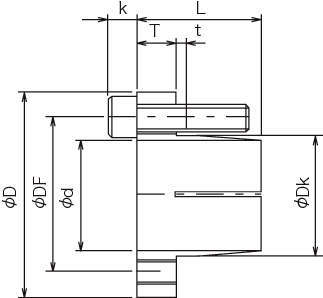

형식	취부 형식	틀번호	ΦD (mm)	ΦDF (mm)	ΦDk (mm)	L (mm)	T (mm)	t (mm)	K (mm)
PT14L050AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L050AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L050AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L050AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT19L050AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT19L050AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L050AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L050AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L050AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L050AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L050AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L050AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L050AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L050AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L050AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT24L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT26L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT26L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT26L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT26L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT28L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT28L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT28L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT28L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT30L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT30L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT30L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT30L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT32L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT32L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT32L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT32L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT34L050AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT34L050AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT34L050AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT34L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT36L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT36L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT40L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT40L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT42L050AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT42L050AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS2617	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT44L050BF-SS2618	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT44L050BF-SS2619	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT44L050BF-SS2620	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT44L050BF-SS2622	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT44L050BF-SS4424	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS4425	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS4428	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS4430	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS4432	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS4435	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT44L050BF-SS5538	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT44L050BF-SS5540	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT44L050BF-SS5542	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT44L050BF-SS5545	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT48L050BF-SS2617	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT48L050BF-SS2618	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT48L050BF-SS2619	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT48L050BF-SS2620	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT48L050BF-SS2622	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT48L050BF-SS4424	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS4425	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS4428	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS4430	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS4432	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS4435	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT48L050BF-SS5538	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT48L050BF-SS5540	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT48L050BF-SS5542	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT48L050BF-SS5545	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT50L050BF-SS2617	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT50L050BF-SS2618	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT50L050BF-SS2619	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT50L050BF-SS2620	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT50L050BF-SS2622	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT50L050BF-SS4424	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS4425	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS4428	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS4430	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS4432	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS4435	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT50L050BF-SS5538	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT50L050BF-SS5540	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT50L050BF-SS5542	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT50L050BF-SS5545	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT60L050BF-SS2617	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT60L050BF-SS2618	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT60L050BF-SS2619	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT60L050BF-SS2620	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT60L050BF-SS2622	BF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT60L050BF-SS4424	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS4425	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS4428	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS4430	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS4432	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS4435	BF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT60L050BF-SS5538	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT60L050BF-SS5540	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT60L050BF-SS5542	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT60L050BF-SS5545	BF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT14L075AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L075AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT14L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT15L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT16L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT16L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L075AF-SS1410	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS1411	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT17L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT17L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT18L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT18L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT19L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT19L075AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT19L075AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT19L075AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT20L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT20L075AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L075AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT20L075AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT21L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT21L075AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L075AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT21L075AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT22L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT22L075AF-SS3324	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L075AF-SS3325	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT22L075AF-SS3328	AF-S(표준취부)	S3	48.5	38.5	31.2	23.5	8	2.5	5
PT24L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT24L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT24L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT24L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS1412	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L075AF-SS1414	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L075AF-SS1415	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L075AF-SS1416	AF-S(표준취부)	S1	32	24	18.6	18	6	2	4
PT25L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT25L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT25L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT26L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT26L075AF-SS5538	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT26L075AF-SS5540	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT26L075AF-SS5542	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT26L075AF-SS5545	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT28L075AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT28L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT28L075AF-SS5538	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT28L075AF-SS5540	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT28L075AF-SS5542	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT28L075AF-SS5545	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT30L075AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT30L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT30L075AF-SS5538	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT30L075AF-SS5540	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT30L075AF-SS5542	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT30L075AF-SS5545	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT32L075AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT32L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT32L075AF-SS5538	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT32L075AF-SS5540	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT32L075AF-SS5542	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT32L075AF-SS5545	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT34L075AF-SS2415	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2416	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2417	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2418	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2419	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2420	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS2422	AF-S(표준취부)	S2	42	32	25.2	22	7	2	5
PT34L075AF-SS4424	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS4425	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS4428	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS4430	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS4432	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS4435	AF-S(표준취부)	S4	56	46	38.6	26	8	2.5	5
PT34L075AF-SS5538	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT34L075AF-SS5540	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5
PT34L075AF-SS5542	AF-S(표준취부)	S5	66	56	48.8	29	10	2.5	5

형식	체결볼트	체결볼트	체결 토르크 (N · m)	전달 토르크 (N · m)	스러스트 하중 (kN)	면압(Mpa)	면압(Mpa)
형식	사이즈	본수	체결 토르크 (N · m)	전달 토르크 (N · m)	스러스트 하중 (kN)	축측	허브측
PT14L050AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT14L050AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT14L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT14L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT14L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT14L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT15L050AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT15L050AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT15L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT15L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT15L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT15L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT16L050AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT16L050AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT16L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT16L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT16L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT16L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT16L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT16L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT16L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT16L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT16L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT17L050AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT17L050AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT17L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT17L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT17L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT17L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT17L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT17L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT17L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT17L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT17L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT18L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT18L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT18L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT18L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT18L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT18L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT18L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT18L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT18L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT19L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT19L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT19L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT19L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT19L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT19L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT19L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT19L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT19L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT19L050AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT19L050AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT19L050AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT20L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT20L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT20L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT20L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT20L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT20L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT20L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT20L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT20L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT20L050AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT20L050AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT20L050AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT21L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT21L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT21L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT21L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT21L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT21L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT21L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT21L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT21L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT21L050AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT21L050AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT21L050AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT22L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT22L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT22L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT22L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT22L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT22L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT22L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT22L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT22L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT22L050AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT22L050AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT22L050AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT24L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT24L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT24L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT24L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT24L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT24L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT24L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT24L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT24L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT24L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT24L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT24L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT24L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT24L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT24L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT25L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT25L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT25L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT25L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT25L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT25L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT25L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT25L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT25L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT25L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT25L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT25L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT25L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT25L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT25L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT26L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT26L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT26L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT26L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT26L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT26L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT26L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT26L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT26L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT26L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT26L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT26L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT26L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT26L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT26L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT28L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT28L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT28L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT28L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT28L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT28L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT28L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT28L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT28L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT28L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT28L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT28L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT28L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT28L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT28L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT30L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT30L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT30L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT30L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT30L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT30L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT30L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT30L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT30L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT30L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT30L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT30L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT30L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT30L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT30L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT32L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT32L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT32L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT32L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT32L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT32L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT32L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT32L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT32L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT32L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT32L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT32L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT32L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT32L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT32L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT34L050AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT34L050AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT34L050AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT34L050AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT34L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT34L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT34L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT34L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT34L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT34L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT34L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT34L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT34L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT34L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT34L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT36L050AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT36L050AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT36L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT36L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT36L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT36L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT36L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT36L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT36L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT36L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT36L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT36L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT36L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT40L050AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT40L050AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT40L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT40L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT40L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT40L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT40L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT40L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT40L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT40L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT40L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT40L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT40L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT42L050AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT42L050AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT42L050AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT42L050AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT42L050AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT42L050AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT42L050AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT42L050AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT42L050AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT42L050AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT42L050AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT42L050AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT42L050AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT44L050BF-SS2617	M5×18	6	8.3	237	27.9	287	203
PT44L050BF-SS2618	M5×18	6	8.3	251	27.9	271	203
PT44L050BF-SS2619	M5×18	6	8.3	265	27.9	257	203
PT44L050BF-SS2620	M5×18	6	8.3	279	27.9	244	203
PT44L050BF-SS2622	M5×18	6	8.3	307	27.9	222	203
PT44L050BF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT44L050BF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT44L050BF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT44L050BF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT44L050BF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT44L050BF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT44L050BF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT44L050BF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT44L050BF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT44L050BF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT48L050BF-SS2617	M5×18	6	8.3	237	27.9	287	203
PT48L050BF-SS2618	M5×18	6	8.3	251	27.9	271	203
PT48L050BF-SS2619	M5×18	6	8.3	265	27.9	257	203
PT48L050BF-SS2620	M5×18	6	8.3	279	27.9	244	203
PT48L050BF-SS2622	M5×18	6	8.3	307	27.9	222	203
PT48L050BF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT48L050BF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT48L050BF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT48L050BF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT48L050BF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT48L050BF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT48L050BF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT48L050BF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT48L050BF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT48L050BF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT50L050BF-SS2617	M5×18	6	8.3	237	27.9	287	203
PT50L050BF-SS2618	M5×18	6	8.3	251	27.9	271	203
PT50L050BF-SS2619	M5×18	6	8.3	265	27.9	257	203
PT50L050BF-SS2620	M5×18	6	8.3	279	27.9	244	203
PT50L050BF-SS2622	M5×18	6	8.3	307	27.9	222	203
PT50L050BF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT50L050BF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT50L050BF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT50L050BF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT50L050BF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT50L050BF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT50L050BF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT50L050BF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT50L050BF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT50L050BF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT60L050BF-SS2617	M5×18	6	8.3	237	27.9	287	203
PT60L050BF-SS2618	M5×18	6	8.3	251	27.9	271	203
PT60L050BF-SS2619	M5×18	6	8.3	265	27.9	257	203
PT60L050BF-SS2620	M5×18	6	8.3	279	27.9	244	203
PT60L050BF-SS2622	M5×18	6	8.3	307	27.9	222	203
PT60L050BF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT60L050BF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT60L050BF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT60L050BF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT60L050BF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT60L050BF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT60L050BF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT60L050BF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT60L050BF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT60L050BF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT14L075AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT14L075AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT14L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT14L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT14L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT14L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT15L075AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT15L075AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT15L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT15L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT15L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT15L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT16L075AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT16L075AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT16L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT16L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT16L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT16L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT16L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT16L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT16L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT16L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT16L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT17L075AF-SS1410	M4×16	4	4.2	58	11.5	262	148
PT17L075AF-SS1411	M4×16	4	4.2	63	11.5	238	148
PT17L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT17L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT17L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT17L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT17L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT17L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT17L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT17L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT17L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT18L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT18L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT18L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT18L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT18L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT18L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT18L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT18L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT18L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT19L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT19L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT19L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT19L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT19L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT19L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT19L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT19L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT19L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT19L075AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT19L075AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT19L075AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT20L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT20L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT20L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT20L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT20L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT20L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT20L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT20L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT20L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT20L075AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT20L075AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT20L075AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT21L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT21L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT21L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT21L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT21L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT21L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT21L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT21L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT21L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT21L075AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT21L075AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT21L075AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT22L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT22L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT22L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT22L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT22L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT22L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT22L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT22L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT22L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT22L075AF-SS3324	M5×20	3	8.3	167	13.9	102	81
PT22L075AF-SS3325	M5×20	3	8.3	174	13.9	98	81
PT22L075AF-SS3328	M5×20	3	8.3	195	13.9	87	81
PT24L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT24L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT24L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT24L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT24L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT24L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT24L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT24L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT24L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT24L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT24L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT24L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT24L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT24L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT24L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT25L075AF-SS1412	M4×16	4	4.2	69	11.5	218	148
PT25L075AF-SS1414	M4×16	4	4.2	81	11.5	187	148
PT25L075AF-SS1415	M4×16	4	4.2	86	11.5	175	148
PT25L075AF-SS1416	M4×16	4	4.2	92	11.5	164	148
PT25L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT25L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT25L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT25L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT25L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT25L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT25L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT25L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT25L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT25L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT25L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT26L075AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT26L075AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT26L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT26L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT26L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT26L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT26L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT26L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT26L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT26L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT26L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT26L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT26L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT26L075AF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT26L075AF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT26L075AF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT26L075AF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT28L075AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT28L075AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT28L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT28L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT28L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT28L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT28L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT28L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT28L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT28L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT28L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT28L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT28L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT28L075AF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT28L075AF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT28L075AF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT28L075AF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT30L075AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT30L075AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT30L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT30L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT30L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT30L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT30L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT30L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT30L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT30L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT30L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT30L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT30L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT30L075AF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT30L075AF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT30L075AF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT30L075AF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT32L075AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT32L075AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT32L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT32L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT32L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT32L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT32L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT32L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT32L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT32L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT32L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT32L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT32L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT32L075AF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT32L075AF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT32L075AF-SS5542	M5×22	5	8.3	488	23.2	76	68
PT32L075AF-SS5545	M5×22	5	8.3	523	23.2	71	68
PT34L075AF-SS2415	M5×18	4	8.3	139	18.6	217	135
PT34L075AF-SS2416	M5×18	4	8.3	149	18.6	203	135
PT34L075AF-SS2417	M5×18	4	8.3	158	18.6	191	135
PT34L075AF-SS2418	M5×18	4	8.3	167	18.6	181	135
PT34L075AF-SS2419	M5×18	4	8.3	177	18.6	171	135
PT34L075AF-SS2420	M5×18	4	8.3	186	18.6	163	135
PT34L075AF-SS2422	M5×18	4	8.3	205	18.6	148	135
PT34L075AF-SS4424	M5×20	4	8.3	223	18.6	114	73
PT34L075AF-SS4425	M5×20	4	8.3	232	18.6	109	73
PT34L075AF-SS4428	M5×20	4	8.3	260	18.6	97	73
PT34L075AF-SS4430	M5×20	4	8.3	279	18.6	91	73
PT34L075AF-SS4432	M5×20	4	8.3	298	18.6	85	73
PT34L075AF-SS4435	M5×20	4	8.3	325	18.6	78	73
PT34L075AF-SS5538	M5×22	5	8.3	442	23.2	84	68
PT34L075AF-SS5540	M5×22	5	8.3	465	23.2	80	68
PT34L075AF-SS5542	M5×22	5	8.3	488	23.2	76	68

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
PT14L050AF-SS1410	P	137,500	-	-	-	-	견적의뢰 / 주문
PT14L050AF-SS1411	P	137,500	-	-	-	-	견적의뢰 / 주문
PT14L050AF-SS1412	P	137,500	-	-	-	-	견적의뢰 / 주문
PT14L050AF-SS1414	P	137,500	-	-	-	-	견적의뢰 / 주문
PT14L050AF-SS1415	P	137,500	-	-	-	-	견적의뢰 / 주문
PT14L050AF-SS1416	P	137,500	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1410	P	138,600	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1411	P	138,600	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1412	P	138,600	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1414	P	138,600	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1415	P	138,600	-	-	-	-	견적의뢰 / 주문
PT15L050AF-SS1416	P	138,600	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1410	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1411	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1412	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1414	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1415	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS1416	P	140,800	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS2417	P	149,600	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS2418	P	149,600	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS2419	P	149,600	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS2420	P	149,600	-	-	-	-	견적의뢰 / 주문
PT16L050AF-SS2422	P	149,600	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1410	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1411	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1412	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1414	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1415	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS1416	P	141,900	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS2417	P	150,700	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS2418	P	150,700	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS2419	P	150,700	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS2420	P	150,700	-	-	-	-	견적의뢰 / 주문
PT17L050AF-SS2422	P	150,700	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS1412	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS1414	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS1415	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS1416	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS2417	P	150,700	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS2418	P	150,700	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS2419	P	150,700	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS2420	P	150,700	-	-	-	-	견적의뢰 / 주문
PT18L050AF-SS2422	P	150,700	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS1412	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS1414	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS1415	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS1416	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS2417	P	151,800	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS2418	P	151,800	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS2419	P	151,800	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS2420	P	151,800	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS2422	P	151,800	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS3324	P	163,900	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS3325	P	163,900	-	-	-	-	견적의뢰 / 주문
PT19L050AF-SS3328	P	163,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS1412	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS1414	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS1415	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS1416	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS2417	P	152,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS2418	P	152,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS2419	P	152,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS2420	P	152,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS2422	P	152,900	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS3324	P	166,100	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS3325	P	166,100	-	-	-	-	견적의뢰 / 주문
PT20L050AF-SS3328	P	166,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS1412	P	151,800	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS1414	P	151,800	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS1415	P	151,800	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS1416	P	151,800	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS2417	P	155,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS2418	P	155,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS2419	P	155,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS2420	P	155,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS2422	P	155,100	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS3324	P	167,200	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS3325	P	167,200	-	-	-	-	견적의뢰 / 주문
PT21L050AF-SS3328	P	167,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS1412	P	154,000	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS1414	P	154,000	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS1415	P	154,000	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS1416	P	154,000	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS2417	P	156,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS2418	P	156,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS2419	P	156,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS2420	P	156,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS2422	P	156,200	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS3324	P	168,300	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS3325	P	168,300	-	-	-	-	견적의뢰 / 주문
PT22L050AF-SS3328	P	168,300	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS1412	P	158,400	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS1414	P	158,400	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS1415	P	158,400	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS1416	P	158,400	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS2417	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS2418	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS2419	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS2420	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS2422	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4424	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4425	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4428	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4430	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4432	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L050AF-SS4435	P	173,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS1412	P	159,500	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS1414	P	159,500	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS1415	P	159,500	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS1416	P	159,500	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS2417	P	162,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS2418	P	162,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS2419	P	162,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS2420	P	162,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS2422	P	162,800	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4424	P	179,300	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4425	P	179,300	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4428	P	179,300	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4430	P	179,300	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4432	P	179,300	-	-	-	-	견적의뢰 / 주문
PT25L050AF-SS4435	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS1412	P	163,900	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS1414	P	163,900	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS1415	P	163,900	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS1416	P	163,900	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS2417	P	167,200	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS2418	P	167,200	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS2419	P	167,200	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS2420	P	167,200	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS2422	P	167,200	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4424	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4425	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4428	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4430	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4432	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L050AF-SS4435	P	179,300	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS1412	P	169,400	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS1414	P	169,400	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS1415	P	169,400	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS1416	P	169,400	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS2417	P	172,700	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS2418	P	172,700	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS2419	P	172,700	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS2420	P	172,700	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS2422	P	172,700	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4424	P	184,800	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4425	P	184,800	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4428	P	184,800	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4430	P	184,800	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4432	P	184,800	-	-	-	-	견적의뢰 / 주문
PT28L050AF-SS4435	P	184,800	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS1412	P	172,700	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS1414	P	172,700	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS1415	P	172,700	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS1416	P	172,700	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS2417	P	176,000	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS2418	P	176,000	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS2419	P	176,000	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS2420	P	176,000	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS2422	P	176,000	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4424	P	188,100	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4425	P	188,100	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4428	P	188,100	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4430	P	188,100	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4432	P	188,100	-	-	-	-	견적의뢰 / 주문
PT30L050AF-SS4435	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS1412	P	185,900	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS1414	P	185,900	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS1415	P	185,900	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS1416	P	185,900	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS2417	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS2418	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS2419	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS2420	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS2422	P	188,100	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4424	P	201,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4425	P	201,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4428	P	201,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4430	P	201,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4432	P	201,300	-	-	-	-	견적의뢰 / 주문
PT32L050AF-SS4435	P	201,300	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS1412	P	191,400	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS1414	P	191,400	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS1415	P	191,400	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS1416	P	191,400	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS2417	P	194,700	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS2418	P	194,700	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS2419	P	194,700	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS2420	P	194,700	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS2422	P	194,700	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4424	P	206,800	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4425	P	206,800	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4428	P	206,800	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4430	P	206,800	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4432	P	206,800	-	-	-	-	견적의뢰 / 주문
PT34L050AF-SS4435	P	206,800	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2415	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2416	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2417	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2418	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2419	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2420	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS2422	P	198,000	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4424	P	210,100	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4425	P	210,100	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4428	P	210,100	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4430	P	210,100	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4432	P	210,100	-	-	-	-	견적의뢰 / 주문
PT36L050AF-SS4435	P	210,100	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2415	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2416	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2417	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2418	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2419	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2420	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS2422	P	206,800	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4424	P	218,900	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4425	P	218,900	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4428	P	218,900	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4430	P	218,900	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4432	P	218,900	-	-	-	-	견적의뢰 / 주문
PT40L050AF-SS4435	P	218,900	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2415	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2416	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2417	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2418	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2419	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2420	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS2422	P	220,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4424	P	231,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4425	P	231,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4428	P	231,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4430	P	231,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4432	P	231,000	-	-	-	-	견적의뢰 / 주문
PT42L050AF-SS4435	P	231,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS2617	P	275,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS2618	P	275,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS2619	P	275,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS2620	P	275,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS2622	P	275,000	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4424	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4425	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4428	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4430	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4432	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS4435	P	301,400	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS5538	P	303,600	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS5540	P	303,600	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS5542	P	303,600	-	-	-	-	견적의뢰 / 주문
PT44L050BF-SS5545	P	303,600	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS2617	P	299,200	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS2618	P	299,200	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS2619	P	299,200	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS2620	P	299,200	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS2622	P	299,200	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4424	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4425	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4428	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4430	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4432	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS4435	P	323,400	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS5538	P	325,600	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS5540	P	325,600	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS5542	P	325,600	-	-	-	-	견적의뢰 / 주문
PT48L050BF-SS5545	P	325,600	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS2617	P	316,800	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS2618	P	316,800	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS2619	P	316,800	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS2620	P	316,800	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS2622	P	316,800	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4424	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4425	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4428	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4430	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4432	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS4435	P	343,200	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS5538	P	345,400	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS5540	P	345,400	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS5542	P	345,400	-	-	-	-	견적의뢰 / 주문
PT50L050BF-SS5545	P	345,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS2617	P	387,200	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS2618	P	387,200	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS2619	P	387,200	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS2620	P	387,200	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS2622	P	387,200	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4424	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4425	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4428	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4430	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4432	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS4435	P	411,400	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS5538	P	415,800	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS5540	P	415,800	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS5542	P	415,800	-	-	-	-	견적의뢰 / 주문
PT60L050BF-SS5545	P	415,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1410	P	140,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1411	P	140,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1412	P	140,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1414	P	140,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1415	P	140,800	-	-	-	-	견적의뢰 / 주문
PT14L075AF-SS1416	P	140,800	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1410	P	141,900	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1411	P	141,900	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1412	P	141,900	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1414	P	141,900	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1415	P	141,900	-	-	-	-	견적의뢰 / 주문
PT15L075AF-SS1416	P	141,900	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1410	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1411	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1412	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1414	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1415	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS1416	P	144,100	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS2417	P	156,200	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS2418	P	156,200	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS2419	P	156,200	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS2420	P	156,200	-	-	-	-	견적의뢰 / 주문
PT16L075AF-SS2422	P	156,200	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1410	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1411	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1412	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1414	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1415	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS1416	P	146,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS2417	P	157,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS2418	P	157,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS2419	P	157,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS2420	P	157,300	-	-	-	-	견적의뢰 / 주문
PT17L075AF-SS2422	P	157,300	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS1412	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS1414	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS1415	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS1416	P	147,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS2417	P	158,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS2418	P	158,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS2419	P	158,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS2420	P	158,400	-	-	-	-	견적의뢰 / 주문
PT18L075AF-SS2422	P	158,400	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS1412	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS1414	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS1415	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS1416	P	148,500	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS2417	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS2418	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS2419	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS2420	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS2422	P	160,600	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS3324	P	174,900	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS3325	P	174,900	-	-	-	-	견적의뢰 / 주문
PT19L075AF-SS3328	P	174,900	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS1412	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS1414	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS1415	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS1416	P	150,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS2417	P	161,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS2418	P	161,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS2419	P	161,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS2420	P	161,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS2422	P	161,700	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS3324	P	177,100	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS3325	P	177,100	-	-	-	-	견적의뢰 / 주문
PT20L075AF-SS3328	P	177,100	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS1412	P	152,900	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS1414	P	152,900	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS1415	P	152,900	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS1416	P	152,900	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS2417	P	165,000	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS2418	P	165,000	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS2419	P	165,000	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS2420	P	165,000	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS2422	P	165,000	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS3324	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS3325	P	179,300	-	-	-	-	견적의뢰 / 주문
PT21L075AF-SS3328	P	179,300	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS1412	P	155,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS1414	P	155,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS1415	P	155,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS1416	P	155,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS2417	P	166,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS2418	P	166,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS2419	P	166,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS2420	P	166,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS2422	P	166,100	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS3324	P	181,500	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS3325	P	181,500	-	-	-	-	견적의뢰 / 주문
PT22L075AF-SS3328	P	181,500	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS1412	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS1414	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS1415	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS1416	P	161,700	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS2417	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS2418	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS2419	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS2420	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS2422	P	173,800	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4424	P	188,100	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4425	P	188,100	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4428	P	188,100	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4430	P	188,100	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4432	P	188,100	-	-	-	-	견적의뢰 / 주문
PT24L075AF-SS4435	P	188,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS1412	P	165,000	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS1414	P	165,000	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS1415	P	165,000	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS1416	P	165,000	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS2417	P	177,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS2418	P	177,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS2419	P	177,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS2420	P	177,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS2422	P	177,100	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4424	P	191,400	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4425	P	191,400	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4428	P	191,400	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4430	P	191,400	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4432	P	191,400	-	-	-	-	견적의뢰 / 주문
PT25L075AF-SS4435	P	191,400	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2415	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2416	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2417	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2418	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2419	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2420	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS2422	P	179,300	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4424	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4425	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4428	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4430	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4432	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS4435	P	193,600	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS5538	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS5540	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS5542	P	224,400	-	-	-	-	견적의뢰 / 주문
PT26L075AF-SS5545	P	224,400	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2415	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2416	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2417	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2418	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2419	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2420	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS2422	P	183,700	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4424	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4425	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4428	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4430	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4432	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS4435	P	199,100	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS5538	P	228,800	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS5540	P	228,800	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS5542	P	228,800	-	-	-	-	견적의뢰 / 주문
PT28L075AF-SS5545	P	228,800	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2415	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2416	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2417	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2418	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2419	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2420	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS2422	P	189,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4424	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4425	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4428	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4430	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4432	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS4435	P	203,500	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS5538	P	233,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS5540	P	233,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS5542	P	233,200	-	-	-	-	견적의뢰 / 주문
PT30L075AF-SS5545	P	233,200	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2415	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2416	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2417	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2418	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2419	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2420	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS2422	P	199,100	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4424	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4425	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4428	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4430	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4432	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS4435	P	213,400	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS5538	P	242,000	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS5540	P	242,000	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS5542	P	242,000	-	-	-	-	견적의뢰 / 주문
PT32L075AF-SS5545	P	242,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2415	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2416	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2417	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2418	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2419	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2420	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS2422	P	205,700	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4424	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4425	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4428	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4430	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4432	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS4435	P	220,000	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS5538	P	248,600	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS5540	P	248,600	-	-	-	-	견적의뢰 / 주문
PT34L075AF-SS5542	P	248,600	-	-	-	-	견적의뢰 / 주문

1 2 3

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
