HOME > 체인전도 > 드라이브체인 > RS롤러체인
드라이브체인
RS롤러체인
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
  • 카탈로그



  • 관련이미지
    상세사양
    365건 중 1~365건 표시
    형식타입체인번호열수피치
    P(mm)
    롤러경
    R(mm)
    안쪽링크내폭
    W(mm)
    핀형상
    형식타입체인번호열수피치
    P(mm)
    롤러경
    R(mm)
    안쪽링크내폭
    W(mm)
    핀형상
    RS15-1-RP-50UR릴권RS1514.76252.482.38리벳형
    RS25-1-RP-150UR릴권RS2516.353.33.18리벳형
    RS35-1-RP-20UR릴권RS3519.5255.084.78리벳형
    RS35-2-RP-10UR릴권RS3529.5255.084.78리벳형
    RS37-1-RP-20UR릴권RS37112.77.83.4리벳형
    RS38-1-RP-20UR릴권RS38112.77.84.8리벳형
    RS41-1-RP-20UR릴권RS41112.77.776.38리벳형
    RS40-1-RP-15UR릴권RS40112.77.927.95리벳형
    RS40-2-RP-10UR릴권RS40212.77.927.95리벳형
    RS50-1-RP-10UR릴권RS50115.87510.169.53리벳형
    RS50-2-RP-5UR릴권RS50215.87510.169.53리벳형
    RS60-1-RP-10UR릴권RS60119.0511.9112.7리벳형
    RS60-2-RP-5UR릴권RS60219.0511.9112.7리벳형
    RS80-1-RP-5UR릴권RS80125.415.8815.88리벳형
    RS15-1-RP-U유니트RS1514.76252.482.38리벳형
    RS25-1-RP-U유니트RS2516.353.33.18리벳형
    RS25-2-RP-U유니트RS2526.353.33.18리벳형
    RS25-3-RP-U유니트RS2536.353.33.18리벳형
    BF25-H-1-RP-U유니트BF25-H16.353.33.18리벳형
    RS35-1-RP-U유니트RS3519.5255.084.78리벳형
    RS35-2-RP-U유니트RS3529.5255.084.78리벳형
    RS35-3-RP-U유니트RS3539.5255.084.78리벳형
    RS37-1-RP-U유니트RS37112.77.83.4리벳형
    RS38-1-RP-U유니트RS38112.77.84.8리벳형
    RS41-1-RP-U유니트RS41112.77.776.38리벳형
    RS40-1-RP-U유니트RS40112.77.927.95리벳형
    RS40-2-RP-U유니트RS40212.77.927.95리벳형
    RS40-3-RP-U유니트RS40312.77.927.95리벳형
    RS50-1-RP-U유니트RS50115.87510.169.53리벳형
    RS50-2-RP-U유니트RS50215.87510.169.53리벳형
    RS50-3-RP-U유니트RS50315.87510.169.53리벳형
    RS60-1-CP-U유니트RS60119.0511.9112.7분할핀형
    RS60-1-RP-U유니트RS60119.0511.9112.7리벳형
    RS60-2-RP-U유니트RS60219.0511.9112.7리벳형
    RS60-3-RP-U유니트RS60319.0511.9112.7리벳형
    RS80-1-CP-U유니트RS80125.415.8815.88분할핀형
    RS80-1-RP-U유니트RS80125.415.8815.88리벳형
    RS80-2-CP-U유니트RS80225.415.8815.88분할핀형
    RS80-2-RP-U유니트RS80225.415.8815.88리벳형
    RS80-3-RP-U유니트RS80325.415.8815.88리벳형
    RS100-1-CP-U유니트RS100131.7519.0519.05분할핀형
    RS100-1-RP-U유니트RS100131.7519.0519.05리벳형
    RS100-2-CP-U유니트RS100231.7519.0519.05분할핀형
    RS100-3-CP-U유니트RS100331.7519.0519.05분할핀형
    RS120-1-CP-U유니트RS120138.122.2325.4분할핀형
    RS120-1-RP-U유니트RS120138.122.2325.4리벳형
    RS120-2-CP-U유니트RS120238.122.2325.4분할핀형
    RS140-1-CP-U유니트RS140144.4525.425.4분할핀형
    RS140-2-CP-U유니트RS140244.4525.425.4분할핀형
    RS160-1-CP-U유니트RS160150.828.5831.75분할핀형
    RS160-2-CP-U유니트RS160250.828.5831.75분할핀형
    RS180-1-CP-U유니트RS180157.1535.7135.72분할핀형
    RS180-2-CP-U유니트RS180257.1535.7135.72분할핀형
    RS200-1-CP-U유니트RS200163.539.6838.1분할핀형
    RS200-2-CP-U유니트RS200263.539.6838.1분할핀형
    RS240-1-RP-U유니트RS240176.247.6347.63리벳형
    RS15-1-RP링크RS1514.76252.482.38리벳형
    RS25-1-RP링크RS2516.353.33.18리벳형
    RS25-2-RP링크RS2526.353.33.18리벳형
    RS25-3-RP링크RS2536.353.33.18리벳형
    BF25-H-1-RP링크BF25-H16.353.33.18리벳형
    RS35-1-RP링크RS3519.5255.084.78리벳형
    RS35-2-RP링크RS3529.5255.084.78리벳형
    RS35-3-RP링크RS3539.5255.084.78리벳형
    RS37-1-RP링크RS37112.77.83.4리벳형
    RS38-1-RP링크RS38112.77.84.8리벳형
    RS41-1-RP링크RS41112.77.776.38리벳형
    RS40-1-RP링크RS40112.77.927.95리벳형
    RS40-2-RP링크RS40212.77.927.95리벳형
    RS40-3-RP링크RS40312.77.927.95리벳형
    RS40-4-RP링크RS40412.77.927.95리벳형
    RS40-5-RP링크RS40512.77.927.95리벳형
    RS40-6-RP링크RS40612.77.927.95리벳형
    RS50-1-RP링크RS50115.87510.169.53리벳형
    RS50-2-RP링크RS50215.87510.169.53리벳형
    RS50-3-RP링크RS50315.87510.169.53리벳형
    RS50-4-RP링크RS50415.87510.169.53리벳형
    RS50-5-RP링크RS50515.87510.169.53리벳형
    RS50-6-RP링크RS50615.87510.169.53리벳형
    RS60-1-CP링크RS60119.0511.9112.7분할핀형
    RS60-1-RP링크RS60119.0511.9112.7리벳형
    RS60-2-RP링크RS60219.0511.9112.7리벳형
    RS60-3-RP링크RS60319.0511.9112.7리벳형
    RS60-4-RP링크RS60419.0511.9112.7리벳형
    RS60-5-RP링크RS60519.0511.9112.7리벳형
    RS60-6-RP링크RS60619.0511.9112.7리벳형
    RS80-1-CP링크RS80125.415.8815.88분할핀형
    RS80-1-RP링크RS80125.415.8815.88리벳형
    RS80-2-CP링크RS80225.415.8815.88분할핀형
    RS80-2-RP링크RS80225.415.8815.88리벳형
    RS80-3-RP링크RS80325.415.8815.88리벳형
    RS80-4-RP링크RS80425.415.8815.88리벳형
    RS80-5-RP링크RS80525.415.8815.88리벳형
    RS80-6-RP링크RS80625.415.8815.88리벳형
    RS100-1-CP링크RS100131.7519.0519.05분할핀형
    RS100-1-RP링크RS100131.7519.0519.05리벳형
    RS100-2-CP링크RS100231.7519.0519.05분할핀형
    RS100-3-CP링크RS100331.7519.0519.05분할핀형
    RS100-4-RP링크RS100431.7519.0519.05리벳형
    RS100-5-RP링크RS100531.7519.0519.05리벳형
    RS100-6-RP링크RS100631.7519.0519.05리벳형
    RS120-1-CP링크RS120138.122.2325.4분할핀형
    RS120-1-RP링크RS120138.122.2325.4리벳형
    RS120-2-CP링크RS120238.122.2325.4분할핀형
    RS120-3-CP링크RS120338.122.2325.4분할핀형
    RS120-4-RP링크RS120438.122.2325.4리벳형
    RS120-5-RP링크RS120538.122.2325.4리벳형
    RS120-6-RP링크RS120638.122.2325.4리벳형
    RS140-1-CP링크RS140144.4525.425.4분할핀형
    RS140-2-CP링크RS140244.4525.425.4분할핀형
    RS140-3-CP링크RS140344.4525.425.4분할핀형
    RS140-4-RP링크RS140444.4525.425.4리벳형
    RS140-5-RP링크RS140544.4525.425.4리벳형
    RS140-6-RP링크RS140644.4525.425.4리벳형
    RS160-1-CP링크RS160150.828.5831.75분할핀형
    RS160-2-CP링크RS160250.828.5831.75분할핀형
    RS160-3-CP링크RS160350.828.5831.75분할핀형
    RS160-4-RP링크RS160450.828.5831.75리벳형
    RS160-5-RP링크RS160550.828.5831.75리벳형
    RS160-6-RP링크RS160650.828.5831.75리벳형
    RS180-1-CP링크RS180157.1535.7135.72분할핀형
    RS180-2-CP링크RS180257.1535.7135.72분할핀형
    RS180-3-RP링크RS180357.1535.7135.72리벳형
    RS180-4-RP링크RS180457.1535.7135.72리벳형
    RS180-5-RP링크RS180557.1535.7135.72리벳형
    RS180-6-RP링크RS180657.1535.7135.72리벳형
    RS200-1-CP링크RS200163.539.6838.1분할핀형
    RS200-2-CP링크RS200263.539.6838.1분할핀형
    RS200-3-RP링크RS200363.539.6838.1리벳형
    RS200-4-RP링크RS200463.539.6838.1리벳형
    RS200-5-RP링크RS200563.539.6838.1리벳형
    RS200-6-RP링크RS200663.539.6838.1리벳형
    RS240-1-RP링크RS240176.247.6347.63리벳형
    RS240-2-RP링크RS240276.247.6347.63리벳형
    RS240-3-RP링크RS240376.247.6347.63리벳형
    RS240-4-RP링크RS240476.247.6347.63리벳형
    RS240-5-RP링크RS240576.247.6347.63리벳형
    RS240-6-RP링크RS240676.247.6347.63리벳형
    RS15-1-JLM형 · 조인트링크RS1514.76252.482.38-
    RS25-1-JLM형 · 조인트링크RS2516.353.33.18-
    RS25-2-JLM형 · 조인트링크RS2526.353.33.18-
    RS25-3-JLM형 · 조인트링크RS2536.353.33.18-
    BF25-H-1-JLM형 · 조인트링크BF25-H16.353.33.18-
    RS35-1-JLM형 · 조인트링크RS3519.5255.084.78-
    RS35-2-JLM형 · 조인트링크RS3529.5255.084.78-
    RS35-3-JLM형 · 조인트링크RS3539.5255.084.78-
    RS37-1-JLM형 · 조인트링크RS37112.77.83.4-
    RS38-1-JLM형 · 조인트링크RS38112.77.84.8-
    RS41-1-JLM형 · 조인트링크RS41112.77.776.38-
    RS40-1-JLM형 · 조인트링크RS40112.77.927.95-
    RS40-2-JLM형 · 조인트링크RS40212.77.927.95-
    RS40-3-JLM형 · 조인트링크RS40312.77.927.95-
    RS40-4-JLM형 · 조인트링크RS40412.77.927.95-
    RS40-5-JLM형 · 조인트링크RS40512.77.927.95-
    RS40-6-JLM형 · 조인트링크RS40612.77.927.95-
    RS50-1-JLM형 · 조인트링크RS50115.87510.169.53-
    RS50-2-JLM형 · 조인트링크RS50215.87510.169.53-
    RS50-3-JLM형 · 조인트링크RS50315.87510.169.53-
    RS50-4-JLM형 · 조인트링크RS50415.87510.169.53-
    RS50-5-JLM형 · 조인트링크RS50515.87510.169.53-
    RS50-6-JLM형 · 조인트링크RS50615.87510.169.53-
    RS60-1-JLM형 · 조인트링크RS60119.0511.9112.7-
    RS60-2-JLM형 · 조인트링크RS60219.0511.9112.7-
    RS60-3-JLM형 · 조인트링크RS60319.0511.9112.7-
    RS60-4-JLM형 · 조인트링크RS60419.0511.9112.7-
    RS60-5-JLM형 · 조인트링크RS60519.0511.9112.7-
    RS60-6-JLM형 · 조인트링크RS60619.0511.9112.7-
    RS80-1-JLM형 · 조인트링크RS80125.415.8815.88-
    RS80-2-JLM형 · 조인트링크RS80225.415.8815.88-
    RS80-3-JLM형 · 조인트링크RS80325.415.8815.88-
    RS80-4-JLM형 · 조인트링크RS80425.415.8815.88-
    RS80-5-JLM형 · 조인트링크RS80525.415.8815.88-
    RS80-6-JLM형 · 조인트링크RS80625.415.8815.88-
    RS100-1-JLM형 · 조인트링크RS100131.7519.0519.05-
    RS100-2-JLM형 · 조인트링크RS100231.7519.0519.05-
    RS100-3-JLM형 · 조인트링크RS100331.7519.0519.05-
    RS100-4-JLM형 · 조인트링크RS100431.7519.0519.05-
    RS100-5-JLM형 · 조인트링크RS100531.7519.0519.05-
    RS100-6-JLM형 · 조인트링크RS100631.7519.0519.05-
    RS120-1-JLM형 · 조인트링크RS120138.122.2325.4-
    RS120-2-JLM형 · 조인트링크RS120238.122.2325.4-
    RS120-3-JLM형 · 조인트링크RS120338.122.2325.4-
    RS120-4-JLM형 · 조인트링크RS120438.122.2325.4-
    RS120-5-JLM형 · 조인트링크RS120538.122.2325.4-
    RS120-6-JLM형 · 조인트링크RS120638.122.2325.4-
    RS140-1-JLM형 · 조인트링크RS140144.4525.425.4-
    RS140-2-JLM형 · 조인트링크RS140244.4525.425.4-
    RS140-3-JLM형 · 조인트링크RS140344.4525.425.4-
    RS140-4-JLM형 · 조인트링크RS140444.4525.425.4-
    RS140-5-JLM형 · 조인트링크RS140544.4525.425.4-
    RS140-6-JLM형 · 조인트링크RS140644.4525.425.4-
    RS160-1-JLM형 · 조인트링크RS160150.828.5831.75-
    RS160-2-JLM형 · 조인트링크RS160250.828.5831.75-
    RS160-3-JLM형 · 조인트링크RS160350.828.5831.75-
    RS160-4-JLM형 · 조인트링크RS160450.828.5831.75-
    RS160-5-JLM형 · 조인트링크RS160550.828.5831.75-
    RS160-6-JLM형 · 조인트링크RS160650.828.5831.75-
    RS180-1-JLM형 · 조인트링크RS180157.1535.7135.72-
    RS180-2-JLM형 · 조인트링크RS180257.1535.7135.72-
    RS180-3-JLM형 · 조인트링크RS180357.1535.7135.72-
    RS180-4-JLM형 · 조인트링크RS180457.1535.7135.72-
    RS180-5-JLM형 · 조인트링크RS180557.1535.7135.72-
    RS180-6-JLM형 · 조인트링크RS180657.1535.7135.72-
    RS200-1-JLM형 · 조인트링크RS200163.539.6838.1-
    RS200-2-JLM형 · 조인트링크RS200263.539.6838.1-
    RS200-3-JLM형 · 조인트링크RS200363.539.6838.1-
    RS200-4-JLM형 · 조인트링크RS200463.539.6838.1-
    RS200-5-JLM형 · 조인트링크RS200563.539.6838.1-
    RS200-6-JLM형 · 조인트링크RS200663.539.6838.1-
    RS240-1-JLM형 · 조인트링크RS240176.247.6347.63-
    RS240-2-JLM형 · 조인트링크RS240276.247.6347.63-
    RS240-3-JLM형 · 조인트링크RS240376.247.6347.63-
    RS240-4-JLM형 · 조인트링크RS240476.247.6347.63-
    RS240-5-JLM형 · 조인트링크RS240576.247.6347.63-
    RS240-6-JLM형 · 조인트링크RS240676.247.6347.63-
    RS35-1-FJLF형 · 조인트링크RS3519.5255.084.78-
    RS40-1-FJLF형 · 조인트링크RS40112.77.927.95-
    RS50-1-FJLF형 · 조인트링크RS50115.87510.169.53-
    RS60-1-FJLF형 · 조인트링크RS60119.0511.9112.7-
    RS80-1-FJLF형 · 조인트링크RS80125.415.8815.88-
    RS100-1-FJLF형 · 조인트링크RS100131.7519.0519.05-
    RS120-1-FJLF형 · 조인트링크RS120138.122.2325.4-
    RS140-1-FJLF형 · 조인트링크RS140144.4525.425.4-
    RS160-1-FJLF형 · 조인트링크RS160150.828.5831.75-
    RS180-1-FJLF형 · 조인트링크RS180157.1535.7135.72-
    RS200-1-FJLF형 · 조인트링크RS200163.539.6838.1-
    RS240-1-FJLF형 · 조인트링크RS240176.247.6347.63-
    RS35-1-OL1P · 오프셋링크RS3519.5255.084.78-
    RS35-2-OL1P · 오프셋링크RS3529.5255.084.78-
    RS35-3-OL1P · 오프셋링크RS3539.5255.084.78-
    RS37-1-OL1P · 오프셋링크RS37112.77.83.4-
    RS38-1-OL1P · 오프셋링크RS38112.77.84.8-
    RS40-1-OL1P · 오프셋링크RS40112.77.927.95-
    RS41-1-OL1P · 오프셋링크RS41112.77.776.38-
    RS40-2-OL1P · 오프셋링크RS40212.77.927.95-
    RS40-3-OL1P · 오프셋링크RS40312.77.927.95-
    RS40-4-OL1P · 오프셋링크RS40412.77.927.95-
    RS40-5-OL1P · 오프셋링크RS40512.77.927.95-
    RS40-6-OL1P · 오프셋링크RS40612.77.927.95-
    RS50-1-OL1P · 오프셋링크RS50115.87510.169.53-
    RS50-2-OL1P · 오프셋링크RS50215.87510.169.53-
    RS50-3-OL1P · 오프셋링크RS50315.87510.169.53-
    RS50-4-OL1P · 오프셋링크RS50415.87510.169.53-
    RS50-5-OL1P · 오프셋링크RS50515.87510.169.53-
    RS50-6-OL1P · 오프셋링크RS50615.87510.169.53-
    RS60-1-OL1P · 오프셋링크RS60119.0511.9112.7-
    RS60-2-OL1P · 오프셋링크RS60219.0511.9112.7-
    RS60-3-OL1P · 오프셋링크RS60319.0511.9112.7-
    RS60-4-OL1P · 오프셋링크RS60419.0511.9112.7-
    RS60-5-OL1P · 오프셋링크RS60519.0511.9112.7-
    RS60-6-OL1P · 오프셋링크RS60619.0511.9112.7-
    RS80-1-OL1P · 오프셋링크RS80125.415.8815.88-
    RS80-2-OL1P · 오프셋링크RS80225.415.8815.88-
    RS80-3-OL1P · 오프셋링크RS80325.415.8815.88-
    RS80-4-OL1P · 오프셋링크RS80425.415.8815.88-
    RS80-5-OL1P · 오프셋링크RS80525.415.8815.88-
    RS80-6-OL1P · 오프셋링크RS80625.415.8815.88-
    RS100-1-OL1P · 오프셋링크RS100131.7519.0519.05-
    RS100-2-OL1P · 오프셋링크RS100231.7519.0519.05-
    RS100-3-OL1P · 오프셋링크RS100331.7519.0519.05-
    RS100-4-OL1P · 오프셋링크RS100431.7519.0519.05-
    RS100-5-OL1P · 오프셋링크RS100531.7519.0519.05-
    RS100-6-OL1P · 오프셋링크RS100631.7519.0519.05-
    RS120-1-OL1P · 오프셋링크RS120138.122.2325.4-
    RS120-2-OL1P · 오프셋링크RS120238.122.2325.4-
    RS120-3-OL1P · 오프셋링크RS120338.122.2325.4-
    RS120-4-OL1P · 오프셋링크RS120438.122.2325.4-
    RS120-5-OL1P · 오프셋링크RS120538.122.2325.4-
    RS120-6-OL1P · 오프셋링크RS120638.122.2325.4-
    RS140-1-OL1P · 오프셋링크RS140144.4525.425.4-
    RS140-2-OL1P · 오프셋링크RS140244.4525.425.4-
    RS140-3-OL1P · 오프셋링크RS140344.4525.425.4-
    RS140-4-OL1P · 오프셋링크RS140444.4525.425.4-
    RS140-5-OL1P · 오프셋링크RS140544.4525.425.4-
    RS140-6-OL1P · 오프셋링크RS140644.4525.425.4-
    RS160-1-OL1P · 오프셋링크RS160150.828.5831.75-
    RS160-2-OL1P · 오프셋링크RS160250.828.5831.75-
    RS160-3-OL1P · 오프셋링크RS160350.828.5831.75-
    RS160-4-OL1P · 오프셋링크RS160450.828.5831.75-
    RS160-5-OL1P · 오프셋링크RS160550.828.5831.75-
    RS160-6-OL1P · 오프셋링크RS160650.828.5831.75-
    RS180-1-OL1P · 오프셋링크RS180157.1535.7135.72-
    RS180-2-OL1P · 오프셋링크RS180257.1535.7135.72-
    RS180-3-OL1P · 오프셋링크RS180357.1535.7135.72-
    RS180-4-OL1P · 오프셋링크RS180457.1535.7135.72-
    RS180-5-OL1P · 오프셋링크RS180557.1535.7135.72-
    RS180-6-OL1P · 오프셋링크RS180657.1535.7135.72-
    RS200-1-OL1P · 오프셋링크RS200163.539.6838.1-
    RS200-2-OL1P · 오프셋링크RS200263.539.6838.1-
    RS200-3-OL1P · 오프셋링크RS200363.539.6838.1-
    RS200-4-OL1P · 오프셋링크RS200463.539.6838.1-
    RS200-5-OL1P · 오프셋링크RS200563.539.6838.1-
    RS200-6-OL1P · 오프셋링크RS200663.539.6838.1-
    RS240-1-OL1P · 오프셋링크RS240176.247.6347.63-
    RS240-2-OL1P · 오프셋링크RS240276.247.6347.63-
    RS240-3-OL1P · 오프셋링크RS240376.247.6347.63-
    RS240-4-OL1P · 오프셋링크RS240476.247.6347.63-
    RS240-5-OL1P · 오프셋링크RS240576.247.6347.63-
    RS240-6-OL1P · 오프셋링크RS240676.247.6347.63-
    RS25-1-2POL2P · 오프셋링크RS2516.353.33.18-
    RS25-2-2POL2P · 오프셋링크RS2526.353.33.18-
    RS25-3-2POL2P · 오프셋링크RS2536.353.33.18-
    RS35-1-2POL2P · 오프셋링크RS3519.5255.084.78-
    RS40-1-2POL2P · 오프셋링크RS40112.77.927.95-
    RS40-2-2POL2P · 오프셋링크RS40212.77.927.95-
    RS40-3-2POL2P · 오프셋링크RS40312.77.927.95-
    RS50-1-2POL2P · 오프셋링크RS50115.87510.169.53-
    RS50-2-2POL2P · 오프셋링크RS50215.87510.169.53-
    RS50-3-2POL2P · 오프셋링크RS50315.87510.169.53-
    RS60-1-2POL2P · 오프셋링크RS60119.0511.9112.7-
    RS60-2-2POL2P · 오프셋링크RS60219.0511.9112.7-
    RS60-3-2POL2P · 오프셋링크RS60319.0511.9112.7-
    RS80-1-2POL2P · 오프셋링크RS80125.415.8815.88-
    RS80-2-2POL2P · 오프셋링크RS80225.415.8815.88-
    RS80-3-2POL2P · 오프셋링크RS80325.415.8815.88-
    RS80-4-2POL2P · 오프셋링크RS80425.415.8815.88-
    RS80-5-2POL2P · 오프셋링크RS80525.415.8815.88-
    RS80-6-2POL2P · 오프셋링크RS80625.415.8815.88-
    RS100-1-2POL2P · 오프셋링크RS100131.7519.0519.05-
    RS100-2-2POL2P · 오프셋링크RS100231.7519.0519.05-
    RS100-3-2POL2P · 오프셋링크RS100331.7519.0519.05-
    RS100-4-2POL2P · 오프셋링크RS100431.7519.0519.05-
    RS100-5-2POL2P · 오프셋링크RS100531.7519.0519.05-
    RS100-6-2POL2P · 오프셋링크RS100631.7519.0519.05-
    RS120-1-2POL2P · 오프셋링크RS120138.122.2325.4-
    RS120-2-2POL2P · 오프셋링크RS120238.122.2325.4-
    RS120-3-2POL2P · 오프셋링크RS120338.122.2325.4-
    RS120-4-2POL2P · 오프셋링크RS120438.122.2325.4-
    RS120-5-2POL2P · 오프셋링크RS120538.122.2325.4-
    RS120-6-2POL2P · 오프셋링크RS120638.122.2325.4-
    RS140-1-2POL2P · 오프셋링크RS140144.4525.425.4-
    RS140-2-2POL2P · 오프셋링크RS140244.4525.425.4-
    RS140-3-2POL2P · 오프셋링크RS140344.4525.425.4-
    RS140-4-2POL2P · 오프셋링크RS140444.4525.425.4-
    RS140-5-2POL2P · 오프셋링크RS140544.4525.425.4-
    RS140-6-2POL2P · 오프셋링크RS140644.4525.425.4-
    RS160-1-2POL2P · 오프셋링크RS160150.828.5831.75-
    RS160-2-2POL2P · 오프셋링크RS160250.828.5831.75-
    RS160-3-2POL2P · 오프셋링크RS160350.828.5831.75-
    RS160-4-2POL2P · 오프셋링크RS160450.828.5831.75-
    RS160-5-2POL2P · 오프셋링크RS160550.828.5831.75-
    RS160-6-2POL2P · 오프셋링크RS160650.828.5831.75-
    RS180-1-2POL2P · 오프셋링크RS180157.1535.7135.72-
    RS180-2-2POL2P · 오프셋링크RS180257.1535.7135.72-
    RS180-3-2POL2P · 오프셋링크RS180357.1535.7135.72-
    RS180-4-2POL2P · 오프셋링크RS180457.1535.7135.72-
    RS180-5-2POL2P · 오프셋링크RS180557.1535.7135.72-
    RS180-6-2POL2P · 오프셋링크RS180657.1535.7135.72-
    RS200-1-2POL2P · 오프셋링크RS200163.539.6838.1-
    RS200-2-2POL2P · 오프셋링크RS200263.539.6838.1-
    RS200-3-2POL2P · 오프셋링크RS200363.539.6838.1-
    RS200-4-2POL2P · 오프셋링크RS200463.539.6838.1-
    RS200-5-2POL2P · 오프셋링크RS200563.539.6838.1-
    RS200-6-2POL2P · 오프셋링크RS200663.539.6838.1-
    RS240-1-2POL2P · 오프셋링크RS240176.247.6347.63-
    RS240-2-2POL2P · 오프셋링크RS240276.247.6347.63-
    RS240-3-2POL2P · 오프셋링크RS240376.247.6347.63-
    RS240-4-2POL2P · 오프셋링크RS240476.247.6347.63-
    RS240-5-2POL2P · 오프셋링크RS240576.247.6347.63-
    RS240-6-2POL2P · 오프셋링크RS240676.247.6347.63-
    RS35-CLIP그립RS35-----
    RS37-CLIP그립RS37-----
    RS40-CLIP그립RS40-----
    RS50-CLIP그립RS50-----
    RS60-CLIP그립RS60-----

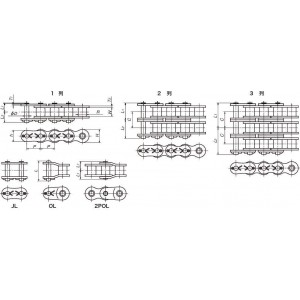

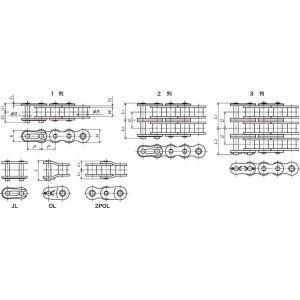

    형식플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)핀(mm)오프셋핀길이
    L(mm)
    횡피치
    C(mm)
    형식두께
    T

    H

    h
    핀경
    D
    핀길이
    L1+L2
    L1L2오프셋핀길이
    L(mm)
    횡피치
    C(mm)
    RS15-1-RP-50UR0.64.34.31.626.93.053.85--
    RS25-1-RP-150UR0.745.845.052.318.33.84.5--
    RS35-1-RP-20UR1.2597.83.5912.75.856.85--
    RS35-2-RP-10UR1.2597.83.5922.810.911.9--
    RS37-1-RP-20UR19.88.43.63115.15.9-10.1
    RS38-1-RP-20UR1.19.88.43.6313.167.1--
    RS41-1-RP-20UR1.259.88.43.5914.76.757.95--
    RS40-1-RP-15UR1.51210.43.9718.28.259.95--
    RS40-2-RP-10UR1.51210.43.9732.615.4517.15--
    RS50-1-RP-10UR215135.0922.210.311.9-14.4
    RS50-2-RP-5UR215135.0940.519.3521.15--
    RS60-1-RP-10UR2.418.115.65.6927.612.8514.75-18.1
    RS60-2-RP-5UR2.418.115.65.6950.524.2526.25--
    RS80-1-RP-5UR3.224.120.87.9435.516.2519.25-22.8
    RS15-1-RP-U0.64.34.31.626.93.053.85--
    RS25-1-RP-U0.745.845.052.318.33.84.5--
    RS25-2-RP-U0.745.845.052.3114.76.957.75--
    RS25-3-RP-U0.745.845.052.3121.110.1510.95-6.4
    BF25-H-1-RP-U0.745.845.842.318.824.014.81-6.4
    RS35-1-RP-U1.2597.83.5912.75.856.85--
    RS35-2-RP-U1.2597.83.5922.810.911.9--
    RS35-3-RP-U1.2597.83.5932.91616.9-10.1
    RS37-1-RP-U19.88.43.63115.15.9-10.1
    RS38-1-RP-U1.19.88.43.6313.167.1--
    RS41-1-RP-U1.259.88.43.5914.76.757.95--
    RS40-1-RP-U1.51210.43.9718.28.259.95--
    RS40-2-RP-U1.51210.43.9732.615.4517.15--
    RS40-3-RP-U1.51210.43.9746.822.6524.15-14.4
    RS50-1-RP-U215135.0922.210.311.9-14.4
    RS50-2-RP-U215135.0940.519.3521.15--
    RS50-3-RP-U215135.0958.628.430.2-18.1
    RS60-1-CP-U2.418.115.65.6927.612.8514.75-18.1
    RS60-1-RP-U2.418.115.65.6927.612.8514.75--
    RS60-2-RP-U2.418.115.65.6950.524.2526.25--
    RS60-3-RP-U2.418.115.65.6973.835.6538.15-22.8
    RS80-1-CP-U3.224.120.87.9435.516.2519.25-22.8
    RS80-1-RP-U3.224.120.87.9435.516.2519.25--
    RS80-2-CP-U3.224.120.87.9464.830.933.9--
    RS80-2-RP-U3.224.120.87.9464.830.933.9-29.3
    RS80-3-RP-U3.224.120.87.9494.145.648.5-29.3
    RS100-1-CP-U430.1269.5442.619.7522.85-29.3
    RS100-1-RP-U430.1269.5442.619.7522.85--
    RS100-2-CP-U430.1269.5478.537.740.8--
    RS100-3-CP-U430.1269.54114.455.6558.75-35.8
    RS120-1-CP-U4.836.231.211.1153.824.928.9-35.8
    RS120-1-RP-U4.836.231.211.1153.824.928.9--
    RS120-2-CP-U4.836.231.211.1199.247.651.6--
    RS140-1-CP-U5.642.236.412.7158.626.931.7-45.4
    RS140-2-CP-U5.642.236.412.71107.551.3556.15--
    RS160-1-CP-U6.448.241.614.2968.731.8536.85-48.9
    RS160-2-CP-U6.448.241.614.29127.361.1566.15--
    RS180-1-CP-U7.1554.246.817.4678.135.6542.45-58.5
    RS180-2-CP-U7.1554.246.817.46144.168.7575.35--
    RS200-1-CP-U860.35219.8583.83944.8-65.8
    RS200-2-CP-U860.35219.85155.574.8580.65--
    RS240-1-RP-U9.572.462.423.81103.447.955.5-71.6
    RS15-1-RP0.64.34.31.626.93.053.85--
    RS25-1-RP0.745.845.052.318.33.84.5--
    RS25-2-RP0.745.845.052.3114.76.957.75--
    RS25-3-RP0.745.845.052.3121.110.1510.95-6.4
    BF25-H-1-RP0.745.845.842.318.824.014.81-6.4
    RS35-1-RP1.2597.83.5912.75.856.85--
    RS35-2-RP1.2597.83.5922.810.911.9--
    RS35-3-RP1.2597.83.5932.91616.9-10.1
    RS37-1-RP19.88.43.63115.15.9-10.1
    RS38-1-RP1.19.88.43.6313.167.1--
    RS41-1-RP1.259.88.43.5914.76.757.95--
    RS40-1-RP1.51210.43.9718.28.259.95--
    RS40-2-RP1.51210.43.9732.615.4517.15--
    RS40-3-RP1.51210.43.9746.822.6524.15-14.4
    RS40-4-RP1.51210.43.976.1229.931.3-14.4
    RS40-5-RP1.51210.43.9775.737.138.6-14.4
    RS40-6-RP1.51210.43.9790.144.345.8-14.4
    RS50-1-RP215135.0922.210.311.9-14.4
    RS50-2-RP215135.0940.519.3521.15--
    RS50-3-RP215135.0958.628.430.2-18.1
    RS50-4-RP215135.0976.737.4539.25-18.1
    RS50-5-RP215135.0994.846.548.3-18.1
    RS50-6-RP215135.0911355.657.4-18.1
    RS60-1-CP2.418.115.65.6927.612.8514.75-18.1
    RS60-1-RP2.418.115.65.6927.612.8514.75--
    RS60-2-RP2.418.115.65.6950.524.2526.25--
    RS60-3-RP2.418.115.65.6973.835.6538.15-22.8
    RS60-4-RP2.418.115.65.6996.647.0549.55-22.8
    RS60-5-RP2.418.115.65.69119.558.561-22.8
    RS60-6-RP2.418.115.65.69142.469.972.5-22.8
    RS80-1-CP3.224.120.87.9435.516.2519.25-22.8
    RS80-1-RP3.224.120.87.9435.516.2519.25--
    RS80-2-CP3.224.120.87.9464.830.933.9--
    RS80-2-RP3.224.120.87.9464.830.933.9-29.3
    RS80-3-RP3.224.120.87.9494.145.648.5-29.3
    RS80-4-RP3.224.120.87.94123.560.2563.25-29.3
    RS80-5-RP3.224.120.87.94152.974.9577.95-29.3
    RS80-6-RP3.224.120.87.94182.189.692.5-29.3
    RS100-1-CP430.1269.5442.619.7522.85-29.3
    RS100-1-RP430.1269.5442.619.7522.85--
    RS100-2-CP430.1269.5478.537.740.8--
    RS100-3-CP430.1269.54114.455.6558.75-35.8
    RS100-4-RP430.1269.54150.273.5576.65-35.8
    RS100-5-RP430.1269.54186.191.594.6-35.8
    RS100-6-RP430.1269.54222109.45112.55-35.8
    RS120-1-CP4.836.231.211.1153.824.928.9-35.8
    RS120-1-RP4.836.231.211.1153.824.928.9--
    RS120-2-CP4.836.231.211.1199.247.651.6--
    RS120-3-CP4.836.231.211.11144.870.474.4-45.4
    RS120-4-RP4.836.231.211.11190.293.197.1-45.4
    RS120-5-RP4.836.231.211.11235.7115.85119.85-45.4
    RS120-6-RP4.836.231.211.11281.1138.55142.55-45.4
    RS140-1-CP5.642.236.412.7158.626.931.7-45.4
    RS140-2-CP5.642.236.412.71107.551.3556.15--
    RS140-3-CP5.642.236.412.71156.675.8580.75-48.9
    RS140-4-RP5.642.236.412.71205.5100.3105.2-48.9
    RS140-5-RP5.642.236.412.71254.4124.8129.6-48.9
    RS140-6-RP5.642.236.412.71303.5149.3154.2-48.9
    RS160-1-CP6.448.241.614.2968.731.8536.85-48.9
    RS160-2-CP6.448.241.614.29127.361.1566.15--
    RS160-3-CP6.448.241.614.29185.990.4595.45-58.5
    RS160-4-RP6.448.241.614.29244.4119.75124.65-58.5
    RS160-5-RP6.448.241.614.29303149.05153.95-58.5
    RS160-6-RP6.448.241.614.29361.6178.3183.3-58.5
    RS180-1-CP7.1554.246.817.4678.135.6542.45-58.5
    RS180-2-CP7.1554.246.817.46144.168.7575.35--
    RS180-3-RP7.1554.246.817.46210.2101.7108.5-65.8
    RS180-4-RP7.1554.246.817.46276.1134.65141.45-65.8
    RS180-5-RP7.1554.246.817.46342167.6174.4-65.8
    RS180-6-RP7.1554.246.817.46407.9200.55207.35-65.8
    RS200-1-CP860.35219.8583.83944.8-65.8
    RS200-2-CP860.35219.85155.574.8580.65--
    RS200-3-RP860.35219.85227.2110.75116.45-71.6
    RS200-4-RP860.35219.85298.9146.6152.3-71.6
    RS200-5-RP860.35219.85370.6182.4188.2-71.6
    RS200-6-RP860.35219.85442.3218.25224.05-71.6
    RS240-1-RP9.572.462.423.81103.447.955.5-71.6
    RS240-2-RP9.572.462.423.81191.391.999.4--
    RS240-3-RP9.572.462.423.81279135.85143.15-87.8
    RS240-4-RP9.572.462.423.81367.1179.3187.3-87.8
    RS240-5-RP9.572.462.423.81455223.75231.25-87.8
    RS240-6-RP9.572.462.423.81542.8267.7275.1-87.8
    RS15-1-JL0.64.34.31.626.93.053.85-87.8
    RS25-1-JL0.745.845.052.318.33.84.5--
    RS25-2-JL0.745.845.052.3114.76.957.75--
    RS25-3-JL0.745.845.052.3121.110.1510.95-6.4
    BF25-H-1-JL0.745.845.842.318.824.014.81-6.4
    RS35-1-JL1.2597.83.5912.75.856.85--
    RS35-2-JL1.2597.83.5922.810.911.9--
    RS35-3-JL1.2597.83.5932.91616.9-10.1
    RS37-1-JL19.88.43.63115.15.9-10.1
    RS38-1-JL1.19.88.43.6313.167.1--
    RS41-1-JL1.259.88.43.5914.76.757.95--
    RS40-1-JL1.51210.43.9718.28.259.95--
    RS40-2-JL1.51210.43.9732.615.4517.15--
    RS40-3-JL1.51210.43.9746.822.6524.15-14.4
    RS40-4-JL1.51210.43.976.1229.931.3-14.4
    RS40-5-JL1.51210.43.9775.737.138.6-14.4
    RS40-6-JL1.51210.43.9790.144.345.8-14.4
    RS50-1-JL215135.0922.210.311.9-14.4
    RS50-2-JL215135.0940.519.3521.15--
    RS50-3-JL215135.0958.628.430.2-18.1
    RS50-4-JL215135.0976.737.4539.25-18.1
    RS50-5-JL215135.0994.846.548.3-18.1
    RS50-6-JL215135.0911355.657.4-18.1
    RS60-1-JL2.418.115.65.6927.612.8514.75-18.1
    RS60-2-JL2.418.115.65.6950.524.2526.25--
    RS60-3-JL2.418.115.65.6973.835.6538.15-22.8
    RS60-4-JL2.418.115.65.6996.647.0549.55-22.8
    RS60-5-JL2.418.115.65.69119.558.561-22.8
    RS60-6-JL2.418.115.65.69142.469.972.5-22.8
    RS80-1-JL3.224.120.87.9435.516.2519.25-22.8
    RS80-2-JL3.224.120.87.9464.830.933.9--
    RS80-3-JL3.224.120.87.9494.145.648.5-29.3
    RS80-4-JL3.224.120.87.94123.560.2563.25-29.3
    RS80-5-JL3.224.120.87.94152.974.9577.95-29.3
    RS80-6-JL3.224.120.87.94182.189.692.5-29.3
    RS100-1-JL430.1269.5442.619.7522.85-29.3
    RS100-2-JL430.1269.5478.537.740.8--
    RS100-3-JL430.1269.54114.455.6558.75-35.8
    RS100-4-JL430.1269.54150.273.5576.65-35.8
    RS100-5-JL430.1269.54186.191.594.6-35.8
    RS100-6-JL430.1269.54222109.45112.55-35.8
    RS120-1-JL4.836.231.211.1153.824.928.9-35.8
    RS120-2-JL4.836.231.211.1199.247.651.6--
    RS120-3-JL4.836.231.211.11144.870.474.4-45.4
    RS120-4-JL4.836.231.211.11190.293.197.1-45.4
    RS120-5-JL4.836.231.211.11235.7115.85119.85-45.4
    RS120-6-JL4.836.231.211.11281.1138.55142.55-45.4
    RS140-1-JL5.642.236.412.7158.626.931.7-45.4
    RS140-2-JL5.642.236.412.71107.551.3556.15--
    RS140-3-JL5.642.236.412.71156.675.8580.75-48.9
    RS140-4-JL5.642.236.412.71205.5100.3105.2-48.9
    RS140-5-JL5.642.236.412.71254.4124.8129.6-48.9
    RS140-6-JL5.642.236.412.71303.5149.3154.2-48.9
    RS160-1-JL6.448.241.614.2968.731.8536.85-48.9
    RS160-2-JL6.448.241.614.29127.361.1566.15--
    RS160-3-JL6.448.241.614.29185.990.4595.45-58.5
    RS160-4-JL6.448.241.614.29244.4119.75124.65-58.5
    RS160-5-JL6.448.241.614.29303149.05153.95-58.5
    RS160-6-JL6.448.241.614.29361.6178.3183.3-58.5
    RS180-1-JL7.1554.246.817.4678.135.6542.45-58.5
    RS180-2-JL7.1554.246.817.46144.168.7575.35--
    RS180-3-JL7.1554.246.817.46210.2101.7108.5-65.8
    RS180-4-JL7.1554.246.817.46276.1134.65141.45-65.8
    RS180-5-JL7.1554.246.817.46342167.6174.4-65.8
    RS180-6-JL7.1554.246.817.46407.9200.55207.35-65.8
    RS200-1-JL860.35219.8583.83944.8-65.8
    RS200-2-JL860.35219.85155.574.8580.65--
    RS200-3-JL860.35219.85227.2110.75116.45-71.6
    RS200-4-JL860.35219.85298.9146.6152.3-71.6
    RS200-5-JL860.35219.85370.6182.4188.2-71.6
    RS200-6-JL860.35219.85442.3218.25224.05-71.6
    RS240-1-JL9.572.462.423.81103.447.955.5-71.6
    RS240-2-JL9.572.462.423.81191.391.999.4--
    RS240-3-JL9.572.462.423.81279135.85143.15-87.8
    RS240-4-JL9.572.462.423.81367.1179.3187.3-87.8
    RS240-5-JL9.572.462.423.81455223.75231.25-87.8
    RS240-6-JL9.572.462.423.81542.8267.7275.1-87.8
    RS35-1-FJL1.2597.83.5912.75.856.85-87.8
    RS40-1-FJL1.51210.43.9718.28.259.95--
    RS50-1-FJL215135.0922.210.311.9--
    RS60-1-FJL2.418.115.65.6927.612.8514.75--
    RS80-1-FJL3.224.120.87.9435.516.2519.25--
    RS100-1-FJL430.1269.5442.619.7522.85--
    RS120-1-FJL4.836.231.211.1153.824.928.9--
    RS140-1-FJL5.642.236.412.7158.626.931.7--
    RS160-1-FJL6.448.241.614.2968.731.8536.85--
    RS180-1-FJL7.1554.246.817.4678.135.6542.45--
    RS200-1-FJL860.35219.8583.83944.8--
    RS240-1-FJL9.572.462.423.81103.447.955.5--
    RS35-1-OL1.2597.83.5912.75.856.85--
    RS35-2-OL1.2597.83.5922.810.911.913.5-
    RS35-3-OL1.2597.83.5932.91616.924.510.1
    RS37-1-OL19.88.43.63115.15.934.610.1
    RS38-1-OL1.19.88.43.6313.167.112.45-
    RS40-1-OL1.51210.43.9718.28.259.9514.1-
    RS41-1-OL1.259.88.43.5914.76.757.9517.9-
    RS40-2-OL1.51210.43.9732.615.4517.1515.1-
    RS40-3-OL1.51210.43.9746.822.6524.1533.514.4
    RS40-4-OL1.51210.43.976.1229.931.347.914.4
    RS40-5-OL1.51210.43.9775.737.138.662.314.4
    RS40-6-OL1.51210.43.9790.144.345.876.814.4
    RS50-1-OL215135.0922.210.311.991.214.4
    RS50-2-OL215135.0940.519.3521.1522.5-
    RS50-3-OL215135.0958.628.430.241.818.1
    RS50-4-OL215135.0976.737.4539.2559.918.1
    RS50-5-OL215135.0994.846.548.378.118.1
    RS50-6-OL215135.0911355.657.496.218.1
    RS60-1-OL2.418.115.65.6927.612.8514.75114.418.1
    RS60-2-OL2.418.115.65.6950.524.2526.2528.2-
    RS60-3-OL2.418.115.65.6973.835.6538.1552.622.8
    RS60-4-OL2.418.115.65.6996.647.0549.5575.522.8
    RS60-5-OL2.418.115.65.69119.558.56198.322.8
    RS60-6-OL2.418.115.65.69142.469.972.5121.222.8
    RS80-1-OL3.224.120.87.9435.516.2519.2514422.8
    RS80-2-OL3.224.120.87.9464.830.933.936.6-
    RS80-3-OL3.224.120.87.9494.145.648.567.529.3
    RS80-4-OL3.224.120.87.94123.560.2563.2596.929.3
    RS80-5-OL3.224.120.87.94152.974.9577.95126.329.3
    RS80-6-OL3.224.120.87.94182.189.692.5155.629.3
    RS100-1-OL430.1269.5442.619.7522.85184.929.3
    RS100-2-OL430.1269.5478.537.740.843.7-
    RS100-3-OL430.1269.54114.455.6558.7581.535.8
    RS100-4-OL430.1269.54150.273.5576.65117.335.8
    RS100-5-OL430.1269.54186.191.594.6153.135.8
    RS100-6-OL430.1269.54222109.45112.55188.935.8
    RS120-1-OL4.836.231.211.1153.824.928.9224.735.8
    RS120-2-OL4.836.231.211.1199.247.651.655-
    RS120-3-OL4.836.231.211.11144.870.474.4103.245.4
    RS120-4-OL4.836.231.211.11190.293.197.1148.645.4
    RS120-5-OL4.836.231.211.11235.7115.85119.8519445.4
    RS120-6-OL4.836.231.211.11281.1138.55142.55239.445.4
    RS140-1-OL5.642.236.412.7158.626.931.7284.845.4
    RS140-2-OL5.642.236.412.71107.551.3556.1559.5-
    RS140-3-OL5.642.236.412.71156.675.8580.75112.348.9
    RS140-4-OL5.642.236.412.71205.5100.3105.2161.348.9
    RS140-5-OL5.642.236.412.71254.4124.8129.6210.248.9
    RS140-6-OL5.642.236.412.71303.5149.3154.2259.148.9
    RS160-1-OL6.448.241.614.2968.731.8536.8530848.9
    RS160-2-OL6.448.241.614.29127.361.1566.1570.2-
    RS160-3-OL6.448.241.614.29185.990.4595.45132.258.5
    RS160-4-OL6.448.241.614.29244.4119.75124.65190.758.5
    RS160-5-OL6.448.241.614.29303149.05153.95249.258.5
    RS160-6-OL6.448.241.614.29361.6178.3183.3307.758.5
    RS180-1-OL7.1554.246.817.4678.135.6542.45366.258.5
    RS180-2-OL7.1554.246.817.46144.168.7575.3580.6-
    RS180-3-OL7.1554.246.817.46210.2101.7108.5151.165.8
    RS180-4-OL7.1554.246.817.46276.1134.65141.45216.965.8
    RS180-5-OL7.1554.246.817.46342167.6174.4282.865.8
    RS180-6-OL7.1554.246.817.46407.9200.55207.35348.665.8
    RS200-1-OL860.35219.8583.83944.8414.465.8
    RS200-2-OL860.35219.85155.574.8580.6587.3-
    RS200-3-OL860.35219.85227.2110.75116.45161.271.6
    RS200-4-OL860.35219.85298.9146.6152.323371.6
    RS200-5-OL860.35219.85370.6182.4188.2304.771.6
    RS200-6-OL860.35219.85442.3218.25224.05376.371.6
    RS240-1-OL9.572.462.423.81103.447.955.544871.6
    RS240-2-OL9.572.462.423.81191.391.999.4106.7-
    RS240-3-OL9.572.462.423.81279135.85143.15198.487.8
    RS240-4-OL9.572.462.423.81367.1179.3187.3286.387.8
    RS240-5-OL9.572.462.423.81455223.75231.25374.287.8
    RS240-6-OL9.572.462.423.81542.8267.7275.146287.8
    RS25-1-2POL0.745.845.052.318.33.84.5550.187.8
    RS25-2-2POL0.745.845.052.3114.76.957.75--
    RS25-3-2POL0.745.845.052.3121.110.1510.95-6.4
    RS35-1-2POL1.2597.83.5912.75.856.85-6.4
    RS40-1-2POL1.51210.43.9718.28.259.95--
    RS40-2-2POL1.51210.43.9732.615.4517.15--
    RS40-3-2POL1.51210.43.9746.822.6524.15-14.4
    RS50-1-2POL215135.0922.210.311.9-14.4
    RS50-2-2POL215135.0940.519.3521.15--
    RS50-3-2POL215135.0958.628.430.2-18.1
    RS60-1-2POL2.418.115.65.6927.612.8514.75-18.1
    RS60-2-2POL2.418.115.65.6950.524.2526.25--
    RS60-3-2POL2.418.115.65.6973.835.6538.15-22.8
    RS80-1-2POL3.224.120.87.9435.516.2519.25-22.8
    RS80-2-2POL3.224.120.87.9464.830.933.9--
    RS80-3-2POL3.224.120.87.9494.145.648.5-29.3
    RS80-4-2POL3.224.120.87.94123.560.2563.25-29.3
    RS80-5-2POL3.224.120.87.94152.974.9577.95-29.3
    RS80-6-2POL3.224.120.87.94182.189.692.5-29.3
    RS100-1-2POL430.1269.5442.619.7522.85-29.3
    RS100-2-2POL430.1269.5478.537.740.8--
    RS100-3-2POL430.1269.54114.455.6558.75-35.8
    RS100-4-2POL430.1269.54150.273.5576.65-35.8
    RS100-5-2POL430.1269.54186.191.594.6-35.8
    RS100-6-2POL430.1269.54222109.45112.55-35.8
    RS120-1-2POL4.836.231.211.1153.824.928.9-35.8
    RS120-2-2POL4.836.231.211.1199.247.651.6--
    RS120-3-2POL4.836.231.211.11144.870.474.4-45.4
    RS120-4-2POL4.836.231.211.11190.293.197.1-45.4
    RS120-5-2POL4.836.231.211.11235.7115.85119.85-45.4
    RS120-6-2POL4.836.231.211.11281.1138.55142.55-45.4
    RS140-1-2POL5.642.236.412.7158.626.931.7-45.4
    RS140-2-2POL5.642.236.412.71107.551.3556.15--
    RS140-3-2POL5.642.236.412.71156.675.8580.75-48.9
    RS140-4-2POL5.642.236.412.71205.5100.3105.2-48.9
    RS140-5-2POL5.642.236.412.71254.4124.8129.6-48.9
    RS140-6-2POL5.642.236.412.71303.5149.3154.2-48.9
    RS160-1-2POL6.448.241.614.2968.731.8536.85-48.9
    RS160-2-2POL6.448.241.614.29127.361.1566.15--
    RS160-3-2POL6.448.241.614.29185.990.4595.45-58.5
    RS160-4-2POL6.448.241.614.29244.4119.75124.65-58.5
    RS160-5-2POL6.448.241.614.29303149.05153.95-58.5
    RS160-6-2POL6.448.241.614.29361.6178.3183.3-58.5
    RS180-1-2POL7.1554.246.817.4678.135.6542.45-58.5
    RS180-2-2POL7.1554.246.817.46144.168.7575.35--
    RS180-3-2POL7.1554.246.817.46210.2101.7108.5-65.8
    RS180-4-2POL7.1554.246.817.46276.1134.65141.45-65.8
    RS180-5-2POL7.1554.246.817.46342167.6174.4-65.8
    RS180-6-2POL7.1554.246.817.46407.9200.55207.35-65.8
    RS200-1-2POL860.35219.8583.83944.8-65.8
    RS200-2-2POL860.35219.85155.574.8580.65--
    RS200-3-2POL860.35219.85227.2110.75116.45-71.6
    RS200-4-2POL860.35219.85298.9146.6152.3-71.6
    RS200-5-2POL860.35219.85370.6182.4188.2-71.6
    RS200-6-2POL860.35219.85442.3218.25224.05-71.6
    RS240-1-2POL9.572.462.423.81103.447.955.5-71.6
    RS240-2-2POL9.572.462.423.81191.391.999.4--
    RS240-3-2POL9.572.462.423.81279135.85143.15-87.8
    RS240-4-2POL9.572.462.423.81367.1179.3187.3-87.8
    RS240-5-2POL9.572.462.423.81455223.75231.25-87.8
    RS240-6-2POL9.572.462.423.81542.8267.7275.1-87.8
    RS35-CLIP--------87.8
    RS37-CLIP---------
    RS40-CLIP---------
    RS50-CLIP---------
    RS60-CLIP---------
    형식JIS인장강도
    (kN)
    최소인장강도
    (kN)
    평균인장강도
    (kN)
    최대허용장력
    (kN)
    최대허용장력
    (kg/m)
    링크수유니트수
    형식JIS인장강도
    (kN)
    최소인장강도
    (kN)
    평균인장강도
    (kN)
    최대허용장력
    (kN)
    최대허용장력
    (kg/m)
    링크수유니트수
    RS15-1-RP-50UR-1.772.260.310.0751049950
    RS25-1-RP-150UR3.64.124.710.640.1423999150
    RS35-1-RP-20UR8.79.8111.32.160.33639920
    RS35-2-RP-10UR17.419.622.63.630.69319910
    RS37-1-RP-20UR-8.149.411.370.29479920
    RS38-1-RP-20UR-8.149.411.370.35479920
    RS41-1-RP-20UR-10.311.82.260.41479920
    RS40-1-RP-15UR15.217.719.13.630.64359915
    RS40-2-RP-10UR30.435.338.26.181.27239910
    RS50-1-RP-10UR2428.431.46.371.04191910
    RS50-2-RP-5UR4856.962.810.72.079595
    RS60-1-RP-10UR34.240.244.18.831.53159910
    RS60-2-RP-5UR68.480.488.3153.047995
    RS80-1-RP-5UR61.271.678.514.72.665995
    RS15-1-RP-U-1.772.260.310.075210-
    RS25-1-RP-U3.64.124.710.640.14160-
    RS25-2-RP-U7.28.249.411.080.27160-
    RS25-3-RP-U10.812.414.11.570.42160-
    BF25-H-1-RP-U--5.880.780.17160-
    RS35-1-RP-U8.79.8111.32.160.33320-
    RS35-2-RP-U17.419.622.63.630.69320-
    RS35-3-RP-U26.129.433.85.391.05320-
    RS37-1-RP-U-8.149.411.370.29240-
    RS38-1-RP-U-8.149.411.370.35240-
    RS41-1-RP-U-10.311.82.260.41240-
    RS40-1-RP-U15.217.719.13.630.64240-
    RS40-2-RP-U30.435.338.26.181.27240-
    RS40-3-RP-U45.65357.49.121.9240-
    RS50-1-RP-U2428.431.46.371.04192-
    RS50-2-RP-U4856.962.810.72.07192-
    RS50-3-RP-U7285.394.1163.09192-
    RS60-1-CP-U34.240.244.18.831.53160-
    RS60-1-RP-U34.240.244.18.831.53160-
    RS60-2-RP-U68.480.488.3153.04160-
    RS60-3-RP-U102.612113222.14.54160-
    RS80-1-CP-U61.271.678.514.72.66120-
    RS80-1-RP-U61.271.678.514.72.66120-
    RS80-2-CP-U122.4143157255.27120-
    RS80-2-RP-U122.4143157255.27120-
    RS80-3-RP-U183.621523536.87.89120-
    RS100-1-CP-U95.410711822.63.9996-
    RS100-1-RP-U95.410711822.63.9996-
    RS100-2-CP-U190.821423538.37.8596-
    RS100-3-CP-U286.232135356.411.7796-
    RS120-1-CP-U137.114816730.45.9380-
    RS120-1-RP-U137.114816730.45.9380-
    RS120-2-CP-U274.229633351.711.780-
    RS140-1-CP-U185.919321640.27.4968-
    RS140-2-CP-U371.838643168.414.8368-
    RS160-1-CP-U244.62552795310.160-
    RS160-2-CP-U489.25105599020.0460-
    RS180-1-CP-U308.233637060.813.4554-
    RS180-2-CP-U616.467373910326.5254-
    RS200-1-CP-U381.742747171.616.4948-
    RS200-2-CP-U763.485394112232.6348-
    RS240-1-RP-U550.46236869924.540-
    RS15-1-RP-1.772.260.310.075--
    RS25-1-RP3.64.124.710.640.14--
    RS25-2-RP7.28.249.411.080.27--
    RS25-3-RP10.812.414.11.570.42--
    BF25-H-1-RP--5.880.780.17--
    RS35-1-RP8.79.8111.32.160.33--
    RS35-2-RP17.419.622.63.630.69--
    RS35-3-RP26.129.433.85.391.05--
    RS37-1-RP-8.149.411.370.29--
    RS38-1-RP-8.149.411.370.35--
    RS41-1-RP-10.311.82.260.41--
    RS40-1-RP15.217.719.13.630.64--
    RS40-2-RP30.435.338.26.181.27--
    RS40-3-RP45.65357.49.121.9--
    RS40-4-RP-70.676.5122.53--
    RS40-5-RP-88.395.614.13.16--
    RS40-6-RP-10611516.73.79--
    RS50-1-RP2428.431.46.371.04--
    RS50-2-RP4856.962.810.72.07--
    RS50-3-RP7285.394.1163.09--
    RS50-4-RP-11412621.14.11--
    RS50-5-RP-14215724.95.14--
    RS50-6-RP-17118829.36.16--
    RS60-1-CP34.240.244.18.831.53--
    RS60-1-RP34.240.244.18.831.53--
    RS60-2-RP68.480.488.3153.04--
    RS60-3-RP102.612113222.14.54--
    RS60-4-RP-16117729.16.04--
    RS60-5-RP-20122134.47.54--
    RS60-6-RP-24126540.69.05--
    RS80-1-CP61.271.678.514.72.66--
    RS80-1-RP61.271.678.514.72.66--
    RS80-2-CP122.4143157255.27--
    RS80-2-RP122.4143157255.27--
    RS80-3-RP183.621523536.87.89--
    RS80-4-RP-28631448.510.5--
    RS80-5-RP-35839257.413.11--
    RS80-6-RP-43047167.715.73--
    RS100-1-CP95.410711822.63.99--
    RS100-1-RP95.410711822.63.99--
    RS100-2-CP190.821423538.37.85--
    RS100-3-CP286.232135356.411.77--
    RS100-4-RP-42847174.415.7--
    RS100-5-RP-5345888819.53--
    RS100-6-RP-64170610423.48--
    RS120-1-CP137.114816730.45.93--
    RS120-1-RP137.114816730.45.93--
    RS120-2-CP274.229633351.711.7--
    RS120-3-CP411.34445007617.53--
    RS120-4-RP-59266710023.36--
    RS120-5-RP-74083411929.16--
    RS120-6-RP-888100014034.96--
    RS140-1-CP185.919321640.27.49--
    RS140-2-CP371.838643168.414.83--
    RS140-3-CP557.758064710122.2--
    RS140-4-RP-77386313328.52--
    RS140-5-RP-966108015736.97--
    RS140-6-RP-1160129018544.3--
    RS160-1-CP244.62552795310.1--
    RS160-2-CP489.25105599020.04--
    RS160-3-CP733.876583813230.02--
    RS160-4-RP-1020112017540.06--
    RS160-5-RP-1270140020749.89--
    RS160-6-RP-1530168024459.93--
    RS180-1-CP308.233637060.813.45--
    RS180-2-CP616.467373910326.52--
    RS180-3-RP924.61010111015238.22--
    RS180-4-RP-1350148020150.9--
    RS180-5-RP-1680185023763.59--
    RS180-6-RP-2020218028076.27--
    RS200-1-CP381.742747171.616.49--
    RS200-2-CP763.485394112232.63--
    RS200-3-RP1145.11280141017949.02--
    RS200-4-RP-1710188023665.16--
    RS200-5-RP-2130235027981.32--
    RS200-6-RP-2560282032997.59--
    RS240-1-RP550.46236869924.5--
    RS240-2-RP1100.81250137016848.1--
    RS240-3-RP1651.21870206024871.6--
    RS240-4-RP-2490275032795.1--
    RS240-5-RP-31103430386118.6--
    RS240-6-RP-37404120456142.1--
    RS15-1-JL-1.772.260.310.075--
    RS25-1-JL3.64.124.710.640.14--
    RS25-2-JL7.28.249.411.080.27--
    RS25-3-JL10.812.414.11.570.42--
    BF25-H-1-JL--5.880.780.17--
    RS35-1-JL8.79.8111.32.160.33--
    RS35-2-JL17.419.622.63.630.69--
    RS35-3-JL26.129.433.85.391.05--
    RS37-1-JL-8.149.411.370.29--
    RS38-1-JL-8.149.411.370.35--
    RS41-1-JL-10.311.82.260.41--
    RS40-1-JL15.217.719.13.630.64--
    RS40-2-JL30.435.338.26.181.27--
    RS40-3-JL45.65357.49.121.9--
    RS40-4-JL-70.676.5122.53--
    RS40-5-JL-88.395.614.13.16--
    RS40-6-JL-10611516.73.79--
    RS50-1-JL2428.431.46.371.04--
    RS50-2-JL4856.962.810.72.07--
    RS50-3-JL7285.394.1163.09--
    RS50-4-JL-11412621.14.11--
    RS50-5-JL-14215724.95.14--
    RS50-6-JL-17118829.36.16--
    RS60-1-JL34.240.244.18.831.53--
    RS60-2-JL68.480.488.3153.04--
    RS60-3-JL102.612113222.14.54--
    RS60-4-JL-16117729.16.04--
    RS60-5-JL-20122134.47.54--
    RS60-6-JL-24126540.69.05--
    RS80-1-JL61.271.678.514.72.66--
    RS80-2-JL122.4143157255.27--
    RS80-3-JL183.621523536.87.89--
    RS80-4-JL-28631448.510.5--
    RS80-5-JL-35839257.413.11--
    RS80-6-JL-43047167.715.73--
    RS100-1-JL95.410711822.63.99--
    RS100-2-JL190.821423538.37.85--
    RS100-3-JL286.232135356.411.77--
    RS100-4-JL-42847174.415.7--
    RS100-5-JL-5345888819.53--
    RS100-6-JL-64170610423.48--
    RS120-1-JL137.114816730.45.93--
    RS120-2-JL274.229633351.711.7--
    RS120-3-JL411.34445007617.53--
    RS120-4-JL-59266710023.36--
    RS120-5-JL-74083411929.16--
    RS120-6-JL-888100014034.96--
    RS140-1-JL185.919321640.27.49--
    RS140-2-JL371.838643168.414.83--
    RS140-3-JL557.758064710122.2--
    RS140-4-JL-77386313328.52--
    RS140-5-JL-966108015736.97--
    RS140-6-JL-1160129018544.3--
    RS160-1-JL244.62552795310.1--
    RS160-2-JL489.25105599020.04--
    RS160-3-JL733.876583813230.02--
    RS160-4-JL-1020112017540.06--
    RS160-5-JL-1270140020749.89--
    RS160-6-JL-1530168024459.93--
    RS180-1-JL308.233637060.813.45--
    RS180-2-JL616.467373910326.52--
    RS180-3-JL924.61010111015238.22--
    RS180-4-JL-1350148020150.9--
    RS180-5-JL-1680185023763.59--
    RS180-6-JL-2020218028076.27--
    RS200-1-JL381.742747171.616.49--
    RS200-2-JL763.485394112232.63--
    RS200-3-JL1145.11280141017949.02--
    RS200-4-JL-1710188023665.16--
    RS200-5-JL-2130235027981.32--
    RS200-6-JL-2560282032997.59--
    RS240-1-JL550.46236869924.5--
    RS240-2-JL1100.81250137016848.1--
    RS240-3-JL1651.21870206024871.6--
    RS240-4-JL-2490275032795.1--
    RS240-5-JL-31103430386118.6--
    RS240-6-JL-37404120456142.1--
    RS35-1-FJL8.79.8111.32.160.33--
    RS40-1-FJL15.217.719.13.630.64--
    RS50-1-FJL2428.431.46.371.04--
    RS60-1-FJL34.240.244.18.831.53--
    RS80-1-FJL61.271.678.514.72.66--
    RS100-1-FJL95.410711822.63.99--
    RS120-1-FJL137.114816730.45.93--
    RS140-1-FJL185.919321640.27.49--
    RS160-1-FJL244.62552795310.1--
    RS180-1-FJL308.233637060.813.45--
    RS200-1-FJL381.742747171.616.49--
    RS240-1-FJL550.46236869924.5--
    RS35-1-OL8.79.8111.32.160.33--
    RS35-2-OL17.419.622.63.630.69--
    RS35-3-OL26.129.433.85.391.05--
    RS37-1-OL-8.149.411.370.29--
    RS38-1-OL-8.149.411.370.35--
    RS40-1-OL15.217.719.13.630.64--
    RS41-1-OL-10.311.82.260.41--
    RS40-2-OL30.435.338.26.181.27--
    RS40-3-OL45.65357.49.121.9--
    RS40-4-OL-70.676.5122.53--
    RS40-5-OL-88.395.614.13.16--
    RS40-6-OL-10611516.73.79--
    RS50-1-OL2428.431.46.371.04--
    RS50-2-OL4856.962.810.72.07--
    RS50-3-OL7285.394.1163.09--
    RS50-4-OL-11412621.14.11--
    RS50-5-OL-14215724.95.14--
    RS50-6-OL-17118829.36.16--
    RS60-1-OL34.240.244.18.831.53--
    RS60-2-OL68.480.488.3153.04--
    RS60-3-OL102.612113222.14.54--
    RS60-4-OL-16117729.16.04--
    RS60-5-OL-20122134.47.54--
    RS60-6-OL-24126540.69.05--
    RS80-1-OL61.271.678.514.72.66--
    RS80-2-OL122.4143157255.27--
    RS80-3-OL183.621523536.87.89--
    RS80-4-OL-28631448.510.5--
    RS80-5-OL-35839257.413.11--
    RS80-6-OL-43047167.715.73--
    RS100-1-OL95.410711822.63.99--
    RS100-2-OL190.821423538.37.85--
    RS100-3-OL286.232135356.411.77--
    RS100-4-OL-42847174.415.7--
    RS100-5-OL-5345888819.53--
    RS100-6-OL-64170610423.48--
    RS120-1-OL137.114816730.45.93--
    RS120-2-OL274.229633351.711.7--
    RS120-3-OL411.34445007617.53--
    RS120-4-OL-59266710023.36--
    RS120-5-OL-74083411929.16--
    RS120-6-OL-888100014034.96--
    RS140-1-OL185.919321640.27.49--
    RS140-2-OL371.838643168.414.83--
    RS140-3-OL557.758064710122.2--
    RS140-4-OL-77386313328.52--
    RS140-5-OL-966108015736.97--
    RS140-6-OL-1160129018544.3--
    RS160-1-OL244.62552795310.1--
    RS160-2-OL489.25105599020.04--
    RS160-3-OL733.876583813230.02--
    RS160-4-OL-1020112017540.06--
    RS160-5-OL-1270140020749.89--
    RS160-6-OL-1530168024459.93--
    RS180-1-OL308.233637060.813.45--
    RS180-2-OL616.467373910326.52--
    RS180-3-OL924.61010111015238.22--
    RS180-4-OL-1350148020150.9--
    RS180-5-OL-1680185023763.59--
    RS180-6-OL-2020218028076.27--
    RS200-1-OL381.742747171.616.49--
    RS200-2-OL763.485394112232.63--
    RS200-3-OL1145.11280141017949.02--
    RS200-4-OL-1710188023665.16--
    RS200-5-OL-2130235027981.32--
    RS200-6-OL-2560282032997.59--
    RS240-1-OL550.46236869924.5--
    RS240-2-OL1100.81250137016848.1--
    RS240-3-OL1651.21870206024871.6--
    RS240-4-OL-2490275032795.1--
    RS240-5-OL-31103430386118.6--
    RS240-6-OL-37404120456142.1--
    RS25-1-2POL3.64.124.710.640.14--
    RS25-2-2POL7.28.249.411.080.27--
    RS25-3-2POL10.812.414.11.570.42--
    RS35-1-2POL8.79.8111.32.160.33--
    RS40-1-2POL15.217.719.13.630.64--
    RS40-2-2POL30.435.338.26.181.27--
    RS40-3-2POL45.65357.49.121.9--
    RS50-1-2POL2428.431.46.371.04--
    RS50-2-2POL4856.962.810.72.07--
    RS50-3-2POL7285.394.1163.09--
    RS60-1-2POL34.240.244.18.831.53--
    RS60-2-2POL68.480.488.3153.04--
    RS60-3-2POL102.612113222.14.54--
    RS80-1-2POL61.271.678.514.72.66--
    RS80-2-2POL122.4143157255.27--
    RS80-3-2POL183.621523536.87.89--
    RS80-4-2POL-28631448.510.5--
    RS80-5-2POL-35839257.413.11--
    RS80-6-2POL-43047167.715.73--
    RS100-1-2POL95.410711822.63.99--
    RS100-2-2POL190.821423538.37.85--
    RS100-3-2POL286.232135356.411.77--
    RS100-4-2POL-42847174.415.7--
    RS100-5-2POL-5345888819.53--
    RS100-6-2POL-64170610423.48--
    RS120-1-2POL137.114816730.45.93--
    RS120-2-2POL274.229633351.711.7--
    RS120-3-2POL411.34445007617.53--
    RS120-4-2POL-59266710023.36--
    RS120-5-2POL-74083411929.16--
    RS120-6-2POL-888100014034.96--
    RS140-1-2POL185.919321640.27.49--
    RS140-2-2POL371.838643168.414.83--
    RS140-3-2POL557.758064710122.2--
    RS140-4-2POL-77386313328.52--
    RS140-5-2POL-966108015736.97--
    RS140-6-2POL-1160129018544.3--
    RS160-1-2POL244.62552795310.1--
    RS160-2-2POL489.25105599020.04--
    RS160-3-2POL733.876583813230.02--
    RS160-4-2POL-1020112017540.06--
    RS160-5-2POL-1270140020749.89--
    RS160-6-2POL-1530168024459.93--
    RS180-1-2POL308.233637060.813.45--
    RS180-2-2POL616.467373910326.52--
    RS180-3-2POL924.61010111015238.22--
    RS180-4-2POL-1350148020150.9--
    RS180-5-2POL-1680185023763.59--
    RS180-6-2POL-2020218028076.27--
    RS200-1-2POL381.742747171.616.49--
    RS200-2-2POL763.485394112232.63--
    RS200-3-2POL1145.11280141017949.02--
    RS200-4-2POL-1710188023665.16--
    RS200-5-2POL-2130235027981.32--
    RS200-6-2POL-2560282032997.59--
    RS240-1-2POL550.46236869924.5--
    RS240-2-2POL1100.81250137016848.1--
    RS240-3-2POL1651.21870206024871.6--
    RS240-4-2POL-2490275032795.1--
    RS240-5-2POL-31103430386118.6--
    RS240-6-2POL-37404120456142.1--
    RS35-CLIP-------
    RS37-CLIP-------
    RS40-CLIP-------
    RS50-CLIP-------
    RS60-CLIP-------
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커재고아린재고질량견적의뢰 및 주문
    RS15-1-RP-50URP1,848,000----견적의뢰 / 주문
    RS25-1-RP-150URP3,564,000----견적의뢰 / 주문
    RS35-1-RP-20URP1,474,000----견적의뢰 / 주문
    RS35-2-RP-10URP1,661,000----견적의뢰 / 주문
    RS37-1-RP-20URP827,200----견적의뢰 / 주문
    RS38-1-RP-20URP926,200----견적의뢰 / 주문
    RS41-1-RP-20URP1,166,000----견적의뢰 / 주문
    RS40-1-RP-15URP1,331,000----견적의뢰 / 주문
    RS40-2-RP-10URP2,013,000----견적의뢰 / 주문
    RS50-1-RP-10URP1,166,000----견적의뢰 / 주문
    RS50-2-RP-5URP1,320,000----견적의뢰 / 주문
    RS60-1-RP-10URP1,606,000----견적의뢰 / 주문
    RS60-2-RP-5URP1,815,000----견적의뢰 / 주문
    RS80-1-RP-5URP1,452,000----견적의뢰 / 주문
    RS15-1-RP-UP36,960----견적의뢰 / 주문
    RS25-1-RP-UP25,300----견적의뢰 / 주문
    RS25-2-RP-UP160,600----견적의뢰 / 주문
    RS25-3-RP-UP653,400----견적의뢰 / 주문
    BF25-H-1-RP-UP33,440----견적의뢰 / 주문
    RS35-1-RP-UP75,680----견적의뢰 / 주문
    RS35-2-RP-UP166,100----견적의뢰 / 주문
    RS35-3-RP-UP266,200----견적의뢰 / 주문
    RS37-1-RP-UP42,680----견적의뢰 / 주문
    RS38-1-RP-UP47,520----견적의뢰 / 주문
    RS41-1-RP-UP60,280----견적의뢰 / 주문
    RS40-1-RP-UP91,740----견적의뢰 / 주문
    RS40-2-RP-UP201,300----견적의뢰 / 주문
    RS40-3-RP-UP321,200----견적의뢰 / 주문
    RS50-1-RP-UP119,900----견적의뢰 / 주문
    RS50-2-RP-UP264,000----견적의뢰 / 주문
    RS50-3-RP-UP422,400----견적의뢰 / 주문
    RS60-1-CP-UP220,000----견적의뢰 / 주문
    RS60-1-RP-UP165,000----견적의뢰 / 주문
    RS60-2-RP-UP363,000----견적의뢰 / 주문
    RS60-3-RP-UP583,000----견적의뢰 / 주문
    RS80-1-CP-UP363,000----견적의뢰 / 주문
    RS80-1-RP-UP299,200----견적의뢰 / 주문
    RS80-2-CP-UP794,200----견적의뢰 / 주문
    RS80-2-RP-UP657,800----견적의뢰 / 주문
    RS80-3-RP-UP1,047,200----견적의뢰 / 주문
    RS100-1-CP-UP503,800----견적의뢰 / 주문
    RS100-1-RP-UP473,000----견적의뢰 / 주문
    RS100-2-CP-UP1,100,000----견적의뢰 / 주문
    RS100-3-CP-UP1,760,000----견적의뢰 / 주문
    RS120-1-CP-UP739,200----견적의뢰 / 주문
    RS120-1-RP-UP701,800----견적의뢰 / 주문
    RS120-2-CP-UP1,639,000----견적의뢰 / 주문
    RS140-1-CP-UP880,000----견적의뢰 / 주문
    RS140-2-CP-UP1,947,000----견적의뢰 / 주문
    RS160-1-CP-UP1,122,000----견적의뢰 / 주문
    RS160-2-CP-UP2,464,000----견적의뢰 / 주문
    RS180-1-CP-UP1,804,000----견적의뢰 / 주문
    RS180-2-CP-UP3,938,000----견적의뢰 / 주문
    RS200-1-CP-UP2,244,000----견적의뢰 / 주문
    RS200-2-CP-UP4,972,000----견적의뢰 / 주문
    RS240-1-RP-UP3,872,000----견적의뢰 / 주문
    RS15-1-RPL176----견적의뢰 / 주문
    RS25-1-RPL198----견적의뢰 / 주문
    RS25-2-RPL1,122----견적의뢰 / 주문
    RS25-3-RPL4,488----견적의뢰 / 주문
    BF25-H-1-RPP220----견적의뢰 / 주문
    RS35-1-RPL286----견적의뢰 / 주문
    RS35-2-RPL572----견적의뢰 / 주문
    RS35-3-RPL880----견적의뢰 / 주문
    RS37-1-RPL198----견적의뢰 / 주문
    RS38-1-RPL242----견적의뢰 / 주문
    RS41-1-RPL286----견적의뢰 / 주문
    RS40-1-RPL418----견적의뢰 / 주문
    RS40-2-RPL924----견적의뢰 / 주문
    RS40-3-RPL1,452----견적의뢰 / 주문
    RS40-4-RPL3,080----견적의뢰 / 주문
    RS40-5-RPL3,806----견적의뢰 / 주문
    RS40-6-RPL4,576----견적의뢰 / 주문
    RS50-1-RPL726----견적의뢰 / 주문
    RS50-2-RPL1,518----견적의뢰 / 주문
    RS50-3-RPL2,398----견적의뢰 / 주문
    RS50-4-RPL4,400----견적의뢰 / 주문
    RS50-5-RPL5,632----견적의뢰 / 주문
    RS50-6-RPL6,886----견적의뢰 / 주문
    RS60-1-CPL1,518----견적의뢰 / 주문
    RS60-1-RPL1,122----견적의뢰 / 주문
    RS60-2-RPL2,464----견적의뢰 / 주문
    RS60-3-RPL4,070----견적의뢰 / 주문
    RS60-4-RPL6,270----견적의뢰 / 주문
    RS60-5-RPL8,272----견적의뢰 / 주문
    RS60-6-RPL10,318----견적의뢰 / 주문
    RS80-1-CPL3,300----견적의뢰 / 주문
    RS80-1-RPL2,706----견적의뢰 / 주문
    RS80-2-CPL7,326----견적의뢰 / 주문
    RS80-2-RPL6,006----견적의뢰 / 주문
    RS80-3-RPL9,614----견적의뢰 / 주문
    RS80-4-RPL12,430----견적의뢰 / 주문
    RS80-5-RPL14,960----견적의뢰 / 주문
    RS80-6-RPL18,700----견적의뢰 / 주문
    RS100-1-CPL5,896----견적의뢰 / 주문
    RS100-1-RPL5,456----견적의뢰 / 주문
    RS100-2-CPL12,760----견적의뢰 / 주문
    RS100-3-CPL20,240----견적의뢰 / 주문
    RS100-4-RPL26,180----견적의뢰 / 주문
    RS100-5-RPL31,240----견적의뢰 / 주문
    RS100-6-RPL39,380----견적의뢰 / 주문
    RS120-1-CPL10,318----견적의뢰 / 주문
    RS120-1-RPL9,768----견적의뢰 / 주문
    RS120-2-CPL22,440----견적의뢰 / 주문
    RS120-3-CPL36,080----견적의뢰 / 주문
    RS120-4-RPL46,420----견적의뢰 / 주문
    RS120-5-RPL55,660----견적의뢰 / 주문
    RS120-6-RPL70,180----견적의뢰 / 주문
    RS140-1-CPL14,410----견적의뢰 / 주문
    RS140-2-CPL31,240----견적의뢰 / 주문
    RS140-3-CPL49,720----견적의뢰 / 주문
    RS140-4-RPL63,800----견적의뢰 / 주문
    RS140-5-RPL79,860----견적의뢰 / 주문
    RS140-6-RPL95,920----견적의뢰 / 주문
    RS160-1-CPL20,680----견적의뢰 / 주문
    RS160-2-CPL45,320----견적의뢰 / 주문
    RS160-3-CPL72,380----견적의뢰 / 주문
    RS160-4-RPL93,280----견적의뢰 / 주문
    RS160-5-RPL113,300----견적의뢰 / 주문
    RS160-6-RPL141,900----견적의뢰 / 주문
    RS180-1-CPL36,740----견적의뢰 / 주문
    RS180-2-CPL80,960----견적의뢰 / 주문
    RS180-3-RPL128,700----견적의뢰 / 주문
    RS180-4-RPL167,200----견적의뢰 / 주문
    RS180-5-RPL222,200----견적의뢰 / 주문
    RS180-6-RPL268,400----견적의뢰 / 주문
    RS200-1-CPL52,140----견적의뢰 / 주문
    RS200-2-CPL114,400----견적의뢰 / 주문
    RS200-3-RPL181,500----견적의뢰 / 주문
    RS200-4-RPL235,400----견적의뢰 / 주문
    RS200-5-RPL286,000----견적의뢰 / 주문
    RS200-6-RPL354,200----견적의뢰 / 주문
    RS240-1-RPL106,920----견적의뢰 / 주문
    RS240-2-RPL233,200----견적의뢰 / 주문
    RS240-3-RPL369,600----견적의뢰 / 주문
    RS240-4-RPL481,800----견적의뢰 / 주문
    RS240-5-RPL580,800----견적의뢰 / 주문
    RS240-6-RPL708,400----견적의뢰 / 주문
    RS15-1-JLP2,046----견적의뢰 / 주문
    RS25-1-JLP1,562----견적의뢰 / 주문
    RS25-2-JLP3,872----견적의뢰 / 주문
    RS25-3-JLP6,270----견적의뢰 / 주문
    BF25-H-1-JLP1,870----견적의뢰 / 주문
    RS35-1-JLP2,420----견적의뢰 / 주문
    RS35-2-JLP5,016----견적의뢰 / 주문
    RS35-3-JLP7,832----견적의뢰 / 주문
    RS37-1-JLP1,320----견적의뢰 / 주문
    RS38-1-JLP1,518----견적의뢰 / 주문
    RS41-1-JLP2,046----견적의뢰 / 주문
    RS40-1-JLP2,684----견적의뢰 / 주문
    RS40-2-JLP5,566----견적의뢰 / 주문
    RS40-3-JLP8,778----견적의뢰 / 주문
    RS40-4-JLP18,810----견적의뢰 / 주문
    RS40-5-JLP23,760----견적의뢰 / 주문
    RS40-6-JLP28,600----견적의뢰 / 주문
    RS50-1-JLP3,256----견적의뢰 / 주문
    RS50-2-JLP6,842----견적의뢰 / 주문
    RS50-3-JLP10,692----견적의뢰 / 주문
    RS50-4-JLP20,680----견적의뢰 / 주문
    RS50-5-JLP26,400----견적의뢰 / 주문
    RS50-6-JLP31,900----견적의뢰 / 주문
    RS60-1-JLP4,334----견적의뢰 / 주문
    RS60-2-JLP9,086----견적의뢰 / 주문
    RS60-3-JLP14,190----견적의뢰 / 주문
    RS60-4-JLP23,760----견적의뢰 / 주문
    RS60-5-JLP31,900----견적의뢰 / 주문
    RS60-6-JLP39,600----견적의뢰 / 주문
    RS80-1-JLP6,380----견적의뢰 / 주문
    RS80-2-JLP13,090----견적의뢰 / 주문
    RS80-3-JLP20,790----견적의뢰 / 주문
    RS80-4-JLP28,820----견적의뢰 / 주문
    RS80-5-JLP34,540----견적의뢰 / 주문
    RS80-6-JLP42,900----견적의뢰 / 주문
    RS100-1-JLP11,440----견적의뢰 / 주문
    RS100-2-JLP23,980----견적의뢰 / 주문
    RS100-3-JLP37,180----견적의뢰 / 주문
    RS100-4-JLP52,580----견적의뢰 / 주문
    RS100-5-JLP63,360----견적의뢰 / 주문
    RS100-6-JLP79,860----견적의뢰 / 주문
    RS120-1-JLP18,370----견적의뢰 / 주문
    RS120-2-JLP38,060----견적의뢰 / 주문
    RS120-3-JLP59,400----견적의뢰 / 주문
    RS120-4-JLP83,160----견적의뢰 / 주문
    RS120-5-JLP98,780----견적의뢰 / 주문
    RS120-6-JLP127,600----견적의뢰 / 주문
    RS140-1-JLP26,620----견적의뢰 / 주문
    RS140-2-JLP55,000----견적의뢰 / 주문
    RS140-3-JLP85,360----견적의뢰 / 주문
    RS140-4-JLP114,400----견적의뢰 / 주문
    RS140-5-JLP144,100----견적의뢰 / 주문
    RS140-6-JLP176,000----견적의뢰 / 주문
    RS160-1-JLP38,500----견적의뢰 / 주문
    RS160-2-JLP79,200----견적의뢰 / 주문
    RS160-3-JLP123,200----견적의뢰 / 주문
    RS160-4-JLP167,200----견적의뢰 / 주문
    RS160-5-JLP202,400----견적의뢰 / 주문
    RS160-6-JLP255,200----견적의뢰 / 주문
    RS180-1-JLP65,340----견적의뢰 / 주문
    RS180-2-JLP134,200----견적의뢰 / 주문
    RS180-3-JLP228,800----견적의뢰 / 주문
    RS180-4-JLP327,800----견적의뢰 / 주문
    RS180-5-JLP429,000----견적의뢰 / 주문
    RS180-6-JLP523,600----견적의뢰 / 주문
    RS200-1-JLP90,200----견적의뢰 / 주문
    RS200-2-JLP188,100----견적의뢰 / 주문
    RS200-3-JLP294,800----견적의뢰 / 주문
    RS200-4-JLP413,600----견적의뢰 / 주문
    RS200-5-JLP497,200----견적의뢰 / 주문
    RS200-6-JLP622,600----견적의뢰 / 주문
    RS240-1-JLP174,900----견적의뢰 / 주문
    RS240-2-JLP369,600----견적의뢰 / 주문
    RS240-3-JLP580,800----견적의뢰 / 주문
    RS240-4-JLP805,200----견적의뢰 / 주문
    RS240-5-JLP968,000----견적의뢰 / 주문
    RS240-6-JLP1,155,000----견적의뢰 / 주문
    RS35-1-FJLP2,420----견적의뢰 / 주문
    RS40-1-FJLP2,684----견적의뢰 / 주문
    RS50-1-FJLP3,256----견적의뢰 / 주문
    RS60-1-FJLP4,334----견적의뢰 / 주문
    RS80-1-FJLP6,380----견적의뢰 / 주문
    RS100-1-FJLP11,440----견적의뢰 / 주문
    RS120-1-FJLP18,370----견적의뢰 / 주문
    RS140-1-FJLP26,620----견적의뢰 / 주문
    RS160-1-FJLP38,500----견적의뢰 / 주문
    RS180-1-FJLP65,340----견적의뢰 / 주문
    RS200-1-FJLP90,200----견적의뢰 / 주문
    RS240-1-FJLP174,900----견적의뢰 / 주문
    RS35-1-OLP4,158----견적의뢰 / 주문
    RS35-2-OLP9,174----견적의뢰 / 주문
    RS35-3-OLP14,630----견적의뢰 / 주문
    RS37-1-OLP2,750----견적의뢰 / 주문
    RS38-1-OLP3,234----견적의뢰 / 주문
    RS40-1-OLP4,488----견적의뢰 / 주문
    RS41-1-OLP3,960----견적의뢰 / 주문
    RS40-2-OLP9,856----견적의뢰 / 주문
    RS40-3-OLP15,730----견적의뢰 / 주문
    RS40-4-OLP35,860----견적의뢰 / 주문
    RS40-5-OLP45,320----견적의뢰 / 주문
    RS40-6-OLP54,560----견적의뢰 / 주문
    RS50-1-OLP6,182----견적의뢰 / 주문
    RS50-2-OLP13,530----견적의뢰 / 주문
    RS50-3-OLP21,560----견적의뢰 / 주문
    RS50-4-OLP42,460----견적의뢰 / 주문
    RS50-5-OLP54,560----견적의뢰 / 주문
    RS50-6-OLP68,860----견적의뢰 / 주문
    RS60-1-OLP8,184----견적의뢰 / 주문
    RS60-2-OLP18,040----견적의뢰 / 주문
    RS60-3-OLP28,600----견적의뢰 / 주문
    RS60-4-OLP50,160----견적의뢰 / 주문
    RS60-5-OLP65,780----견적의뢰 / 주문
    RS60-6-OLP81,620----견적의뢰 / 주문
    RS80-1-OLP12,650----견적의뢰 / 주문
    RS80-2-OLP27,720----견적의뢰 / 주문
    RS80-3-OLP44,220----견적의뢰 / 주문
    RS80-4-OLP63,360----견적의뢰 / 주문
    RS80-5-OLP76,560----견적의뢰 / 주문
    RS80-6-OLP95,920----견적의뢰 / 주문
    RS100-1-OLP21,780----견적의뢰 / 주문
    RS100-2-OLP48,180----견적의뢰 / 주문
    RS100-3-OLP76,560----견적의뢰 / 주문
    RS100-4-OLP112,200----견적의뢰 / 주문
    RS100-5-OLP134,200----견적의뢰 / 주문
    RS100-6-OLP166,100----견적의뢰 / 주문
    RS120-1-OLP35,420----견적의뢰 / 주문
    RS120-2-OLP77,880----견적의뢰 / 주문
    RS120-3-OLP124,300----견적의뢰 / 주문
    RS120-4-OLP176,000----견적의뢰 / 주문
    RS120-5-OLP214,500----견적의뢰 / 주문
    RS120-6-OLP270,600----견적의뢰 / 주문
    RS140-1-OLP51,040----견적의뢰 / 주문
    RS140-2-OLP112,200----견적의뢰 / 주문
    RS140-3-OLP178,200----견적의뢰 / 주문
    RS140-4-OLP250,800----견적의뢰 / 주문
    RS140-5-OLP312,400----견적의뢰 / 주문
    RS140-6-OLP376,200----견적의뢰 / 주문
    RS160-1-OLP81,180----견적의뢰 / 주문
    RS160-2-OLP179,300----견적의뢰 / 주문
    RS160-3-OLP286,000----견적의뢰 / 주문
    RS160-4-OLP409,200----견적의뢰 / 주문
    RS160-5-OLP495,000----견적의뢰 / 주문
    RS160-6-OLP622,600----견적의뢰 / 주문
    RS180-1-OLP158,400----견적의뢰 / 주문
    RS180-2-OLP347,600----견적의뢰 / 주문
    RS180-3-OLP554,400----견적의뢰 / 주문
    RS180-4-OLP789,800----견적의뢰 / 주문
    RS180-5-OLP1,045,000----견적의뢰 / 주문
    RS180-6-OLP1,265,000----견적의뢰 / 주문
    RS200-1-OLP203,500----견적의뢰 / 주문
    RS200-2-OLP446,600----견적의뢰 / 주문
    RS200-3-OLP710,600----견적의뢰 / 주문
    RS200-4-OLP1,031,800----견적의뢰 / 주문
    RS200-5-OLP1,221,000----견적의뢰 / 주문
    RS200-6-OLP1,551,000----견적의뢰 / 주문
    RS240-1-OLP365,200----견적의뢰 / 주문
    RS240-2-OLP805,200----견적의뢰 / 주문
    RS240-3-OLP1,276,000----견적의뢰 / 주문
    RS240-4-OLP1,837,000----견적의뢰 / 주문
    RS240-5-OLP2,189,000----견적의뢰 / 주문
    RS240-6-OLP2,684,000----견적의뢰 / 주문
    RS25-1-2POLP4,290----견적의뢰 / 주문
    RS25-2-2POLP9,020----견적의뢰 / 주문
    RS25-3-2POLP15,730----견적의뢰 / 주문
    RS35-1-2POLP6,182----견적의뢰 / 주문
    RS40-1-2POLP7,040----견적의뢰 / 주문
    RS40-2-2POLP15,510----견적의뢰 / 주문
    RS40-3-2POLP24,420----견적의뢰 / 주문
    RS50-1-2POLP9,284----견적의뢰 / 주문
    RS50-2-2POLP20,570----견적의뢰 / 주문
    RS50-3-2POLP32,560----견적의뢰 / 주문
    RS60-1-2POLP12,430----견적의뢰 / 주문
    RS60-2-2POLP27,280----견적의뢰 / 주문
    RS60-3-2POLP43,340----견적의뢰 / 주문
    RS80-1-2POLP19,470----견적의뢰 / 주문
    RS80-2-2POLP43,120----견적의뢰 / 주문
    RS80-3-2POLP68,200----견적의뢰 / 주문
    RS80-4-2POLP98,780----견적의뢰 / 주문
    RS80-5-2POLP117,700----견적의뢰 / 주문
    RS80-6-2POLP147,400----견적의뢰 / 주문
    RS100-1-2POLP33,220----견적의뢰 / 주문
    RS100-2-2POLP73,480----견적의뢰 / 주문
    RS100-3-2POLP116,600----견적의뢰 / 주문
    RS100-4-2POLP166,100----견적의뢰 / 주문
    RS100-5-2POLP201,300----견적의뢰 / 주문
    RS100-6-2POLP248,600----견적의뢰 / 주문
    RS120-1-2POLP53,460----견적의뢰 / 주문
    RS120-2-2POLP117,700----견적의뢰 / 주문
    RS120-3-2POLP188,100----견적의뢰 / 주문
    RS120-4-2POLP266,200----견적의뢰 / 주문
    RS120-5-2POLP321,200----견적의뢰 / 주문
    RS120-6-2POLP404,800----견적의뢰 / 주문
    RS140-1-2POLP77,440----견적의뢰 / 주문
    RS140-2-2POLP170,500----견적의뢰 / 주문
    RS140-3-2POLP270,600----견적의뢰 / 주문
    RS140-4-2POLP376,200----견적의뢰 / 주문
    RS140-5-2POLP468,600----견적의뢰 / 주문
    RS140-6-2POLP565,400----견적의뢰 / 주문
    RS160-1-2POLP124,300----견적의뢰 / 주문
    RS160-2-2POLP272,800----견적의뢰 / 주문
    RS160-3-2POLP437,800----견적의뢰 / 주문
    RS160-4-2POLP613,800----견적의뢰 / 주문
    RS160-5-2POLP741,400----견적의뢰 / 주문
    RS160-6-2POLP932,800----견적의뢰 / 주문
    RS180-1-2POLP239,800----견적의뢰 / 주문
    RS180-2-2POLP530,200----견적의뢰 / 주문
    RS180-3-2POLP840,400----견적의뢰 / 주문
    RS180-4-2POLP1,210,000----견적의뢰 / 주문
    RS180-5-2POLP1,595,000----견적의뢰 / 주문
    RS180-6-2POLP1,925,000----견적의뢰 / 주문
    RS200-1-2POLP305,800----견적의뢰 / 주문
    RS200-2-2POLP673,200----견적의뢰 / 주문
    RS200-3-2POLP1,069,200----견적의뢰 / 주문
    RS200-4-2POLP1,551,000----견적의뢰 / 주문
    RS200-5-2POLP1,837,000----견적의뢰 / 주문
    RS200-6-2POLP2,310,000----견적의뢰 / 주문
    RS240-1-2POLP552,200----견적의뢰 / 주문
    RS240-2-2POLP1,210,000----견적의뢰 / 주문
    RS240-3-2POLP1,925,000----견적의뢰 / 주문
    RS240-4-2POLP2,750,000----견적의뢰 / 주문
    RS240-5-2POLP3,322,000----견적의뢰 / 주문
    RS240-6-2POLP4,048,000----견적의뢰 / 주문
    RS35-CLIPC39,600----견적의뢰 / 주문
    RS37-CLIPC44,000----견적의뢰 / 주문
    RS40-CLIPC44,000----견적의뢰 / 주문
    RS50-CLIPC55,000----견적의뢰 / 주문
    RS60-CLIPC81,400----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 10만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.



    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
