표준볼나사콤팩트FA

컴팩트FA시리즈

일본정공(주) ( NSK )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


173건 중 1~173건 표시

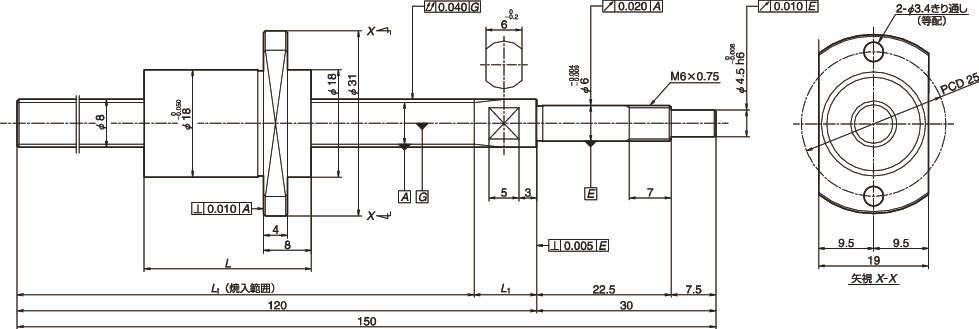

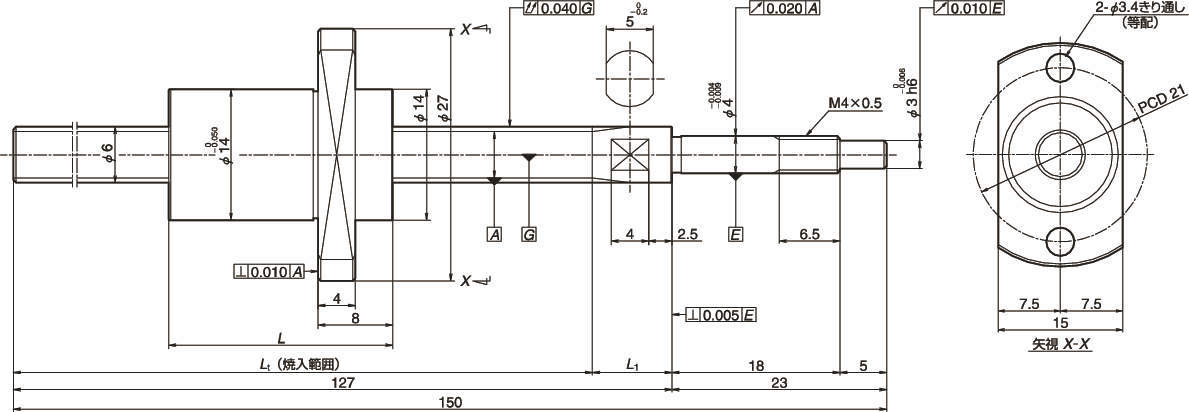

형식	나사외경 d	리드 l	스트로크	스트로크	너트 길이 L	나사축치수	나사축치수	나사축치수	나사축치수
형식	나사외경 d	리드 l	호칭	최대 Lt-L	너트 길이 L	Lt	La	L0	L1
PSS0608NAD0150	6	8	-	97.5	16	118.5	-	-	8.5
PSS0608NBD0150	6	8	-	89.5	24	118.5	-	-	8.5
PSS0612NAD0150	6	12	-	92	20	117	-	-	10
PSS0612NBD0150	6	12	-	80	32	117	-	-	10
PSS0810NAD0150	8	10	-	86.5	18	109.5	-	-	10.5
PSS0810NBD0150	8	10	-	76.5	28	109.5	-	-	10.5
PSS0815NAD0150	8	15	-	80	22	107	-	-	13
PSS0815NBD0150	8	15	-	65	37	107	-	-	13
PSS1005N1D0171	10	5	50	83	29	112	125	171	-
PSS1005N1D0221	10	5	100	133	29	162	175	221	-
PSS1005N1D0321	10	5	200	233	29	262	275	321	-
PSS1005N1D0421	10	5	300	333	29	362	375	421	-
PSS1005N1D0521	10	5	400	433	29	462	475	521	-
PSS1010N1D0221	10	10	100	130	32	162	175	221	-
PSS1010N1D0321	10	10	200	230	32	262	275	321	-
PSS1010N1D0421	10	10	300	330	32	362	375	421	-
PSS1010N1D0521	10	10	400	430	32	462	475	521	-
PSS1205N1D0171	12	5	50	80	30	110	125	171	7
PSS1205N1D0221	12	5	100	130	30	160	175	221	7
PSS1205N1D0321	12	5	200	230	30	260	275	321	7
PSS1205N1D0421	12	5	300	330	30	360	375	421	7
PSS1205N1D0521	12	5	400	430	30	460	475	521	7
PSS1205N1D0621	12	5	500	530	30	560	575	621	7
PSS1210N1D0221	12	10	100	117	43	160	175	221	7
PSS1210N1D0321	12	10	200	217	43	260	275	321	7
PSS1210N1D0421	12	10	300	317	43	360	375	421	7
PSS1210N1D0521	12	10	400	417	43	460	475	521	7
PSS1210N1D0621	12	10	500	517	43	560	575	621	7
PSS1220N1D0271	12	20	100	158	50	208	225	271	9
PSS1220N1D0371	12	20	200	258	50	308	325	371	9
PSS1220N1D0471	12	20	300	358	50	408	425	471	9
PSS1220N1D0571	12	20	400	458	50	508	525	571	9
PSS1220N1D0671	12	20	500	558	50	608	625	671	9
PSS1230N1D0271	12	30	100	133	70	203	225	271	14
PSS1230N1D0371	12	30	200	233	70	303	325	371	14
PSS1230N1D0471	12	30	300	333	70	403	425	471	14
PSS1230N1D0571	12	30	400	433	70	503	525	571	14
PSS1230N1D0671	12	30	500	533	70	603	625	671	14
PSS1505N1D0211	15	5	50	109	30	139	154	211	15
PSS1505N1D0261	15	5	100	159	30	189	204	261	15
PSS1505N1D0361	15	5	200	259	30	289	304	361	15
PSS1505N1D0461	15	5	300	359	30	389	404	461	15
PSS1505N1D0561	15	5	400	459	30	489	504	561	15
PSS1505N1D0661	15	5	500	559	30	589	604	661	15
PSS1505N1D0761	15	5	600	659	30	689	704	761	15
PSS1510N1D0261	15	10	100	146	43	189	204	261	15
PSS1510N1D0361	15	10	200	246	43	289	304	361	15
PSS1510N1D0461	15	10	300	346	43	389	404	461	15
PSS1510N1D0561	15	10	400	446	43	489	504	561	15
PSS1510N1D0661	15	10	500	546	43	589	604	661	15
PSS1510N1D0761	15	10	600	646	43	689	704	761	15
PSS1510N1D0879	15	10	700	746	43	789	804	879	15
PSS1510N1D0979	15	10	800	846	43	889	904	979	15
PSS1510N1D1179	15	10	1000	1046	43	1089	1104	1179	15
PSS1520N1D0261	15	20	100	135	51	186	204	261	18
PSS1520N1D0361	15	20	200	235	51	286	304	361	18
PSS1520N1D0461	15	20	300	335	51	386	404	461	18
PSS1520N1D0561	15	20	400	435	51	486	504	561	18
PSS1520N1D0661	15	20	500	535	51	586	604	661	18
PSS1520N1D0761	15	20	600	635	51	686	704	761	18
PSS1520N1D0879	15	20	700	735	51	786	804	879	18
PSS1520N1D0979	15	20	800	835	51	886	904	979	18
PSS1520N1D1179	15	20	1000	1035	51	1086	1104	1179	18
PSS1530N1D0311	15	30	100	159	71	230	254	311	24
PSS1530N1D0411	15	30	200	259	71	330	354	411	24
PSS1530N1D0511	15	30	300	359	71	430	454	511	24
PSS1530N1D0611	15	30	400	459	71	530	554	611	24
PSS1530N1D0711	15	30	500	559	71	630	654	711	24
PSS1530N1D0811	15	30	600	659	71	730	754	811	24
PSS1530N1D0929	15	30	700	759	71	830	854	929	24
PSS1530N1D1029	15	30	800	859	71	930	954	1029	24
PSS1530N1D1229	15	30	1000	1059	71	1130	1154	1229	24
PSS2005N1D0323	20	5	150	197	31	228	250	323	22
PSS2005N1D0373	20	5	200	247	31	278	300	373	22
PSS2005N1D0473	20	5	300	347	31	378	400	473	22
PSS2005N1D0573	20	5	400	447	31	478	500	573	22
PSS2005N1D0673	20	5	500	547	31	578	600	673	22
PSS2005N1D0773	20	5	600	647	31	678	700	773	22
PSS2005N1D0873	20	5	700	747	31	778	800	873	22
PSS2005N1D1000	20	5	800	847	31	878	900	1000	22
PSS2010N1D0387	20	10	200	247	45	292	314	387	22
PSS2010N1D0487	20	10	300	347	45	392	414	487	22
PSS2010N1D0587	20	10	400	447	45	492	514	587	22
PSS2010N1D0687	20	10	500	547	45	592	614	687	22
PSS2010N1D0787	20	10	600	647	45	692	714	787	22
PSS2010N1D0887	20	10	700	747	45	792	814	887	22
PSS2010N1D1014	20	10	800	847	45	892	914	1014	22
PSS2010N1D1214	20	10	1000	1047	45	1092	1114	1214	22
PSS2010N1D1414	20	10	1200	1247	45	1292	1314	1414	22
PSS2020N1D0508	20	20	300	359	54	413	435	508	22
PSS2020N1D0608	20	20	400	459	54	513	535	608	22
PSS2020N1D0708	20	20	500	559	54	613	635	708	22
PSS2020N1D0808	20	20	600	659	54	713	735	808	22
PSS2020N1D0908	20	20	700	759	54	813	835	908	22
PSS2020N1D1035	20	20	800	859	54	913	935	1035	22
PSS2020N1D1235	20	20	1000	1059	54	1113	1135	1235	22
PSS2020N1D1435	20	20	1200	1259	54	1313	1335	1435	22
PSS2020N1D1835	20	20	1600	1659	54	1713	1735	1835	22
PSS2030N1D0408	20	30	200	234	74	308	335	408	27
PSS2030N1D0508	20	30	300	334	74	408	435	508	27
PSS2030N1D0608	20	30	400	434	74	508	535	608	27
PSS2030N1D0708	20	30	500	534	74	608	635	708	27
PSS2030N1D0808	20	30	600	634	74	708	735	808	27
PSS2030N1D0908	20	30	700	734	74	808	835	908	27
PSS2030N1D1035	20	30	800	834	74	908	935	1035	27
PSS2030N1D1235	20	30	1000	1034	74	1108	1135	1235	27
PSS2030N1D1435	20	30	1200	1234	74	1308	1335	1435	27
PSS2040N1D0658	20	40	400	461	92	553	585	658	32
PSS2040N1D0758	20	40	500	561	92	653	685	758	32
PSS2040N1D0858	20	40	600	661	92	753	785	858	32
PSS2040N1D0958	20	40	700	761	92	853	885	958	32
PSS2040N1D1085	20	40	800	861	92	953	985	1085	32
PSS2040N1D1285	20	40	1000	1061	92	1153	1185	1285	32
PSS2040N1D1485	20	40	1200	1261	92	1353	1385	1485	32
PSS2040N1D1885	20	40	1600	1661	92	1753	1785	1885	32
PSS2040N1D2285	20	40	2000	2061	92	2153	2185	2285	32
PSS2060N1D0708	20	60	400	464	129	593	635	708	42
PSS2060N1D0808	20	60	500	564	129	693	735	808	42
PSS2060N1D0908	20	60	600	664	129	793	835	908	42
PSS2060N1D1008	20	60	700	764	129	893	935	1008	42
PSS2060N1D1135	20	60	800	864	129	993	1035	1135	42
PSS2060N1D1335	20	60	1000	1064	129	1193	1235	1335	42
PSS2060N1D1535	20	60	1200	1264	129	1393	1435	1535	42
PSS2060N1D1935	20	60	1600	1664	129	1793	1835	1935	42
PSS2060N1D2335	20	60	2000	2064	129	2193	2235	2335	42
PSS2505N1D0349	25	5	150	191	32	223	250	349	27
PSS2505N1D0399	25	5	200	241	32	273	300	399	27
PSS2505N1D0499	25	5	300	341	32	373	400	499	27
PSS2505N1D0599	25	5	400	441	32	473	500	599	27
PSS2505N1D0699	25	5	500	541	32	573	600	699	27
PSS2505N1D0899	25	5	700	741	32	773	800	899	27
PSS2505N1D0999	25	5	800	841	32	873	900	999	27
PSS2505N1D1233	25	5	1000	1041	32	1073	1100	1233	27
PSS2510N1D0549	25	10	300	367	56	423	450	549	27
PSS2510N1D0649	25	10	400	467	56	523	550	649	27
PSS2510N1D0749	25	10	500	567	56	623	650	749	27
PSS2510N1D0849	25	10	600	667	56	723	750	849	27
PSS2510N1D0949	25	10	700	767	56	823	850	949	27
PSS2510N1D1049	25	10	800	867	56	923	950	1049	27
PSS2510N1D1283	25	10	1000	1067	56	1123	1150	1283	27
PSS2510N1D1883	25	10	1600	1667	56	1723	1750	1883	27
PSS2520N1D0729	25	20	500	550	54	604	630	729	26
PSS2520N1D0829	25	20	600	650	54	704	730	829	26
PSS2520N1D0929	25	20	700	750	54	804	830	929	26
PSS2520N1D1029	25	20	800	850	54	904	930	1029	26
PSS2520N1D1263	25	20	1000	1050	54	1104	1130	1263	26
PSS2520N1D1463	25	20	1200	1250	54	1304	1330	1463	26
PSS2520N1D1863	25	20	1600	1650	54	1704	1730	1863	26
PSS2520N1D2263	25	20	2000	2050	54	2104	2130	2263	26
PSS2525N1D0779	25	25	500	587	63	650	680	779	30
PSS2525N1D0879	25	25	600	687	63	750	780	879	30
PSS2525N1D0979	25	25	700	787	63	850	880	979	30
PSS2525N1D1079	25	25	800	887	63	950	980	1079	30
PSS2525N1D1313	25	25	1000	1087	63	1150	1180	1313	30
PSS2525N1D1513	25	25	1200	1287	63	1350	1380	1513	30
PSS2525N1D1913	25	25	1600	1687	63	1750	1780	1913	30
PSS2525N1D2313	25	25	2000	2087	63	2150	2180	2313	30
PSS2530N1D0779	25	30	500	576	74	650	680	779	30
PSS2530N1D0879	25	30	600	676	74	750	780	879	30
PSS2530N1D0979	25	30	700	776	74	850	880	979	30
PSS2530N1D1079	25	30	800	876	74	950	980	1079	30
PSS2530N1D1313	25	30	1000	1076	74	1150	1180	1313	30
PSS2530N1D1513	25	30	1200	1276	74	1350	1380	1513	30
PSS2530N1D1913	25	30	1600	1676	74	1750	1780	1913	30
PSS2530N1D2313	25	30	2000	2076	74	2150	2180	2313	30
PSS2550N1D0829	25	50	500	576	114	690	730	829	40
PSS2550N1D0929	25	50	600	676	114	790	830	929	40
PSS2550N1D1029	25	50	700	776	114	890	930	1029	40
PSS2550N1D1129	25	50	800	876	114	990	1030	1129	40
PSS2550N1D1363	25	50	1000	1076	114	1190	1230	1363	40
PSS2550N1D1563	25	50	1200	1276	114	1390	1430	1563	40
PSS2550N1D1963	25	50	1600	1676	114	1790	1830	1963	40
PSS2550N1D2363	25	50	2000	2076	114	2190	2230	2363	40

형식	리드정도	리드정도	리드정도	기본정격하중(N)	기본정격하중(N)	허용회전수(min-1)	허용회전수(min-1)	좌측축단형식 (반구동측)
형식	목표치 T	오차 ep	변동 vu	동정격 Ca	정정격 C0a	고정-지지	고정-고정	좌측축단형식 (반구동측)
PSS0608NAD0150	-	20	18	550	715	5000	5000	-
PSS0608NBD0150	-	20	18	1180	1760	5000	5000	-
PSS0612NAD0150	-	20	18	550	715	5000	5000	-
PSS0612NBD0150	-	20	18	1180	1760	5000	5000	-
PSS0810NAD0150	-	20	18	910	1260	5000	5000	-
PSS0810NBD0150	-	20	18	1950	3080	5000	5000	-
PSS0815NAD0150	-	20	18	910	1260	5000	5000	-
PSS0815NBD0150	-	20	18	1950	3080	5000	5000	-
PSS1005N1D0171	-	0.02	0.018	2930	4790	5000	-	-
PSS1005N1D0221	-	0.02	0.018	2930	4790	5000	-	-
PSS1005N1D0321	-	0.023	0.018	2930	4790	5000	-	-
PSS1005N1D0421	-	0.025	0.02	2930	4790	5000	-	-
PSS1005N1D0521	-	0.027	0.02	2930	4790	5000	-	-
PSS1010N1D0221	-	0.02	0.018	1970	3010	5000	-	-
PSS1010N1D0321	-	0.023	0.018	1970	3010	5000	-	-
PSS1010N1D0421	-	0.025	0.02	1970	3010	5000	-	-
PSS1010N1D0521	-	0.027	0.02	1970	3010	5000	-	-
PSS1205N1D0171	-	0.02	0.018	3200	5860	5000	-	-
PSS1205N1D0221	-	0.02	0.018	3200	5860	5000	-	-
PSS1205N1D0321	-	0.023	0.018	3200	5860	5000	-	-
PSS1205N1D0421	-	0.025	0.02	3200	5860	5000	-	-
PSS1205N1D0521	-	0.027	0.02	3200	5860	5000	-	-
PSS1205N1D0621	-	0.03	0.023	3200	5860	5000	-	-
PSS1210N1D0221	-	0.02	0.018	3200	5860	5000	-	-
PSS1210N1D0321	-	0.023	0.018	3200	5860	5000	-	-
PSS1210N1D0421	-	0.025	0.02	3200	5860	5000	-	-
PSS1210N1D0521	-	0.027	0.02	3200	5860	5000	-	-
PSS1210N1D0621	-	0.03	0.023	3200	5860	5000	-	-
PSS1220N1D0271	-	0.023	0.018	2150	3610	5000	-	-
PSS1220N1D0371	-	0.023	0.018	2150	3610	5000	-	-
PSS1220N1D0471	-	0.027	0.02	2150	3610	5000	-	-
PSS1220N1D0571	-	0.03	0.023	2150	3610	5000	-	-
PSS1220N1D0671	-	0.03	0.023	2150	3610	4200	-	-
PSS1230N1D0271	-	0.023	0.018	2150	3610	5000	-	-
PSS1230N1D0371	-	0.023	0.018	2150	3610	5000	-	-
PSS1230N1D0471	-	0.027	0.02	2150	3610	5000	-	-
PSS1230N1D0571	-	0.03	0.023	2150	3610	5000	-	-
PSS1230N1D0671	-	0.03	0.023	2150	3610	4300	-	-
PSS1505N1D0211	-	0.02	0.018	5460	10200	5000	-	형식2
PSS1505N1D0261	-	0.02	0.018	5460	10200	5000	-	형식2
PSS1505N1D0361	-	0.023	0.018	5460	10200	5000	-	형식2
PSS1505N1D0461	-	0.025	0.02	5460	10200	5000	-	형식2
PSS1505N1D0561	-	0.027	0.02	5460	10200	5000	-	형식2
PSS1505N1D0661	-	0.03	0.023	5460	10200	5000	-	형식2
PSS1505N1D0761	-	0.035	0.025	5460	10200	3600	-	형식2
PSS1510N1D0261	-	0.02	0.018	5460	10200	5000	-	형식2
PSS1510N1D0361	-	0.023	0.018	5460	10200	5000	-	형식2
PSS1510N1D0461	-	0.025	0.02	5460	10200	5000	-	형식2
PSS1510N1D0561	-	0.027	0.02	5460	10200	5000	-	형식2
PSS1510N1D0661	-	0.03	0.023	5460	10200	5000	-	형식2
PSS1510N1D0761	-	0.035	0.025	5460	10200	3600	-	형식2
PSS1510N1D0879	-	0.035	0.025	5460	10200	2700	3400	형식1
PSS1510N1D0979	-	0.04	0.027	5460	10200	2200	3400	형식1
PSS1510N1D1179	-	0.046	0.03	5460	10200	1400	2300	형식1
PSS1520N1D0261	-	0.02	0.018	5070	8730	5000	-	형식2
PSS1520N1D0361	-	0.023	0.018	5070	8730	5000	-	형식2
PSS1520N1D0461	-	0.025	0.02	5070	8730	5000	-	형식2
PSS1520N1D0561	-	0.027	0.02	5070	8730	5000	-	형식2
PSS1520N1D0661	-	0.03	0.023	5070	8730	5000	-	형식2
PSS1520N1D0761	-	0.035	0.025	5070	8730	3700	-	형식2
PSS1520N1D0879	-	0.035	0.025	5070	8730	2900	4200	형식1
PSS1520N1D0979	-	0.04	0.027	5070	8730	2200	3300	형식1
PSS1520N1D1179	-	0.046	0.03	5070	8730	1500	2200	형식1
PSS1530N1D0311	-	0.023	0.018	5070	8730	5000	-	형식2
PSS1530N1D0411	-	0.025	0.02	5070	8730	5000	-	형식2
PSS1530N1D0511	-	0.027	0.02	5070	8730	5000	-	형식2
PSS1530N1D0611	-	0.03	0.023	5070	8730	5000	-	형식2
PSS1530N1D0711	-	0.03	0.023	5070	8730	4500	-	형식2
PSS1530N1D0811	-	0.035	0.025	5070	8730	3300	-	형식2
PSS1530N1D0929	-	0.04	0.027	5070	8730	2600	3800	형식1
PSS1530N1D1029	-	0.04	0.027	5070	8730	2000	3000	형식1
PSS1530N1D1229	-	0.046	0.03	5070	8730	1400	2000	형식1
PSS2005N1D0323	-	0.023	0.018	8790	18500	5000	-	형식2
PSS2005N1D0373	-	0.023	0.018	8790	18500	5000	-	형식2
PSS2005N1D0473	-	0.025	0.02	8790	18500	5000	-	형식2
PSS2005N1D0573	-	0.027	0.02	8790	18500	5000	-	형식2
PSS2005N1D0673	-	0.03	0.023	8790	18500	5000	-	형식2
PSS2005N1D0773	-	0.035	0.025	8790	18500	5000	-	형식2
PSS2005N1D0873	-	0.035	0.025	8790	18500	4000	-	형식2
PSS2005N1D1000	-	0.04	0.027	8790	18500	3200	4700	형식1
PSS2010N1D0387	-	0.023	0.018	8790	18500	5000	-	형식2
PSS2010N1D0487	-	0.025	0.02	8790	18500	5000	-	형식2
PSS2010N1D0587	-	0.027	0.02	8790	18500	5000	-	형식2
PSS2010N1D0687	-	0.03	0.023	8790	18500	5000	-	형식2
PSS2010N1D0787	-	0.035	0.025	8790	18500	5000	-	형식2
PSS2010N1D0887	-	0.035	0.025	8790	18500	4000	-	형식2
PSS2010N1D1014	-	0.04	0.027	8790	18500	3100	4600	형식1
PSS2010N1D1214	-	0.046	0.03	8790	18500	2100	3100	형식1
PSS2010N1D1414	-	0.054	0.035	8790	18500	1500	2200	형식1
PSS2020N1D0508	-	0.027	0.02	5900	11700	5000	-	형식2
PSS2020N1D0608	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2020N1D0708	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2020N1D0808	-	0.035	0.025	5900	11700	5000	-	형식2
PSS2020N1D0908	-	0.04	0.027	5900	11700	3700	-	형식2
PSS2020N1D1035	-	0.04	0.027	5900	11700	3000	4500	형식1
PSS2020N1D1235	-	0.046	0.03	5900	11700	2000	3000	형식1
PSS2020N1D1435	-	0.054	0.035	5900	11700	1400	2100	형식1
PSS2020N1D1835	-	0.065	0.04	5900	11700	800	1200	형식1
PSS2030N1D0408	-	0.023	0.018	5900	11700	5000	-	형식2
PSS2030N1D0508	-	0.027	0.02	5900	11700	5000	-	형식2
PSS2030N1D0608	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2030N1D0708	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2030N1D0808	-	0.035	0.025	5900	11700	5000	-	형식2
PSS2030N1D0908	-	0.04	0.027	5900	11700	3900	-	형식2
PSS2030N1D1035	-	0.04	0.027	5900	11700	3100	4600	형식1
PSS2030N1D1235	-	0.046	0.03	5900	11700	2100	3000	형식1
PSS2030N1D1435	-	0.054	0.035	5900	11700	1500	2200	형식1
PSS2040N1D0658	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2040N1D0758	-	0.035	0.025	5900	11700	5000	-	형식2
PSS2040N1D0858	-	0.035	0.025	5900	11700	5000	-	형식2
PSS2040N1D0958	-	0.04	0.027	5900	11700	3500	-	형식2
PSS2040N1D1085	-	0.04	0.027	5900	11700	2800	4200	형식1
PSS2040N1D1285	-	0.046	0.03	5900	11700	1900	2800	형식1
PSS2040N1D1485	-	0.054	0.035	5900	11700	1400	2000	형식1
PSS2040N1D1885	-	0.065	0.04	5900	11700	800	1200	형식1
PSS2040N1D2285	-	0.077	0.046	5900	11700	500	800	형식1
PSS2060N1D0708	-	0.03	0.023	5900	11700	5000	-	형식2
PSS2060N1D0808	-	0.035	0.025	5900	11700	5000	-	형식2
PSS2060N1D0908	-	0.035	0.025	5900	11700	4200	-	형식2
PSS2060N1D1008	-	0.04	0.027	5900	11700	3300	-	형식2
PSS2060N1D1135	-	0.04	0.027	5900	11700	2600	3900	형식1
PSS2060N1D1335	-	0.046	0.03	5900	11700	1800	2700	형식1
PSS2060N1D1535	-	0.054	0.035	5900	11700	1300	1900	형식1
PSS2060N1D1935	-	0.065	0.04	5900	11700	800	1100	형식1
PSS2060N1D2335	-	0.077	0.046	5900	11700	500	700	형식1
PSS2505N1D0349	-	0.023	0.018	9760	23600	5000	-	형식2
PSS2505N1D0399	-	0.023	0.018	9760	23600	5000	-	형식2
PSS2505N1D0499	-	0.025	0.02	9760	23600	5000	-	형식2
PSS2505N1D0599	-	0.027	0.02	9760	23600	5000	-	형식2
PSS2505N1D0699	-	0.03	0.023	9760	23600	5000	-	형식2
PSS2505N1D0899	-	0.035	0.025	9760	23600	5000	-	형식2
PSS2505N1D0999	-	0.04	0.027	9760	23600	4100	-	형식2
PSS2505N1D1233	-	0.046	0.03	9760	23600	2700	4000	형식1
PSS2510N1D0549	-	0.027	0.02	12800	32300	5000	-	형식2
PSS2510N1D0649	-	0.03	0.023	12800	32300	5000	-	형식2
PSS2510N1D0749	-	0.03	0.023	12800	32300	5000	-	형식2
PSS2510N1D0849	-	0.035	0.025	12800	32300	5000	-	형식2
PSS2510N1D0949	-	0.04	0.027	12800	32300	5000	-	형식2
PSS2510N1D1049	-	0.04	0.027	12800	32300	3600	-	형식2
PSS2510N1D1283	-	0.046	0.03	12800	32300	2500	3700	형식1
PSS2510N1D1883	-	0.065	0.04	12800	32300	1000	1600	형식1
PSS2520N1D0729	-	0.03	0.023	6560	14600	5000	-	형식2
PSS2520N1D0829	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2520N1D0929	-	0.04	0.027	6560	14600	4800	-	형식2
PSS2520N1D1029	-	0.04	0.027	6560	14600	3800	-	형식2
PSS2520N1D1263	-	0.046	0.03	6560	14600	2600	3800	형식1
PSS2520N1D1463	-	0.054	0.035	6560	14600	1800	2700	형식1
PSS2520N1D1863	-	0.065	0.04	6560	14600	1100	1600	형식1
PSS2520N1D2263	-	0.077	0.046	6560	14600	700	1000	형식1
PSS2525N1D0779	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2525N1D0879	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2525N1D0979	-	0.04	0.027	6560	14600	4300	-	형식2
PSS2525N1D1079	-	0.04	0.027	6560	14600	3400	-	형식2
PSS2525N1D1313	-	0.046	0.03	6560	14600	2300	3500	형식1
PSS2525N1D1513	-	0.054	0.035	6560	14600	1700	2600	형식1
PSS2525N1D1913	-	0.065	0.04	6560	14600	1000	1500	형식1
PSS2525N1D2313	-	0.077	0.046	6560	14600	700	1000	형식1
PSS2530N1D0779	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2530N1D0879	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2530N1D0979	-	0.04	0.027	6560	14600	4300	-	형식2
PSS2530N1D1079	-	0.04	0.027	6560	14600	3400	-	형식2
PSS2530N1D1313	-	0.046	0.03	6560	14600	2300	3600	형식1
PSS2530N1D1513	-	0.054	0.035	6560	14600	1700	2600	형식1
PSS2530N1D1913	-	0.065	0.04	6560	14600	1000	1500	형식1
PSS2530N1D2313	-	0.077	0.046	6560	14600	700	1000	형식1
PSS2550N1D0829	-	0.035	0.025	6560	14600	5000	-	형식2
PSS2550N1D0929	-	0.035	0.025	6560	14600	4800	-	형식2
PSS2550N1D1029	-	0.04	0.027	6560	14600	3800	-	형식2
PSS2550N1D1129	-	0.04	0.027	6560	14600	3100	-	형식2
PSS2550N1D1363	-	0.046	0.03	6560	14600	2200	3400	형식1
PSS2550N1D1563	-	0.054	0.035	6560	14600	1600	2500	형식1
PSS2550N1D1963	-	0.065	0.04	6560	14600	900	1500	형식1
PSS2550N1D2363	-	0.077	0.046	6560	14600	600	1000	형식1

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
PSS0608NAD0150	P	1,144,000	-	-	-	-	견적의뢰 / 주문
PSS0608NBD0150	P	1,199,000	-	-	-	-	견적의뢰 / 주문
PSS0612NAD0150	P	1,111,000	-	-	-	-	견적의뢰 / 주문
PSS0612NBD0150	P	1,166,000	-	-	-	-	견적의뢰 / 주문
PSS0810NAD0150	P	1,144,000	-	-	-	-	견적의뢰 / 주문
PSS0810NBD0150	P	1,210,000	-	-	-	-	견적의뢰 / 주문
PSS0815NAD0150	P	1,111,000	-	-	-	-	견적의뢰 / 주문
PSS0815NBD0150	P	1,177,000	-	-	-	-	견적의뢰 / 주문
PSS1005N1D0171	P	1,320,000	-	-	-	-	견적의뢰 / 주문
PSS1005N1D0221	P	1,353,000	-	-	-	-	견적의뢰 / 주문
PSS1005N1D0321	P	1,452,000	-	-	-	-	견적의뢰 / 주문
PSS1005N1D0421	P	1,606,000	-	-	-	-	견적의뢰 / 주문
PSS1005N1D0521	P	1,815,000	-	-	-	-	견적의뢰 / 주문
PSS1010N1D0221	P	1,287,000	-	-	-	-	견적의뢰 / 주문
PSS1010N1D0321	P	1,375,000	-	-	-	-	견적의뢰 / 주문
PSS1010N1D0421	P	1,529,000	-	-	-	-	견적의뢰 / 주문
PSS1010N1D0521	P	1,705,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0171	P	1,353,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0221	P	1,375,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0321	P	1,452,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0421	P	1,562,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0521	P	1,694,000	-	-	-	-	견적의뢰 / 주문
PSS1205N1D0621	P	1,870,000	-	-	-	-	견적의뢰 / 주문
PSS1210N1D0221	P	1,265,000	-	-	-	-	견적의뢰 / 주문
PSS1210N1D0321	P	1,375,000	-	-	-	-	견적의뢰 / 주문
PSS1210N1D0421	P	1,518,000	-	-	-	-	견적의뢰 / 주문
PSS1210N1D0521	P	1,661,000	-	-	-	-	견적의뢰 / 주문
PSS1210N1D0621	P	1,815,000	-	-	-	-	견적의뢰 / 주문
PSS1220N1D0271	P	1,584,000	-	-	-	-	견적의뢰 / 주문
PSS1220N1D0371	P	1,639,000	-	-	-	-	견적의뢰 / 주문
PSS1220N1D0471	P	1,727,000	-	-	-	-	견적의뢰 / 주문
PSS1220N1D0571	P	1,848,000	-	-	-	-	견적의뢰 / 주문
PSS1220N1D0671	P	2,035,000	-	-	-	-	견적의뢰 / 주문
PSS1230N1D0271	P	1,749,000	-	-	-	-	견적의뢰 / 주문
PSS1230N1D0371	P	1,782,000	-	-	-	-	견적의뢰 / 주문
PSS1230N1D0471	P	1,859,000	-	-	-	-	견적의뢰 / 주문
PSS1230N1D0571	P	1,958,000	-	-	-	-	견적의뢰 / 주문
PSS1230N1D0671	P	2,112,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0211	P	1,386,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0261	P	1,408,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0361	P	1,485,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0461	P	1,584,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0561	P	1,705,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0661	P	1,859,000	-	-	-	-	견적의뢰 / 주문
PSS1505N1D0761	P	2,024,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0261	P	1,408,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0361	P	1,496,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0461	P	1,584,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0561	P	1,683,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0661	P	1,870,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0761	P	2,035,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0879	P	2,134,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D0979	P	2,244,000	-	-	-	-	견적의뢰 / 주문
PSS1510N1D1179	P	2,365,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0261	P	1,529,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0361	P	1,617,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0461	P	1,694,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0561	P	1,804,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0661	P	1,980,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0761	P	2,244,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0879	P	2,376,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D0979	P	2,519,000	-	-	-	-	견적의뢰 / 주문
PSS1520N1D1179	P	2,651,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0311	P	1,771,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0411	P	1,837,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0511	P	1,958,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0611	P	2,090,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0711	P	2,233,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0811	P	2,398,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D0929	P	2,574,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D1029	P	2,816,000	-	-	-	-	견적의뢰 / 주문
PSS1530N1D1229	P	3,333,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0323	P	1,397,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0373	P	1,496,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0473	P	1,661,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0573	P	1,815,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0673	P	1,991,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0773	P	2,178,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D0873	P	2,376,000	-	-	-	-	견적의뢰 / 주문
PSS2005N1D1000	P	2,585,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0387	P	1,496,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0487	P	1,617,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0587	P	1,727,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0687	P	1,815,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0787	P	1,925,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D0887	P	2,035,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D1014	P	2,145,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D1214	P	2,464,000	-	-	-	-	견적의뢰 / 주문
PSS2010N1D1414	P	2,761,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D0508	P	1,859,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D0608	P	1,958,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D0708	P	2,046,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D0808	P	2,156,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D0908	P	2,266,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D1035	P	2,431,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D1235	P	2,871,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D1435	P	3,256,000	-	-	-	-	견적의뢰 / 주문
PSS2020N1D1835	P	3,883,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0408	P	1,892,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0508	P	1,969,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0608	P	2,101,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0708	P	2,189,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0808	P	2,376,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D0908	P	2,541,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D1035	P	2,706,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D1235	P	3,014,000	-	-	-	-	견적의뢰 / 주문
PSS2030N1D1435	P	3,366,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D0658	P	2,134,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D0758	P	2,200,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D0858	P	2,376,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D0958	P	2,519,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D1085	P	2,651,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D1285	P	2,926,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D1485	P	3,146,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D1885	P	3,641,000	-	-	-	-	견적의뢰 / 주문
PSS2040N1D2285	P	4,081,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D0708	P	2,431,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D0808	P	2,574,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D0908	P	2,728,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D1008	P	2,816,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D1135	P	2,926,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D1335	P	3,113,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D1535	P	3,311,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D1935	P	3,883,000	-	-	-	-	견적의뢰 / 주문
PSS2060N1D2335	P	4,543,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0349	P	1,474,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0399	P	1,573,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0499	P	1,749,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0599	P	1,903,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0699	P	2,079,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0899	P	2,420,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D0999	P	2,596,000	-	-	-	-	견적의뢰 / 주문
PSS2505N1D1233	P	2,959,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D0549	P	1,837,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D0649	P	1,991,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D0749	P	2,156,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D0849	P	2,321,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D0949	P	2,519,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D1049	P	2,684,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D1283	P	3,036,000	-	-	-	-	견적의뢰 / 주문
PSS2510N1D1883	P	4,081,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D0729	P	1,925,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D0829	P	2,134,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D0929	P	2,321,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D1029	P	2,530,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D1263	P	2,926,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D1463	P	3,333,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D1863	P	4,268,000	-	-	-	-	견적의뢰 / 주문
PSS2520N1D2263	P	4,983,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D0779	P	2,464,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D0879	P	2,596,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D0979	P	2,728,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D1079	P	3,091,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D1313	P	3,586,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D1513	P	4,081,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D1913	P	5,082,000	-	-	-	-	견적의뢰 / 주문
PSS2525N1D2313	P	5,500,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D0779	P	2,497,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D0879	P	2,618,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D0979	P	2,728,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D1079	P	2,871,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D1313	P	3,223,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D1513	P	3,663,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D1913	P	4,488,000	-	-	-	-	견적의뢰 / 주문
PSS2530N1D2313	P	5,280,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D0829	P	2,739,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D0929	P	2,805,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D1029	P	2,871,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D1129	P	2,959,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D1363	P	3,146,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D1563	P	3,366,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D1963	P	3,883,000	-	-	-	-	견적의뢰 / 주문
PSS2550N1D2363	P	4,543,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
