리니어클램프(유압타입)

KWH 리니어클램퍼·즈이

나베야바이테크(주) ( NABEYA BI-TECH )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


150건 중 1~150건 표시

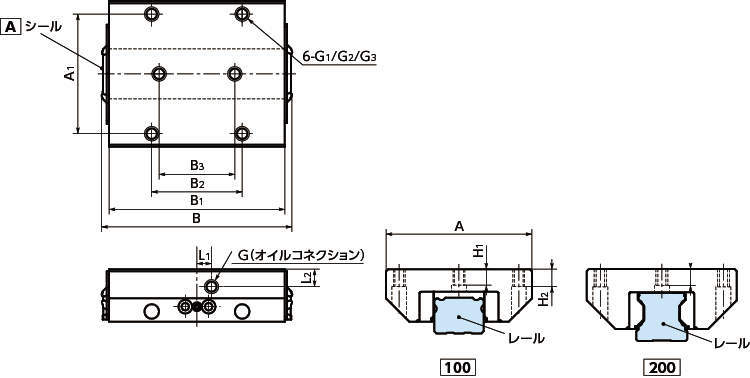

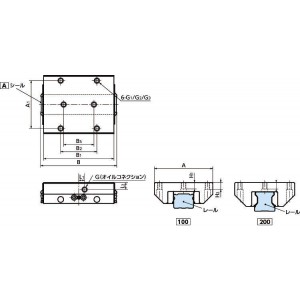

형식	지지력 (N)	형상	A	A1	B	B1	B2	B3
형식	지지력 (N)	형상	A	A1	B	B1	B2	B3
KWH-2501-AS1	2200	200	70	57	max.116	92	45	45
KWH-2502-AS1	2200	200	70	57	max.116	92	45	40
KWH-2503-AS1	2200	200	70	57	max.116	92	45	40
KWH-2504-AS1	2200	100	70	57	max.116	92	45	45
KWH-2505-AS1	2200	200	70	57	max.102	92	45	40
KWH-2510-AS1	2200	100	70	57	max.116	92	45	45
KWH-3001-AS1	3000	200	90	72	max.120	103.5	52	52
KWH-3002-AS1	3000	200	90	72	max.124	103.5	52	44
KWH-3004-AS1	3000	100	90	72	max.120	103.5	52	52
KWH-3005-AS1	3000	200	90	72	max.115	103.5	52	44
KWH-3010-AS1	3000	100	90	72	max.120	103.5	52	52
KWH-3501-AS1	5700	200	100	82	max.144	120.5	62	62
KWH-3502-AS1	5700	200	100	82	max.147	120.5	62	52
KWH-3503-AS1	5700	200	100	82	max.147	120.5	62	52
KWH-3504-AS1	5700	100	100	82	max.144	120.5	62	62
KWH-3505-AS1	5700	200	100	82	max.133	120.5	62	52
KWH-3510-AS1	5700	100	100	82	max.144	120.5	62	62
KWH-4501-AS1	9900	200	120	100	max.175	155	80	80
KWH-4502-AS1	9900	200	120	100	max.184	155	80	60
KWH-4503-AS1	9900	200	120	100	max.184	155	80	60
KWH-4505-AS1	9900	200	120	100	max.170	155	80	60
KWH-4510-AS1	9900	100	120	100	max.175	155	80	80
KWH-5501-AS1	13700	200	140	116	max.206	184	95	95
KWH-5502-AS1	13700	200	140	116	max.214	184	95	70
KWH-5503-AS1	13700	200	140	116	max.214	184	95	70
KWH-5505-AS1	13700	200	140	116	max.201	184	95	70
KWH-5510-AS1	13700	200	140	116	max.206	184	95	95
KWH-6501-AS1	22700	200	170	142	max.253	227	110	110
KWH-6503-AS1	22700	200	170	142	max.257	227	110	82
KWH-6505-AS1	22700	200	170	142	max.256	227	110	82
KWH-6510-AS1	22700	100	170	142	max.253	227	110	110
KWH-8501-AS1	27400	200	215	140	max.210	192	140	140
KWH-10001-AS1	34000	200	250	200	max.230	208	150	150
KWH-10003-AS1	34000	200	250	200	max.230	200	150	150
KWH-2505-AS2	1600	200	48	35	max.102	92	50	50
KWH-3005-AS2	3000	200	60	40	max.115	103.5	60	60
KWH-3505-AS2	3500	200	70	50	max.133	120.5	72	72
KWH-4505-AS2	7400	200	86	60	max.170	155	80	80
KWH-5505-AS2	13700	200	100	75	max.200	184	95	95
KWH-6505-AS2	22700	200	126	76	max.255	227	120	120
KWH-2505-AS3	1600	200	48	35	max.102	92	50	50
KWH-3005-AS3	3000	200	60	40	max.115	103.5	60	60
KWH-3503-AS3	3500	200	70	50	max.140	120.5	72	72
KWH-3505-AS3	3500	200	70	50	max.136	120.5	72	72
KWH-4503-AS3	7400	200	86	60	max.190	155	80	80
KWH-4505-AS3	7400	200	86	60	max.170	155	80	80
KWH-5503-AS3	13700	200	100	75	max.215	184	95	95
KWH-5505-AS3	13700	200	100	75	max.200	184	95	95
KWH-6503-AS3	22700	200	126	76	max.238	227	120	120
KWH-2501-BS1	1600	100	70	57	max.116	92	45	45
KWH-2502-BS1	2200	200	70	57	max.116	92	45	40
KWH-2504-BS1	2200	100	70	57	max.116	92	45	45
KWH-2505-BS1	2200	200	70	57	max.105	92	45	40
KWH-2510-BS1	2200	200	70	57	max.116	92	45	45
KWH-2512-BS1	2200	100	70	57	max.116	92	45	45
KWH-3001-BS1	2100	100	90	72	max.128	103.5	52	52
KWH-3002-BS1	3000	200	90	72	max.124	103.5	52	44
KWH-3004-BS1	3000	100	90	72	max.120	103.5	52	52
KWH-3012-BS1	3000	100	90	72	max.128	103.5	52	52
KWH-3501-BS1	4300	100	100	82	max.145	120.5	62	62
KWH-3502-BS1	5700	200	100	82	max.147	120.5	62	52
KWH-3504-BS1	5700	100	100	82	max.144	120.5	62	62
KWH-3505-BS1	5700	200	100	82	max.128	120.5	62	52
KWH-3510-BS1	5700	200	100	82	max.144	120.5	62	62
KWH-3512-BS1	5700	100	100	82	max.145	120.5	62	62
KWH-4501-BS1	7400	100	120	100	max.166	155	80	80
KWH-4502-BS1	9900	200	120	100	max.184	155	80	60
KWH-4504-BS1	9900	100	120	100	max.175	155	80	80
KWH-4505-BS1	9900	200	120	100	max.166	155	80	60
KWH-4510-BS1	9900	200	120	100	max.175	155	80	80
KWH-4512-BS1	9900	100	120	100	max.176	155	80	80
KWH-5501-BS1	10200	100	140	116	max.201	184	95	95
KWH-5504-BS1	13700	100	140	116	max.206	184	95	95
KWH-5505-BS1	13700	200	140	116	max.197	184	95	70
KWH-5510-BS1	13700	200	140	116	max.206	184	95	95
KWH-5512-BS1	13700	100	140	116	max.208	184	95	95
KWH-6501-BS1	17000	100	170	142	max.219	200	110	110
KWH-6504-BS1	22700	100	170	142	max.253	227	110	110
KWH-6505-BS1	22700	200	170	142	max.238	227	110	82
KWH-6510-BS1	22700	200	170	142	max.253	227	110	110
KWH-6512-BS1	22700	100	170	142	max.253	227	110	110
KWH-10001-BS1	34000	100	250	200	max.226	208	150	150
KWH-10005-BS1	34000	200	250	200	max.230	208	150	150
KWH-12505-BS1	46000	200	320	270	max.245	227	102.5	102.5
KWH-3002-BS2	3000	200	60	40	max.115	103.5	60	60
KWH-2505-BS3	1600	200	48	35	max.100	92	50	50
KWH-3505-BS3	3500	200	70	50	max.130	120.5	72	72
KWH-3510-BS3	5700	200	70	50	max.136	120.5	72	72
KWH-4505-BS3	7400	200	86	60	max.166	155	80	80
KWH-5505-BS3	13700	200	100	75	max.197	184	95	95
KWH-5510-BS3	13700	200	100	75	max.210	184	95	95
KWH-6505-BS3	22700	200	126	76	max.238	227	120	120
KWH-5505-BS4	13700	100	165	140	max.200	192	95	95
KWH-6505-BS4	22700	200	200	172	max.260	227	110	110
KWH-2501-CS1	2200	200	70	57	max.116	92	45	45
KWH-2504-CS1	2200	100	70	57	max.116	92	45	45
KWH-3001-CS1	3000	200	90	72	max.120	103.5	52	52
KWH-3004-CS1	3000	100	90	72	max.128	103.5	52	52
KWH-3501-CS1	5700	200	100	82	max.144	120.5	62	62
KWH-3504-CS1	5700	100	100	82	max.145	120.5	62	62
KWH-4501-CS1	9900	200	120	100	max.175	155	80	80
KWH-4504-CS1	9900	100	120	100	max.176	155	80	80
KWH-5501-CS1	13700	200	140	116	max.206	184	95	95
KWH-5504-CS1	13700	100	140	116	max.208	184	95	95
KWH-6501-CS1	22700	200	170	142	max.253	227	110	110
KWH-6504-CS1	22700	100	170	142	max.253	227	110	110
KWH-3501-CS3	3500	200	70	50	max.138	120.5	72	72
KWH-2502-DS1	2200	200	70	57	max.116	92	45	40
KWH-2510-DS1	2200	100	70	57	max.106	92	45	45
KWH-3502-DS1	5700	200	100	82	max.147	120.5	62	52
KWH-4502-DS1	9900	200	120	100	max.184	155	80	60
KWH-5502-DS1	13700	200	140	116	max.214	184	95	70
KWH-6502-DS1	22700	200	170	142	max.257	227	110	82
KWH-10002-DS1	34000	200	250	200	max.230	208	105	150
KWH-3502-DS3	3500	200	70	50	max.138	120.5	72	72
KWH-5502-DS3	13700	200	100	75	max.210	184	95	96
KWH-2501-ES1	2200	200	70	57	max.116	92	45	45
KWH-2512-ES1	2200	200	70	57	max.116	92	45	40
KWH-3001-ES1	3000	200	90	72	max.120	103.5	52	52
KWH-3012-ES1	3000	200	90	72	max.124	103.5	52	44
KWH-3501-ES1	5700	200	100	82	max.144	120.5	62	62
KWH-3512-ES1	5700	200	100	82	max.144	120.5	62	62
KWH-4501-ES1	9900	200	120	100	max.175	155	80	80
KWH-4512-ES1	9900	200	120	100	max.184	155	80	60
KWH-5501-ES1	13700	200	140	116	max.206	184	95	95
KWH-6501-ES1	22700	200	170	142	max.253	227	110	110
KWH-8501-ES1	27400	200	215	185	max.210	184	140	140
KWH-10001-ES1	34000	200	250	200	max.230	200	150	150
KWH-3501-ES3	5700	200	70	50	max.138	120.5	72	72
KWH-2504-FS1	2200	200	70	57	max.116	92	45	45
KWH-3004-FS1	3000	200	90	72	max.120	103.5	52	52
KWH-3012-FS1	3000	200	90	72	max.124	103.5	52	44
KWH-3504-FS1	5700	200	100	82	max.144	120.5	62	62
KWH-3512-FS1	5700	200	100	82	max.147	120.5	62	52
KWH-4504-FS1	9900	200	120	100	max.175	155	80	80
KWH-4512-FS1	9900	200	120	100	max.184	155	80	60
KWH-5504-FS1	13700	200	140	116	max.206	184	95	95
KWH-5512-FS1	13700	200	140	116	max.203	184	95	70
KWH-6504-FS1	22700	200	170	142	max.253	227	110	110
KWH-6512-FS1	22700	200	170	142	max.257	227	110	82
KWH-3504-FS3	3500	200	70	50	max.136	120.5	72	72
KWH-5512-FS3	13700	200	100	75	max.210	184	95	95
KWH-6504-FS3	22700	200	126	76	max.255	227	120	120
KWH-2501-IS1	1600	100	70	57	max.116	92	45	45
KWH-3001-IS1	2100	100	90	72	max.119	103.5	52	52
KWH-3501-IS1	4300	100	100	82	max.145	120.5	62	62
KWH-4501-IS1	7400	100	120	100	max.166	155	80	80
KWH-5501-IS1	10200	100	140	116	max.201	184	95	95
KWH-6501-IS1	17000	100	170	142	max.219	200	110	110
KWH-8501-IS1	13700	100	165	140	max.200	192	95	95

형식	G	G1	G2	G3	H1	H2	L1	L2
형식	G	G1	G2	G3	H1	H2	L1	L2
KWH-2501-AS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2502-AS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2503-AS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2504-AS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2505-AS1	G1/8	M8	6.8	M6	7	9	-	8
KWH-2510-AS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3001-AS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3002-AS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3004-AS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3005-AS1	G1/8	M10	8.6	M8	8	11	-	10.5
KWH-3010-AS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3501-AS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3502-AS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3503-AS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3504-AS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3505-AS1	G1/8	M10	8.6	M8	10.2	12	-	12
KWH-3510-AS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4501-AS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4502-AS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4503-AS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4505-AS1	G1/8	M12	10.5	M10	12.4	15	-	15
KWH-4510-AS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5501-AS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5502-AS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5503-AS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5505-AS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5510-AS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6501-AS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6503-AS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6505-AS1	G1/4	M16	14.5	M14	14	23	-	20
KWH-6510-AS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-8501-AS1	G1/4	M20	17.5	M16	19.8	35	-	20
KWH-10001-AS1	G1/4	M20	17.5	M16	17.5	30	-	20
KWH-10003-AS1	G1/4	M20	17.5	M16	17.5	30	-	20
KWH-2505-AS2	G1/8	M6	-	-	8	8	10	8
KWH-3005-AS2	G1/8	M8	-	-	8	8	10	9
KWH-3505-AS2	G1/8	M8	-	-	13	13	-	12
KWH-4505-AS2	G1/8	M10	-	-	15	15	-	15
KWH-5505-AS2	G1/8	M12	-	-	20.8	18	-	16
KWH-6505-AS2	G1/4	M16	-	-	21	21	-	20
KWH-2505-AS3	G1/8	M6	-	-	12	12	10	12
KWH-3005-AS3	G1/8	M8	-	-	11	11	10	12
KWH-3503-AS3	G1/8	M8	-	-	13	13	-	18
KWH-3505-AS3	G1/8	M8	-	-	13	13	-	18
KWH-4503-AS3	G1/8	M10	-	-	18	18	-	24
KWH-4505-AS3	G1/8	M10	-	-	18	18	-	24
KWH-5503-AS3	G1/8	M12	-	-	19	19	-	26
KWH-5505-AS3	G1/8	M12	-	-	19	19	-	26
KWH-6503-AS3	G1/4	M16	-	-	21	21	-	20
KWH-2501-BS1	G1/8	M8	6.8	M6	7.7	9	10	9.5
KWH-2502-BS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2504-BS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2505-BS1	G1/8	M8	6.8	M6	7	9	-	8
KWH-2510-BS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2512-BS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3001-BS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3002-BS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3004-BS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3012-BS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3501-BS1	G1/8	M10	8.6	M8	7	12	-	12
KWH-3502-BS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3504-BS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3505-BS1	G1/8	M10	8.6	M8	11	12	-	12
KWH-3510-BS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3512-BS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4501-BS1	G1/8	M12	10.5	M10	10.4	15	-	12
KWH-4502-BS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4504-BS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4505-BS1	G1/8	M12	10.5	M10	13.5	15	-	15
KWH-4510-BS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4512-BS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5501-BS1	G1/8	M14	12.5	M12	13.7	16	-	16
KWH-5504-BS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5505-BS1	G1/8	M14	12.5	M12	13.7	18	-	16
KWH-5510-BS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5512-BS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6501-BS1	G1/4	M16	14.5	M14	21	25	-	20
KWH-6504-BS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6505-BS1	G1/4	M16	14.5	M14	21.5	23	-	20
KWH-6510-BS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6512-BS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-10001-BS1	G1/4	M20	17.5	M16	24	30	-	20
KWH-10005-BS1	G1/4	M20	17.5	M16	17.5	30	-	20
KWH-12505-BS1	G1/4	M27	24	M24	29	45	-	50
KWH-3002-BS2	G1/8	M8	-	-	11	11	10	12
KWH-2505-BS3	G1/8	M6	-	-	12	12	10	12
KWH-3505-BS3	G1/8	M8	-	-	13	13	-	18
KWH-3510-BS3	G1/8	M8	-	-	13	13	-	18
KWH-4505-BS3	G1/8	M10	-	-	18	18	-	24
KWH-5505-BS3	G1/8	M12	-	-	19	19	-	26
KWH-5510-BS3	G1/8	M12	-	-	19	19	-	26
KWH-6505-BS3	G1/4	M16	-	-	21	21	-	20
KWH-5505-BS4	G1/4	M8	-	-	19	19	-	16
KWH-6505-BS4	G1/4	M14	12.5	M12	20	20	-	20
KWH-2501-CS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2504-CS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3001-CS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3004-CS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3501-CS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3504-CS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4501-CS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4504-CS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5501-CS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5504-CS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6501-CS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6504-CS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-3501-CS3	G1/8	M8	-	-	13	13	-	18
KWH-2502-DS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2510-DS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3502-DS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4502-DS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5502-DS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6502-DS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-10002-DS1	G1/4	M20	17.5	M16	17.5	30	-	20
KWH-3502-DS3	G1/8	M8	-	-	13	13	-	18
KWH-5502-DS3	G1/8	M12	-	-	19	19	-	26
KWH-2501-ES1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-2512-ES1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3001-ES1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3012-ES1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3501-ES1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3512-ES1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4501-ES1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4512-ES1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5501-ES1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6501-ES1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-8501-ES1	G1/4	M20	17.5	M16	19.8	35	-	20
KWH-10001-ES1	G1/4	M20	17.5	M16	17.5	30	-	20
KWH-3501-ES3	G1/8	M8	-	-	13	13	-	18
KWH-2504-FS1	G1/8	M8	6.8	M6	5.8	9	10	9
KWH-3004-FS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3012-FS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3504-FS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-3512-FS1	G1/8	M10	8.6	M8	6.4	12	-	12
KWH-4504-FS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-4512-FS1	G1/8	M12	10.5	M10	11.9	15	-	15
KWH-5504-FS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-5512-FS1	G1/8	M14	12.5	M12	13.5	18	-	16
KWH-6504-FS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-6512-FS1	G1/4	M16	14.5	M14	14.5	22	-	20
KWH-3504-FS3	G1/8	M8	-	-	13	13	-	18
KWH-5512-FS3	G1/8	M12	-	-	19	19	-	26
KWH-6504-FS3	G1/4	M16	-	-	21	21	-	20
KWH-2501-IS1	G1/8	M8	6.8	M6	7.7	9	10	9.5
KWH-3001-IS1	G1/8	M10	8.6	M8	7	10	-	10.5
KWH-3501-IS1	G1/8	M10	8.6	M8	7	12	-	12
KWH-4501-IS1	G1/8	M12	10.5	M10	10.4	15	-	12
KWH-5501-IS1	G1/8	M14	12.5	M12	13.7	16	-	16
KWH-6501-IS1	G1/4	M16	14.5	M14	21	25	-	20
KWH-8501-IS1	G1/4	M8	-	-	19	19	-	16

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (kg)	견적의뢰 및 주문
KWH-2501-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2502-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2503-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2504-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2505-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2510-AS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3001-AS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3002-AS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3004-AS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3005-AS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3010-AS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3501-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3502-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3503-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3504-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3505-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3510-AS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4501-AS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4502-AS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4503-AS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4505-AS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4510-AS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5501-AS1	P	8,448,000	-	-	-	10	견적의뢰 / 주문
KWH-5502-AS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5503-AS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5505-AS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5510-AS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6501-AS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6503-AS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6505-AS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6510-AS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-8501-AS1	P	22,440,000	-	-	-	21	견적의뢰 / 주문
KWH-10001-AS1	P	39,820,000	-	-	-	29	견적의뢰 / 주문
KWH-10003-AS1	P	39,600,000	-	-	-	29	견적의뢰 / 주문
KWH-2505-AS2	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3005-AS2	P	5,060,000	-	-	-	1	견적의뢰 / 주문
KWH-3505-AS2	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4505-AS2	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5505-AS2	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6505-AS2	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-2505-AS3	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3005-AS3	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3503-AS3	P	5,698,000	-	-	-	2	견적의뢰 / 주문
KWH-3505-AS3	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4503-AS3	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4505-AS3	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5503-AS3	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5505-AS3	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6503-AS3	P	9,152,000	-	-	-	17	견적의뢰 / 주문
KWH-2501-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2502-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2504-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2505-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2510-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2512-BS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3001-BS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3002-BS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3004-BS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3012-BS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3501-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3502-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3504-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3505-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3510-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3512-BS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4501-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4502-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4504-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4505-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4510-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4512-BS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5501-BS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5504-BS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5505-BS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5510-BS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5512-BS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6501-BS1	P	9,086,000	-	-	-	13	견적의뢰 / 주문
KWH-6504-BS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6505-BS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6510-BS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6512-BS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-10001-BS1	P	39,820,000	-	-	-	29	견적의뢰 / 주문
KWH-10005-BS1	P	39,820,000	-	-	-	29	견적의뢰 / 주문
KWH-12505-BS1	P	26,840,000	-	-	-	54	견적의뢰 / 주문
KWH-3002-BS2	P	5,082,000	-	-	-	2	견적의뢰 / 주문
KWH-2505-BS3	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3505-BS3	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3510-BS3	P	5,698,000	-	-	-	3	견적의뢰 / 주문
KWH-4505-BS3	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5505-BS3	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5510-BS3	P	8,470,000	-	-	-	8	견적의뢰 / 주문
KWH-6505-BS3	P	9,086,000	-	-	-	14	견적의뢰 / 주문
KWH-5505-BS4	P	8,470,000	-	-	-	8	견적의뢰 / 주문
KWH-6505-BS4	P	9,086,000	-	-	-	22	견적의뢰 / 주문
KWH-2501-CS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2504-CS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3001-CS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3004-CS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3501-CS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3504-CS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4501-CS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4504-CS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5501-CS1	P	8,448,000	-	-	-	7	견적의뢰 / 주문
KWH-5504-CS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6501-CS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-6504-CS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-3501-CS3	P	5,698,000	-	-	-	3	견적의뢰 / 주문
KWH-2502-DS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2510-DS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3502-DS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4502-DS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5502-DS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6502-DS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-10002-DS1	P	39,820,000	-	-	-	29	견적의뢰 / 주문
KWH-3502-DS3	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-5502-DS3	P	8,470,000	-	-	-	8	견적의뢰 / 주문
KWH-2501-ES1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-2512-ES1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3001-ES1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3012-ES1	P	5,082,000	-	-	-	2	견적의뢰 / 주문
KWH-3501-ES1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3512-ES1	P	5,698,000	-	-	-	3	견적의뢰 / 주문
KWH-4501-ES1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4512-ES1	P	7,392,000	-	-	-	5	견적의뢰 / 주문
KWH-5501-ES1	P	8,448,000	-	-	-	10	견적의뢰 / 주문
KWH-6501-ES1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-8501-ES1	P	22,440,000	-	-	-	21	견적의뢰 / 주문
KWH-10001-ES1	P	39,600,000	-	-	-	29	견적의뢰 / 주문
KWH-3501-ES3	P	5,698,000	-	-	-	3	견적의뢰 / 주문
KWH-2504-FS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3004-FS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3012-FS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3504-FS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-3512-FS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4504-FS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-4512-FS1	P	7,392,000	-	-	-	5	견적의뢰 / 주문
KWH-5504-FS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-5512-FS1	P	8,470,000	-	-	-	8	견적의뢰 / 주문
KWH-6504-FS1	P	9,152,000	-	-	-	17	견적의뢰 / 주문
KWH-6512-FS1	P	9,152,000	-	-	-	17	견적의뢰 / 주문
KWH-3504-FS3	P	5,698,000	-	-	-	3	견적의뢰 / 주문
KWH-5512-FS3	P	8,470,000	-	-	-	8	견적의뢰 / 주문
KWH-6504-FS3	P	9,152,000	-	-	-	17	견적의뢰 / 주문
KWH-2501-IS1	P	4,466,000	-	-	-	1	견적의뢰 / 주문
KWH-3001-IS1	P	5,060,000	-	-	-	2	견적의뢰 / 주문
KWH-3501-IS1	P	5,676,000	-	-	-	3	견적의뢰 / 주문
KWH-4501-IS1	P	7,370,000	-	-	-	5	견적의뢰 / 주문
KWH-5501-IS1	P	8,448,000	-	-	-	8	견적의뢰 / 주문
KWH-6501-IS1	P	9,086,000	-	-	-	17	견적의뢰 / 주문
KWH-8501-IS1	P	22,440,000	-	-	-	21	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
