맥스타웻지풀리

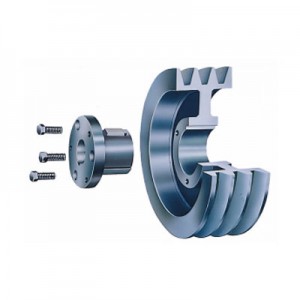

맥스타웨지풀리 5V

미츠보시벨트(주) ( MITSUBOSHI )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


130건 중 1~130건 표시

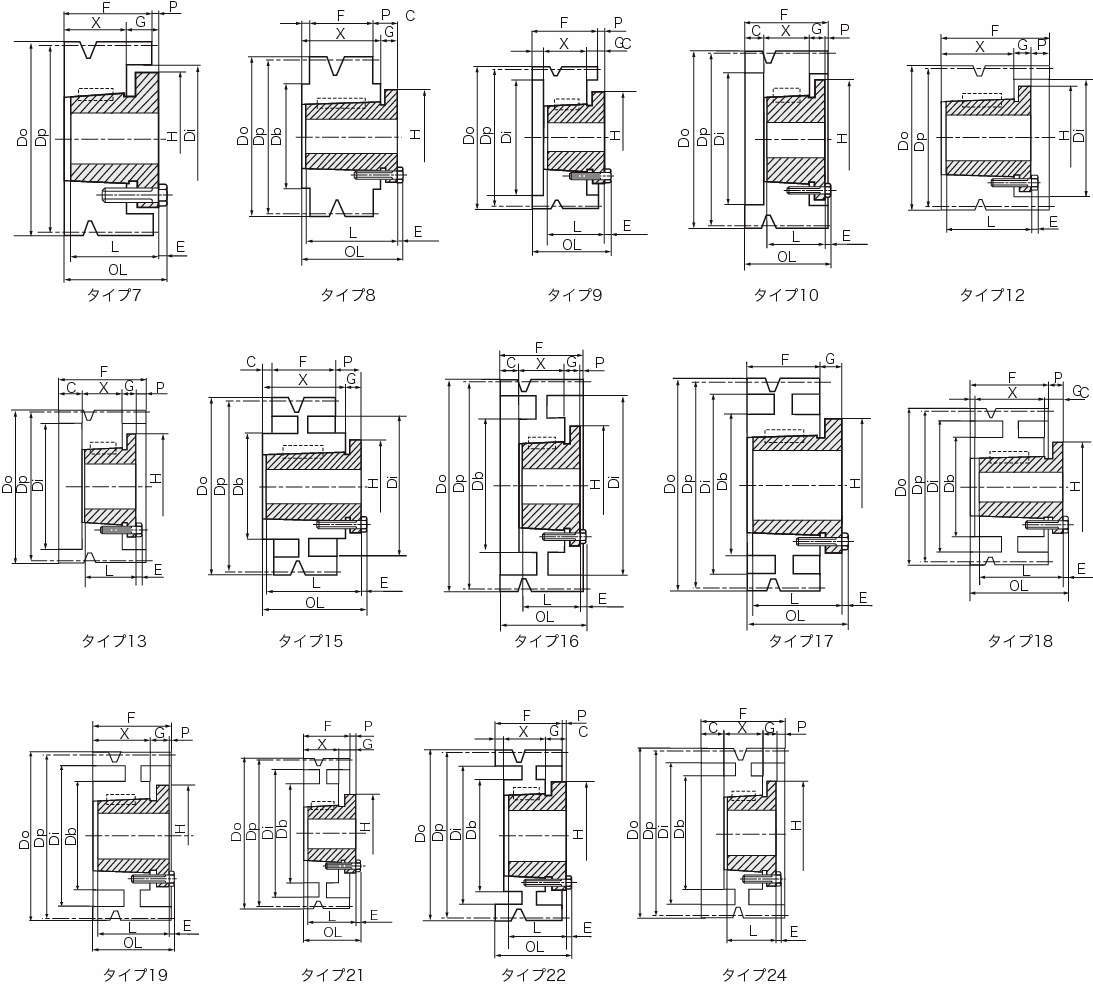

형식	홈수	적용 부싱	타입	유효경 De (mm)	외경 Do (mm)	피치경 Dp (mm)	내경 Di (mm)	보스경 Db (mm)
형식	홈수	적용 부싱	타입	유효경 De (mm)	외경 Do (mm)	피치경 Dp (mm)	내경 Di (mm)	보스경 Db (mm)
150-5V-2-Q1	2	Q1	8	150	151	147.4	-	130
160-5V-2-Q1	2	Q1	8	160	161	157.4	-	130
170-5V-2-Q1	2	Q1	8	170	171	167.4	-	130
180-5V-2-Q1	2	Q1	8	180	181	177.4	-	130
190-5V-2-Q1	2	Q1	8	190	191	187.4	-	130
200-5V-2-Q1	2	Q1	8	200	201	197.4	-	130
212-5V-2-Q1	2	Q1	15	212	213	209.4	167	130
224-5V-2-Q1	2	Q1	15	224	225	221.4	179	130
236-5V-2-Q1	2	Q1	15	236	237	233.4	191	130
250-5V-2-Q1	2	Q1	15	250	251	247.4	205	130
265-5V-2-Q1	2	Q1	8	265	266	262.4	220	130
280-5V-2-Q1	2	Q1	15	280	281	277.4	235	130
315-5V-2-R1	2	R1	15	315	316	312.4	270	150
355-5V-2-R1	2	R1	15	355	356	352.4	310	150
400-5V-2-R1	2	R1	15	400	401	397.4	355	150
450-5V-2-R1	2	R1	15	450	451	447.4	405	150
500-5V-2-R1	2	R1	15	500	501	497.4	455	150
150-5V-3-Q1	3	Q1	7	150	151	147.4	100	-
160-5V-3-Q1	3	Q1	7	160	161	157.4	116	-
170-5V-3-Q1	3	Q1	7	170	171	167.4	120	-
180-5V-3-Q1	3	Q1	7	180	181	177.4	135	-
190-5V-3-Q1	3	Q1	7	190	191	187.4	145	-
200-5V-3-R1	3	R1	7	200	201	197.4	155	-
212-5V-3-R1	3	R1	7	212	213	209.4	167	-
224-5V-3-R1	3	R1	7	224	225	221.4	179	-
236-5V-3-R1	3	R1	7	236	237	233.4	191	-
250-5V-3-R1	3	R1	21	250	251	247.4	205	150
265-5V-3-R1	3	R1	21	265	266	262.4	210	-
280-5V-3-R1	3	R1	21	280	281	277.4	235	150
300-5V-3-R1	3	R1	21	300	301	297.4	245	-
315-5V-3-R1	3	R1	21	315	316	312.4	270	150
355-5V-3-R1	3	R1	21	355	356	352.4	310	150
400-5V-3-R1	3	R1	21	400	401	397.4	355	150
450-5V-3-R1	3	R1	21	450	451	447.4	405	150
500-5V-3-R1	3	R1	21	500	501	497.4	455	150
630-5V-3-R1	3	R1	21	630	631	627.4	579	150
800-5V-3-R1	3	R1	21	800	801	797.4	749	150
1000-5V-3-S1	3	S1	15	1000	1001	997.4	949	200
1250-5V-3-U0	3	U0	15	1250	1251	1247.4	1199	250
150-5V-4-Q1	4	Q1	9	150	151	147.4	100	-
160-5V-4-Q1	4	Q1	9	160	161	157.4	116	-
170-5V-4-Q1	4	Q1	9	170	171	167.4	120	-
180-5V-4-Q1	4	Q1	9	180	181	177.4	135	-
190-5V-4-Q1	4	Q1	9	190	191	187.4	145	-
200-5V-4-R1	4	R1	9	200	201	197.4	155	-
212-5V-4-R1	4	R1	9	212	213	209.4	167	-
224-5V-4-R1	4	R1	9	224	225	221.4	179	-
236-5V-4-R1	4	R1	9	236	237	233.4	191	-
250-5V-4-R1	4	R1	22	250	251	247.4	205	150
265-5V-4-R1	4	R1	22	265	266	262.4	210	150
280-5V-4-R1	4	R1	22	280	281	277.4	235	150
300-5V-4-R1	4	R1	22	300	301	297.4	245	150
315-5V-4-R1	4	R1	22	315	316	312.4	270	150
355-5V-4-R1	4	R1	22	355	356	352.4	310	150
400-5V-4-R1	4	R1	22	400	401	397.4	355	150
450-5V-4-R1	4	R1	22	450	451	447.4	405	150
500-5V-4-R1	4	R1	22	500	501	497.4	455	150
630-5V-4-R1	4	R1	22	630	631	627.4	579	150
800-5V-4-S1	4	S1	15	800	801	797.4	749	200
1000-5V-4-S1	4	S1	15	1000	1001	997.4	949	200
1250-5V-4-U0	4	U0	15	1250	1251	1247.4	1199	250
180-5V-5-Q2	5	Q2	9	180	181	177.4	135	-
190-5V-5-R1	5	R1	10	190	191	187.4	145	-
200-5V-5-R1	5	R1	10	200	201	197.4	155	-
212-5V-5-R1	5	R1	10	212	213	209.4	167	-
224-5V-5-R1	5	R1	10	224	225	221.4	179	-
236-5V-5-R1	5	R1	10	236	237	233.4	191	-
250-5V-5-R1	5	R1	16	250	251	247.4	205	150
265-5V-5-R1	5	R1	16	265	266	262.4	220	150
280-5V-5-R1	5	R1	16	280	281	277.4	235	150
300-5V-5-R1	5	R1	16	300	301	297.4	255	150
315-5V-5-R1	5	R1	16	315	316	312.4	270	150
355-5V-5-R1	5	R1	16	355	356	352.4	310	150
400-5V-5-R1	5	R1	16	400	401	397.4	355	150
450-5V-5-R1	5	R1	16	450	451	447.4	405	150
500-5V-5-S1	5	S1	21	500	501	497.4	455	220
630-5V-5-S1	5	S1	21	630	631	627.4	579	200
800-5V-5-S1	5	S1	21	800	801	797.4	749	200
1000-5V-5-U0	5	U0	17	1000	1001	997.4	949	250
1250-5V-5-U0	5	U0	17	1250	1251	1247.4	1199	250
180-5V-6-Q2	6	Q2	10	180	181	177.4	135	-
190-5V-6-R1	6	R1	13	190	191	187.4	145	-
200-5V-6-R1	6	R1	13	200	201	197.4	155	-
212-5V-6-R1	6	R1	13	212	213	209.4	167	-
224-5V-6-R1	6	R1	13	224	225	221.4	179	-
236-5V-6-R1	6	R1	13	236	237	233.4	191	-
250-5V-6-R1	6	R1	24	250	251	247.4	205	150
280-5V-6-R1	6	R1	24	280	281	277.4	235	150
300-5V-6-R1	6	R1	24	300	301	297.4	255	150
315-5V-6-S1	6	S1	19	315	316	312.4	270	200
355-5V-6-S1	6	S1	19	355	356	352.4	310	200
400-5V-6-S1	6	S1	19	400	401	397.4	355	200
450-5V-6-S1	6	S1	19	450	451	447.4	405	200
500-5V-6-S1	6	S1	19	500	501	497.4	455	200
630-5V-6-S1	6	S1	19	630	631	627.4	579	200
800-5V-6-S1	6	S1	19	800	801	797.4	749	200
1000-5V-6-U0	6	U0	21	1000	1001	997.4	949	250
1250-5V-6-U0	6	U0	21	1250	1251	1247.4	1199	250
180-5V-8-Q2	8	Q2	13	180	181	177.4	135	-
190-5V-8-R2	8	R2	12	190	191	187.4	145	-
200-5V-8-R2	8	R2	12	200	201	197.4	149	-
212-5V-8-R2	8	R2	12	212	213	209.4	161	-
224-5V-8-R2	8	R2	12	224	225	221.4	173	-
236-5V-8-S1	8	S1	13	236	237	233.4	185	-
250-5V-8-S1	8	S1	13	250	251	247.4	199	-
280-5V-8-S1	8	S1	13	280	281	277.4	229	-
315-5V-8-S1	8	S1	24	315	316	312.4	264	200
355-5V-8-S1	8	S1	24	355	356	352.4	304	200
400-5V-8-S1	8	S1	24	400	401	397.4	349	200
450-5V-8-S1	8	S1	24	450	451	447.4	399	200
500-5V-8-U1	8	U1	18	500	501	497.4	449	250
630-5V-8-U1	8	U1	18	630	631	627.4	579	250
800-5V-8-U1	8	U1	18	800	801	797.4	749	250
1000-5V-8-U1	8	U1	18	1000	1001	997.4	949	250
1250-5V-8-U1	8	U1	18	1250	1251	1247.4	1199	250
200-5V-10-R2	10	R2	13	200	201	197.4	149	-
212-5V-10-R2	10	R2	13	212	213	209.4	161	-
224-5V-10-R2	10	R2	13	224	225	221.4	173	-
236-5V-10-S1	10	S1	13	236	237	233.4	185	-
250-5V-10-S1	10	S1	13	250	251	247.4	199	-
280-5V-10-S1	10	S1	13	280	281	277.4	229	-
315-5V-10-U1	10	U1	11	315	316	312.4	264	-
355-5V-10-U1	10	U1	19	355	356	352.4	304	230
400-5V-10-U1	10	U1	19	400	401	397.4	349	250
450-5V-10-U1	10	U1	19	450	451	447.4	399	250
500-5V-10-U1	10	U1	19	500	501	497.4	449	250
630-5V-10-U1	10	U1	19	630	631	627.4	579	250
800-5V-10-U1	10	U1	19	800	801	797.4	749	250
1000-5V-10-U1	10	U1	19	1000	1001	997.4	949	250
1250-5V-10-U1	10	U1	19	1250	1251	1247.4	1199	250

형식	기준치수(mm)	기준치수(mm)	기준치수(mm)	기준치수(mm)	기준치수(mm)	기준치수(mm)	기준치수(mm)	기준치수(mm)	GD2 (kg · m2) 부시제외
형식	OL	L	P	C	H	G	X	E	GD2 (kg · m2) 부시제외
150-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.054
160-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.067
170-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.093
180-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.14
190-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.164
200-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.192
212-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.177
224-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.21
236-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.248
250-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.299
265-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.391
280-5V-2-Q1	71.1	63.5	20.1	1	104.8	19.1	45	7	0.437
315-5V-2-R1	80.2	73	26.2	4	136.5	22.2	51	7	0.684
355-5V-2-R1	80.2	73	26.2	4	136.5	22.2	51	7	1.01
400-5V-2-R1	80.2	73	26.2	4	136.5	22.2	51	7	1.49
450-5V-2-R1	80.2	73	26.2	4	136.5	22.2	51	7	2.29
500-5V-2-R1	80.2	73	26.2	4	136.5	22.2	51	7	3.37
150-5V-3-Q1	74.1	63.5	13.1	10	104.8	19.1	45	7	0.068
160-5V-3-Q1	71.1	63.5	3.1	-	104.8	19.1	45	7	0.086
170-5V-3-Q1	71.1	63.5	3.1	-	104.8	19.1	45	7	0.117
180-5V-3-Q1	71.1	63.5	3.1	-	104.8	19.1	45	7	0.152
190-5V-3-Q1	71.1	63.5	3.1	-	104.8	19.1	45	7	0.189
200-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.231
212-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.294
224-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.37
236-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.4
250-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.447
265-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.56
280-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.65
300-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.79
315-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	0.924
355-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	1.37
400-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	2.01
450-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	3.03
500-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	4.41
630-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	9.01
800-5V-3-R1	80.2	73	122	-	136.5	22.2	51	7	19.7
1000-5V-3-S1	120	111.1	39	12	161.7	27	85	8	41.3
1250-5V-3-U0	136.2	125.4	47.7	17.5	212.5	30.2	96	10	90.9
150-5V-4-Q1	99.1	63.5	14.1	28	104.8	19.1	45	7	0.072
160-5V-4-Q1	85.1	63.5	0.1	14	104.8	19.1	45	7	0.103
170-5V-4-Q1	85.1	63.5	0.1	14	104.8	19.1	45	7	0.138
180-5V-4-Q1	85.1	63.5	0.1	14	104.8	19.1	45	7	0.188
190-5V-4-Q1	85.1	63.5	0.1	14	104.8	19.1	45	7	0.232
200-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.287
212-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.357
224-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.445
236-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.548
250-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.55
265-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.7
280-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.805
300-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	0.98
315-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	1.15
355-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	1.7
400-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	2.49
450-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	3.74
500-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	5.39
630-5V-4-R1	85.1	73	0.2	5	136.5	22.2	51	7	11.3
800-5V-4-S1	120	111.1	30.5	3.5	161.7	27	85	8	25.4
1000-5V-4-S1	120	111.1	30.5	3.5	161.7	27	85	8	50.7
1250-5V-4-U0	136.2	125.4	39.2	9	212.5	30.2	96	10	110
180-5V-5-Q2	109.1	88.9	6.1	13	104.8	19.1	70	7	0.249
190-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.274
200-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.336
212-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.423
224-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.524
236-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.624
250-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.668
265-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.82
280-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	0.97
300-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	1.2
315-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	1.39
355-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	2.05
400-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	3.01
450-5V-5-R1	10	102.7	73	0.3	136.5	22.2	51	7	4.49
500-5V-5-S1	120	111.1	16	-	161.7	27	85	7	7.14
630-5V-5-S1	120	111.1	16	-	161.7	27	85	8	14.2
800-5V-5-S1	120	111.1	16	-	161.7	27	85	8	30.4
1000-5V-5-U0	136.2	125.4	-	-	212.5	30.2	96	10	64.2
1250-5V-5-U0	136.2	125.4	-	-	212.5	30.2	96	10	138
180-5V-6-Q2	117.6	88.9	2.4	21.5	104.8	19.1	70	7	0.285
190-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.318
200-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.388
212-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.485
224-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.599
236-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.731
250-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.776
280-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	1.12
300-5V-6-R1	113	73	8.8	31	136.5	22.2	51	7	0.95
315-5V-6-S1	120	111.1	1	-	161.7	27	85	8	1.95
355-5V-6-S1	120	111.1	1	-	161.7	27	85	8	2.81
400-5V-6-S1	120	111.1	1	-	161.7	27	85	8	3.9
450-5V-6-S1	120	111.1	1	-	161.7	27	85	8	5.67
500-5V-6-S1	120	111.1	1	-	161.7	27	85	8	8.13
630-5V-6-S1	120	111.1	1	-	161.7	27	85	8	16.4
800-5V-6-S1	120	111.1	1	-	161.7	27	85	8	35.1
1000-5V-6-U0	136.2	125.4	13.2	-	212.5	30.2	96	10	73.6
1250-5V-6-U0	136.2	125.4	13.2	-	212.5	30.2	96	10	157
180-5V-8-Q2	148	88.9	28.9	30	104.8	19.1	70	7	0.359
190-5V-8-R2	148	123.8	23.8	-	136.5	22.2	102	7	0.408
200-5V-8-R2	148	123.8	23.8	-	136.5	22.2	102	7	0.577
212-5V-8-R2	148	123.8	23.8	-	136.5	22.2	102	7	0.729
224-5V-8-R2	148	123.8	23.8	-	136.5	22.2	102	7	0.908
236-5V-8-S1	148	111.1	21	15	161.7	27	85	8	0.987
250-5V-8-S1	148	111.1	21	15	161.7	27	85	8	1.31
280-5V-8-S1	148	111.1	21	15	161.7	27	85	8	2.04
315-5V-8-S1	148	111.1	21	15	161.7	27	85	8	2.59
355-5V-8-S1	148	111.1	21	15	161.7	27	85	8	3.75
400-5V-8-S1	148	111.1	21	15	161.7	27	85	8	5.3
450-5V-8-S1	193.6	111.1	21	15	161.7	27	85	8	7.71
500-5V-8-U1	193.6	181	35.6	2.5	212.5	38..1	143	10	12.1
630-5V-8-U1	193.6	181	35.6	2.5	212.5	38..1	143	10	24.7
800-5V-8-U1	193.6	181	35.6	2.5	212.5	38..1	143	10	47.3
1000-5V-8-U1	193.6	181	35.6	2.5	212.5	38..1	143	10	96.9
1250-5V-8-U1	193.6	181	35.6	2.5	212.5	38..1	143	10	196
200-5V-10-R2	183	123.8	38.8	20	136.5	22.2	102	7	0.691
212-5V-10-R2	183	123.8	38.8	20	136.5	22.2	102	7	0.868
224-5V-10-R2	183	123.8	38.8	20	136.5	22.2	102	7	1.08
236-5V-10-S1	183	111.1	41	30	161.7	27	85	8	1.24
250-5V-10-S1	183	111.1	41	30	161.7	27	85	8	1.6
280-5V-10-S1	183	111.1	41	30	161.7	27	85	8	2.39
315-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	4.38
355-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	5.63
400-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	7.67
450-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	10.6
500-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	14.4
630-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	29.3
800-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	57
1000-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	116
1250-5V-10-U1	191.1	181	1.9	-	212.5	38.1	143	10	234

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (kg) 부시제외	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (kg) 부시제외	견적의뢰 및 주문
150-5V-2-Q1	P	346,500	-	-	-	3	견적의뢰 / 주문
160-5V-2-Q1	P	348,700	-	-	-	5	견적의뢰 / 주문
170-5V-2-Q1	P	350,900	-	-	-	5	견적의뢰 / 주문
180-5V-2-Q1	P	358,600	-	-	-	8	견적의뢰 / 주문
190-5V-2-Q1	P	365,200	-	-	-	8	견적의뢰 / 주문
200-5V-2-Q1	P	368,500	-	-	-	9	견적의뢰 / 주문
212-5V-2-Q1	P	379,500	-	-	-	7	견적의뢰 / 주문
224-5V-2-Q1	P	390,500	-	-	-	7	견적의뢰 / 주문
236-5V-2-Q1	P	421,300	-	-	-	7	견적의뢰 / 주문
250-5V-2-Q1	P	496,100	-	-	-	8	견적의뢰 / 주문
265-5V-2-Q1	P	551,100	-	-	-	9	견적의뢰 / 주문
280-5V-2-Q1	P	609,400	-	-	-	9	견적의뢰 / 주문
315-5V-2-R1	P	701,800	-	-	-	11	견적의뢰 / 주문
355-5V-2-R1	P	748,000	-	-	-	13	견적의뢰 / 주문
400-5V-2-R1	P	889,900	-	-	-	15	견적의뢰 / 주문
450-5V-2-R1	P	1,210,000	-	-	-	18	견적의뢰 / 주문
500-5V-2-R1	P	1,386,000	-	-	-	21	견적의뢰 / 주문
150-5V-3-Q1	P	367,400	-	-	-	4	견적의뢰 / 주문
160-5V-3-Q1	P	368,500	-	-	-	5	견적의뢰 / 주문
170-5V-3-Q1	P	371,800	-	-	-	6	견적의뢰 / 주문
180-5V-3-Q1	P	379,500	-	-	-	7	견적의뢰 / 주문
190-5V-3-Q1	P	414,700	-	-	-	8	견적의뢰 / 주문
200-5V-3-R1	P	421,300	-	-	-	8	견적의뢰 / 주문
212-5V-3-R1	P	429,000	-	-	-	9	견적의뢰 / 주문
224-5V-3-R1	P	435,600	-	-	-	11	견적의뢰 / 주문
236-5V-3-R1	P	492,800	-	-	-	12	견적의뢰 / 주문
250-5V-3-R1	P	559,900	-	-	-	10	견적의뢰 / 주문
265-5V-3-R1	P	589,600	-	-	-	11	견적의뢰 / 주문
280-5V-3-R1	P	620,400	-	-	-	12	견적의뢰 / 주문
300-5V-3-R1	P	732,600	-	-	-	12	견적의뢰 / 주문
315-5V-3-R1	P	821,700	-	-	-	13	견적의뢰 / 주문
355-5V-3-R1	P	950,400	-	-	-	15	견적의뢰 / 주문
400-5V-3-R1	P	1,091,200	-	-	-	17	견적의뢰 / 주문
450-5V-3-R1	P	1,364,000	-	-	-	20	견적의뢰 / 주문
500-5V-3-R1	P	1,485,000	-	-	-	24	견적의뢰 / 주문
630-5V-3-R1	P	1,870,000	-	-	-	29	견적의뢰 / 주문
800-5V-3-R1	P	2,398,000	-	-	-	40	견적의뢰 / 주문
1000-5V-3-S1	P	3,245,000	-	-	-	62	견적의뢰 / 주문
1250-5V-3-U0	P	5,929,000	-	-	-	95	견적의뢰 / 주문
150-5V-4-Q1	P	419,100	-	-	-	4	견적의뢰 / 주문
160-5V-4-Q1	P	420,200	-	-	-	5	견적의뢰 / 주문
170-5V-4-Q1	P	423,500	-	-	-	6	견적의뢰 / 주문
180-5V-4-Q1	P	432,300	-	-	-	7	견적의뢰 / 주문
190-5V-4-Q1	P	506,000	-	-	-	8	견적의뢰 / 주문
200-5V-4-R1	P	528,000	-	-	-	9	견적의뢰 / 주문
212-5V-4-R1	P	559,900	-	-	-	10	견적의뢰 / 주문
224-5V-4-R1	P	580,800	-	-	-	12	견적의뢰 / 주문
236-5V-4-R1	P	612,700	-	-	-	13	견적의뢰 / 주문
250-5V-4-R1	P	695,200	-	-	-	11	견적의뢰 / 주문
265-5V-4-R1	P	726,000	-	-	-	12	견적의뢰 / 주문
280-5V-4-R1	P	757,900	-	-	-	13	견적의뢰 / 주문
300-5V-4-R1	P	847,000	-	-	-	14	견적의뢰 / 주문
315-5V-4-R1	P	917,400	-	-	-	15	견적의뢰 / 주문
355-5V-4-R1	P	1,045,000	-	-	-	17	견적의뢰 / 주문
400-5V-4-R1	P	1,232,000	-	-	-	19	견적의뢰 / 주문
450-5V-4-R1	P	1,430,000	-	-	-	23	견적의뢰 / 주문
500-5V-4-R1	P	1,639,000	-	-	-	27	견적의뢰 / 주문
630-5V-4-R1	P	2,211,000	-	-	-	33	견적의뢰 / 주문
800-5V-4-S1	P	2,959,000	-	-	-	56	견적의뢰 / 주문
1000-5V-4-S1	P	3,861,000	-	-	-	69	견적의뢰 / 주문
1250-5V-4-U0	P	6,677,000	-	-	-	103	견적의뢰 / 주문
180-5V-5-Q2	P	521,400	-	-	-	10	견적의뢰 / 주문
190-5V-5-R1	P	559,900	-	-	-	9	견적의뢰 / 주문
200-5V-5-R1	P	620,400	-	-	-	10	견적의뢰 / 주문
212-5V-5-R1	P	684,200	-	-	-	11	견적의뢰 / 주문
224-5V-5-R1	P	727,100	-	-	-	13	견적의뢰 / 주문
236-5V-5-R1	P	772,200	-	-	-	15	견적의뢰 / 주문
250-5V-5-R1	P	836,000	-	-	-	13	견적의뢰 / 주문
265-5V-5-R1	P	867,900	-	-	-	14	견적의뢰 / 주문
280-5V-5-R1	P	899,800	-	-	-	15	견적의뢰 / 주문
300-5V-5-R1	P	1,016,400	-	-	-	16	견적의뢰 / 주문
315-5V-5-R1	P	1,111,000	-	-	-	16	견적의뢰 / 주문
355-5V-5-R1	P	1,254,000	-	-	-	19	견적의뢰 / 주문
400-5V-5-R1	P	1,452,000	-	-	-	21	견적의뢰 / 주문
450-5V-5-R1	P	1,617,000	-	-	-	25	견적의뢰 / 주문
500-5V-5-S1	P	1,958,000	-	-	-	42	견적의뢰 / 주문
630-5V-5-S1	P	2,519,000	-	-	-	48	견적의뢰 / 주문
800-5V-5-S1	P	3,355,000	-	-	-	61	견적의뢰 / 주문
1000-5V-5-U0	P	4,433,000	-	-	-	91	견적의뢰 / 주문
1250-5V-5-U0	P	7,447,000	-	-	-	125	견적의뢰 / 주문
180-5V-6-Q2	P	627,000	-	-	-	11	견적의뢰 / 주문
190-5V-6-R1	P	666,600	-	-	-	9	견적의뢰 / 주문
200-5V-6-R1	P	698,500	-	-	-	11	견적의뢰 / 주문
212-5V-6-R1	P	757,900	-	-	-	12	견적의뢰 / 주문
224-5V-6-R1	P	815,100	-	-	-	14	견적의뢰 / 주문
236-5V-6-R1	P	896,500	-	-	-	16	견적의뢰 / 주문
250-5V-6-R1	P	950,400	-	-	-	14	견적의뢰 / 주문
280-5V-6-R1	P	1,014,200	-	-	-	16	견적의뢰 / 주문
300-5V-6-R1	P	1,155,000	-	-	-	15	견적의뢰 / 주문
315-5V-6-S1	P	1,254,000	-	-	-	28	견적의뢰 / 주문
355-5V-6-S1	P	1,485,000	-	-	-	31	견적의뢰 / 주문
400-5V-6-S1	P	1,628,000	-	-	-	34	견적의뢰 / 주문
450-5V-6-S1	P	2,035,000	-	-	-	38	견적의뢰 / 주문
500-5V-6-S1	P	2,244,000	-	-	-	44	견적의뢰 / 주문
630-5V-6-S1	P	2,904,000	-	-	-	52	견적의뢰 / 주문
800-5V-6-S1	P	3,894,000	-	-	-	66	견적의뢰 / 주문
1000-5V-6-U0	P	5,214,000	-	-	-	97	견적의뢰 / 주문
1250-5V-6-U0	P	7,964,000	-	-	-	133	견적의뢰 / 주문
180-5V-8-Q2	P	757,900	-	-	-	13	견적의뢰 / 주문
190-5V-8-R2	P	811,800	-	-	-	11	견적의뢰 / 주문
200-5V-8-R2	P	899,800	-	-	-	18	견적의뢰 / 주문
212-5V-8-R2	P	1,014,200	-	-	-	20	견적의뢰 / 주문
224-5V-8-R2	P	1,177,000	-	-	-	24	견적의뢰 / 주문
236-5V-8-S1	P	1,298,000	-	-	-	21	견적의뢰 / 주문
250-5V-8-S1	P	1,331,000	-	-	-	26	견적의뢰 / 주문
280-5V-8-S1	P	1,507,000	-	-	-	34	견적의뢰 / 주문
315-5V-8-S1	P	1,738,000	-	-	-	33	견적의뢰 / 주문
355-5V-8-S1	P	2,057,000	-	-	-	38	견적의뢰 / 주문
400-5V-8-S1	P	2,343,000	-	-	-	41	견적의뢰 / 주문
450-5V-8-S1	P	2,563,000	-	-	-	47	견적의뢰 / 주문
500-5V-8-U1	P	2,970,000	-	-	-	74	견적의뢰 / 주문
630-5V-8-U1	P	3,762,000	-	-	-	91	견적의뢰 / 주문
800-5V-8-U1	P	5,027,000	-	-	-	101	견적의뢰 / 주문
1000-5V-8-U1	P	6,424,000	-	-	-	129	견적의뢰 / 주문
1250-5V-8-U1	P	9,405,000	-	-	-	161	견적의뢰 / 주문
200-5V-10-R2	P	1,122,000	-	-	-	20	견적의뢰 / 주문
212-5V-10-R2	P	1,364,000	-	-	-	23	견적의뢰 / 주문
224-5V-10-R2	P	1,551,000	-	-	-	26	견적의뢰 / 주문
236-5V-10-S1	P	1,705,000	-	-	-	25	견적의뢰 / 주문
250-5V-10-S1	P	1,804,000	-	-	-	302	견적의뢰 / 주문
280-5V-10-S1	P	1,848,000	-	-	-	38	견적의뢰 / 주문
315-5V-10-U1	P	2,277,000	-	-	-	60	견적의뢰 / 주문
355-5V-10-U1	P	2,563,000	-	-	-	61	견적의뢰 / 주문
400-5V-10-U1	P	2,904,000	-	-	-	68	견적의뢰 / 주문
450-5V-10-U1	P	3,256,000	-	-	-	74	견적의뢰 / 주문
500-5V-10-U1	P	3,729,000	-	-	-	80	견적의뢰 / 주문
630-5V-10-U1	P	4,301,000	-	-	-	99	견적의뢰 / 주문
800-5V-10-U1	P	5,731,000	-	-	-	112	견적의뢰 / 주문
1000-5V-10-U1	P	7,403,000	-	-	-	143	견적의뢰 / 주문
1250-5V-10-U1	P	13,794,000	-	-	-	178	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
