서보플렉스커플링 SFC

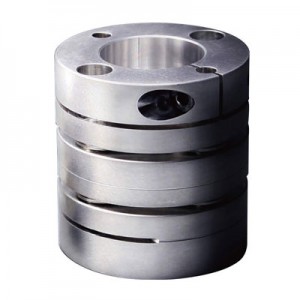

SFC-DA1 서보플렉스커플링(더블엘리먼트)

미키풀리(주) ( MIKI PULLEY )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


405건 중 1~405건 표시

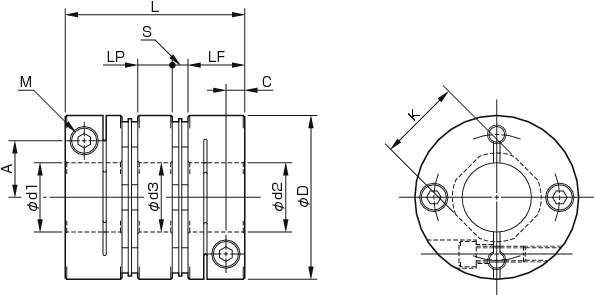

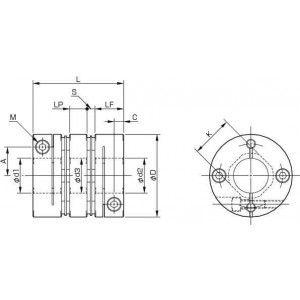

형식	형상 타입	축구멍경(mm)		D (mm)	L (mm)	LF (mm)	LP (mm)	S (mm)	A (mm)
형식	형상 타입	d1	d2	D (mm)	L (mm)	LF (mm)	LP (mm)	S (mm)	A (mm)
SFC-019DA1-3B-3B	SFC-019DA1	3	3	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-4B	SFC-019DA1	3	4	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-4.5B	SFC-019DA1	3	4.5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-5B	SFC-019DA1	3	5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-6B	SFC-019DA1	3	6	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-6.35B	SFC-019DA1	3	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-7B	SFC-019DA1	3	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-3B-8B	SFC-019DA1	3	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-4B-4B	SFC-019DA1	4	4	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-4.5B	SFC-019DA1	4	4.5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-5B	SFC-019DA1	4	5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-6B	SFC-019DA1	4	6	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-6.35B	SFC-019DA1	4	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-7B	SFC-019DA1	4	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4B-8B	SFC-019DA1	4	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-4.5B-4.5B	SFC-019DA1	4.5	4.5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4.5B-5B	SFC-019DA1	4.5	5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4.5B-6B	SFC-019DA1	4.5	6	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4.5B-6.35B	SFC-019DA1	4.5	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4.5B-7B	SFC-019DA1	4.5	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-4.5B-8B	SFC-019DA1	4.5	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-5B-5B	SFC-019DA1	5	5	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-5B-6B	SFC-019DA1	5	6	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-5B-6.35B	SFC-019DA1	5	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-5B-7B	SFC-019DA1	5	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-5B-8B	SFC-019DA1	5	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-6B-6B	SFC-019DA1	6	6	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-6B-6.35B	SFC-019DA1	6	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-6B-7B	SFC-019DA1	6	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-6B-8B	SFC-019DA1	6	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-6.35B-6.35B	SFC-019DA1	6.35	6.35	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-6.35B-7B	SFC-019DA1	6.35	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-6.35B-8B	SFC-019DA1	6.35	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-7B-7B	SFC-019DA1	7	7	19	25.9	9.15	5.5	1.05	5.8
SFC-019DA1-7B-8B	SFC-019DA1	7	8	19	25.9	9.15	5.5	1.05	5.8/6
SFC-019DA1-8B-8B	SFC-019DA1	8	8	19	25.9	9.15	5.5	1.05	6
SFC-026DA1-4.5B-4.5B	SFC-026DA1	4.5	4.5	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-5B	SFC-026DA1	4.5	5	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-6B	SFC-026DA1	4.5	6	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-6.35B	SFC-026DA1	4.5	6.35	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-7B	SFC-026DA1	4.5	7	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-8B	SFC-026DA1	4.5	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-9B	SFC-026DA1	4.5	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-9.525B	SFC-026DA1	4.5	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-4.5B-10B	SFC-026DA1	4.5	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-5B	SFC-026DA1	5	5	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-6B	SFC-026DA1	5	6	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-6.35B	SFC-026DA1	5	6.35	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-7B	SFC-026DA1	5	7	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-8B	SFC-026DA1	5	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-9B	SFC-026DA1	5	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-9.525B	SFC-026DA1	5	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-5B-10B	SFC-026DA1	5	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-6B	SFC-026DA1	6	6	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-6.35B	SFC-026DA1	6	6.35	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-7B	SFC-026DA1	6	7	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-8B	SFC-026DA1	6	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-9B	SFC-026DA1	6	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-9.525B	SFC-026DA1	6	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6B-10B	SFC-026DA1	6	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-6.35B	SFC-026DA1	6.35	6.35	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-7B	SFC-026DA1	6.35	7	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-8B	SFC-026DA1	6.35	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-9B	SFC-026DA1	6.35	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-9.525B	SFC-026DA1	6.35	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-6.35B-10B	SFC-026DA1	6.35	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-7B-7B	SFC-026DA1	7	7	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-7B-8B	SFC-026DA1	7	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-7B-9B	SFC-026DA1	7	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-7B-9.525B	SFC-026DA1	7	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-7B-10B	SFC-026DA1	7	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-8B-8B	SFC-026DA1	8	8	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-8B-9B	SFC-026DA1	8	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-8B-9.525B	SFC-026DA1	8	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-8B-10B	SFC-026DA1	8	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-9B-9B	SFC-026DA1	9	9	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-9B-9.525B	SFC-026DA1	9	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-9B-10B	SFC-026DA1	9	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-9.525B-9.525B	SFC-026DA1	9.525	9.525	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-9.525B-10B	SFC-026DA1	9.525	10	26	32.3	10.75	7.5	1.65	9.5
SFC-026DA1-10B-10B	SFC-026DA1	10	10	26	32.3	10.75	7.5	1.65	9.5
SFC-029DA1-6B-6B	SFC-029DA1	6	6	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-6.35B	SFC-029DA1	6	6.35	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-7B	SFC-029DA1	6	7	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-8B	SFC-029DA1	6	8	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-9B	SFC-029DA1	6	9	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-9.525B	SFC-029DA1	6	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-10B	SFC-029DA1	6	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-11B	SFC-029DA1	6	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-12B	SFC-029DA1	6	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6B-14B	SFC-029DA1	6	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-6.35B	SFC-029DA1	6.35	6.35	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-7B	SFC-029DA1	6.35	7	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-8B	SFC-029DA1	6.35	8	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-9B	SFC-029DA1	6.35	9	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-9.525B	SFC-029DA1	6.35	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-10B	SFC-029DA1	6.35	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-11B	SFC-029DA1	6.35	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-12B	SFC-029DA1	6.35	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-6.35B-14B	SFC-029DA1	6.35	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-7B	SFC-029DA1	7	7	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-8B	SFC-029DA1	7	8	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-9B	SFC-029DA1	7	9	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-9.525B	SFC-029DA1	7	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-10B	SFC-029DA1	7	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-11B	SFC-029DA1	7	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-12B	SFC-029DA1	7	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-7B-14B	SFC-029DA1	7	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-8B	SFC-029DA1	8	8	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-9B	SFC-029DA1	8	9	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-9.525B	SFC-029DA1	8	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-10B	SFC-029DA1	8	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-11B	SFC-029DA1	8	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-12B	SFC-029DA1	8	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-8B-14B	SFC-029DA1	8	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-9B	SFC-029DA1	9	9	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-9.525B	SFC-029DA1	9	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-10B	SFC-029DA1	9	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-11B	SFC-029DA1	9	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-12B	SFC-029DA1	9	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9B-14B	SFC-029DA1	9	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9.525B-9.525B	SFC-029DA1	9.525	9.525	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9.525B-10B	SFC-029DA1	9.525	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9.525B-11B	SFC-029DA1	9.525	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9.525B-12B	SFC-029DA1	9.525	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-9.525B-14B	SFC-029DA1	9.525	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-10B-10B	SFC-029DA1	10	10	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-10B-11B	SFC-029DA1	10	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-10B-12B	SFC-029DA1	10	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-10B-14B	SFC-029DA1	10	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-11B-11B	SFC-029DA1	11	11	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-11B-12B	SFC-029DA1	11	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-11B-14B	SFC-029DA1	11	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-12B-12B	SFC-029DA1	12	12	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-12B-14B	SFC-029DA1	12	14	29	32.8	10.75	7.5	1.9	11
SFC-029DA1-14B-14B	SFC-029DA1	14	14	29	32.8	10.75	7.5	1.9	11
SFC-034DA1-6B-6B	SFC-034DA1	6	6	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-6.35B	SFC-034DA1	6	6.35	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-7B	SFC-034DA1	6	7	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-8B	SFC-034DA1	6	8	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-9B	SFC-034DA1	6	9	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-9.525B	SFC-034DA1	6	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-10B	SFC-034DA1	6	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-11B	SFC-034DA1	6	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-12B	SFC-034DA1	6	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6B-14B	SFC-034DA1	6	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-6.35B	SFC-034DA1	6.35	6.35	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-7B	SFC-034DA1	6.35	7	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-8B	SFC-034DA1	6.35	8	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-9B	SFC-034DA1	6.35	9	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-9.525B	SFC-034DA1	6.35	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-10B	SFC-034DA1	6.35	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-11B	SFC-034DA1	6.35	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-12B	SFC-034DA1	6.35	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-6.35B-14B	SFC-034DA1	6.35	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-7B	SFC-034DA1	7	7	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-8B	SFC-034DA1	7	8	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-9B	SFC-034DA1	7	9	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-9.525B	SFC-034DA1	7	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-10B	SFC-034DA1	7	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-11B	SFC-034DA1	7	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-12B	SFC-034DA1	7	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-7B-14B	SFC-034DA1	7	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-8B	SFC-034DA1	8	8	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-9B	SFC-034DA1	8	9	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-9.525B	SFC-034DA1	8	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-10B	SFC-034DA1	8	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-11B	SFC-034DA1	8	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-12B	SFC-034DA1	8	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-8B-14B	SFC-034DA1	8	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-9B	SFC-034DA1	9	9	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-9.525B	SFC-034DA1	9	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-10B	SFC-034DA1	9	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-11B	SFC-034DA1	9	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-12B	SFC-034DA1	9	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9B-14B	SFC-034DA1	9	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9.525B-9.525B	SFC-034DA1	9.525	9.525	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9.525B-10B	SFC-034DA1	9.525	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9.525B-11B	SFC-034DA1	9.525	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9.525B-12B	SFC-034DA1	9.525	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-9.525B-14B	SFC-034DA1	9.525	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-10B-10B	SFC-034DA1	10	10	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-10B-11B	SFC-034DA1	10	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-10B-12B	SFC-034DA1	10	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-10B-14B	SFC-034DA1	10	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-11B-11B	SFC-034DA1	11	11	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-11B-12B	SFC-034DA1	11	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-11B-14B	SFC-034DA1	11	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-12B-12B	SFC-034DA1	12	12	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-12B-14B	SFC-034DA1	12	14	34	37.8	12.4	8	2.5	12.5
SFC-034DA1-14B-14B	SFC-034DA1	14	14	34	37.8	12.4	8	2.5	12.5
SFC-039DA1-8B-8B	SFC-039DA1	8	8	39	48	15.5	11	3	14
SFC-039DA1-8B-9B	SFC-039DA1	8	9	39	48	15.5	11	3	14
SFC-039DA1-8B-9.525B	SFC-039DA1	8	9.525	39	48	15.5	11	3	14
SFC-039DA1-8B-10B	SFC-039DA1	8	10	39	48	15.5	11	3	14
SFC-039DA1-8B-11B	SFC-039DA1	8	11	39	48	15.5	11	3	14
SFC-039DA1-8B-12B	SFC-039DA1	8	12	39	48	15.5	11	3	14
SFC-039DA1-8B-14B	SFC-039DA1	8	14	39	48	15.5	11	3	14
SFC-039DA1-8B-15B	SFC-039DA1	8	15	39	48	15.5	11	3	14
SFC-039DA1-8B-16B	SFC-039DA1	8	16	39	48	15.5	11	3	14
SFC-039DA1-9B-9B	SFC-039DA1	9	9	39	48	15.5	11	3	14
SFC-039DA1-9B-9.525B	SFC-039DA1	9	9.525	39	48	15.5	11	3	14
SFC-039DA1-9B-10B	SFC-039DA1	9	10	39	48	15.5	11	3	14
SFC-039DA1-9B-11B	SFC-039DA1	9	11	39	48	15.5	11	3	14
SFC-039DA1-9B-12B	SFC-039DA1	9	12	39	48	15.5	11	3	14
SFC-039DA1-9B-14B	SFC-039DA1	9	14	39	48	15.5	11	3	14
SFC-039DA1-9B-15B	SFC-039DA1	9	15	39	48	15.5	11	3	14
SFC-039DA1-9B-16B	SFC-039DA1	9	16	39	48	15.5	11	3	14
SFC-039DA1-9.525B-9.525B	SFC-039DA1	9.525	9.525	39	48	15.5	11	3	14
SFC-039DA1-9.525B-10B	SFC-039DA1	9.525	10	39	48	15.5	11	3	14
SFC-039DA1-9.525B-11B	SFC-039DA1	9.525	11	39	48	15.5	11	3	14
SFC-039DA1-9.525B-12B	SFC-039DA1	9.525	12	39	48	15.5	11	3	14
SFC-039DA1-9.525B-14B	SFC-039DA1	9.525	14	39	48	15.5	11	3	14
SFC-039DA1-9.525B-15B	SFC-039DA1	9.525	15	39	48	15.5	11	3	14
SFC-039DA1-9.525B-16B	SFC-039DA1	9.525	16	39	48	15.5	11	3	14
SFC-039DA1-10B-10B	SFC-039DA1	10	10	39	48	15.5	11	3	14
SFC-039DA1-10B-11B	SFC-039DA1	10	11	39	48	15.5	11	3	14
SFC-039DA1-10B-12B	SFC-039DA1	10	12	39	48	15.5	11	3	14
SFC-039DA1-10B-14B	SFC-039DA1	10	14	39	48	15.5	11	3	14
SFC-039DA1-10B-15B	SFC-039DA1	10	15	39	48	15.5	11	3	14
SFC-039DA1-10B-16B	SFC-039DA1	10	16	39	48	15.5	11	3	14
SFC-039DA1-11B-11B	SFC-039DA1	11	11	39	48	15.5	11	3	14
SFC-039DA1-11B-12B	SFC-039DA1	11	12	39	48	15.5	11	3	14
SFC-039DA1-11B-14B	SFC-039DA1	11	14	39	48	15.5	11	3	14
SFC-039DA1-11B-15B	SFC-039DA1	11	15	39	48	15.5	11	3	14
SFC-039DA1-11B-16B	SFC-039DA1	11	16	39	48	15.5	11	3	14
SFC-039DA1-12B-12B	SFC-039DA1	12	12	39	48	15.5	11	3	14
SFC-039DA1-12B-14B	SFC-039DA1	12	14	39	48	15.5	11	3	14
SFC-039DA1-12B-15B	SFC-039DA1	12	15	39	48	15.5	11	3	14
SFC-039DA1-12B-16B	SFC-039DA1	12	16	39	48	15.5	11	3	14
SFC-039DA1-14B-14B	SFC-039DA1	14	14	39	48	15.5	11	3	14
SFC-039DA1-14B-15B	SFC-039DA1	14	15	39	48	15.5	11	3	14
SFC-039DA1-14B-16B	SFC-039DA1	14	16	39	48	15.5	11	3	14
SFC-039DA1-15B-15B	SFC-039DA1	15	15	39	48	15.5	11	3	14
SFC-039DA1-15B-16B	SFC-039DA1	15	16	39	48	15.5	11	3	14
SFC-039DA1-16B-16B	SFC-039DA1	16	16	39	48	15.5	11	3	14
SFC-044DA1-8B-8B	SFC-044DA1	8	8	44	48	15.5	11	3	17
SFC-044DA1-8B-9B	SFC-044DA1	8	9	44	48	15.5	11	3	17
SFC-044DA1-8B-9.525B	SFC-044DA1	8	9.525	44	48	15.5	11	3	17
SFC-044DA1-8B-10B	SFC-044DA1	8	10	44	48	15.5	11	3	17
SFC-044DA1-8B-11B	SFC-044DA1	8	11	44	48	15.5	11	3	17
SFC-044DA1-8B-12B	SFC-044DA1	8	12	44	48	15.5	11	3	17
SFC-044DA1-8B-14B	SFC-044DA1	8	14	44	48	15.5	11	3	17
SFC-044DA1-8B-15B	SFC-044DA1	8	15	44	48	15.5	11	3	17
SFC-044DA1-8B-16B	SFC-044DA1	8	16	44	48	15.5	11	3	17
SFC-044DA1-8B-17B	SFC-044DA1	8	17	44	48	15.5	11	3	17
SFC-044DA1-8B-18B	SFC-044DA1	8	18	44	48	15.5	11	3	17
SFC-044DA1-8B-19B	SFC-044DA1	8	19	44	48	15.5	11	3	17
SFC-044DA1-9B-9B	SFC-044DA1	9	9	44	48	15.5	11	3	17
SFC-044DA1-9B-9.525B	SFC-044DA1	9	9.525	44	48	15.5	11	3	17
SFC-044DA1-9B-10B	SFC-044DA1	9	10	44	48	15.5	11	3	17
SFC-044DA1-9B-11B	SFC-044DA1	9	11	44	48	15.5	11	3	17
SFC-044DA1-9B-12B	SFC-044DA1	9	12	44	48	15.5	11	3	17
SFC-044DA1-9B-14B	SFC-044DA1	9	14	44	48	15.5	11	3	17
SFC-044DA1-9B-15B	SFC-044DA1	9	15	44	48	15.5	11	3	17
SFC-044DA1-9B-16B	SFC-044DA1	9	16	44	48	15.5	11	3	17
SFC-044DA1-9B-17B	SFC-044DA1	9	17	44	48	15.5	11	3	17
SFC-044DA1-9B-18B	SFC-044DA1	9	18	44	48	15.5	11	3	17
SFC-044DA1-9B-19B	SFC-044DA1	9	19	44	48	15.5	11	3	17
SFC-044DA1-9.525B-9.525B	SFC-044DA1	9.525	9.525	44	48	15.5	11	3	17
SFC-044DA1-9.525B-10B	SFC-044DA1	9.525	10	44	48	15.5	11	3	17
SFC-044DA1-9.525B-11B	SFC-044DA1	9.525	11	44	48	15.5	11	3	17
SFC-044DA1-9.525B-12B	SFC-044DA1	9.525	12	44	48	15.5	11	3	17
SFC-044DA1-9.525B-14B	SFC-044DA1	9.525	14	44	48	15.5	11	3	17
SFC-044DA1-9.525B-15B	SFC-044DA1	9.525	15	44	48	15.5	11	3	17
SFC-044DA1-9.525B-16B	SFC-044DA1	9.525	16	44	48	15.5	11	3	17
SFC-044DA1-9.525B-17B	SFC-044DA1	9.525	17	44	48	15.5	11	3	17
SFC-044DA1-9.525B-18B	SFC-044DA1	9.525	18	44	48	15.5	11	3	17
SFC-044DA1-9.525B-19B	SFC-044DA1	9.525	19	44	48	15.5	11	3	17
SFC-044DA1-10B-10B	SFC-044DA1	10	10	44	48	15.5	11	3	17
SFC-044DA1-10B-11B	SFC-044DA1	10	11	44	48	15.5	11	3	17
SFC-044DA1-10B-12B	SFC-044DA1	10	12	44	48	15.5	11	3	17
SFC-044DA1-10B-14B	SFC-044DA1	10	14	44	48	15.5	11	3	17
SFC-044DA1-10B-15B	SFC-044DA1	10	15	44	48	15.5	11	3	17
SFC-044DA1-10B-16B	SFC-044DA1	10	16	44	48	15.5	11	3	17
SFC-044DA1-10B-17B	SFC-044DA1	10	17	44	48	15.5	11	3	17
SFC-044DA1-10B-18B	SFC-044DA1	10	18	44	48	15.5	11	3	17
SFC-044DA1-10B-19B	SFC-044DA1	10	19	44	48	15.5	11	3	17
SFC-044DA1-11B-11B	SFC-044DA1	11	11	44	48	15.5	11	3	17
SFC-044DA1-11B-12B	SFC-044DA1	11	12	44	48	15.5	11	3	17
SFC-044DA1-11B-14B	SFC-044DA1	11	14	44	48	15.5	11	3	17
SFC-044DA1-11B-15B	SFC-044DA1	11	15	44	48	15.5	11	3	17
SFC-044DA1-11B-16B	SFC-044DA1	11	16	44	48	15.5	11	3	17
SFC-044DA1-11B-17B	SFC-044DA1	11	17	44	48	15.5	11	3	17
SFC-044DA1-11B-18B	SFC-044DA1	11	18	44	48	15.5	11	3	17
SFC-044DA1-11B-19B	SFC-044DA1	11	19	44	48	15.5	11	3	17
SFC-044DA1-12B-12B	SFC-044DA1	12	12	44	48	15.5	11	3	17
SFC-044DA1-12B-14B	SFC-044DA1	12	14	44	48	15.5	11	3	17
SFC-044DA1-12B-15B	SFC-044DA1	12	15	44	48	15.5	11	3	17
SFC-044DA1-12B-16B	SFC-044DA1	12	16	44	48	15.5	11	3	17
SFC-044DA1-12B-17B	SFC-044DA1	12	17	44	48	15.5	11	3	17
SFC-044DA1-12B-18B	SFC-044DA1	12	18	44	48	15.5	11	3	17
SFC-044DA1-12B-19B	SFC-044DA1	12	19	44	48	15.5	11	3	17
SFC-044DA1-14B-14B	SFC-044DA1	14	14	44	48	15.5	11	3	17
SFC-044DA1-14B-15B	SFC-044DA1	14	15	44	48	15.5	11	3	17
SFC-044DA1-14B-16B	SFC-044DA1	14	16	44	48	15.5	11	3	17
SFC-044DA1-14B-17B	SFC-044DA1	14	17	44	48	15.5	11	3	17
SFC-044DA1-14B-18B	SFC-044DA1	14	18	44	48	15.5	11	3	17
SFC-044DA1-14B-19B	SFC-044DA1	14	19	44	48	15.5	11	3	17
SFC-044DA1-15B-15B	SFC-044DA1	15	15	44	48	15.5	11	3	17
SFC-044DA1-15B-16B	SFC-044DA1	15	16	44	48	15.5	11	3	17
SFC-044DA1-15B-17B	SFC-044DA1	15	17	44	48	15.5	11	3	17
SFC-044DA1-15B-18B	SFC-044DA1	15	18	44	48	15.5	11	3	17
SFC-044DA1-15B-19B	SFC-044DA1	15	19	44	48	15.5	11	3	17
SFC-044DA1-16B-16B	SFC-044DA1	16	16	44	48	15.5	11	3	17
SFC-044DA1-16B-17B	SFC-044DA1	16	17	44	48	15.5	11	3	17
SFC-044DA1-16B-18B	SFC-044DA1	16	18	44	48	15.5	11	3	17
SFC-044DA1-16B-19B	SFC-044DA1	16	19	44	48	15.5	11	3	17
SFC-044DA1-17B-17B	SFC-044DA1	17	17	44	48	15.5	11	3	17
SFC-044DA1-17B-18B	SFC-044DA1	17	18	44	48	15.5	11	3	17
SFC-044DA1-17B-19B	SFC-044DA1	17	19	44	48	15.5	11	3	17
SFC-044DA1-18B-18B	SFC-044DA1	18	18	44	48	15.5	11	3	17
SFC-044DA1-18B-19B	SFC-044DA1	18	19	44	48	15.5	11	3	17
SFC-044DA1-19B-19B	SFC-044DA1	19	19	44	48	15.5	11	3	17
SFC-056DA1-10B-10B	SFC-056DA1	10	10	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-11B	SFC-056DA1	10	11	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-12B	SFC-056DA1	10	12	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-14B	SFC-056DA1	10	14	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-15B	SFC-056DA1	10	15	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-16B	SFC-056DA1	10	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-17B	SFC-056DA1	10	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-18B	SFC-056DA1	10	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-19B	SFC-056DA1	10	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-20B	SFC-056DA1	10	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-22B	SFC-056DA1	10	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-24B	SFC-056DA1	10	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-10B-25B	SFC-056DA1	10	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-11B	SFC-056DA1	11	11	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-12B	SFC-056DA1	11	12	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-14B	SFC-056DA1	11	14	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-15B	SFC-056DA1	11	15	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-16B	SFC-056DA1	11	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-17B	SFC-056DA1	11	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-18B	SFC-056DA1	11	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-19B	SFC-056DA1	11	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-20B	SFC-056DA1	11	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-22B	SFC-056DA1	11	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-24B	SFC-056DA1	11	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-11B-25B	SFC-056DA1	11	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-12B	SFC-056DA1	12	12	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-14B	SFC-056DA1	12	14	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-15B	SFC-056DA1	12	15	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-16B	SFC-056DA1	12	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-17B	SFC-056DA1	12	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-18B	SFC-056DA1	12	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-19B	SFC-056DA1	12	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-20B	SFC-056DA1	12	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-22B	SFC-056DA1	12	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-24B	SFC-056DA1	12	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-12B-25B	SFC-056DA1	12	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-14B	SFC-056DA1	14	14	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-15B	SFC-056DA1	14	15	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-16B	SFC-056DA1	14	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-17B	SFC-056DA1	14	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-18B	SFC-056DA1	14	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-19B	SFC-056DA1	14	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-20B	SFC-056DA1	14	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-22B	SFC-056DA1	14	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-24B	SFC-056DA1	14	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-14B-25B	SFC-056DA1	14	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-15B	SFC-056DA1	15	15	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-16B	SFC-056DA1	15	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-17B	SFC-056DA1	15	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-18B	SFC-056DA1	15	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-19B	SFC-056DA1	15	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-20B	SFC-056DA1	15	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-22B	SFC-056DA1	15	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-24B	SFC-056DA1	15	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-15B-25B	SFC-056DA1	15	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-16B	SFC-056DA1	16	16	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-17B	SFC-056DA1	16	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-18B	SFC-056DA1	16	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-19B	SFC-056DA1	16	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-20B	SFC-056DA1	16	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-22B	SFC-056DA1	16	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-24B	SFC-056DA1	16	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-16B-25B	SFC-056DA1	16	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-17B	SFC-056DA1	17	17	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-18B	SFC-056DA1	17	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-19B	SFC-056DA1	17	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-20B	SFC-056DA1	17	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-22B	SFC-056DA1	17	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-24B	SFC-056DA1	17	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-17B-25B	SFC-056DA1	17	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-18B	SFC-056DA1	18	18	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-19B	SFC-056DA1	18	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-20B	SFC-056DA1	18	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-22B	SFC-056DA1	18	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-24B	SFC-056DA1	18	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-18B-25B	SFC-056DA1	18	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-19B-19B	SFC-056DA1	19	19	56	59.8	20.5	14	2.4	22
SFC-056DA1-19B-20B	SFC-056DA1	19	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-19B-22B	SFC-056DA1	19	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-19B-24B	SFC-056DA1	19	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-19B-25B	SFC-056DA1	19	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-20B-20B	SFC-056DA1	20	20	56	59.8	20.5	14	2.4	22
SFC-056DA1-20B-22B	SFC-056DA1	20	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-20B-24B	SFC-056DA1	20	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-20B-25B	SFC-056DA1	20	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-22B-22B	SFC-056DA1	22	22	56	59.8	20.5	14	2.4	22
SFC-056DA1-22B-24B	SFC-056DA1	22	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-22B-25B	SFC-056DA1	22	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-24B-24B	SFC-056DA1	24	24	56	59.8	20.5	14	2.4	22
SFC-056DA1-24B-25B	SFC-056DA1	24	25	56	59.8	20.5	14	2.4	22
SFC-056DA1-25B-25B	SFC-056DA1	25	25	56	59.8	20.5	14	2.4	22

형식	C (mm)	K (mm)	M	체결 토크 (N · m)	허용 토크 (N · m)	축경의 허용토크 (N · m)
형식	C (mm)	K (mm)	M	체결 토크 (N · m)	허용 토크 (N · m)	축경의 허용토크 (N · m)
SFC-019DA1-3B-3B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-4B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-4.5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-6B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-3B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-4B-4B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-4.5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-6B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-4.5B-4.5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4.5B-5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4.5B-6B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4.5B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4.5B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-4.5B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-5B-5B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-5B-6B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-5B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-5B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-5B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-6B-6B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-6B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-6B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-6B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-6.35B-6.35B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-6.35B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-6.35B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-7B-7B	3.15	8.5	M2.5	1.0~1.1	1	-
SFC-019DA1-7B-8B	3.15	8.5	M2.5/M2	1.0~1.1/0.4~0.5	1	-
SFC-019DA1-8B-8B	3.15	8.5	M2	0.4~0.5	1	-
SFC-026DA1-4.5B-4.5B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-5B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-6B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-6.35B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-7B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-4.5B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-5B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-6B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-6.35B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-7B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-5B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-6B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-6.35B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-7B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-6.35B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-7B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-6.35B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-7B-7B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-7B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-7B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-7B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-7B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-8B-8B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-8B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-8B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-8B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-9B-9B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-9B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-9B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-9.525B-9.525B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-9.525B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-026DA1-10B-10B	3.3	10.6	M2.5	1.0~1.1	1.5	-
SFC-029DA1-6B-6B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-6.35B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-7B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-8B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-9B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-10B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-11B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-12B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6B-14B	3.3	14.5	M2.5	1.0~1.1	3	2.3
SFC-029DA1-6.35B-6.35B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-7B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-8B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-9B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-10B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-11B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-12B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-6.35B-14B	3.3	14.5	M2.5	1.0~1.1	3	2.7
SFC-029DA1-7B-7B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-8B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-9B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-10B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-7B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-8B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-9B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-10B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-8B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-9B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-10B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9.525B-9.525B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9.525B-10B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9.525B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9.525B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-9.525B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-10B-10B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-10B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-10B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-10B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-11B-11B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-11B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-11B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-12B-12B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-12B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-029DA1-14B-14B	3.3	14.5	M2.5	1.0~1.1	3	-
SFC-034DA1-6B-6B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-6.35B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-7B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-8B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-9B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-9.525B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-10B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-11B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-12B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6B-14B	3.75	14.5	M3	1.5~1.9	4	2.9
SFC-034DA1-6.35B-6.35B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-7B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-8B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-9B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-9.525B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-10B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-11B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-12B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-6.35B-14B	3.75	14.5	M3	1.5~1.9	4	3.1
SFC-034DA1-7B-7B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-8B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-9B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-9.525B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-10B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-11B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-12B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-7B-14B	3.75	14.5	M3	1.5~1.9	4	3.7
SFC-034DA1-8B-8B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-9B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-9.525B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-10B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-11B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-8B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-9B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-9.525B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-10B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-11B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9.525B-9.525B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9.525B-10B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9.525B-11B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9.525B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-9.525B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-10B-10B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-10B-11B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-10B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-10B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-11B-11B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-11B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-11B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-12B-12B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-12B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-034DA1-14B-14B	3.75	14.5	M3	1.5~1.9	4	-
SFC-039DA1-8B-8B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-9B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-9.525B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-10B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-11B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-8B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-9B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-9.525B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-10B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-11B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-9.525B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-10B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-11B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-9.525B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-10B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-11B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-10B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-11B-11B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-11B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-11B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-11B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-11B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-12B-12B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-12B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-12B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-12B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-14B-14B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-14B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-14B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-15B-15B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-15B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-039DA1-16B-16B	4.5	17	M4	3.4~4.1	6	-
SFC-044DA1-8B-8B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-9B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-9.525B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-10B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-11B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-8B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-9B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-9.525B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-10B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-11B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-9.525B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-10B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-11B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-9.525B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-10B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-11B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-10B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-11B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-11B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-12B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-12B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-14B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-14B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-15B-15B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-15B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-15B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-15B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-15B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-16B-16B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-16B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-16B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-16B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-17B-17B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-17B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-17B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-18B-18B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-18B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-044DA1-19B-19B	4.5	19.5	M4	3.4~4.1	10	-
SFC-056DA1-10B-10B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-11B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-12B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-14B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-15B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-10B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-11B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-12B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-14B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-15B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-11B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-12B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-14B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-15B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-12B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-14B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-15B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-14B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-15B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-15B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-16B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-16B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-17B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-17B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-18B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-18B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-19B-19B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-19B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-19B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-19B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-19B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-20B-20B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-20B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-20B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-20B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-22B-22B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-22B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-22B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-24B-24B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-24B-25B	6	26	M5	7.0~8.5	20	-
SFC-056DA1-25B-25B	6	26	M5	7.0~8.5	20	-

형식	허용오차	허용오차	허용오차	최고 회전속도 (min-1)	비틀림 스프링정수 (N · m/rad)	축방향 스프링정수 (N/mm)	관성 모멘트 (kg · m2)
형식	편심 (mm)	편각 (°)	축방향변위 (mm)	최고 회전속도 (min-1)	비틀림 스프링정수 (N · m/rad)	축방향 스프링정수 (N/mm)	관성 모멘트 (kg · m2)
SFC-019DA1-3B-3B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-4B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-4.5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-6B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-3B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-4B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-4.5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-6B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-4.5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-6B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-4.5B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-5B-5B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-5B-6B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-5B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-5B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-5B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6B-6B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6.35B-6.35B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6.35B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-6.35B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-7B-7B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-7B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-019DA1-8B-8B	0.11	1(편측)	±0.2	10000	700	70	0.79×10^-6
SFC-026DA1-4.5B-4.5B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-5B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-6B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-6.35B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-7B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-4.5B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-5B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-6B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-6.35B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-7B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-5B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-6B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-6.35B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-7B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-6.35B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-7B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-6.35B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-7B-7B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-7B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-7B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-7B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-7B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-8B-8B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-8B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-8B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-8B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-9B-9B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-9B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-9B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-9.525B-9.525B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-9.525B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-026DA1-10B-10B	0.15	1(편측)	±0.33	10000	1850	32	3.40×10^-6
SFC-029DA1-6B-6B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-6.35B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-7B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-8B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-9B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-6.35B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-7B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-8B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-9B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-6.35B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-7B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-8B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-9B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-7B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-8B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-9B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-8B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-9B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9.525B-9.525B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9.525B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9.525B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9.525B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-9.525B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-10B-10B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-10B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-10B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-10B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-11B-11B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-11B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-11B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-12B-12B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-12B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-029DA1-14B-14B	0.16	1(편측)	±0.38	10000	2800	30	5.26×10^-6
SFC-034DA1-6B-6B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-6.35B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-7B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-8B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-9B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-6.35B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-7B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-8B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-9B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-6.35B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-7B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-8B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-9B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-7B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-8B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-9B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-8B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-9B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9.525B-9.525B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9.525B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9.525B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9.525B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-9.525B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-10B-10B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-10B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-10B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-10B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-11B-11B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-11B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-11B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-12B-12B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-12B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-034DA1-14B-14B	0.18	1(편측)	±0.4	10000	4000	32	11.45×10^-6
SFC-039DA1-8B-8B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-9B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-9.525B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-10B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-11B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-8B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-9B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-9.525B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-10B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-11B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-9.525B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-10B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-11B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-9.525B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-10B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-11B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-10B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-11B-11B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-11B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-11B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-11B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-11B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-12B-12B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-12B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-12B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-12B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-14B-14B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-14B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-14B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-15B-15B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-15B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-039DA1-16B-16B	0.24	1(편측)	±0.5	10000	9000	56	26.78×10^-6
SFC-044DA1-8B-8B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-9B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-9.525B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-10B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-11B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-8B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-9B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-9.525B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-10B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-11B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-9.525B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-10B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-11B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-9.525B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-10B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-11B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-10B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-11B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-11B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-12B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-12B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-14B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-14B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-15B-15B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-15B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-15B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-15B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-15B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-16B-16B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-16B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-16B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-16B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-17B-17B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-17B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-17B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-18B-18B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-18B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-044DA1-19B-19B	0.24	1(편측)	±0.6	10000	10000	40	42.61×10^-6
SFC-056DA1-10B-10B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-11B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-12B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-14B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-15B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-10B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-11B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-12B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-14B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-15B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-11B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-12B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-14B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-15B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-12B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-14B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-15B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-14B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-15B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-15B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-16B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-16B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-17B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-17B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-18B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-18B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-19B-19B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-19B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-19B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-19B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-19B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-20B-20B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-20B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-20B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-20B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-22B-22B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-22B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-22B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-24B-24B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-24B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6
SFC-056DA1-25B-25B	0.28	1(편측)	±0.8	10000	16000	24	141.4×10^-6

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (Kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (Kg)	견적의뢰 및 주문
SFC-019DA1-3B-3B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-4B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-4.5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-6B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-3B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-4B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-4.5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-6B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-4.5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-6B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-4.5B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-5B-5B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-5B-6B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-5B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-5B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-5B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6B-6B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6.35B-6.35B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6.35B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-6.35B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-7B-7B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-7B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-019DA1-8B-8B	P	83,380	-	재고품	-	-	견적의뢰 / 주문
SFC-026DA1-4.5B-4.5B	P	87,780	-	재고품	-	-	견적의뢰 / 주문
SFC-026DA1-4.5B-5B	P	87,780	-	재고품	-	-	견적의뢰 / 주문
