여자작동형클러치·브레이크

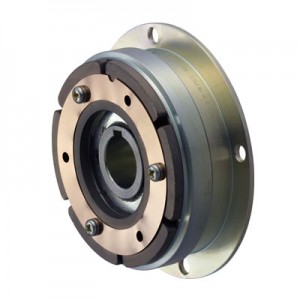

101형 여자클러치(플랜지취부)
미키풀리(주) ( MIKI PULLEY )
|
|
| 168건 중 1~168건 표시 | |
| 형식 | 타입 | 규격 | 동마찰 토크 (N · m) | 코일(at20℃) | 코일(at21℃) | 코일(at22℃) | 코일(at23℃) |
| 형식 | 타입 | 규격 | 동마찰 토크 (N · m) | 전압 (V) | 용량 (W) | 전류 (A) | 저항 (Ω) |
| 101-06-13G-24V-12DIN | 직접취부용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-13G-24V-12JIS | 직접취부용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-13G-24V-15DIN | 직접취부용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-13G-24V-15JIS | 직접취부용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-08-13G-24V-15DIN | 직접취부용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-13G-24V-15JIS | 직접취부용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-13G-24V-20DIN | 직접취부용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-13G-24V-20JIS | 직접취부용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-10-13G-24V-20DIN | 직접취부용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-13G-24V-20JIS | 직접취부용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-13G-24V-25DIN | 직접취부용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-13G-24V-25JIS | 직접취부용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-12-13G-24V-25DIN | 직접취부용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-13G-24V-25JIS | 직접취부용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-13G-24V-30DIN | 직접취부용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-13G-24V-30JIS | 직접취부용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-16-13G-24V-30DIN | 직접취부용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-13G-24V-30JIS | 직접취부용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-13G-24V-40DIN | 직접취부용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-13G-24V-40JIS | 직접취부용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-20-13G-24V-40DIN | 직접취부용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-13G-24V-40JIS | 직접취부용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-13G-24V-50DIN | 직접취부용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-13G-24V-50JIS | 직접취부용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-25-13G-24V-50DIN | 직접취부용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-13G-24V-50JIS | 직접취부용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-13G-24V-60DIN | 직접취부용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-13G-24V-60JIS | 직접취부용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-06-15G-24V-R12DIN-A12DIN | 관통축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-15G-24V-R12DIN-A12JIS | 관통축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-15G-24V-R12JIS-A12DIN | 관통축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-15G-24V-R12JIS-A12JIS | 관통축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-08-15G-24V-R15DIN-A15DIN | 관통축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-15G-24V-R15DIN-A15JIS | 관통축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-15G-24V-R15JIS-A15DIN | 관통축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-15G-24V-R15JIS-A15JIS | 관통축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-10-15G-24V-R20DIN-A20DIN | 관통축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-15G-24V-R20DIN-A20JIS | 관통축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-15G-24V-R20JIS-A20DIN | 관통축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-15G-24V-R20JIS-A20JIS | 관통축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-12-15G-24V-R25DIN-A25DIN | 관통축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-15G-24V-R25DIN-A25JIS | 관통축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-15G-24V-R25JIS-A25DIN | 관통축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-15G-24V-R25JIS-A25JIS | 관통축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-16-15G-24V-R30DIN-A30DIN | 관통축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-15G-24V-R30DIN-A30JIS | 관통축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-15G-24V-R30JIS-A30DIN | 관통축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-15G-24V-R30JIS-A30JIS | 관통축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-20-15G-24V-R40DIN-A40DIN | 관통축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-15G-24V-R40DIN-A40JIS | 관통축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-15G-24V-R40JIS-A40DIN | 관통축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-15G-24V-R40JIS-A40JIS | 관통축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-25-15G-24V-R50DIN-A50DIN | 관통축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-15G-24V-R50DIN-A50JIS | 관통축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-15G-24V-R50JIS-A50DIN | 관통축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-15G-24V-R50JIS-A50JIS | 관통축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-06-11G-24V-R12DIN-A12DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12DIN-A12JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12DIN-A15DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12DIN-A15JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12JIS-A12DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12JIS-A12JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12JIS-A15DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R12JIS-A15JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15DIN-A12DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15DIN-A12JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15DIN-A15DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15DIN-A15JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15JIS-A12DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15JIS-A12JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15JIS-A15DIN | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-06-11G-24V-R15JIS-A15JIS | 맞춤축용 | 06 | 5 | DC24 | 11 | 0.46 | 52 |
| 101-08-11G-24V-R15DIN-A15DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15DIN-A15JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15DIN-A20DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15DIN-A20JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15JIS-A15DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15JIS-A15JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15JIS-A20DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R15JIS-A20JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20DIN-A15DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20DIN-A15JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20DIN-A20DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20DIN-A20JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20JIS-A15DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20JIS-A15JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20JIS-A20DIN | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-08-11G-24V-R20JIS-A20JIS | 맞춤축용 | 08 | 10 | DC24 | 15 | 0.63 | 38 |
| 101-10-11G-24V-R20DIN-A20DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20DIN-A20JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20DIN-A25DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20DIN-A25JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20JIS-A20DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20JIS-A20JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20JIS-A25DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R20JIS-A25JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25DIN-A20DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25DIN-A20JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25DIN-A25DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25DIN-A25JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25JIS-A20DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25JIS-A20JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25JIS-A25DIN | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-10-11G-24V-R25JIS-A25JIS | 맞춤축용 | 10 | 20 | DC24 | 20 | 0.83 | 29 |
| 101-12-11G-24V-R25DIN-A25DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25DIN-A25JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25DIN-A30DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25DIN-A30JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25JIS-A25DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25JIS-A25JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25JIS-A30DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R25JIS-A30JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30DIN-A25DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30DIN-A25JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30DIN-A30DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30DIN-A30JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30JIS-A25DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30JIS-A25JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30JIS-A30DIN | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-12-11G-24V-R30JIS-A30JIS | 맞춤축용 | 12 | 40 | DC24 | 25 | 1.09 | 23 |
| 101-16-11G-24V-R30DIN-A30DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30DIN-A30JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30DIN-A40DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30DIN-A40JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30JIS-A30DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30JIS-A30JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30JIS-A40DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R30JIS-A40JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40DIN-A30DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40DIN-A30JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40DIN-A40DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40DIN-A40JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40JIS-A30DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40JIS-A30JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40JIS-A40DIN | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-16-11G-24V-R40JIS-A40JIS | 맞춤축용 | 16 | 80 | DC24 | 35 | 1.46 | 16 |
| 101-20-11G-24V-R40DIN-A40DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40DIN-A40JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40DIN-A50DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40DIN-A50JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40JIS-A40DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40JIS-A40JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40JIS-A50DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R40JIS-A50JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50DIN-A40DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50DIN-A40JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50DIN-A50DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50DIN-A50JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50JIS-A40DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50JIS-A40JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50JIS-A50DIN | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-20-11G-24V-R50JIS-A50JIS | 맞춤축용 | 20 | 160 | DC24 | 45 | 1.88 | 13 |
| 101-25-11G-24V-R50DIN-A50DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50DIN-A50JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50DIN-A60DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50DIN-A60JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50JIS-A50DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50JIS-A50JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50JIS-A60DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R50JIS-A60JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60DIN-A50DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60DIN-A50JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60DIN-A60DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60DIN-A60JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60JIS-A50DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60JIS-A50JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60JIS-A60DIN | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |
| 101-25-11G-24V-R60JIS-A60JIS | 맞춤축용 | 25 | 320 | DC24 | 60 | 2.5 | 9.6 |

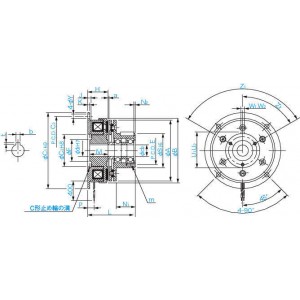

| 형식 | 최고 회전속도 (min-1) | 로터 | 로터 | 아마추어 | 아마추어 | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) |
| 형식 | 최고 회전속도 (min-1) | 내경d1 (mm) | 키홈 규격 | 내경d2 (mm) | 키홈 규격 | A | A1 | A2 | A3 | B |
| 101-06-13G-24V-12DIN | 8000 | 12 | 신JIS | - | - | - | 63 | 46 | 34.5 | 67.5 |
| 101-06-13G-24V-12JIS | 8000 | 12 | 구JIS | - | - | - | 63 | 46 | 34.5 | 67.5 |
| 101-06-13G-24V-15DIN | 8000 | 15 | 신JIS | - | - | - | 63 | 46 | 34.5 | 67.5 |
| 101-06-13G-24V-15JIS | 8000 | 15 | 구JIS | - | - | - | 63 | 46 | 34.5 | 67.5 |
| 101-08-13G-24V-15DIN | 6000 | 15 | 신JIS | - | - | - | 80 | 60 | 41.5 | 85 |
| 101-08-13G-24V-15JIS | 6000 | 15 | 구JIS | - | - | - | 80 | 60 | 41.5 | 85 |
| 101-08-13G-24V-20DIN | 6000 | 20 | 신JIS | - | - | - | 80 | 60 | 41.5 | 85 |
| 101-08-13G-24V-20JIS | 6000 | 20 | 구JIS | - | - | - | 80 | 60 | 41.5 | 85 |
| 101-10-13G-24V-20DIN | 5000 | 20 | 신JIS | - | - | - | 100 | 76 | 51.5 | 106 |
| 101-10-13G-24V-20JIS | 5000 | 20 | 구JIS | - | - | - | 100 | 76 | 51.5 | 106 |
| 101-10-13G-24V-25DIN | 5000 | 25 | 신JIS | - | - | - | 100 | 76 | 51.5 | 106 |
| 101-10-13G-24V-25JIS | 5000 | 25 | 구JIS | - | - | - | 100 | 76 | 51.5 | 106 |
| 101-12-13G-24V-25DIN | 4000 | 25 | 신JIS | - | - | - | 125 | 95 | 61.5 | 133 |
| 101-12-13G-24V-25JIS | 4000 | 25 | 구JIS | - | - | - | 125 | 95 | 61.5 | 133 |
| 101-12-13G-24V-30DIN | 4000 | 30 | 신JIS | - | - | - | 125 | 95 | 61.5 | 133 |
| 101-12-13G-24V-30JIS | 4000 | 30 | 구JIS | - | - | - | 125 | 95 | 61.5 | 133 |
| 101-16-13G-24V-30DIN | 3000 | 30 | 신JIS | - | - | - | 160 | 120 | 79.5 | 169 |
| 101-16-13G-24V-30JIS | 3000 | 30 | 구JIS | - | - | - | 160 | 120 | 79.5 | 169 |
| 101-16-13G-24V-40DIN | 3000 | 40 | 신JIS | - | - | - | 160 | 120 | 79.5 | 169 |
| 101-16-13G-24V-40JIS | 3000 | 40 | 구JIS | - | - | - | 160 | 120 | 79.5 | 169 |
| 101-20-13G-24V-40DIN | 2500 | 40 | 신JIS | - | - | - | 200 | 158 | 99.5 | 212.5 |
| 101-20-13G-24V-40JIS | 2500 | 40 | 구JIS | - | - | - | 200 | 158 | 99.5 | 212.5 |
| 101-20-13G-24V-50DIN | 2500 | 50 | 신JIS | - | - | - | 200 | 158 | 99.5 | 212.5 |
| 101-20-13G-24V-50JIS | 2500 | 50 | 구JIS | - | - | - | 200 | 158 | 99.5 | 212.5 |
| 101-25-13G-24V-50DIN | 2000 | 50 | 신JIS | - | - | - | 250 | 210 | 124.5 | 264 |
| 101-25-13G-24V-50JIS | 2000 | 50 | 구JIS | - | - | - | 250 | 210 | 124.5 | 264 |
| 101-25-13G-24V-60DIN | 2000 | 60 | 신JIS | - | - | - | 250 | 210 | 124.5 | 264 |
| 101-25-13G-24V-60JIS | 2000 | 60 | 구JIS | - | - | - | 250 | 210 | 124.5 | 264 |
| 101-06-15G-24V-R12DIN-A12DIN | 8000 | 12 | 신JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-15G-24V-R12DIN-A12JIS | 8000 | 12 | 신JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-15G-24V-R12JIS-A12DIN | 8000 | 12 | 구JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-15G-24V-R12JIS-A12JIS | 8000 | 12 | 구JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-08-15G-24V-R15DIN-A15DIN | 6000 | 15 | 신JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-15G-24V-R15DIN-A15JIS | 6000 | 15 | 신JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-08-15G-24V-R15JIS-A15DIN | 6000 | 15 | 구JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-15G-24V-R15JIS-A15JIS | 6000 | 15 | 구JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-10-15G-24V-R20DIN-A20DIN | 5000 | 20 | 신JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-15G-24V-R20DIN-A20JIS | 5000 | 20 | 신JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-10-15G-24V-R20JIS-A20DIN | 5000 | 20 | 구JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-15G-24V-R20JIS-A20JIS | 5000 | 20 | 구JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-12-15G-24V-R25DIN-A25DIN | 4000 | 25 | 신JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-15G-24V-R25DIN-A25JIS | 4000 | 25 | 신JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-12-15G-24V-R25JIS-A25DIN | 4000 | 25 | 구JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-15G-24V-R25JIS-A25JIS | 4000 | 25 | 구JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-16-15G-24V-R30DIN-A30DIN | 3000 | 30 | 신JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-15G-24V-R30DIN-A30JIS | 3000 | 30 | 신JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-16-15G-24V-R30JIS-A30DIN | 3000 | 30 | 구JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-15G-24V-R30JIS-A30JIS | 3000 | 30 | 구JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-20-15G-24V-R40DIN-A40DIN | 2500 | 40 | 신JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-15G-24V-R40DIN-A40JIS | 2500 | 40 | 신JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-15G-24V-R40JIS-A40DIN | 2500 | 40 | 구JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-15G-24V-R40JIS-A40JIS | 2500 | 40 | 구JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-25-15G-24V-R50DIN-A50DIN | 2000 | 50 | 신JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-15G-24V-R50DIN-A50JIS | 2000 | 50 | 신JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-25-15G-24V-R50JIS-A50DIN | 2000 | 50 | 구JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-15G-24V-R50JIS-A50JIS | 2000 | 50 | 구JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-06-11G-24V-R12DIN-A12DIN | 8000 | 12 | 신JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12DIN-A12JIS | 8000 | 12 | 신JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12DIN-A15DIN | 8000 | 12 | 신JIS | 15 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12DIN-A15JIS | 8000 | 12 | 신JIS | 15 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12JIS-A12DIN | 8000 | 12 | 구JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12JIS-A12JIS | 8000 | 12 | 구JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12JIS-A15DIN | 8000 | 12 | 구JIS | 15 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R12JIS-A15JIS | 8000 | 12 | 구JIS | 15 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15DIN-A12DIN | 8000 | 15 | 신JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15DIN-A12JIS | 8000 | 15 | 신JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15DIN-A15DIN | 8000 | 15 | 신JIS | 15 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15DIN-A15JIS | 8000 | 15 | 신JIS | 15 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15JIS-A12DIN | 8000 | 15 | 구JIS | 12 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15JIS-A12JIS | 8000 | 15 | 구JIS | 12 | 구JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15JIS-A15DIN | 8000 | 15 | 구JIS | 15 | 신JIS | 63 | - | - | - | 67.5 |
| 101-06-11G-24V-R15JIS-A15JIS | 8000 | 15 | 구JIS | 15 | 구JIS | 63 | - | - | - | 67.5 |
| 101-08-11G-24V-R15DIN-A15DIN | 6000 | 15 | 신JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15DIN-A15JIS | 6000 | 15 | 신JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15DIN-A20DIN | 6000 | 15 | 신JIS | 20 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15DIN-A20JIS | 6000 | 15 | 신JIS | 20 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15JIS-A15DIN | 6000 | 15 | 구JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15JIS-A15JIS | 6000 | 15 | 구JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15JIS-A20DIN | 6000 | 15 | 구JIS | 20 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R15JIS-A20JIS | 6000 | 15 | 구JIS | 20 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20DIN-A15DIN | 6000 | 20 | 신JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20DIN-A15JIS | 6000 | 20 | 신JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20DIN-A20DIN | 6000 | 20 | 신JIS | 20 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20DIN-A20JIS | 6000 | 20 | 신JIS | 20 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20JIS-A15DIN | 6000 | 20 | 구JIS | 15 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20JIS-A15JIS | 6000 | 20 | 구JIS | 15 | 구JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20JIS-A20DIN | 6000 | 20 | 구JIS | 20 | 신JIS | 80 | - | - | - | 85 |
| 101-08-11G-24V-R20JIS-A20JIS | 6000 | 20 | 구JIS | 20 | 구JIS | 80 | - | - | - | 85 |
| 101-10-11G-24V-R20DIN-A20DIN | 5000 | 20 | 신JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20DIN-A20JIS | 5000 | 20 | 신JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20DIN-A25DIN | 5000 | 20 | 신JIS | 25 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20DIN-A25JIS | 5000 | 20 | 신JIS | 25 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20JIS-A20DIN | 5000 | 20 | 구JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20JIS-A20JIS | 5000 | 20 | 구JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20JIS-A25DIN | 5000 | 20 | 구JIS | 25 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R20JIS-A25JIS | 5000 | 20 | 구JIS | 25 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25DIN-A20DIN | 5000 | 25 | 신JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25DIN-A20JIS | 5000 | 25 | 신JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25DIN-A25DIN | 5000 | 25 | 신JIS | 25 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25DIN-A25JIS | 5000 | 25 | 신JIS | 25 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25JIS-A20DIN | 5000 | 25 | 구JIS | 20 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25JIS-A20JIS | 5000 | 25 | 구JIS | 20 | 구JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25JIS-A25DIN | 5000 | 25 | 구JIS | 25 | 신JIS | 100 | - | - | - | 106 |
| 101-10-11G-24V-R25JIS-A25JIS | 5000 | 25 | 구JIS | 25 | 구JIS | 100 | - | - | - | 106 |
| 101-12-11G-24V-R25DIN-A25DIN | 4000 | 25 | 신JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25DIN-A25JIS | 4000 | 25 | 신JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25DIN-A30DIN | 4000 | 25 | 신JIS | 30 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25DIN-A30JIS | 4000 | 25 | 신JIS | 30 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25JIS-A25DIN | 4000 | 25 | 구JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25JIS-A25JIS | 4000 | 25 | 구JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25JIS-A30DIN | 4000 | 25 | 구JIS | 30 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R25JIS-A30JIS | 4000 | 25 | 구JIS | 30 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30DIN-A25DIN | 4000 | 30 | 신JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30DIN-A25JIS | 4000 | 30 | 신JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30DIN-A30DIN | 4000 | 30 | 신JIS | 30 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30DIN-A30JIS | 4000 | 30 | 신JIS | 30 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30JIS-A25DIN | 4000 | 30 | 구JIS | 25 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30JIS-A25JIS | 4000 | 30 | 구JIS | 25 | 구JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30JIS-A30DIN | 4000 | 30 | 구JIS | 30 | 신JIS | 125 | - | - | - | 133 |
| 101-12-11G-24V-R30JIS-A30JIS | 4000 | 30 | 구JIS | 30 | 구JIS | 125 | - | - | - | 133 |
| 101-16-11G-24V-R30DIN-A30DIN | 3000 | 30 | 신JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30DIN-A30JIS | 3000 | 30 | 신JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30DIN-A40DIN | 3000 | 30 | 신JIS | 40 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30DIN-A40JIS | 3000 | 30 | 신JIS | 40 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30JIS-A30DIN | 3000 | 30 | 구JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30JIS-A30JIS | 3000 | 30 | 구JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30JIS-A40DIN | 3000 | 30 | 구JIS | 40 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R30JIS-A40JIS | 3000 | 30 | 구JIS | 40 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40DIN-A30DIN | 3000 | 40 | 신JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40DIN-A30JIS | 3000 | 40 | 신JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40DIN-A40DIN | 3000 | 40 | 신JIS | 40 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40DIN-A40JIS | 3000 | 40 | 신JIS | 40 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40JIS-A30DIN | 3000 | 40 | 구JIS | 30 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40JIS-A30JIS | 3000 | 40 | 구JIS | 30 | 구JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40JIS-A40DIN | 3000 | 40 | 구JIS | 40 | 신JIS | 160 | - | - | - | 169 |
| 101-16-11G-24V-R40JIS-A40JIS | 3000 | 40 | 구JIS | 40 | 구JIS | 160 | - | - | - | 169 |
| 101-20-11G-24V-R40DIN-A40DIN | 2500 | 40 | 신JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40DIN-A40JIS | 2500 | 40 | 신JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40DIN-A50DIN | 2500 | 40 | 신JIS | 50 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40DIN-A50JIS | 2500 | 40 | 신JIS | 50 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40JIS-A40DIN | 2500 | 40 | 구JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40JIS-A40JIS | 2500 | 40 | 구JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40JIS-A50DIN | 2500 | 40 | 구JIS | 50 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R40JIS-A50JIS | 2500 | 40 | 구JIS | 50 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50DIN-A40DIN | 2500 | 50 | 신JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50DIN-A40JIS | 2500 | 50 | 신JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50DIN-A50DIN | 2500 | 50 | 신JIS | 50 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50DIN-A50JIS | 2500 | 50 | 신JIS | 50 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50JIS-A40DIN | 2500 | 50 | 구JIS | 40 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50JIS-A40JIS | 2500 | 50 | 구JIS | 40 | 구JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50JIS-A50DIN | 2500 | 50 | 구JIS | 50 | 신JIS | 200 | - | - | - | 212.5 |
| 101-20-11G-24V-R50JIS-A50JIS | 2500 | 50 | 구JIS | 50 | 구JIS | 200 | - | - | - | 212.5 |
| 101-25-11G-24V-R50DIN-A50DIN | 2000 | 50 | 신JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50DIN-A50JIS | 2000 | 50 | 신JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50DIN-A60DIN | 2000 | 50 | 신JIS | 60 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50DIN-A60JIS | 2000 | 50 | 신JIS | 60 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50JIS-A50DIN | 2000 | 50 | 구JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50JIS-A50JIS | 2000 | 50 | 구JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50JIS-A60DIN | 2000 | 50 | 구JIS | 60 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R50JIS-A60JIS | 2000 | 50 | 구JIS | 60 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60DIN-A50DIN | 2000 | 60 | 신JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60DIN-A50JIS | 2000 | 60 | 신JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60DIN-A60DIN | 2000 | 60 | 신JIS | 60 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60DIN-A60JIS | 2000 | 60 | 신JIS | 60 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60JIS-A50DIN | 2000 | 60 | 구JIS | 50 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60JIS-A50JIS | 2000 | 60 | 구JIS | 50 | 구JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60JIS-A60DIN | 2000 | 60 | 구JIS | 60 | 신JIS | 250 | - | - | - | 264 |
| 101-25-11G-24V-R60JIS-A60JIS | 2000 | 60 | 구JIS | 60 | 구JIS | 250 | - | - | - | 264 |
| 형식 | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) | 레이디얼방향치수(mm) |
| 형식 | C1 | C2 | C3 | E | F | Y | S | m |
| 101-06-13G-24V-12DIN | 80 | 72 | 35 | - | 23 | 5 | - | - |
| 101-06-13G-24V-12JIS | 80 | 72 | 35 | - | 23 | 5 | - | - |
| 101-06-13G-24V-15DIN | 80 | 72 | 35 | - | 23 | 5 | - | - |
| 101-06-13G-24V-15JIS | 80 | 72 | 35 | - | 23 | 5 | - | - |
| 101-08-13G-24V-15DIN | 100 | 90 | 42 | - | 28.5 | 6 | - | - |
| 101-08-13G-24V-15JIS | 100 | 90 | 42 | - | 28.5 | 6 | - | - |
| 101-08-13G-24V-20DIN | 100 | 90 | 42 | - | 28.5 | 6 | - | - |
| 101-08-13G-24V-20JIS | 100 | 90 | 42 | - | 28.5 | 6 | - | - |
| 101-10-13G-24V-20DIN | 125 | 112 | 62 | - | 40 | 7 | - | - |
| 101-10-13G-24V-20JIS | 125 | 112 | 62 | - | 40 | 7 | - | - |
| 101-10-13G-24V-25DIN | 125 | 112 | 62 | - | 40 | 7 | - | - |
| 101-10-13G-24V-25JIS | 125 | 112 | 62 | - | 40 | 7 | - | - |
| 101-12-13G-24V-25DIN | 150 | 137 | 62 | - | 45 | 7 | - | - |
| 101-12-13G-24V-25JIS | 150 | 137 | 62 | - | 45 | 7 | - | - |
| 101-12-13G-24V-30DIN | 150 | 137 | 62 | - | 45 | 7 | - | - |
| 101-12-13G-24V-30JIS | 150 | 137 | 62 | - | 45 | 7 | - | - |
| 101-16-13G-24V-30DIN | 190 | 175 | 80 | - | 62 | 9.5 | - | - |
| 101-16-13G-24V-30JIS | 190 | 175 | 80 | - | 62 | 9.5 | - | - |
| 101-16-13G-24V-40DIN | 190 | 175 | 80 | - | 62 | 9.5 | - | - |
| 101-16-13G-24V-40JIS | 190 | 175 | 80 | - | 62 | 9.5 | - | - |
| 101-20-13G-24V-40DIN | 230 | 215 | 100 | - | 77 | 9.5 | - | - |
| 101-20-13G-24V-40JIS | 230 | 215 | 100 | - | 77 | 9.5 | - | - |
| 101-20-13G-24V-50DIN | 230 | 215 | 100 | - | 77 | 9.5 | - | - |
| 101-20-13G-24V-50JIS | 230 | 215 | 100 | - | 77 | 9.5 | - | - |
| 101-25-13G-24V-50DIN | 290 | 270 | 125 | - | 100 | 11.5 | - | - |
| 101-25-13G-24V-50JIS | 290 | 270 | 125 | - | 100 | 11.5 | - | - |
| 101-25-13G-24V-60DIN | 290 | 270 | 125 | - | 100 | 11.5 | - | - |
| 101-25-13G-24V-60JIS | 290 | 270 | 125 | - | 100 | 11.5 | - | - |
| 101-06-15G-24V-R12DIN-A12DIN | 80 | 72 | 35 | 33 | 23 | 5 | 38 | - |
| 101-06-15G-24V-R12DIN-A12JIS | 80 | 72 | 35 | 33 | 23 | 5 | 38 | - |
| 101-06-15G-24V-R12JIS-A12DIN | 80 | 72 | 35 | 33 | 23 | 5 | 38 | - |
| 101-06-15G-24V-R12JIS-A12JIS | 80 | 72 | 35 | 33 | 23 | 5 | 38 | - |
| 101-08-15G-24V-R15DIN-A15DIN | 100 | 90 | 42 | 37 | 28.5 | 6 | 45 | - |
| 101-08-15G-24V-R15DIN-A15JIS | 100 | 90 | 42 | 37 | 28.5 | 6 | 45 | - |
| 101-08-15G-24V-R15JIS-A15DIN | 100 | 90 | 42 | 37 | 28.5 | 6 | 45 | - |
| 101-08-15G-24V-R15JIS-A15JIS | 100 | 90 | 42 | 37 | 28.5 | 6 | 45 | - |
| 101-10-15G-24V-R20DIN-A20DIN | 125 | 112 | 52 | 47 | 40 | 7 | 55 | - |
| 101-10-15G-24V-R20DIN-A20JIS | 125 | 112 | 52 | 47 | 40 | 7 | 55 | - |
| 101-10-15G-24V-R20JIS-A20DIN | 125 | 112 | 52 | 47 | 40 | 7 | 55 | - |
| 101-10-15G-24V-R20JIS-A20JIS | 125 | 112 | 52 | 47 | 40 | 7 | 55 | - |
| 101-12-15G-24V-R25DIN-A25DIN | 150 | 137 | 62 | 52 | 45 | 7 | 64 | - |
| 101-12-15G-24V-R25DIN-A25JIS | 150 | 137 | 62 | 52 | 45 | 7 | 64 | - |
| 101-12-15G-24V-R25JIS-A25DIN | 150 | 137 | 62 | 52 | 45 | 7 | 64 | - |
| 101-12-15G-24V-R25JIS-A25JIS | 150 | 137 | 62 | 52 | 45 | 7 | 64 | - |
| 101-16-15G-24V-R30DIN-A30DIN | 190 | 175 | 80 | 62 | 62 | 9.5 | 75 | - |
| 101-16-15G-24V-R30DIN-A30JIS | 190 | 175 | 80 | 62 | 62 | 9.5 | 75 | - |
| 101-16-15G-24V-R30JIS-A30DIN | 190 | 175 | 80 | 62 | 62 | 9.5 | 75 | - |
| 101-16-15G-24V-R30JIS-A30JIS | 190 | 175 | 80 | 62 | 62 | 9.5 | 75 | - |
| 101-20-15G-24V-R40DIN-A40DIN | 230 | 215 | 100 | 74.5 | 77 | 9.5 | 90 | - |
| 101-20-15G-24V-R40DIN-A40JIS | 230 | 215 | 100 | 74.5 | 77 | 9.5 | 90 | - |
| 101-20-15G-24V-R40JIS-A40DIN | 230 | 215 | 100 | 74.5 | 77 | 9.5 | 90 | - |
| 101-20-15G-24V-R40JIS-A40JIS | 230 | 215 | 100 | 74.5 | 77 | 9.5 | 90 | - |
| 101-25-15G-24V-R50DIN-A50DIN | 290 | 270 | 125 | 101.5 | 100 | 11.5 | 115 | - |
| 101-25-15G-24V-R50DIN-A50JIS | 290 | 270 | 125 | 101.5 | 100 | 11.5 | 115 | - |
| 101-25-15G-24V-R50JIS-A50DIN | 290 | 270 | 125 | 101.5 | 100 | 11.5 | 115 | - |
| 101-25-15G-24V-R50JIS-A50JIS | 290 | 270 | 125 | 101.5 | 100 | 11.5 | 115 | - |
| 101-06-11G-24V-R12DIN-A12DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12DIN-A12JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12DIN-A15DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12DIN-A15JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12JIS-A12DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12JIS-A12JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12JIS-A15DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R12JIS-A15JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15DIN-A12DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15DIN-A12JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15DIN-A15DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15DIN-A15JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15JIS-A12DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15JIS-A12JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15JIS-A15DIN | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-06-11G-24V-R15JIS-A15JIS | 80 | 72 | 35 | 26 | 23 | 5 | - | M4 |
| 101-08-11G-24V-R15DIN-A15DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15DIN-A15JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15DIN-A20DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15DIN-A20JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15JIS-A15DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15JIS-A15JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15JIS-A20DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R15JIS-A20JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20DIN-A15DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20DIN-A15JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20DIN-A20DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20DIN-A20JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20JIS-A15DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20JIS-A15JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20JIS-A20DIN | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-08-11G-24V-R20JIS-A20JIS | 100 | 90 | 42 | 31 | 28.5 | 6 | - | M5 |
| 101-10-11G-24V-R20DIN-A20DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20DIN-A20JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20DIN-A25DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20DIN-A25JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20JIS-A20DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20JIS-A20JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20JIS-A25DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R20JIS-A25JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25DIN-A20DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25DIN-A20JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25DIN-A25DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25DIN-A25JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25JIS-A20DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25JIS-A20JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25JIS-A25DIN | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-10-11G-24V-R25JIS-A25JIS | 125 | 112 | 52 | 41 | 40 | 7 | - | M5 |
| 101-12-11G-24V-R25DIN-A25DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25DIN-A25JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25DIN-A30DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25DIN-A30JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25JIS-A25DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25JIS-A25JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25JIS-A30DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R25JIS-A30JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30DIN-A25DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30DIN-A25JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30DIN-A30DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30DIN-A30JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30JIS-A25DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30JIS-A25JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30JIS-A30DIN | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-12-11G-24V-R30JIS-A30JIS | 150 | 137 | 62 | 49 | 45 | 7 | - | M6 |
| 101-16-11G-24V-R30DIN-A30DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30DIN-A30JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30DIN-A40DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30DIN-A40JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30JIS-A30DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30JIS-A30JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30JIS-A40DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R30JIS-A40JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40DIN-A30DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40DIN-A30JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40DIN-A40DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40DIN-A40JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40JIS-A30DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40JIS-A30JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40JIS-A40DIN | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-16-11G-24V-R40JIS-A40JIS | 190 | 175 | 80 | 65 | 92 | 9.5 | - | M8 |
| 101-20-11G-24V-R40DIN-A40DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40DIN-A40JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40DIN-A50DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40DIN-A50JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40JIS-A40DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40JIS-A40JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40JIS-A50DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R40JIS-A50JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50DIN-A40DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50DIN-A40JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50DIN-A50DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50DIN-A50JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50JIS-A40DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50JIS-A40JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50JIS-A50DIN | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-20-11G-24V-R50JIS-A50JIS | 230 | 215 | 100 | 83 | 77 | 9.5 | - | M8 |
| 101-25-11G-24V-R50DIN-A50DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50DIN-A50JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50DIN-A60DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50DIN-A60JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50JIS-A50DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50JIS-A50JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50JIS-A60DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R50JIS-A60JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60DIN-A50DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60DIN-A50JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60DIN-A60DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60DIN-A60JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60JIS-A50DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60JIS-A50JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60JIS-A60DIN | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 101-25-11G-24V-R60JIS-A60JIS | 290 | 270 | 125 | 105 | 100 | 11.5 | - | M10 |
| 형식 | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) |
| 형식 | H | J | K | L | L1 | L2 |
| 101-06-13G-24V-12DIN | 24 | 3.5 | 2.1 | 28 | - | - |
| 101-06-13G-24V-12JIS | 24 | 3.5 | 2.1 | 28 | - | - |
| 101-06-13G-24V-15DIN | 24 | 3.5 | 2.1 | 28 | - | - |
| 101-06-13G-24V-15JIS | 24 | 3.5 | 2.1 | 28 | - | - |
| 101-08-13G-24V-15DIN | 26.5 | 4.3 | 2.6 | 31 | - | - |
| 101-08-13G-24V-15JIS | 26.5 | 4.3 | 2.6 | 31 | - | - |
| 101-08-13G-24V-20DIN | 26.5 | 4.3 | 2.6 | 31 | - | - |
| 101-08-13G-24V-20JIS | 26.5 | 4.3 | 2.6 | 31 | - | - |
| 101-10-13G-24V-20DIN | 30 | 5 | 3.1 | 36 | - | - |
| 101-10-13G-24V-20JIS | 30 | 5 | 3.1 | 36 | - | - |
| 101-10-13G-24V-25DIN | 30 | 5 | 3.1 | 36 | - | - |
| 101-10-13G-24V-25JIS | 30 | 5 | 3.1 | 36 | - | - |
| 101-12-13G-24V-25DIN | 33.5 | 5.5 | 3.6 | 40.5 | - | - |
| 101-12-13G-24V-25JIS | 33.5 | 5.5 | 3.6 | 40.5 | - | - |
| 101-12-13G-24V-30DIN | 33.5 | 5.5 | 3.6 | 40.5 | - | - |
| 101-12-13G-24V-30JIS | 33.5 | 5.5 | 3.6 | 40.5 | - | - |
| 101-16-13G-24V-30DIN | 37.5 | 6 | 4.1 | 46.5 | - | - |
| 101-16-13G-24V-30JIS | 37.5 | 6 | 4.1 | 46.5 | - | - |
| 101-16-13G-24V-40DIN | 37.5 | 6 | 4.1 | 46.5 | - | - |
| 101-16-13G-24V-40JIS | 37.5 | 6 | 4.1 | 46.5 | - | - |
| 101-20-13G-24V-40DIN | 44 | 7 | 5.1 | 55.5 | - | - |
| 101-20-13G-24V-40JIS | 44 | 7 | 5.1 | 55.5 | - | - |
| 101-20-13G-24V-50DIN | 44 | 7 | 5.1 | 55.5 | - | - |
| 101-20-13G-24V-50JIS | 44 | 7 | 5.1 | 55.5 | - | - |
| 101-25-13G-24V-50DIN | 51 | 8 | 6.1 | 64 | - | - |
| 101-25-13G-24V-50JIS | 51 | 8 | 6.1 | 64 | - | - |
| 101-25-13G-24V-60DIN | 51 | 8 | 6.1 | 64 | - | - |
| 101-25-13G-24V-60JIS | 51 | 8 | 6.1 | 64 | - | - |
| 101-06-15G-24V-R12DIN-A12DIN | 24 | 3.5 | 2.1 | 51.5 | - | - |
| 101-06-15G-24V-R12DIN-A12JIS | 24 | 3.5 | 2.1 | 51.5 | - | - |
| 101-06-15G-24V-R12JIS-A12DIN | 24 | 3.5 | 2.1 | 51.5 | - | - |
| 101-06-15G-24V-R12JIS-A12JIS | 24 | 3.5 | 2.1 | 51.5 | - | - |
| 101-08-15G-24V-R15DIN-A15DIN | 26.5 | 4.3 | 2.6 | 60 | - | - |
| 101-08-15G-24V-R15DIN-A15JIS | 26.5 | 4.3 | 2.6 | 60 | - | - |
| 101-08-15G-24V-R15JIS-A15DIN | 26.5 | 4.3 | 2.6 | 60 | - | - |
| 101-08-15G-24V-R15JIS-A15JIS | 26.5 | 4.3 | 2.6 | 60 | - | - |
| 101-10-15G-24V-R20DIN-A20DIN | 30 | 5 | 3.1 | 71 | - | - |
| 101-10-15G-24V-R20DIN-A20JIS | 30 | 5 | 3.1 | 71 | - | - |
| 101-10-15G-24V-R20JIS-A20DIN | 30 | 5 | 3.1 | 71 | - | - |
| 101-10-15G-24V-R20JIS-A20JIS | 30 | 5 | 3.1 | 71 | - | - |
| 101-12-15G-24V-R25DIN-A25DIN | 33.5 | 5.5 | 3.6 | 86.5 | - | - |
| 101-12-15G-24V-R25DIN-A25JIS | 33.5 | 5.5 | 3.6 | 86.5 | - | - |
| 101-12-15G-24V-R25JIS-A25DIN | 33.5 | 5.5 | 3.6 | 86.5 | - | - |
| 101-12-15G-24V-R25JIS-A25JIS | 33.5 | 5.5 | 3.6 | 86.5 | - | - |
| 101-16-15G-24V-R30DIN-A30DIN | 37.5 | 6 | 4.1 | 103.5 | - | - |
| 101-16-15G-24V-R30DIN-A30JIS | 37.5 | 6 | 4.1 | 103.5 | - | - |
| 101-16-15G-24V-R30JIS-A30DIN | 37.5 | 6 | 4.1 | 103.5 | - | - |
| 101-16-15G-24V-R30JIS-A30JIS | 37.5 | 6 | 4.1 | 103.5 | - | - |
| 101-20-15G-24V-R40DIN-A40DIN | 44 | 7 | 5.1 | 124.5 | - | - |
| 101-20-15G-24V-R40DIN-A40JIS | 44 | 7 | 5.1 | 124.5 | - | - |
| 101-20-15G-24V-R40JIS-A40DIN | 44 | 7 | 5.1 | 124.5 | - | - |
| 101-20-15G-24V-R40JIS-A40JIS | 44 | 7 | 5.1 | 124.5 | - | - |
| 101-25-15G-24V-R50DIN-A50DIN | 51 | 8 | 6.1 | 145 | - | - |
| 101-25-15G-24V-R50DIN-A50JIS | 51 | 8 | 6.1 | 145 | - | - |
| 101-25-15G-24V-R50JIS-A50DIN | 51 | 8 | 6.1 | 145 | - | - |
| 101-25-15G-24V-R50JIS-A50JIS | 51 | 8 | 6.1 | 145 | - | - |
| 101-06-11G-24V-R12DIN-A12DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12DIN-A12JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12DIN-A15DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12DIN-A15JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12JIS-A12DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12JIS-A12JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12JIS-A15DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R12JIS-A15JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15DIN-A12DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15DIN-A12JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15DIN-A15DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15DIN-A15JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15JIS-A12DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15JIS-A12JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15JIS-A15DIN | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-06-11G-24V-R15JIS-A15JIS | 24 | 3.5 | 2.1 | - | 43 | 31.5 |
| 101-08-11G-24V-R15DIN-A15DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15DIN-A15JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15DIN-A20DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15DIN-A20JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15JIS-A15DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15JIS-A15JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15JIS-A20DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R15JIS-A20JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20DIN-A15DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20DIN-A15JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20DIN-A20DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20DIN-A20JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20JIS-A15DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20JIS-A15JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20JIS-A20DIN | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-08-11G-24V-R20JIS-A20JIS | 26.5 | 4.3 | 2.6 | - | 51 | 35 |
| 101-10-11G-24V-R20DIN-A20DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20DIN-A20JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20DIN-A25DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20DIN-A25JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20JIS-A20DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20JIS-A20JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20JIS-A25DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R20JIS-A25JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25DIN-A20DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25DIN-A20JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25DIN-A25DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25DIN-A25JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25JIS-A20DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25JIS-A20JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25JIS-A25DIN | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-10-11G-24V-R25JIS-A25JIS | 30 | 5 | 3.1 | - | 61 | 41 |
| 101-12-11G-24V-R25DIN-A25DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25DIN-A25JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25DIN-A30DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25DIN-A30JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25JIS-A25DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25JIS-A25JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25JIS-A30DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R25JIS-A30JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30DIN-A25DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30DIN-A25JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30DIN-A30DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30DIN-A30JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30JIS-A25DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30JIS-A25JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30JIS-A30DIN | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-12-11G-24V-R30JIS-A30JIS | 33.5 | 5.5 | 3.6 | - | 70.5 | 46.5 |
| 101-16-11G-24V-R30DIN-A30DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30DIN-A30JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30DIN-A40DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30DIN-A40JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30JIS-A30DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30JIS-A30JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30JIS-A40DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R30JIS-A40JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40DIN-A30DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40DIN-A30JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40DIN-A40DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40DIN-A40JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40JIS-A30DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40JIS-A30JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40JIS-A40DIN | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-16-11G-24V-R40JIS-A40JIS | 37.5 | 6 | 4.1 | - | 84.5 | 53.5 |
| 101-20-11G-24V-R40DIN-A40DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40DIN-A40JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40DIN-A50DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40DIN-A50JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40JIS-A40DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40JIS-A40JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40JIS-A50DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R40JIS-A50JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50DIN-A40DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50DIN-A40JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50DIN-A50DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50DIN-A50JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50JIS-A40DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50JIS-A40JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50JIS-A50DIN | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-20-11G-24V-R50JIS-A50JIS | 44 | 7 | 5.1 | - | 100.5 | 64.5 |
| 101-25-11G-24V-R50DIN-A50DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50DIN-A50JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50DIN-A60DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50DIN-A60JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50JIS-A50DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50JIS-A50JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50JIS-A60DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R50JIS-A60JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60DIN-A50DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60DIN-A50JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60DIN-A60DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60DIN-A60JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60JIS-A50DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60JIS-A50JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60JIS-A60DIN | 51 | 8 | 6.1 | - | 118 | 75 |
| 101-25-11G-24V-R60JIS-A60JIS | 51 | 8 | 6.1 | - | 118 | 75 |
| 형식 | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) | 축방향치수(mm) |
| 형식 | M | M1 | M2 | N1 | N2 | a | m |
| 101-06-13G-24V-12DIN | 22 | - | - | - | - | 0.2 | - |
| 101-06-13G-24V-12JIS | 22 | - | - | - | - | 0.2 | - |
| 101-06-13G-24V-15DIN | 22 | - | - | - | - | 0.2 | - |
| 101-06-13G-24V-15JIS | 22 | - | - | - | - | 0.2 | - |
| 101-08-13G-24V-15DIN | 24 | - | - | - | - | 0.2 | - |
| 101-08-13G-24V-15JIS | 24 | - | - | - | - | 0.2 | - |
| 101-08-13G-24V-20DIN | 24 | - | - | - | - | 0.2 | - |
| 101-08-13G-24V-20JIS | 24 | - | - | - | - | 0.2 | - |
| 101-10-13G-24V-20DIN | 27 | - | - | - | - | 0.2 | - |
| 101-10-13G-24V-20JIS | 27 | - | - | - | - | 0.2 | - |
| 101-10-13G-24V-25DIN | 27 | - | - | - | - | 0.2 | - |
| 101-10-13G-24V-25JIS | 27 | - | - | - | - | 0.2 | - |
| 101-12-13G-24V-25DIN | 30 | - | - | - | - | 0.3 | - |
| 101-12-13G-24V-25JIS | 30 | - | - | - | - | 0.3 | - |
| 101-12-13G-24V-30DIN | 30 | - | - | - | - | 0.3 | - |
| 101-12-13G-24V-30JIS | 30 | - | - | - | - | 0.3 | - |
| 101-16-13G-24V-30DIN | 34 | - | - | - | - | 0.3 | - |
| 101-16-13G-24V-30JIS | 34 | - | - | - | - | 0.3 | - |
| 101-16-13G-24V-40DIN | 34 | - | - | - | - | 0.3 | - |
| 101-16-13G-24V-40JIS | 34 | - | - | - | - | 0.3 | - |
| 101-20-13G-24V-40DIN | 40 | - | - | - | - | 0.5 | - |
| 101-20-13G-24V-40JIS | 40 | - | - | - | - | 0.5 | - |
| 101-20-13G-24V-50DIN | 40 | - | - | - | - | 0.5 | - |
| 101-20-13G-24V-50JIS | 40 | - | - | - | - | 0.5 | - |
| 101-25-13G-24V-50DIN | 47 | - | - | - | - | 0.5 | - |
| 101-25-13G-24V-50JIS | 47 | - | - | - | - | 0.5 | - |
| 101-25-13G-24V-60DIN | 47 | - | - | - | - | 0.5 | - |
| 101-25-13G-24V-60JIS | 47 | - | - | - | - | 0.5 | - |
| 101-06-15G-24V-R12DIN-A12DIN | 22 | - | - | 20 | 2 | 0.2 | 3-M4×0.7깊이4 |
| 101-06-15G-24V-R12DIN-A12JIS | 22 | - | - | 20 | 2 | 0.2 | 3-M4×0.7깊이4 |
| 101-06-15G-24V-R12JIS-A12DIN | 22 | - | - | 20 | 2 | 0.2 | 3-M4×0.7깊이4 |
| 101-06-15G-24V-R12JIS-A12JIS | 22 | - | - | 20 | 2 | 0.2 | 3-M4×0.7깊이4 |
| 101-08-15G-24V-R15DIN-A15DIN | 24 | - | - | 25 | 2 | 0.2 | 3-M4×0.7깊이6 |
| 101-08-15G-24V-R15DIN-A15JIS | 24 | - | - | 25 | 2 | 0.2 | 3-M4×0.7깊이6 |
| 101-08-15G-24V-R15JIS-A15DIN | 24 | - | - | 25 | 2 | 0.2 | 3-M4×0.7깊이6 |
| 101-08-15G-24V-R15JIS-A15JIS | 24 | - | - | 25 | 2 | 0.2 | 3-M4×0.7깊이6 |
| 101-10-15G-24V-R20DIN-A20DIN | 27 | - | - | 30 | 3 | 0.2 | 4-M4×0.7깊이8 |
| 101-10-15G-24V-R20DIN-A20JIS | 27 | - | - | 30 | 3 | 0.2 | 4-M4×0.7깊이8 |
| 101-10-15G-24V-R20JIS-A20DIN | 27 | - | - | 30 | 3 | 0.2 | 4-M4×0.7깊이8 |
| 101-10-15G-24V-R20JIS-A20JIS | 27 | - | - | 30 | 3 | 0.2 | 4-M4×0.7깊이8 |
| 101-12-15G-24V-R25DIN-A25DIN | 30 | - | - | 40 | 2 | 0.3 | 4-M4×0.7깊이8 |
| 101-12-15G-24V-R25DIN-A25JIS | 30 | - | - | 40 | 2 | 0.3 | 4-M4×0.7깊이8 |
| 101-12-15G-24V-R25JIS-A25DIN | 30 | - | - | 40 | 2 | 0.3 | 4-M4×0.7깊이8 |
| 101-12-15G-24V-R25JIS-A25JIS | 30 | - | - | 40 | 2 | 0.3 | 4-M4×0.7깊이8 |
| 101-16-15G-24V-R30DIN-A30DIN | 34 | - | - | 50 | 3 | 0.3 | 6-M5×0.8깊이8 |
| 101-16-15G-24V-R30DIN-A30JIS | 34 | - | - | 50 | 3 | 0.3 | 6-M5×0.8깊이8 |
| 101-16-15G-24V-R30JIS-A30DIN | 34 | - | - | 50 | 3 | 0.3 | 6-M5×0.8깊이8 |
| 101-16-15G-24V-R30JIS-A30JIS | 34 | - | - | 50 | 3 | 0.3 | 6-M5×0.8깊이8 |
| 101-20-15G-24V-R40DIN-A40DIN | 40 | - | - | 60 | 5 | 0.5 | 4-M6×1깊이12 |
| 101-20-15G-24V-R40DIN-A40JIS | 40 | - | - | 60 | 5 | 0.5 | 4-M6×1깊이12 |
| 101-20-15G-24V-R40JIS-A40DIN | 40 | - | - | 60 | 5 | 0.5 | 4-M6×1깊이12 |
| 101-20-15G-24V-R40JIS-A40JIS | 40 | - | - | 60 | 5 | 0.5 | 4-M6×1깊이12 |
| 101-25-15G-24V-R50DIN-A50DIN | 47 | - | - | 70 | 6 | 0.5 | 8-M6×1깊이12 |
| 101-25-15G-24V-R50DIN-A50JIS | 47 | - | - | 70 | 6 | 0.5 | 8-M6×1깊이12 |
| 101-25-15G-24V-R50JIS-A50DIN | 47 | - | - | 70 | 6 | 0.5 | 8-M6×1깊이12 |
| 101-25-15G-24V-R50JIS-A50JIS | 47 | - | - | 70 | 6 | 0.5 | 8-M6×1깊이12 |
| 101-06-11G-24V-R12DIN-A12DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12DIN-A12JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12DIN-A15DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12DIN-A15JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12JIS-A12DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12JIS-A12JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12JIS-A15DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R12JIS-A15JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15DIN-A12DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15DIN-A12JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15DIN-A15DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15DIN-A15JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15JIS-A12DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15JIS-A12JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15JIS-A15DIN | - | 22 | 15 | - | - | 0.2 | - |
| 101-06-11G-24V-R15JIS-A15JIS | - | 22 | 15 | - | - | 0.2 | - |
| 101-08-11G-24V-R15DIN-A15DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15DIN-A15JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15DIN-A20DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15DIN-A20JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15JIS-A15DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15JIS-A15JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15JIS-A20DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R15JIS-A20JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20DIN-A15DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20DIN-A15JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20DIN-A20DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20DIN-A20JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20JIS-A15DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20JIS-A15JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20JIS-A20DIN | - | 24 | 20 | - | - | 0.2 | - |
| 101-08-11G-24V-R20JIS-A20JIS | - | 24 | 20 | - | - | 0.2 | - |
| 101-10-11G-24V-R20DIN-A20DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20DIN-A20JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20DIN-A25DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20DIN-A25JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20JIS-A20DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20JIS-A20JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20JIS-A25DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R20JIS-A25JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25DIN-A20DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25DIN-A20JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25DIN-A25DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25DIN-A25JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25JIS-A20DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25JIS-A20JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25JIS-A25DIN | - | 27 | 25 | - | - | 0.2 | - |
| 101-10-11G-24V-R25JIS-A25JIS | - | 27 | 25 | - | - | 0.2 | - |
| 101-12-11G-24V-R25DIN-A25DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25DIN-A25JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25DIN-A30DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25DIN-A30JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25JIS-A25DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25JIS-A25JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25JIS-A30DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R25JIS-A30JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30DIN-A25DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30DIN-A25JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30DIN-A30DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30DIN-A30JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30JIS-A25DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30JIS-A25JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30JIS-A30DIN | - | 30 | 30 | - | - | 0.3 | - |
| 101-12-11G-24V-R30JIS-A30JIS | - | 30 | 30 | - | - | 0.3 | - |
| 101-16-11G-24V-R30DIN-A30DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30DIN-A30JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30DIN-A40DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30DIN-A40JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30JIS-A30DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30JIS-A30JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30JIS-A40DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R30JIS-A40JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40DIN-A30DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40DIN-A30JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40DIN-A40DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40DIN-A40JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40JIS-A30DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40JIS-A30JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40JIS-A40DIN | - | 34 | 38 | - | - | 0.3 | - |
| 101-16-11G-24V-R40JIS-A40JIS | - | 34 | 38 | - | - | 0.3 | - |
| 101-20-11G-24V-R40DIN-A40DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40DIN-A40JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40DIN-A50DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40DIN-A50JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40JIS-A40DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40JIS-A40JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40JIS-A50DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R40JIS-A50JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50DIN-A40DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50DIN-A40JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50DIN-A50DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50DIN-A50JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50JIS-A40DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50JIS-A40JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50JIS-A50DIN | - | 40 | 45 | - | - | 0.5 | - |
| 101-20-11G-24V-R50JIS-A50JIS | - | 40 | 45 | - | - | 0.5 | - |
| 101-25-11G-24V-R50DIN-A50DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50DIN-A50JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50DIN-A60DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50DIN-A60JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50JIS-A50DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50JIS-A50JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50JIS-A60DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R50JIS-A60JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60DIN-A50DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60DIN-A50JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60DIN-A60DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60DIN-A60JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60JIS-A50DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60JIS-A50JIS | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60JIS-A60DIN | - | 47 | 54 | - | - | 0.5 | - |
| 101-25-11G-24V-R60JIS-A60JIS | - | 47 | 54 | - | - | 0.5 | - |
| 형식 | 단위 | 판매정가 (원) | 기준납기 | 기준납기 | 기준납기 | 질량 | 견적의뢰 및 주문 |
| 형식 | 단위 | 판매정가 (원) | 유통재고 | 메이커재고 | 아린재고 | 질량 | 견적의뢰 및 주문 |
| 101-06-13G-24V-12DIN | P | 701,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-13G-24V-12JIS | P | 701,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-13G-24V-15DIN | P | 701,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-13G-24V-15JIS | P | 701,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-13G-24V-15DIN | P | 822,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-13G-24V-15JIS | P | 822,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-13G-24V-20DIN | P | 822,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-13G-24V-20JIS | P | 822,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-13G-24V-20DIN | P | 1,029,600 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-13G-24V-20JIS | P | 1,029,600 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-13G-24V-25DIN | P | 1,029,600 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-13G-24V-25JIS | P | 1,029,600 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-13G-24V-25DIN | P | 1,397,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-13G-24V-25JIS | P | 1,397,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-13G-24V-30DIN | P | 1,397,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-13G-24V-30JIS | P | 1,397,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-13G-24V-30DIN | P | 1,936,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-13G-24V-30JIS | P | 1,936,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-13G-24V-40DIN | P | 1,936,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-13G-24V-40JIS | P | 1,936,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-13G-24V-40DIN | P | 2,948,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-13G-24V-40JIS | P | 2,948,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-13G-24V-50DIN | P | 2,948,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-13G-24V-50JIS | P | 2,948,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-13G-24V-50DIN | P | 4,444,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-13G-24V-50JIS | P | 4,444,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-13G-24V-60DIN | P | 4,444,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-13G-24V-60JIS | P | 4,444,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-15G-24V-R12DIN-A12DIN | P | 818,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-15G-24V-R12DIN-A12JIS | P | 818,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-15G-24V-R12JIS-A12DIN | P | 818,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-15G-24V-R12JIS-A12JIS | P | 818,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-15G-24V-R15DIN-A15DIN | P | 1,005,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-15G-24V-R15DIN-A15JIS | P | 1,005,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-15G-24V-R15JIS-A15DIN | P | 1,005,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-15G-24V-R15JIS-A15JIS | P | 1,005,400 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-15G-24V-R20DIN-A20DIN | P | 1,210,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-15G-24V-R20DIN-A20JIS | P | 1,210,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-15G-24V-R20JIS-A20DIN | P | 1,210,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-15G-24V-R20JIS-A20JIS | P | 1,210,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-15G-24V-R25DIN-A25DIN | P | 1,639,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-15G-24V-R25DIN-A25JIS | P | 1,639,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-15G-24V-R25JIS-A25DIN | P | 1,639,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-15G-24V-R25JIS-A25JIS | P | 1,639,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-15G-24V-R30DIN-A30DIN | P | 2,244,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-15G-24V-R30DIN-A30JIS | P | 2,244,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-15G-24V-R30JIS-A30DIN | P | 2,244,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-15G-24V-R30JIS-A30JIS | P | 2,244,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-15G-24V-R40DIN-A40DIN | P | 3,454,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-15G-24V-R40DIN-A40JIS | P | 3,454,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-15G-24V-R40JIS-A40DIN | P | 3,454,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-15G-24V-R40JIS-A40JIS | P | 3,454,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-15G-24V-R50DIN-A50DIN | P | 4,928,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-15G-24V-R50DIN-A50JIS | P | 4,928,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-15G-24V-R50JIS-A50DIN | P | 4,928,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-15G-24V-R50JIS-A50JIS | P | 4,928,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12DIN-A12DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12DIN-A12JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12DIN-A15DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12DIN-A15JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12JIS-A12DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12JIS-A12JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12JIS-A15DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R12JIS-A15JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15DIN-A12DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15DIN-A12JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15DIN-A15DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15DIN-A15JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15JIS-A12DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15JIS-A12JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15JIS-A15DIN | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-06-11G-24V-R15JIS-A15JIS | P | 800,800 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15DIN-A15DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15DIN-A15JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15DIN-A20DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15DIN-A20JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15JIS-A15DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15JIS-A15JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15JIS-A20DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R15JIS-A20JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20DIN-A15DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20DIN-A15JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20DIN-A20DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20DIN-A20JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20JIS-A15DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20JIS-A15JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20JIS-A20DIN | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-08-11G-24V-R20JIS-A20JIS | P | 946,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20DIN-A20DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20DIN-A20JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20DIN-A25DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20DIN-A25JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20JIS-A20DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20JIS-A20JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20JIS-A25DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R20JIS-A25JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25DIN-A20DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25DIN-A20JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25DIN-A25DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25DIN-A25JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25JIS-A20DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25JIS-A20JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25JIS-A25DIN | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-10-11G-24V-R25JIS-A25JIS | P | 1,177,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25DIN-A25DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25DIN-A25JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25DIN-A30DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25DIN-A30JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25JIS-A25DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25JIS-A25JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25JIS-A30DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R25JIS-A30JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30DIN-A25DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30DIN-A25JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30DIN-A30DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30DIN-A30JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30JIS-A25DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30JIS-A25JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30JIS-A30DIN | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-12-11G-24V-R30JIS-A30JIS | P | 1,584,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30DIN-A30DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30DIN-A30JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30DIN-A40DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30DIN-A40JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30JIS-A30DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30JIS-A30JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30JIS-A40DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R30JIS-A40JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40DIN-A30DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40DIN-A30JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40DIN-A40DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40DIN-A40JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40JIS-A30DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40JIS-A30JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40JIS-A40DIN | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-16-11G-24V-R40JIS-A40JIS | P | 2,222,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40DIN-A40DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40DIN-A40JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40DIN-A50DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40DIN-A50JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40JIS-A40DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40JIS-A40JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40JIS-A50DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R40JIS-A50JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50DIN-A40DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50DIN-A40JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50DIN-A50DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50DIN-A50JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50JIS-A40DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50JIS-A40JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50JIS-A50DIN | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-20-11G-24V-R50JIS-A50JIS | P | 3,322,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50DIN-A50DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50DIN-A50JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50DIN-A60DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50DIN-A60JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50JIS-A50DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50JIS-A50JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50JIS-A60DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R50JIS-A60JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60DIN-A50DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60DIN-A50JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60DIN-A60DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60DIN-A60JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60JIS-A50DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60JIS-A50JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60JIS-A60DIN | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
| 101-25-11G-24V-R60JIS-A60JIS | P | 5,038,000 | - | - | - | - | 견적의뢰 / 주문 |
 |
- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다. - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오. - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다. - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.
|
 |
- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다. - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다. |
