파라플렉스커플링 CPE모델
미키풀리(주) ( MIKI PULLEY )
|
|
| 139건 중 1~139건 표시 | |

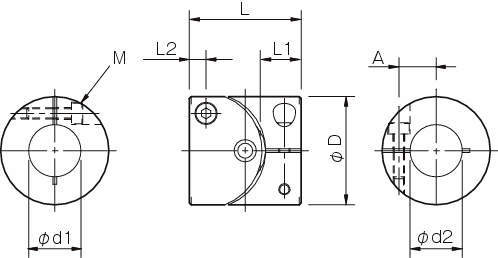

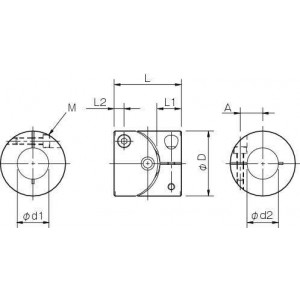

| 형식 | 사이즈 | 축홀경(mm) | 축홀경(mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | M | A (mm) |
| 형식 | 사이즈 | d1 | d2 | D (mm) | L (mm) | L1 (mm) | L2 (mm) | M | A (mm) |
| CPE-19-3B-3B | CPE-19 | 3 | 3 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-4B | CPE-19 | 3 | 4 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-5B | CPE-19 | 3 | 5 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-6B | CPE-19 | 3 | 6 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-6.35B | CPE-19 | 3 | 6.35 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-7B | CPE-19 | 3 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-3B-8B | CPE-19 | 3 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-4B | CPE-19 | 4 | 4 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-5B | CPE-19 | 4 | 5 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-6B | CPE-19 | 4 | 6 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-6.35B | CPE-19 | 4 | 6.35 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-7B | CPE-19 | 4 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-4B-8B | CPE-19 | 4 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-5B-5B | CPE-19 | 5 | 5 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-5B-6B | CPE-19 | 5 | 6 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-5B-6.35B | CPE-19 | 5 | 6.35 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-5B-7B | CPE-19 | 5 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-5B-8B | CPE-19 | 5 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6B-6B | CPE-19 | 6 | 6 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6B-6.36B | CPE-19 | 6 | 6.36 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6B-7B | CPE-19 | 6 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6B-8B | CPE-19 | 6 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6.35B-6.35B | CPE-19 | 6.35 | 6.35 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6.35B-7B | CPE-19 | 6.35 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-6.35B-8B | CPE-19 | 6.35 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-7B-7B | CPE-19 | 7 | 7 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-7B-8B | CPE-19 | 7 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-19-8B-8B | CPE-19 | 8 | 8 | 19 | 19.4 | 6 | 3 | M2.5 | 6 |
| CPE-29-6B-6B | CPE-29 | 6 | 6 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-6.35B | CPE-29 | 6 | 6.35 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-7B | CPE-29 | 6 | 7 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-8B | CPE-29 | 6 | 8 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-9.525B | CPE-29 | 6 | 9.525 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-10B | CPE-29 | 6 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-11B | CPE-29 | 6 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-12B | CPE-29 | 6 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6B-14B | CPE-29 | 6 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-6.35B | CPE-29 | 6.35 | 6.35 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-7B | CPE-29 | 6.35 | 7 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-8B | CPE-29 | 6.35 | 8 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-9.525B | CPE-29 | 6.35 | 9.525 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-10B | CPE-29 | 6.35 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-11B | CPE-29 | 6.35 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-12B | CPE-29 | 6.35 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-6.35B-14B | CPE-29 | 6.35 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-7B | CPE-29 | 7 | 7 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-8B | CPE-29 | 7 | 8 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-9.525B | CPE-29 | 7 | 9.525 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-10B | CPE-29 | 7 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-11B | CPE-29 | 7 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-12B | CPE-29 | 7 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-7B-14B | CPE-29 | 7 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-8B | CPE-29 | 8 | 8 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-9.525B | CPE-29 | 8 | 9.525 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-10B | CPE-29 | 8 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-11B | CPE-29 | 8 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-12B | CPE-29 | 8 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-8B-14B | CPE-29 | 8 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-9.525B-9.525B | CPE-29 | 9.525 | 9.525 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-9.525B-10B | CPE-29 | 9.525 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-9.525B-11B | CPE-29 | 9.525 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-9.525B-12B | CPE-29 | 9.525 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-9.525B-14B | CPE-29 | 9.525 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-10B-10B | CPE-29 | 10 | 10 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-10B-11B | CPE-29 | 10 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-10B-12B | CPE-29 | 10 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-10B-14B | CPE-29 | 10 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-11B-11B | CPE-29 | 11 | 11 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-11B-12B | CPE-29 | 11 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-11B-14B | CPE-29 | 11 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-12B-12B | CPE-29 | 12 | 12 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-12B-14B | CPE-29 | 12 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-29-14B-14B | CPE-29 | 14 | 14 | 29 | 30 | 9.5 | 4.5 | M3 | 10 |
| CPE-39-8B-8B | CPE-29 | 8 | 8 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-9.525B | CPE-39 | 8 | 9.525 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-10B | CPE-39 | 8 | 10 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-11B | CPE-39 | 8 | 11 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-12B | CPE-39 | 8 | 12 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-14B | CPE-39 | 8 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-15B | CPE-39 | 8 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-16B | CPE-39 | 8 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-18B | CPE-39 | 8 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-19B | CPE-39 | 8 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-8B-20B | CPE-39 | 8 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-9.525B | CPE-39 | 9.525 | 9.525 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-10B | CPE-39 | 9.525 | 10 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-11B | CPE-39 | 9.525 | 11 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-12B | CPE-39 | 9.525 | 12 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-14B | CPE-39 | 9.525 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-15B | CPE-39 | 9.525 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-16B | CPE-39 | 9.525 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-18B | CPE-39 | 9.525 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-19B | CPE-39 | 9.525 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-9.525B-20B | CPE-39 | 9.525 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-10B | CPE-39 | 10 | 10 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-11B | CPE-39 | 10 | 11 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-12B | CPE-39 | 10 | 12 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-14B | CPE-39 | 10 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-15B | CPE-39 | 10 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-16B | CPE-39 | 10 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-18B | CPE-39 | 10 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-19B | CPE-39 | 10 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-10B-20B | CPE-39 | 10 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-11B | CPE-39 | 11 | 11 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-12B | CPE-39 | 11 | 12 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-14B | CPE-39 | 11 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-15B | CPE-39 | 11 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-16B | CPE-39 | 11 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-18B | CPE-39 | 11 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-19B | CPE-39 | 11 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-11B-20B | CPE-39 | 11 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-12B | CPE-39 | 12 | 12 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-14B | CPE-39 | 12 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-15B | CPE-39 | 12 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-16B | CPE-39 | 12 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-18B | CPE-39 | 12 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-19B | CPE-39 | 12 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-12B-20B | CPE-39 | 12 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-14B | CPE-39 | 14 | 14 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-15B | CPE-39 | 14 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-16B | CPE-39 | 14 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-18B | CPE-39 | 14 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-19B | CPE-39 | 14 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-14B-20B | CPE-39 | 14 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-15B-15B | CPE-39 | 15 | 15 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-15B-16B | CPE-39 | 15 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-15B-18B | CPE-39 | 15 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-15B-19B | CPE-39 | 15 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-15B-20B | CPE-39 | 15 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-16B-16B | CPE-39 | 16 | 16 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-16B-18B | CPE-39 | 16 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-16B-19B | CPE-39 | 16 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-16B-20B | CPE-39 | 16 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-18B-18B | CPE-39 | 18 | 18 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-18B-19B | CPE-39 | 18 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-18B-20B | CPE-39 | 18 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-19B-19B | CPE-39 | 19 | 19 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-19B-20B | CPE-39 | 19 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| CPE-39-20B-20B | CPE-39 | 20 | 20 | 39 | 40 | 12.5 | 6 | M4 | 14 |
| 형식 | 토르크(N · m) | 토르크(N · m) | 최대허용취부오차 | 최대허용취부오차 | 최고 회전수 (min-1) |
| 형식 | 상용 | 최대 | 편심 (mm) | 편각 (°) | 최고 회전수 (min-1) |
| CPE-19-3B-3B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-4B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-5B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-6B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-6.35B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-7B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-3B-8B | -0.4 | -0.8 | 0.2 | 1 | 6000 |
| CPE-19-4B-4B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-4B-5B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-4B-6B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-4B-6.35B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-4B-7B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-4B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-5B-5B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-5B-6B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-5B-6.35B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-5B-7B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-5B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6B-6B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6B-6.36B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6B-7B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6.35B-6.35B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6.35B-7B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-6.35B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-7B-7B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-7B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-19-8B-8B | 0.7 | 1.4 | 0.2 | 1 | 6000 |
| CPE-29-6B-6B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-6.35B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-7B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-8B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-9.525B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-6.35B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-7B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-8B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-9.525B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-6.35B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-7B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-8B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-9.525B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-7B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-8B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-9.525B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-8B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-9.525B-9.525B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-9.525B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-9.525B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-9.525B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-9.525B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-10B-10B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-10B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-10B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-10B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-11B-11B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-11B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-11B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-12B-12B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-12B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-29-14B-14B | 2 | 4 | 0.2 | 1 | 6000 |
| CPE-39-8B-8B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-9.525B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-10B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-11B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-12B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-8B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-9.525B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-10B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-11B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-12B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-9.525B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-10B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-11B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-12B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-10B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-11B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-12B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-11B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-12B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-12B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-14B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-14B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-15B-15B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-15B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-15B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-15B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-15B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-16B-16B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-16B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-16B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-16B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-18B-18B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-18B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-18B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-19B-19B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-19B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| CPE-39-20B-20B | 5 | 10 | 0.2 | 1 | 6000 |
| 형식 | 비틀림 스프링정수 (N · m/rad) | 관성 모멘트 (kg · m2) |
| 형식 | 비틀림 스프링정수 (N · m/rad) | 관성 모멘트 (kg · m2) |
| CPE-19-3B-3B | 500 | 0.69×10^-6 |
| CPE-19-3B-4B | 500 | 0.69×10^-6 |
| CPE-19-3B-5B | 500 | 0.69×10^-6 |
| CPE-19-3B-6B | 500 | 0.69×10^-6 |
| CPE-19-3B-6.35B | 500 | 0.69×10^-6 |
| CPE-19-3B-7B | 500 | 0.69×10^-6 |
| CPE-19-3B-8B | 500 | 0.69×10^-6 |
| CPE-19-4B-4B | 500 | 0.69×10^-6 |
| CPE-19-4B-5B | 500 | 0.69×10^-6 |
| CPE-19-4B-6B | 500 | 0.69×10^-6 |
| CPE-19-4B-6.35B | 500 | 0.69×10^-6 |
| CPE-19-4B-7B | 500 | 0.69×10^-6 |
| CPE-19-4B-8B | 500 | 0.69×10^-6 |
| CPE-19-5B-5B | 500 | 0.69×10^-6 |
| CPE-19-5B-6B | 500 | 0.69×10^-6 |
| CPE-19-5B-6.35B | 500 | 0.69×10^-6 |
| CPE-19-5B-7B | 500 | 0.69×10^-6 |
| CPE-19-5B-8B | 500 | 0.69×10^-6 |
| CPE-19-6B-6B | 500 | 0.69×10^-6 |
| CPE-19-6B-6.36B | 500 | 0.69×10^-6 |
| CPE-19-6B-7B | 500 | 0.69×10^-6 |
| CPE-19-6B-8B | 500 | 0.69×10^-6 |
| CPE-19-6.35B-6.35B | 500 | 0.69×10^-6 |
| CPE-19-6.35B-7B | 500 | 0.69×10^-6 |
| CPE-19-6.35B-8B | 500 | 0.69×10^-6 |
| CPE-19-7B-7B | 500 | 0.69×10^-6 |
| CPE-19-7B-8B | 500 | 0.69×10^-6 |
| CPE-19-8B-8B | 500 | 0.69×10^-6 |
| CPE-29-6B-6B | 700 | 5.80×10^-6 |
| CPE-29-6B-6.35B | 700 | 5.80×10^-6 |
| CPE-29-6B-7B | 700 | 5.80×10^-6 |
| CPE-29-6B-8B | 700 | 5.80×10^-6 |
| CPE-29-6B-9.525B | 700 | 5.80×10^-6 |
| CPE-29-6B-10B | 700 | 5.80×10^-6 |
| CPE-29-6B-11B | 700 | 5.80×10^-6 |
| CPE-29-6B-12B | 700 | 5.80×10^-6 |
| CPE-29-6B-14B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-6.35B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-7B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-8B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-9.525B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-10B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-11B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-12B | 700 | 5.80×10^-6 |
| CPE-29-6.35B-14B | 700 | 5.80×10^-6 |
| CPE-29-7B-7B | 700 | 5.80×10^-6 |
| CPE-29-7B-8B | 700 | 5.80×10^-6 |
| CPE-29-7B-9.525B | 700 | 5.80×10^-6 |
| CPE-29-7B-10B | 700 | 5.80×10^-6 |
| CPE-29-7B-11B | 700 | 5.80×10^-6 |
| CPE-29-7B-12B | 700 | 5.80×10^-6 |
| CPE-29-7B-14B | 700 | 5.80×10^-6 |
| CPE-29-8B-8B | 700 | 5.80×10^-6 |
| CPE-29-8B-9.525B | 700 | 5.80×10^-6 |
| CPE-29-8B-10B | 700 | 5.80×10^-6 |
| CPE-29-8B-11B | 700 | 5.80×10^-6 |
| CPE-29-8B-12B | 700 | 5.80×10^-6 |
| CPE-29-8B-14B | 700 | 5.80×10^-6 |
| CPE-29-9.525B-9.525B | 700 | 5.80×10^-6 |
| CPE-29-9.525B-10B | 700 | 5.80×10^-6 |
| CPE-29-9.525B-11B | 700 | 5.80×10^-6 |
| CPE-29-9.525B-12B | 700 | 5.80×10^-6 |
| CPE-29-9.525B-14B | 700 | 5.80×10^-6 |
| CPE-29-10B-10B | 700 | 5.80×10^-6 |
| CPE-29-10B-11B | 700 | 5.80×10^-6 |
| CPE-29-10B-12B | 700 | 5.80×10^-6 |
| CPE-29-10B-14B | 700 | 5.80×10^-6 |
| CPE-29-11B-11B | 700 | 5.80×10^-6 |
| CPE-29-11B-12B | 700 | 5.80×10^-6 |
| CPE-29-11B-14B | 700 | 5.80×10^-6 |
| CPE-29-12B-12B | 700 | 5.80×10^-6 |
| CPE-29-12B-14B | 700 | 5.80×10^-6 |
| CPE-29-14B-14B | 700 | 5.80×10^-6 |
| CPE-39-8B-8B | 1900 | 18.50×10^-6 |
| CPE-39-8B-9.525B | 1900 | 18.50×10^-6 |
| CPE-39-8B-10B | 1900 | 18.50×10^-6 |
| CPE-39-8B-11B | 1900 | 18.50×10^-6 |
| CPE-39-8B-12B | 1900 | 18.50×10^-6 |
| CPE-39-8B-14B | 1900 | 18.50×10^-6 |
| CPE-39-8B-15B | 1900 | 18.50×10^-6 |
| CPE-39-8B-16B | 1900 | 18.50×10^-6 |
| CPE-39-8B-18B | 1900 | 18.50×10^-6 |
| CPE-39-8B-19B | 1900 | 18.50×10^-6 |
| CPE-39-8B-20B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-9.525B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-10B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-11B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-12B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-14B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-15B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-16B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-18B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-19B | 1900 | 18.50×10^-6 |
| CPE-39-9.525B-20B | 1900 | 18.50×10^-6 |
| CPE-39-10B-10B | 1900 | 18.50×10^-6 |
| CPE-39-10B-11B | 1900 | 18.50×10^-6 |
| CPE-39-10B-12B | 1900 | 18.50×10^-6 |
| CPE-39-10B-14B | 1900 | 18.50×10^-6 |
| CPE-39-10B-15B | 1900 | 18.50×10^-6 |
| CPE-39-10B-16B | 1900 | 18.50×10^-6 |
| CPE-39-10B-18B | 1900 | 18.50×10^-6 |
| CPE-39-10B-19B | 1900 | 18.50×10^-6 |
| CPE-39-10B-20B | 1900 | 18.50×10^-6 |
| CPE-39-11B-11B | 1900 | 18.50×10^-6 |
| CPE-39-11B-12B | 1900 | 18.50×10^-6 |
| CPE-39-11B-14B | 1900 | 18.50×10^-6 |
| CPE-39-11B-15B | 1900 | 18.50×10^-6 |
| CPE-39-11B-16B | 1900 | 18.50×10^-6 |
| CPE-39-11B-18B | 1900 | 18.50×10^-6 |
| CPE-39-11B-19B | 1900 | 18.50×10^-6 |
| CPE-39-11B-20B | 1900 | 18.50×10^-6 |
| CPE-39-12B-12B | 1900 | 18.50×10^-6 |
| CPE-39-12B-14B | 1900 | 18.50×10^-6 |
| CPE-39-12B-15B | 1900 | 18.50×10^-6 |
| CPE-39-12B-16B | 1900 | 18.50×10^-6 |
| CPE-39-12B-18B | 1900 | 18.50×10^-6 |
| CPE-39-12B-19B | 1900 | 18.50×10^-6 |
| CPE-39-12B-20B | 1900 | 18.50×10^-6 |
| CPE-39-14B-14B | 1900 | 18.50×10^-6 |
| CPE-39-14B-15B | 1900 | 18.50×10^-6 |
| CPE-39-14B-16B | 1900 | 18.50×10^-6 |
| CPE-39-14B-18B | 1900 | 18.50×10^-6 |
| CPE-39-14B-19B | 1900 | 18.50×10^-6 |
| CPE-39-14B-20B | 1900 | 18.50×10^-6 |
| CPE-39-15B-15B | 1900 | 18.50×10^-6 |
| CPE-39-15B-16B | 1900 | 18.50×10^-6 |
| CPE-39-15B-18B | 1900 | 18.50×10^-6 |
| CPE-39-15B-19B | 1900 | 18.50×10^-6 |
| CPE-39-15B-20B | 1900 | 18.50×10^-6 |
| CPE-39-16B-16B | 1900 | 18.50×10^-6 |
| CPE-39-16B-18B | 1900 | 18.50×10^-6 |
| CPE-39-16B-19B | 1900 | 18.50×10^-6 |
| CPE-39-16B-20B | 1900 | 18.50×10^-6 |
| CPE-39-18B-18B | 1900 | 18.50×10^-6 |
| CPE-39-18B-19B | 1900 | 18.50×10^-6 |
| CPE-39-18B-20B | 1900 | 18.50×10^-6 |
| CPE-39-19B-19B | 1900 | 18.50×10^-6 |
| CPE-39-19B-20B | 1900 | 18.50×10^-6 |
| CPE-39-20B-20B | 1900 | 18.50×10^-6 |
| 형식 | 단위 | 판매정가 (원) | 기준납기 | 기준납기 | 기준납기 | 질량 (Kg) | 견적의뢰 및 주문 |
| 형식 | 단위 | 판매정가 (원) | 유통재고 | 메이커재고 | 아린재고 | 질량 (Kg) | 견적의뢰 및 주문 |
| CPE-19-3B-3B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-4B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-5B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-6B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-6.35B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-3B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-4B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-5B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-6B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-6.35B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-4B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-5B-5B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-5B-6B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-5B-6.35B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-5B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-5B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6B-6B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6B-6.36B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6.35B-6.35B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6.35B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-6.35B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-7B-7B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-7B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-19-8B-8B | P | 101,640 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-6B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-6.35B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-7B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-8B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-9.525B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-6.35B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-7B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-8B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-9.525B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-6.35B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-7B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-8B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-9.525B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-7B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-8B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-9.525B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-8B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-9.525B-9.525B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-9.525B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-9.525B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-9.525B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-9.525B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-10B-10B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-10B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-10B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-10B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-11B-11B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-11B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-11B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-12B-12B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-12B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-29-14B-14B | P | 128,700 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-8B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-9.525B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-10B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-11B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-12B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-8B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-9.525B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-10B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-11B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-12B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-9.525B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-10B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-11B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-12B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-10B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-11B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-12B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-11B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-12B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-12B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-14B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-14B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-15B-15B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-15B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-15B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-15B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-15B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-16B-16B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-16B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-16B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-16B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-18B-18B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-18B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-18B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-19B-19B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-19B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
| CPE-39-20B-20B | P | 156,200 | - | - | - | - | 견적의뢰 / 주문 |
 |
- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다. - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오. - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다. - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.
|
 |
- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다. - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다. |
