미니츄어커플링

수퍼제로올드햄커플링 CCZ시리즈

(주)일본미니츄어커플링 ( NIHON MINITURE )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


530건 중 1~500건 표시

형식	사이즈	전달 토르크 (N · cm)	최고회전수 (min-1)	허용변위	허용변위
형식	사이즈	전달 토르크 (N · cm)	최고회전수 (min-1)	평행변위 (mm)	각도변위 (deg)
CCZ-16-3×3	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-3×4	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-3×5	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-3×6	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-4×4	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-4×5	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-4×6	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-5×5	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-5×6	CCZ-16	196.1	25000	1.5	1.0°
CCZ-16-6×6	CCZ-16	196.1	25000	1.5	1.0°
CCZ-17-3×3	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-3×4	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-3×5	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-3×6	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-3×7	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-3×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-4×4	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-4×5	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-4×6	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-4×7	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-4×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-5×5	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-5×6	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-5×7	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-5×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-6×6	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-6×7	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-6×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-7×7	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-7×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-17-8×8	CCZ-17	245.2	25000	1.5	1.0°
CCZ-18-3×3	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3×4	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3×5	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3×6	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3×7	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3.17×3.17	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3.17×4.76	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-3.17×6.35	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4×4	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4×5	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4×6	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4×7	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4.76×4.76	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-4.76×6.35	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-5×5	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-5×6	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-5×7	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-5×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-6×6	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-6×7	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-6×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-6.35×6.35	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-7×7	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-7×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-18-8×8	CCZ-18	245.2	25000	1.5	1.0°
CCZ-25-5×5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×6	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×7	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×8	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×9	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-5×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×6	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×7	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×8	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×9	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6.35×6.35	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6.35×7.93	CCZ-25	686.5	25000	2	1.0°
CCZ-25-6.35×9.52	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×7	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×8	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×9	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7.93×7.93	CCZ-25	686.5	25000	2	1.0°
CCZ-25-7.93×9.52	CCZ-25	686.5	25000	2	1.0°
CCZ-25-8×8	CCZ-25	686.5	25000	2	1.0°
CCZ-25-8×9	CCZ-25	686.5	25000	2	1.0°
CCZ-25-8×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-8×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-8×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9×9	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9.5×9.5	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9.5×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9.5×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-9.52×9.52	CCZ-25	686.5	25000	2	1.0°
CCZ-25-10×10	CCZ-25	686.5	25000	2	1.0°
CCZ-25-10×11	CCZ-25	686.5	25000	2	1.0°
CCZ-25-11×11	CCZ-25	686.5	25000	2	1.0°
CCZ-35-6×6	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×8	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×9	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×9.5	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×10	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-6×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-7.93×7.93	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-7.93×9.52	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-7.93×12.7	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-7.93×15.875	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×8	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×9	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×9.5	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×10	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-8×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×9	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×9.5	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×10	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×9.5	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×10	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.5×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.52×9.52	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.52×12.7	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-9.52×15.875	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×10	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-10×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×11	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-11×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×12	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12.7×12.7	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-12.7×15.875	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×13	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-13×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×14	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-14×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15×15	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-15.875×15.875	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-16×16	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-16×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-16×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-16×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-17×17	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-17×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-17×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-18×18	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-18×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-35-19×19	CCZ-35	1765.2	25000	2.5	1.0°
CCZ-40-8×8	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×10	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×12	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×14	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×15	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-8×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×10	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×12	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×14	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×15	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-10×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×12	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×14	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×15	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-12×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×14	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×15	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-14×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×15	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-15×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×16	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-16×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-17×17	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-17×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-17×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-17×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-17×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-18×18	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-18×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-18×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-18×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-19×19	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-19×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-19×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-20×20	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-20×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-40-22×22	CCZ-40	2942	15000	2.5	1.0°
CCZ-50-8×8	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×10	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×12	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×14	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×15	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-8×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×10	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×12	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×14	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×15	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-10×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×12	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×14	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×15	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-12×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×14	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×15	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-14×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×15	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-15×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×16	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-16×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×17	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-17×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-18×18	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-18×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-18×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-18×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-18×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-19×19	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-19×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-19×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-19×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-20×20	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-20×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-20×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-22×22	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-22×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-50-24×24	CCZ-50	4903.3	15000	2.5	1.0°
CCZ-60-14×14	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×15	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×16	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×18	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×19	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-14×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×15	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×16	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×18	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×19	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-15×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×16	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×18	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×19	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-16×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×18	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×19	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-18×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×19	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-19×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×20	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-20×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-22×22	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-22×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-22×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-22×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-22×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-24×24	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-24×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-24×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-24×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-25×25	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-25×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-25×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-28×28	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-28×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-60-30×30	CCZ-60	9806.7	15000	2.5	1.0°
CCZ-70-12×12	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×15	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×16	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×17	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×19	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-12×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×15	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×16	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×17	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×19	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-15×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×16	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×17	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×19	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-16×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×17	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×19	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-17×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×19	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-19×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×20	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-20×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×22	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-22×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-24×24	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-24×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-24×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-24×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-24×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-25×25	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-25×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-25×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-25×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-28×28	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-28×30	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-28×35	CCZ-70	17652	15000	2.5	1.0°
CCZ-70-30×30	CCZ-70	17652	15000	2.5	1.0°

형식	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	치수(mm)	고정나사	고정나사

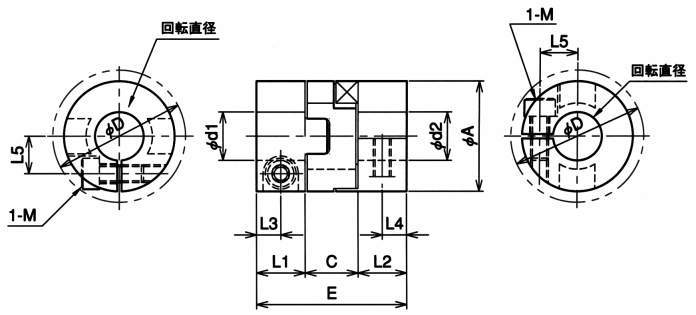

형식	A	L1	L2	C	E	L3	L4	L5	D	M	체결토르크 (N · cm)
CCZ-16-3×3	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-3×4	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-3×5	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-3×6	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-4×4	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-4×5	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-4×6	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-5×5	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-5×6	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-16-6×6	16	6	6	8	20	3	3	4.75	16	M2	24.6
CCZ-17-3×3	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-3×4	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-3×5	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-3×6	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-3×7	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-3×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-4×4	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-4×5	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-4×6	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-4×7	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-4×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-5×5	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-5×6	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-5×7	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-5×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-6×6	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-6×7	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-6×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-7×7	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-7×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-17-8×8	18	7	7	10	24	3.5	3.5	6	20	M2.6	54.1
CCZ-18-3×3	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3×4	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3×5	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3×6	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3×7	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3.17×3.17	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3.17×4.76	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-3.17×6.35	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4×4	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4×5	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4×6	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4×7	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4.76×4.76	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-4.76×6.35	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-5×5	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-5×6	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-5×7	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-5×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-6×6	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-6×7	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-6×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-6.35×6.35	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-7×7	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-7×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-18-8×8	18	9	9	10	28	4.5	4.5	6	22	M3	83.2
CCZ-25-5×5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×6	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×7	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×8	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×9	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-5×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×6	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×7	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×8	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×9	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6.35×6.35	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6.35×7.93	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-6.35×9.52	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×7	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×8	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×9	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7.93×7.93	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-7.93×9.52	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-8×8	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-8×9	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-8×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-8×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-8×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9×9	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9.5×9.5	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9.5×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9.5×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-9.52×9.52	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-10×10	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-10×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-25-11×11	25	11	11	12	34	5.5	5.5	8.5	30	M4	197.2
CCZ-35-6×6	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×8	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×9	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×9.5	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×10	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-6×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-7.93×7.93	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-7.93×9.52	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-7.93×12.7	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-7.93×15.875	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×8	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×9	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×9.5	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×10	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-8×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×9	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×9.5	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×10	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×9.5	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×10	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.5×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.52×9.52	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.52×12.7	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-9.52×15.875	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×10	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-10×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×11	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-11×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×12	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12.7×12.7	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-12.7×15.875	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×13	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-13×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×14	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-14×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15×15	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-15.875×15.875	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-16×16	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-16×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-16×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-16×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-17×17	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-17×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-17×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-18×18	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-18×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-35-19×19	35	13	13	12	38	6.5	6.5	13	41	M5	385.1
CCZ-40-8×8	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×10	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×12	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×14	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×15	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-8×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×10	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×12	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×14	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×15	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-10×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×12	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×14	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×15	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-12×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×14	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×15	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-14×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×15	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-15×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×16	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-16×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-17×17	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-17×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-17×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-17×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-17×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-18×18	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-18×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-18×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-18×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-19×19	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-19×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-19×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-20×20	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-20×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-40-22×22	40	14	14	14	42	7	7	15	48	M6	665.5
CCZ-50-8×8	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×10	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×12	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×14	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×15	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-8×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×10	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×12	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×14	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×15	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-10×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×12	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×14	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×15	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-12×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×14	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×15	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-14×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×15	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-15×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×16	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-16×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×17	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-17×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-18×18	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-18×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-18×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-18×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-18×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-19×19	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-19×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-19×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-19×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-20×20	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-20×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-20×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-22×22	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-22×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-50-24×24	50	14	14	14	42	7	7	17.5	61	M8	1577.4
CCZ-60-14×14	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×15	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×16	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×18	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×19	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-14×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×15	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×16	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×18	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×19	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-15×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×16	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×18	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×19	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-16×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×18	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×19	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-18×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×19	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-19×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×20	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-20×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-22×22	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-22×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-22×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-22×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-22×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-24×24	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-24×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-24×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-24×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-25×25	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-25×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-25×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-28×28	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-28×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-60-30×30	60	16	16	16	48	8	8	22	71	M8	1577.4
CCZ-70-12×12	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×15	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×16	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×17	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×19	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-12×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×15	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×16	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×17	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×19	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-15×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×16	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×17	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×19	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-16×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×17	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×19	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-17×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×19	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-19×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×20	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-20×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×22	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-22×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-24×24	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-24×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-24×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-24×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-24×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-25×25	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-25×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-25×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-25×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-28×28	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-28×30	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-28×35	70	18	18	17	53	9	9	26	83	M10	3080.9
CCZ-70-30×30	70	18	18	17	53	9	9	26	83	M10	3080.9

형식	표준내경(mm)	표준내경(mm)	관성 모멘트 (kg · m2)	GD2 (N · cm2)	비틀림 강성 (N · m/rad)
형식	d1	d2	관성 모멘트 (kg · m2)	GD2 (N · cm2)	비틀림 강성 (N · m/rad)
CCZ-16-3×3	3	3	0.027	0.108	148.67
CCZ-16-3×4	3	4	0.027	0.108	148.67
CCZ-16-3×5	3	5	0.027	0.108	148.67
CCZ-16-3×6	3	6	0.027	0.108	148.67
CCZ-16-4×4	4	4	0.027	0.108	148.67
CCZ-16-4×5	4	5	0.027	0.108	148.67
CCZ-16-4×6	4	6	0.027	0.108	148.67
CCZ-16-5×5	5	5	0.027	0.108	148.67
CCZ-16-5×6	5	6	0.027	0.108	148.67
CCZ-16-6×6	6	6	0.027	0.108	148.67
CCZ-17-3×3	3	3	0.052	0.206	186.23
CCZ-17-3×4	3	4	0.052	0.206	186.23
CCZ-17-3×5	3	5	0.052	0.206	186.23
CCZ-17-3×6	3	6	0.052	0.206	186.23
CCZ-17-3×7	3	7	0.052	0.206	186.23
CCZ-17-3×8	3	8	0.052	0.206	186.23
CCZ-17-4×4	4	4	0.052	0.206	186.23
CCZ-17-4×5	4	5	0.052	0.206	186.23
CCZ-17-4×6	4	6	0.052	0.206	186.23
CCZ-17-4×7	4	7	0.052	0.206	186.23
CCZ-17-4×8	4	8	0.052	0.206	186.23
CCZ-17-5×5	5	5	0.052	0.206	186.23
CCZ-17-5×6	5	6	0.052	0.206	186.23
CCZ-17-5×7	5	7	0.052	0.206	186.23
CCZ-17-5×8	5	8	0.052	0.206	186.23
CCZ-17-6×6	6	6	0.052	0.206	186.23
CCZ-17-6×7	6	7	0.052	0.206	186.23
CCZ-17-6×8	6	8	0.052	0.206	186.23
CCZ-17-7×7	7	7	0.052	0.206	186.23
CCZ-17-7×8	7	8	0.052	0.206	186.23
CCZ-17-8×8	8	8	0.052	0.206	186.23
CCZ-18-3×3	3	3	0.063	0.251	186.23
CCZ-18-3×4	3	4	0.063	0.251	186.23
CCZ-18-3×5	3	5	0.063	0.251	186.23
CCZ-18-3×6	3	6	0.063	0.251	186.23
CCZ-18-3×7	3	7	0.063	0.251	186.23
CCZ-18-3×8	3	8	0.063	0.251	186.23
CCZ-18-3.17×3.17	3.17	3.17	0.063	0.251	186.23
CCZ-18-3.17×4.76	3.17	4.76	0.063	0.251	186.23
CCZ-18-3.17×6.35	3.17	6.35	0.063	0.251	186.23
CCZ-18-4×4	4	4	0.063	0.251	186.23
CCZ-18-4×5	4	5	0.063	0.251	186.23
CCZ-18-4×6	4	6	0.063	0.251	186.23
CCZ-18-4×7	4	7	0.063	0.251	186.23
CCZ-18-4×8	4	8	0.063	0.251	186.23
CCZ-18-4.76×4.76	4.76	4.76	0.063	0.251	186.23
CCZ-18-4.76×6.35	4.76	6.35	0.063	0.251	186.23
CCZ-18-5×5	5	5	0.063	0.251	186.23
CCZ-18-5×6	5	6	0.063	0.251	186.23
CCZ-18-5×7	5	7	0.063	0.251	186.23
CCZ-18-5×8	5	8	0.063	0.251	186.23
CCZ-18-6×6	6	6	0.063	0.251	186.23
CCZ-18-6×7	6	7	0.063	0.251	186.23
CCZ-18-6×8	6	8	0.063	0.251	186.23
CCZ-18-6.35×6.35	6.35	6.35	0.063	0.251	186.23
CCZ-18-7×7	7	7	0.063	0.251	186.23
CCZ-18-7×8	7	8	0.063	0.251	186.23
CCZ-18-8×8	8	8	0.063	0.251	186.23
CCZ-25-5×5	5	5	0.283	1.132	545.35
CCZ-25-5×6	5	6	0.283	1.132	545.35
CCZ-25-5×7	5	7	0.283	1.132	545.35
CCZ-25-5×8	5	8	0.283	1.132	545.35
CCZ-25-5×9	5	9	0.283	1.132	545.35
CCZ-25-5×9.5	5	9.5	0.283	1.132	545.35
CCZ-25-5×10	5	10	0.283	1.132	545.35
CCZ-25-5×11	5	11	0.283	1.132	545.35
CCZ-25-6×6	6	6	0.283	1.132	545.35
CCZ-25-6×7	6	7	0.283	1.132	545.35
CCZ-25-6×8	6	8	0.283	1.132	545.35
CCZ-25-6×9	6	9	0.283	1.132	545.35
CCZ-25-6×9.5	6	9.5	0.283	1.132	545.35
CCZ-25-6×10	6	10	0.283	1.132	545.35
CCZ-25-6×11	6	11	0.283	1.132	545.35
CCZ-25-6.35×6.35	6.35	6.35	0.283	1.132	545.35
CCZ-25-6.35×7.93	6.35	7.93	0.283	1.132	545.35
CCZ-25-6.35×9.52	6.35	9.52	0.283	1.132	545.35
CCZ-25-7×7	7	7	0.283	1.132	545.35
CCZ-25-7×8	7	8	0.283	1.132	545.35
CCZ-25-7×9	7	9	0.283	1.132	545.35
CCZ-25-7×9.5	7	9.5	0.283	1.132	545.35
CCZ-25-7×10	7	10	0.283	1.132	545.35
CCZ-25-7×11	7	11	0.283	1.132	545.35
CCZ-25-7.93×7.93	7.93	7.93	0.283	1.132	545.35
CCZ-25-7.93×9.52	7.93	9.52	0.283	1.132	545.35
CCZ-25-8×8	8	8	0.283	1.132	545.35
CCZ-25-8×9	8	9	0.283	1.132	545.35
CCZ-25-8×9.5	8	9.5	0.283	1.132	545.35
CCZ-25-8×10	8	10	0.283	1.132	545.35
CCZ-25-8×11	8	11	0.283	1.132	545.35
CCZ-25-9×9	9	9	0.283	1.132	545.35
CCZ-25-9×9.5	9	9.5	0.283	1.132	545.35
CCZ-25-9×10	9	10	0.283	1.132	545.35
CCZ-25-9×11	9	11	0.283	1.132	545.35
CCZ-25-9.5×9.5	9.5	9.5	0.283	1.132	545.35
CCZ-25-9.5×10	9.5	10	0.283	1.132	545.35
CCZ-25-9.5×11	9.5	11	0.283	1.132	545.35
CCZ-25-9.52×9.52	9.52	9.52	0.283	1.132	545.35
CCZ-25-10×10	10	10	0.283	1.132	545.35
CCZ-25-10×11	10	11	0.283	1.132	545.35
CCZ-25-11×11	11	11	0.283	1.132	545.35
CCZ-35-6×6	6	6	1.254	5.014	2150.3
CCZ-35-6×8	6	8	1.254	5.014	2150.3
CCZ-35-6×9	6	9	1.254	5.014	2150.3
CCZ-35-6×9.5	6	9.5	1.254	5.014	2150.3
CCZ-35-6×10	6	10	1.254	5.014	2150.3
CCZ-35-6×11	6	11	1.254	5.014	2150.3
CCZ-35-6×12	6	12	1.254	5.014	2150.3
CCZ-35-6×13	6	13	1.254	5.014	2150.3
CCZ-35-6×14	6	14	1.254	5.014	2150.3
CCZ-35-6×15	6	15	1.254	5.014	2150.3
CCZ-35-6×16	6	16	1.254	5.014	2150.3
CCZ-35-6×17	6	17	1.254	5.014	2150.3
CCZ-35-6×18	6	18	1.254	5.014	2150.3
CCZ-35-6×19	6	19	1.254	5.014	2150.3
CCZ-35-7.93×7.93	7.93	7.93	1.254	5.014	2150.3
CCZ-35-7.93×9.52	7.93	9.52	1.254	5.014	2150.3
CCZ-35-7.93×12.7	7.93	12.7	1.254	5.014	2150.3
CCZ-35-7.93×15.875	7.93	15.875	1.254	5.014	2150.3
CCZ-35-8×8	8	8	1.254	5.014	2150.3
CCZ-35-8×9	8	9	1.254	5.014	2150.3
CCZ-35-8×9.5	8	9.5	1.254	5.014	2150.3
CCZ-35-8×10	8	10	1.254	5.014	2150.3
CCZ-35-8×11	8	11	1.254	5.014	2150.3
CCZ-35-8×12	8	12	1.254	5.014	2150.3
CCZ-35-8×13	8	13	1.254	5.014	2150.3
CCZ-35-8×14	8	14	1.254	5.014	2150.3
CCZ-35-8×15	8	15	1.254	5.014	2150.3
CCZ-35-8×16	8	16	1.254	5.014	2150.3
CCZ-35-8×17	8	17	1.254	5.014	2150.3
CCZ-35-8×18	8	18	1.254	5.014	2150.3
CCZ-35-8×19	8	19	1.254	5.014	2150.3
CCZ-35-9×9	9	9	1.254	5.014	2150.3
CCZ-35-9×9.5	9	9.5	1.254	5.014	2150.3
CCZ-35-9×10	9	10	1.254	5.014	2150.3
CCZ-35-9×11	9	11	1.254	5.014	2150.3
CCZ-35-9×12	9	12	1.254	5.014	2150.3
CCZ-35-9×13	9	13	1.254	5.014	2150.3
CCZ-35-9×14	9	14	1.254	5.014	2150.3
CCZ-35-9×15	9	15	1.254	5.014	2150.3
CCZ-35-9×16	9	16	1.254	5.014	2150.3
CCZ-35-9×17	9	17	1.254	5.014	2150.3
CCZ-35-9×18	9	18	1.254	5.014	2150.3
CCZ-35-9×19	9	19	1.254	5.014	2150.3
CCZ-35-9.5×9.5	9.5	9.5	1.254	5.014	2150.3
CCZ-35-9.5×10	9.5	10	1.254	5.014	2150.3
CCZ-35-9.5×11	9.5	11	1.254	5.014	2150.3
CCZ-35-9.5×12	9.5	12	1.254	5.014	2150.3
CCZ-35-9.5×13	9.5	13	1.254	5.014	2150.3
CCZ-35-9.5×14	9.5	14	1.254	5.014	2150.3
CCZ-35-9.5×15	9.5	15	1.254	5.014	2150.3
CCZ-35-9.5×16	9.5	16	1.254	5.014	2150.3
CCZ-35-9.5×17	9.5	17	1.254	5.014	2150.3
CCZ-35-9.5×18	9.5	18	1.254	5.014	2150.3
CCZ-35-9.5×19	9.5	19	1.254	5.014	2150.3
CCZ-35-9.52×9.52	9.52	9.52	1.254	5.014	2150.3
CCZ-35-9.52×12.7	9.52	12.7	1.254	5.014	2150.3
CCZ-35-9.52×15.875	9.52	15.875	1.254	5.014	2150.3
CCZ-35-10×10	10	10	1.254	5.014	2150.3
CCZ-35-10×11	10	11	1.254	5.014	2150.3
CCZ-35-10×12	10	12	1.254	5.014	2150.3
CCZ-35-10×13	10	13	1.254	5.014	2150.3
CCZ-35-10×14	10	14	1.254	5.014	2150.3
CCZ-35-10×15	10	15	1.254	5.014	2150.3
CCZ-35-10×16	10	16	1.254	5.014	2150.3
CCZ-35-10×17	10	17	1.254	5.014	2150.3
CCZ-35-10×18	10	18	1.254	5.014	2150.3
CCZ-35-10×19	10	19	1.254	5.014	2150.3
CCZ-35-11×11	11	11	1.254	5.014	2150.3
CCZ-35-11×12	11	12	1.254	5.014	2150.3
CCZ-35-11×13	11	13	1.254	5.014	2150.3
CCZ-35-11×14	11	14	1.254	5.014	2150.3
CCZ-35-11×15	11	15	1.254	5.014	2150.3
CCZ-35-11×16	11	16	1.254	5.014	2150.3
CCZ-35-11×17	11	17	1.254	5.014	2150.3
CCZ-35-11×18	11	18	1.254	5.014	2150.3
CCZ-35-11×19	11	19	1.254	5.014	2150.3
CCZ-35-12×12	12	12	1.254	5.014	2150.3
CCZ-35-12×13	12	13	1.254	5.014	2150.3
CCZ-35-12×14	12	14	1.254	5.014	2150.3
CCZ-35-12×15	12	15	1.254	5.014	2150.3
CCZ-35-12×16	12	16	1.254	5.014	2150.3
CCZ-35-12×17	12	17	1.254	5.014	2150.3
CCZ-35-12×18	12	18	1.254	5.014	2150.3
CCZ-35-12×19	12	19	1.254	5.014	2150.3
CCZ-35-12.7×12.7	12.7	12.7	1.254	5.014	2150.3
CCZ-35-12.7×15.875	12.7	15.875	1.254	5.014	2150.3
CCZ-35-13×13	13	13	1.254	5.014	2150.3
CCZ-35-13×14	13	14	1.254	5.014	2150.3
CCZ-35-13×15	13	15	1.254	5.014	2150.3
CCZ-35-13×16	13	16	1.254	5.014	2150.3
CCZ-35-13×17	13	17	1.254	5.014	2150.3
CCZ-35-13×18	13	18	1.254	5.014	2150.3
CCZ-35-13×19	13	19	1.254	5.014	2150.3
CCZ-35-14×14	14	14	1.254	5.014	2150.3
CCZ-35-14×15	14	15	1.254	5.014	2150.3
CCZ-35-14×16	14	16	1.254	5.014	2150.3
CCZ-35-14×17	14	17	1.254	5.014	2150.3
CCZ-35-14×18	14	18	1.254	5.014	2150.3
CCZ-35-14×19	14	19	1.254	5.014	2150.3
CCZ-35-15×15	15	15	1.254	5.014	2150.3
CCZ-35-15×16	15	16	1.254	5.014	2150.3
CCZ-35-15×17	15	17	1.254	5.014	2150.3
CCZ-35-15×18	15	18	1.254	5.014	2150.3
CCZ-35-15×19	15	19	1.254	5.014	2150.3
CCZ-35-15.875×15.875	15.875	15.875	1.254	5.014	2150.3
CCZ-35-16×16	16	16	1.254	5.014	2150.3
CCZ-35-16×17	16	17	1.254	5.014	2150.3
CCZ-35-16×18	16	18	1.254	5.014	2150.3
CCZ-35-16×19	16	19	1.254	5.014	2150.3
CCZ-35-17×17	17	17	1.254	5.014	2150.3
CCZ-35-17×18	17	18	1.254	5.014	2150.3
CCZ-35-17×19	17	19	1.254	5.014	2150.3
CCZ-35-18×18	18	18	1.254	5.014	2150.3
CCZ-35-18×19	18	19	1.254	5.014	2150.3
CCZ-35-19×19	19	19	1.254	5.014	2150.3
CCZ-40-8×8	8	8	2.338	9.351	3094.59
CCZ-40-8×10	8	10	2.338	9.351	3094.59
CCZ-40-8×12	8	12	2.338	9.351	3094.59
CCZ-40-8×14	8	14	2.338	9.351	3094.59
CCZ-40-8×15	8	15	2.338	9.351	3094.59
CCZ-40-8×16	8	16	2.338	9.351	3094.59
CCZ-40-8×17	8	17	2.338	9.351	3094.59
CCZ-40-8×18	8	18	2.338	9.351	3094.59
CCZ-40-8×19	8	19	2.338	9.351	3094.59
CCZ-40-8×20	8	20	2.338	9.351	3094.59
CCZ-40-8×22	8	22	2.338	9.351	3094.59
CCZ-40-10×10	10	10	2.338	9.351	3094.59
CCZ-40-10×12	10	12	2.338	9.351	3094.59
CCZ-40-10×14	10	14	2.338	9.351	3094.59
CCZ-40-10×15	10	15	2.338	9.351	3094.59
CCZ-40-10×16	10	16	2.338	9.351	3094.59
CCZ-40-10×17	10	17	2.338	9.351	3094.59
CCZ-40-10×18	10	18	2.338	9.351	3094.59
CCZ-40-10×19	10	19	2.338	9.351	3094.59
CCZ-40-10×20	10	20	2.338	9.351	3094.59
CCZ-40-10×22	10	22	2.338	9.351	3094.59
CCZ-40-12×12	12	12	2.338	9.351	3094.59
CCZ-40-12×14	12	14	2.338	9.351	3094.59
CCZ-40-12×15	12	15	2.338	9.351	3094.59
CCZ-40-12×16	12	16	2.338	9.351	3094.59
CCZ-40-12×17	12	17	2.338	9.351	3094.59
CCZ-40-12×18	12	18	2.338	9.351	3094.59
CCZ-40-12×19	12	19	2.338	9.351	3094.59
CCZ-40-12×20	12	20	2.338	9.351	3094.59
CCZ-40-12×22	12	22	2.338	9.351	3094.59
CCZ-40-14×14	14	14	2.338	9.351	3094.59
CCZ-40-14×15	14	15	2.338	9.351	3094.59
CCZ-40-14×16	14	16	2.338	9.351	3094.59
CCZ-40-14×17	14	17	2.338	9.351	3094.59
CCZ-40-14×18	14	18	2.338	9.351	3094.59
CCZ-40-14×19	14	19	2.338	9.351	3094.59
CCZ-40-14×20	14	20	2.338	9.351	3094.59
CCZ-40-14×22	14	22	2.338	9.351	3094.59
CCZ-40-15×15	15	15	2.338	9.351	3094.59
CCZ-40-15×16	15	16	2.338	9.351	3094.59
CCZ-40-15×17	15	17	2.338	9.351	3094.59
CCZ-40-15×18	15	18	2.338	9.351	3094.59
CCZ-40-15×19	15	19	2.338	9.351	3094.59
CCZ-40-15×20	15	20	2.338	9.351	3094.59
CCZ-40-15×22	15	22	2.338	9.351	3094.59
CCZ-40-16×16	16	16	2.338	9.351	3094.59
CCZ-40-16×17	16	17	2.338	9.351	3094.59
CCZ-40-16×18	16	18	2.338	9.351	3094.59
CCZ-40-16×19	16	19	2.338	9.351	3094.59
CCZ-40-16×20	16	20	2.338	9.351	3094.59
CCZ-40-16×22	16	22	2.338	9.351	3094.59
CCZ-40-17×17	17	17	2.338	9.351	3094.59
CCZ-40-17×18	17	18	2.338	9.351	3094.59
CCZ-40-17×19	17	19	2.338	9.351	3094.59
CCZ-40-17×20	17	20	2.338	9.351	3094.59
CCZ-40-17×22	17	22	2.338	9.351	3094.59
CCZ-40-18×18	18	18	2.338	9.351	3094.59
CCZ-40-18×19	18	19	2.338	9.351	3094.59
CCZ-40-18×20	18	20	2.338	9.351	3094.59
CCZ-40-18×22	18	22	2.338	9.351	3094.59
CCZ-40-19×19	19	19	2.338	9.351	3094.59
CCZ-40-19×20	19	20	2.338	9.351	3094.59
CCZ-40-19×22	19	22	2.338	9.351	3094.59
CCZ-40-20×20	20	20	2.338	9.351	3094.59
CCZ-40-20×22	20	22	2.338	9.351	3094.59
CCZ-40-22×22	22	22	2.338	9.351	3094.59
CCZ-50-8×8	8	8	5.698	22.793	7522.58
CCZ-50-8×10	8	10	5.698	22.793	7522.58
CCZ-50-8×12	8	12	5.698	22.793	7522.58
CCZ-50-8×14	8	14	5.698	22.793	7522.58
CCZ-50-8×15	8	15	5.698	22.793	7522.58
CCZ-50-8×16	8	16	5.698	22.793	7522.58
CCZ-50-8×17	8	17	5.698	22.793	7522.58
CCZ-50-8×18	8	18	5.698	22.793	7522.58
CCZ-50-8×19	8	19	5.698	22.793	7522.58
CCZ-50-8×20	8	20	5.698	22.793	7522.58
CCZ-50-8×22	8	22	5.698	22.793	7522.58
CCZ-50-8×24	8	24	5.698	22.793	7522.58
CCZ-50-10×10	10	10	5.698	22.793	7522.58
CCZ-50-10×12	10	12	5.698	22.793	7522.58
CCZ-50-10×14	10	14	5.698	22.793	7522.58
CCZ-50-10×15	10	15	5.698	22.793	7522.58
CCZ-50-10×16	10	16	5.698	22.793	7522.58
CCZ-50-10×17	10	17	5.698	22.793	7522.58
CCZ-50-10×18	10	18	5.698	22.793	7522.58
CCZ-50-10×19	10	19	5.698	22.793	7522.58
CCZ-50-10×20	10	20	5.698	22.793	7522.58
CCZ-50-10×22	10	22	5.698	22.793	7522.58
CCZ-50-10×24	10	24	5.698	22.793	7522.58
CCZ-50-12×12	12	12	5.698	22.793	7522.58
CCZ-50-12×14	12	14	5.698	22.793	7522.58
CCZ-50-12×15	12	15	5.698	22.793	7522.58
CCZ-50-12×16	12	16	5.698	22.793	7522.58
CCZ-50-12×17	12	17	5.698	22.793	7522.58
CCZ-50-12×18	12	18	5.698	22.793	7522.58
CCZ-50-12×19	12	19	5.698	22.793	7522.58
CCZ-50-12×20	12	20	5.698	22.793	7522.58
CCZ-50-12×22	12	22	5.698	22.793	7522.58
CCZ-50-12×24	12	24	5.698	22.793	7522.58
CCZ-50-14×14	14	14	5.698	22.793	7522.58
CCZ-50-14×15	14	15	5.698	22.793	7522.58
CCZ-50-14×16	14	16	5.698	22.793	7522.58
CCZ-50-14×17	14	17	5.698	22.793	7522.58
CCZ-50-14×18	14	18	5.698	22.793	7522.58
CCZ-50-14×19	14	19	5.698	22.793	7522.58
CCZ-50-14×20	14	20	5.698	22.793	7522.58
CCZ-50-14×22	14	22	5.698	22.793	7522.58
CCZ-50-14×24	14	24	5.698	22.793	7522.58
CCZ-50-15×15	15	15	5.698	22.793	7522.58
CCZ-50-15×16	15	16	5.698	22.793	7522.58
CCZ-50-15×17	15	17	5.698	22.793	7522.58
CCZ-50-15×18	15	18	5.698	22.793	7522.58
CCZ-50-15×19	15	19	5.698	22.793	7522.58
CCZ-50-15×20	15	20	5.698	22.793	7522.58
CCZ-50-15×22	15	22	5.698	22.793	7522.58
CCZ-50-15×24	15	24	5.698	22.793	7522.58
CCZ-50-16×16	16	16	5.698	22.793	7522.58
CCZ-50-16×17	16	17	5.698	22.793	7522.58
CCZ-50-16×18	16	18	5.698	22.793	7522.58
CCZ-50-16×19	16	19	5.698	22.793	7522.58
CCZ-50-16×20	16	20	5.698	22.793	7522.58
CCZ-50-16×22	16	22	5.698	22.793	7522.58
CCZ-50-16×24	16	24	5.698	22.793	7522.58
CCZ-50-17×17	17	17	5.698	22.793	7522.58
CCZ-50-17×18	17	18	5.698	22.793	7522.58
CCZ-50-17×19	17	19	5.698	22.793	7522.58
CCZ-50-17×20	17	20	5.698	22.793	7522.58
CCZ-50-17×22	17	22	5.698	22.793	7522.58
CCZ-50-17×24	17	24	5.698	22.793	7522.58
CCZ-50-18×18	18	18	5.698	22.793	7522.58
CCZ-50-18×19	18	19	5.698	22.793	7522.58
CCZ-50-18×20	18	20	5.698	22.793	7522.58
CCZ-50-18×22	18	22	5.698	22.793	7522.58
CCZ-50-18×24	18	24	5.698	22.793	7522.58
CCZ-50-19×19	19	19	5.698	22.793	7522.58
CCZ-50-19×20	19	20	5.698	22.793	7522.58
CCZ-50-19×22	19	22	5.698	22.793	7522.58
CCZ-50-19×24	19	24	5.698	22.793	7522.58
CCZ-50-20×20	20	20	5.698	22.793	7522.58
CCZ-50-20×22	20	22	5.698	22.793	7522.58
CCZ-50-20×24	20	24	5.698	22.793	7522.58
CCZ-50-22×22	22	22	5.698	22.793	7522.58
CCZ-50-22×24	22	24	5.698	22.793	7522.58
CCZ-50-24×24	24	24	5.698	22.793	7522.58
CCZ-60-14×14	14	14	13.552	54.207	13672.24
CCZ-60-14×15	14	15	13.552	54.207	13672.24
CCZ-60-14×16	14	16	13.552	54.207	13672.24
CCZ-60-14×18	14	18	13.552	54.207	13672.24
CCZ-60-14×19	14	19	13.552	54.207	13672.24
CCZ-60-14×20	14	20	13.552	54.207	13672.24
CCZ-60-14×22	14	22	13.552	54.207	13672.24
CCZ-60-14×24	14	24	13.552	54.207	13672.24
CCZ-60-14×25	14	25	13.552	54.207	13672.24
CCZ-60-14×28	14	28	13.552	54.207	13672.24
CCZ-60-14×30	14	30	13.552	54.207	13672.24
CCZ-60-15×15	15	15	13.552	54.207	13672.24
CCZ-60-15×16	15	16	13.552	54.207	13672.24
CCZ-60-15×18	15	18	13.552	54.207	13672.24
CCZ-60-15×19	15	19	13.552	54.207	13672.24
CCZ-60-15×20	15	20	13.552	54.207	13672.24
CCZ-60-15×22	15	22	13.552	54.207	13672.24
CCZ-60-15×24	15	24	13.552	54.207	13672.24
CCZ-60-15×25	15	25	13.552	54.207	13672.24
CCZ-60-15×28	15	28	13.552	54.207	13672.24
CCZ-60-15×30	15	30	13.552	54.207	13672.24
CCZ-60-16×16	16	16	13.552	54.207	13672.24
CCZ-60-16×18	16	18	13.552	54.207	13672.24
CCZ-60-16×19	16	19	13.552	54.207	13672.24
CCZ-60-16×20	16	20	13.552	54.207	13672.24
CCZ-60-16×22	16	22	13.552	54.207	13672.24
CCZ-60-16×24	16	24	13.552	54.207	13672.24
CCZ-60-16×25	16	25	13.552	54.207	13672.24
CCZ-60-16×28	16	28	13.552	54.207	13672.24
CCZ-60-16×30	16	30	13.552	54.207	13672.24
CCZ-60-18×18	18	18	13.552	54.207	13672.24
CCZ-60-18×19	18	19	13.552	54.207	13672.24
CCZ-60-18×20	18	20	13.552	54.207	13672.24
CCZ-60-18×22	18	22	13.552	54.207	13672.24
CCZ-60-18×24	18	24	13.552	54.207	13672.24
CCZ-60-18×25	18	25	13.552	54.207	13672.24
CCZ-60-18×28	18	28	13.552	54.207	13672.24
CCZ-60-18×30	18	30	13.552	54.207	13672.24
CCZ-60-19×19	19	19	13.552	54.207	13672.24
CCZ-60-19×20	19	20	13.552	54.207	13672.24
CCZ-60-19×22	19	22	13.552	54.207	13672.24
CCZ-60-19×24	19	24	13.552	54.207	13672.24
CCZ-60-19×25	19	25	13.552	54.207	13672.24
CCZ-60-19×28	19	28	13.552	54.207	13672.24
CCZ-60-19×30	19	30	13.552	54.207	13672.24
CCZ-60-20×20	20	20	13.552	54.207	13672.24
CCZ-60-20×22	20	22	13.552	54.207	13672.24
CCZ-60-20×24	20	24	13.552	54.207	13672.24
CCZ-60-20×25	20	25	13.552	54.207	13672.24
CCZ-60-20×28	20	28	13.552	54.207	13672.24
CCZ-60-20×30	20	30	13.552	54.207	13672.24
CCZ-60-22×22	22	22	13.552	54.207	13672.24
CCZ-60-22×24	22	24	13.552	54.207	13672.24
CCZ-60-22×25	22	25	13.552	54.207	13672.24
CCZ-60-22×28	22	28	13.552	54.207	13672.24
CCZ-60-22×30	22	30	13.552	54.207	13672.24
CCZ-60-24×24	24	24	13.552	54.207	13672.24
CCZ-60-24×25	24	25	13.552	54.207	13672.24
CCZ-60-24×28	24	28	13.552	54.207	13672.24
CCZ-60-24×30	24	30	13.552	54.207	13672.24
CCZ-60-25×25	25	25	13.552	54.207	13672.24
CCZ-60-25×28	25	28	13.552	54.207	13672.24
CCZ-60-25×30	25	30	13.552	54.207	13672.24
CCZ-60-28×28	28	28	13.552	54.207	13672.24
CCZ-60-28×30	28	30	13.552	54.207	13672.24
CCZ-60-30×30	30	30	13.552	54.207	13672.24
CCZ-70-12×12	12	12	27.602	110.41	24917.72
CCZ-70-12×15	12	15	27.602	110.41	24917.72
CCZ-70-12×16	12	16	27.602	110.41	24917.72
CCZ-70-12×17	12	17	27.602	110.41	24917.72
CCZ-70-12×19	12	19	27.602	110.41	24917.72
CCZ-70-12×20	12	20	27.602	110.41	24917.72
CCZ-70-12×22	12	22	27.602	110.41	24917.72
CCZ-70-12×24	12	24	27.602	110.41	24917.72
CCZ-70-12×25	12	25	27.602	110.41	24917.72
CCZ-70-12×28	12	28	27.602	110.41	24917.72
CCZ-70-12×30	12	30	27.602	110.41	24917.72
CCZ-70-12×35	12	35	27.602	110.41	24917.72
CCZ-70-15×15	15	15	27.602	110.41	24917.72
CCZ-70-15×16	15	16	27.602	110.41	24917.72
CCZ-70-15×17	15	17	27.602	110.41	24917.72
CCZ-70-15×19	15	19	27.602	110.41	24917.72
CCZ-70-15×20	15	20	27.602	110.41	24917.72
CCZ-70-15×22	15	22	27.602	110.41	24917.72
CCZ-70-15×24	15	24	27.602	110.41	24917.72
CCZ-70-15×25	15	25	27.602	110.41	24917.72
CCZ-70-15×28	15	28	27.602	110.41	24917.72
CCZ-70-15×30	15	30	27.602	110.41	24917.72
CCZ-70-15×35	15	35	27.602	110.41	24917.72
CCZ-70-16×16	16	16	27.602	110.41	24917.72
CCZ-70-16×17	16	17	27.602	110.41	24917.72
CCZ-70-16×19	16	19	27.602	110.41	24917.72
CCZ-70-16×20	16	20	27.602	110.41	24917.72
CCZ-70-16×22	16	22	27.602	110.41	24917.72
CCZ-70-16×24	16	24	27.602	110.41	24917.72
CCZ-70-16×25	16	25	27.602	110.41	24917.72
CCZ-70-16×28	16	28	27.602	110.41	24917.72
CCZ-70-16×30	16	30	27.602	110.41	24917.72
CCZ-70-16×35	16	35	27.602	110.41	24917.72
CCZ-70-17×17	17	17	27.602	110.41	24917.72
CCZ-70-17×19	17	19	27.602	110.41	24917.72
CCZ-70-17×20	17	20	27.602	110.41	24917.72
CCZ-70-17×22	17	22	27.602	110.41	24917.72
CCZ-70-17×24	17	24	27.602	110.41	24917.72
CCZ-70-17×25	17	25	27.602	110.41	24917.72
CCZ-70-17×28	17	28	27.602	110.41	24917.72
CCZ-70-17×35	17	35	27.602	110.41	24917.72
CCZ-70-19×19	19	19	27.602	110.41	24917.72
CCZ-70-19×20	19	20	27.602	110.41	24917.72
CCZ-70-19×22	19	22	27.602	110.41	24917.72
CCZ-70-19×24	19	24	27.602	110.41	24917.72
CCZ-70-19×25	19	25	27.602	110.41	24917.72
CCZ-70-19×28	19	28	27.602	110.41	24917.72
CCZ-70-19×30	19	30	27.602	110.41	24917.72
CCZ-70-19×35	19	35	27.602	110.41	24917.72
CCZ-70-20×20	20	20	27.602	110.41	24917.72
CCZ-70-20×22	20	22	27.602	110.41	24917.72
CCZ-70-20×24	20	24	27.602	110.41	24917.72
CCZ-70-20×25	20	25	27.602	110.41	24917.72
CCZ-70-20×28	20	28	27.602	110.41	24917.72
CCZ-70-20×30	20	30	27.602	110.41	24917.72
CCZ-70-20×35	20	35	27.602	110.41	24917.72
CCZ-70-22×22	22	22	27.602	110.41	24917.72
CCZ-70-22×24	22	24	27.602	110.41	24917.72
CCZ-70-22×25	22	25	27.602	110.41	24917.72
CCZ-70-22×28	22	28	27.602	110.41	24917.72
CCZ-70-22×30	22	30	27.602	110.41	24917.72
CCZ-70-22×35	22	35	27.602	110.41	24917.72
CCZ-70-24×24	24	24	27.602	110.41	24917.72
CCZ-70-24×25	24	25	27.602	110.41	24917.72
CCZ-70-24×28	24	28	27.602	110.41	24917.72
CCZ-70-24×30	24	30	27.602	110.41	24917.72
CCZ-70-24×35	24	35	27.602	110.41	24917.72
CCZ-70-25×25	25	25	27.602	110.41	24917.72
CCZ-70-25×28	25	28	27.602	110.41	24917.72
CCZ-70-25×30	25	30	27.602	110.41	24917.72
CCZ-70-25×35	25	35	27.602	110.41	24917.72
CCZ-70-28×28	28	28	27.602	110.41	24917.72
CCZ-70-28×30	28	30	27.602	110.41	24917.72
CCZ-70-28×35	28	35	27.602	110.41	24917.72
CCZ-70-30×30	30	30	27.602	110.41	24917.72

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	1조분 중량 (gr)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	1조분 중량 (gr)	견적의뢰 및 주문
CCZ-16-3×3	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-3×4	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-3×5	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-3×6	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-4×4	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-4×5	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-4×6	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-5×5	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-5×6	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-16-6×6	P	57,200	-	-	-	8	견적의뢰 / 주문
CCZ-17-3×3	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-3×4	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-3×5	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-3×6	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-3×7	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-3×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-4×4	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-4×5	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-4×6	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-4×7	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-4×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-5×5	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-5×6	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-5×7	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-5×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-6×6	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-6×7	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-6×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-7×7	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-7×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-17-8×8	P	66,000	-	-	-	13	견적의뢰 / 주문
CCZ-18-3×3	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3×4	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3×5	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3×6	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3×7	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3.17×3.17	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3.17×4.76	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-3.17×6.35	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4×4	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4×5	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4×6	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4×7	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4.76×4.76	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-4.76×6.35	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-5×5	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-5×6	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-5×7	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-5×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-6×6	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-6×7	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-6×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-6.35×6.35	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-7×7	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-7×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-18-8×8	P	123,200	-	-	-	16	견적의뢰 / 주문
CCZ-25-5×5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×6	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×7	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×8	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×9	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-5×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×6	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×7	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×8	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×9	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6.35×6.35	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6.35×7.93	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-6.35×9.52	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×7	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×8	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×9	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7.93×7.93	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-7.93×9.52	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-8×8	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-8×9	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-8×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-8×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-8×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9×9	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9.5×9.5	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9.5×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9.5×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-9.52×9.52	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-10×10	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-10×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-25-11×11	P	145,200	-	-	-	36	견적의뢰 / 주문
CCZ-35-6×6	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×8	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×9	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×9.5	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×10	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-6×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-7.93×7.93	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-7.93×9.52	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-7.93×12.7	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-7.93×15.875	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×8	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×9	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×9.5	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×10	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-8×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×9	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×9.5	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×10	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×9.5	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×10	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.5×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.52×9.52	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.52×12.7	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-9.52×15.875	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×10	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-10×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×11	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-11×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×12	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12.7×12.7	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-12.7×15.875	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×13	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-13×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×14	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-14×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15×15	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-15.875×15.875	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-16×16	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-16×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-16×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-16×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-17×17	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-17×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-17×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-18×18	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-18×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-35-19×19	P	167,200	-	-	-	82	견적의뢰 / 주문
CCZ-40-8×8	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×10	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×12	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×14	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×15	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-8×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×10	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×12	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×14	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×15	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-10×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×12	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×14	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×15	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-12×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×14	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×15	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-14×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×15	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-15×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×16	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-16×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-17×17	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-17×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-17×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-17×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-17×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-18×18	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-18×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-18×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-18×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-19×19	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-19×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-19×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-20×20	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-20×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-40-22×22	P	176,000	-	-	-	117	견적의뢰 / 주문
CCZ-50-8×8	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×10	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×12	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×14	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×15	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-8×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×10	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×12	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×14	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×15	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-10×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×12	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×14	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×15	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-12×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×14	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×15	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-14×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×15	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-15×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×16	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-16×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×17	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-17×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-18×18	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-18×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-18×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-18×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-18×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-19×19	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-19×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-19×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-19×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-20×20	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-20×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-20×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-22×22	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-22×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-50-24×24	P	330,000	-	-	-	182	견적의뢰 / 주문
CCZ-60-14×14	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×15	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×16	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×18	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×19	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-14×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×15	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×16	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×18	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×19	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-15×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×16	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×18	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×19	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-16×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×18	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×19	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-18×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×19	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-19×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×20	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-20×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-22×22	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-22×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-22×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-22×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-22×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-24×24	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-24×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-24×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-24×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-25×25	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-25×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-25×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-28×28	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-28×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-60-30×30	P	352,000	-	-	-	301	견적의뢰 / 주문
CCZ-70-12×12	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×15	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×16	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×17	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×19	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-12×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×15	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×16	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×17	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×19	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-15×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×16	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×17	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×19	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-16×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×17	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×19	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-17×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×19	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-19×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×20	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-20×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×22	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-22×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-24×24	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-24×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-24×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-24×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-24×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-25×25	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-25×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-25×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-25×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-28×28	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-28×30	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-28×35	P	440,000	-	-	-	450	견적의뢰 / 주문
CCZ-70-30×30	P	440,000	-	-	-	450	견적의뢰 / 주문

1 2

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
