SS 평기어

SS평기어(J시리즈) 모듈2.5

코하라치차공업(주) ( KHK )

공통사양

정도등급	JIS N8급상당품 (JIS B 1702-1:1998) 구JIS 4급(JIS B 1702:1976)
치형	보통이
압력각	20°
재료	S45C
열처리	-
치면경도	194HB이하

캐드자료

카탈로그

제품설명

●J시리즈는 표준기어의 예비구멍 제품을 베이스로 내경，키홈，설치 구멍의 치수를 KHK 독자적인 규격으로 시리즈화한 제품입니다.
●최신 기계설비를 이용한 저스트인타임 생산라인으로 생산 효율성과 품질을 추구.
●메이커에서 행하는 추가공으로 신뢰성 높은 제품을 제공합니다.

관련이미지

상세사양


373건 중 1~373건 표시

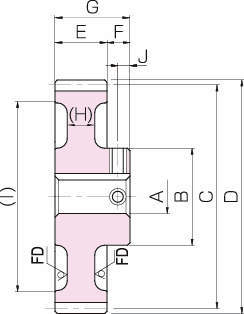

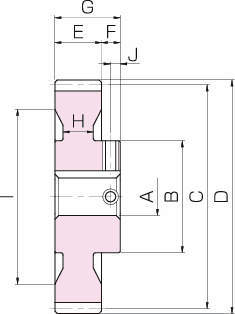

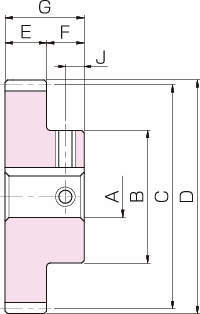

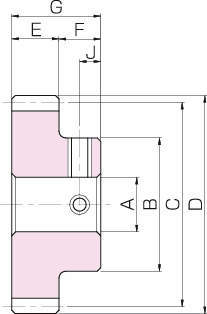

형식	모듈 m	잇수	형상	내경 AH7	보스경 B	피치원직경 C	이끝원직경 D	치폭 E
형식	모듈 m	잇수	형상	내경 AH7	보스경 B	피치원직경 C	이끝원직경 D	치폭 E
SS2.5-12J12	2.5	12	S1T2	12	23	30	35	25
SS2.5-13J12	2.5	13	S1K	12	25	32.5	37.5	25
SS2.5-14J12	2.5	14	S1K	12	25	35	40	25
SS2.5-14J14	2.5	14	S1K	14	25	35	40	25
SS2.5-15J15	2.5	15	S1K	15	30	37.5	42.5	25
SS2.5-15J16	2.5	15	S1K	16	30	37.5	42.5	25
SS2.5-16J15	2.5	16	S1K	15	32	40	45	25
SS2.5-16J16	2.5	16	S1K	16	32	40	45	25
SS2.5-16J17	2.5	16	S1K	17	32	40	45	25
SS2.5-16J18	2.5	16	S1K	18	32	40	45	25
SS2.5-17J15	2.5	17	S1K	15	35	42.5	47.5	25
SS2.5-17J16	2.5	17	S1K	16	35	42.5	47.5	25
SS2.5-17J17	2.5	17	S1K	17	35	42.5	47.5	25
SS2.5-17J18	2.5	17	S1K	18	35	42.5	47.5	25
SS2.5-17J19	2.5	17	S1K	19	35	42.5	47.5	25
SS2.5-17J20	2.5	17	S1K	20	35	42.5	47.5	25
SS2.5-18J15	2.5	18	S1K	15	38	45	50	25
SS2.5-18J16	2.5	18	S1K	16	38	45	50	25
SS2.5-18J17	2.5	18	S1K	17	38	45	50	25
SS2.5-18J18	2.5	18	S1K	18	38	45	50	25
SS2.5-18J19	2.5	18	S1K	19	38	45	50	25
SS2.5-18J20	2.5	18	S1K	20	38	45	50	25
SS2.5-18J22	2.5	18	S1K	22	38	45	50	25
SS2.5-19J15	2.5	19	S1K	15	39	47.5	52.5	25
SS2.5-19J16	2.5	19	S1K	16	39	47.5	52.5	25
SS2.5-19J17	2.5	19	S1K	17	39	47.5	52.5	25
SS2.5-19J18	2.5	19	S1K	18	39	47.5	52.5	25
SS2.5-19J19	2.5	19	S1K	19	39	47.5	52.5	25
SS2.5-19J20	2.5	19	S1K	20	39	47.5	52.5	25
SS2.5-19J22	2.5	19	S1K	22	39	47.5	52.5	25
SS2.5-20J15	2.5	20	S1K	15	40	50	55	25
SS2.5-20J16	2.5	20	S1K	16	40	50	55	25
SS2.5-20J17	2.5	20	S1K	17	40	50	55	25
SS2.5-20J18	2.5	20	S1K	18	40	50	55	25
SS2.5-20J19	2.5	20	S1K	19	40	50	55	25
SS2.5-20J20	2.5	20	S1K	20	40	50	55	25
SS2.5-20J22	2.5	20	S1K	22	40	50	55	25
SS2.5-21J15	2.5	21	S1K	15	42	52.5	57.5	25
SS2.5-21J16	2.5	21	S1K	16	42	52.5	57.5	25
SS2.5-21J17	2.5	21	S1K	17	42	52.5	57.5	25
SS2.5-21J18	2.5	21	S1K	18	42	52.5	57.5	25
SS2.5-21J19	2.5	21	S1K	19	42	52.5	57.5	25
SS2.5-21J20	2.5	21	S1K	20	42	52.5	57.5	25
SS2.5-21J22	2.5	21	S1K	22	42	52.5	57.5	25
SS2.5-21J25	2.5	21	S1K	25	42	52.5	57.5	25
SS2.5-22J15	2.5	22	S1K	15	44	55	60	25
SS2.5-22J16	2.5	22	S1K	16	44	55	60	25
SS2.5-22J17	2.5	22	S1K	17	44	55	60	25
SS2.5-22J18	2.5	22	S1K	18	44	55	60	25
SS2.5-22J19	2.5	22	S1K	19	44	55	60	25
SS2.5-22J20	2.5	22	S1K	20	44	55	60	25
SS2.5-22J22	2.5	22	S1K	22	44	55	60	25
SS2.5-22J25	2.5	22	S1K	25	44	55	60	25
SS2.5-23J15	2.5	23	S1K	15	46	57.5	62.5	25
SS2.5-23J16	2.5	23	S1K	16	46	57.5	62.5	25
SS2.5-23J17	2.5	23	S1K	17	46	57.5	62.5	25
SS2.5-23J18	2.5	23	S1K	18	46	57.5	62.5	25
SS2.5-23J19	2.5	23	S1K	19	46	57.5	62.5	25
SS2.5-23J20	2.5	23	S1K	20	46	57.5	62.5	25
SS2.5-23J22	2.5	23	S1K	22	46	57.5	62.5	25
SS2.5-23J25	2.5	23	S1K	25	46	57.5	62.5	25
SS2.5-24J15	2.5	24	S1K	15	48	60	65	25
SS2.5-24J16	2.5	24	S1K	16	48	60	65	25
SS2.5-24J17	2.5	24	S1K	17	48	60	65	25
SS2.5-24J18	2.5	24	S1K	18	48	60	65	25
SS2.5-24J19	2.5	24	S1K	19	48	60	65	25
SS2.5-24J20	2.5	24	S1K	20	48	60	65	25
SS2.5-24J22	2.5	24	S1K	22	48	60	65	25
SS2.5-24J25	2.5	24	S1K	25	48	60	65	25
SS2.5-24J28	2.5	24	S1K	28	48	60	65	25
SS2.5-25J15	2.5	25	S1K	15	50	62.5	67.5	25
SS2.5-25J16	2.5	25	S1K	16	50	62.5	67.5	25
SS2.5-25J17	2.5	25	S1K	17	50	62.5	67.5	25
SS2.5-25J18	2.5	25	S1K	18	50	62.5	67.5	25
SS2.5-25J19	2.5	25	S1K	19	50	62.5	67.5	25
SS2.5-25J20	2.5	25	S1K	20	50	62.5	67.5	25
SS2.5-25J22	2.5	25	S1K	22	50	62.5	67.5	25
SS2.5-25J25	2.5	25	S1K	25	50	62.5	67.5	25
SS2.5-25J28	2.5	25	S1K	28	50	62.5	67.5	25
SS2.5-25J30	2.5	25	S1K	30	50	62.5	67.5	25
SS2.5-26J15	2.5	26	S1K	15	55	65	70	25
SS2.5-26J16	2.5	26	S1K	16	55	65	70	25
SS2.5-26J17	2.5	26	S1K	17	55	65	70	25
SS2.5-26J18	2.5	26	S1K	18	55	65	70	25
SS2.5-26J19	2.5	26	S1K	19	55	65	70	25
SS2.5-26J20	2.5	26	S1K	20	55	65	70	25
SS2.5-26J22	2.5	26	S1K	22	55	65	70	25
SS2.5-26J25	2.5	26	S1K	25	55	65	70	25
SS2.5-26J28	2.5	26	S1K	28	55	65	70	25
SS2.5-26J30	2.5	26	S1K	30	55	65	70	25
SS2.5-26J32	2.5	26	S1K	32	55	65	70	25
SS2.5-27J15	2.5	27	S1K	15	60	67.5	72.5	25
SS2.5-27J16	2.5	27	S1K	16	60	67.5	72.5	25
SS2.5-27J17	2.5	27	S1K	17	60	67.5	72.5	25
SS2.5-27J18	2.5	27	S1K	18	60	67.5	72.5	25
SS2.5-27J19	2.5	27	S1K	19	60	67.5	72.5	25
SS2.5-27J20	2.5	27	S1K	20	60	67.5	72.5	25
SS2.5-27J22	2.5	27	S1K	22	60	67.5	72.5	25
SS2.5-27J25	2.5	27	S1K	25	60	67.5	72.5	25
SS2.5-27J28	2.5	27	S1K	28	60	67.5	72.5	25
SS2.5-27J30	2.5	27	S1K	30	60	67.5	72.5	25
SS2.5-27J32	2.5	27	S1K	32	60	67.5	72.5	25
SS2.5-27J35	2.5	27	S1K	35	60	67.5	72.5	25
SS2.5-28J15	2.5	28	S1K	15	60	70	75	25
SS2.5-28J16	2.5	28	S1K	16	60	70	75	25
SS2.5-28J17	2.5	28	S1K	17	60	70	75	25
SS2.5-28J18	2.5	28	S1K	18	60	70	75	25
SS2.5-28J19	2.5	28	S1K	19	60	70	75	25
SS2.5-28J20	2.5	28	S1K	20	60	70	75	25
SS2.5-28J22	2.5	28	S1K	22	60	70	75	25
SS2.5-28J25	2.5	28	S1K	25	60	70	75	25
SS2.5-28J28	2.5	28	S1K	28	60	70	75	25
SS2.5-28J30	2.5	28	S1K	30	60	70	75	25
SS2.5-28J32	2.5	28	S1K	32	60	70	75	25
SS2.5-28J35	2.5	28	S1K	35	60	70	75	25
SS2.5-29J15	2.5	29	S1K	15	62	72.5	77.5	25
SS2.5-29J16	2.5	29	S1K	16	62	72.5	77.5	25
SS2.5-29J17	2.5	29	S1K	17	62	72.5	77.5	25
SS2.5-29J18	2.5	29	S1K	18	62	72.5	77.5	25
SS2.5-29J19	2.5	29	S1K	19	62	72.5	77.5	25
SS2.5-29J20	2.5	29	S1K	20	62	72.5	77.5	25
SS2.5-29J22	2.5	29	S1K	22	62	72.5	77.5	25
SS2.5-29J25	2.5	29	S1K	25	62	72.5	77.5	25
SS2.5-29J28	2.5	29	S1K	28	62	72.5	77.5	25
SS2.5-29J30	2.5	29	S1K	30	62	72.5	77.5	25
SS2.5-29J32	2.5	29	S1K	32	62	72.5	77.5	25
SS2.5-29J35	2.5	29	S1K	35	62	72.5	77.5	25
SS2.5-30J15	2.5	30	S1K	15	65	75	80	25
SS2.5-30J16	2.5	30	S1K	16	65	75	80	25
SS2.5-30J17	2.5	30	S1K	17	65	75	80	25
SS2.5-30J18	2.5	30	S1K	18	65	75	80	25
SS2.5-30J19	2.5	30	S1K	19	65	75	80	25
SS2.5-30J20	2.5	30	S1K	20	65	75	80	25
SS2.5-30J22	2.5	30	S1K	22	65	75	80	25
SS2.5-30J25	2.5	30	S1K	25	65	75	80	25
SS2.5-30J28	2.5	30	S1K	28	65	75	80	25
SS2.5-30J30	2.5	30	S1K	30	65	75	80	25
SS2.5-30J32	2.5	30	S1K	32	65	75	80	25
SS2.5-30J35	2.5	30	S1K	35	65	75	80	25
SS2.5-32J15	2.5	32	S1K	15	70	80	85	25
SS2.5-32J16	2.5	32	S1K	16	70	80	85	25
SS2.5-32J17	2.5	32	S1K	17	70	80	85	25
SS2.5-32J18	2.5	32	S1K	18	70	80	85	25
SS2.5-32J19	2.5	32	S1K	19	70	80	85	25
SS2.5-32J20	2.5	32	S1K	20	70	80	85	25
SS2.5-32J22	2.5	32	S1K	22	70	80	85	25
SS2.5-32J25	2.5	32	S1K	25	70	80	85	25
SS2.5-32J28	2.5	32	S1K	28	70	80	85	25
SS2.5-32J30	2.5	32	S1K	30	70	80	85	25
SS2.5-32J32	2.5	32	S1K	32	70	80	85	25
SS2.5-32J35	2.5	32	S1K	35	70	80	85	25
SS2.5-32J40	2.5	32	S1K	40	70	80	85	25
SS2.5-34J15	2.5	34	S1K	15	70	85	90	25
SS2.5-34J16	2.5	34	S1K	16	70	85	90	25
SS2.5-34J17	2.5	34	S1K	17	70	85	90	25
SS2.5-34J18	2.5	34	S1K	18	70	85	90	25
SS2.5-34J19	2.5	34	S1K	19	70	85	90	25
SS2.5-34J20	2.5	34	S1K	20	70	85	90	25
SS2.5-34J22	2.5	34	S1K	22	70	85	90	25
SS2.5-34J25	2.5	34	S1K	25	70	85	90	25
SS2.5-34J28	2.5	34	S1K	28	70	85	90	25
SS2.5-34J30	2.5	34	S1K	30	70	85	90	25
SS2.5-34J32	2.5	34	S1K	32	70	85	90	25
SS2.5-34J35	2.5	34	S1K	35	70	85	90	25
SS2.5-34J40	2.5	34	S1K	40	70	85	90	25
SS2.5-35J15	2.5	35	S1K	15	70	87.5	92.5	25
SS2.5-35J16	2.5	35	S1K	16	70	87.5	92.5	25
SS2.5-35J17	2.5	35	S1K	17	70	87.5	92.5	25
SS2.5-35J18	2.5	35	S1K	18	70	87.5	92.5	25
SS2.5-35J19	2.5	35	S1K	19	70	87.5	92.5	25
SS2.5-35J20	2.5	35	S1K	20	70	87.5	92.5	25
SS2.5-35J22	2.5	35	S1K	22	70	87.5	92.5	25
SS2.5-35J25	2.5	35	S1K	25	70	87.5	92.5	25
SS2.5-35J28	2.5	35	S1K	28	70	87.5	92.5	25
SS2.5-35J30	2.5	35	S1K	30	70	87.5	92.5	25
SS2.5-35J32	2.5	35	S1K	32	70	87.5	92.5	25
SS2.5-35J35	2.5	35	S1K	35	70	87.5	92.5	25
SS2.5-35J40	2.5	35	S1K	40	70	87.5	92.5	25
SS2.5-36J15	2.5	36	S1K	15	70	90	95	25
SS2.5-36J16	2.5	36	S1K	16	70	90	95	25
SS2.5-36J17	2.5	36	S1K	17	70	90	95	25
SS2.5-36J18	2.5	36	S1K	18	70	90	95	25
SS2.5-36J19	2.5	36	S1K	19	70	90	95	25
SS2.5-36J20	2.5	36	S1K	20	70	90	95	25
SS2.5-36J22	2.5	36	S1K	22	70	90	95	25
SS2.5-36J25	2.5	36	S1K	25	70	90	95	25
SS2.5-36J28	2.5	36	S1K	28	70	90	95	25
SS2.5-36J30	2.5	36	S1K	30	70	90	95	25
SS2.5-36J32	2.5	36	S1K	32	70	90	95	25
SS2.5-36J35	2.5	36	S1K	35	70	90	95	25
SS2.5-36J40	2.5	36	S1K	40	70	90	95	25
SS2.5-38J20	2.5	38	S1K	20	70	95	100	25
SS2.5-38J22	2.5	38	S1K	22	70	95	100	25
SS2.5-38J25	2.5	38	S1K	25	70	95	100	25
SS2.5-38J28	2.5	38	S1K	28	70	95	100	25
SS2.5-38J30	2.5	38	S1K	30	70	95	100	25
SS2.5-38J32	2.5	38	S1K	32	70	95	100	25
SS2.5-38J35	2.5	38	S1K	35	70	95	100	25
SS2.5-38J40	2.5	38	S1K	40	70	95	100	25
SS2.5-40J20	2.5	40	S1K	20	70	100	105	25
SS2.5-40J22	2.5	40	S1K	22	70	100	105	25
SS2.5-40J25	2.5	40	S1K	25	70	100	105	25
SS2.5-40J28	2.5	40	S1K	28	70	100	105	25
SS2.5-40J30	2.5	40	S1K	30	70	100	105	25
SS2.5-40J32	2.5	40	S1K	32	70	100	105	25
SS2.5-40J35	2.5	40	S1K	35	70	100	105	25
SS2.5-40J40	2.5	40	S1K	40	70	100	105	25
SS2.5-42J20	2.5	42	S1K	20	70	105	110	25
SS2.5-42J22	2.5	42	S1K	22	70	105	110	25
SS2.5-42J25	2.5	42	S1K	25	70	105	110	25
SS2.5-42J28	2.5	42	S1K	28	70	105	110	25
SS2.5-42J30	2.5	42	S1K	30	70	105	110	25
SS2.5-42J32	2.5	42	S1K	32	70	105	110	25
SS2.5-42J35	2.5	42	S1K	35	70	105	110	25
SS2.5-42J40	2.5	42	S1K	40	70	105	110	25
SS2.5-44J20	2.5	44	S1K	20	70	110	115	25
SS2.5-44J22	2.5	44	S1K	22	70	110	115	25
SS2.5-44J25	2.5	44	S1K	25	70	110	115	25
SS2.5-44J28	2.5	44	S1K	28	70	110	115	25
SS2.5-44J30	2.5	44	S1K	30	70	110	115	25
SS2.5-44J32	2.5	44	S1K	32	70	110	115	25
SS2.5-44J35	2.5	44	S1K	35	70	110	115	25
SS2.5-44J40	2.5	44	S1K	40	70	110	115	25
SS2.5-45J20	2.5	45	S1K	20	70	112.5	117.5	25
SS2.5-45J22	2.5	45	S1K	22	70	112.5	117.5	25
SS2.5-45J25	2.5	45	S1K	25	70	112.5	117.5	25
SS2.5-45J28	2.5	45	S1K	28	70	112.5	117.5	25
SS2.5-45J30	2.5	45	S1K	30	70	112.5	117.5	25
SS2.5-45J32	2.5	45	S1K	32	70	112.5	117.5	25
SS2.5-45J35	2.5	45	S1K	35	70	112.5	117.5	25
SS2.5-45J40	2.5	45	S1K	40	70	112.5	117.5	25
SS2.5-46J20	2.5	46	S1K	20	70	115	120	25
SS2.5-46J22	2.5	46	S1K	22	70	115	120	25
SS2.5-46J25	2.5	46	S1K	25	70	115	120	25
SS2.5-46J28	2.5	46	S1K	28	70	115	120	25
SS2.5-46J30	2.5	46	S1K	30	70	115	120	25
SS2.5-46J32	2.5	46	S1K	32	70	115	120	25
SS2.5-46J35	2.5	46	S1K	35	70	115	120	25
SS2.5-46J40	2.5	46	S1K	40	70	115	120	25
SS2.5-48J20	2.5	48	S1K	20	70	120	125	25
SS2.5-48J22	2.5	48	S1K	22	70	120	125	25
SS2.5-48J25	2.5	48	S1K	25	70	120	125	25
SS2.5-48J28	2.5	48	S1K	28	70	120	125	25
SS2.5-48J30	2.5	48	S1K	30	70	120	125	25
SS2.5-48J32	2.5	48	S1K	32	70	120	125	25
SS2.5-48J35	2.5	48	S1K	35	70	120	125	25
SS2.5-48J40	2.5	48	S1K	40	70	120	125	25
SS2.5-50J20	2.5	50	S1K	20	70	125	130	25
SS2.5-50J22	2.5	50	S1K	22	70	125	130	25
SS2.5-50J25	2.5	50	S1K	25	70	125	130	25
SS2.5-50J28	2.5	50	S1K	28	70	125	130	25
SS2.5-50J30	2.5	50	S1K	30	70	125	130	25
SS2.5-50J32	2.5	50	S1K	32	70	125	130	25
SS2.5-50J35	2.5	50	S1K	35	70	125	130	25
SS2.5-50J40	2.5	50	S1K	40	70	125	130	25
SS2.5-52J20	2.5	52	S1K	20	70	130	135	25
SS2.5-52J22	2.5	52	S1K	22	70	130	135	25
SS2.5-52J25	2.5	52	S1K	25	70	130	135	25
SS2.5-52J28	2.5	52	S1K	28	70	130	135	25
SS2.5-52J30	2.5	52	S1K	30	70	130	135	25
SS2.5-52J32	2.5	52	S1K	32	70	130	135	25
SS2.5-52J35	2.5	52	S1K	35	70	130	135	25
SS2.5-52J40	2.5	52	S1K	40	70	130	135	25
SS2.5-54J20	2.5	54	S1K	20	70	135	140	25
SS2.5-54J22	2.5	54	S1K	22	70	135	140	25
SS2.5-54J25	2.5	54	S1K	25	70	135	140	25
SS2.5-54J28	2.5	54	S1K	28	70	135	140	25
SS2.5-54J30	2.5	54	S1K	30	70	135	140	25
SS2.5-54J32	2.5	54	S1K	32	70	135	140	25
SS2.5-54J35	2.5	54	S1K	35	70	135	140	25
SS2.5-54J40	2.5	54	S1K	40	70	135	140	25
SS2.5-55J20	2.5	55	S1K	20	70	137.5	142.5	25
SS2.5-55J22	2.5	55	S1K	22	70	137.5	142.5	25
SS2.5-55J25	2.5	55	S1K	25	70	137.5	142.5	25
SS2.5-55J28	2.5	55	S1K	28	70	137.5	142.5	25
SS2.5-55J30	2.5	55	S1K	30	70	137.5	142.5	25
SS2.5-55J32	2.5	55	S1K	32	70	137.5	142.5	25
SS2.5-55J35	2.5	55	S1K	35	70	137.5	142.5	25
SS2.5-55J40	2.5	55	S1K	40	70	137.5	142.5	25
SS2.5-56J20	2.5	56	S1K	20	70	140	145	25
SS2.5-56J22	2.5	56	S1K	22	70	140	145	25
SS2.5-56J25	2.5	56	S1K	25	70	140	145	25
SS2.5-56J28	2.5	56	S1K	28	70	140	145	25
SS2.5-56J30	2.5	56	S1K	30	70	140	145	25
SS2.5-56J32	2.5	56	S1K	32	70	140	145	25
SS2.5-56J35	2.5	56	S1K	35	70	140	145	25
SS2.5-56J40	2.5	56	S1K	40	70	140	145	25
SS2.5-58J20	2.5	58	S1K	20	70	145	150	25
SS2.5-58J22	2.5	58	S1K	22	70	145	150	25
SS2.5-58J25	2.5	58	S1K	25	70	145	150	25
SS2.5-58J28	2.5	58	S1K	28	70	145	150	25
SS2.5-58J30	2.5	58	S1K	30	70	145	150	25
SS2.5-58J32	2.5	58	S1K	32	70	145	150	25
SS2.5-58J35	2.5	58	S1K	35	70	145	150	25
SS2.5-58J40	2.5	58	S1K	40	70	145	150	25
SS2.5-60J25	2.5	60	S4K	25	70	150	155	25
SS2.5-60J28	2.5	60	S4K	28	70	150	155	25
SS2.5-60J30	2.5	60	S4K	30	70	150	155	25
SS2.5-60J32	2.5	60	S4K	32	70	150	155	25
SS2.5-60J35	2.5	60	S4K	35	70	150	155	25
SS2.5-60J40	2.5	60	S4K	40	70	150	155	25
SS2.5-62J25	2.5	62	S2K	25	80	155	160	25
SS2.5-62J28	2.5	62	S2K	28	80	155	160	25
SS2.5-62J30	2.5	62	S2K	30	80	155	160	25
SS2.5-62J32	2.5	62	S2K	32	80	155	160	25
SS2.5-62J35	2.5	62	S2K	35	80	155	160	25
SS2.5-62J40	2.5	62	S2K	40	80	155	160	25
SS2.5-64J25	2.5	64	S2K	25	80	160	165	25
SS2.5-64J28	2.5	64	S2K	28	80	160	165	25
SS2.5-64J30	2.5	64	S2K	30	80	160	165	25
SS2.5-64J32	2.5	64	S2K	32	80	160	165	25
SS2.5-64J35	2.5	64	S2K	35	80	160	165	25
SS2.5-64J40	2.5	64	S2K	40	80	160	165	25
SS2.5-65J25	2.5	65	S2K	25	80	162.5	167.5	25
SS2.5-65J28	2.5	65	S2K	28	80	162.5	167.5	25
SS2.5-65J30	2.5	65	S2K	30	80	162.5	167.5	25
SS2.5-65J32	2.5	65	S2K	32	80	162.5	167.5	25
SS2.5-65J35	2.5	65	S2K	35	80	162.5	167.5	25
SS2.5-65J40	2.5	65	S2K	40	80	162.5	167.5	25
SS2.5-66J25	2.5	66	S2K	25	80	165	170	25
SS2.5-66J28	2.5	66	S2K	28	80	165	170	25
SS2.5-66J30	2.5	66	S2K	30	80	165	170	25
SS2.5-66J32	2.5	66	S2K	32	80	165	170	25
SS2.5-66J35	2.5	66	S2K	35	80	165	170	25
SS2.5-66J40	2.5	66	S2K	40	80	165	170	25
SS2.5-68J25	2.5	68	S2K	25	80	170	175	25
SS2.5-68J28	2.5	68	S2K	28	80	170	175	25
SS2.5-68J30	2.5	68	S2K	30	80	170	175	25
SS2.5-68J32	2.5	68	S2K	32	80	170	175	25
SS2.5-68J35	2.5	68	S2K	35	80	170	175	25
SS2.5-68J40	2.5	68	S2K	40	80	170	175	25
SS2.5-70J25	2.5	70	S2K	25	80	175	180	25
SS2.5-70J28	2.5	70	S2K	28	80	175	180	25
SS2.5-70J30	2.5	70	S2K	30	80	175	180	25
SS2.5-70J32	2.5	70	S2K	32	80	175	180	25
SS2.5-70J35	2.5	70	S2K	35	80	175	180	25
SS2.5-70J40	2.5	70	S2K	40	80	175	180	25
SS2.5-72J25	2.5	72	S2K	25	80	180	185	25
SS2.5-72J28	2.5	72	S2K	28	80	180	185	25
SS2.5-72J30	2.5	72	S2K	30	80	180	185	25
SS2.5-72J32	2.5	72	S2K	32	80	180	185	25
SS2.5-72J35	2.5	72	S2K	35	80	180	185	25
SS2.5-72J40	2.5	72	S2K	40	80	180	185	25
SS2.5-75J25	2.5	75	S2K	25	80	187.5	192.5	25
SS2.5-75J28	2.5	75	S2K	28	80	187.5	192.5	25
SS2.5-75J30	2.5	75	S2K	30	80	187.5	192.5	25
SS2.5-75J32	2.5	75	S2K	32	80	187.5	192.5	25
SS2.5-75J35	2.5	75	S2K	35	80	187.5	192.5	25
SS2.5-75J40	2.5	75	S2K	40	80	187.5	192.5	25
SS2.5-76J25	2.5	76	S2K	25	80	190	195	25
SS2.5-76J28	2.5	76	S2K	28	80	190	195	25
SS2.5-76J30	2.5	76	S2K	30	80	190	195	25
SS2.5-76J32	2.5	76	S2K	32	80	190	195	25
SS2.5-76J35	2.5	76	S2K	35	80	190	195	25
SS2.5-76J40	2.5	76	S2K	40	80	190	195	25
SS2.5-80J25	2.5	80	S4K	25	80	200	205	25
SS2.5-80J28	2.5	80	S4K	28	80	200	205	25
SS2.5-80J30	2.5	80	S4K	30	80	200	205	25
SS2.5-80J32	2.5	80	S4K	32	80	200	205	25
SS2.5-80J35	2.5	80	S4K	35	80	200	205	25
SS2.5-80J40	2.5	80	S4K	40	80	200	205	25
SS2.5-90J30	2.5	90	S4K	30	90	225	230	25
SS2.5-90J32	2.5	90	S4K	32	90	225	230	25
SS2.5-90J35	2.5	90	S4K	35	90	225	230	25
SS2.5-90J40	2.5	90	S4K	40	90	225	230	25
SS2.5-100J30	2.5	100	S4K	30	90	250	255	25
SS2.5-100J32	2.5	100	S4K	32	90	250	255	25
SS2.5-100J35	2.5	100	S4K	35	90	250	255	25
SS2.5-100J40	2.5	100	S4K	40	90	250	255	25
SS2.5-120J30	2.5	120	S4K	30	100	300	305	25
SS2.5-120J32	2.5	120	S4K	32	100	300	305	25
SS2.5-120J35	2.5	120	S4K	35	100	300	305	25
SS2.5-120J40	2.5	120	S4K	40	100	300	305	25

형식	보스길이 F	전장 G	웨브두께 H	림직경 I	키홈 (폭x깊이)	탭구멍	탭구멍
형식	보스길이 F	전장 G	웨브두께 H	림직경 I	키홈 (폭x깊이)	규격	J
SS2.5-12J12	12	37	-	-	-	M4	6
SS2.5-13J12	12	37	-	-	4×1.8	M4	6
SS2.5-14J12	12	37	-	-	4×1.8	M4	6
SS2.5-14J14	12	37	-	-	5×2.3	M4	6
SS2.5-15J15	12	37	-	-	5×2.3	M4	6
SS2.5-15J16	12	37	-	-	5×2.3	M4	6
SS2.5-16J15	12	37	-	-	5×2.3	M4	6
SS2.5-16J16	12	37	-	-	5×2.3	M4	6
SS2.5-16J17	12	37	-	-	5×2.3	M4	6
SS2.5-16J18	12	37	-	-	6×2.8	M5	6
SS2.5-17J15	12	37	-	-	5×2.3	M4	6
SS2.5-17J16	12	37	-	-	5×2.3	M4	6
SS2.5-17J17	12	37	-	-	5×2.3	M4	6
SS2.5-17J18	12	37	-	-	6×2.8	M5	6
SS2.5-17J19	12	37	-	-	6×2.8	M5	6
SS2.5-17J20	12	37	-	-	6×2.8	M5	6
SS2.5-18J15	12	37	-	-	5×2.3	M4	6
SS2.5-18J16	12	37	-	-	5×2.3	M4	6
SS2.5-18J17	12	37	-	-	5×2.3	M4	6
SS2.5-18J18	12	37	-	-	6×2.8	M5	6
SS2.5-18J19	12	37	-	-	6×2.8	M5	6
SS2.5-18J20	12	37	-	-	6×2.8	M5	6
SS2.5-18J22	12	37	-	-	6×2.8	M5	6
SS2.5-19J15	12	37	-	-	5×2.3	M4	6
SS2.5-19J16	12	37	-	-	5×2.3	M4	6
SS2.5-19J17	12	37	-	-	5×2.3	M4	6
SS2.5-19J18	12	37	-	-	6×2.8	M5	6
SS2.5-19J19	12	37	-	-	6×2.8	M5	6
SS2.5-19J20	12	37	-	-	6×2.8	M5	6
SS2.5-19J22	12	37	-	-	6×2.8	M5	6
SS2.5-20J15	12	37	-	-	5×2.3	M4	6
SS2.5-20J16	12	37	-	-	5×2.3	M4	6
SS2.5-20J17	12	37	-	-	5×2.3	M4	6
SS2.5-20J18	12	37	-	-	6×2.8	M5	6
SS2.5-20J19	12	37	-	-	6×2.8	M5	6
SS2.5-20J20	12	37	-	-	6×2.8	M5	6
SS2.5-20J22	12	37	-	-	6×2.8	M5	6
SS2.5-21J15	12	37	-	-	5×2.3	M4	6
SS2.5-21J16	12	37	-	-	5×2.3	M4	6
SS2.5-21J17	12	37	-	-	5×2.3	M4	6
SS2.5-21J18	12	37	-	-	6×2.8	M5	6
SS2.5-21J19	12	37	-	-	6×2.8	M5	6
SS2.5-21J20	12	37	-	-	6×2.8	M5	6
SS2.5-21J22	12	37	-	-	6×2.8	M5	6
SS2.5-21J25	12	37	-	-	8×3.3	M6	6
SS2.5-22J15	12	37	-	-	5×2.3	M4	6
SS2.5-22J16	12	37	-	-	5×2.3	M4	6
SS2.5-22J17	12	37	-	-	5×2.3	M4	6
SS2.5-22J18	12	37	-	-	6×2.8	M5	6
SS2.5-22J19	12	37	-	-	6×2.8	M5	6
SS2.5-22J20	12	37	-	-	6×2.8	M5	6
SS2.5-22J22	12	37	-	-	6×2.8	M5	6
SS2.5-22J25	12	37	-	-	8×3.3	M6	6
SS2.5-23J15	12	37	-	-	5×2.3	M4	6
SS2.5-23J16	12	37	-	-	5×2.3	M4	6
SS2.5-23J17	12	37	-	-	5×2.3	M4	6
SS2.5-23J18	12	37	-	-	6×2.8	M5	6
SS2.5-23J19	12	37	-	-	6×2.8	M5	6
SS2.5-23J20	12	37	-	-	6×2.8	M5	6
SS2.5-23J22	12	37	-	-	6×2.8	M5	6
SS2.5-23J25	12	37	-	-	8×3.3	M6	6
SS2.5-24J15	12	37	-	-	5×2.3	M4	6
SS2.5-24J16	12	37	-	-	5×2.3	M4	6
SS2.5-24J17	12	37	-	-	5×2.3	M4	6
SS2.5-24J18	12	37	-	-	6×2.8	M5	6
SS2.5-24J19	12	37	-	-	6×2.8	M5	6
SS2.5-24J20	12	37	-	-	6×2.8	M5	6
SS2.5-24J22	12	37	-	-	6×2.8	M5	6
SS2.5-24J25	12	37	-	-	8×3.3	M6	6
SS2.5-24J28	12	37	-	-	8×3.3	M6	6
SS2.5-25J15	12	37	-	-	5×2.3	M4	6
SS2.5-25J16	12	37	-	-	5×2.3	M4	6
SS2.5-25J17	12	37	-	-	5×2.3	M4	6
SS2.5-25J18	12	37	-	-	6×2.8	M5	6
SS2.5-25J19	12	37	-	-	6×2.8	M5	6
SS2.5-25J20	12	37	-	-	6×2.8	M5	6
SS2.5-25J22	12	37	-	-	6×2.8	M5	6
SS2.5-25J25	12	37	-	-	8×3.3	M6	6
SS2.5-25J28	12	37	-	-	8×3.3	M6	6
SS2.5-25J30	12	37	-	-	8×3.3	M6	6
SS2.5-26J15	12	37	-	-	5×2.3	M4	6
SS2.5-26J16	12	37	-	-	5×2.3	M4	6
SS2.5-26J17	12	37	-	-	5×2.3	M4	6
SS2.5-26J18	12	37	-	-	6×2.8	M5	6
SS2.5-26J19	12	37	-	-	6×2.8	M5	6
SS2.5-26J20	12	37	-	-	6×2.8	M5	6
SS2.5-26J22	12	37	-	-	6×2.8	M5	6
SS2.5-26J25	12	37	-	-	8×3.3	M6	6
SS2.5-26J28	12	37	-	-	8×3.3	M6	6
SS2.5-26J30	12	37	-	-	8×3.3	M6	6
SS2.5-26J32	12	37	-	-	10×3.3	M8	6
SS2.5-27J15	12	37	-	-	5×2.3	M4	6
SS2.5-27J16	12	37	-	-	5×2.3	M4	6
SS2.5-27J17	12	37	-	-	5×2.3	M4	6
SS2.5-27J18	12	37	-	-	6×2.8	M5	6
SS2.5-27J19	12	37	-	-	6×2.8	M5	6
SS2.5-27J20	12	37	-	-	6×2.8	M5	6
SS2.5-27J22	12	37	-	-	6×2.8	M5	6
SS2.5-27J25	12	37	-	-	8×3.3	M6	6
SS2.5-27J28	12	37	-	-	8×3.3	M6	6
SS2.5-27J30	12	37	-	-	8×3.3	M6	6
SS2.5-27J32	12	37	-	-	10×3.3	M8	6
SS2.5-27J35	12	37	-	-	10×3.3	M8	6
SS2.5-28J15	12	37	-	-	5×2.3	M4	6
SS2.5-28J16	12	37	-	-	5×2.3	M4	6
SS2.5-28J17	12	37	-	-	5×2.3	M4	6
SS2.5-28J18	12	37	-	-	6×2.8	M5	6
SS2.5-28J19	12	37	-	-	6×2.8	M5	6
SS2.5-28J20	12	37	-	-	6×2.8	M5	6
SS2.5-28J22	12	37	-	-	6×2.8	M5	6
SS2.5-28J25	12	37	-	-	8×3.3	M6	6
SS2.5-28J28	12	37	-	-	8×3.3	M6	6
SS2.5-28J30	12	37	-	-	8×3.3	M6	6
SS2.5-28J32	12	37	-	-	10×3.3	M8	6
SS2.5-28J35	12	37	-	-	10×3.3	M8	6
SS2.5-29J15	12	37	-	-	5×2.3	M4	6
SS2.5-29J16	12	37	-	-	5×2.3	M4	6
SS2.5-29J17	12	37	-	-	5×2.3	M4	6
SS2.5-29J18	12	37	-	-	6×2.8	M5	6
SS2.5-29J19	12	37	-	-	6×2.8	M5	6
SS2.5-29J20	12	37	-	-	6×2.8	M5	6
SS2.5-29J22	12	37	-	-	6×2.8	M5	6
SS2.5-29J25	12	37	-	-	8×3.3	M6	6
SS2.5-29J28	12	37	-	-	8×3.3	M6	6
SS2.5-29J30	12	37	-	-	8×3.3	M6	6
SS2.5-29J32	12	37	-	-	10×3.3	M8	6
SS2.5-29J35	12	37	-	-	10×3.3	M8	6
SS2.5-30J15	12	37	-	-	5×2.3	M4	6
SS2.5-30J16	12	37	-	-	5×2.3	M4	6
SS2.5-30J17	12	37	-	-	5×2.3	M4	6
SS2.5-30J18	12	37	-	-	6×2.8	M5	6
SS2.5-30J19	12	37	-	-	6×2.8	M5	6
SS2.5-30J20	12	37	-	-	6×2.8	M5	6
SS2.5-30J22	12	37	-	-	6×2.8	M5	6
SS2.5-30J25	12	37	-	-	8×3.3	M6	6
SS2.5-30J28	12	37	-	-	8×3.3	M6	6
SS2.5-30J30	12	37	-	-	8×3.3	M6	6
SS2.5-30J32	12	37	-	-	10×3.3	M8	6
SS2.5-30J35	12	37	-	-	10×3.3	M8	6
SS2.5-32J15	12	37	-	-	5×2.3	M4	6
SS2.5-32J16	12	37	-	-	5×2.3	M4	6
SS2.5-32J17	12	37	-	-	5×2.3	M4	6
SS2.5-32J18	12	37	-	-	6×2.8	M5	6
SS2.5-32J19	12	37	-	-	6×2.8	M5	6
SS2.5-32J20	12	37	-	-	6×2.8	M5	6
SS2.5-32J22	12	37	-	-	6×2.8	M5	6
SS2.5-32J25	12	37	-	-	8×3.3	M6	6
SS2.5-32J28	12	37	-	-	8×3.3	M6	6
SS2.5-32J30	12	37	-	-	8×3.3	M6	6
SS2.5-32J32	12	37	-	-	10×3.3	M8	6
SS2.5-32J35	12	37	-	-	10×3.3	M8	6
SS2.5-32J40	12	37	-	-	12×3.8	M8	6
SS2.5-34J15	12	37	-	-	5×2.3	M4	6
SS2.5-34J16	12	37	-	-	5×2.3	M4	6
SS2.5-34J17	12	37	-	-	5×2.3	M4	6
SS2.5-34J18	12	37	-	-	6×2.8	M5	6
SS2.5-34J19	12	37	-	-	6×2.8	M5	6
SS2.5-34J20	12	37	-	-	6×2.8	M5	6
SS2.5-34J22	12	37	-	-	6×2.8	M5	6
SS2.5-34J25	12	37	-	-	8×3.3	M6	6
SS2.5-34J28	12	37	-	-	8×3.3	M6	6
SS2.5-34J30	12	37	-	-	8×3.3	M6	6
SS2.5-34J32	12	37	-	-	10×3.3	M8	6
SS2.5-34J35	12	37	-	-	10×3.3	M8	6
SS2.5-34J40	12	37	-	-	12×3.8	M8	6
SS2.5-35J15	12	37	-	-	5×2.3	M4	6
SS2.5-35J16	12	37	-	-	5×2.3	M4	6
SS2.5-35J17	12	37	-	-	5×2.3	M4	6
SS2.5-35J18	12	37	-	-	6×2.8	M5	6
SS2.5-35J19	12	37	-	-	6×2.8	M5	6
SS2.5-35J20	12	37	-	-	6×2.8	M5	6
SS2.5-35J22	12	37	-	-	6×2.8	M5	6
SS2.5-35J25	12	37	-	-	8×3.3	M6	6
SS2.5-35J28	12	37	-	-	8×3.3	M6	6
SS2.5-35J30	12	37	-	-	8×3.3	M6	6
SS2.5-35J32	12	37	-	-	10×3.3	M8	6
SS2.5-35J35	12	37	-	-	10×3.3	M8	6
SS2.5-35J40	12	37	-	-	12×3.8	M8	6
SS2.5-36J15	12	37	-	-	5×2.3	M4	6
SS2.5-36J16	12	37	-	-	5×2.3	M4	6
SS2.5-36J17	12	37	-	-	5×2.3	M4	6
SS2.5-36J18	12	37	-	-	6×2.8	M5	6
SS2.5-36J19	12	37	-	-	6×2.8	M5	6
SS2.5-36J20	12	37	-	-	6×2.8	M5	6
SS2.5-36J22	12	37	-	-	6×2.8	M5	6
SS2.5-36J25	12	37	-	-	8×3.3	M6	6
SS2.5-36J28	12	37	-	-	8×3.3	M6	6
SS2.5-36J30	12	37	-	-	8×3.3	M6	6
SS2.5-36J32	12	37	-	-	10×3.3	M8	6
SS2.5-36J35	12	37	-	-	10×3.3	M8	6
SS2.5-36J40	12	37	-	-	12×3.8	M8	6
SS2.5-38J20	12	37	-	-	6×2.8	M5	6
SS2.5-38J22	12	37	-	-	6×2.8	M5	6
SS2.5-38J25	12	37	-	-	8×3.3	M6	6
SS2.5-38J28	12	37	-	-	8×3.3	M6	6
SS2.5-38J30	12	37	-	-	8×3.3	M6	6
SS2.5-38J32	12	37	-	-	10×3.3	M8	6
SS2.5-38J35	12	37	-	-	10×3.3	M8	6
SS2.5-38J40	12	37	-	-	12×3.8	M8	6
SS2.5-40J20	12	37	-	-	6×2.8	M5	6
SS2.5-40J22	12	37	-	-	6×2.8	M5	6
SS2.5-40J25	12	37	-	-	8×3.3	M6	6
SS2.5-40J28	12	37	-	-	8×3.3	M6	6
SS2.5-40J30	12	37	-	-	8×3.3	M6	6
SS2.5-40J32	12	37	-	-	10×3.3	M8	6
SS2.5-40J35	12	37	-	-	10×3.3	M8	6
SS2.5-40J40	12	37	-	-	12×3.8	M8	6
SS2.5-42J20	12	37	-	-	6×2.8	M5	6
SS2.5-42J22	12	37	-	-	6×2.8	M5	6
SS2.5-42J25	12	37	-	-	8×3.3	M6	6
SS2.5-42J28	12	37	-	-	8×3.3	M6	6
SS2.5-42J30	12	37	-	-	8×3.3	M6	6
SS2.5-42J32	12	37	-	-	10×3.3	M8	6
SS2.5-42J35	12	37	-	-	10×3.3	M8	6
SS2.5-42J40	12	37	-	-	12×3.8	M8	6
SS2.5-44J20	12	37	-	-	6×2.8	M5	6
SS2.5-44J22	12	37	-	-	6×2.8	M5	6
SS2.5-44J25	12	37	-	-	8×3.3	M6	6
SS2.5-44J28	12	37	-	-	8×3.3	M6	6
SS2.5-44J30	12	37	-	-	8×3.3	M6	6
SS2.5-44J32	12	37	-	-	10×3.3	M8	6
SS2.5-44J35	12	37	-	-	10×3.3	M8	6
SS2.5-44J40	12	37	-	-	12×3.8	M8	6
SS2.5-45J20	12	37	-	-	6×2.8	M5	6
SS2.5-45J22	12	37	-	-	6×2.8	M5	6
SS2.5-45J25	12	37	-	-	8×3.3	M6	6
SS2.5-45J28	12	37	-	-	8×3.3	M6	6
SS2.5-45J30	12	37	-	-	8×3.3	M6	6
SS2.5-45J32	12	37	-	-	10×3.3	M8	6
SS2.5-45J35	12	37	-	-	10×3.3	M8	6
SS2.5-45J40	12	37	-	-	12×3.8	M8	6
SS2.5-46J20	12	37	-	-	6×2.8	M5	6
SS2.5-46J22	12	37	-	-	6×2.8	M5	6
SS2.5-46J25	12	37	-	-	8×3.3	M6	6
SS2.5-46J28	12	37	-	-	8×3.3	M6	6
SS2.5-46J30	12	37	-	-	8×3.3	M6	6
SS2.5-46J32	12	37	-	-	10×3.3	M8	6
SS2.5-46J35	12	37	-	-	10×3.3	M8	6
SS2.5-46J40	12	37	-	-	12×3.8	M8	6
SS2.5-48J20	12	37	-	-	6×2.8	M5	6
SS2.5-48J22	12	37	-	-	6×2.8	M5	6
SS2.5-48J25	12	37	-	-	8×3.3	M6	6
SS2.5-48J28	12	37	-	-	8×3.3	M6	6
SS2.5-48J30	12	37	-	-	8×3.3	M6	6
SS2.5-48J32	12	37	-	-	10×3.3	M8	6
SS2.5-48J35	12	37	-	-	10×3.3	M8	6
SS2.5-48J40	12	37	-	-	12×3.8	M8	6
SS2.5-50J20	12	37	-	-	6×2.8	M5	6
SS2.5-50J22	12	37	-	-	6×2.8	M5	6
SS2.5-50J25	12	37	-	-	8×3.3	M6	6
SS2.5-50J28	12	37	-	-	8×3.3	M6	6
SS2.5-50J30	12	37	-	-	8×3.3	M6	6
SS2.5-50J32	12	37	-	-	10×3.3	M8	6
SS2.5-50J35	12	37	-	-	10×3.3	M8	6
SS2.5-50J40	12	37	-	-	12×3.8	M8	6
SS2.5-52J20	12	37	-	-	6×2.8	M5	6
SS2.5-52J22	12	37	-	-	6×2.8	M5	6
SS2.5-52J25	12	37	-	-	8×3.3	M6	6
SS2.5-52J28	12	37	-	-	8×3.3	M6	6
SS2.5-52J30	12	37	-	-	8×3.3	M6	6
SS2.5-52J32	12	37	-	-	10×3.3	M8	6
SS2.5-52J35	12	37	-	-	10×3.3	M8	6
SS2.5-52J40	12	37	-	-	12×3.8	M8	6
SS2.5-54J20	12	37	-	-	6×2.8	M5	6
SS2.5-54J22	12	37	-	-	6×2.8	M5	6
SS2.5-54J25	12	37	-	-	8×3.3	M6	6
SS2.5-54J28	12	37	-	-	8×3.3	M6	6
SS2.5-54J30	12	37	-	-	8×3.3	M6	6
SS2.5-54J32	12	37	-	-	10×3.3	M8	6
SS2.5-54J35	12	37	-	-	10×3.3	M8	6
SS2.5-54J40	12	37	-	-	12×3.8	M8	6
SS2.5-55J20	12	37	-	-	6×2.8	M5	6
SS2.5-55J22	12	37	-	-	6×2.8	M5	6
SS2.5-55J25	12	37	-	-	8×3.3	M6	6
SS2.5-55J28	12	37	-	-	8×3.3	M6	6
SS2.5-55J30	12	37	-	-	8×3.3	M6	6
SS2.5-55J32	12	37	-	-	10×3.3	M8	6
SS2.5-55J35	12	37	-	-	10×3.3	M8	6
SS2.5-55J40	12	37	-	-	12×3.8	M8	6
SS2.5-56J20	12	37	-	-	6×2.8	M5	6
SS2.5-56J22	12	37	-	-	6×2.8	M5	6
SS2.5-56J25	12	37	-	-	8×3.3	M6	6
SS2.5-56J28	12	37	-	-	8×3.3	M6	6
SS2.5-56J30	12	37	-	-	8×3.3	M6	6
SS2.5-56J32	12	37	-	-	10×3.3	M8	6
SS2.5-56J35	12	37	-	-	10×3.3	M8	6
SS2.5-56J40	12	37	-	-	12×3.8	M8	6
SS2.5-58J20	12	37	-	-	6×2.8	M5	6
SS2.5-58J22	12	37	-	-	6×2.8	M5	6
SS2.5-58J25	12	37	-	-	8×3.3	M6	6
SS2.5-58J28	12	37	-	-	8×3.3	M6	6
SS2.5-58J30	12	37	-	-	8×3.3	M6	6
SS2.5-58J32	12	37	-	-	10×3.3	M8	6
SS2.5-58J35	12	37	-	-	10×3.3	M8	6
SS2.5-58J40	12	37	-	-	12×3.8	M8	6
SS2.5-60J25	12	37	10	127	8×3.3	M6	6
SS2.5-60J28	12	37	10	127	8×3.3	M6	6
SS2.5-60J30	12	37	10	127	8×3.3	M6	6
SS2.5-60J32	12	37	10	127	10×3.3	M8	6
SS2.5-60J35	12	37	10	127	10×3.3	M8	6
SS2.5-60J40	12	37	10	127	12×3.8	M8	6
SS2.5-62J25	12	37	15	130	8×3.3	M6	6
SS2.5-62J28	12	37	15	130	8×3.3	M6	6
SS2.5-62J30	12	37	15	130	8×3.3	M6	6
SS2.5-62J32	12	37	15	130	10×3.3	M8	6
SS2.5-62J35	12	37	15	130	10×3.3	M8	6
SS2.5-62J40	12	37	15	130	12×3.8	M8	6
SS2.5-64J25	12	37	15	131	8×3.3	M6	6
SS2.5-64J28	12	37	15	131	8×3.3	M6	6
SS2.5-64J30	12	37	15	131	8×3.3	M6	6
SS2.5-64J32	12	37	15	131	10×3.3	M8	6
SS2.5-64J35	12	37	15	131	10×3.3	M8	6
SS2.5-64J40	12	37	15	131	12×3.8	M8	6
SS2.5-65J25	12	37	15	134	8×3.3	M6	6
SS2.5-65J28	12	37	15	134	8×3.3	M6	6
SS2.5-65J30	12	37	15	134	8×3.3	M6	6
SS2.5-65J32	12	37	15	134	10×3.3	M8	6
SS2.5-65J35	12	37	15	134	10×3.3	M8	6
SS2.5-65J40	12	37	15	134	12×3.8	M8	6
SS2.5-66J25	12	37	15	140	8×3.3	M6	6
SS2.5-66J28	12	37	15	140	8×3.3	M6	6
SS2.5-66J30	12	37	15	140	8×3.3	M6	6
SS2.5-66J32	12	37	15	140	10×3.3	M8	6
SS2.5-66J35	12	37	15	140	10×3.3	M8	6
SS2.5-66J40	12	37	15	140	12×3.8	M8	6
SS2.5-68J25	12	37	15	140	8×3.3	M6	6
SS2.5-68J28	12	37	15	140	8×3.3	M6	6
SS2.5-68J30	12	37	15	140	8×3.3	M6	6
SS2.5-68J32	12	37	15	140	10×3.3	M8	6
SS2.5-68J35	12	37	15	140	10×3.3	M8	6
SS2.5-68J40	12	37	15	140	12×3.8	M8	6
SS2.5-70J25	12	37	15	146	8×3.3	M6	6
SS2.5-70J28	12	37	15	146	8×3.3	M6	6
SS2.5-70J30	12	37	15	146	8×3.3	M6	6
SS2.5-70J32	12	37	15	146	10×3.3	M8	6
SS2.5-70J35	12	37	15	146	10×3.3	M8	6
SS2.5-70J40	12	37	15	146	12×3.8	M8	6
SS2.5-72J25	12	37	15	151	8×3.3	M6	6
SS2.5-72J28	12	37	15	151	8×3.3	M6	6
SS2.5-72J30	12	37	15	151	8×3.3	M6	6
SS2.5-72J32	12	37	15	151	10×3.3	M8	6
SS2.5-72J35	12	37	15	151	10×3.3	M8	6
SS2.5-72J40	12	37	15	151	12×3.8	M8	6
SS2.5-75J25	12	37	15	159	8×3.3	M6	6
SS2.5-75J28	12	37	15	159	8×3.3	M6	6
SS2.5-75J30	12	37	15	159	8×3.3	M6	6
SS2.5-75J32	12	37	15	159	10×3.3	M8	6
SS2.5-75J35	12	37	15	159	10×3.3	M8	6
SS2.5-75J40	12	37	15	159	12×3.8	M8	6
SS2.5-76J25	12	37	15	160	8×3.3	M6	6
SS2.5-76J28	12	37	15	160	8×3.3	M6	6
SS2.5-76J30	12	37	15	160	8×3.3	M6	6
SS2.5-76J32	12	37	15	160	10×3.3	M8	6
SS2.5-76J35	12	37	15	160	10×3.3	M8	6
SS2.5-76J40	12	37	15	160	12×3.8	M8	6
SS2.5-80J25	12	37	10	177	8×3.3	M6	6
SS2.5-80J28	12	37	10	177	8×3.3	M6	6
SS2.5-80J30	12	37	10	177	8×3.3	M6	6
SS2.5-80J32	12	37	10	177	10×3.3	M8	6
SS2.5-80J35	12	37	10	177	10×3.3	M8	6
SS2.5-80J40	12	37	10	177	12×3.8	M8	6
SS2.5-90J30	12	37	10	202	8×3.3	M6	6
SS2.5-90J32	12	37	10	202	10×3.3	M8	6
SS2.5-90J35	12	37	10	202	10×3.3	M8	6
SS2.5-90J40	12	37	10	202	12×3.8	M8	6
SS2.5-100J30	12	37	10	227	8×3.3	M6	6
SS2.5-100J32	12	37	10	227	10×3.3	M8	6
SS2.5-100J35	12	37	10	227	10×3.3	M8	6
SS2.5-100J40	12	37	10	227	12×3.8	M8	6
SS2.5-120J30	12	37	10	277	8×3.3	M6	6
SS2.5-120J32	12	37	10	277	10×3.3	M8	6
SS2.5-120J35	12	37	10	277	10×3.3	M8	6
SS2.5-120J40	12	37	10	277	12×3.8	M8	6

형식	허용토크(N·m)	허용토크(N·m)	허용토크(kgf·m)	허용토크(kgf·m)	백래시 (mm)
형식	굽힘강도	치면강도	굽힘강도	치면강도	백래시 (mm)
SS2.5-12J12	31.8	1.77	3.24	0.18	0.14~0.28
SS2.5-13J12	40.9	2.14	4.17	0.22	0.14~0.28
SS2.5-14J12	51.5	2.53	5.25	0.26	0.14~0.28
SS2.5-14J14	51.5	2.53	5.25	0.26	0.14~0.28
SS2.5-15J15	57.7	2.96	5.89	0.3	0.14~0.28
SS2.5-15J16	57.7	2.96	5.89	0.3	0.14~0.28
SS2.5-16J15	64	3.43	6.52	0.35	0.14~0.28
SS2.5-16J16	64	3.43	6.52	0.35	0.14~0.28
SS2.5-16J17	64	3.43	6.52	0.35	0.14~0.28
SS2.5-16J18	64	3.43	6.52	0.35	0.14~0.28
SS2.5-17J15	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-17J16	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-17J17	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-17J18	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-17J19	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-17J20	70.3	3.93	7.17	0.4	0.14~0.28
SS2.5-18J15	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J16	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J17	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J18	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J19	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J20	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-18J22	76.7	4.47	7.82	0.46	0.14~0.28
SS2.5-19J15	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J16	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J17	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J18	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J19	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J20	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-19J22	83.2	5.05	8.49	0.51	0.14~0.28
SS2.5-20J15	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J16	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J17	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J18	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J19	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J20	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-20J22	89.8	5.66	9.16	0.58	0.14~0.28
SS2.5-21J15	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J16	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J17	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J18	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J19	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J20	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J22	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-21J25	96.4	6.3	9.83	0.64	0.16~0.34
SS2.5-22J15	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J16	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J17	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J18	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J19	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J20	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J22	103	6.99	10.5	0.71	0.16~0.34
SS2.5-22J25	103	6.99	10.5	0.71	0.16~0.34
SS2.5-23J15	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J16	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J17	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J18	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J19	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J20	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J22	110	7.71	11.2	0.79	0.16~0.34
SS2.5-23J25	110	7.71	11.2	0.79	0.16~0.34
SS2.5-24J15	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J16	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J17	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J18	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J19	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J20	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J22	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J25	117	8.47	11.9	0.86	0.16~0.34
SS2.5-24J28	117	8.47	11.9	0.86	0.16~0.34
SS2.5-25J15	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J16	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J17	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J18	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J19	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J20	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J22	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J25	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J28	124	9.26	12.6	0.94	0.16~0.34
SS2.5-25J30	124	9.26	12.6	0.94	0.16~0.34
SS2.5-26J15	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J16	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J17	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J18	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J19	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J20	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J22	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J25	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J28	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J30	130	10.1	13.3	1.03	0.16~0.34
SS2.5-26J32	130	10.1	13.3	1.03	0.16~0.34
SS2.5-27J15	137	10.9	14	1.11	0.16~0.34
SS2.5-27J16	137	10.9	14	1.11	0.16~0.34
SS2.5-27J17	137	10.9	14	1.11	0.16~0.34
SS2.5-27J18	137	10.9	14	1.11	0.16~0.34
SS2.5-27J19	137	10.9	14	1.11	0.16~0.34
SS2.5-27J20	137	10.9	14	1.11	0.16~0.34
SS2.5-27J22	137	10.9	14	1.11	0.16~0.34
SS2.5-27J25	137	10.9	14	1.11	0.16~0.34
SS2.5-27J28	137	10.9	14	1.11	0.16~0.34
SS2.5-27J30	137	10.9	14	1.11	0.16~0.34
SS2.5-27J32	137	10.9	14	1.11	0.16~0.34
SS2.5-27J35	137	10.9	14	1.11	0.16~0.34
SS2.5-28J15	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J16	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J17	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J18	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J19	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J20	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J22	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J25	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J28	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J30	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J32	144	11.7	14.7	1.2	0.16~0.34
SS2.5-28J35	144	11.7	14.7	1.2	0.16~0.34
SS2.5-29J15	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J16	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J17	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J18	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J19	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J20	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J22	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J25	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J28	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J30	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J32	151	12.6	15.4	1.29	0.16~0.34
SS2.5-29J35	151	12.6	15.4	1.29	0.16~0.34
SS2.5-30J15	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J16	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J17	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J18	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J19	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J20	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J22	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J25	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J28	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J30	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J32	159	13.6	16.2	1.39	0.16~0.34
SS2.5-30J35	159	13.6	16.2	1.39	0.16~0.34
SS2.5-32J15	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J16	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J17	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J18	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J19	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J20	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J22	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J25	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J28	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J30	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J32	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J35	173	15.6	17.6	1.59	0.16~0.34
SS2.5-32J40	173	15.6	17.6	1.59	0.16~0.34
SS2.5-34J15	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J16	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J17	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J18	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J19	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J20	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J22	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J25	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J28	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J30	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J32	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J35	187	17.7	19.1	1.8	0.16~0.34
SS2.5-34J40	187	17.7	19.1	1.8	0.16~0.34
SS2.5-35J15	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J16	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J17	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J18	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J19	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J20	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J22	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J25	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J28	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J30	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J32	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J35	194	18.8	19.8	1.92	0.16~0.34
SS2.5-35J40	194	18.8	19.8	1.92	0.16~0.34
SS2.5-36J15	201	20	20.5	2.04	0.16~0.34
SS2.5-36J16	201	20	20.5	2.04	0.16~0.34
SS2.5-36J17	201	20	20.5	2.04	0.16~0.34
SS2.5-36J18	201	20	20.5	2.04	0.16~0.34
SS2.5-36J19	201	20	20.5	2.04	0.16~0.34
SS2.5-36J20	201	20	20.5	2.04	0.16~0.34
SS2.5-36J22	201	20	20.5	2.04	0.16~0.34
SS2.5-36J25	201	20	20.5	2.04	0.16~0.34
SS2.5-36J28	201	20	20.5	2.04	0.16~0.34
SS2.5-36J30	201	20	20.5	2.04	0.16~0.34
SS2.5-36J32	201	20	20.5	2.04	0.16~0.34
SS2.5-36J35	201	20	20.5	2.04	0.16~0.34
SS2.5-36J40	201	20	20.5	2.04	0.16~0.34
SS2.5-38J20	216	22.4	22	2.28	0.16~0.34
SS2.5-38J22	216	22.4	22	2.28	0.16~0.34
SS2.5-38J25	216	22.4	22	2.28	0.16~0.34
SS2.5-38J28	216	22.4	22	2.28	0.16~0.34
SS2.5-38J30	216	22.4	22	2.28	0.16~0.34
SS2.5-38J32	216	22.4	22	2.28	0.16~0.34
SS2.5-38J35	216	22.4	22	2.28	0.16~0.34
SS2.5-38J40	216	22.4	22	2.28	0.16~0.34
SS2.5-40J20	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J22	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J25	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J28	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J30	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J32	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J35	230	24.9	23.5	2.54	0.16~0.34
SS2.5-40J40	230	24.9	23.5	2.54	0.16~0.34
SS2.5-42J20	245	27.6	25	2.82	0.18~0.40
SS2.5-42J22	245	27.6	25	2.82	0.18~0.40
SS2.5-42J25	245	27.6	25	2.82	0.18~0.40
SS2.5-42J28	245	27.6	25	2.82	0.18~0.40
SS2.5-42J30	245	27.6	25	2.82	0.18~0.40
SS2.5-42J32	245	27.6	25	2.82	0.18~0.40
SS2.5-42J35	245	27.6	25	2.82	0.18~0.40
SS2.5-42J40	245	27.6	25	2.82	0.18~0.40
SS2.5-44J20	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J22	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J25	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J28	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J30	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J32	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J35	260	30.5	26.5	3.11	0.18~0.40
SS2.5-44J40	260	30.5	26.5	3.11	0.18~0.40
SS2.5-45J20	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J22	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J25	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J28	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J30	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J32	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J35	267	31.9	27.2	3.26	0.18~0.40
SS2.5-45J40	267	31.9	27.2	3.26	0.18~0.40
SS2.5-46J20	274	33.5	28	3.41	0.18~0.40
SS2.5-46J22	274	33.5	28	3.41	0.18~0.40
SS2.5-46J25	274	33.5	28	3.41	0.18~0.40
SS2.5-46J28	274	33.5	28	3.41	0.18~0.40
SS2.5-46J30	274	33.5	28	3.41	0.18~0.40
SS2.5-46J32	274	33.5	28	3.41	0.18~0.40
SS2.5-46J35	274	33.5	28	3.41	0.18~0.40
SS2.5-46J40	274	33.5	28	3.41	0.18~0.40
SS2.5-48J20	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J22	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J25	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J28	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J30	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J32	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J35	289	36.7	29.5	3.74	0.18~0.40
SS2.5-48J40	289	36.7	29.5	3.74	0.18~0.40
SS2.5-50J20	304	40	31	4.08	0.18~0.40
SS2.5-50J22	304	40	31	4.08	0.18~0.40
SS2.5-50J25	304	40	31	4.08	0.18~0.40
SS2.5-50J28	304	40	31	4.08	0.18~0.40
SS2.5-50J30	304	40	31	4.08	0.18~0.40
SS2.5-50J32	304	40	31	4.08	0.18~0.40
SS2.5-50J35	304	40	31	4.08	0.18~0.40
SS2.5-50J40	304	40	31	4.08	0.18~0.40
SS2.5-52J20	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J22	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J25	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J28	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J30	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J32	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J35	319	43.5	32.5	4.44	0.18~0.40
SS2.5-52J40	319	43.5	32.5	4.44	0.18~0.40
SS2.5-54J20	334	47.2	34	4.81	0.18~0.40
SS2.5-54J22	334	47.2	34	4.81	0.18~0.40
SS2.5-54J25	334	47.2	34	4.81	0.18~0.40
SS2.5-54J28	334	47.2	34	4.81	0.18~0.40
SS2.5-54J30	334	47.2	34	4.81	0.18~0.40
SS2.5-54J32	334	47.2	34	4.81	0.18~0.40
SS2.5-54J35	334	47.2	34	4.81	0.18~0.40
SS2.5-54J40	334	47.2	34	4.81	0.18~0.40
SS2.5-55J20	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J22	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J25	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J28	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J30	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J32	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J35	341	49.1	34.8	5.01	0.18~0.40
SS2.5-55J40	341	49.1	34.8	5.01	0.18~0.40
SS2.5-56J20	349	51	35.6	5.2	0.18~0.40
SS2.5-56J22	349	51	35.6	5.2	0.18~0.40
SS2.5-56J25	349	51	35.6	5.2	0.18~0.40
SS2.5-56J28	349	51	35.6	5.2	0.18~0.40
SS2.5-56J30	349	51	35.6	5.2	0.18~0.40
SS2.5-56J32	349	51	35.6	5.2	0.18~0.40
SS2.5-56J35	349	51	35.6	5.2	0.18~0.40
SS2.5-56J40	349	51	35.6	5.2	0.18~0.40
SS2.5-58J20	364	55	37.1	5.61	0.18~0.40
SS2.5-58J22	364	55	37.1	5.61	0.18~0.40
SS2.5-58J25	364	55	37.1	5.61	0.18~0.40
SS2.5-58J28	364	55	37.1	5.61	0.18~0.40
SS2.5-58J30	364	55	37.1	5.61	0.18~0.40
SS2.5-58J32	364	55	37.1	5.61	0.18~0.40
SS2.5-58J35	364	55	37.1	5.61	0.18~0.40
SS2.5-58J40	364	55	37.1	5.61	0.18~0.40
SS2.5-60J25	379	59.1	38.6	6.03	0.18~0.40
SS2.5-60J28	379	59.1	38.6	6.03	0.18~0.40
SS2.5-60J30	379	59.1	38.6	6.03	0.18~0.40
SS2.5-60J32	379	59.1	38.6	6.03	0.18~0.40
SS2.5-60J35	379	59.1	38.6	6.03	0.18~0.40
SS2.5-60J40	379	59.1	38.6	6.03	0.18~0.40
SS2.5-62J25	394	63.4	40.1	6.46	0.18~0.40
SS2.5-62J28	394	63.4	40.1	6.46	0.18~0.40
SS2.5-62J30	394	63.4	40.1	6.46	0.18~0.40
SS2.5-62J32	394	63.4	40.1	6.46	0.18~0.40
SS2.5-62J35	394	63.4	40.1	6.46	0.18~0.40
SS2.5-62J40	394	63.4	40.1	6.46	0.18~0.40
SS2.5-64J25	409	67.8	41.7	6.92	0.18~0.40
SS2.5-64J28	409	67.8	41.7	6.92	0.18~0.40
SS2.5-64J30	409	67.8	41.7	6.92	0.18~0.40
SS2.5-64J32	409	67.8	41.7	6.92	0.18~0.40
SS2.5-64J35	409	67.8	41.7	6.92	0.18~0.40
SS2.5-64J40	409	67.8	41.7	6.92	0.18~0.40
SS2.5-65J25	416	70.1	42.4	7.15	0.18~0.40
SS2.5-65J28	416	70.1	42.4	7.15	0.18~0.40
SS2.5-65J30	416	70.1	42.4	7.15	0.18~0.40
SS2.5-65J32	416	70.1	42.4	7.15	0.18~0.40
SS2.5-65J35	416	70.1	42.4	7.15	0.18~0.40
SS2.5-65J40	416	70.1	42.4	7.15	0.18~0.40
SS2.5-66J25	424	72.4	43.2	7.39	0.18~0.40
SS2.5-66J28	424	72.4	43.2	7.39	0.18~0.40
SS2.5-66J30	424	72.4	43.2	7.39	0.18~0.40
SS2.5-66J32	424	72.4	43.2	7.39	0.18~0.40
SS2.5-66J35	424	72.4	43.2	7.39	0.18~0.40
SS2.5-66J40	424	72.4	43.2	7.39	0.18~0.40
SS2.5-68J25	439	77.2	44.7	7.87	0.18~0.40
SS2.5-68J28	439	77.2	44.7	7.87	0.18~0.40
SS2.5-68J30	439	77.2	44.7	7.87	0.18~0.40
SS2.5-68J32	439	77.2	44.7	7.87	0.18~0.40
SS2.5-68J35	439	77.2	44.7	7.87	0.18~0.40
SS2.5-68J40	439	77.2	44.7	7.87	0.18~0.40
SS2.5-70J25	454	82.1	46.3	8.37	0.18~0.40
SS2.5-70J28	454	82.1	46.3	8.37	0.18~0.40
SS2.5-70J30	454	82.1	46.3	8.37	0.18~0.40
SS2.5-70J32	454	82.1	46.3	8.37	0.18~0.40
SS2.5-70J35	454	82.1	46.3	8.37	0.18~0.40
SS2.5-70J40	454	82.1	46.3	8.37	0.18~0.40
SS2.5-72J25	469	87.1	47.8	8.89	0.18~0.40
SS2.5-72J28	469	87.1	47.8	8.89	0.18~0.40
SS2.5-72J30	469	87.1	47.8	8.89	0.18~0.40
SS2.5-72J32	469	87.1	47.8	8.89	0.18~0.40
SS2.5-72J35	469	87.1	47.8	8.89	0.18~0.40
SS2.5-72J40	469	87.1	47.8	8.89	0.18~0.40
SS2.5-75J25	492	95	50.1	9.69	0.18~0.40
SS2.5-75J28	492	95	50.1	9.69	0.18~0.40
SS2.5-75J30	492	95	50.1	9.69	0.18~0.40
SS2.5-75J32	492	95	50.1	9.69	0.18~0.40
SS2.5-75J35	492	95	50.1	9.69	0.18~0.40
SS2.5-75J40	492	95	50.1	9.69	0.18~0.40
SS2.5-76J25	499	97.7	50.9	9.97	0.18~0.40
SS2.5-76J28	499	97.7	50.9	9.97	0.18~0.40
SS2.5-76J30	499	97.7	50.9	9.97	0.18~0.40
SS2.5-76J32	499	97.7	50.9	9.97	0.18~0.40
SS2.5-76J35	499	97.7	50.9	9.97	0.18~0.40
SS2.5-76J40	499	97.7	50.9	9.97	0.18~0.40
SS2.5-80J25	441	90.9	45	9.27	0.18~0.40
SS2.5-80J28	441	90.9	45	9.27	0.18~0.40
SS2.5-80J30	441	90.9	45	9.27	0.18~0.40
SS2.5-80J32	441	90.9	45	9.27	0.18~0.40
SS2.5-80J35	441	90.9	45	9.27	0.18~0.40
SS2.5-80J40	441	90.9	45	9.27	0.18~0.40
SS2.5-90J30	505	117	51.5	12	0.22~0.48
SS2.5-90J32	505	117	51.5	12	0.22~0.48
SS2.5-90J35	505	117	51.5	12	0.22~0.48
SS2.5-90J40	505	117	51.5	12	0.22~0.48
SS2.5-100J30	569	147	58	15	0.22~0.48
SS2.5-100J32	569	147	58	15	0.22~0.48
SS2.5-100J35	569	147	58	15	0.22~0.48
SS2.5-100J40	569	147	58	15	0.22~0.48
SS2.5-120J30	696	218	71	22.2	0.22~0.48
SS2.5-120J32	696	218	71	22.2	0.22~0.48
SS2.5-120J35	696	218	71	22.2	0.22~0.48
SS2.5-120J40	696	218	71	22.2	0.22~0.48

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량 (kg)	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량 (kg)	견적의뢰 및 주문
SS2.5-12J12	P	31,460	-	-	-	-	견적의뢰 / 주문
SS2.5-13J12	P	42,680	-	-	-	-	견적의뢰 / 주문
SS2.5-14J12	P	43,780	-	-	-	-	견적의뢰 / 주문
SS2.5-14J14	P	77,440	-	-	-	-	견적의뢰 / 주문
SS2.5-15J15	P	44,440	-	-	-	-	견적의뢰 / 주문
SS2.5-15J16	P	77,880	-	-	-	-	견적의뢰 / 주문
SS2.5-16J15	P	46,640	-	-	-	-	견적의뢰 / 주문
SS2.5-16J16	P	80,080	-	-	-	-	견적의뢰 / 주문
SS2.5-16J17	P	80,080	-	-	-	-	견적의뢰 / 주문
SS2.5-16J18	P	80,080	-	-	-	-	견적의뢰 / 주문
SS2.5-17J15	P	47,740	-	-	-	-	견적의뢰 / 주문
SS2.5-17J16	P	81,400	-	-	-	-	견적의뢰 / 주문
SS2.5-17J17	P	81,400	-	-	-	-	견적의뢰 / 주문
SS2.5-17J18	P	81,400	-	-	-	-	견적의뢰 / 주문
SS2.5-17J19	P	81,400	-	-	-	-	견적의뢰 / 주문
SS2.5-17J20	P	81,400	-	-	-	-	견적의뢰 / 주문
SS2.5-18J15	P	50,820	-	-	-	-	견적의뢰 / 주문
SS2.5-18J16	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-18J17	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-18J18	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-18J19	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-18J20	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-18J22	P	87,780	-	-	-	-	견적의뢰 / 주문
SS2.5-19J15	P	51,920	-	-	-	-	견적의뢰 / 주문
SS2.5-19J16	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-19J17	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-19J18	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-19J19	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-19J20	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-19J22	P	89,100	-	-	-	-	견적의뢰 / 주문
SS2.5-20J15	P	56,100	-	-	-	-	견적의뢰 / 주문
SS2.5-20J16	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-20J17	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-20J18	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-20J19	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-20J20	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-20J22	P	93,060	-	-	-	-	견적의뢰 / 주문
SS2.5-21J15	P	57,420	-	-	-	1	견적의뢰 / 주문
SS2.5-21J16	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J17	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J18	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J19	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J20	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J22	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-21J25	P	94,380	-	-	-	-	견적의뢰 / 주문
SS2.5-22J15	P	71,060	-	-	-	1	견적의뢰 / 주문
SS2.5-22J16	P	97,460	-	-	-	1	견적의뢰 / 주문
SS2.5-22J17	P	97,460	-	-	-	1	견적의뢰 / 주문
SS2.5-22J18	P	97,460	-	-	-	1	견적의뢰 / 주문
SS2.5-22J19	P	97,460	-	-	-	1	견적의뢰 / 주문
SS2.5-22J20	P	97,460	-	-	-	1	견적의뢰 / 주문
SS2.5-22J22	P	97,460	-	-	-	-	견적의뢰 / 주문
SS2.5-22J25	P	97,460	-	-	-	-	견적의뢰 / 주문
SS2.5-23J15	P	72,600	-	-	-	1	견적의뢰 / 주문
SS2.5-23J16	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J17	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J18	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J19	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J20	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J22	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-23J25	P	106,040	-	-	-	1	견적의뢰 / 주문
SS2.5-24J15	P	74,140	-	-	-	1	견적의뢰 / 주문
SS2.5-24J16	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J17	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J18	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J19	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J20	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J22	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J25	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-24J28	P	107,800	-	-	-	1	견적의뢰 / 주문
SS2.5-25J15	P	75,020	-	-	-	1	견적의뢰 / 주문
SS2.5-25J16	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J17	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J18	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J19	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J20	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J22	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J25	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J28	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-25J30	P	108,460	-	-	-	1	견적의뢰 / 주문
SS2.5-26J15	P	77,660	-	-	-	1	견적의뢰 / 주문
SS2.5-26J16	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J17	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J18	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J19	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J20	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J22	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J25	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J28	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J30	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-26J32	P	111,100	-	-	-	1	견적의뢰 / 주문
SS2.5-27J15	P	79,860	-	-	-	1	견적의뢰 / 주문
SS2.5-27J16	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J17	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J18	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J19	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J20	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J22	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J25	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J28	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J30	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J32	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-27J35	P	116,600	-	-	-	1	견적의뢰 / 주문
SS2.5-28J15	P	82,940	-	-	-	1	견적의뢰 / 주문
SS2.5-28J16	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J17	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J18	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J19	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J20	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J22	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J25	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J28	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J30	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J32	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-28J35	P	119,900	-	-	-	1	견적의뢰 / 주문
SS2.5-29J15	P	84,260	-	-	-	1	견적의뢰 / 주문
SS2.5-29J16	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J17	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J18	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J19	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J20	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J22	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J25	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J28	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J30	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J32	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-29J35	P	121,000	-	-	-	1	견적의뢰 / 주문
SS2.5-30J15	P	87,340	-	-	-	1	견적의뢰 / 주문
SS2.5-30J16	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J17	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J18	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J19	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J20	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J22	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J25	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J28	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J30	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J32	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-30J35	P	124,300	-	-	-	1	견적의뢰 / 주문
SS2.5-32J15	P	93,280	-	-	-	1	견적의뢰 / 주문
SS2.5-32J16	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J17	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J18	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J19	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J20	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J22	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J25	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J28	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J30	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J32	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J35	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-32J40	P	129,800	-	-	-	1	견적의뢰 / 주문
SS2.5-34J15	P	98,340	-	-	-	1	견적의뢰 / 주문
SS2.5-34J16	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J17	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J18	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J19	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J20	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J22	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J25	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J28	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J30	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J32	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J35	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-34J40	P	135,300	-	-	-	1	견적의뢰 / 주문
SS2.5-35J15	P	99,000	-	-	-	1	견적의뢰 / 주문
SS2.5-35J16	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J17	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J18	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J19	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J20	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J22	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J25	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J28	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J30	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J32	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J35	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-35J40	P	136,400	-	-	-	1	견적의뢰 / 주문
SS2.5-36J15	P	102,080	-	-	-	2	견적의뢰 / 주문
SS2.5-36J16	P	138,600	-	-	-	2	견적의뢰 / 주문
SS2.5-36J17	P	138,600	-	-	-	2	견적의뢰 / 주문
SS2.5-36J18	P	138,600	-	-	-	2	견적의뢰 / 주문
SS2.5-36J19	P	138,600	-	-	-	2	견적의뢰 / 주문
SS2.5-36J20	P	138,600	-	-	-	2	견적의뢰 / 주문
SS2.5-36J22	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J25	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J28	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J30	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J32	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J35	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-36J40	P	138,600	-	-	-	1	견적의뢰 / 주문
SS2.5-38J20	P	111,100	-	-	-	2	견적의뢰 / 주문
SS2.5-38J22	P	148,500	-	-	-	2	견적의뢰 / 주문
SS2.5-38J25	P	148,500	-	-	-	2	견적의뢰 / 주문
SS2.5-38J28	P	148,500	-	-	-	2	견적의뢰 / 주문
SS2.5-38J30	P	148,500	-	-	-	2	견적의뢰 / 주문
SS2.5-38J32	P	148,500	-	-	-	2	견적의뢰 / 주문
SS2.5-38J35	P	148,500	-	-	-	1	견적의뢰 / 주문
SS2.5-38J40	P	148,500	-	-	-	1	견적의뢰 / 주문
SS2.5-40J20	P	114,400	-	-	-	2	견적의뢰 / 주문
SS2.5-40J22	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J25	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J28	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J30	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J32	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J35	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-40J40	P	151,800	-	-	-	2	견적의뢰 / 주문
SS2.5-42J20	P	119,900	-	-	-	2	견적의뢰 / 주문
SS2.5-42J22	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J25	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J28	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J30	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J32	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J35	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-42J40	P	157,300	-	-	-	2	견적의뢰 / 주문
SS2.5-44J20	P	121,000	-	-	-	2	견적의뢰 / 주문
SS2.5-44J22	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J25	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J28	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J30	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J32	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J35	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-44J40	P	158,400	-	-	-	2	견적의뢰 / 주문
SS2.5-45J20	P	126,500	-	-	-	2	견적의뢰 / 주문
SS2.5-45J22	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J25	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J28	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J30	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J32	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J35	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-45J40	P	162,800	-	-	-	2	견적의뢰 / 주문
SS2.5-46J20	P	134,200	-	-	-	2	견적의뢰 / 주문
SS2.5-46J22	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J25	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J28	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J30	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J32	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J35	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-46J40	P	171,600	-	-	-	2	견적의뢰 / 주문
SS2.5-48J20	P	136,400	-	-	-	2	견적의뢰 / 주문
SS2.5-48J22	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J25	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J28	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J30	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J32	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J35	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-48J40	P	172,700	-	-	-	2	견적의뢰 / 주문
SS2.5-50J20	P	144,100	-	-	-	3	견적의뢰 / 주문
SS2.5-50J22	P	181,500	-	-	-	3	견적의뢰 / 주문
SS2.5-50J25	P	181,500	-	-	-	3	견적의뢰 / 주문
SS2.5-50J28	P	181,500	-	-	-	3	견적의뢰 / 주문
SS2.5-50J30	P	181,500	-	-	-	3	견적의뢰 / 주문
SS2.5-50J32	P	181,500	-	-	-	3	견적의뢰 / 주문
SS2.5-50J35	P	181,500	-	-	-	2	견적의뢰 / 주문
SS2.5-50J40	P	181,500	-	-	-	2	견적의뢰 / 주문
SS2.5-52J20	P	146,300	-	-	-	3	견적의뢰 / 주문
SS2.5-52J22	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J25	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J28	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J30	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J32	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J35	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-52J40	P	183,700	-	-	-	3	견적의뢰 / 주문
SS2.5-54J20	P	155,100	-	-	-	3	견적의뢰 / 주문
SS2.5-54J22	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J25	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J28	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J30	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J32	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J35	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-54J40	P	192,500	-	-	-	3	견적의뢰 / 주문
SS2.5-55J20	P	157,300	-	-	-	3	견적의뢰 / 주문
SS2.5-55J22	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J25	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J28	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J30	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J32	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J35	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-55J40	P	194,700	-	-	-	3	견적의뢰 / 주문
SS2.5-56J20	P	159,500	-	-	-	3	견적의뢰 / 주문
SS2.5-56J22	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J25	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J28	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J30	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J32	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J35	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-56J40	P	195,800	-	-	-	3	견적의뢰 / 주문
SS2.5-58J20	P	161,700	-	-	-	4	견적의뢰 / 주문
SS2.5-58J22	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J25	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J28	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J30	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J32	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J35	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-58J40	P	198,000	-	-	-	3	견적의뢰 / 주문
SS2.5-60J25	P	170,500	-	-	-	3	견적의뢰 / 주문
SS2.5-60J28	P	207,900	-	-	-	3	견적의뢰 / 주문
SS2.5-60J30	P	207,900	-	-	-	3	견적의뢰 / 주문
SS2.5-60J32	P	207,900	-	-	-	3	견적의뢰 / 주문
SS2.5-60J35	P	207,900	-	-	-	3	견적의뢰 / 주문
SS2.5-60J40	P	207,900	-	-	-	3	견적의뢰 / 주문
SS2.5-62J25	P	193,600	-	-	-	4	견적의뢰 / 주문
SS2.5-62J28	P	229,900	-	-	-	3	견적의뢰 / 주문
SS2.5-62J30	P	229,900	-	-	-	3	견적의뢰 / 주문
SS2.5-62J32	P	229,900	-	-	-	3	견적의뢰 / 주문
SS2.5-62J35	P	229,900	-	-	-	3	견적의뢰 / 주문
SS2.5-62J40	P	229,900	-	-	-	3	견적의뢰 / 주문
SS2.5-64J25	P	196,900	-	-	-	4	견적의뢰 / 주문
SS2.5-64J28	P	234,300	-	-	-	4	견적의뢰 / 주문
SS2.5-64J30	P	234,300	-	-	-	4	견적의뢰 / 주문
SS2.5-64J32	P	234,300	-	-	-	4	견적의뢰 / 주문
SS2.5-64J35	P	234,300	-	-	-	4	견적의뢰 / 주문
SS2.5-64J40	P	234,300	-	-	-	4	견적의뢰 / 주문
SS2.5-65J25	P	205,700	-	-	-	4	견적의뢰 / 주문
SS2.5-65J28	P	243,100	-	-	-	4	견적의뢰 / 주문
SS2.5-65J30	P	243,100	-	-	-	4	견적의뢰 / 주문
SS2.5-65J32	P	243,100	-	-	-	4	견적의뢰 / 주문
SS2.5-65J35	P	243,100	-	-	-	4	견적의뢰 / 주문
SS2.5-65J40	P	243,100	-	-	-	4	견적의뢰 / 주문
SS2.5-66J25	P	211,200	-	-	-	4	견적의뢰 / 주문
SS2.5-66J28	P	247,500	-	-	-	4	견적의뢰 / 주문
SS2.5-66J30	P	247,500	-	-	-	4	견적의뢰 / 주문
SS2.5-66J32	P	247,500	-	-	-	4	견적의뢰 / 주문
SS2.5-66J35	P	247,500	-	-	-	4	견적의뢰 / 주문
SS2.5-66J40	P	247,500	-	-	-	4	견적의뢰 / 주문
SS2.5-68J25	P	212,300	-	-	-	4	견적의뢰 / 주문
SS2.5-68J28	P	249,700	-	-	-	4	견적의뢰 / 주문
SS2.5-68J30	P	249,700	-	-	-	4	견적의뢰 / 주문
SS2.5-68J32	P	249,700	-	-	-	4	견적의뢰 / 주문
SS2.5-68J35	P	249,700	-	-	-	4	견적의뢰 / 주문
SS2.5-68J40	P	249,700	-	-	-	4	견적의뢰 / 주문
SS2.5-70J25	P	229,900	-	-	-	4	견적의뢰 / 주문
SS2.5-70J28	P	267,300	-	-	-	4	견적의뢰 / 주문
SS2.5-70J30	P	267,300	-	-	-	4	견적의뢰 / 주문
SS2.5-70J32	P	267,300	-	-	-	4	견적의뢰 / 주문
SS2.5-70J35	P	267,300	-	-	-	4	견적의뢰 / 주문
SS2.5-70J40	P	267,300	-	-	-	4	견적의뢰 / 주문
SS2.5-72J25	P	232,100	-	-	-	4	견적의뢰 / 주문
SS2.5-72J28	P	269,500	-	-	-	4	견적의뢰 / 주문
SS2.5-72J30	P	269,500	-	-	-	4	견적의뢰 / 주문
SS2.5-72J32	P	269,500	-	-	-	4	견적의뢰 / 주문
SS2.5-72J35	P	269,500	-	-	-	4	견적의뢰 / 주문
SS2.5-72J40	P	269,500	-	-	-	4	견적의뢰 / 주문
SS2.5-75J25	P	253,000	-	-	-	5	견적의뢰 / 주문
SS2.5-75J28	P	290,400	-	-	-	5	견적의뢰 / 주문
SS2.5-75J30	P	290,400	-	-	-	5	견적의뢰 / 주문
SS2.5-75J32	P	290,400	-	-	-	5	견적의뢰 / 주문
SS2.5-75J35	P	290,400	-	-	-	5	견적의뢰 / 주문
SS2.5-75J40	P	290,400	-	-	-	5	견적의뢰 / 주문
SS2.5-76J25	P	257,400	-	-	-	5	견적의뢰 / 주문
SS2.5-76J28	P	294,800	-	-	-	5	견적의뢰 / 주문
SS2.5-76J30	P	294,800	-	-	-	5	견적의뢰 / 주문
SS2.5-76J32	P	294,800	-	-	-	5	견적의뢰 / 주문
SS2.5-76J35	P	294,800	-	-	-	5	견적의뢰 / 주문
SS2.5-76J40	P	294,800	-	-	-	5	견적의뢰 / 주문
SS2.5-80J25	P	264,000	-	-	-	4	견적의뢰 / 주문
SS2.5-80J28	P	301,400	-	-	-	4	견적의뢰 / 주문
SS2.5-80J30	P	301,400	-	-	-	4	견적의뢰 / 주문
SS2.5-80J32	P	301,400	-	-	-	4	견적의뢰 / 주문
SS2.5-80J35	P	301,400	-	-	-	4	견적의뢰 / 주문
SS2.5-80J40	P	301,400	-	-	-	4	견적의뢰 / 주문
SS2.5-90J30	P	353,100	-	-	-	6	견적의뢰 / 주문
SS2.5-90J32	P	394,900	-	-	-	6	견적의뢰 / 주문
SS2.5-90J35	P	394,900	-	-	-	6	견적의뢰 / 주문
SS2.5-90J40	P	394,900	-	-	-	5	견적의뢰 / 주문
SS2.5-100J30	P	398,200	-	-	-	7	견적의뢰 / 주문
SS2.5-100J32	P	437,800	-	-	-	7	견적의뢰 / 주문
SS2.5-100J35	P	437,800	-	-	-	7	견적의뢰 / 주문
SS2.5-100J40	P	437,800	-	-	-	7	견적의뢰 / 주문
SS2.5-120J30	P	550,000	-	-	-	9	견적의뢰 / 주문
SS2.5-120J32	P	609,400	-	-	-	9	견적의뢰 / 주문
SS2.5-120J35	P	609,400	-	-	-	9	견적의뢰 / 주문
SS2.5-120J40	P	609,400	-	-	-	9	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
