웜휠
CG 웜휠
코하라치차공업(주) ( KHK )
공통사양
정도등급KHK W 002 4급
치면기준단면치직각
치형보통이
치직각압력각모듈 1 · 1.5 · 2.5:20°
모듈 2 · 3~6:14°30´
재료FC200
열처리-
치면경도-
캐드자료
  • 카탈로그
  • 제품설명
    ●모듈 및 잇수를 풍부하게 갖춘 저렴한 가격의 범용성이 있는 일반 보급형 웜휠입니다.



    관련이미지
    상세사양
    90건 중 1~90건 표시
    형식감속비치직각모듈
    m
    잇수상대줄수비틀림각비틀림방향형상내경
    AH7
    보스경
    B
    형식감속비치직각모듈
    m
    잇수상대줄수비틀림각비틀림방향형상내경
    AH7
    보스경
    B
    CG1-60R16016013°35′RHB1030
    CG1-80R18018013°35′RHB1035
    CG1-100R1100110013°35′RH21040
    CG1-120R1120112013°35′RH21040
    CG1.5-30R1301.53013°26′RH11030
    CG1.5-40R1401.54013°26′RH11230
    CG1.5-50R1501.55013°26′RHB1240
    CG1.5-60R1601.56013°26′RHB1240
    CG1.5-80R1801.58013°26′RH21550
    CG1.5-100R11001.510013°26′RH21550
    CG2-20R12022013°42′RH11233
    CG2-20R21022027°25′RH11233
    CG2-30R13023013°42′RH11240
    CG2-30R21523027°25′RH11240
    CG2-40R14024013°42′RH11245
    CG2-50R15025013°42′RHB1248
    CG2-50R22525027°25′RHB1248
    CG2-60R16026013°42′RHB1260
    CG2-20L12022013°42′LH11233
    CG2-20L21022027°25′LH11233
    CG2-30L13023013°42′LH11240
    CG2-30L21523027°25′LH11240
    CG2-40L14024013°42′LH11245
    CG2-50L15025013°42′LHB1248
    CG2-50L22525027°25′LHB1248
    CG2-60L16026013°42′LHB1260
    CG2.5-20R1202.52013°52′RH11235
    CG2.5-20R2102.52027°46′RH11235
    CG2.5-30R1302.53013°52′RHB1240
    CG2.5-30R2152.53027°46′RHB1240
    CG2.5-40R1402.54013°52′RHB1545
    CG2.5-50R1502.55013°52′RHB1550
    CG2.5-50R2252.55027°46′RHB1550
    CG2.5-60R1602.56013°52′RHB1555
    CG2.5-20L1202.52013°52′LH11235
    CG2.5-20L2102.52027°46′LH11235
    CG2.5-30L1302.53013°52′LHB1240
    CG2.5-30L2152.53027°46′LHB1240
    CG2.5-40L1402.54013°52′LHB1545
    CG2.5-50L1502.55013°52′LHB1550
    CG2.5-50L2252.55027°46′LHB1550
    CG2.5-60L1602.56013°52′LHB1555
    CG3-20R12032013°55′RH12050
    CG3-20R21032027°50′RH12050
    CG3-30R13033013°55′RH12055
    CG3-30R21533027°50′RH12055
    CG3-40R14034013°55′RHB2055
    CG3-50R15035013°55′RHB2063
    CG3-50R22535027°50′RHB2063
    CG3-60R16036013°55′RHB2070
    CG3-20L12032013°55′LH12050
    CG3-20L21032027°50′LH12050
    CG3-30L13033013°55′LH12055
    CG3-30L21533027°50′LH12055
    CG3-40L14034013°55′LHB2055
    CG3-50L15035013°55′LHB2063
    CG3-50L22535027°50′LHB2063
    CG3-60L16036013°55′LHB2070
    CG4-20R12042013°42′RH12060
    CG4-20R21042027°25′RH12060
    CG4-30R13043013°42′RHB2060
    CG4-30R21543027°25′RHB2060
    CG4-40R14044013°42′RHB2070
    CG4-50R15045013°42′RH22070
    CG4-50R22545027°25′RH22070
    CG4-60R16046013°42′RH22080
    CG4-20L12042013°42′LH12060
    CG4-20L21042027°25′LH12060
    CG4-30L13043013°42′LHB2060
    CG4-30L21543027°25′LHB2060
    CG4-40L14044013°42′LHB2070
    CG4-50L15045013°42′LH22070
    CG4-50L22545027°25′LH22070
    CG4-60L16046013°42′LH22080
    CG5-20R12052014°06′RH12275
    CG5-20R21052028°13′RH12275
    CG5-30R13053014°06′RHB2275
    CG5-30R21553028°13′RHB2275
    CG5-40R14054014°06′RH22290
    CG5-50R15055014°06′RH22290
    CG5-50R22555028°13′RH22290
    CG5-60R16056014°06′RH222100
    CG6-20R12062014°18′RH125100
    CG6-20R21062028°38′RH125100
    CG6-30R13063014°18′RHB25100
    CG6-30R21563028°38′RHB25100
    CG6-40R14064014°18′RH225100
    CG6-50R15065014°18′RH225100
    CG6-50R22565028°38′RH225100
    CG6-60R16066014°18′RH225120

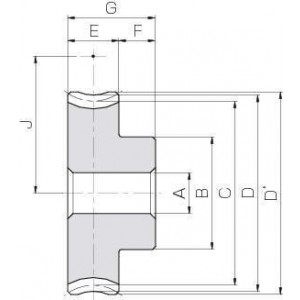

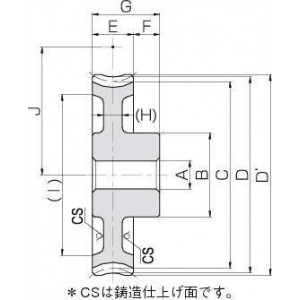

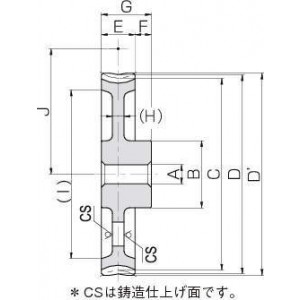

    형식피치원직경
    C
    목직경
    D
    이끝원직경
    D'
    치폭
    E
    보스길이F전장
    G
    웨브두께
    (H)
    림직경
    (I)
    조립거리
    J
    형식피치원직경
    C
    목직경
    D
    이끝원직경
    D'
    치폭
    E
    보스길이F전장
    G
    웨브두께
    (H)
    림직경
    (I)
    조립거리
    J
    CG1-60R160.12626310102065138
    CG1-80R180.16828310102067048
    CG1-100R1100.210210310102069158
    CG1-120R1120.24122123101020611168
    CG1.5-30R145.084849.5121022--35
    CG1.5-40R160.116364.5121022--42.5
    CG1.5-50R175.137879.514102466250
    CG1.5-60R190.169394.514102447957.5
    CG1.5-80R1120.22123124.5141024911272.5
    CG1.5-100R1150.27153154.5141024713887.5
    CG2-20R140.084446221335--35.5
    CG2-20R240.344446221335--35.5
    CG2-30R160.136466221335--45.5
    CG2-30R260.516466221335--45.5
    CG2-40R180.178486221335--55.5
    CG2-50R1100.2110410622133578865.5
    CG2-50R2100.8410410622133578865.5
    CG2-60R1120.25124126221335710875.5
    CG2-20L140.084446221335--35.5
    CG2-20L240.344446221335--35.5
    CG2-30L160.136466221335--45.5
    CG2-30L260.516466221335--45.5
    CG2-40L180.178486221335--55.5
    CG2-50L1100.2110410622133578865.5
    CG2-50L2100.8410410622133578865.5
    CG2-60L1120.25124126221335710875.5
    CG2.5-20R150.115557.5221436--43.5
    CG2.5-20R250.465557.5221436--43.5
    CG2.5-30R175.178082.5221436106056
    CG2.5-30R275.688082.5221436106056
    CG2.5-40R1100.23105107.522143698668.5
    CG2.5-50R1125.29130132.5221436911081
    CG2.5-50R2126.16130132.5221436911081
    CG2.5-60R1150.34155157.5221436913693.5
    CG2.5-20L150.115557.5221436--43.5
    CG2.5-20L250.465557.5221436--43.5
    CG2.5-30L175.178082.5221436106056
    CG2.5-30L275.688082.5221436106056
    CG2.5-40L1100.23105107.522143698668.5
    CG2.5-50L1125.29130132.5221436911081
    CG2.5-50L2126.16130132.5221436911081
    CG2.5-60L1150.34155157.5221436913693.5
    CG3-20R160.146669281543--52
    CG3-20R260.576669281543--52
    CG3-30R190.219699281543--67
    CG3-30R290.859699281543--67
    CG3-40R1120.28126129301545910782
    CG3-50R1150.35156159301545913897
    CG3-50R2151.41156159301545913897
    CG3-60R1180.421861893015459166112
    CG3-20L160.146669281543--52
    CG3-20L260.576669281543--52
    CG3-30L190.219699281543--67
    CG3-30L290.859699281543--67
    CG3-40L1120.28126129301545910782
    CG3-50L1150.35156159301545913897
    CG3-50L2151.41156159301545913897
    CG3-60L1180.421861893015459166112
    CG4-20R180.178890351752--71
    CG4-20R280.678890351752--71
    CG4-30R1120.25128130351752129691
    CG4-30R2121.01128130351752129691
    CG4-40R1160.3316817135175211136111
    CG4-50R1200.4220821135175212176131
    CG4-50R2201.6920821135175212176131
    CG4-60R1240.524825135175212218151
    CG4-20L180.178890351752--71
    CG4-20L280.678890351752--71
    CG4-30L1120.25128130351752129691
    CG4-30L2121.01128130351752129691
    CG4-40L1160.3316817135175211136111
    CG4-50L1200.4220821135175212176131
    CG4-50L2201.6920821135175212176131
    CG4-60L1240.524825135175212218151
    CG5-20R1100.26110113452065--85
    CG5-20R2101.04110113452065--85
    CG5-30R1150.3816016345206513127110
    CG5-30R2151.5616016345206513127110
    CG5-40R1200.5121021345206516172135
    CG5-50R1250.6126026345206516223160
    CG5-50R2252.5926026345206516223160
    CG5-60R1300.7731031345206513276185
    CG6-20R1120.34132136522072--100
    CG6-20R2121.38132136522072--100
    CG6-30R1180.5119219652207215155130
    CG6-30R2182.0619219652207215155130
    CG6-40R1240.6825225652207215213160
    CG6-50R1300.8531231652207216275190
    CG6-50R2303.4431231652207216275190
    CG6-60R1361.0237237652207217336220
    형식치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)백래시
    (mm)
    형식30rpm시100rpm시300rpm시600rpm시900rpm시1200rpm시백래시
    (mm)
    CG1-60R18.697.396.145.244.784.390.06~0.24
    CG1-80R114.712.610.59.118.37.720.06~0.24
    CG1-100R121.9191613.912.711.90.06~0.24
    CG1-120R130.526.722.519.61816.70.06~0.24
    CG1.5-30R16.045.084.033.43.022.730.08~0.26
    CG1.5-40R110.38.717.015.985.314.830.08~0.26
    CG1.5-50R118.215.412.510.79.598.740.08~0.26
    CG1.5-60R125.521.617.615.113.712.40.08~0.26
    CG1.5-80R143.136.830.126.323.821.90.08~0.26
    CG1.5-100R164.455.645.840.136.433.60.08~0.26
    CG2-20R17.386.154.83.953.473.150.10~0.28
    CG2-20R27.464.513.693.192.880.10~0.28
    CG2-30R115.613.110.48.747.76.960.10~0.28
    CG2-30R215.713.19.968.157.186.450.10~0.28
    CG2-40R126.722.518.115.413.5512.30.10~0.28
    CG2-50R140.334.127.623.62119.10.10~0.28
    CG2-50R240.73426.922.419.617.80.10~0.28
    CG2-60R156.447.938.933.329.927.20.10~0.28
    CG2-20L17.386.154.83.953.473.150.10~0.28
    CG2-20L27.464.513.693.192.880.10~0.28
    CG2-30L115.613.110.48.747.76.960.10~0.28
    CG2-30L215.713.19.968.157.186.450.10~0.28
    CG2-40L126.722.518.115.413.5512.30.10~0.28
    CG2-50L140.334.127.623.62119.10.10~0.28
    CG2-50L240.73426.922.419.617.80.10~0.28
    CG2-60L156.447.938.933.329.927.20.10~0.28
    CG2.5-20R112.910.68.36.835.975.440.13~0.31
    CG2.5-20R212.910.47.786.365.494.960.13~0.31
    CG2.5-30R127.322.81815.113.2120.13~0.31
    CG2.5-30R227.522.517.214.112.311.10.13~0.31
    CG2.5-40R146.73931.326.523.321.20.13~0.31
    CG2.5-50R170.65947.840.736.1330.13~0.31
    CG2.5-50R271.158.646.438.633.630.70.13~0.31
    CG2.5-60R198.882.967.357.651.5470.13~0.31
    CG2.5-20L112.910.68.36.835.975.440.13~0.31
    CG2.5-20L212.910.47.786.365.494.960.13~0.31
    CG2.5-30L127.322.81815.113.2120.13~0.31
    CG2.5-30L227.522.517.214.112.311.10.13~0.31
    CG2.5-40L146.73931.326.523.321.20.13~0.31
    CG2.5-50L170.65947.840.736.1330.13~0.31
    CG2.5-50L271.158.646.438.633.630.70.13~0.31
    CG2.5-60L198.882.967.357.651.5470.13~0.31
    CG3-20R122.118.114.111.510-0.15~0.33
    CG3-20R222.217.713.310.79.24-0.15~0.33
    CG3-30R146.638.730.625.422.2-0.15~0.33
    CG3-30R247.238.529.323.720.8-0.15~0.33
    CG3-40R179.866.353.244.639.1-0.15~0.33
    CG3-50R112110081.168.460.5-0.15~0.33
    CG3-50R212210079.165.156.7-0.15~0.33
    CG3-60R116914111496.786.3-0.15~0.33
    CG3-20L122.118.114.111.510-0.15~0.33
    CG3-20L222.217.713.310.79.24-0.15~0.33
    CG3-30L146.638.730.625.422.2-0.15~0.33
    CG3-30L247.238.529.323.720.8-0.15~0.33
    CG3-40L179.866.353.244.639.1-0.15~0.33
    CG3-50L112110081.168.460.5-0.15~0.33
    CG3-50L212210079.165.156.7-0.15~0.33
    CG3-60L116914111496.786.3-0.15~0.33
    CG4-20R145.63728.723--0.17~0.37
    CG4-20R245.53626.921.4--0.17~0.37
    CG4-30R196.379.162.350.9--0.17~0.37
    CG4-30R296.878.359.447.3--0.17~0.37
    CG4-40R116513610889.4--0.17~0.37
    CG4-50R1249205165137--0.17~0.37
    CG4-50R2250204160130--0.17~0.37
    CG4-60R1348288233194--0.17~0.37
    CG4-20L145.63728.723--0.17~0.37
    CG4-20L245.53626.921.4--0.17~0.37
    CG4-30L196.379.162.350.9--0.17~0.37
    CG4-30L296.878.359.447.3--0.17~0.37
    CG4-40L116513610889.4--0.17~0.37
    CG4-50L1249205165137--0.17~0.37
    CG4-50L2250204160130--0.17~0.37
    CG4-60L1348288233194--0.17~0.37
    CG5-20R187.470.354.743.8--0.20~0.40
    CG5-20R287.968.951.541--0.20~0.40
    CG5-30R118515011996.8--0.20~0.40
    CG5-30R218715011490.6--0.20~0.40
    CG5-40R1316258206170--0.20~0.40
    CG5-50R1477390315261--0.20~0.40
    CG5-50R2483390307246--0.20~0.40
    CG5-60R1668548443369--0.20~0.40
    CG6-20R113911186.2---0.22~0.42
    CG6-20R214111081.8---0.22~0.42
    CG6-30R1294237187---0.22~0.42
    CG6-30R2299238181---0.22~0.42
    CG6-40R1502407325---0.22~0.42
    CG6-50R1760615496---0.22~0.42
    CG6-50R2774620488---0.22~0.42
    CG6-60R11060865698---0.22~0.42
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량
    (kg)
    견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커재고아린재고질량
    (kg)
    견적의뢰 및 주문
    CG1-60R1P27,940----견적의뢰 / 주문
    CG1-80R1P38,940----견적의뢰 / 주문
    CG1-100R1P47,740----견적의뢰 / 주문
    CG1-120R1P52,140---1견적의뢰 / 주문
    CG1.5-30R1P22,660----견적의뢰 / 주문
    CG1.5-40R1P29,700----견적의뢰 / 주문
    CG1.5-50R1P38,720----견적의뢰 / 주문
    CG1.5-60R1P45,540----견적의뢰 / 주문
    CG1.5-80R1P62,920---1견적의뢰 / 주문
    CG1.5-100R1P81,400---1견적의뢰 / 주문
    CG2-20R1P24,860----견적의뢰 / 주문
    CG2-20R2P24,860----견적의뢰 / 주문
    CG2-30R1P35,200---1견적의뢰 / 주문
    CG2-30R2P35,200---1견적의뢰 / 주문
    CG2-40R1P48,840---1견적의뢰 / 주문
    CG2-50R1P58,080---1견적의뢰 / 주문
    CG2-50R2P58,080---1견적의뢰 / 주문
    CG2-60R1P70,400---1견적의뢰 / 주문
    CG2-20L1P31,680----견적의뢰 / 주문
    CG2-20L2P31,680----견적의뢰 / 주문
    CG2-30L1P42,680---1견적의뢰 / 주문
    CG2-30L2P42,680---1견적의뢰 / 주문
    CG2-40L1P57,860---1견적의뢰 / 주문
    CG2-50L1P68,420---1견적의뢰 / 주문
    CG2-50L2P68,420---1견적의뢰 / 주문
    CG2-60L1P83,380---1견적의뢰 / 주문
    CG2.5-20R1P30,360----견적의뢰 / 주문
    CG2.5-20R2P30,360----견적의뢰 / 주문
    CG2.5-30R1P42,900---1견적의뢰 / 주문
    CG2.5-30R2P42,900---1견적의뢰 / 주문
    CG2.5-40R1P58,300---1견적의뢰 / 주문
    CG2.5-50R1P72,600---1견적의뢰 / 주문
    CG2.5-50R2P72,600---1견적의뢰 / 주문
    CG2.5-60R1P90,640---2견적의뢰 / 주문
    CG2.5-20L1P37,400----견적의뢰 / 주문
    CG2.5-20L2P37,400----견적의뢰 / 주문
    CG2.5-30L1P51,700---1견적의뢰 / 주문
    CG2.5-30L2P51,700---1견적의뢰 / 주문
    CG2.5-40L1P69,740---1견적의뢰 / 주문
    CG2.5-50L1P85,360---1견적의뢰 / 주문
    CG2.5-50L2P85,360---1견적의뢰 / 주문
    CG2.5-60L1P106,700---2견적의뢰 / 주문
    CG3-20R1P44,880---1견적의뢰 / 주문
    CG3-20R2P44,880---1견적의뢰 / 주문
    CG3-30R1P74,360---2견적의뢰 / 주문
    CG3-30R2P74,360---2견적의뢰 / 주문
    CG3-40R1P86,240---2견적의뢰 / 주문
    CG3-50R1P108,240---3견적의뢰 / 주문
    CG3-50R2P108,240---3견적의뢰 / 주문
    CG3-60R1P135,300---3견적의뢰 / 주문
    CG3-20L1P53,460---1견적의뢰 / 주문
    CG3-20L2P53,460---1견적의뢰 / 주문
    CG3-30L1P85,140---2견적의뢰 / 주문
    CG3-30L2P85,140---2견적의뢰 / 주문
    CG3-40L1P100,100---2견적의뢰 / 주문
    CG3-50L1P124,300---3견적의뢰 / 주문
    CG3-50L2P124,300---3견적의뢰 / 주문
    CG3-60L1P152,900---3견적의뢰 / 주문
    CG4-20R1P75,020---2견적의뢰 / 주문
    CG4-20R2P75,020---2견적의뢰 / 주문
    CG4-30R1P103,840---3견적의뢰 / 주문
    CG4-30R2P103,840---3견적의뢰 / 주문
    CG4-40R1P138,600---4견적의뢰 / 주문
    CG4-50R1P179,300---5견적의뢰 / 주문
    CG4-50R2P179,300---5견적의뢰 / 주문
    CG4-60R1P243,100---6견적의뢰 / 주문
    CG4-20L1P85,580---2견적의뢰 / 주문
    CG4-20L2P85,580---2견적의뢰 / 주문
    CG4-30L1P119,900---3견적의뢰 / 주문
    CG4-30L2P119,900---3견적의뢰 / 주문
    CG4-40L1P160,600---4견적의뢰 / 주문
    CG4-50L1P210,100---5견적의뢰 / 주문
    CG4-50L2P210,100---5견적의뢰 / 주문
    CG4-60L1P279,400---6견적의뢰 / 주문
    CG5-20R1P143,000---3견적의뢰 / 주문
    CG5-20R2P143,000---3견적의뢰 / 주문
    CG5-30R1P196,900---5견적의뢰 / 주문
    CG5-30R2P196,900---5견적의뢰 / 주문
    CG5-40R1P266,200---7견적의뢰 / 주문
    CG5-50R1P322,300---10견적의뢰 / 주문
    CG5-50R2P322,300---10견적의뢰 / 주문
    CG5-60R1P443,300---12견적의뢰 / 주문
    CG6-20R1P209,000---5견적의뢰 / 주문
    CG6-20R2P209,000---5견적의뢰 / 주문
    CG6-30R1P279,400---8견적의뢰 / 주문
    CG6-30R2P279,400---8견적의뢰 / 주문
    CG6-40R1P378,400---11견적의뢰 / 주문
    CG6-50R1P540,100---14견적의뢰 / 주문
    CG6-50R2P540,100---14견적의뢰 / 주문
    CG6-60R1P711,700---20견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.



    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
