웜휠
AGF 웜휠
코하라치차공업(주) ( KHK )
공통사양
정도등급KHK W 002 2급
치면기준단면축직각
치형보통이
치직각압력각20°
재료CAC702 (구JIS표시AlBC2)
※H8,H9형상보스부FC200입니다.
열처리-
치면경도-
캐드자료
  • 카탈로그
  • 제품설명

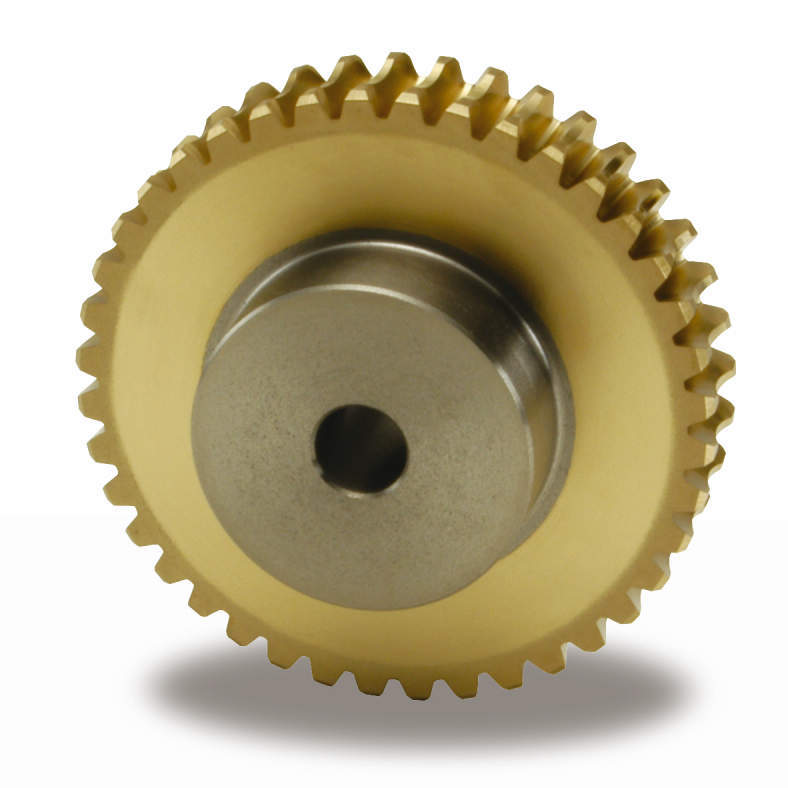

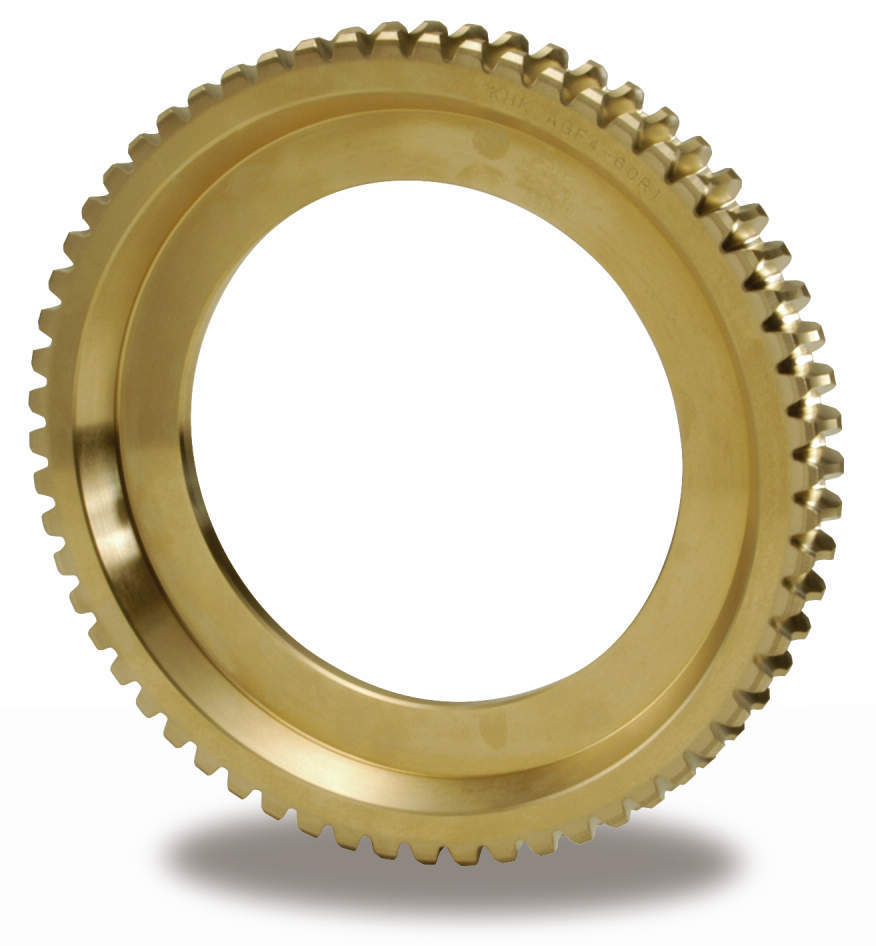

    ●내마모성이 뛰어난 알루미늄 청동제의 웜휠입니다.
    ●컴팩트한 설계가 가능합니다.



    관련이미지
    상세사양
    56건 중 1~56건 표시
    형식감속비축직각모듈
    m
    잇수상대줄수전위계수비틀림각비틀림방향
    형식감속비축직각모듈
    m
    잇수상대줄수전위계수비틀림각비틀림방향
    AGF2-20R1202201?0.55°12′R
    AGF2-20R2102202?0.510°18′R
    AGF2-25R1252251?0.55°12′R
    AGF2-30R1302301?0.55°12′R
    AGF2-30R2152302?0.510°18′R
    AGF2-36R1362361-5°12′R
    AGF2-40R1402401?0.55°12′R
    AGF2-48R14824810.55°12′R
    AGF2-50R1502501?0.55°12′R
    AGF2-60R1602601?0.55°12′R
    AGF2.5-20R1202.5201-4°46′R
    AGF2.5-20R2102.5202-9°28′R
    AGF2.5-25R1252.5251-4°46′R
    AGF2.5-30R1302.5301-4°46′R
    AGF2.5-30R2152.5302-9°28′R
    AGF2.5-36R1362.5361-4°46′R
    AGF2.5-40R1402.5401-4°46′R
    AGF2.5-48R1482.5481-4°46′R
    AGF2.5-50R1502.5501-4°46′R
    AGF2.5-60R1602.5601-4°46′R
    AGF3-20R12032010.3334°31′R
    AGF3-20R21032020.3338°58′R
    AGF3-25R1253251-4°31′R
    AGF3-30R13033010.3334°31′R
    AGF3-30R21533020.3338°58′R
    AGF3-36R13633610.3334°31′R
    AGF3-40R14034010.3334°31′R
    AGF3-48R14834810.3334°31′R
    AGF3-50R15035010.3334°31′R
    AGF3-60R16036010.3334°31′R
    AGF4-20R1204201-5°43′R
    AGF4-20R2104202-11°19′R
    AGF4-25R1254251-5°43′R
    AGF4-30R1304301-5°43′R
    AGF4-30R2154302-11°19′R
    AGF4-36R1364361-5°43′R
    AGF4-40R1404401-5°43′R
    AGF4-48R1484481-5°43′R
    AGF4-50R1504501-5°43′R
    AGF4-60R1604601-5°43′R
    AGF5-20R1205201-5°43′R
    AGF5-25R1255251-5°43′R
    AGF5-30R1305301-5°43′R
    AGF5-36R1365361-5°43′R
    AGF5-40R1405401-5°43′R
    AGF5-48R1485481-5°43′R
    AGF5-50R1505501-5°43′R
    AGF5-60R1605601-5°43′R
    AGF6-20R1206201-5°43′R
    AGF6-25R1256251-5°43′R
    AGF6-30R1306301-5°43′R
    AGF6-36R1366361-5°43′R
    AGF6-40R1406401-5°43′R
    AGF6-48R1486481-5°43′R
    AGF6-50R1506501-5°43′R
    AGF6-60R1606601-5°43′R

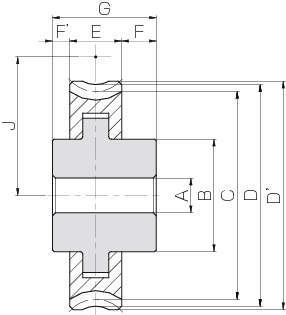

    형식형상내경
    AH7
    보스경
    B
    피치원직경
    C
    목직경
    D
    이끝원직경
    D
    치폭
    E
    형식형상내경
    AH7
    보스경
    B
    피치원직경
    C
    목직경
    D
    이끝원직경
    D
    치폭
    E
    AGF2-20R1H6123240424418
    AGF2-20R2H6123240424418
    AGF2-25R1H6123550525418
    AGF2-30R1H6123860626418
    AGF2-30R2H6123860626418
    AGF2-36R1H6124072767818
    AGF2-40R1H8124580828418
    AGF2-48R1H912509610210418
    AGF2-50R1H9125010010210418
    AGF2-60R1H9125012012212418
    AGF2.5-20R1H61235505557.520
    AGF2.5-20R2H61235505557.520
    AGF2.5-25R1H6124062.567.57020
    AGF2.5-30R1H61240758082.520
    AGF2.5-30R2H61240758082.520
    AGF2.5-36R1H81245909597.520
    AGF2.5-40R1H91245100105107.520
    AGF2.5-48R1H91250120125127.520
    AGF2.5-50R1H91255125130132.520
    AGF2.5-60R1H91260150155157.520
    AGF3-20R1H6205060687125
    AGF3-20R2H6205060687125
    AGF3-25R1H6205575818425
    AGF3-30R1H82055909810125
    AGF3-30R2H82055909810125
    AGF3-36R1H8206010811611925
    AGF3-40R1H9206512012813125
    AGF3-48R1H9207014415215525
    AGF3-50R1H9207515015816125
    AGF3-60R1H9208018018819125
    AGF4-20R1H6206080889230
    AGF4-20R2H6206080889230
    AGF4-25R1H6206510010811230
    AGF4-30R1H8206512012813230
    AGF4-30R2H8206512012813230
    AGF4-36R1H9207014415215630
    AGF4-40R1H9208016016817230
    AGF4-48R1H9209019220020430
    AGF4-50R1H9209020020821230
    AGF4-60R1H0160-24024825230
    AGF5-20R1H6227510011011535
    AGF5-25R1H6227512513514035
    AGF5-30R1H9227515016016535
    AGF5-36R1H9229018019019535
    AGF5-40R1H92211020021021535
    AGF5-48R1H0140-24025025535
    AGF5-50R1H0150-25026026535
    AGF5-60R1H0200-30031031535
    AGF6-20R1H6258512013213840
    AGF6-25R1H6259015016216840
    AGF6-30R1H92510018019219840
    AGF6-36R1H92511021622823440
    AGF6-40R1H0130-24025225840
    AGF6-48R1H0180-28830030640
    AGF6-50R1H0190-30031231840
    AGF6-60R1H0250-36037237840

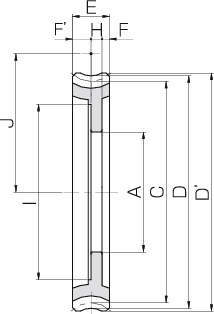

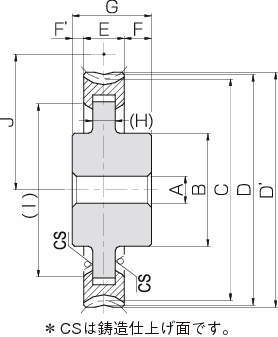

    형식보스길이보스길이전장
    G
    웨브두께
    (H)
    림직경
    (I)
    조립거리
    J
    형식(우)
    F
    (좌)
    F
    전장
    G
    웨브두께
    (H)
    림직경
    (I)
    조립거리
    J
    AGF2-20R112535--30
    AGF2-20R212535--30
    AGF2-25R112535--35
    AGF2-30R112535--40
    AGF2-30R212535--40
    AGF2-36R112535--47
    AGF2-40R11253510-50
    AGF2-48R112535107660
    AGF2-50R112535128160
    AGF2-60R112535129670
    AGF2.5-20R115540--40
    AGF2.5-20R215540--40
    AGF2.5-25R115540--46.25
    AGF2.5-30R115540--52.5
    AGF2.5-30R215540--52.5
    AGF2.5-36R11554012-60
    AGF2.5-40R115540128065
    AGF2.5-48R115540139775
    AGF2.5-50R1155401310077.5
    AGF2.5-60R1155401312590
    AGF3-20R117.57.550--50
    AGF3-20R217.57.550--50
    AGF3-25R117.57.550--56.5
    AGF3-30R117.57.550--65
    AGF3-30R217.57.550--65
    AGF3-36R117.57.550--74
    AGF3-40R117.57.550169580
    AGF3-48R117.57.5501512092
    AGF3-50R117.57.5501512595
    AGF3-60R117.57.55015155110
    AGF4-20R1201060--60
    AGF4-20R2201060--60
    AGF4-25R1201060--70
    AGF4-30R120106015-80
    AGF4-30R220106015-80
    AGF4-36R12010602011392
    AGF4-40R120106023128100
    AGF4-48R120106020160116
    AGF4-50R120106020168120
    AGF4-60R1715308204140
    AGF5-20R1231270--75
    AGF5-25R1231270--87.5
    AGF5-30R123127025115100
    AGF5-36R123127025140115
    AGF5-40R123127026162125
    AGF5-48R17.517.53510195145
    AGF5-50R17.517.53510205150
    AGF5-60R17.517.53510255175
    AGF6-20R1231275--90
    AGF6-25R1231275--105
    AGF6-30R123127530135120
    AGF6-36R123127530172138
    AGF6-40R18204012190150
    AGF6-48R18204012240174
    AGF6-50R18204012250180
    AGF6-60R18204012310210
    형식치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)치면강도허용토크(N·m)백래시
    (mm)
    형식30rpm시100rpm시300rpm시600rpm시900rpm시1200rpm시1800rpm시백래시
    (mm)
    AGF2-20R119.416.112.810.59.38.497.310.11~0.24
    AGF2-20R219.916.112.29.998.757.926.740.11~0.24
    AGF2-25R129.424.519.616.314.413.211.40.11~0.24
    AGF2-30R141.134.527.723.220.718.816.40.11~0.24
    AGF2-30R242.3352722.119.917.715.40.11~0.24
    AGF2-36R157.848.639.333.229.62723.60.11~0.24
    AGF2-40R170.359.248.140.736.433.228.90.11~0.24
    AGF2-48R198.5836857.951.947.541.30.11~0.24
    AGF2-50R110689.573.462.556.251.544.90.11~0.24
    AGF2-60R114912610388.480.37.3364.20.11~0.24
    AGF2.5-20R135.12922.618.616.314.812.80.14~0.27
    AGF2.5-20R234.627.920.917.114.813.411.30.14~0.27
    AGF2.5-25R15343.934.828.925.323200.14~0.27
    AGF2.5-30R174.16249.141.236.732.828.70.14~0.27
    AGF2.5-30R273.660.646.237.833.229.925.80.14~0.27
    AGF2.5-36R110487.469.85951.847.141.20.14~0.27
    AGF2.5-40R112710685.472.463.757.950.50.14~0.27
    AGF2.5-48R117814912110390.883.172.20.14~0.27
    AGF2.5-50R119216113011198.49078.30.14~0.27
    AGF2.5-60R12682261831571411281120.14~0.27
    AGF3-20R159.749.138.331.527.525.121.50.16~0.29
    AGF3-20R260.248.236.129.525.42319.40.16~0.29
    AGF3-25R190.274.358.848.942.63933.50.16~0.29
    AGF3-30R112610583.169.66155.448.20.16~0.29
    AGF3-30R212810579.865.257.251.644.30.16~0.29
    AGF3-36R117814811899.787.579.469.10.16~0.29
    AGF3-40R12161801451221089884.90.16~0.29
    AGF3-48R13032522041741531411210.16~0.29
    AGF3-50R13262722201881661521320.16~0.29
    AGF3-60R14573833102652372171880.16~0.29
    AGF4-20R112310178.864.656.351.543.80.19~0.32
    AGF4-20R21271017661.953.248.340.50.19~0.32
    AGF4-25R118615312110087.379.968.50.19~0.32
    AGF4-30R126021617114312511498.40.19~0.32
    AGF4-30R227022016813712010892.20.19~0.32
    AGF4-36R13663042432041791641410.19~0.32
    AGF4-40R14453702972512202011730.19~0.32
    AGF4-48R16245194203563142882480.19~0.32
    AGF4-50R16735604543853403122690.19~0.32
    AGF4-60R19417886385444864443850.19~0.32
    AGF5-20R12111721341089586.272.70.22~0.35
    AGF5-25R13192612061681471341140.22~0.35
    AGF5-30R14463692912392111911640.22~0.35
    AGF5-36R16275194143433022742340.22~0.35
    AGF5-40R17636325064213713372880.22~0.35
    AGF5-48R110708867155985304834110.22~0.35
    AGF5-50R111509567726465745234460.22~0.35
    AGF5-60R11610134010909138207446390.22~0.35
    AGF6-20R13292682081671461311100.24~0.37
    AGF6-25R14974053192592272041730.24~0.37
    AGF6-30R16965724513683252902480.24~0.37
    AGF6-36R19788066415284664173550.24~0.37
    AGF6-40R111909817846482725134360.24~0.37
    AGF6-48R11670138011109208167356280.24~0.37
    AGF6-50R11800148012009948857966760.24~0.37
    AGF6-60R12520209016801410126011309690.24~0.37
    형식단위판매정가
    (원)
    기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)
    유통재고메이커아린재고질량견적의뢰 및 주문
    AGF2-20R1P101,860----견적의뢰 / 주문
    AGF2-20R2P101,860----견적의뢰 / 주문
    AGF2-25R1P119,900----견적의뢰 / 주문
    AGF2-30R1P136,400---1견적의뢰 / 주문
    AGF2-30R2P136,400---1견적의뢰 / 주문
    AGF2-36R1P185,900---1견적의뢰 / 주문
    AGF2-40R1P201,300---1견적의뢰 / 주문
    AGF2-48R1P232,100---1견적의뢰 / 주문
    AGF2-50R1P242,000---1견적의뢰 / 주문
    AGF2-60R1P269,500---2견적의뢰 / 주문
    AGF2.5-20R1P133,100----견적의뢰 / 주문
    AGF2.5-20R2P133,100----견적의뢰 / 주문
    AGF2.5-25R1P168,300---1견적의뢰 / 주문
    AGF2.5-30R1P206,800---1견적의뢰 / 주문
    AGF2.5-30R2P206,800---1견적의뢰 / 주문
    AGF2.5-36R1P209,000---1견적의뢰 / 주문
    AGF2.5-40R1P210,100---1견적의뢰 / 주문
    AGF2.5-48R1P275,000---2견적의뢰 / 주문
    AGF2.5-50R1P279,400---2견적의뢰 / 주문
    AGF2.5-60R1P345,400---3견적의뢰 / 주문
    AGF3-20R1P247,500---1견적의뢰 / 주문
    AGF3-20R2P247,500---1견적의뢰 / 주문
    AGF3-25R1P294,800---1견적의뢰 / 주문
    AGF3-30R1P299,200---2견적의뢰 / 주문
    AGF3-30R2P299,200---2견적의뢰 / 주문
    AGF3-36R1P313,500---2견적의뢰 / 주문
    AGF3-40R1P352,000---3견적의뢰 / 주문
    AGF3-48R1P372,900---3견적의뢰 / 주문
    AGF3-50R1P397,100---4견적의뢰 / 주문
    AGF3-60R1P556,600---5견적의뢰 / 주문
    AGF4-20R1P402,600---2견적의뢰 / 주문
    AGF4-20R2P402,600---2견적의뢰 / 주문
    AGF4-25R1P523,600---3견적의뢰 / 주문
    AGF4-30R1P515,900---3견적의뢰 / 주문
    AGF4-30R2P515,900---3견적의뢰 / 주문
    AGF4-36R1P548,900---4견적의뢰 / 주문
    AGF4-40R1P579,700---5견적의뢰 / 주문
    AGF4-48R1P800,800---7견적의뢰 / 주문
    AGF4-50R1P817,300---7견적의뢰 / 주문
    AGF4-60R1P1,093,400---4견적의뢰 / 주문
    AGF5-20R1P699,600---3견적의뢰 / 주문
    AGF5-25R1P859,100---4견적의뢰 / 주문
    AGF5-30R1P805,200---5견적의뢰 / 주문
    AGF5-36R1P877,800---8견적의뢰 / 주문
    AGF5-40R1P961,400---10견적의뢰 / 주문
    AGF5-48R1P1,386,000---5견적의뢰 / 주문
    AGF5-50R1P1,441,000---5견적의뢰 / 주문
    AGF5-60R1P1,617,000---6견적의뢰 / 주문
    AGF6-20R1P1,064,800---5견적의뢰 / 주문
    AGF6-25R1P1,452,000---7견적의뢰 / 주문
    AGF6-30R1P1,265,000---9견적의뢰 / 주문
    AGF6-36R1P1,474,000---13견적의뢰 / 주문
    AGF6-40R1P1,529,000---6견적의뢰 / 주문
    AGF6-48R1P2,123,000---8견적의뢰 / 주문
    AGF6-50R1P2,233,000---8견적의뢰 / 주문
    AGF6-60R1P2,519,000---10견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.



    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
