HOME > 축수 > 베어링유니트 > 필로블록 > 행거형유니트 > UCHA 행거형(원통형구멍)
행거형유니트
UCHA 행거형(원통형구멍)
일본필로블록(주) ( FYH )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    75건 중 1~75건 표시

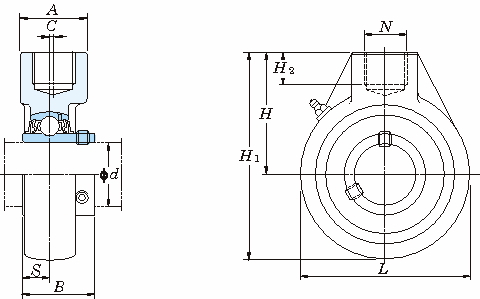

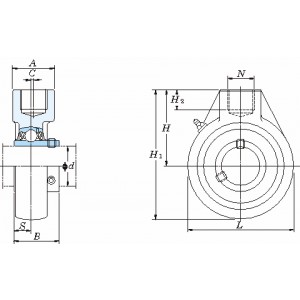

    형식타입타입축경
    d
    (mm)    		치수(mm)치수(mm)치수(mm)
    형식베어링하우징베어링축경
    d
    (mm)    		HAL
    형식베어링하우징베어링축경
    d
    (mm)    		HAL
    UCHA201표준품표준품12644064
    UCHA202표준품표준품15644064
    UCHA203표준품표준품17644064
    UCHA204표준품표준품20644064
    UCHA205표준품표준품25644078
    UCHA206표준품표준품30644078
    UCHA207표준품표준품35704092
    UCHA208표준품표준품40734096
    UCHA209표준품표준품458248108
    UCHA210표준품표준품508348118
    UCHA211표준품표준품558760126
    UCHA212표준품표준품6010260142
    UCHA213표준품표준품6511770166
    UCHA214표준품표준품7011770166
    UCHA215표준품표준품7511770166
    UCHA201L2표준품2중씰제품12644064
    UCHA202L2표준품2중씰제품15644064
    UCHA203L2표준품2중씰제품17644064
    UCHA204L2표준품2중씰제품20644064
    UCHA205L2표준품2중씰제품25644078
    UCHA206L3표준품3중씰제품30644078
    UCHA207L3표준품3중씰제품35704092
    UCHA208L3표준품3중씰제품40734096
    UCHA209L3표준품3중씰제품458248108
    UCHA210L3표준품3중씰제품508348118
    UCHA211L3표준품3중씰제품558760126
    UCHA212L3표준품3중씰제품6010260142
    UCHA213L3표준품3중씰제품6511770166
    UCHA214L3표준품3중씰제품7011770166
    UCHA215L3표준품3중씰제품7511770166
    UCHA201D1K2표준품내열용12644064
    UCHA202D1K2표준품내열용15644064
    UCHA203D1K2표준품내열용17644064
    UCHA204D1K2표준품내열용20644064
    UCHA205D1K2표준품내열용25644078
    UCHA206D1K2표준품내열용30644078
    UCHA207D1K2표준품내열용35704092
    UCHA208D1K2표준품내열용40734096
    UCHA209D1K2표준품내열용458248108
    UCHA210D1K2표준품내열용508348118
    UCHA211D1K2표준품내열용558760126
    UCHA212D1K2표준품내열용6010260142
    UCHA213D1K2표준품내열용6511770166
    UCHA214D1K2표준품내열용7011770166
    UCHA215D1K2표준품내열용7511770166
    UCHA201D2K2표준품내한용12644064
    UCHA202D2K2표준품내한용15644064
    UCHA203D2K2표준품내한용17644064
    UCHA204D2K2표준품내한용20644064
    UCHA205D2K2표준품내한용25644078
    UCHA206D2K2표준품내한용30644078
    UCHA207D2K2표준품내한용35704092
    UCHA208D2K2표준품내한용40734096
    UCHA209D2K2표준품내한용458248108
    UCHA210D2K2표준품내한용508348118
    UCHA211D2K2표준품내한용558760126
    UCHA212D2K2표준품내한용6010260142
    UCHA213D2K2표준품내한용6511770166
    UCHA214D2K2표준품내한용7011770166
    UCHA215D2K2표준품내한용7511770166
    UCHA201E4무급유형표준품12644064
    UCHA202E4무급유형표준품15644064
    UCHA203E4무급유형표준품17644064
    UCHA204E4무급유형표준품20644064
    UCHA205E4무급유형표준품25644078
    UCHA206E4무급유형표준품30644078
    UCHA207E4무급유형표준품35704092
    UCHA208E4무급유형표준품40734096
    UCHA209E4무급유형표준품458248108
    UCHA210E4무급유형표준품508348118
    UCHA211E4무급유형표준품558760126
    UCHA212E4무급유형표준품6010260142
    UCHA213E4무급유형표준품6511770166
    UCHA214E4무급유형표준품7011770166
    UCHA215E4무급유형표준품7511770166
    형식치수(mm)치수(mm)치수(mm)치수(mm)치수(mm)치수(mm)
    형식H1H2NCBS
    형식H1H2NCBS
    UCHA2019619PF3/4-3112.7
    UCHA2029619PF3/4-3112.7
    UCHA2039619PF3/4-3112.7
    UCHA2049619PF3/4-3112.7
    UCHA20510319PF3/4-34.114.3
    UCHA20610319PF3/4-38.115.9
    UCHA20711619PF3/4-42.917.5
    UCHA20812119PF3/4249.219
    UCHA20913621PF1549.219
    UCHA21014221PF1551.619
    UCHA21115025PF1 1/4755.622.2
    UCHA21217328PF1 1/4965.125.4
    UCHA21320032PF1 1/29.565.125.4
    UCHA21420032PF1 1/29.574.630.2
    UCHA21520032PF1 1/29.577.833.3
    UCHA201L29619PF3/4-3112.7
    UCHA202L29619PF3/4-3112.7
    UCHA203L29619PF3/4-3112.7
    UCHA204L29619PF3/4-3112.7
    UCHA205L210319PF3/4-34.114.3
    UCHA206L310319PF3/4-38.115.9
    UCHA207L311619PF3/4-42.917.5
    UCHA208L312119PF3/4249.219
    UCHA209L313621PF1549.219
    UCHA210L314221PF1551.619
    UCHA211L315025PF1 1/4755.622.2
    UCHA212L317328PF1 1/4965.125.4
    UCHA213L320032PF1 1/29.565.125.4
    UCHA214L320032PF1 1/29.574.630.2
    UCHA215L320032PF1 1/29.577.833.3
    UCHA201D1K29619PF3/4-3112.7
    UCHA202D1K29619PF3/4-3112.7
    UCHA203D1K29619PF3/4-3112.7
    UCHA204D1K29619PF3/4-3112.7
    UCHA205D1K210319PF3/4-34.114.3
    UCHA206D1K210319PF3/4-38.115.9
    UCHA207D1K211619PF3/4-42.917.5
    UCHA208D1K212119PF3/4249.219
    UCHA209D1K213621PF1549.219
    UCHA210D1K214221PF1551.619
    UCHA211D1K215025PF1 1/4755.622.2
    UCHA212D1K217328PF1 1/4965.125.4
    UCHA213D1K220032PF1 1/29.565.125.4
    UCHA214D1K220032PF1 1/29.574.630.2
    UCHA215D1K220032PF1 1/29.577.833.3
    UCHA201D2K29619PF3/4-3112.7
    UCHA202D2K29619PF3/4-3112.7
    UCHA203D2K29619PF3/4-3112.7
    UCHA204D2K29619PF3/4-3112.7
    UCHA205D2K210319PF3/4-34.114.3
    UCHA206D2K210319PF3/4-38.115.9
    UCHA207D2K211619PF3/4-42.917.5
    UCHA208D2K212119PF3/4249.219
    UCHA209D2K213621PF1549.219
    UCHA210D2K214221PF1551.619
    UCHA211D2K215025PF1 1/4755.622.2
    UCHA212D2K217328PF1 1/4965.125.4
    UCHA213D2K220032PF1 1/29.565.125.4
    UCHA214D2K220032PF1 1/29.574.630.2
    UCHA215D2K220032PF1 1/29.577.833.3
    UCHA201E49619PF3/4-3112.7
    UCHA202E49619PF3/4-3112.7
    UCHA203E49619PF3/4-3112.7
    UCHA204E49619PF3/4-3112.7
    UCHA205E410319PF3/4-34.114.3
    UCHA206E410319PF3/4-38.115.9
    UCHA207E411619PF3/4-42.917.5
    UCHA208E412119PF3/4249.219
    UCHA209E413621PF1549.219
    UCHA210E414221PF1551.619
    UCHA211E415025PF1 1/4755.622.2
    UCHA212E417328PF1 1/4965.125.4
    UCHA213E420032PF1 1/29.565.125.4
    UCHA214E420032PF1 1/29.574.630.2
    UCHA215E420032PF1 1/29.577.833.3
    형식적용
    베어링하우징    		적용베어링적용베어링적용베어링적용베어링
    형식적용
    베어링하우징    		호칭번호기본정격하중(kN)기본정격하중(kN)계수
    f0
    형식적용
    베어링하우징    		호칭번호CrC0r계수
    f0
    UCHA201HA204UC20112.86.6513.2
    UCHA202HA204UC20212.86.6513.2
    UCHA203HA204UC20312.86.6513.2
    UCHA204HA204UC20412.86.6513.2
    UCHA205HA205UC205147.8513.9
    UCHA206HA206UC20619.511.313.9
    UCHA207HA207UC20725.715.413.9
    UCHA208HA208UC20829.117.814
    UCHA209HA209UC20934.121.314
    UCHA210HA210UC21035.123.314.4
    UCHA211HA211UC21143.429.414.4
    UCHA212HA212UC21252.436.214.4
    UCHA213HA213UC21357.240.114.4
    UCHA214HA214UC21462.244.114.5
    UCHA215HA215UC21567.448.314.5
    UCHA201L2HA204UC201L212.86.6513.2
    UCHA202L2HA204UC202L212.86.6513.2
    UCHA203L2HA204UC203L212.86.6513.2
    UCHA204L2HA204UC204L212.86.6513.2
    UCHA205L2HA205UC205L2147.8513.9
    UCHA206L3HA206UC206L319.511.313.9
    UCHA207L3HA207UC207L325.715.413.9
    UCHA208L3HA208UC208L329.117.814
    UCHA209L3HA209UC209L334.121.314
    UCHA210L3HA210UC210L335.123.314.4
    UCHA211L3HA211UC211L343.429.414.4
    UCHA212L3HA212UC212L352.436.214.4
    UCHA213L3HA213UC213L357.240.114.4
    UCHA214L3HA214UC214L362.244.114.5
    UCHA215L3HA215UC215L367.448.314.5
    UCHA201D1K2HA204UC201D1K2---
    UCHA202D1K2HA204UC202D1K2---
    UCHA203D1K2HA204UC203D1K2---
    UCHA204D1K2HA204UC204D1K2---
    UCHA205D1K2HA205UC205D1K2---
    UCHA206D1K2HA206UC206D1K2---
    UCHA207D1K2HA207UC207D1K2---
    UCHA208D1K2HA208UC208D1K2---
    UCHA209D1K2HA209UC209D1K2---
    UCHA210D1K2HA210UC210D1K2---
    UCHA211D1K2HA211UC211D1K2---
    UCHA212D1K2HA212UC212D1K2---
    UCHA213D1K2HA213UC213D1K2---
    UCHA214D1K2HA214UC214D1K2---
    UCHA215D1K2HA215UC215D1K2---
    UCHA201D2K2HA204UC201D2K2---
    UCHA202D2K2HA204UC202D2K2---
    UCHA203D2K2HA204UC203D2K2---
    UCHA204D2K2HA204UC204D2K2---
    UCHA205D2K2HA205UC205D2K2---
    UCHA206D2K2HA206UC206D2K2---
    UCHA207D2K2HA207UC207D2K2---
    UCHA208D2K2HA208UC208D2K2---
    UCHA209D2K2HA209UC209D2K2---
    UCHA210D2K2HA210UC210D2K2---
    UCHA211D2K2HA211UC211D2K2---
    UCHA212D2K2HA212UC212D2K2---
    UCHA213D2K2HA213UC213D2K2---
    UCHA214D2K2HA214UC214D2K2---
    UCHA215D2K2HA215UC215D2K2---
    UCHA201E4HA204UC20112.86.6513.2
    UCHA202E4HA204UC20212.86.6513.2
    UCHA203E4HA204UC20312.86.6513.2
    UCHA204E4HA204UC20412.86.6513.2
    UCHA205E4HA205UC205147.8513.9
    UCHA206E4HA206UC20619.511.313.9
    UCHA207E4HA207UC20725.715.413.9
    UCHA208E4HA208UC20829.117.814
    UCHA209E4HA209UC20934.121.314
    UCHA210E4HA210UC21035.123.314.4
    UCHA211E4HA211UC21143.429.414.4
    UCHA212E4HA212UC21252.436.214.4
    UCHA213E4HA213UC21357.240.114.4
    UCHA214E4HA214UC21462.244.114.5
    UCHA215E4HA215UC21567.448.314.5
    형식단위판매정가
    (원)    		기준납기기준납기기준납기참고
    유니트질량
    (kg)    		견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고참고
    유니트질량
    (kg)    		견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고참고
    유니트질량
    (kg)    		견적의뢰 및 주문
    UCHA201P96,800---1견적의뢰 / 주문
    UCHA202P96,800---1견적의뢰 / 주문
    UCHA203P96,140---1견적의뢰 / 주문
    UCHA204P92,840---1견적의뢰 / 주문
    UCHA205P107,360---1견적의뢰 / 주문
    UCHA206P135,300---1견적의뢰 / 주문
    UCHA207P158,400---1견적의뢰 / 주문
    UCHA208P194,700---1견적의뢰 / 주문
    UCHA209P213,400---2견적의뢰 / 주문
    UCHA210P248,600---2견적의뢰 / 주문
    UCHA211P325,600---3견적의뢰 / 주문
    UCHA212P411,400---4견적의뢰 / 주문
    UCHA213P519,200---6견적의뢰 / 주문
    UCHA214P609,400---6견적의뢰 / 주문
    UCHA215P822,800---6견적의뢰 / 주문
    UCHA201L2P105,160----견적의뢰 / 주문
    UCHA202L2P105,160----견적의뢰 / 주문
    UCHA203L2P104,060----견적의뢰 / 주문
    UCHA204L2P99,880----견적의뢰 / 주문
    UCHA205L2P115,500----견적의뢰 / 주문
    UCHA206L3P145,200----견적의뢰 / 주문
    UCHA207L3P169,400----견적의뢰 / 주문
    UCHA208L3P205,700----견적의뢰 / 주문
    UCHA209L3P225,500----견적의뢰 / 주문
    UCHA210L3P260,700----견적의뢰 / 주문
    UCHA211L3P339,900----견적의뢰 / 주문
    UCHA212L3P425,700----견적의뢰 / 주문
    UCHA213L3P535,700----견적의뢰 / 주문
    UCHA214L3P633,600----견적의뢰 / 주문
    UCHA215L3P849,200----견적의뢰 / 주문
    UCHA201D1K2P125,400----견적의뢰 / 주문
    UCHA202D1K2P125,400----견적의뢰 / 주문
    UCHA203D1K2P124,300----견적의뢰 / 주문
    UCHA204D1K2P118,800----견적의뢰 / 주문
    UCHA205D1K2P137,500----견적의뢰 / 주문
    UCHA206D1K2P170,500----견적의뢰 / 주문
    UCHA207D1K2P202,400----견적의뢰 / 주문
    UCHA208D1K2P237,600----견적의뢰 / 주문
    UCHA209D1K2P265,100----견적의뢰 / 주문
    UCHA210D1K2P305,800----견적의뢰 / 주문
    UCHA211D1K2P398,200----견적의뢰 / 주문
    UCHA212D1K2P497,200----견적의뢰 / 주문
    UCHA213D1K2P629,200----견적의뢰 / 주문
    UCHA214D1K2P745,800----견적의뢰 / 주문
    UCHA215D1K2P985,600----견적의뢰 / 주문
    UCHA201D2K2P125,400----견적의뢰 / 주문
    UCHA202D2K2P125,400----견적의뢰 / 주문
    UCHA203D2K2P124,300----견적의뢰 / 주문
    UCHA204D2K2P118,800----견적의뢰 / 주문
    UCHA205D2K2P137,500----견적의뢰 / 주문
    UCHA206D2K2P170,500----견적의뢰 / 주문
    UCHA207D2K2P202,400----견적의뢰 / 주문
    UCHA208D2K2P237,600----견적의뢰 / 주문
    UCHA209D2K2P265,100----견적의뢰 / 주문
    UCHA210D2K2P305,800----견적의뢰 / 주문
    UCHA211D2K2P398,200----견적의뢰 / 주문
    UCHA212D2K2P497,200----견적의뢰 / 주문
    UCHA213D2K2P629,200----견적의뢰 / 주문
    UCHA214D2K2P745,800----견적의뢰 / 주문
    UCHA215D2K2P985,600----견적의뢰 / 주문
    UCHA201E4P96,800----견적의뢰 / 주문
    UCHA202E4P96,800----견적의뢰 / 주문
    UCHA203E4P96,140----견적의뢰 / 주문
    UCHA204E4P92,840----견적의뢰 / 주문
    UCHA205E4P107,360----견적의뢰 / 주문
    UCHA206E4P135,300----견적의뢰 / 주문
    UCHA207E4P158,400----견적의뢰 / 주문
    UCHA208E4P194,700----견적의뢰 / 주문
    UCHA209E4P213,400----견적의뢰 / 주문
    UCHA210E4P248,600----견적의뢰 / 주문
    UCHA211E4P325,600----견적의뢰 / 주문
    UCHA212E4P411,400----견적의뢰 / 주문
    UCHA213E4P519,200----견적의뢰 / 주문
    UCHA214E4P609,400----견적의뢰 / 주문
    UCHA215E4P822,800----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
