다이베스트 DBB01

다이베스트DBB01 부시 DBB

다이도메탈공업(주) ( DAIDO METAL )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


138건 중 1~138건 표시

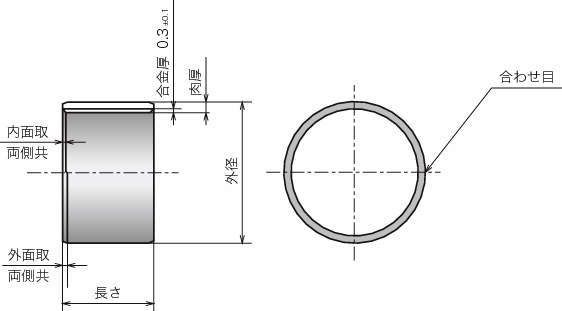

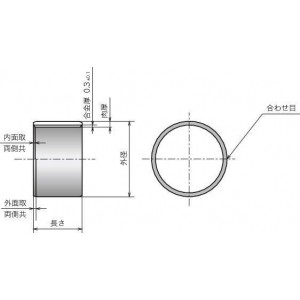

형식	부시치수	부시치수	부시치수	부시치수	부시치수	부시치수	부시치수
형식	내경 (mm)	외경	외경	살두께	살두께	길이	길이
형식	내경 (mm)	(mm)	공차	(mm)	공차	(mm)	공차
DBB0504	5	7	0.053/0.023	1	-0.02/-0.06	4	0/-0.3
DBB0505	5	7	0.053/0.023	1	-0.02/-0.06	5	0/-0.3
DBB0506	5	7	0.053/0.023	1	-0.02/-0.06	6	0/-0.3
DBB0508	5	7	0.053/0.023	1	-0.02/-0.06	8	0/-0.3
DBB0605	6	8	0.053/0.023	1	-0.02/-0.06	5	0/-0.3
DBB0606	6	8	0.053/0.023	1	-0.02/-0.06	6	0/-0.3
DBB0607	6	8	0.053/0.023	1	-0.02/-0.06	7	0/-0.3
DBB0608	6	8	0.053/0.023	1	-0.02/-0.06	8	0/-0.3
DBB0610	6	8	0.053/0.023	1	-0.02/-0.06	10	0/-0.3
DBB0705	7	9	0.053/0.023	1	-0.02/-0.06	5	0/-0.3
DBB0707	7	9	0.053/0.023	1	-0.02/-0.06	7	0/-0.3
DBB0710	7	9	0.053/0.023	1	-0.02/-0.06	10	0/-0.3
DBB0712	7	9	0.053/0.023	1	-0.02/-0.06	12	0/-0.3
DBB0806	8	10	0.055/0.025	1	-0.02/-0.06	6	0/-0.3
DBB0808	8	10	0.055/0.025	1	-0.02/-0.06	8	0/-0.3
DBB0810	8	10	0.055/0.025	1	-0.02/-0.06	10	0/-0.3
DBB0812	8	10	0.055/0.025	1	-0.02/-0.06	12	0/-0.3
DBB1006	10	12	0.06/0.03	1	-0.02/-0.06	6	0/-0.3
DBB1007	10	12	0.06/0.03	1	-0.02/-0.06	7	0/-0.3
DBB1008	10	12	0.06/0.03	1	-0.02/-0.06	8	0/-0.3
DBB1010	10	12	0.06/0.03	1	-0.02/-0.06	10	0/-0.3
DBB1012	10	12	0.06/0.03	1	-0.02/-0.06	12	0/-0.3
DBB1015	10	12	0.06/0.03	1	-0.02/-0.06	15	0/-0.3
DBB1020	10	12	0.06/0.03	1	-0.02/-0.06	20	0/-0.3
DBB1206	12	14	0.06/0.03	1	-0.02/-0.06	6	0/-0.3
DBB1208	12	14	0.06/0.03	1	-0.02/-0.06	8	0/-0.3
DBB1210	12	14	0.06/0.03	1	-0.02/-0.06	10	0/-0.3
DBB1212	12	14	0.06/0.03	1	-0.02/-0.06	12	0/-0.3
DBB1215	12	14	0.06/0.03	1	-0.02/-0.06	15	0/-0.3
DBB1220	12	14	0.06/0.03	1	-0.02/-0.06	20	0/-0.3
DBB1410	14	16	0.063/0.033	1	-0.02/-0.06	10	0/-0.3
DBB1412	14	16	0.063/0.033	1	-0.02/-0.06	12	0/-0.3
DBB1415	14	16	0.063/0.033	1	-0.02/-0.06	15	0/-0.3
DBB1420	14	16	0.063/0.033	1	-0.02/-0.06	20	0/-0.3
DBB1510	15	17	0.073/0.038	1	-0.02/-0.06	10	0/-0.3
DBB1512	15	17	0.073/0.038	1	-0.02/-0.06	12	0/-0.3
DBB1515	15	17	0.073/0.038	1	-0.02/-0.06	15	0/-0.3
DBB1520	15	17	0.073/0.038	1	-0.02/-0.06	20	0/-0.3
DBB1525	15	17	0.073/0.038	1	-0.02/-0.06	25	0/-0.3
DBB1610	16	18	0.073/0.038	1	-0.02/-0.06	10	0/-0.3
DBB1612	16	18	0.073/0.038	1	-0.02/-0.06	12	0/-0.3
DBB1615	16	18	0.073/0.038	1	-0.02/-0.06	15	0/-0.3
DBB1620	16	18	0.073/0.038	1	-0.02/-0.06	20	0/-0.3
DBB1625	16	18	0.073/0.038	1	-0.02/-0.06	25	0/-0.3
DBB1810	18	20	0.081/0.046	1	-0.02/-0.06	10	0/-0.3
DBB1812	18	20	0.081/0.046	1	-0.02/-0.06	12	0/-0.3
DBB1815	18	20	0.081/0.046	1	-0.02/-0.06	15	0/-0.3
DBB1820	18	20	0.081/0.046	1	-0.02/-0.06	20	0/-0.3
DBB1825	18	20	0.081/0.046	1	-0.02/-0.06	25	0/-0.3
DBB2010	20	23	0.081/0.046	1.5	-0.02/-0.06	10	0/-0.3
DBB2012	20	23	0.081/0.046	1.5	-0.02/-0.06	12	0/-0.3
DBB2015	20	23	0.081/0.046	1.5	-0.02/-0.06	15	0/-0.3
DBB2020	20	23	0.081/0.046	1.5	-0.02/-0.06	20	0/-0.3
DBB2025	20	23	0.081/0.046	1.5	-0.02/-0.06	25	0/-0.3
DBB2030	20	23	0.081/0.046	1.5	-0.02/-0.06	30	0/-0.3
DBB2210	22	25	0.086/0.051	1.5	-0.025/-0.065	10	0/-0.3
DBB2212	22	25	0.086/0.051	1.5	-0.025/-0.065	12	0/-0.3
DBB2215	22	25	0.086/0.051	1.5	-0.025/-0.065	15	0/-0.3
DBB2220	22	25	0.086/0.051	1.5	-0.025/-0.065	20	0/-0.3
DBB2225	22	25	0.086/0.051	1.5	-0.025/-0.065	25	0/-0.3
DBB2415	24	27	0.086/0.051	1.5	-0.025/-0.065	15	0/-0.3
DBB2420	24	27	0.086/0.051	1.5	-0.025/-0.065	20	0/-0.3
DBB2425	24	27	0.086/0.051	1.5	-0.025/-0.065	25	0/-0.3
DBB2430	24	27	0.086/0.051	1.5	-0.025/-0.065	30	0/-0.3
DBB2510	25	28	0.093/0.056	1.5	-0.025/-0.065	10	0/-0.3
DBB2512	25	28	0.093/0.056	1.5	-0.025/-0.065	12	0/-0.3
DBB2515	25	28	0.093/0.056	1.5	-0.025/-0.065	15	0/-0.3
DBB2520	25	28	0.093/0.056	1.5	-0.025/-0.065	20	0/-0.3
DBB2525	25	28	0.093/0.056	1.5	-0.025/-0.065	25	0/-0.3
DBB2530	25	28	0.093/0.056	1.5	-0.025/-0.065	30	0/-0.3
DBB2615	26	30	0.115/0.075	2	-0.03/-0.08	15	0/-0.3
DBB2620	26	30	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB2630	26	30	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB2812	28	32	0.115/0.075	2	-0.03/-0.08	12	0/-0.3
DBB2815	28	32	0.115/0.075	2	-0.03/-0.08	15	0/-0.3
DBB2820	28	32	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB2830	28	32	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB3012	30	34	0.115/0.075	2	-0.03/-0.08	12	0/-0.3
DBB3015	30	34	0.115/0.075	2	-0.03/-0.08	15	0/-0.3
DBB3020	30	34	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB3025	30	34	0.115/0.075	2	-0.03/-0.08	25	0/-0.3
DBB3030	30	34	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB3040	30	34	0.115/0.075	2	-0.03/-0.08	40	0/-0.3
DBB3220	32	36	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB3225	32	36	0.115/0.075	2	-0.03/-0.08	25	0/-0.3
DBB3230	32	36	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB3240	32	36	0.115/0.075	2	-0.03/-0.08	40	0/-0.3
DBB3512	35	39	0.115/0.075	2	-0.03/-0.08	12	0/-0.3
DBB3520	35	39	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB3525	35	39	0.115/0.075	2	-0.03/-0.08	25	0/-0.3
DBB3530	35	39	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB3540	35	39	0.115/0.075	2	-0.03/-0.08	40	0/-0.3
DBB3550	35	39	0.115/0.075	2	-0.03/-0.08	50	0/-0.3
DBB3820	38	42	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB3840	38	42	0.115/0.075	2	-0.03/-0.08	40	0/-0.3
DBB4012	40	44	0.115/0.075	2	-0.03/-0.08	12	0/-0.3
DBB4020	40	44	0.115/0.075	2	-0.03/-0.08	20	0/-0.3
DBB4025	40	44	0.115/0.075	2	-0.03/-0.08	25	0/-0.3
DBB4030	40	44	0.115/0.075	2	-0.03/-0.08	30	0/-0.3
DBB4040	40	44	0.115/0.075	2	-0.03/-0.08	40	0/-0.3
DBB4050	40	44	0.115/0.075	2	-0.03/-0.08	50	0/-0.3
DBB4520	45	50	0.115/0.075	2.5	-0.04/-0.095	20	0/-0.3
DBB4525	45	50	0.115/0.075	2.5	-0.04/-0.095	25	0/-0.3
DBB4530	45	50	0.115/0.075	2.5	-0.04/-0.095	30	0/-0.3
DBB4540	45	50	0.115/0.075	2.5	-0.04/-0.095	40	0/-0.3
DBB4550	45	50	0.115/0.075	2.5	-0.04/-0.095	50	0/-0.3
DBB5020	50	55	0.145/0.095	2.5	-0.04/-0.095	20	0/-0.3
DBB5030	50	55	0.145/0.095	2.5	-0.04/-0.095	30	0/-0.3
DBB5040	50	55	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB5060	50	55	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB5530	55	60	0.145/0.095	2.5	-0.04/-0.095	30	0/-0.3
DBB5540	55	60	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB5560	55	60	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB6030	60	65	0.145/0.095	2.5	-0.04/-0.095	30	0/-0.3
DBB6040	60	65	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB6060	60	65	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB6530	65	70	0.145/0.095	2.5	-0.04/-0.095	30	0/-0.3
DBB6540	65	70	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB6560	65	70	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB7040	70	75	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB7060	70	75	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB7080	70	75	0.145/0.095	2.5	-0.04/-0.095	80	0/-0.3
DBB7530	75	80	0.145/0.095	2.5	-0.04/-0.095	30	0/-0.3
DBB7540	75	80	0.145/0.095	2.5	-0.04/-0.095	40	0/-0.3
DBB7560	75	80	0.145/0.095	2.5	-0.04/-0.095	60	0/-0.3
DBB7580	75	80	0.145/0.095	2.5	-0.04/-0.095	80	0/-0.3
DBB8040	80	85	0.165/0.1	2.5	-0.04/-0.095	40	0/-0.3
DBB8060	80	85	0.165/0.1	2.5	-0.04/-0.095	60	0/-0.3
DBB8080	80	85	0.165/0.1	2.5	-0.04/-0.095	80	0/-0.3
DBB8540	85	90	0.165/0.1	2.5	-0.04/-0.095	40	0/-0.3
DBB8560	85	90	0.165/0.1	2.5	-0.04/-0.095	60	0/-0.3
DBB8580	85	90	0.165/0.1	2.5	-0.04/-0.095	80	0/-0.3
DBB9040	90	95	0.165/0.1	2.5	-0.04/-0.095	40	0/-0.3
DBB9060	90	95	0.165/0.1	2.5	-0.04/-0.095	60	0/-0.3
DBB9090	90	95	0.165/0.1	2.5	-0.04/-0.095	90	0/-0.3
DBB10050	100	105	0.18/0.115	2.5	-0.04/-0.095	50	0/-0.3
DBB10070	100	105	0.18/0.115	2.5	-0.04/-0.095	70	0/-0.3
DBB10095	100	105	0.18/0.115	2.5	-0.04/-0.095	95	0/-0.3

형식	추천상대치수	추천상대치수	추천상대치수	추천상대치수
형식	하우징내경	하우징내경	축경	축경
형식	(mm)	공차	(mm)	공차
DBB0504	7	H7(+0.015/0)	5	h7(0/-0.012)
DBB0505	7	H7(+0.015/0)	5	h7(0/-0.012)
DBB0506	7	H7(+0.015/0)	5	h7(0/-0.012)
DBB0508	7	H7(+0.015/0)	5	h7(0/-0.012)
DBB0605	8	H7(+0.015/0)	6	h7(0/-0.012)
DBB0606	8	H7(+0.015/0)	6	h7(0/-0.012)
DBB0607	8	H7(+0.015/0)	6	h7(0/-0.012)
DBB0608	8	H7(+0.015/0)	6	h7(0/-0.012)
DBB0610	8	H7(+0.015/0)	6	h7(0/-0.012)
DBB0705	9	H7(+0.015/0)	7	h7(0/-0.015)
DBB0707	9	H7(+0.015/0)	7	h7(0/-0.015)
DBB0710	9	H7(+0.015/0)	7	h7(0/-0.015)
DBB0712	9	H7(+0.015/0)	7	h7(0/-0.015)
DBB0806	10	H7(+0.015/0)	8	h7(0/-0.015)
DBB0808	10	H7(+0.015/0)	8	h7(0/-0.015)
DBB0810	10	H7(+0.015/0)	8	h7(0/-0.015)
DBB0812	10	H7(+0.015/0)	8	h7(0/-0.015)
DBB1006	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1007	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1008	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1010	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1012	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1015	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1020	12	H7(+0.018/0)	10	h7(0/-0.015)
DBB1206	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1208	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1210	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1212	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1215	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1220	14	H7(+0.018/0)	12	h7(0/-0.018)
DBB1410	16	H7(+0.018/0)	14	h7(0/-0.018)
DBB1412	16	H7(+0.018/0)	14	h7(0/-0.018)
DBB1415	16	H7(+0.018/0)	14	h7(0/-0.018)
DBB1420	16	H7(+0.018/0)	14	h7(0/-0.018)
DBB1510	17	H7(+0.018/0)	15	h7(0/-0.018)
DBB1512	17	H7(+0.018/0)	15	h7(0/-0.018)
DBB1515	17	H7(+0.018/0)	15	h7(0/-0.018)
DBB1520	17	H7(+0.018/0)	15	h7(0/-0.018)
DBB1525	17	H7(+0.018/0)	15	h7(0/-0.018)
DBB1610	18	H7(+0.018/0)	16	h7(0/-0.018)
DBB1612	18	H7(+0.018/0)	16	h7(0/-0.018)
DBB1615	18	H7(+0.018/0)	16	h7(0/-0.018)
DBB1620	18	H7(+0.018/0)	16	h7(0/-0.018)
DBB1625	18	H7(+0.018/0)	16	h7(0/-0.018)
DBB1810	20	H7(+0.021/0)	18	h7(0/-0.018)
DBB1812	20	H7(+0.021/0)	18	h7(0/-0.018)
DBB1815	20	H7(+0.021/0)	18	h7(0/-0.018)
DBB1820	20	H7(+0.021/0)	18	h7(0/-0.018)
DBB1825	20	H7(+0.021/0)	18	h7(0/-0.018)
DBB2010	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2012	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2015	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2020	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2025	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2030	23	H7(+0.021/0)	20	h7(0/-0.021)
DBB2210	25	H7(+0.021/0)	22	h7(0/-0.021)
DBB2212	25	H7(+0.021/0)	22	h7(0/-0.021)
DBB2215	25	H7(+0.021/0)	22	h7(0/-0.021)
DBB2220	25	H7(+0.021/0)	22	h7(0/-0.021)
DBB2225	25	H7(+0.021/0)	22	h7(0/-0.021)
DBB2415	27	H7(+0.021/0)	24	h7(0/-0.021)
DBB2420	27	H7(+0.021/0)	24	h7(0/-0.021)
DBB2425	27	H7(+0.021/0)	24	h7(0/-0.021)
DBB2430	27	H7(+0.021/0)	24	h7(0/-0.021)
DBB2510	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2512	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2515	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2520	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2525	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2530	28	H7(+0.021/0)	25	h7(0/-0.021)
DBB2615	30	H7(+0.021/0)	26	h7(0/-0.021)
DBB2620	30	H7(+0.021/0)	26	h7(0/-0.021)
DBB2630	30	H7(+0.021/0)	26	h7(0/-0.021)
DBB2812	32	H7(+0.025/0)	28	h7(0/-0.021)
DBB2815	32	H7(+0.025/0)	28	h7(0/-0.021)
DBB2820	32	H7(+0.025/0)	28	h7(0/-0.021)
DBB2830	32	H7(+0.025/0)	28	h7(0/-0.021)
DBB3012	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3015	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3020	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3025	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3030	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3040	34	H7(+0.025/0)	30	h7(0/-0.021)
DBB3220	36	H7(+0.025/0)	32	h7(0/-0.025)
DBB3225	36	H7(+0.025/0)	32	h7(0/-0.025)
DBB3230	36	H7(+0.025/0)	32	h7(0/-0.025)
DBB3240	36	H7(+0.025/0)	32	h7(0/-0.025)
DBB3512	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3520	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3525	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3530	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3540	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3550	39	H7(+0.025/0)	35	h7(0/-0.025)
DBB3820	42	H7(+0.025/0)	38	h7(0/-0.025)
DBB3840	42	H7(+0.025/0)	38	h7(0/-0.025)
DBB4012	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4020	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4025	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4030	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4040	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4050	44	H7(+0.025/0)	40	h7(0/-0.025)
DBB4520	50	H7(+0.025/0)	45	h7(0/-0.025)
DBB4525	50	H7(+0.025/0)	45	h7(0/-0.025)
DBB4530	50	H7(+0.025/0)	45	h7(0/-0.025)
DBB4540	50	H7(+0.025/0)	45	h7(0/-0.025)
DBB4550	50	H7(+0.025/0)	45	h7(0/-0.025)
DBB5020	55	H7(+0.030/0)	50	h7(0/-0.025)
DBB5030	55	H7(+0.030/0)	50	h7(0/-0.025)
DBB5040	55	H7(+0.030/0)	50	h7(0/-0.025)
DBB5060	55	H7(+0.030/0)	50	h7(0/-0.025)
DBB5530	60	H7(+0.030/0)	55	h7(0/-0.030)
DBB5540	60	H7(+0.030/0)	55	h7(0/-0.030)
DBB5560	60	H7(+0.030/0)	55	h7(0/-0.030)
DBB6030	65	H7(+0.030/0)	60	h7(0/-0.030)
DBB6040	65	H7(+0.030/0)	60	h7(0/-0.030)
DBB6060	65	H7(+0.030/0)	60	h7(0/-0.030)
DBB6530	70	H7(+0.030/0)	65	h7(0/-0.030)
DBB6540	70	H7(+0.030/0)	65	h7(0/-0.030)
DBB6560	70	H7(+0.030/0)	65	h7(0/-0.030)
DBB7040	75	H7(+0.030/0)	70	h7(0/-0.030)
DBB7060	75	H7(+0.030/0)	70	h7(0/-0.030)
DBB7080	75	H7(+0.030/0)	70	h7(0/-0.030)
DBB7530	80	H7(+0.030/0)	70	h7(0/-0.030)
DBB7540	80	H7(+0.030/0)	70	h7(0/-0.030)
DBB7560	80	H7(+0.030/0)	70	h7(0/-0.030)
DBB7580	80	H7(+0.030/0)	70	h7(0/-0.030)
DBB8040	85	H7(+0.035/0)	80	h7(0/-0.030)
DBB8060	85	H7(+0.035/0)	80	h7(0/-0.030)
DBB8080	85	H7(+0.035/0)	80	h7(0/-0.030)
DBB8540	90	H7(+0.035/0)	85	h7(0/-0.035)
DBB8560	90	H7(+0.035/0)	85	h7(0/-0.035)
DBB8580	90	H7(+0.035/0)	85	h7(0/-0.035)
DBB9040	95	H7(+0.035/0)	90	h7(0/-0.035)
DBB9060	95	H7(+0.035/0)	90	h7(0/-0.035)
DBB9090	95	H7(+0.035/0)	90	h7(0/-0.035)
DBB10050	105	H7(+0.035/0)	100	h7(0/-0.035)
DBB10070	105	H7(+0.035/0)	100	h7(0/-0.035)
DBB10095	105	H7(+0.035/0)	100	h7(0/-0.035)

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
DBB0504	P	2,420	-	-	-	-	견적의뢰 / 주문
DBB0505	P	2,420	-	-	-	-	견적의뢰 / 주문
DBB0506	P	2,420	-	-	-	-	견적의뢰 / 주문
DBB0508	P	2,420	-	-	-	-	견적의뢰 / 주문
DBB0605	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0606	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0607	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0608	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0610	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0705	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0707	P	2,530	-	-	-	-	견적의뢰 / 주문
DBB0710	P	2,860	-	-	-	-	견적의뢰 / 주문
DBB0712	P	2,860	-	-	-	-	견적의뢰 / 주문
DBB0806	P	2,860	-	-	-	-	견적의뢰 / 주문
DBB0808	P	2,860	-	-	-	-	견적의뢰 / 주문
DBB0810	P	3,080	-	-	-	-	견적의뢰 / 주문
DBB0812	P	3,080	-	-	-	-	견적의뢰 / 주문
DBB1006	P	3,190	-	-	-	-	견적의뢰 / 주문
DBB1007	P	3,190	-	-	-	-	견적의뢰 / 주문
DBB1008	P	3,190	-	-	-	-	견적의뢰 / 주문
DBB1010	P	3,410	-	-	-	-	견적의뢰 / 주문
DBB1012	P	3,630	-	-	-	-	견적의뢰 / 주문
DBB1015	P	3,740	-	-	-	-	견적의뢰 / 주문
DBB1020	P	3,960	-	-	-	-	견적의뢰 / 주문
DBB1206	P	3,190	-	-	-	-	견적의뢰 / 주문
DBB1208	P	3,190	-	-	-	-	견적의뢰 / 주문
DBB1210	P	3,410	-	-	-	-	견적의뢰 / 주문
DBB1212	P	3,630	-	-	-	-	견적의뢰 / 주문
DBB1215	P	3,740	-	-	-	-	견적의뢰 / 주문
DBB1220	P	4,290	-	-	-	-	견적의뢰 / 주문
DBB1410	P	3,740	-	-	-	-	견적의뢰 / 주문
DBB1412	P	3,740	-	-	-	-	견적의뢰 / 주문
DBB1415	P	3,850	-	-	-	-	견적의뢰 / 주문
DBB1420	P	4,290	-	-	-	-	견적의뢰 / 주문
DBB1510	P	3,740	-	-	-	-	견적의뢰 / 주문
DBB1512	P	3,850	-	-	-	-	견적의뢰 / 주문
DBB1515	P	4,290	-	-	-	-	견적의뢰 / 주문
DBB1520	P	4,730	-	-	-	-	견적의뢰 / 주문
DBB1525	P	5,280	-	-	-	-	견적의뢰 / 주문
DBB1610	P	3,850	-	-	-	-	견적의뢰 / 주문
DBB1612	P	4,290	-	-	-	-	견적의뢰 / 주문
DBB1615	P	4,730	-	-	-	-	견적의뢰 / 주문
DBB1620	P	5,830	-	-	-	-	견적의뢰 / 주문
DBB1625	P	6,050	-	-	-	-	견적의뢰 / 주문
DBB1810	P	4,290	-	-	-	-	견적의뢰 / 주문
DBB1812	P	4,510	-	-	-	-	견적의뢰 / 주문
DBB1815	P	5,280	-	-	-	-	견적의뢰 / 주문
DBB1820	P	5,940	-	-	-	-	견적의뢰 / 주문
DBB1825	P	6,710	-	-	-	-	견적의뢰 / 주문
DBB2010	P	4,730	-	-	-	-	견적의뢰 / 주문
DBB2012	P	5,500	-	-	-	-	견적의뢰 / 주문
DBB2015	P	5,940	-	-	-	-	견적의뢰 / 주문
DBB2020	P	6,930	-	-	-	-	견적의뢰 / 주문
DBB2025	P	7,370	-	-	-	-	견적의뢰 / 주문
DBB2030	P	8,580	-	-	-	-	견적의뢰 / 주문
DBB2210	P	5,060	-	-	-	-	견적의뢰 / 주문
DBB2212	P	5,500	-	-	-	-	견적의뢰 / 주문
DBB2215	P	5,940	-	-	-	-	견적의뢰 / 주문
DBB2220	P	6,930	-	-	-	-	견적의뢰 / 주문
DBB2225	P	7,590	-	-	-	-	견적의뢰 / 주문
DBB2415	P	6,050	-	-	-	-	견적의뢰 / 주문
DBB2420	P	7,150	-	-	-	-	견적의뢰 / 주문
DBB2425	P	8,250	-	-	-	-	견적의뢰 / 주문
DBB2430	P	9,460	-	-	-	-	견적의뢰 / 주문
DBB2510	P	5,280	-	-	-	-	견적의뢰 / 주문
DBB2512	P	5,720	-	-	-	-	견적의뢰 / 주문
DBB2515	P	6,490	-	-	-	-	견적의뢰 / 주문
DBB2520	P	7,370	-	-	-	-	견적의뢰 / 주문
DBB2525	P	8,580	-	-	-	-	견적의뢰 / 주문
DBB2530	P	9,680	-	-	-	-	견적의뢰 / 주문
DBB2615	P	6,820	-	-	-	-	견적의뢰 / 주문
DBB2620	P	7,480	-	-	-	-	견적의뢰 / 주문
DBB2630	P	9,900	-	-	-	-	견적의뢰 / 주문
DBB2812	P	6,490	-	-	-	-	견적의뢰 / 주문
DBB2815	P	6,930	-	-	-	-	견적의뢰 / 주문
DBB2820	P	8,030	-	-	-	-	견적의뢰 / 주문
DBB2830	P	10,340	-	-	-	-	견적의뢰 / 주문
DBB3012	P	6,710	-	-	-	-	견적의뢰 / 주문
DBB3015	P	7,150	-	-	-	-	견적의뢰 / 주문
DBB3020	P	8,580	-	-	-	-	견적의뢰 / 주문
DBB3025	P	9,680	-	-	-	-	견적의뢰 / 주문
DBB3030	P	10,780	-	-	-	-	견적의뢰 / 주문
DBB3040	P	13,310	-	-	-	-	견적의뢰 / 주문
DBB3220	P	8,690	-	-	-	-	견적의뢰 / 주문
DBB3225	P	10,340	-	-	-	-	견적의뢰 / 주문
DBB3230	P	11,110	-	-	-	-	견적의뢰 / 주문
DBB3240	P	14,300	-	-	-	-	견적의뢰 / 주문
DBB3512	P	7,150	-	-	-	-	견적의뢰 / 주문
DBB3520	P	8,910	-	-	-	-	견적의뢰 / 주문
DBB3525	P	10,780	-	-	-	-	견적의뢰 / 주문
DBB3530	P	11,770	-	-	-	-	견적의뢰 / 주문
DBB3540	P	15,180	-	-	-	-	견적의뢰 / 주문
DBB3550	P	18,150	-	-	-	-	견적의뢰 / 주문
DBB3820	P	9,130	-	-	-	-	견적의뢰 / 주문
DBB3840	P	16,830	-	-	-	-	견적의뢰 / 주문
DBB4012	P	7,590	-	-	-	-	견적의뢰 / 주문
DBB4020	P	9,570	-	-	-	-	견적의뢰 / 주문
DBB4025	P	11,660	-	-	-	-	견적의뢰 / 주문
DBB4030	P	13,530	-	-	-	-	견적의뢰 / 주문
DBB4040	P	17,270	-	-	-	-	견적의뢰 / 주문
DBB4050	P	20,460	-	-	-	-	견적의뢰 / 주문
DBB4520	P	12,980	-	-	-	-	견적의뢰 / 주문
DBB4525	P	14,740	-	-	-	-	견적의뢰 / 주문
DBB4530	P	16,830	-	-	-	-	견적의뢰 / 주문
DBB4540	P	21,450	-	-	-	-	견적의뢰 / 주문
DBB4550	P	25,850	-	-	-	-	견적의뢰 / 주문
DBB5020	P	14,300	-	-	-	-	견적의뢰 / 주문
DBB5030	P	18,260	-	-	-	-	견적의뢰 / 주문
DBB5040	P	24,200	-	-	-	-	견적의뢰 / 주문
DBB5060	P	34,100	-	-	-	-	견적의뢰 / 주문
DBB5530	P	24,640	-	-	-	-	견적의뢰 / 주문
DBB5540	P	30,140	-	-	-	-	견적의뢰 / 주문
DBB5560	P	41,250	-	-	-	-	견적의뢰 / 주문
DBB6030	P	28,490	-	-	-	-	견적의뢰 / 주문
DBB6040	P	32,230	-	-	-	-	견적의뢰 / 주문
DBB6060	P	43,890	-	-	-	-	견적의뢰 / 주문
DBB6530	P	30,910	-	-	-	-	견적의뢰 / 주문
DBB6540	P	35,310	-	-	-	-	견적의뢰 / 주문
DBB6560	P	45,430	-	-	-	-	견적의뢰 / 주문
DBB7040	P	36,190	-	-	-	-	견적의뢰 / 주문
DBB7060	P	50,380	-	-	-	-	견적의뢰 / 주문
DBB7080	P	65,450	-	-	-	-	견적의뢰 / 주문
DBB7530	P	35,090	-	-	-	-	견적의뢰 / 주문
DBB7540	P	41,030	-	-	-	-	견적의뢰 / 주문
DBB7560	P	55,770	-	-	-	-	견적의뢰 / 주문
DBB7580	P	74,030	-	-	-	-	견적의뢰 / 주문
DBB8040	P	44,990	-	-	-	-	견적의뢰 / 주문
DBB8060	P	63,140	-	-	-	-	견적의뢰 / 주문
DBB8080	P	85,470	-	-	-	-	견적의뢰 / 주문
DBB8540	P	51,040	-	-	-	-	견적의뢰 / 주문
DBB8560	P	69,630	-	-	-	-	견적의뢰 / 주문
DBB8580	P	89,430	-	-	-	-	견적의뢰 / 주문
DBB9040	P	56,980	-	-	-	-	견적의뢰 / 주문
DBB9060	P	76,010	-	-	-	-	견적의뢰 / 주문
DBB9090	P	106,590	-	-	-	-	견적의뢰 / 주문
DBB10050	P	81,730	-	-	-	-	견적의뢰 / 주문
DBB10070	P	111,100	-	-	-	-	견적의뢰 / 주문
DBB10095	P	143,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
