HOME > 축수 > 드라이베어링 > 다이베스트 DBB02 > 다이베스트DBS02 차양붙이부시 DBS-F
다이베스트 DBB02

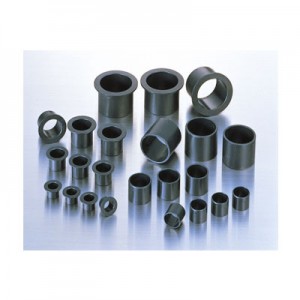

다이베스트DBS02 차양붙이부시 DBS-F
다이도메탈공업(주) ( DAIDO METAL )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    58건 중 1~58건 표시

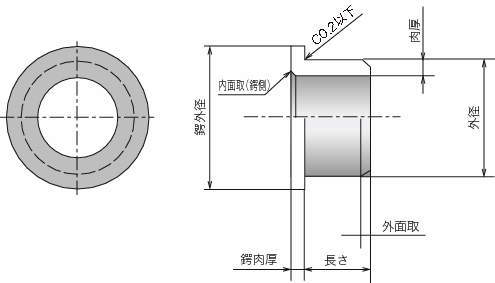

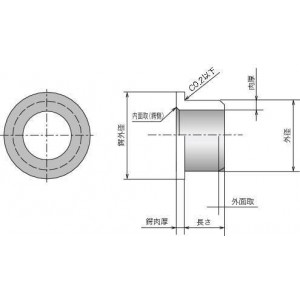

    형식부시치수부시치수부시치수부시치수부시치수부시치수부시치수부시치수부시치수
    형식내경
    (mm)    		외경외경살두께살두께플랜지외경플랜지외경플랜지두께플랜지두께
    형식내경
    (mm)    		(mm)공차(mm)공차(mm)공차(mm)공차
    DBS0303-8F350.21/0.0721-0.015/-0.078±0.2510/-0.1
    DBS0404-9F460.21/0.0721-0.023/-0.0789±0.2510/-0.1
    DBS0406-9F460.21/0.0721-0.023/-0.0789±0.2510/-0.1
    DBS0504-10F570.27/0.0951-0.025/-0.08510±0.2510/-0.1
    DBS0505-10F570.27/0.0951-0.025/-0.08510±0.2510/-0.1
    DBS0507-10F570.27/0.0951-0.025/-0.08510±0.2510/-0.1
    DBS0605-12F680.27/0.0951-0.025/-0.08512±0.2510/-0.1
    DBS0606-12F680.27/0.0951-0.025/-0.08512±0.2510/-0.1
    DBS0608-12F680.27/0.0951-0.025/-0.08512±0.2510/-0.1
    DBS0705-13F790.27/0.0951-0.025/-0.08513±0.2510/-0.1
    DBS0707-13F790.27/0.0951-0.025/-0.08513±0.2510/-0.1
    DBS0806-15F8100.27/0.0951-0.025/-0.08515±0.2510/-0.1
    DBS0808-15F8100.27/0.0951-0.025/-0.08515±0.2510/-0.1
    DBS0810-15F8100.27/0.0951-0.025/-0.08515±0.2510/-0.1
    DBS1006-18F10120.34/0.1081-0.025/-0.08518±0.2510/-0.1
    DBS1008-18F10120.34/0.1081-0.025/-0.08518±0.2510/-0.1
    DBS1010-18F10120.34/0.1081-0.025/-0.08518±0.2510/-0.1
    DBS1012-18F10120.34/0.1081-0.025/-0.08518±0.2510/-0.1
    DBS1015-18F10120.34/0.1081-0.025/-0.08518±0.2510/-0.1
    DBS1206-20F12140.34/0.1081-0.025/-0.08520±0.2510/-0.1
    DBS1208-20F12140.34/0.1081-0.025/-0.08520±0.2510/-0.1
    DBS1210-20F12140.34/0.1081-0.025/-0.08520±0.2510/-0.1
    DBS1212-20F12140.34/0.1081-0.025/-0.08520±0.2510/-0.1
    DBS1215-20F12140.34/0.1081-0.025/-0.08520±0.2510/-0.1
    DBS1410-22F14160.34/0.1081-0.025/-0.08522±0.2510/-0.1
    DBS1412-22F14160.34/0.1081-0.025/-0.08522±0.2510/-0.1
    DBS1415-22F14160.34/0.1081-0.025/-0.08522±0.2510/-0.1
    DBS1420-22F14160.34/0.1081-0.025/-0.08522±0.2510/-0.1
    DBS1510-23F15170.34/0.1081-0.025/-0.08523±0.2510/-0.1
    DBS1512-23F15170.34/0.1081-0.025/-0.08523±0.2510/-0.1
    DBS1515-23F15170.34/0.1081-0.025/-0.08523±0.2510/-0.1
    DBS1520-23F15170.34/0.1081-0.025/-0.08523±0.2510/-0.1
    DBS1610-24F16180.34/0.1081-0.025/-0.08524±0.2510/-0.1
    DBS1615-24F16180.34/0.1081-0.025/-0.08524±0.2510/-0.1
    DBS1620-24F16180.34/0.1081-0.025/-0.08524±0.2510/-0.1
    DBS1810-26F18200.45/0.1211-0.025/-0.08526±0.2510/-0.1
    DBS1812-26F18200.45/0.1211-0.025/-0.08526±0.2510/-0.1
    DBS1815-26F18200.45/0.1211-0.025/-0.08526±0.2510/-0.1
    DBS1820-26F18200.45/0.1211-0.025/-0.08526±0.2510/-0.1
    DBS2010-31F20230.45/0.1211.5-0.027/-0.08731±0.251.50/-0.15
    DBS2015-31F20230.45/0.1211.5-0.027/-0.08731±0.251.50/-0.15
    DBS2020-31F20230.45/0.1211.5-0.027/-0.08731±0.251.50/-0.15
    DBS2025-31F20230.45/0.1211.5-0.027/-0.08731±0.251.50/-0.15
    DBS2210-33F22250.45/0.1211.5-0.027/-0.08733±0.251.50/-0.15
    DBS2215-33F22250.45/0.1211.5-0.027/-0.08733±0.251.50/-0.15
    DBS2220-33F22250.45/0.1211.5-0.027/-0.08733±0.251.50/-0.15
    DBS2225-33F22250.45/0.1211.5-0.027/-0.08733±0.251.50/-0.15
    DBS2510-36F25280.45/0.1211.5-0.027/-0.08736±0.251.50/-0.15
    DBS2515-36F25280.45/0.1211.5-0.027/-0.08736±0.251.50/-0.15
    DBS2520-36F25280.45/0.1211.5-0.027/-0.08736±0.251.50/-0.15
    DBS2525-36F25280.45/0.1211.5-0.027/-0.08736±0.251.50/-0.15
    DBS2530-36F25280.45/0.1211.5-0.027/-0.08736±0.251.50/-0.15
    DBS3020-42F30340.55/0.1312-0.03/-0.03942±0.2520/-0.15
    DBS3030-42F30340.55/0.1312-0.03/-0.03942±0.2520/-0.15
    DBS3040-42F30340.55/0.1312-0.03/-0.03942±0.2520/-0.15
    DBS3520-49F35390.55/0.1312-0.03/-0.03949±0.2520/-0.15
    DBS3530-49F35390.55/0.1312-0.03/-0.03949±0.2520/-0.15
    DBS3540-49F35390.55/0.1312-0.03/-0.03949±0.2520/-0.15
    형식부시치수(길이)부시치수(길이)추천상대치수추천상대치수추천상대치수추천상대치수
    형식*(mm)*공차하우징내경하우징내경축경축경
    형식*(mm)*공차(mm)공차(mm)공차
    DBS0303-8F30/-0.35H7(+0.012/0)3h7(0/-0.010)
    DBS0404-9F40/-0.36H7(+0.012/0)4h7(0/-0.012)
    DBS0406-9F60/-0.36H7(+0.012/0)4h7(0/-0.012)
    DBS0504-10F40/-0.37H7(+0.015/0)5h7(0/-0.012)
    DBS0505-10F50/-0.37H7(+0.015/0)5h7(0/-0.012)
    DBS0507-10F70/-0.37H7(+0.015/0)5h7(0/-0.012)
    DBS0605-12F50/-0.38H7(+0.015/0)6h7(0/-0.012)
    DBS0606-12F60/-0.38H7(+0.015/0)6h7(0/-0.012)
    DBS0608-12F80/-0.38H7(+0.015/0)6h7(0/-0.012)
    DBS0705-13F50/-0.39H7(+0.015/0)7h7(0/-0.015)
    DBS0707-13F70/-0.39H7(+0.015/0)7h7(0/-0.015)
    DBS0806-15F60/-0.310H7(+0.015/0)8h7(0/-0.015)
    DBS0808-15F80/-0.310H7(+0.015/0)8h7(0/-0.015)
    DBS0810-15F100/-0.310H7(+0.015/0)8h7(0/-0.015)
    DBS1006-18F60/-0.312H7(-0.018/0)10h7(0/-0.015)
    DBS1008-18F80/-0.312H7(-0.018/0)10h7(0/-0.015)
    DBS1010-18F100/-0.312H7(-0.018/0)10h7(0/-0.015)
    DBS1012-18F120/-0.312H7(-0.018/0)10h7(0/-0.015)
    DBS1015-18F150/-0.312H7(-0.018/0)10h7(0/-0.015)
    DBS1206-20F60/-0.314H7(-0.018/0)12h7(0/-0.018)
    DBS1208-20F80/-0.314H7(-0.018/0)12h7(0/-0.018)
    DBS1210-20F100/-0.314H7(-0.018/0)12h7(0/-0.018)
    DBS1212-20F120/-0.314H7(-0.018/0)12h7(0/-0.018)
    DBS1215-20F150/-0.314H7(-0.018/0)12h7(0/-0.018)
    DBS1410-22F100/-0.316H7(-0.018/0)14h7(0/-0.018)
    DBS1412-22F120/-0.316H7(-0.018/0)14h7(0/-0.018)
    DBS1415-22F150/-0.316H7(-0.018/0)14h7(0/-0.018)
    DBS1420-22F200/-0.316H7(-0.018/0)14h7(0/-0.018)
    DBS1510-23F100/-0.317H7(-0.018/0)15h7(0/-0.018)
    DBS1512-23F120/-0.317H7(-0.018/0)15h7(0/-0.018)
    DBS1515-23F150/-0.317H7(-0.018/0)15h7(0/-0.018)
    DBS1520-23F200/-0.317H7(-0.018/0)15h7(0/-0.018)
    DBS1610-24F100/-0.318H7(-0.018/0)16h7(0/-0.018)
    DBS1615-24F150/-0.318H7(-0.018/0)16h7(0/-0.018)
    DBS1620-24F200/-0.318H7(-0.018/0)16h7(0/-0.018)
    DBS1810-26F100/-0.320H7(+0.021/0)18h7(0/-0.018)
    DBS1812-26F120/-0.320H7(+0.021/0)18h7(0/-0.018)
    DBS1815-26F150/-0.320H7(+0.021/0)18h7(0/-0.018)
    DBS1820-26F200/-0.320H7(+0.021/0)18h7(0/-0.018)
    DBS2010-31F100/-0.323H7(+0.021/0)20h7(0/-0.021)
    DBS2015-31F150/-0.323H7(+0.021/0)20h7(0/-0.021)
    DBS2020-31F200/-0.323H7(+0.021/0)20h7(0/-0.021)
    DBS2025-31F250/-0.323H7(+0.021/0)20h7(0/-0.021)
    DBS2210-33F100/-0.325H7(+0.021/0)22h7(0/-0.021)
    DBS2215-33F150/-0.325H7(+0.021/0)22h7(0/-0.021)
    DBS2220-33F200/-0.325H7(+0.021/0)22h7(0/-0.021)
    DBS2225-33F250/-0.325H7(+0.021/0)22h7(0/-0.021)
    DBS2510-36F100/-0.328H7(+0.021/0)25h7(0/-0.021)
    DBS2515-36F150/-0.328H7(+0.021/0)25h7(0/-0.021)
    DBS2520-36F200/-0.328H7(+0.021/0)25h7(0/-0.021)
    DBS2525-36F250/-0.328H7(+0.021/0)25h7(0/-0.021)
    DBS2530-36F300/-0.328H7(+0.021/0)25h7(0/-0.021)
    DBS3020-42F200/-0.334H7(+0.025/0)30h7(0/-0.021)
    DBS3030-42F300/-0.334H7(+0.025/0)30h7(0/-0.021)
    DBS3040-42F400/-0.334H7(+0.025/0)30h7(0/-0.021)
    DBS3520-49F200/-0.339H7(+0.025/0)35h7(0/-0.025)
    DBS3530-49F300/-0.339H7(+0.025/0)35h7(0/-0.025)
    DBS3540-49F400/-0.339H7(+0.025/0)35h7(0/-0.025)
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    DBS0303-8FP880----견적의뢰 / 주문
    DBS0404-9FP880----견적의뢰 / 주문
    DBS0406-9FP880----견적의뢰 / 주문
    DBS0504-10FP990----견적의뢰 / 주문
    DBS0505-10FP990----견적의뢰 / 주문
    DBS0507-10FP990----견적의뢰 / 주문
    DBS0605-12FP990----견적의뢰 / 주문
    DBS0606-12FP990----견적의뢰 / 주문
    DBS0608-12FP990----견적의뢰 / 주문
    DBS0705-13FP990----견적의뢰 / 주문
    DBS0707-13FP990----견적의뢰 / 주문
    DBS0806-15FP990----견적의뢰 / 주문
    DBS0808-15FP990----견적의뢰 / 주문
    DBS0810-15FP990----견적의뢰 / 주문
    DBS1006-18FP1,100----견적의뢰 / 주문
    DBS1008-18FP1,100----견적의뢰 / 주문
    DBS1010-18FP1,100----견적의뢰 / 주문
    DBS1012-18FP1,100----견적의뢰 / 주문
    DBS1015-18FP1,100----견적의뢰 / 주문
    DBS1206-20FP1,100----견적의뢰 / 주문
    DBS1208-20FP1,100----견적의뢰 / 주문
    DBS1210-20FP1,100----견적의뢰 / 주문
    DBS1212-20FP1,100----견적의뢰 / 주문
    DBS1215-20FP1,100----견적의뢰 / 주문
    DBS1410-22FP1,100----견적의뢰 / 주문
    DBS1412-22FP1,100----견적의뢰 / 주문
    DBS1415-22FP1,100----견적의뢰 / 주문
    DBS1420-22FP1,430----견적의뢰 / 주문
    DBS1510-23FP1,100----견적의뢰 / 주문
    DBS1512-23FP1,100----견적의뢰 / 주문
    DBS1515-23FP1,320----견적의뢰 / 주문
    DBS1520-23FP1,430----견적의뢰 / 주문
    DBS1610-24FP1,430----견적의뢰 / 주문
    DBS1615-24FP1,430----견적의뢰 / 주문
    DBS1620-24FP1,650----견적의뢰 / 주문
    DBS1810-26FP1,540----견적의뢰 / 주문
    DBS1812-26FP1,540----견적의뢰 / 주문
    DBS1815-26FP1,650----견적의뢰 / 주문
    DBS1820-26FP1,870----견적의뢰 / 주문
    DBS2010-31FP1,650----견적의뢰 / 주문
    DBS2015-31FP1,650----견적의뢰 / 주문
    DBS2020-31FP1,870----견적의뢰 / 주문
    DBS2025-31FP2,200----견적의뢰 / 주문
    DBS2210-33FP2,090----견적의뢰 / 주문
    DBS2215-33FP2,090----견적의뢰 / 주문
    DBS2220-33FP2,090----견적의뢰 / 주문
    DBS2225-33FP2,200----견적의뢰 / 주문
    DBS2510-36FP2,200----견적의뢰 / 주문
    DBS2515-36FP2,200----견적의뢰 / 주문
    DBS2520-36FP2,200----견적의뢰 / 주문
    DBS2525-36FP2,200----견적의뢰 / 주문
    DBS2530-36FP2,310----견적의뢰 / 주문
    DBS3020-42FP2,860----견적의뢰 / 주문
    DBS3030-42FP3,190----견적의뢰 / 주문
    DBS3040-42FP3,740----견적의뢰 / 주문
    DBS3520-49FP3,960----견적의뢰 / 주문
    DBS3530-49FP4,290----견적의뢰 / 주문
    DBS3540-49FP4,620----견적의뢰 / 주문

    - 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

    - 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

    - 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

    - 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.


    - 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
    - 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.
